PROTECT
SPREAD
YOUR FACILITY
WITH UV-C LIGHT
TECHNOLOGY
1.800.567.8400 info@meditek.ca WWW.MEDITEK.CA
UV-C Disinfection Explained
How it works?
UV technology destroys the genetic bonds
in pathogens rendering them unable to
replicate and cause infection.
UV light only works on directly exposed
surfaces in close proximity.
According to the FDA: “UVC radiation is
a known disinfectant for air, water, and
nonporous surfaces. UVC radiation has
effectively been used for decades to reduce
the spread of bacteria, such as tuberculosis.”
Why it works?
UV-C energy is completely absorbed by the
ozone layer.
Because of this, all bacteria and viruses
haven’t been exposed to it.
These organisms are left inhibited after
exposure to UV light.
1.800.567.8400 | info@meditek.ca | www.meditek.ca
UV-C Disinfection Explained
Prevent the spread of dangerous microorganisms and cre-
ate a safer environment with advanced UV-C systems.
UV TECHNOLOGY EXPLAINED
The delivery of UV-C light is based on the laws of physics with the Inverse Square Law.
This law states that every time the distance is doubled, the intensity of light energy is
reduced to ¼ of the power, not by ½.
For example, if the distance to a surface increases from 1ft. to 2ft. from the emitter, we
are left with only ¼ of the energy. If the distance to a surface increases from 1ft. to 4ft.
from the emitter, we are left with only 1/16 of the energy.
The graphic illustrates the physics of UV-C energy delivery.
1.800.567.8400 | info@meditek.ca | www.meditek.ca
UV-C Disinfection Solutions
Every year, thousands of people across the country are affected by healthcare-acquired
infections (HAIs). Infection prevention is now one of the most important factors in con-
trolling expenditures for hospitals, as germ-killing prevention is much easier to budget
for than a widespread HAI. Harmful organisms and bacteria remain on both patient and
operating room surfaces after traditional cleaning.
New times call for new solutions.
UV-C disinfection robots can prevent the spread of dangerous microorganisms, includ-
ing COVID-19 and create a safer environment for any industry and business, from long-
term care facilities, schools, police stations, universities to restaurants, hotels, and fitness
facilities.
FEATURED PRODUCTS

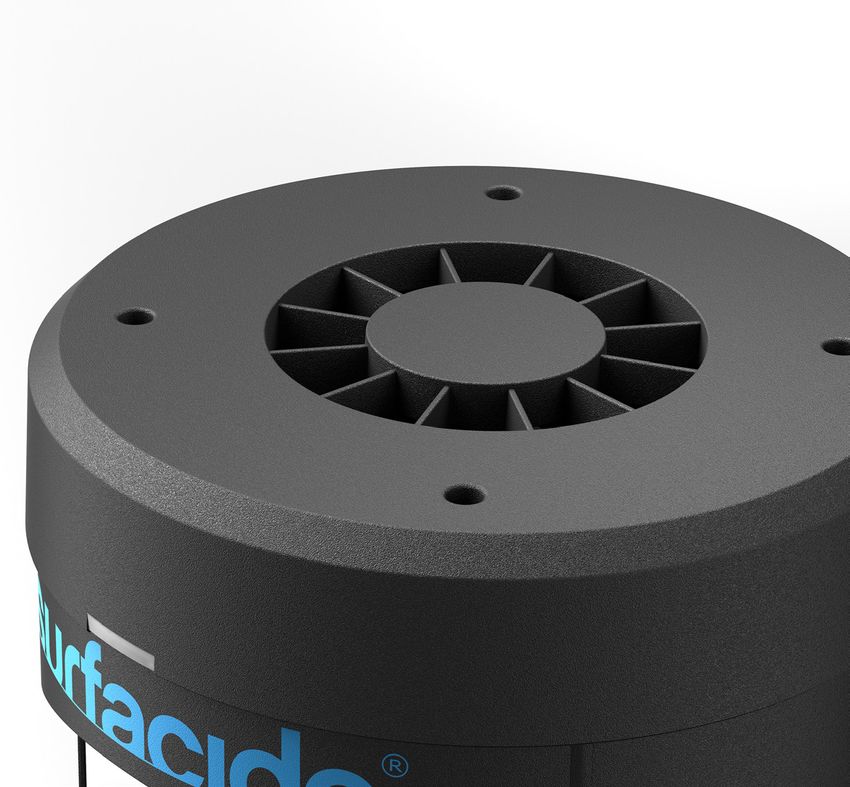

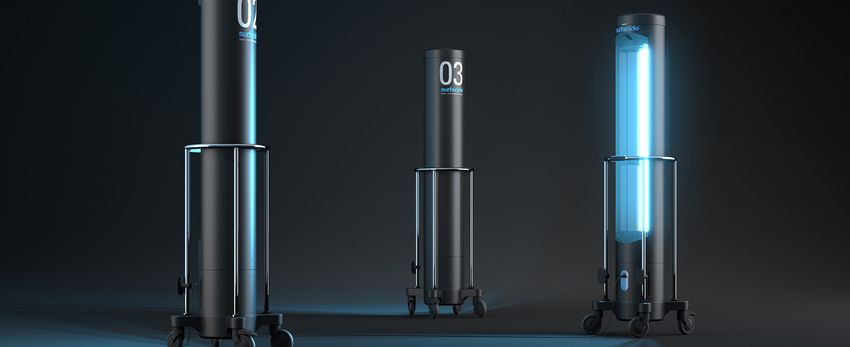

Surfacide Helios UV-C System
The Surfacide UV light disinfection robots
can cover an entire room and are able to
adjust UV-C dosage based on variables
such as room size, layout, furnishings, and
environmental characteristics.
It is also the only patented, UV-C hard sur-
face disinfection solution to use multiple
light-emitting robots in a single cycle of
disinfection, resulting in greater efficiency
in less time.
1.800.567.8400 | info@meditek.ca | www.meditek.ca
Surfacide Helios UV-C System
Features and Benefits:
• PowerBoost UV™ pushes Sufacide units beyond the UV disinfection capabilities
of any other UV-C disinfection robot.
• SmartDosage UV™ technology automatically adjust UV-C dosage and treatment
time as the robot operates.
• Field Balance™ sends more power to the areas of the room that need it.
• 3 UV light robot systems that cover the full spectrum of disinfection needs at
varying price points.
• One-step, whole-room UV light treatment operated
by an easy-to-use, wireless hand-held Steri-Trak™
controller.
Product Number: 455-0500-0003

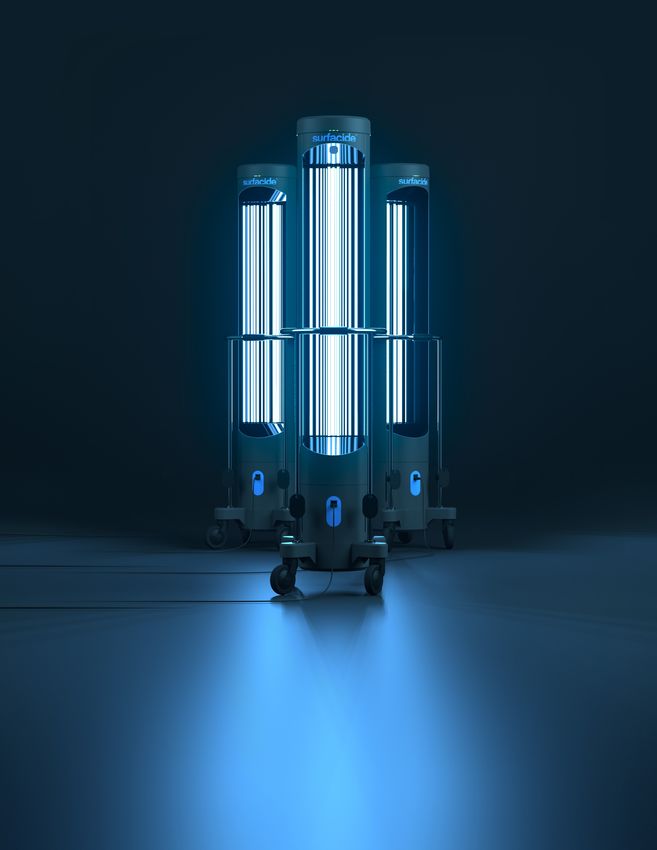

Surfacide Triple Emitter UV-C System
Product Number: 455-0500-0002
Surfacide Dual Emitter UV-C System
Product Number: 455-0500-0001
Surfacide Single Emitter UV-C System
Click here to watch the Surfacide in action.
1.800.567.8400 | info@meditek.ca | www.meditek.ca

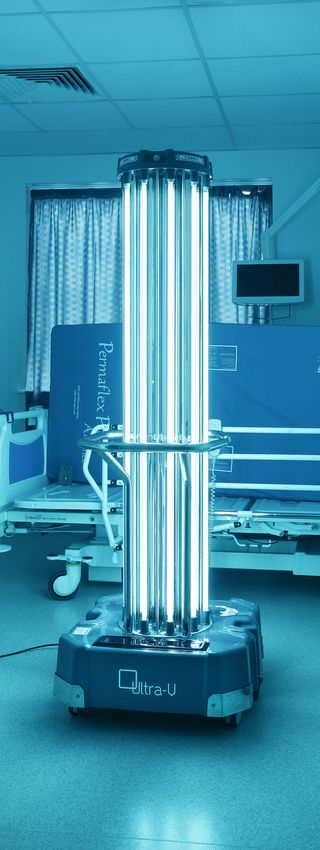

Inivos Ultra-V™ UV-C System
Inivos Ultra-V UV-C System
Ultra-V is a portable UV-C light decontamination
device to supplement manual cleaning. It emits light
specifically at the wavelength of 254nm through 10
powerful lamps. This high-intensity light level guar-
antees rapid decontamination ideal for high-risk
areas such as intensive care units (ICUs), neonatal
intensive care units (NICUs), isolation rooms, side
rooms, A&E and operating theatres. It can also be
used to decontaminate hospital equipment.
Ultra-V contains patented Spectrome technology,
which analyses, measures and adjusts the UV-C
exposure for each room to provide consistent and
measurable results, so you have the confidence and
knowledge that a full decontamination cycle has
taken place.
Features and Benefits:
• Ten high-intensity germicidal UV-C lamps.
• Secure keycard functionality restricts use to ap-
proved operators only.
• Detachable remote process monitor.
• Four rotating castors and a 360° handle for total
manoeuvrability.
• Integral power cable for single-socket operation.
• Emergency stop (from the monitor).
• Rapid cycle (under an hour).
Product Number: 455-0500-0023
Click here to watch the Ultra-V training video.
1.800.567.8400 | info@meditek.ca | www.meditek.ca

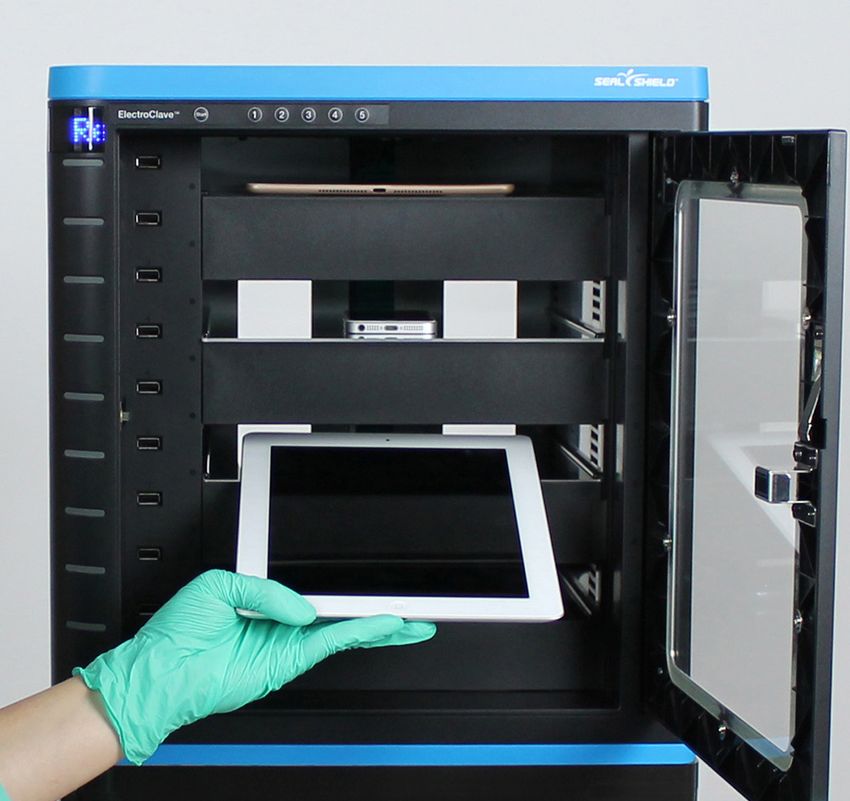

Seal Shield ElectroClave™ UV-C Box
Seal Shield ElectroClave UV-C Box
The revolutionary ElectroClave™ UVC disinfection
system is the first 360-degree LED UV-C disinfection
and mobile device management application for medi-
cal-grade disinfection in any environment.
The ElectroClave UV-C sanitizer is compatible with al-
most all handheld electronic devices. It’s also practical
with numerous industry equipment used in any orga-
nization.
Features and Benefits:
• 360 Degree Exposure
• 10 smart charging USB ports
• AOAC Efficacy Testing
• Non-touch access with NFC employee badges
• Wall and desktop mounts with locking feature Zero
Material Degradation
• Integrated RFID Technology
• Compliance Policy Monitoring
• Notifications / Alerts
• Mobile Device Imaging/Syncing
• HIPAA compliant
• Three models available with two, three and four
cabinets
Product Number: 455-0500-0007
ElectroClave UV-C Disifection Cabinet [4-Bay]
Product Number: 455-0500-0006
ElectroClave UV-C Disifection Cabinet [3-Bay]
Product Number: 455-0500-0005
ElectroClave UV-C Disifection Cabinet [2-Bay]
1.800.567.8400 | info@meditek.ca | www.meditek.ca
Aperon 160 UV-C Box
Aperon Vault 160 UV-C Box
The Aperon UV Vault 160 (275w) is a specialized UV-C box designed for quick object
disinfection while maintaining a safe work environment. High-intensity ultraviolet (UV-
C) bulbs produce germicidal light (254nm) that can eliminate viruses, bacteria, fungi
and other harmful microorganisms. The simple and efficient nature of the chamber
makes it an effective disinfection tool for multiple applications and industries:
• Medical facilities
• Personal care homes
• Educational institutions
• Retail spaces
• Construction sites
• Other industries.
Features and Benefits:
• Large 160-Litre Capacity
• Interchangeable rack system
• Magnetic doors
• 5 High-Output UV-C lamps
• Adjustable timer
• Single push-button operation
• Keyed power switch
• Verification window
• Emergency shut-off button
• Standard 120v plug
• Aluminum construction
• Custom carts (optional)
Product Number: 455-0500-0033
1.800.567.8400 | info@meditek.ca | www.meditek.ca
Healthe ENTRY® UV-C Gate
Healthe ENTRY® – Far-UVC Sanitizing Entry Gate
An effective sanitization system should include multiple points of protection. The Entry
provides the first defence line in reducing microbes on clothing and personal belong-
ings as people enter any indoor environment. The Entry employs far ultraviolet C (Far-
UVC) light, a narrow band of ultraviolet radiation proven to penetrate and inactivate
air and surface microbes. Unlike conventional UVC, Far-UVC does not require the use of
any UV protective equipment.
Positioning the Entry next to any high traffic or critical entry point can prevent the
spread of dangerous microorganisms like COVID-19 and create a safer environment.
People step into the Entry and make a slow 360° turn for 20 seconds to reduce the mi-
crobial load
Features and Benefits:
• Utilizes Far-UVC that sanitizes clothing and
personal belongings.
• Entryway is equipped with (5) Far-UVC mod-
ules.
• With arms raised, a slow 360-degree turn with-
in the Healthe® ENTRY frame reduces shadow-
ing for more complete coverage.
• Motion-controlled option via a built-in motion
sensor can help preserve the longevity of the
Far-UVC module during periods of inactivity.
• Universal input voltage, 85-264V AC with a
power consumption of 60W.
• Complies with ADA doorway width require-
ment and can be deployed as a free-standing
structure or be bolted to the ground near any
entrance or door.
Product Number: 455-0500-0036
1.800.567.8400 | info@meditek.ca | www.meditek.ca
Healthe SPACE - UV Illumination
Healthe SPACE – UV Sanitizing and Illumination
The Healthe Space is a passive and continuous
method to sanitize surfaces in occupied spaces.
It is easy to install, simply unscrew the existing light
from a six-inch recessed downlight, remove existing
trim (if applicable), screw in the Healthe Space, push
it in place and flip the switch to start the sanitizing.
Equipped with a Far-UVC source, the Space deliv-
ers 222 nanometer light to inactivate microbes; the
reduction achieved is dependent on the type of
contaminant, distance from the source and duration
of exposure. Scientific data supports the germicidal
efficacy and human safety of the novel Far-UVC
(222nm) technology, including independent re-
search backed by many peer-reviewed papers.
Features and Benefits:
• Integrated general illumination features a boost
at 435nm to help activate the antimicrobial prop-
erties of TiO₂ surface coatings and cleaners.
• Retrofit any 6” conventional recessed can fixture
to a sanitization downlight.
• Supports multiple input voltage, 120V-277V, with
a power consumption of 20W.
• Chemical-free process continuously improves air
quality.
Product Number: 455-0500-0037
1.800.567.8400 | info@meditek.ca | www.meditek.caHealthe AIR™ 2.0

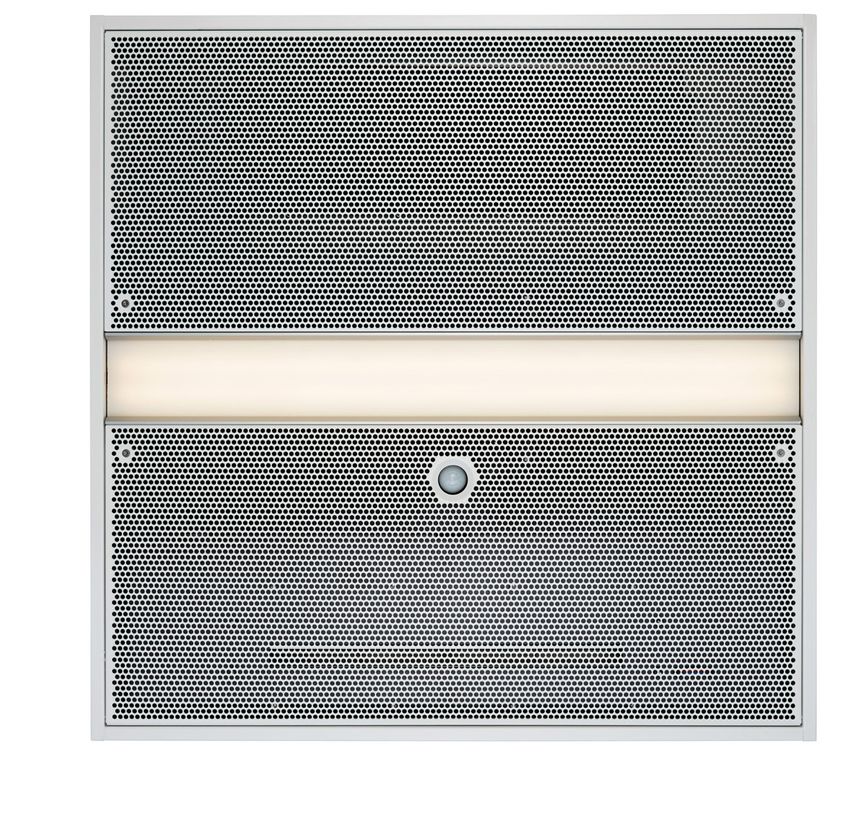

Healthe AIR 2.0 – UV Air Sanitizing Troffer
The Healthe Air 2.0 is a multi-stage air sanitization system that combines the germicidal
properties of ultraviolet C (UV-C), and HEPA-Carbon activated filtration to improve air
quality. The HEPA Carbon filter captures up to 99.97% of airborne microorganisms as
small as 0.3μ while UV-C provides additional support to inactivate microbes that pass
through the sealed chamber.
Features and Benefits:
• Multi-stage air sanitization features HE-
PA-Carbon activated filtration with UV
sanitization.
• HEPA filter captures up to 99.97% of air-
borne pathogens as small as 0.3 μ while
activated carbon reduces gases, odours
and VOC from the air.
• Easy plug-and-play installation without
additional setup required, including —
essential hardware both for new and
existing constructions.
• Integral PIR motion sensor activates air
sanitization when motion is detected.
• Choose from various CCT (3000K, 3500K,
4000K) to illuminate any space.
• The use of UV LED eliminates hazardous
material and waste disposal concerns of
traditional mercury-based UV lamps.
• Available in 2 x 2 in or 2 x 4 in to accom-
modate various applications and installa-
tions.
Product Number: 455-0500-0038
1.800.567.8400 | info@meditek.ca | www.meditek.caUV-C Products
Product Power Input Disinfection Dimensions Weight Product
System Number
455-0500-0003
100-240 V, 50/60Hz UV-C Light H: 196.6cm (77”) 56.7 kg (125 455-0500-0002
720 VA 254nm lbs) 455-0500-0001
H: 188cm
W: 66cm
120 V 60Hz UV-C Light D: 61cm 72kg (158.7 455-0500-0023
254nm (H: 74”, W: 26”, D: 24” ) lbs)
H: 42.7cm
W: 40cm 455-0500-0007
5AC 100-120 V, UV-C Light D: 34.8cm 15.5kg (34 455-0500-0006
50/60Hz, 3A (H: 16.8” , W: 15.7”, D: 13.7” ) lbs) 455-0500-0005
H: 70cm
W: 104cm
120 V 60Hz, 15A UV-C Light D: 59cm 45 kg (100 455-0500-0033
254nm (H: 27.75”, W: 41”, D: 23.25”) lbs)
H: 213.6cm
W: 141cm
85–264 V, 50/60 Hz Far-UV-C 222nm D: 30.5cm 113.4 kg (250 455-0500-0036
(H: 84.1”, W: 55.5”, D: 12”) lbs)
120–277 V, 50/60 Far-UV-C 222nm 10.4 cm x 7.7cm (Dia x H) 0.45 kg (1 lb) 455-0500-0037
Hz (4.1” x 3.05”)
H: 10cm, W: 60cm, D: 60cm 2x2: 12.2 kg
UV-C Light (H: 4”, W: 23.75”, D: 23.75”) (27 lbs)
120–277 V, 50/60 265nm, and 455-0500-0038
Hz HEPA-Carbon ac- H: 10cm, W: 60cm, D: 121cm 2x4: 15.4 kg
tivated filtration (H: 4”, W: 23.75”, D: 47.75”) (34 lbs)
1.800.567.8400 | info@meditek.ca | www.meditek.caBringing healthcare environments to life
Let MEDITEK give new life to your existing
equipment through our extensive remanufac-
turing process. We offer trusted professional
remanufacturing services for many types of
operating equipment at a fraction of the cost
of buying new.
Combat COVID-19 and danger-
ous microorganisms with UV-C light
technology.
Contact us to discover more about
our products and solutions.
1.800.567.8400 | info@meditek.ca | www.meditek.caYou can also read
