by Chris Schalk

Get an overview of the core fundamentals of Ajax, without the usual hype.
Published April 2006
You've probably heard all the Ajax hype by now, as well as seen the many products that claim Ajax
support or "compliance." However, you probably haven't seen a good, simple technical explanation of
what Ajax really "is." In this article, you'll get an overview of the core fundamentals of what makes
Ajax possible without all the usual product-pushing hype.

First of All, is Ajax New?
Not really. Remote Javascript, of which Ajax is one example and which has garnered the most attention
as of late, provides the ability to interact with a server using XML data. Ajax is possible because of the
leading browsers now offering objects that can make independent XML HTTP requests. Internet
Explorer 5 and later offer an XMLHTTP object while Mozilla based browsers provide an
XMLHttpRequest object. Both these objects offer essentially the same ability to request XML data
from a server and process the data in a similar fashion. The server-side Ajax component can be in any
technology providing XML can be delivered dynamically. Any dynamic Web technology ranging from
PHP to servlets can serve as an Ajax server.
One of the drawbacks to Remote Javascript and Ajax is that it forces the page author (the person
designing the final page) to develop a fair amount of Javascript code that manages the XMLHTTP
interactions. Fortunately, JavaServer Faces (JSF) provides a solution here and makes Ajax very easy to
use.

Ajax Under The Hood
Before reviewing more advanced examples of Ajax integrated with other technologies, such as with
JSF, it is useful to understand the core Ajax architecture involved in an Ajax client-server transaction.
Ajax is possible providing the two core technologies are present:
    •   A Javascript-enabled browser that supports either XMLHTTP or XMLHttpRequest objects
    •   An HTTP Server technology that can respond in XML
Because all the popular browsers support Javascript and the necessary XMLHTTP request objects and
almost any Web server technology can generate XML (or any markup), the core Ajax technology is
widely available.
An Ajax application in its simplest form is essentially a standard HTML user interface with Javascript
functions to interact with an HTTP server that can generate XML dynamically. Any dynamic Web
technology ranging from CGI to servlets—including JSF as we’ll review later—can serve as a server-
side Ajax technology.
The key elements of a core Ajax application are:
    •   An HTML page that contains:

•  UI elements that interact with Ajax Javascript functions
    •   Javascript Functions that interact with Ajax server
    •   A server-side Web technology that can process HTTP requests and respond in XML markup.

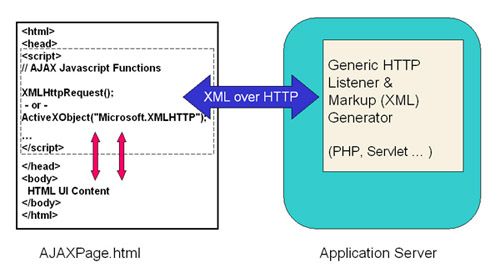

These elements are also shown in Figure 1.

                                     Figure 1 Core Ajax architecture
Reviewing the key elements, we have an HTML user interface with elements such as an input field, a
button or anything that can be linked to Javascript. For example, a button could fire a Javascript
function when pressed, or for even more subtle usage an input field could fire a Javascript function as
the user types into the field. For this you could set an onkeyup= to the value of the Javascript function
to process the data in the input field. For example, the input field “searchField” will call the Javascript
function lookup( ) when an onkeyup event occurs (i.e. during typing).

In addition to responding to user interface interactions (like typing), Ajax Javascript functions they can
operate independently on their own timers. (An Ajax autosave feature can be implemented using this
approach.)

How to Issue an XML HTTP Request
Now that we’ve reviewed how the Ajax Javascript code can be invoked, let’s review the actual code in
Javascript that can issue an XML HTTP request:
if (window.XMLHttpRequest) {
   req = new XMLHttpRequest();
}
else if (window.ActiveXObject) {
   req = new
ActiveXObject("Microsoft.XMLHTTP");
}

This code snippet allows both major browser families (Internet Explorer and Mozilla/Safari) to make
independent HTTP requests to servers. This code first checks to see if the browser supports either of

the supported XMLHTTP objects and then instantiates one.
Once an XMLHttpRequest (or Microsoft’s XMLHTTP) object has been instantiated, it can be operated
on in exactly the same manner.
To initialize a connection to a server, the open method is used:
req.open("GET", url, true);

The first argument is the HTTP method (GET or POST). The second argument is the URL of the
server (or form action is using a POST) and the third argument when true denotes whether the call
should be made asynchronously (The “A” in Ajax). This means that the browser can continue doing
other things while the request is being fulfilled. A false value in the open method denotes a non-
asynchronous or serial processing. This is not recommended, as your browser will cease operations
until the response has been returned.
After initializing a connection using open, the onreadystatechange call is made (only for asynchronous
calls). This registers a callback function, which will be invoked once the request is complete:

req.onreadystatechange = processXMLResponse;

The function processXMLResponse( ), which processes the XML response, is invoked when the
request is fulfilled. A callback function can also declared inline in the onreadystatechange statement:
req.onreadystatechange = processXMLResponse() {
// process request
};

Any header content can also be specified using req.setRequestHeader. Such as:

req.setRequestHeader("Cookie", "someKey=true");

Once the XMLHTTP request object (req) has been fully initialized, initiating a call to the server can be
done using send( ):
req.send(null);

For GET requests, a null value or empty string “” is used.
POST requests contain a string argument with form data. They also require the Content-Type to be set
in the header of the request. The following two lines show how to perform a Ajax POST request:
req.setRequestHeader("Content-Type",
"application/x-www-form-urlencoded";

 req.send("name=scott&email=stiger@foocorp.com");

The callback function, which is called once the request has been fulfilled, usually has some code to
make sure the request has not error-ed out. This can be accomplished by checking the readyState as
well as the overall status of the HTTP request. (A readystate of 4 means the XMLHTTP request is
complete and 200 means it was a success (as opposed to 404 etc.).
function processXMLResponse() {
  if (req.readyState == 4) {

if (req.status == 200) {
          // Process the XML response
        }
    }
}

Processing the XML response is done using standard Javascript DOM methods. For example, to extract
the employee name from the incoming XML stream:

  Chris

You can use the following:
var name = req.responseXML.getElementsByTagName("employee")[0];

Parsing more complex XML involves iterating through the elements using code such as:
for (i=0;i
