ONE-STOP SOLUTION
PERFORM CALIBRATIONS WITH THE TYPE OF
VALIDATION YOU WERE WAITING FOR
If you’re looking for ways to grow your business,
you need to have visibility of what the naked eye
can’t see. Tru-Point™ uses highly accurate advanced
camera technology, targets, and top-of-the-line
software to quickly uncover any alignment problems
the vehicle might have so you can perform a perfect
ADAS calibration.
Tru-Point™ streamlines the process from beginning
to end with simple, real-time, and interactive
visual indication, eliminating the need for manual
measurements or complicated guide references.
Our intuitive ergonomic controls enhance the on-
screen indications to easily and precisely position
the system to meet OEM specifications.
By creating a three-dimensional model of the
vehicle and its surroundings, only Tru-Point™
can check if the vehicle meets the required OEM
alignment specifications and also automatically
compensate for the levelness of the workshop floor.
Tru-Point™ provides job quality and increased
productivity, eliminating uncertainty so you can
focus on your business and customer satisfaction.
OEM COMPLIANT
FULL AUDIT SYSTEM E RT
C RACYI F I E D
VEHICLE ALIGNMENT CHECK ACCU
PROOF OF TARGET PLACEMENT
LEVEL FLOOR NOT REQUIRED
FULL AUDIT SYSTEM
The system not only fully audits the vehicle’s
NO MANUAL MEASUREMENTS alignment, but it also closely monitors each step of the
setup procedure, making sure that the process was
completed to meet OEM safety specifications.
BUILD YOUR
OWN SYSTEM
You can shop with confidence for calibration targets
and the most current data for the vehicle makes
and models you work with, ensuring that all your
calibrations are done accurately and efficiently.
CHECK PLACE CALIBRATE PROVE
CHECK PLACE CALIBRATE PROVE
Tru-PointTM uses highly accurate Tru-PointTM streamlines the process Designed to grant you total freedom, An easy-to-read report provides proof
advanced camera technology to to quickly help you place the targets Tru-PointTM allows you to use any that you executed all steps required
create a three-dimensional model of in the precise OEM-required location ADAS-capable scan tool to complete for a perfect calibration, guaranteeing
the vehicle and the area around it to without lasers and tape measures the calibration process. For the most you are putting a safe vehicle back on
provide you with a complete analysis or the need for a level floor, without robust features and comprehensive, the road, as well as increasing your
of the vehicle alignment condition in worrying about any reference value, market-leading ADAS coverage, choose customer’s satisfaction and their
just under a minute. Avoid wasting guidebook, or manual inputs. Snap-on® diagnostics scan tools to confidence in your business.
time and money performing any repair complete the job. Additionally, the
without confirmation that the vehicle system’s support of remote assistance Tru-PointTM validates the alignment
is within OEM specification before an diagnostic tools allows for further of the vehicle, placement of the
ADAS recalibration occurs. expansion of your shop’s calibration targets, and compliance with OEM
capabilities, especially when working specifications.
on newer model vehicles.
By using a Snap-on® scan tool, you
can also confirm completion of the
calibration process.VALIDATION REPORT FLOOR COMPENSATION
For that extra boost of confidence, Tru-PointTM allows Tru-PointTM automatically compensates for the location of
shops to get a printout report as evidence that the targets the vehicle. While most systems function by referencing
were placed exactly where they needed to be during the the height of the vehicle from the shop floor, our system
procedure, to perform a precise calibration, according to measures the height of the targets from the tire contact
the OEM specifications. patch of all four wheels, allowing for the vehicle to be
calibrated anywhere in the shop; even on an alignment
Not only does the printout list and indicate that the target rack.
was placed correctly in front of the vehicle for all the
possible, unique measurement properties, but it will also
confirm that the vehicle’s wheel alignment meets the
specifications required for calibration.
THRUST LINE / CENTERLINE
DISTANCE FROM VEHICLE
TARGET ROTATION
TARGET POSITION
TARGET HEIGHT
RIDE HEIGHT
ALIGNMENT
PRECISION
Achieving the highest level of
precision is no longer a problem.
A simple color-coded visual
indicator allows you to easily
identify the exact location for
target placement, going from red
to green. Done!
TECHNICAL SPECIFICATIONS ACCESSORIES
Tire Size (AC400) 19”-39” (48.3cm - 99.1cm) STANDARD OPTIONAL
30” x 113” x 82” - Two Wheel Chocks - Target Storage Cart
(76.2 x 287.02 x 208.28cm) - Extended - AC400 Clamps - Deluxe Target Set
Dimensions - VIN Scanner
30” x 53” x 82”
(76.2 x 134.62 x 208.28cm) - Folded
512 lbs. (232.2 kg) - Shipping
WARRANTY
Weight - 12 months for parts and labor
376 lbs. (170.5 kg) - Equipment
Power requirements 100-240V
Display 24” TFTERICA
AM
8
7
ONE-STOP SOLUTION
. nd
De
si a
g d
As ne d, re A
se E n g i n e e U.S.
m ble
d in the
6
4
5
3
1
2

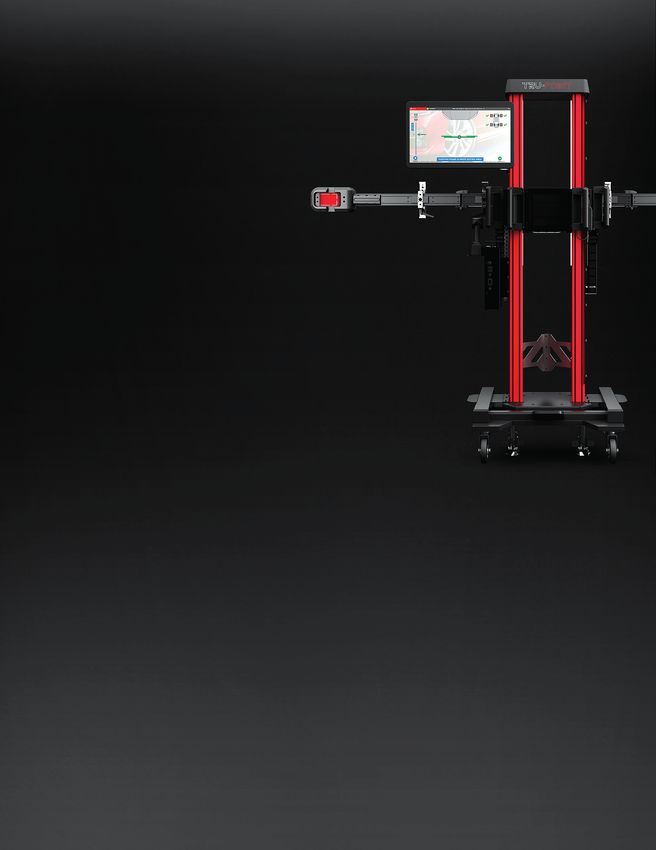

1. FOOT PEDAL 2. LOCKS 3. PRECISION BEAM 4. HEIGHT ADJUST 5. FOLDING ARMS 6. CAMERA SYSTEM 7. SOFTWARE 8. SWING-ARM
ADJUSTMENT MONITOR
AUGMENTED
REALITY EXPERIENCE
Our custom app will allow you to explore
Tru-PointTM in a whole new way – with both 3D
and realistic Augmented Reality experience.
John Bean is committed to product innovation and improvement. Therefore, specifications listed in this sell sheet may change without notice. ©2021 Snap-on Incorporated. All rights reserved. John Bean is a trademark, registered in the United States and
