Jens Osterhoff
… the distributed joint
Accelerator Technology
HElmholtz iNfrAstructure
Ralph Assmann (DESY)
Ulrich Schramm (HZDR) Ulrich Schramm
Jens Osterhoff (DESY)
1
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021
Jens Osterhoff
… the distributed joint
Accelerator Technology
HElmholtz iNfrAstructure
• funded as Helmholtz research
infrastructure (FIS) - visibility
in MT structure ? Ulrich Schramm
• focused on development of two
pillars for ions (Dresden) and
electrons (Hamburg)
• based on strong science in centers
2
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021
… the distributed joint • providing the infrastructure required for
Accelerator Technology bringing compact and cost-effective
plasma accelerators to user readiness
HElmholtz iNfrAstructure
• complementing laser plasma activities
• funded as Helmholtz research with „large scale“ technologies (external
infrastructure (FIS) injection, synchronization, FEL and
• focused on development of two medical applications, pilot user areas
pillars for ions (Dresden) and
electrons (Hamburg) (exactly matching POF-IV scope)
• based on strong science in centers
3
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021
Helmholtz AI initiatives
KALDERA (DESY)
cSTART (KIT)
Penelope (HZDR)
Sinbad (DESY)
2014 2015 2017 2018 --- 2021 2022
4
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021
Installations at flagship facility at DESY are progressing well
Optimized strategic plan to pursue all ATHENAe scientific goals
ARES KALDERA
e
• New strategic elements take into
account development of field since
submission of ATHENA proposal
Medical Compact
• Running plasma accelerators at DESY Applications Photon
(FLASHForward, LUX, PLASMED X) Sources
are now tightly integrated
• The overall scientific goals remain –
we are fully committed to achieve them Plasma Theory and
Source Lab Simulations
• Partners well integrated
5
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021

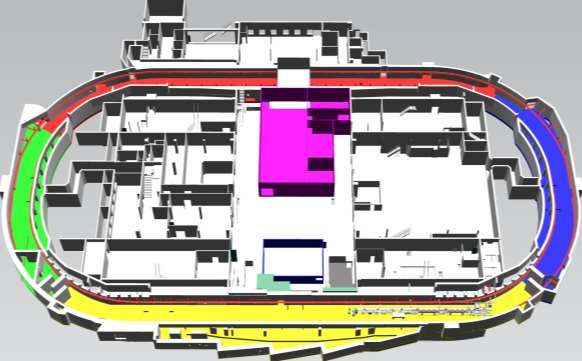

SINBAD facility houses the core infrastructure at DESY
Overview
• ARES: 150 MeV S-band linac for sub-fs pulses LUX 2
• KALDERA: 1 kHz, 3 J, 30 fs laser system Plasma injector
• LUX 2: kHz compact LPA FEL
• Plasma injector: 50 MeV LPA
kHz PLASMED X
injector for storge ring at KIT
• kHz PLASMED X: LPA-driven
medical imaging application
Not shown: KALDERA
ATHENA plasma source R&D lab
ARES
e
6
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021

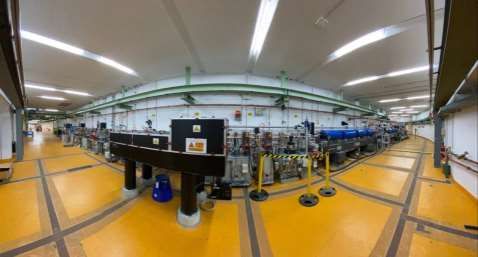

The ARES accelerator is ready for first applications
A new tool for accelerator R&D across sub-topics in operation
• Facility for Accelerator R&D (ST2, ST3, ST4) & novel acceleration techniques testbed
• First user beam time (ACHIP collaboration) end of 2020. ARES is open for access.
• Installation of bunch compressor and PolariX Xband TDS foreseen Q1/2021
– required for the production and characterization of ultra-short pulses
• Relative energy stability measured: 5e-05 at 155 MeV
Contact: Florian Burkart (florian.burkart@desy.de)
Target parameters / actual commissioning parameters
50 – 155 MeV 50 – 156 MeV
0.5 – 200 pC 0.1 – 100 pC
Single pulse @ 50 Hz 10 Hz
few fs / sub-fs pulse length 500 – 800 fs
(w/o bunch compression)
norm. emittance: > 1 mm*mrad
< 0.8 mm*mrad
e
7
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021
KALDERA – the new heart to power ATHENAe
kHz LPA drive laser with active feedbacks for improved stability
• KALDERA will be the new drive laser

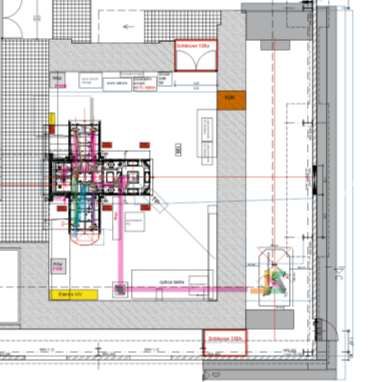

KALDERA Laser Lab
for ATHENAe • 400 m2
• ISO6 clean room
• With kHz-level repetition rates at TW- • Ready by end of 2021
class peak power, it will enable active
feedback and stabilization for high-
quality LPA electron beams
• Laser under development. LUX 2
Plasma-based FEL

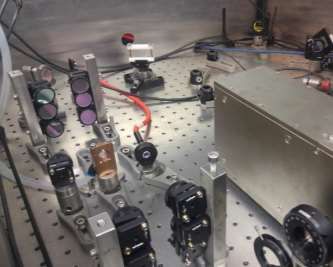

Prototype of white-light-based seeder driven by KALDERA
Plasma Injector
Test injector R&D.
(DESY/KIT/HIJ)
Target area
Spectral stability of new seeder Currently preparing techical
T. Hülsenbusch (DESY) and T. Eichner (UHH)
infrastrcuture
e Contact: Andreas Maier (andreas.maier@desy.de)
8
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021
Partner contributions and activities at ATHENAe
In-vacuum (cryogenic) undulator
LPA-based injection into a 50 MeV compact development
storage ring (cSTART, FLUTE, KIT) (HZB)
preparing for THz
medical imaging
Diagnostics trolley:
Non-destructive,
LPA-wake and beam diagnostics and visualization online beam
Development (HI-Jena) diagnostics using
synchrotron
radiation (HZB)
e
9
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021
Application oriented laser proton acceleration
h
embedded in the ELBE center for high power radiation sources
• high rep.rate
• high dose rate
• online monitoring
• polarized targets
• Radiobiology
(image guided)
Installation 2021
10
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021Pulsed magnet beamline for high proton dose-rate irradiation
h
• Efficient capture and tailoring of LPA proton beams – tested at DRACO and PHELIX
20 Gy / shot
5mm sample
11
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021PENELOPE – the diode pumped PW driver of Athena at HZDR
Joint variable pulse-contrast front-end development
c c h
v v
150J
150fs
0.1/1Hz
Power amplifier installation
in Dresden ongoing
Fast OPA for PHELIX and
Penelope (tests at PHELIX Double CPA / XPW
Transfer of all units in 2021
running) developed at POLARIS
12
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021Accelerator Technology HElmholtz iNfrAstructure
the place(s) for joint ARD research
Details - partner contributions and activities
13
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021ATHENAe highlights at HI Jena in diagnostics development
Visualization of relativistic laser pulses in underdense plasma
Schwab et al., PRSTAB 2020
• Polarization-sensitive optical probing of an LPA at JETI (HI-Jena)
• wavelength dependent transmission of probe light observed
• caused by relativistic electron cyclotron resonances (RECRs) in the plasma
• non-invasive diagnostic tool sensitive for local laser intensity
Few-cycle fs-pumped NOPA
with passive ultrabroadband spectral shaping
Tamer et al., Optics Express 2020
• Development of synchronized, few-cycle optical probe pulse at POLARIS
• novel NOPA configuration
• successfully used, e.g for optical probing of evolution of ultra-thin foils in
laser ion acceleration
Emittance measurement with unprecedented precision nm-waistsize
Seidel et al., PRSTAB 2021 measurement by
• Development of ultrasensitive emittance measurement technique beam modulation
• laser interference pattern modulates momentum space
• important for next generation accelerators
• sensitive to nm∙rad emittances
14
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021LPA-BASED INJECTION INTO A 50 MEV COMPACT STORAGE RING
Goals Environment
50-MeV plasma injector provided by ATHENA to inject into dedicated storage ring Collaboration: DESY, HIJ, KIT
The novel storage ring is in preparation to be build at FLUTE/KIT via the project cSTART Innovationspool ACCLAIM
FLUTE electrons serve as benchmark: for storage ring & for electrons from plasma AI-inspired control of
Status Photons (driving laser)
Intense discussions on parameters to interface LPA-injector and storage ring Electrons (plasma accelerator)
Laser system for FLUTE facility (> 1.5 J, < 25 fs, 10 Hz) ordered Electron transfer line: HIJ, KIT
Tailored cleanroom for laser system in planning
THz imaging (in progress)
Courtesy: J.Schäfer, KIT
Tomography FLUTE Collaboration
Courtesy: S.Funkner, KIT
preparing for THz ARD test facility FLUTE for Dedicated compact storage ring at KIT
medical imaging ST2, ST3, ST4 & DTS - Store ultra-short bunches from FLUTE Plasma injector
- Accept and store LPA-electron bunches design and build-up at DESY
Courtesy: E. Bründermann, KIT
15
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021Lab operation
New ATHENAe plasma R&D laboratory starts April 2021
Optimized for the study and development of discharge-based plasma sources
ATHENA projects require discharge plasma sources for Two-color interferometry
guided plasma wakefield accelerators and active plasma lenses. MHz discharges
Multi-species plasma
A new lab under construction at DESY
• Supports flexible plasma cell designs for
robust operation and high rep-rate - kHz to MHz
• Plasma emission spectroscopy for density profile
diagnosis. Sensitivity: 1014 - 1018 cm3
• Longitudinal two-color laser interferometry
• High-sensitivity transverse interferometry
(in collaboration with HI Jena) Laser
• Cell temperature characterization and active
cooling for high rep-rates Plasma
emission
• Ti:Sa system: kHz laser guiding studies
Spectroscopic plasma density profile
J.M. Garland et. al., Rev. Sci. Inst. 92, 013505 (2021)
Flexible test chamber
Contact: Jimmy Garland (matthew.james.garland@desy.de)
16
16
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021HZB progress in diagnostics and undulator R&D
In-Vacuum APPLE IVUE-32 Magnetic length: 2.5m
Dignostics Trolley Period length: 32mm
Minimum gap: 7mm
Operation at: 300K
The design can easily be
Non-destructive, adopted to cryogenic ID
online beam
diagnostics using
synchrotron radiation
Cryogenic In-Vacuum APPLE CIVUE-15 Force compensation and magnet
soldering based on R&D carried
out for IVUE-32
Proof-of-concept experiment for DSM/IBSM at low Period length: 15 mm
intensities at MLS accelerator at HZB in 2020 Minimum gap: 2 mm
• Ongoing discussion on specs for Operation at: 77 K
Plasma Injector for cSTART Polarisation: Variable
17
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021GSI update: prototype for a fast OPA as front end for PHELIX/Penelope
Motivation: improvement of PHELIX performance, high temporal contrast front end for
Penelope, common front end technology development
Goal: > 1 mJ, temporally-clean laser pulses for the injection of PHELIX/Penelope
Design details:
Pump laser: 20-30 mJ short pulse (CPA), 515 nm, seeding
through the same oscillator, fiber stretcher, fiber pre-amplifier, pump laser
Yb:YAG regenerative amplifier, free-space compressor
Two-stage OPA based on BBO
Status:
First production unit in operation at PHELIX with low power
(10/2020)
Pump energy limited to 5 mJ (damage threshold) +
reliability tests
single OPA stage
18
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021High contrast front-end development at POLARIS (HI-Jena)
Highlights:
• High-contrast seed pulses for PEnELOPE
@ ATHENAh and POLARIS.
• 1st stage of double-stage CPA-system with
subsequent contrast enhancement (XPW).
• Design well-suited for joint future
development
• sub-80 fs, > 250 µJ, 1 Hz, TEM00-mode
• Aiming for high stability and reproducibility.
HZDR Deliverable
@ HI Jena
19
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.20211
• HI-Jena’s deliverable for ATHENAh operational, preparation for delivery 0,1 1 mJ, 150 fs
• delivery to HZDR in Q2/2021 0,01
Measured Temporal Contrast
• XPW to be tested 0,001
Intensity / a.u.
• Pre-pulse elimination, 1E-4
• Additional stretcher optics ordered & available 1E-5
• Optical simulation and optimization is done in parallel. 1E-6
Wedged optics
procured: will be
• Progress in optical frontend design 1E-7 installed.
• optimization of ps-pedestal / rising edge Surface Map of 1E-8
• ns-CPA understanding /optimization Improved Stretcher Optics:
1E-9
• reduced spectral phase aberrations 1E-10
• stability improvement -400 -300 -200 -100 0 100
Time / ps
Picosecond Compressor
P/V < l/30 (34 nm)
Rms < l/200 (4.9 nm)
Sa = 0.138 nm
Sq = 0.176 nm
Picosecond Stretcher
20
U. Schramm, J. Osterhoff Status ATHENA, 7th MT Days, Online Meeting, 02.02.2021You can also read
