CINECA HPC Infrastructure: state of the art and road map
• Carlo Cavazzoni, HPC department, CINECA
www.cineca.it
Installed HPC Engines
Eurora (Eurotech)
FERMI, (IBM BGQ) PLX, (IBM DataPlex)
hybrid cluster
64 nodes 10240 nodes Hybrid cluster
1024 SandyBridge cores 163840 PowerA2 cores 274 nodes
64 K20 GPU 2PFlops peak 3288 Westmere cores
64 Xeon PHI coprocessor 548 nVidia M2070 (Fermi)
150 TFlops peak 300TFlops peak
FERMI @ CINECA
PRACE Tier-0 System
Architecture: 10 BGQ Frame
Model: IBM-BG/Q
Processor Type: IBM PowerA2, 1.6 GHz
Computing Cores: 163840
Computing Nodes: 10240
RAM: 1GByte / core
Internal Network: 5D Torus
Disk Space: 2PByte of scratch space
Peak Performance: 2PFlop/s
Available for ISCRA & PRACE call for projects
The PRACE RI provides access to distributed persistent pan-European world class HPC computing and data
management resources and services. Expertise in efficient use of the resources is available through
participating centers throughout Europe. Available resources are announced for each Call for Proposals..
European
Tier 0
National Peer reviewed open access
Tier 1 PRACE Projects (Tier-0)
PRACE Preparatory (Tier-0)
Local DECI Projects (Tier-1)
Tier 2

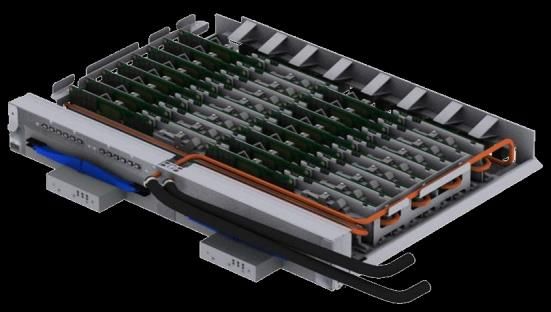

4. Node Card:
32 Compute Cards,
3. Compute card: Optical Modules, Link Chips, Torus
One chip module,
16 GB DDR3 Memory,
2. Single Chip Module
1. Chip:
16 P
cores

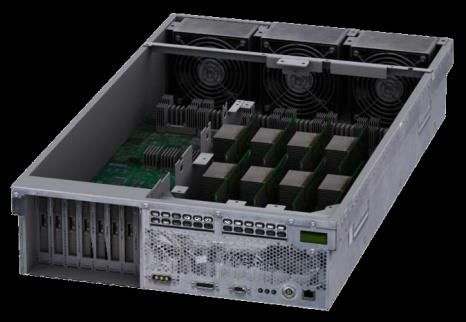

5b. IO drawer: 7. System:
8 IO cards w/16 GB 20PF/s
8 PCIe Gen2 x8 slots

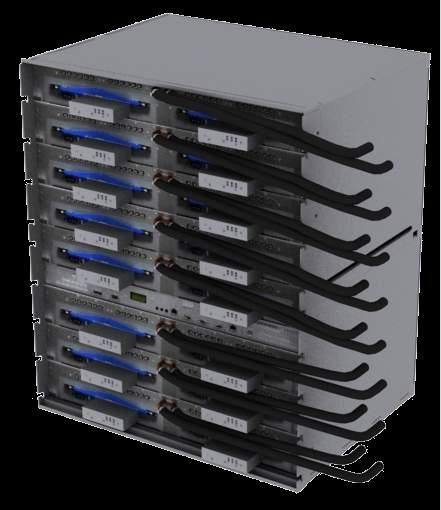

5a. Midplane:
16 Node Cards
6. Rack: 2 Midplanes
BG/Q I/O architecture
IB IB
PCI_E
BG/Q compute racks BG/Q IO Switch File system servers
IB SAN
I/O drawers
I/O nodes
PCIe
8 I/O nodes
At least one I/O node for each partition/job
Minimum partition/job size: 64 nodes, 1024 cores
PowerA2 chip, basic info • 64bit RISC Processor • Power instruction set (Power1…Power7, PowerPC) • 4 Floating Point units per core & 4 way MT • 16 cores + 1 + 1 (17th Processor core for system functions) • 1.6GHz • 32MByte cache • system-on-a-chip design • 16GByte of RAM at 1.33GHz • Peak Perf 204.8 gigaflops • power draw of 55 watts • 45 nanometer copper/SOI process (same as Power7) • Water Cooled
PowerA2 FPU
• Each FPU on each core has four pipelines
• execute scalar floating point instructions
• four-wide SIMD instructions
• two-wide complex arithmetic SIMD inst.
• six-stage pipeline
• maximum of eight concurrent
• floating point operations
• per clock plus a load and a store.
9
EURORA
#1 in The Green500 List June
2013
What EURORA stant for?
EURopean many integrated cORe Architecture
What is EURORA?
Prototype Project
Founded by PRACE 2IP EU project
Grant agreement number: RI-283493
Co-designed by CINECA and EUROTECH
Where is EURORA?
EURORA is installed at CINECA
When EURORA has been installed?
March 2013
Who is using EURORA?
All Italian and EU researchers through PRACE
3,200MFLOPS/W – 30KW
Prototype grant access programWhy EURORA?
(project objectives)
Address Today HPC Constraints: Evaluate Hybrid (accelerated)
Flops/Watt, Technology:
Flops/m2, Intel Xeon Phi;
Flops/Dollar. NVIDIA Kepler.
Efficient Cooling Technology: Custom Interconnection Technology:
hot water cooling (free cooling); 3D Torus network (FPGA);
measure power efficiency, evaluate (PUE & evaluation of accelerator-to-
TCO). accelerator communications.
Improve Application Performances:
at the same rate as in the past (~Moore’s
Law);
new programming models.EURORA prototype configuration 64 compute cards 128 Xeon SandyBridge (2.1GHz, 95W and 3.1GHz, 150W) 16GByte DDR3 1600MHz per node 160GByte SSD per node 1 FPGA (Altera Stratix V) per node IB QDR interconnect 3D Torus interconnect 128 Accelerator cards (NVIDA K20 and INTEL PHI)

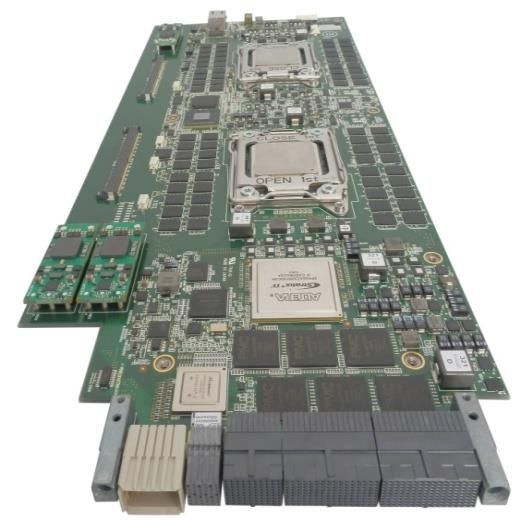

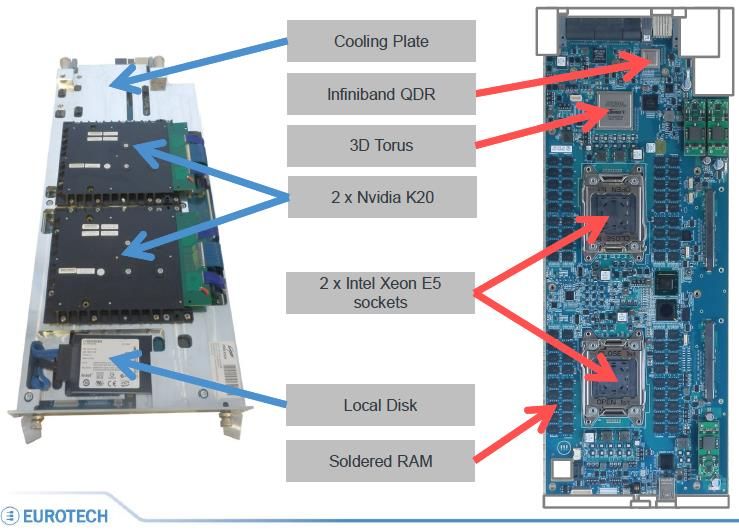

Node card
K20
Xeon PHI
13Node Energy Efficiency
Decreases!
14HPC Service
HPC Engines HPC Services
HPC Workloads
FERMI Eurora PLX
(IBM BGQ) (Eurotech hybrid) (IBM x86+GPU) PRACE LISA Projects Agreements
0.3PFlops peak ISCRA Training Labs Industry
#12 Top500 #1 Green500
2PFlops peak 0.17PFlops peak ~3500 x86 procs
548 NVIDIA
163840 cores 1024 x86 cores Data Processing
GPU
163Tbyte RAM 64 Intel PHI 20 NVIDIA
Workloads
FERMI PLX
Power 1.6GHz 64 NVIDIA K20 Quadro High Big Web
16 Fat nodes viz DB
througput mem serv.
Data mover Data mover processing
HPC Data store
NUBES FEC
Workspace Cloud serv.
We
Archive FTP
Tape Repository b
1.5PB 1.8PByte
3.6PByte
External Data Sources
PRACE EUDAT Labs Projects
HPC Cloud Nubes FEC PLX Store
Network
Custom IB Gbe Fibre
FERMI EURORA EURORA PLX Store Nubes Infrastructure Internet StoreCINECA services
• High Performance Computing
• Computational workflow
• Storage
• Data analytics
• Data preservation (long term)
• Data access (web/app)
• Remote Visualization
• HPC Training
• HPC Consulting
• HPC Hosting
• Monitoring and Metering
• …
For academia and industryRoad Map
(data centric) Infrastructure (Q3 2014)
Cloud SaaS APP
External Data Sources service
PRACE EUDAT
New
Other Data Sources storage
Core Data Store
Laboratories
Human Brain Prj Repository Tape
Internal data
5PByte 5+ PByte
sources
Core Data Processing Scale-Out Data
We
Processing
Big
viz mem
DB b
serv. FERMI
Data mover processing Workspace
We 3.6PByte X86 Cluster
Archive FTP
b New
Analytics APP analytics Parallel APPNew Tier 1 CINECA
Procurement Q3 2014
Requisiti di alto livello del sistema
Potenza elettrica assorbita: 400KW
Dimensione fisica del sistema: 5 racks
Potenza di picco del sistema (CPU+GPU): nell'ordine di 1PFlops
Potenza di picco del sistema (solo CPU): nell'ordine di 300TFlopsTier 1 CINECA
Requisiti di alto livello del sistema
Architettura CPU: Intel Xeon Ivy Bridge
Numero di core per CPU: 8 @ >3GHz, oppure 12 @ 2.4GHz
La scelta della frequenza ed il numero di core dipende dal TDP del socket, dalla densità del
sistema e dalla capacità di raffreddamento
Numero di server: 500 - 600,
( Peak perf = 600 * 2socket * 12core * 3GHz * 8Flop/clk = 345TFlops )
Il numero di server del sistema potrà dipendere dal costo o dalla geometria della configurazione
in termini di numero di nodi solo CPU e numero di nodi CPU+GPU
Architettura GPU: Nvidia K40
Numero di GPU: >500
( Peak perf = 700 * 1.43TFlops = 1PFlops )
Il numero di schede GPU del sistema potrà dipendere dal costo o dalla
geometria della configurazione in termini di
numero di nodi solo CPU e numero di nodi CPU+GPUTier 1 CINECA
Requisiti di alto livello del sistema
Vendor identificati: IBM, Eurotech
DRAM Memory: 1GByte/core
Verrà richiesta la possibilità di avere un sottoinsieme di nodi
con una quantità di memoria più elevata
Memoria non volatile locale: >500GByte
SSD/HD a seconda del costo e dalla configurazione del sistema
Cooling: sistema di raffreddamento a liquido con opzione di free cooling
Spazio disco scratch: >300TByte (provided by CINECA)Roadmap 50PFlops
EURORA or PLX
Power EURORA 50KW, PLX
350 KW, BGQ
upgrade 400KW;
BGQ 1000KW, Data
consumption 1000KW + ENI repository 200KW; -
ENI
EuroExa STM / ARM EuroExa STM / ARM PCP Proto 1PF in a EuroExa STM / ARM towards exascale
R&D Eurora
board prototype rack PF platform
ETP proto
board
Eurora or PLX
Eurora industrial multi petaflop Tier-1 towards
Deployment prototype 150 TF
upgrade 1PF peak,
350TF scalar
system
Tier-0 50PF
exascale

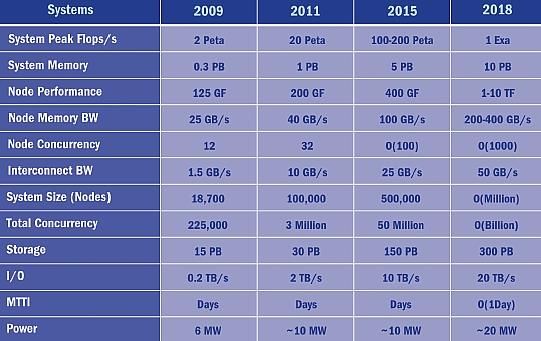

Time line 2013 2014 2015 2016 2017 2018 2019 2020Roadmap to Exascale
(architectural trends)HPC Architectures
Hybrid:
Server class processors:
Server class nodes
Special purpose nodes
Accelerator devices:
Nvidia
Intel
two AMD
model FPGA
Homogeneus:
Server class node:
Standar processors
Special porpouse nodes
Special purpose processorsArchitectural trends Peak Performance Moore law FPU Performance Dennard law Number of FPUs Moore + Dennard App. Parallelism Amdahl's law
Programming Models fundamental paradigm: Message passing Multi-threads Consolidated standard: MPI & OpenMP New task based programming model Special purpose for accelerators: CUDA Intel offload directives OpenACC, OpenCL, Ecc… NO consolidated standard Scripting: python
But!
14nm VLSI
0.54 nm
Si lattice
300 atoms!
There will be still 4~6 cycles (or technology generations) left until
we reach 11 ~ 5.5 nm technologies, at which we will reach downscaling limit, in some
year between 2020-30 (H. Iwai, IWJT2008).Thank you
Dennard scaling law
(downscaling)
new VLSI gen.
old VLSI gen.
L’ = L / 2
V’ = V / 2 do not hold anymore! The core frequency
and performance do not
F’ = F * 2
grow following the
D’ = 1 / L2 = 4D
Moore’s law any longer
P’ = P
L’ = L / 2
V’ = ~V Increase the number of cores
F’ = ~F * 2 to maintain the
D’ = 1 / L2 = 4 * D architectures evolution
on the Moore’s law
P’ = 4 * P
The power crisis! Programming crisis!Moore’s Law
Economic and market law
Stacy Smith, Intel’s chief financial officer, later gave
some more detail on the economic benefits of staying
on the Moore’s Law race.
The cost per chip “is going down more than the capital intensity is going up,” Smith said, suggesting
Intel’s profit margins should not suffer because of heavy capital spending. “This is the economic
beauty of Moore’s Law.”
And Intel has a good handle on the next production shift, shrinking circuitry to 10 nanometers. Holt
said the company has test chips running on that technology. “We are projecting similar kinds of
improvements in cost out to 10 nanometers,” he said.
So, despite the challenges, Holt could not be induced to say there’s any looming end to Moore’s
Law, the invention race that has been a key driver of electronics innovation since first defined by
Intel’s co-founder in the mid-1960s.
From WSJ
It is all about the number of chips per Si wafer!What about Applications?
In a massively parallel context, an upper limit for the scalability of parallel
applications is determined by the fraction of the overall execution time
spent in non-scalable operations (Amdahl's law).
maximum speedup tends to
1/(1−P)
P= parallel fraction
1000000 core
P = 0.999999
serial fraction= 0.000001HPC Architectures
Hybrid, but…
two model
Homogeneus, but…
What 100PFlops system we will see … my guess
IBM (hybrid) Power8+Nvidia GPU
Cray (homo/hybrid) with Intel only!
Intel (hybrid) Xeon + MIC
Arm (homo) only arm chip, but…
Nvidia/Arm (hybrid) arm+Nvidia
Fujitsu (homo) sparc high density low power
China (homo/hybrid) with Intel only
Room for AMD console chipsChip Architecture
Strongly market driven Mobile, Tv set, Screens
Video/Image processing
New arch to compete with ARM
Intel Less Xeon, but PHI
Main focus on low power mobile chip
ARM Qualcomm, Texas inst. , Nvidia, ST, ecc
new HPC market, server maket
NVIDIA GPU alone will not last long
ARM+GPU, Power+GPU
Power Embedded market
Power+GPU, only chance for HPC
AMD Console market
