Cost Effective Solutions to Reduce
Energy Consumption & CO2
Simon Brady
CDCD
Company Profile
Founded
in 1833
2
Proud History… Bright Future
Company Profile
Electrical Products Group
B-Line
$400 +/- million
#1 North America
Energy & Safety Solutions
Bussmann Crouse-Hinds
World-Class
Collection of
$400 +/- million $950 +/- million
#1 World Wide #1 World Wide Businesses
$5bn electrical
Lighting Power Systems
revenues
Over 25,000 employees
$1,050 +/- million
#3 North America
$1,100 +/- million
#1 North America
37% international sales
Wiring Devices Safety
$200 +/- million $500 +/- million
#3 North America #2 EMEA
3
Business Initiatives
Globalisation Innovation
Over 140 manufacturing and distribution Cooper ranked #7 on Industrial Innovator
locations worldwide and global technical sales (Patent Board’s April 2010 Industrial Component
and engineering teams. Supplier Patent Scorecard)
Talent development Operational Excellence Customer Loyalty
Continuously improving the organisation and Cooper’s goal is to better service the customer Cooper continues to invest to become
ultimately, our customer service excellence. by driving continuous improvements. the easiest partner to do business with.
Customer Focus and Commitment to Excellence
4
Proud History … Bright Future
Energy demand/Utility grid update Conservation / Energy / Efficiency & Reliability
Global Infrastructure Safety / Protection / Mass Notification
Partner of Choice in Key Global Growth Markets
5
Environmental Stewardship
Energy efficiency Energy demand
Committed to Cooper has
providing created solutions
significant to address
energy-savings to the increasing
our customers demands for
around the world power globally
Sustainability Alternative energy
As a global Products and
manufacturer, Cooper solutions that
has the ability to affect make utilization
large-scale positive of these
impact on our alternative energy
environment sources possible
6 Industry Leading Green Solutions & Expertise
International Coverage
Sales
Manufacturing
7 True Global Organization
European Coverage
Manufacturing strategy to support
customer needs
20 dedicated manufacturing and
distribution facilities in 10 countries
to service our customers
Cooper Bussmann
Cooper B-Line
Cooper Crouse-Hinds
Cooper Safety
Cooper Lighting
Cooper Safety/Crouse-Hinds/B-Line
8 Strong European Footprint
Global Locations
Highbridge, UK
110,000 ft² (10,200 m²)
• European Sales
Engineering & Mfg.
Arad, Romania (Shared)
Highland, USA
250,000 ft² (23,225m²)
Troy, USA
112,000 ft² (10,405m²)
Pinckneyville, USA
210,000 ft² (19,509m²)
Ellaville, USA
30,000 ft² (2,787m²) Shanghai, China
80,000 ft² (7,432 m²)
Dammam, KSA
59,202 ft² (5,500m²)
Reno, USA
250,000 ft² (23,225m²) Sherman, USA
238,000 ft² (22,110m²) 9
9
B-Line Product Portfolio
Revenues: Wire Management
$400+/- million
Wire
Management
Support
Products
Enclosures
Support Products Enclosures
10Company Profile
Engineering & Design
Providing innovative design solutions to
meet customers needs.
Providing links to customers CAD systems,
using native CAD and all other major
interchange systems.
Product design & development.
Providing pre & post sales technical
support.
Customer Services & Technical Support
Global design team based in the UK
End to end design, procurement & manufacture
Tailored logistics & installation capabilities
ISO 9000, 2000 Quality Systems
ISO 14001
Experienced project management
11
Full Service UK Based Design & Manufacturing FacilityDefine Data Centre Energy Efficiency www.cooperbline.com
Data Sources The Green Grid, Guidelines for Energy-Efficient Datacenters ASHRAE - Reducing Data Centre Energy Consumption IDC, The Impact of Power and Cooling on Data Center Infrastructure CISCO Data Centre Review 2008 Accenture/Lawrence Berkeley National Laboratory BNL Air Flow Study 2007 Uptime Institute
Define Data Centre Energy Efficiency
The Green Grid, an industry based consortium dedicated to developing and
promoting efficiency for data centres and information services, has adapted the
terms power usage effectiveness (PUE) and data centre efficiency (DCE).
Source: The Green Grid, Guidelines for Energy-
Efficient DatacentersDefine Data Centre Energy Efficiency PUE >= 1.9 PUE
It’s Going to Get Worse ! www.cooperbline.com Source: ASHRAE - Reducing Data Centre Energy Consumption
It’s Going to Get Worse !
10 kW of Load
Becoming the Norm
Continued Increasing
Density
www.cooperbline.com Source: IDC, The Impact of Power and Cooling on Data Center
InfrastructureEnergy Cost Projection
www.cooperbline.com
Source: Uptime InstituteWhy cooling efficiency is so important
45% of Power Consumption
Goes to the Cooling
Infrastructure
50% More than to the
IT Equipment
www.cooperbline.com Source: The Green Grid, Guidelines for Energy-
Efficient DatacentersWhat Can You Do ?
Simple low cost, high ROI solutions which can be implemented without effecting business continuity.
1 Implement a hot aisle - cold aisle layout.
2 Install containment between the hot and cold aisles
3 Reduce air loss
4 Install blanking plates, air guards and, perforated doors.
5 Install sub floor partitioning to balance the airflow and pressure
6 Check the location of air distributing floor tiles, relocate or provide additional.
7 Replace perforated floor tiles with air grills.
8 Widen the temperature and humidity bands
www.cooperbline.com
Source: ASHRAE - Reducing Data Centre Energy ConsumptionWhat Can You Do ?
Implement a hot aisle - cold aisle layout
www.cooperbline.com
Source: ASHRAE - Reducing Data Centre Energy ConsumptionWhat Can You Do ?
Implement a hot aisle - cold aisle layout
www.cooperbline.com
Source: ASHRAE - Reducing Data Centre Energy ConsumptionWhat Can You Do ? Ideal layout but not perfect www.cooperbline.com
What Can You Do ?
Install containment between the hot and cold aisles
www.cooperbline.com
Source: Accenture/LBNL Air Flow Study 2007What Can You Do ?
Install containment between the hot and cold aisles
www.cooperbline.com
Source: Accenture/LBNL Air Flow Study 2007What Can You Do ?
Without Aisle Containment
Cold supply air is free to
mix with warm ambient air.
Supply air can also short
circuit to CRAC units
providing no equipment
cooling effect
www.cooperbline.comWhat Can You Do ?
With Aisle Containment
Cold air is contained
within the aisle and
only has one direction
to go – through the
equipment!
www.cooperbline.comWhat Can You Do ?
Reduce air loss – How not to
www.cooperbline.comWhat Can You Do ?

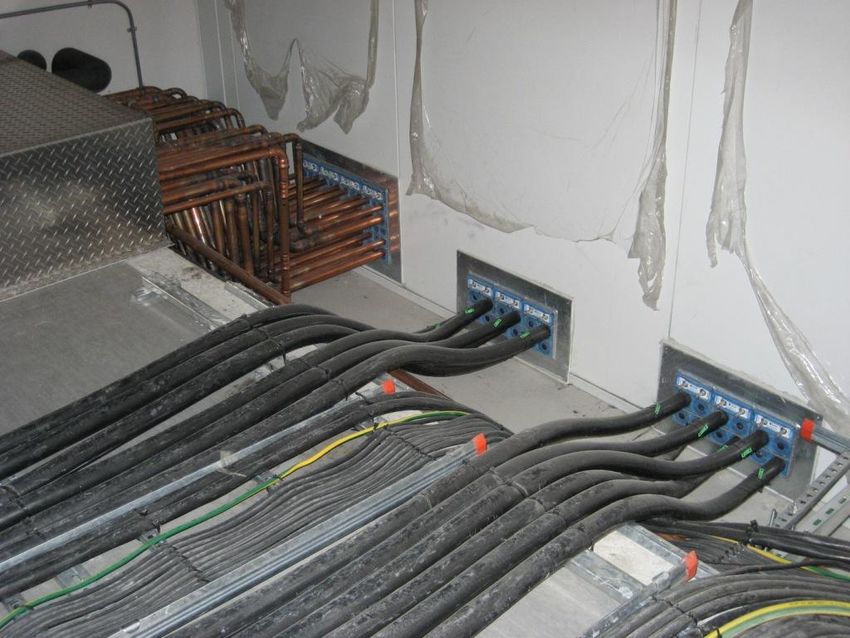

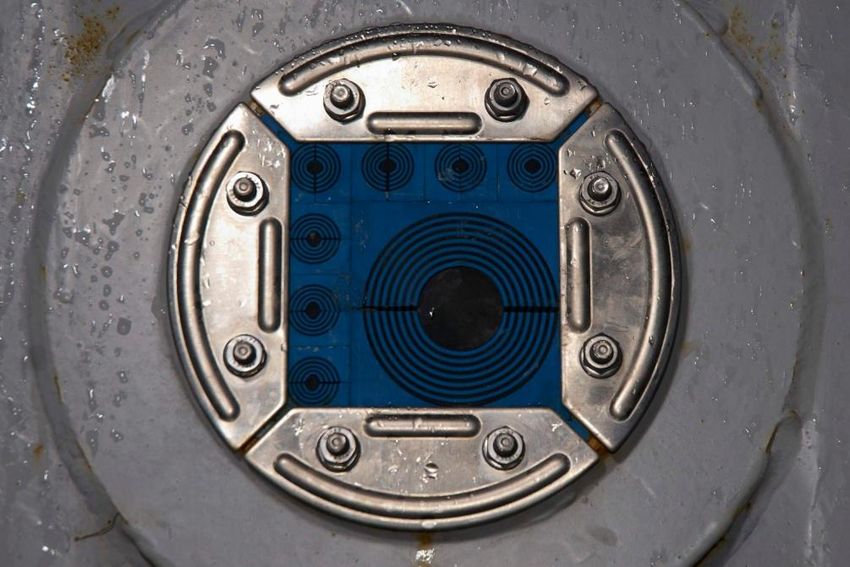

Reduce air loss – How to
Compression
Sealed Cable Unit
Modules
Frame
www.cooperbline.comWhat Can You Do ?
Install blanking plates, air guards and, perforated doors
Blanking Plates
www.cooperbline.comWhat Can You Do ?
Top of rack
Impact of a Single 7U
Blanking Panel to an
open rack Middle of rack
www.cooperbline.com
Source: CISCO Data Centre Review 2008What Can You Do ?
Install sub floor partitioning to balance the airflow and pressure
Eddy Currents and Rivers below floor Creates hotspots above floor
www.cooperbline.com
Source: CISCO Data Centre Review 2008What Can You Do ?
Install sub floor partitioning to balance the airflow and pressure
www.cooperbline.com
Source: CISCO Data Centre Review 2008What Can You Do ?
Check the location of air distributing floor tiles, relocate or
provide additional & replace perforated floor tiles with air
grills.
56 % open – Medium / High CFM + 25 % open – Low / Medium CFM
directional / balancing
Hot aisles should be HOT !
www.cooperbline.com
Source: CISCO Data Centre Review 2008What Can You Do ?
Turn up the heat and manage RH !
ASHRAE Recommendation
Temperature 21 – 27 deg C
Humidity 40 – 50%Rh
IMPORTANT
Rate of temperature / RH
changeWhat Can You Do ?
Turn up the heat and manage RH !
ASHRAE
Recommendation
Temperature 21 – 27 deg C
Humidity 40 – 50%Rh
To raise the air output of a 60kw CRAC
unit from 30% to 40% RH requires 7.5kw
(Approx £1k/Kw/yr)
Dry Bulb = 20 deg C Dry Bulb = 26 deg C
RH = 40% RH = 30%
To reduce the air output of a 60kw DP = 6 deg C
DP = 6 deg C
CRAC unit from 45% to 40% RH W = 5.8g/kG
W = 5.8g/kG
saved 11.5 kw
(Approx £1k/Kw/yr)
Potential savings of £11.5k
for a 60kW system Same level of moisture
– different RH
www.cooperbline.com
Source: ASHRAE - Reducing Data Centre Energy ConsumptionWhat Can You Do ?
Ignore room temperature because its misleading (mixing air, poorly positioned sensors)
Think cold aisle air temperature and return air temperature
Supply enough segregated cold air at the right temperature and return temperature will be high
Increase CRAH COP = Increase Return Air temperature = Effective Air Management
100kw of cooling at 26 deg C
requires 19.6kw of electricity
100kw of cooling at 21 degC
requires 28.5kw of electricity
8.9kw represents a 31%
reduction in CRAC unit power
consumption.
8.9kw can save £ 9,356.00
over one year.
COP (Coefficient or performance) = Cooling output Kw
Electrical Power Input
www.cooperbline.com
Source: ASHRAE - Reducing Data Centre Energy ConsumptionCooper B-Line Solutions
• Comm. Data Racks 80+% air flow doors
• Access & EC2
• Delta3 (coming 2012)
• V-Line Aisle containment system
• Passive & Active roof
• Air blanking
• Side mounting posts
• Top & bottom entry brush strips
• Brush strip floor glands
www.cooperbline.comConclusions
• Consider the Big Picture
• Most recommendations wont work in isolation
• Rack Configuration Plan
• Rack Layout Plan
• Airflow Containment
• Efficiency Improvement Plan
www.cooperbline.comConclusions
• Reduce Your
Electric Bills
– 20-50% for
No/Low-Cost
Design and
Operations
Changes
www.cooperbline.com
Source: ASHRAE - Reducing Data Centre Energy ConsumptionThank You
Questions
simon.brady@cooperindustries.com +44 (0) 7805 691568You can also read
