Our technology. Your success. Pumps n Valves n Service The right partner for your project. Heating, ventilation and air-conditioning
02 Introduction
Always the right solution
It is not only large projects that place high demands on planning
and implementation – equipping private homes is often a
challenging undertaking as well. In particular, the adjustment to
specific conditions calls for the experience gained from numerous
projects and the high-quality engineering of an all-in solutions
provider. With our many years’ experience as market leader we
are ideally equipped to meet the specific requirements of complex
systems and develop comprehensive solutions for your building.
With our wide product range we can also find the right products to equip your
property – energy-efficient and reliable. For many years we have been partners
of installation contractors, specialist suppliers and private individuals who
we not only supply with our high-quality products, but can also offer expert
advice. Research and development give us the assurance that we can offer full,
cost-effective solutions in all fields: from water supply through drainage to
heating and air-conditioning.
But since products alone do not make a full-range supplier, we also attach
great importance to customer service. With our over 16,000 employees in over
100 countries and our partner companies we develop individual solutions to
meet all requirements. This also enables us to find the right solution for your
project and optimise your entire hydraulic system, so you can make the most of
your savings potential.
All information on our new glandless pump range Calio for heating, ventilation
and air-conditioning with KSB can be found in this brochure. And if you need
further information, we will be delighted to offer you our advice.
KSB is a brand name partner of the German trade
seal quality alliance ”Handwerkermarke“.
Calio, too, has been certified for top quality and
excellent service.
03
04 KSB Solutions
We‘re big on expertise,
in every little detail
Big projects need big solutions – like exhibition hall 11 in Frankfurt,
Germany. To create a pleasant climate for visitors in an area of 24,000
square metres, the system has to provide constant pressure and circu-
late cooling water at around 900 m3/h, so that the steadily fluctuating
demand for heating can be reliably controlled.
KSB has therefore installed a perfectly We make big projects worldwide a
matched system comprising more than success through know-how and
130 variable speed driven Etanorm R/G,®
high-quality engineering. Years of
Etaline PumpDrive, Rio -Eco pumps
® ®
experience and research have created
with their matching valves to ensure the basis for reliability and efficiency
that heating is evenly distributed. on which you can depend. The new
In addition, the Hyamat VP pressure
®
circulators of KSB encapsulate all
booster system provides the water spray the know-how of the innovation leader –
system with constant pressure of 20 bar from high-quality engineering to a
and thus increases the cooling capacity comprehensive service concept.
without the need for additional energy.
05

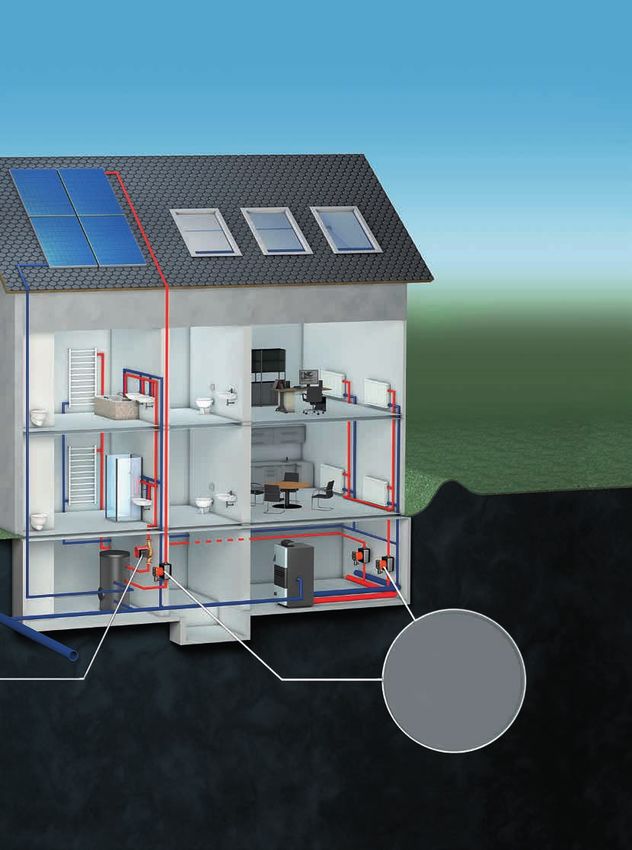

06 Overview
A convincing choice of products –
from warm to cool
07
08 Products
Heating
Calio S
Don’t need much power? Calio’s little brother, Calio S, has Technical data Calio S 15-40 130* Calio S 15-60 130*
the answer. Continuously variable differential pressure control Pipe connection R½’’ R½’’
Pump connection G1’’ G1’’
adapts the pump’s power in line with demand. Calio S runs
Electrical input power 4.0 –23 4.0–47
quietly, energy-efficiently and reliably for years and years. Pressure class 10 bar 10 bar
Enclosure IP42 IP42
Overall length 130 130
Applications For fluid temperatures from +2 °C to +95 °C
* All variants with overall length 130 mm are supplied without heat insulation
Heating/venting/air-conditioning systems, industrial circulation
systems, one-pipe and two-pipe systems
Technical data Calio S 25-40 Calio S 25-60
Pipe connection R1’’ R1’’
Benifits Pump connection G1½’’ G1½’’
■■ Future-proof by optimised efficiencies, exceeding the Electrical input power 4.0 – 23 4.0–47
Pressure class 10 bar 10 bar
requirements of future energy efficiency regulations
Enclosure IP42 IP42
■■ Easy to operate with symbols on the display showing Heat insulation Polypropylene Polypropylene
the operating mode Overall length 180 180
■■ High operating availability due to protective and For fluid temperatures from +2 °C to +95 °C
manual functions
■■ Savings in operating costs by high-efficiency technology
and energy-saving functions
To prevent condensation in the terminal box and the stator, the fluid temperature
■■ Broad application range spanning from heating to cooling, must always be equal to or higher than the ambient temperature.
for fluid temperatures from +2 °C to +95 °C
09
191,11
131,83 191,11
140
131,83
140
Calio S
Calio S
180
150
199,6
180
150
199,6
115,67
115,67
168,63
Calio S 25-40 130* Calio S 25-60 130* 168,63 98,9
131,83
R1’’ R1’’ 131,83
98,9
G1½’’ G1½’’
4.5–23 4.0 – 47
10 bar 10 bar
IP42 IP42 Calio S
Calio S
130 130
Diese Zeichnung darf weder kopiert, noch
dritten Personen mitgeteilt, noch ander-
weitig mißbräuchlich benutzt werden
Diese Zeichnung darf weder kopiert, noch
dritten Personen mitgeteilt, noch ander-
weitig mißbräuchlich benutzt werden
180
199,6
180
199,6
Calio S 30-40 Calio 30-60
R1¼’’ R1¼’’
G2’’ G2’’
4.5–23 4.0 – 47
10 bar 10 bar
IP42 IP42
Polypropylene Polypropylene
115,67
180 180
115,67
10 Products
Heating
Technical data Calio 25-60 Calio 25-80 Calio 25-100
Calio Pipe connection R1’’ R1’’ R1’’
Calio is the number one choice for quality and technical Pump connection G1½’’ G1½’’ G1½’’
Electrical input power 6-112 6-145 6-182
innovation. Its new "Eco Mode" with dynamic adjustment of
Pressure class PN 10 PN 10 PN 10
the differential pressure setpoint ensures maximum energy Enclosure IP44 IP44 IP44
savings and a long pump life. Heat insulation Polypropylene Polypropylene Polypropylene
Overall length 180 180 180
Applications
Heating/venting/air-conditioning systems, industrial circulation
Technical data Calio 40-90 Calio 40-100 Calio 40-120
systems, one-pipe and two-pipe systems Pipe connection DN40 DN40 DN40
Pump connection DN40 DN40 DN40
Benefits Electrical input power 7-184 10-350 46-611
Pressure class PN 6/10 PN 6/10 PN 6/10
■■ Future-proof by optimised efficiencies, exceeding the
Enclosure IP44 IP44 IP44
requirements of future energy efficiency regulations Heat insulation Polypropylene Polypropylene Polypropylene
■■ Easy to operate with symbols on the display showing the Overall length 220 220 250
operating mode
■■ Highest operating availability due to protective functions Technical data Calio 50-180 Calio 65-60 Calio 65-120
and dual for redundancy Pipe connection DN50 DN65 DN65
■■ Savings by high-efficiency technology, all-in concept and Pump connection DN50 DN65 DN65
Electrical input power 46-745 15-350 55-760
energy-saving functions
Pressure class PN 6/10 PN 6/10 PN 6/10
■■ Broad application range spanning from heating to cooling, Enclosure IP44 IP44 IP44
for fluid temperatures from -10 °C to +110 °C Heat insulation Polypropylene Polypropylene Polypropylene
Overall length 280 340 34011
Calio 30-60 Calio 30-80 Calio 30-100 Calio 30-120 Calio 32-120 Calio 40-60 Calio 40-70 Calio 40-80
R1¼’’ R1¼’’ R1¼’’ R1¼’’ DN 32 DN40 DN40 DN40
G2’’ G2’’ G2’’ G2’’ DN 32 DN40 DN40 DN40
6-112 6-145 6-182 9-350 9-350 7-110 7-138 10-265
PN 10 PN 10 PN 10 PN 10 PN 10 PN 6/10 PN 6/10 PN 6/10
IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene
180 180 180 180 220 220 220 220
Calio 40-180 Calio 50-40 Calio 50-60 Calio 50-80 Calio 50-90 Calio 50-100 Calio 50-120 Calio 50-150
DN40 DN50 DN50 DN50 DN50 DN50 DN50 DN50
DN40 DN50 DN50 DN50 DN50 DN50 DN50 DN50
46-756 7-133 10-275 10-350 7-168 38-478 46-620 46-680
PN 6/10 PN 6/10 PN 6/10 PN 6/10 PN 6/10 PN 6/10 PN 6/10 PN 6/10
IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene
250 240 240 240 240 280 280 280
160
160 192 70 150
192 70 150 DN 40
Calio 80-80 Calio 100-60
DN 40
DN80 DN100
110
DN80 DN100
110
56-664 76-737
140
PN 6/10 PN 6/10
140
IP44 IP44
H
H
Polypropylene Polypropylene
360 45012 Products
Heating and air-conditioning
Rio-Eco N Rio-Eco Z N
High-efficiency circulator High-efficiency circulator
Applications Applications
Heating/venting/air-conditioning systems, industrial circulation Heating/venting/air-conditioning systems, industrial circulation
systems, one-pipe and two-pipe systems systems, one-pipe and two-pipe systems
Benefits Benefits
■■ Energy-efficient: meets the efficiency requirements ■■ Energy-efficient: meets the efficiency requirements
■■ Very easy to use ■■ Very easy to use
■■ Highest operating availability due to protective and ■■ Highest operating availability due to protective and
manual functions as well as dual pump operation manual functions as well as dual pump operation
■■ Savings by high-efficiency technology and all-in concept ■■ Savings by high-efficiency technology and all-in concept
■■ Broad application range spanning from heating to cooling, ■■ Broad application range spanning from heating to cooling,
for fluid temperatures from -10 °C to +110 °C for fluid temperatures from -10 °C to +110 °C
Technical data Technical data
DN: 32– 80 DN: 32– 80
Q m3/h max. 65 (flange) Q m3/h max. 46
H m: max. 14 (flange) H m: max. 14
T °C: –10 to +110 T °C: –10 to +110

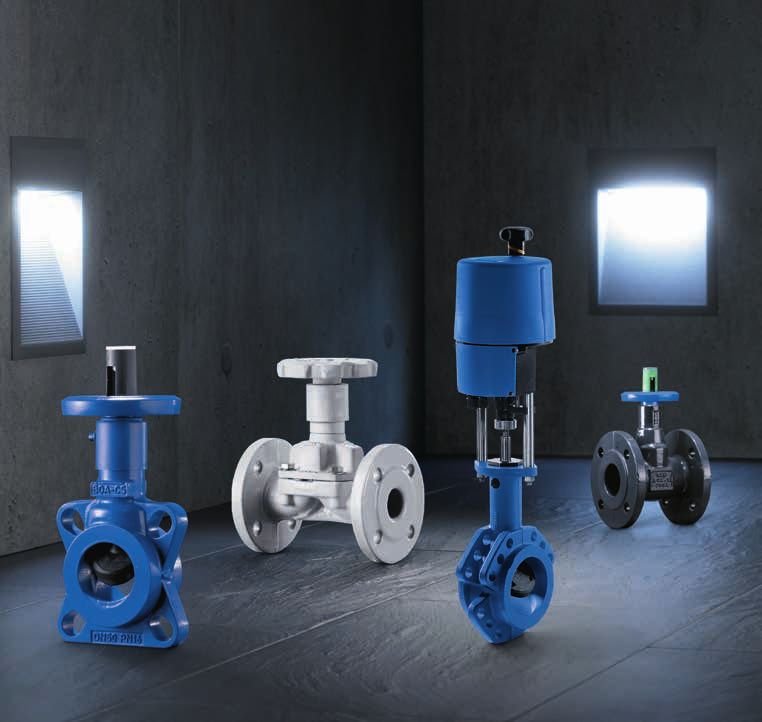

P bar: 6/10 P bar: 6/1013 Valves from KSB High-quality pumps already operate reliably and efficiently alone. But they work even better in an optimally matched system. For every pump application, therefore, KSB always has the right valve with which the hot water, heating, ventilation and air-conditioning systems are controlled and flow rates are matched to demand. In this way, we increase the overall efficiency of your system and save you lots of energy!
14 Service / Energy Efficiency
Service from start to finish –
wherever you are
KSB is an all-in solutions provider. This means that, with us, you can count not only
on outstanding products, but also on optimal service – from commissioning through
inspection and maintenance work to the repair of pumps of any make – including
provision of spare parts.
Stay on the safe side with KSB Service
■■ Trained service staff
Our own service specialists and the experts of our regional
■■ Individual service concepts
service partners are at your disposal 24/7 and make sure your
■■ Original KSB spare parts
system also runs safely and reliably in the long term.
■■ 24/7
www.ksb.com/service15
Maximum savings with FluidFuture®
A system’s quality is not only determined by its products but also FluidFuture® – KSB’s energy efficiency concept. We analyse the
by its energy efficiency. In these times of rising energy prices, entire hydraulic system and optimise it with high-efficiency
saving energy costs during operation has become a key criterion products and demand-driven operating modes which perfectly
for selecting and installing systems. We make full use of a system’s match the specific requirements of each system.
energy saving potential by employing the five modules of
The ErP ecodesign regulations Our response to these high requirements: expertise and years of
FluidFuture is based on products which are not only reliable
®
experience. The outcome: highly efficient products which meet or
but also highly efficient to counter the continuous rise of the even exceed the minimum efficiency levels for 2015, already today.
global energy consumption of “Energy-related Products” –
products with high energy requirements. The ErP regulations For glandless pumps, the following values apply:
stipulate mandatory minimum efficiency levels, which will EEI (energy efficiency index):
gradually be increased until 2020. The objectives: low value = high efficiency
■■ 20 % fewer greenhouse gases From 1 January 2013: EEI ≤ 0.27
■■ 20 % more renewable energies From 1 January 2015: EEI ≤ 0.23
■■ 20% less energy consumptionYour local KSB representative:
