Swivl User Guide
CX Robot
Updated January 2021
1
Contents
What is Swivl? ..................................................................................................................................................................................................................3
Unboxing CX Kit..............................................................................................................................................................................................................4
Recording or Live Streaming Environment Essentials.....................................................................................................................................5-6
Swivl Suite Components..............................................................................................................................................................................................7
Unboxing CX Kit
Mobile Devices and Swivl App..................................................................................................................................................................................8
Recording or Live Streaming Environment Essentials
SwivlRobot
SuiteBase
Components
and Components....................................................................................................................................................................................9
Cables
Cables andand Accessories..............................................................................................................................................................................................10
Accessories
RobotAdjusting
Base and the Components
Grip........................................................................................................................................................................................................11
Marker Features
Connecting your device.............................................................................................................................................................................................12
Statusthe
Adjusting of LED
GripLights....................................................................................................................................................................................................13
Marker Features...........................................................................................................................................................................................................14
App -Primary
Tabs and Secondary Markers............................................................................................................................................................................15
Uploading, Editing,
App - Home and Sharing - APP
Screen......................................................................................................................................................................................................16
Uploading, Editing, Sharing and Exporting - WEB
App - Tabs........................................................................................................................................................................................................................17
Contacts
Uploading, Editing, and Sharing - APP.................................................................................................................................................................18
Uploading, Editing, Sharing and Exporting - WEB..........................................................................................................................................19
Explore these Advanced Features (Requires Pro)..........................................................................................................................................20
Online Resources.........................................................................................................................................................................................................21
Contacts...........................................................................................................................................................................................................................22
2

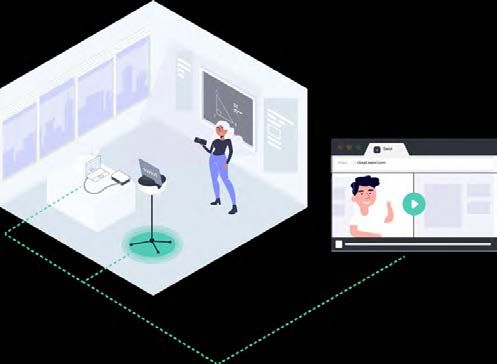

What is Swivl?
The Swivl Robot is an innovative video capture system that allows
teachers to record video of lessons, teaching materials for a flipped
classroom, and teacher or student observations.
You can also connect with remote students during hybrid and distance learning.
The robot tracks the teacher and captures the teacher’s voice during a live streaming session.
The teacher can hear remote students through a variety of audio setups.
3

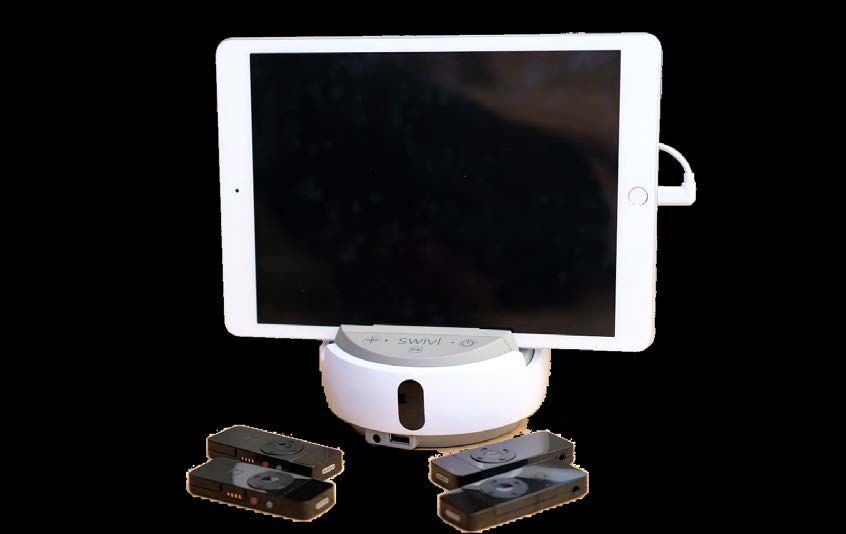

Unboxing CX Kit
Scan me to watch
unboxing video!
4
Recording Environment Essentials
• The Primary Marker should be worn around the neck, Scan me to watch
the video tutorial!
squared central on your chest using the Neck Lanyard or
clipped to your shirt using the Lanyard Clip (see photos
below)
• Avoid interference with ID Badges, necklaces, other mi-
crophones, etc.
Place the robot centrally in the room, at a height where the
infrared signal on the robot can “see” the Primary Marker
on you. Press the center button to pause tracking (recording
continues) if certain students do not consent to filming.
• Place Secondary Markers in student groups, roughly three
feet apart from each other to minimize audio interference.
Make sure all markers are turned on and remain on for the
entire recording.
• Place the robot centrally in the room, at a height where the
infrared signal on the robot can “see” the Primary marker
on you. Press center button to pause tracking (recording
continues) if certain students do not consent to filming.
• Never place the robot too close to a wall or whiteboard.
(Want to capture your presentation? Use Swivl Screencast-
ing instead) Tip: Velcro or tape Secondary Markers to
• Never mount the robot on an unstable surface such as a tables to avoid students knocking them down
podium, slanted desk, or bookshelf. Use the Floor Stand or or removing them from the environment.
your own tripod at all times.
5
Recording Environment Essentials
Scan me to watch
Swivl Basics video!
When you turn your back to the robot, the infrared signal may
“lose you.” If this happens, simply face your body toward the
infrared on the robot for a moment to re-establish tracking
and then proceed with movement.
1. Find the lanyard 2. Place the lanyard
adjustment slider. around your neck
and adjust the slider
around in the back.
3. Check yourself
out! The lanyard Tip:Alternatively, attach the
should be central Lanyard Clip to your shirt
on your chest. high on the lapel or pocket.
6
Swivl Suite Components
Scan me to watch a
quick video about Swivl
Swivl CX robot: connect up to four Swivl App: edit, share, Swivl Teams Platform: edit, share,
additional microphones to collect student and upload your video annotate and collaborate safely on
audio while measuring student vs. teacher automatically to the Swivl our FERPA/COPPA compliant plat-
talk time. Teams Platform. Free form. Fre e subscription required.
download from the Apple Pro and Administrator features
and Google Play Store. available: $75/user/year. Learn more
at: www.swivl.com/teams.
7
Mobile Devices and Swivl App
Swivl is compatible with most iOS and Android devices. Visit:
www.swivl.com/setup to check if your device is compatible. Download the Swivl
app (mint green ‘S’)
Tip: If you plan to use Multi-Camera
functionality, also download the Swivl
Plus app on student devices.
Register using credentials unique to you or sign in with Google.
Use the exact same credentials for Swivl web. Scan for iOS Scan for Android
compatibility compatibility
yourname@swivl.com yourname@swivl.com
8

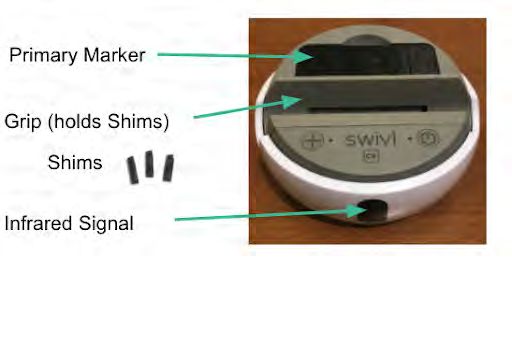

Robot and Marker Components
Robot base components: Marker(s) & their components: Scan me to watch
unboxing video!
CX1 Kit includes 1 Primary Marker
CX3 Kit includes: 1 Primary Marker, 2 Secondary Markers
Primary Marker CX5 Kit includes: 1 Primary Marker, 4 Secondary Markers (PICTURED)
Grip (holds Shim)
Shims

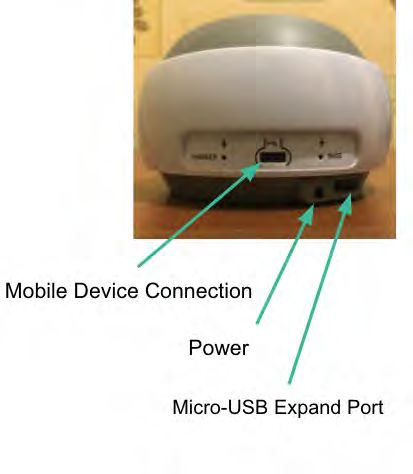

Infrared Signal
Mobile Device Connection
Power
Neck Lanyard (1) Marker Clip Wrist Lanyard(s)
Micro-USB Expand Port for Secondary
Markers (2-4)
9
Cables and Accessories
Required for Mobile Device Connection
Scan me to see Scan me to see
iOS compatibility details Type C compatibility details
Lightning cable for iOS devices CX type C Android cable for Android devices
Required for Charging
CX Base Charging cable CX Marker Charging cable USB Charging Block
Recommended Accessories:
Floor Stand Mount Anything Grip
10Adjusting the Grip
Choose the correct Shim for your mobile de-
vice. Your device should fit firmly in the grip with
Scan me to watch
enough flexibility to pan and tilt with the robot’s unboxing video!
movements.
Shims
1. Slide the grip to the left 2. Lift the grip out of the 3. Replace the shim 4. Align the grip back in the
base grooves of the base and
slide it to the right
Tip: Alternatively, try
the Mount Anything
Grip for devices with
thick cases. Available
on the Swivl Store.
11Tip:
Connecting your device
Plug the robot charger into the
wall outlet - it will maintain robot
and mobile device battery charge while in use.
Scan me to watch
1. Connect your mobile device the video tutorial!
to the robot using 4. Confirm connection
the appropriate cable status in the Swivl App
and press the power button on the Robot tab.
to turn on the robot.
2. Tap ‘Allow’ to enable
the robot access.
5. If you are pairing*
any new Secondary markers,
assign them each a color in
the Swivl App in the
Robot Menu.
Apply a sticker to the marker
with the matching color.
3. Press and hold the power button
on the Primary marker
and then each of the Secondary
markers to turn them all on.
Tip:
To pair a new Secondary marker,
simply turn it on and dock it in the base
Scan me to watch 12
successful connection
video!Status of LED Lights
Scan me to see
charging tutorial!
Robot Base
Solid Red: no marker connected Solid Red: no mobile device detected
Flashing Red: marker is pairing Solid Green: mobile device detected
Solid Green: marker is connected* (Both) Flashing Red: base battery low
*If you are using a CX3 or CX5 kit, the LED will
display green when any marker is connected.
Always verify the Primary marker’s status in your
Swivl app before you record. Tip:
You can use your Robot Base remotely
for 4-6 hours on its own battery
after full charge
Robot Base Marker(s)
Marker Charge Status
Top-Green; Bottom-Flashing Red: Marker
is looking for the base
Flashing Red: Charging, less than 40% battery
Top-Green; Bottom-Green:
Flashing Green: Charging, more than 40%
Indicates this is the Primary Marker
battery
Top-Green: Bottom-Solid Red:
Solid Green: Marker is fully charged
Primary Marker, recording in session
Base Charge Status
Top-Green; Bottom-No LED:
Flashing Red: Charging, less than 40% battery Indicates this is a Secondary Marker
Flashing Green: Charging, more than 40% Both Flashing Red:
battery Battery low
Marker Charge Status Base Charge Status Solid Green: Base is fully charged
13Marker Features All Swivl C-3 kits come with all
three markers pre-paired. All
C-5 kits come with the first three
markers pre-paired and two
• The default behaviors for the Primary marker are tracking and audio-collection. additional markers will need to be
• The default behavior for the Secondary markers is audio-collection. paired to the robot prior to use.
• Tracking for the Primary marker is reliable up to 30 ft; audio-collection: 200 ft.
• Handoff Tracking to any Secondary marker.
Power Record Start/Stop Audio Jack/Charging Port Center: Pause/Resume tracking Microphone
Left/Right: Navigate slides
Up/Down: Bookmarking
(requires Pro)
Youme
Scan willtobe
seeable to see the
guide for Marker
breakdown in student vs. teach-
Features! Tip: Press and hold left/right
er talk time whenever you use or up/down to manually move
the microphones and view your robot position
14Primary and Secondary Markers
Primary marker: Secondary markers:
—The robot follows only the primary marker —Collect audio in the classroom
—Has a white LED light —Indicated by 1 side green light and a colored front LED light
—Teacher microphone —Are not tracked by robot
—Can control the robot movement —Enable audio tracks to be heard individually
during playback on Swivl Teams
—Can mute secondary markers during live streaming
—Control microphone gain from within the Swivl app settings
15App - Home Screen
You can record your Swivl video from Capture screen.
When the robot is successfully connected, you can either After that you can upload,
Record with Swivl app or Stream using 3rd party app: edit and share such videos - see next page
Scan me to see Live Streaming Scan me to see
with Swivl article Recording with Swivl article
Tip:
Swivl has integration with Zoom,
scan me to see details 16App - Tabs
You can find information about your account,
all about Swivl versions - app, robot/marker/link firmware;
check connection status and battery, configure settings for hybrid learning and recording.
Very important tip:
If prompted, always update
firmware.
Scan me to see
the most recent versions
Scan me to see Scan me to see
iOS Settings article Android Settings article
17Uploading, Editing, and Sharing - APP
Scan to learn about
Swivl Pro vs. Standard
After recording verify video upload After finishing recording,
status and/or video storage place - Device Storage or Web Storage. it is possible to edit the title
Remember to turn Automatic Uploading on in the Settings of the App and trim the video
Stored locally on
the device. Upload
to Swivl web!
(cloud.swivl.com)
Share your video via:
-Weblink,
-Direct Share*
You can click on ‘Import’ to upload the videos from -Share to Group* 18
your camera roll to Swivl Teams *requires Pro; recipients can be StandardUploading, Editing, and Sharing - WEB
Uploading Scan to learn about
Swivl Pro vs. Standard
Requires Pro; recipients
can be Standard
You can upload MP4 video files directly to you Swivl Teams account
Does not require Pro,
but is not secure sharing
Web Editing
Export Options*
Requires Pro;
recipients can be
Standard
Requires Pro
You can rename the video, trim or cut it and add slides
19Online Resources
Scan me to see Scan me to visit
Step by Step Audio Guide: Swivl Help Center::
20Explore these Advanced Features (Requires Pro)
Multi-Marker Bookmarking Screencasting
Click the up or down arrow on any marker Record your presentation from your laptop or desktop while record-
during the recording which will place time- ing yourself with the robot.
stamps on the recorded video in Swivl web
Sharing to Groups Multi-Camera
Share videos to private folders accessible by select colleagues to Connect up to four other mobile devices to the recording session
collaborate and annotate on videos together. Use Groups for peer (iOS, Android, and Chromebook compatible) for a multi-camera
mentoring, PD, or best practice libraries. view of all students.
21Contact US
1-888-837-6209
support@swivl.com
option 2 for support
M-F, 7AM-4PM PDT
M-F, 7AM-4PM PDT
Inquire about building
swivl.com/setup a Swivl Team!
for articles, videos, and
FAQs, 24/7 sales@swivl.com
22You can also read
