Dell Precision Tower 7920
Technical Guidebook

Regulatory Model: D04X
Regulatory Type: D04X001
May 2020
Rev. A04

Notes, cautions, and warnings

 NOTE: A NOTE indicates important information that helps you make better use of your product.

 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
 the problem.

 WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2017 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries.
Other trademarks may be trademarks of their respective owners.

Contents

Chapter 1: Chassis.........................................................................................................................5
 Front view............................................................................................................................................................................. 5
 Back view.............................................................................................................................................................................. 6
 Internal view..........................................................................................................................................................................7
 System board components................................................................................................................................................9

Chapter 2: System configurations options ................................................................................... 11
 Operating system................................................................................................................................................................11
 Chipset.................................................................................................................................................................................. 11
 System specifications....................................................................................................................................................... 12
 Memory specifications .....................................................................................................................................................12
 CPU utilization matrix for AEP DIMM..................................................................................................................... 12
 Storage options.................................................................................................................................................................. 15
 Storage specifications.................................................................................................................................................15
 Video specifications...........................................................................................................................................................15
 Expansion slots................................................................................................................................................................... 16
 External connectors...........................................................................................................................................................17
 Storage controllers............................................................................................................................................................ 17
 Network specifications..................................................................................................................................................... 17
 Audio specifications........................................................................................................................................................... 17
 Audio and speakers...................................................................................................................................................... 18
 Keyboard and mouse......................................................................................................................................................... 18
 Security and security software.......................................................................................................................................18
 Misc. Software................................................................................................................................................................... 19
 Service and support.......................................................................................................................................................... 19

Chapter 3: Detailed Engineering Specs........................................................................................20
 Physical specifications..................................................................................................................................................... 20
 Environmental specifications..........................................................................................................................................20
 Power specifications......................................................................................................................................................... 21
 CMOS battery specifications.......................................................................................................................................... 21
 Integrated LAN specifications.........................................................................................................................................21
 Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) network card.............................................................................22
 Aquantia AQN-108 2.5Gbit/5Gbe single port PCIe (Gen3 x1) network card..................................................... 23
 Graphics specifications.................................................................................................................................................... 23
 High end 3D graphics card features....................................................................................................................... 24
 Mid-range 3D graphics card features.....................................................................................................................26
 Entry level 3D graphics card features.................................................................................................................... 29
 2D graphics card features..........................................................................................................................................31
 Storage specifications......................................................................................................................................................34
 Storage specifications - Hard disk drive(HDD)....................................................................................................34
 Storage specification - Solid state drives (SSD)................................................................................................. 37
 Slim Optical drive specifications .............................................................................................................................38
 Half Height Optical drive specifications ............................................................................................................... 39

 Contents 3

Chapter 4: Getting help............................................................................................................... 42
 Contacting Dell...................................................................................................................................................................42

4 Contents

1
 Chassis
This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key
combinations.
Topics:
• Front view
• Back view
• Internal view
• System board components

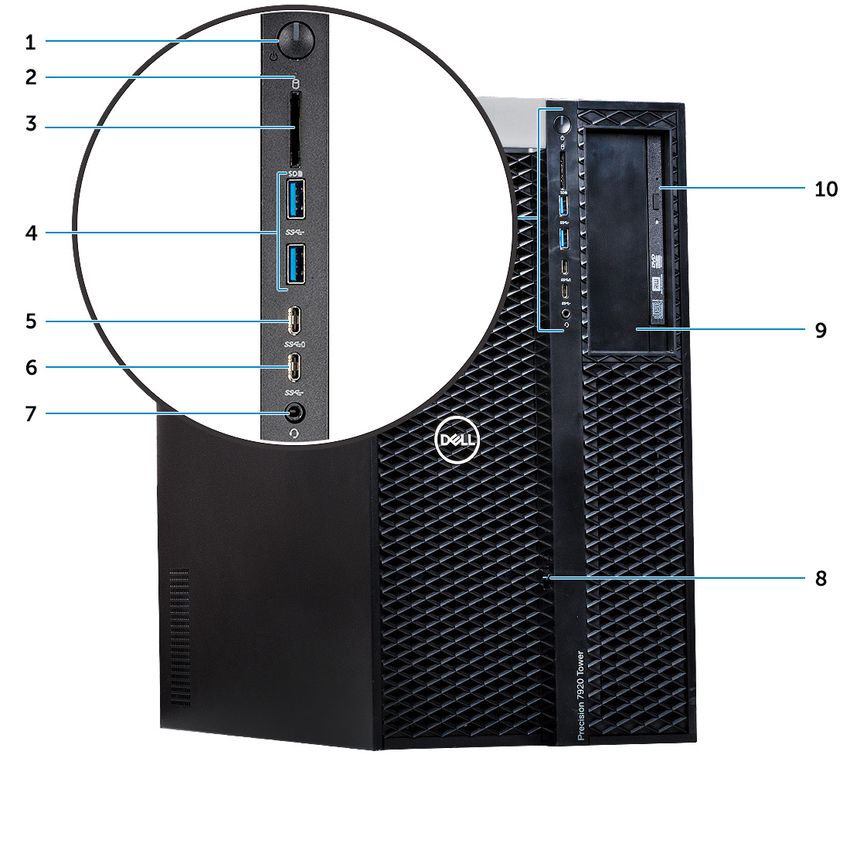

Front view

1. Power button/Power light 2. HDD Activity LED
3. SD card slot 4. USB 3.2 Gen 1x1 ports
5. USB 3.2 Type-C port with PowerShare 6. USB 3.2 Type-C port
7. Universal audio jack 8. Front bezel release latch

 Chassis 5

9. 5.25" ODD Bay 10. Slimline optical bay

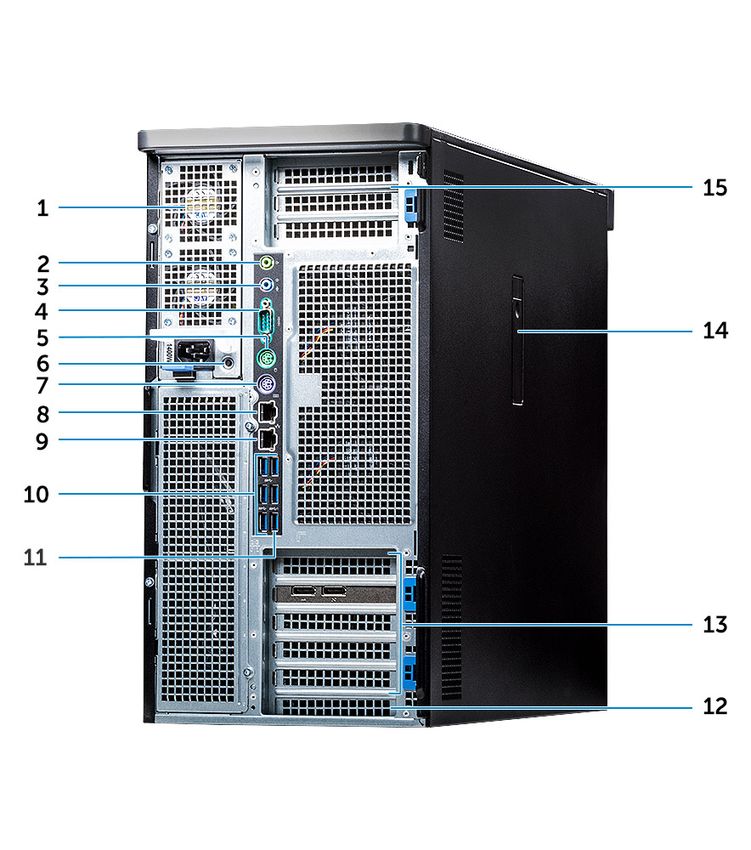

Back view

1. Power supply unit 2. Line-out port
3. Microphone/Line-in port 4. Serial port
5. PS/2 Mouse port 6. PSU BIST LED
7. PS/2 Keyboard port 8. Network Port (AMT Enabled - Optional)
9. Network Port 10. USB 3.2 Gen 1x1 ports
11. USB 3.2 Type-C port with PowerShare 12. Mechanical expansion slot
13. PCIe expansion slots 14. Side cover release latch
15. PCIe expansion slots (CPU1 required)

6 Chassis

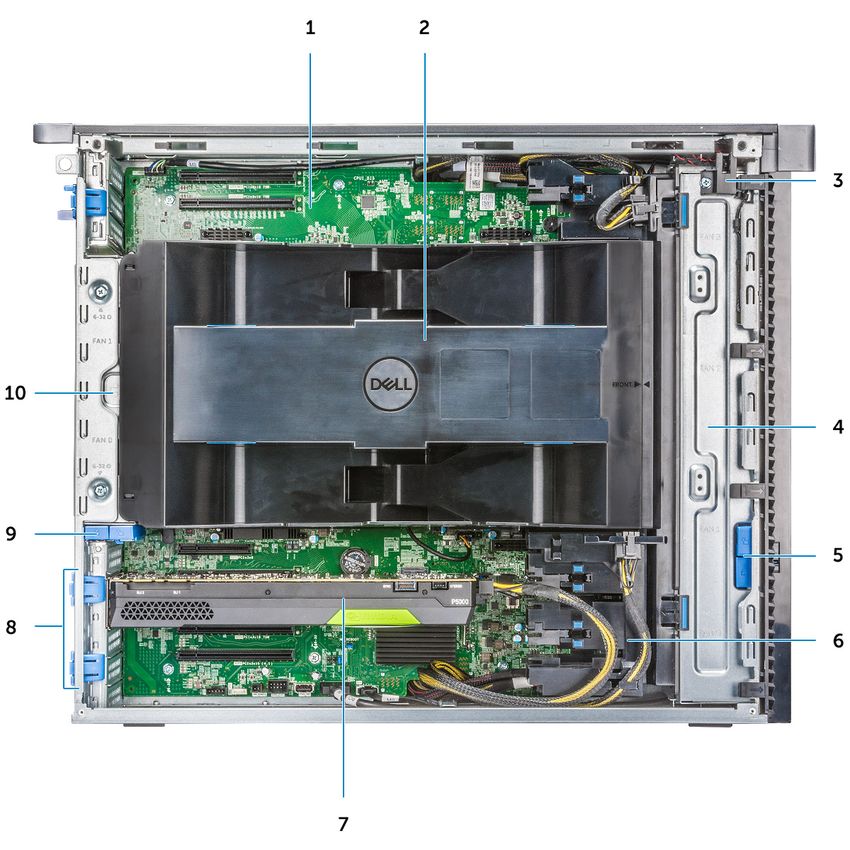

Internal view

1. System board 2. CPU and Memory Air shroud
3. Intrusion switch 4. Front system fan assembly
5. Front Bezel lock/unlock button 6. Auxiliary PCIe power cables
7. Powered graphical processing unit (GPU) 8. PCIe release latches
9. Rear HDD Bezel lock/unlock button 10. Rear Fans

 Chassis 7

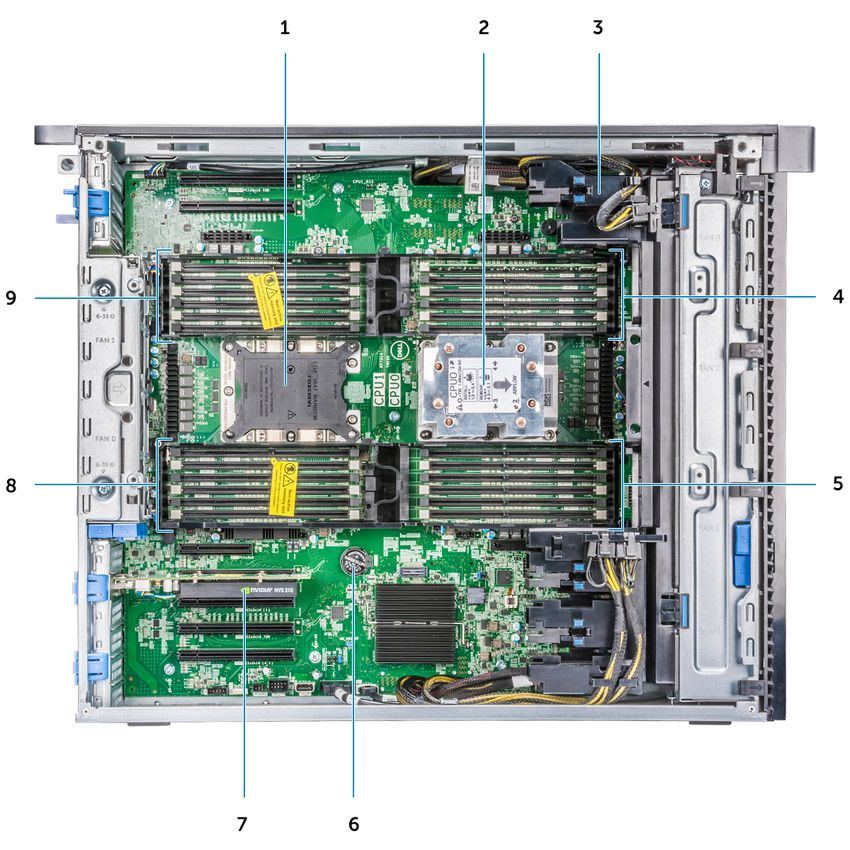

1. CPU1 socket 2. CPU0 Heatsink
3. PCIe holder 4. CPU0 Memory Slots
5. CPU0 Memory Slots 6. Coin cell battery
7. Half length PCIe graphics card 8. CPU1 Memory Slots
9. CPU1 Memory Slots

8 Chassis

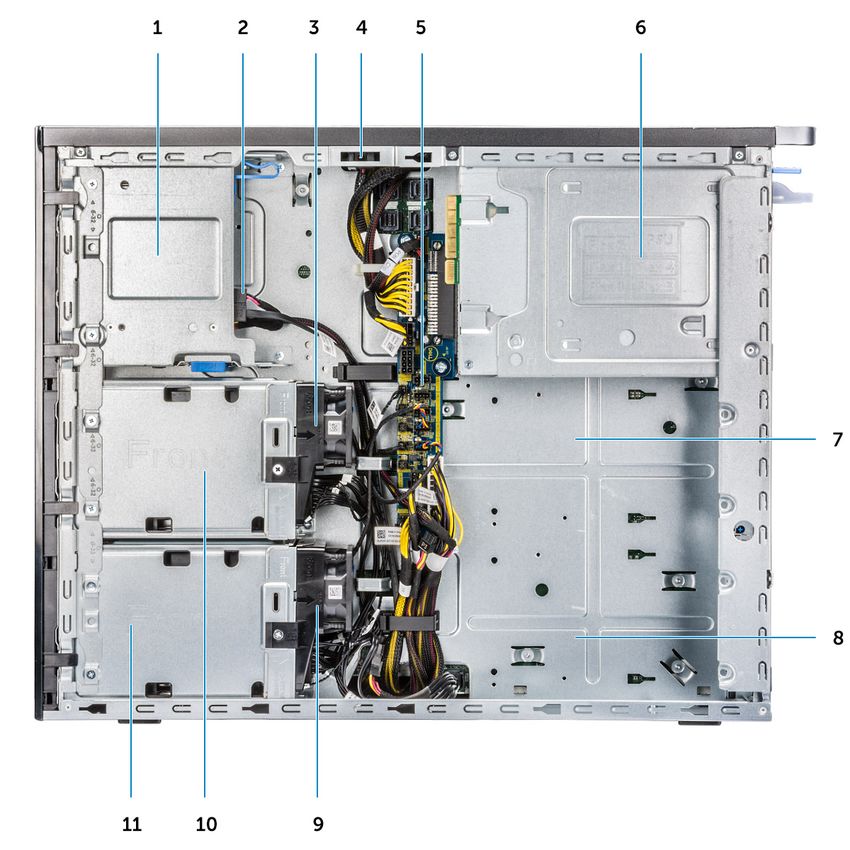

1. Flex 2 (default is 5.25" and Slim ODD Bay) 2. Data cable and power cable for the Slim ODD
3. HDD fan bracket 1 4. Intrusion switch
5. Power distribution and fan control board 6. PSU
7. Flex 3 (optional) 8. Flex 4 (optional)
9. HDD fan bracket 0 10. Flex 1 enclosure
11. Flex 0 enclosure

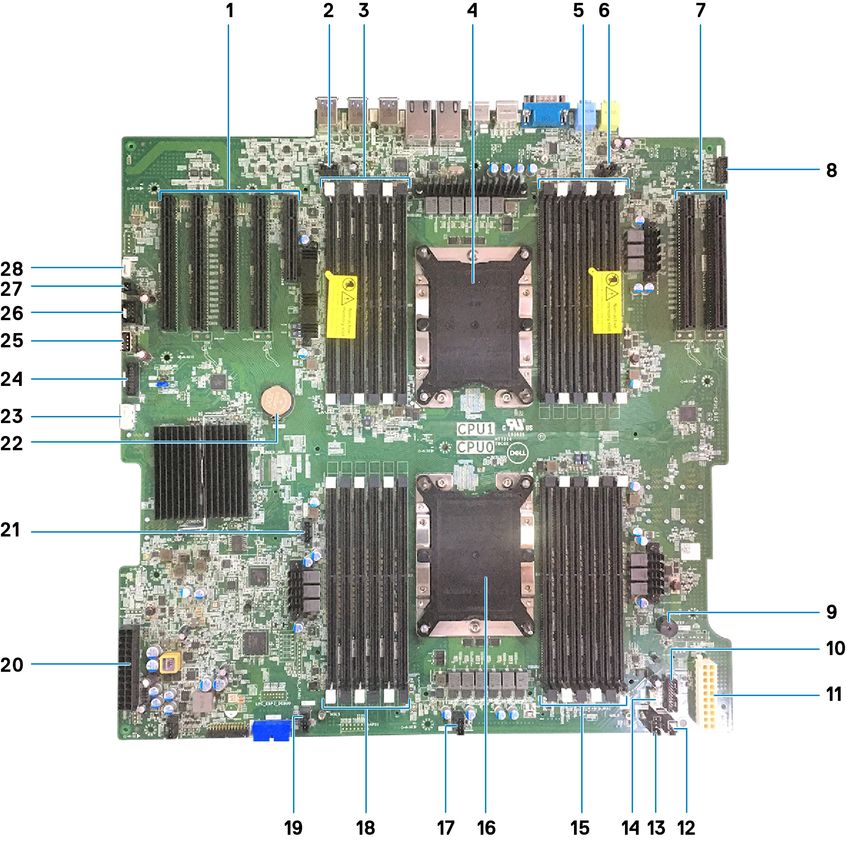

System board components
Figure 1. Components of the system board

 Chassis 9

1. PCIe 3*16 (4 slots) and 3*8 ( 1 slot) 2. Rear fan 0 connector
3. CPU1 memory slots 4. CPU1 socket
5. CPU1 memory slots 6. Rear fan 1 connector
7. CPU1 PCIe 3 x16 Slots (2) 8. Front panel audio
9. Piezo speaker 10. Power Control
11. Power 2 12. Intrusion switch connector
13. System Fan 3 14. Internal speaker connector
15. CPU0 memory slots 16. CPU0 socket
17. System Fan 2 18. CPU0 memory slots
19. System Fan 1 20. Power 1
21. CPU fan 1 22. Coin Cell battery
23. ODD connector 24. Front Panel USB
25. USB 2_Int 26. Flex USB
27. Power remote 28. VROC_key

10 Chassis

2
 System configurations options
Topics:
• Operating system
• Chipset
• System specifications
• Memory specifications
• Storage options
• Video specifications
• Expansion slots
• External connectors
• Storage controllers
• Network specifications
• Audio specifications
• Keyboard and mouse
• Security and security software
• Misc. Software
• Service and support

Operating system
Your Precision 7920 Tower supports the following operating systems:
● Windows 11 Pro, 64-bit
● Windows 11 Pro National Academic, 64-bit
● Windows 11 Pro for Workstations, 64-bit
● Windows 10 Pro, 64-bit
● Windows 10 Pro National Academic, 64-bit
● Windows 10 Enterprise, 64-bit *
● Windows 10 Pro for Workstation, 64-bit
● RHEL 8.4
● Ubuntu 20.04 LTS, 64-bit
● Neokylin 10
 NOTE: Asterisk(*): means that "Only supported on systems with Xeon W Series CPUs.

Chipset
Table 1. Chipset specifications
 Chipset ● Intel C621 Chipset
 Non‐volatile memory on chipset
 BIOS Configuration SPI (Serial Peripheral Interface) 64 Mbit (8 MB) & 32Mbit (4 MB)
 TPM 2.0 Security Device (Trusted Platform Module) 18 KB
 Non-TPM available in select countries
 NIC EEPROM

 System configurations options 11

System specifications
Feature Specification
Processor type Intel Xeon Processor Scalable Family
 ● Intel Xeon Platinum 81xx processors
 ● Intel Xeon Gold 61xx processors
 ● Intel Xeon Gold 51xx processors
 ● Intel Xeon Silver 41xx processors
 ● Intel Xeon Bronze 31xx processors
 ● Intel Xeon Gold 52xx processors
 ● Intel Xeon Silver 42xx processors
 ● Intel Xeon Bronze 32xx processors
 ● Intel Xeon Platinum 82xx processors
 ● Intel Xeon Gold 62xx series processors
Total cache Up to 38.5 MB

Memory specifications
Features Specifications
Type DDR4 RDIMM ECC and non-ECC
Speed ● 2666 MHz (Discontinued on system configurations purchased after October 2020)
 ● 2933 MHz
 ● 3200 MHz
 NOTE: Computer configurations offered with 2933 MHz RDIMMs operating with Sky Lake
 processors will operate at 2666 MHz.

 NOTE: Computer configurations offered with 3200 MHz RDIMMs operating with Cascade Lake
 processors will operate at 2933 MHz.

Connectors 24 DIMM Slots (12 per CPU)
DIMM capacities ● 128 GB per slot 2666 MHz DDR4
 ● 64 GB per slot 2933 MHz DDR4
 ● 128 GB per slot 3200 MHz DDR4
Minimum 16 GB (2x8 GB) i.e. 2 DIMMs per CPU
memory
Maximum ● 3072 GB with 2666 MHz and 3200 MHz memory
memory ● 768 GB with 2933 MHz memory

CPU utilization matrix for AEP DIMM
 NOTE: While using a 512 GB SKU configuration, you may see high CPU utilization (25% to 75%) persisting between 5 to 40
 minutes when you boot into Windows operating system.

Table 2. AEP Support Matrix
Chan Ch5 Ch4 Ch3 Ch0 Ch1 Ch2 Ch5 Ch4 Ch3 Ch0 Ch1 Ch2
nels
Integr iMC1 (CPU0) iMC0 (CPU0) iMC0 (CPU1) iMC1 (CPU1)
ated
Mem
ory

12 System configurations options

Table 2. AEP Support Matrix (continued)
Chan Ch5 Ch4 Ch3 Ch0 Ch1 Ch2 Ch5 Ch4 Ch3 Ch0 Ch1 Ch2
nels
Contr
oller
V P D D DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI DI
M M I I M M M M M M M M M M M M M M M M M M M M M M
( ( M M M M1 M M1 M M1 M M M1 M M1 M M M M M1 M M1 M M1 M M
G G M M 4 0 6 2 5 1 3 9 (0 7 (0 7 3 9 5 1 6 2 4 0 2 8
B B 2 8 (0 (1) (0 (1) (0 (1) (0 (1) ) (1) ) (1) (0 (1) (0 (1) (0 (1) (0 (1) (0 (1)
) ) ( (1 ) ) ) ) ) ) ) ) )
 0 )
 )
6 2 12 16 16 16 16 12
4 5 8 GB GB GB GB 8
G 6 G GB
B G B
 B
9 51 16 16 12 16 12 12 16 12 16 16
6 2 G GB 8 GB 8 8 GB 8 GB GB
G G B GB GB GB GB
B B
19 10 3 32 25 32 25 25 32 25 32 32
2 2 2 GB 6 GB 6 6 GB 6 GB GB
G 4 G GB GB GB GB
B G B
 B
19 2 3 32 51 32 51 51 32 51 32 32
2 0 2 GB 2 GB 2 2 GB 2 GB GB
G 4 G GB GB GB GB
B 8 B
 G
 B
9 7 16 12 16 12 16 12 12 16 12 16 12 16
6 6 G 8 GB 8 GB 8 8 GB 8 GB 8 GB
G 8 B G GB GB GB GB GB
B G B
 B
19 15 3 2 32 25 32 25 25 32 25 32 25 32
2 3 2 5 GB 6 GB 6 6 GB 6 GB 6 GB
G 6 G 6 GB GB GB GB GB
B G B G
 B B
12 51 12 16 16 16 16 12 12 16 16 16 16 12
8 2 8 GB GB GB GB 8 8 GB GB GB GB 8
G G G GB GB GB
B B B
2 2 51 32 32 32 32 51 51 32 32 32 32 51
5 0 2 GB GB GB GB 2 2 GB GB GB GB 2
6 4 G GB GB GB
G 8 B
B G
 B
19 10 16 16 12 16 12 12 16 12 16 16 16 16 12 16 12 12 16 12 16 16
2 2 G GB 8 GB 8 8 GB 8 GB GB GB GB 8 GB 8 8 GB 8 GB GB
G 4 B GB GB GB GB GB GB GB GB
B

 System configurations options 13

Table 2. AEP Support Matrix (continued)
Chan Ch5 Ch4 Ch3 Ch0 Ch1 Ch2 Ch5 Ch4 Ch3 Ch0 Ch1 Ch2
nels
 G
 B
19 2 16 16 16 16 16 12 16 16 12 16 16 16 16 16
2 5 G GB GB GB GB 8 GB GB 8 GB GB GB GB GB
G 6 B GB GB
B G
 B
19 51 16 12 16 16 16 16 12 16 16 12 16 16 16 16 12 16
2 2 G 8 GB GB GB GB 8 GB GB 8 GB GB GB GB 8 GB
G G B G GB GB GB
B B B
3 2 3 32 25 32 25 25 32 25 32 32 32 32 25 32 25 25 32 25 32 32
8 0 2 GB 6 GB 6 6 GB 6 GB GB GB GB 6 GB 6 6 GB 6 GB GB
4 4 G GB GB GB GB GB GB GB GB
G 8 B
B G
 B
7 4 6 64 51 64 51 51 64 51 64 64 64 64 51 64 51 51 64 51 64 64
6 0 4 GB 2 GB 2 2 GB 2 GB GB GB GB 2 GB 2 2 GB 2 GB GB
8 9 G GB GB GB GB GB GB GB GB
G 6 B
B G
 B
19 15 16 12 16 12 16 12 12 16 12 16 12 16 16 12 16 12 16 12 12 16 12 16 12 16
2 3 G 8 GB 8 GB 8 8 GB 8 GB 8 GB GB 8 GB 8 GB 8 8 GB 8 GB 8 GB
G 6 B G GB GB GB GB GB GB GB GB GB GB GB
B G B
 B
3 3 3 2 32 25 32 25 25 32 25 32 25 32 32 25 32 25 32 25 25 32 25 32 25 32
8 0 2 5 GB 6 GB 6 6 GB 6 GB 6 GB GB 6 GB 6 GB 6 6 GB 6 GB 6 GB
4 7 G 6 GB GB GB GB GB GB GB GB GB GB GB
G 2 B G
B G B
 B
7 15 6 12 64 12 64 12 12 64 12 64 12 64 64 12 64 12 64 12 12 64 12 64 12 64
6 3 4 8 GB 8 GB 8 8 GB 8 GB 8 GB GB 8 GB 8 GB 8 8 GB 8 GB 8 GB
8 6 G G GB GB GB GB GB GB GB GB GB GB GB
G G B B
B B
7 3 6 2 64 25 64 25 25 64 25 64 25 64 64 25 64 25 64 25 25 64 25 64 25 64
6 0 4 5 GB 6 GB 6 6 GB 6 GB 6 GB GB 6 GB 6 GB 6 6 GB 6 GB 6 GB
8 7 G 6 GB GB GB GB GB GB GB GB GB GB GB
G 2 B G
B G B
 B
15 61 12 51 12 51 12 51 51 12 51 12 51 12 12 51 12 51 12 51 51 12 51 12 51 12
3 4 8 2 8 2 8 2 2 8 2 8 2 8 8 2 8 2 8 2 2 8 2 8 2 8
6 4 G G GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB GB
G G B B
B B

14 System configurations options

Storage options
Table 3. Storage options
M.2 NVMe PCIe SSDs Up to 8 x 1TB drives on 2 Dell Precision Ultra-Speed Drive Quad x16
 cards. Requires dual CPU config.

Front FlexBay M.2 NVMe PCIe SSDs Up to 4* x 1TB drives, 2 drives per CPU. Requires dual CPU config.

2.5" SATA SSD Up to 10 x 1TB drives

2.5" SAS SSD Up to 6 x 800GB drives

3.5" SAS 7200 RPM 12Gb/s Up to 10 x 4TB

2.5" SAS 10K RPM 12Gb/s Up to 10x 1.8TB

2.5" SAS 15K RPM 12Gb/s Up to 10x 900GB (future)

2.5" Self Encrypting Drives 512GB 2.5" SED (OPAL/ FIPS (140-2) HDD

M.2 PCIe SED SSD 512GB and 1TB

Storage specifications
Features Specifications
Externally DVD-ROM; DVD+/-RW Optional 5.25” bay devices: BD, DVD+/-RW
Accessible
Internally ● M.2 NVMe PCIe SSDs—Up to 8* x 1TB drives on 2 Dell Precision Ultra-Speed Drive Quad x16 cards.
Accessible Requires dual CPU config
 ● Front FlexBay M.2 NVMe PCIe SSDs—Up to 4* x 1TB drives, 2 drives per CPU. Requires dual CPU
 config
 ● Up to 8 x 3.5" (or 2.5") SATA Drives
 ● Up to 10 x 3.5" (or 2.5") SATA/SAS Drives with optional controller

Video specifications
Features Specifications
Graphic cards ● Radeon Pro WX 9100
 ● NVIDIA Quadro GP100
 ● NVIDIA Quadro P620
 ● NVIDIA Quadro P2200
 ● NVIDIA Quadro GV100
 ● NVIDIA Quadro P6000
 ● NVIDIA Quadro P5000
 ● Radeon Pro WX 7100
 ● Radeon Pro WX 5100
 ● Radeon Pro WX 4100
 ● NVIDIA Quadro P4000
 ● NVIDIA Quadro P2000
 ● Radeon Pro WX 3100
 ● Radeon Pro WX 3200

 System configurations options 15

Features Specifications
 ● Radeon Pro WX 2100
 ● NVIDIA Quadro P1000
 ● NVIDIA Quadro P600
 ● NVIDIA Quadro P400
 ● NVIDIA NVS 310
 ● NVIDIA NVS 315
 ● NVIDIA Quadro RTX 4000
 ● NVIDIA Quadro RTX 5000/6000/ 8000
 ● NVIDIA GEFORCE RTX 2080 B
 ● NVIDIA GEFORCE RTX 3080
 ● NVIDIA GEFORCE RTX 3090
 NOTE: NVIDIA GEFORCE RTX 3080 and 3090 Graphics cards are qualified to be used on the slot 2
 PCIe slot of the system board.

Expansion slots
Table 4. Expansion slots
PCIe x16 Slot Gen 3 Slots 1‐2, 1‐4 (2‐1, 2‐2 w 2nd CPU) 2 (4 with optional 2nd CPU installed)
PCIe x16 (wired x4) Slot Gen 3 open ended ‐ Slot 1‐1 1 (half length)
PCIe x16 Slot (wired x4) Gen 2 ‐ Slot 1‐3 1
PCI 32/33 Slot ‐ Slot 1‐5 1
SATA/ SAS connectors 8 SATA/SAS HDD (via LSI), 2 optional SATA (via Intel AHCI
 chipset )

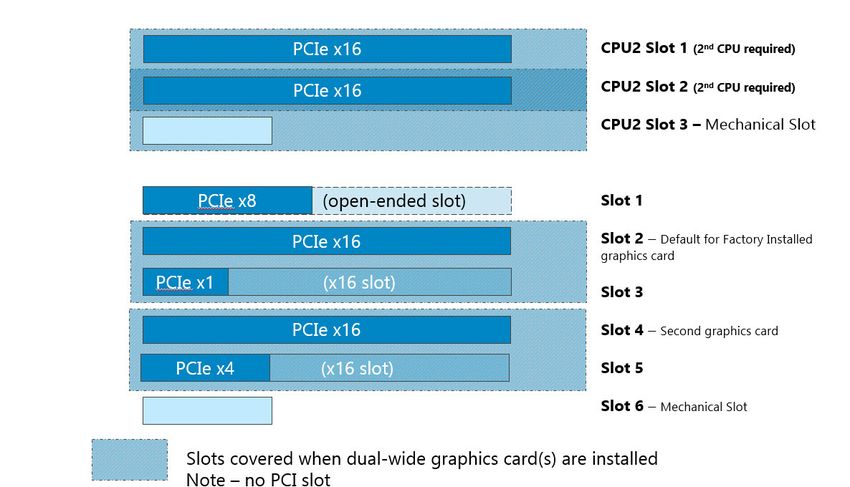

Expansion slot layout

Figure 1. Expansion slot layout

16 System configurations options

External connectors
Features Specifications
Audio ● Rear—1 x Audio Line out
 ● Rear—1 x Audio Line in/Microphone
 ● Front—1 x Universal Audio Jack
Network Rear—2 x RJ45 Network ports
Serial port Rear—1 x Serial port
USB ● Front—2 x USB 3.2 Gen 1x1 and 2 x USB 3.2 Type-C (1 with PowerShare)
 ● Rear—6 x USB 3.2 Gen 1x1
PS2 ● Rear—1 x Keyboard
 ● Rear—1 x Mouse

Storage controllers
Table 5. Storage controllers
Integrated ● Integrated: Intel® chipset SATA controller (6Gb/s) with 6
 SATA ports plus 2 dedicated ports for optical drives. Intel
 RSTe software RAID 0,1,5,10.
 ● Intel RSTe (vROC) software RAID 0,1,10 option
 (motherboard activation key) for M.2 NVMe PCIe SSDs on
 1st Dell Ultra-Speed Drive Quad x16 or Duo x8 card (RAID
 0,1) or front FlexBay NVMe PCIe SSDs (2 drive RAIDsets
 only with RAID 0,1)
 Customer kit available for Intel RSTe (vROC) motherboard
 activation key for NVMe RAID support.
Optional ● Broadcom MegaRAID® SAS 9440-8i 12Gb/s SAS (6Gb/s
 SATA) PCIe controller, 8 ports, Software RAID 0,1,5,10.
 ● MegaRAID® SAS 9460-16i 12Gb/s SAS (6Gb/s SATA) )
 PCIe controller (4GB cache with Flash module/Super Cap
 backup) Hardware RAID 0,1,5,10.

Network specifications
Features Specifications
Integrated Intel i219 and i210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames
 support.
Network adaptor ● Intel i210 10/100/1000 single port PCIe (Gen 3 x1) gigabit network card.
2 (Optional) ● Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) network card.
 ● Aquantia AQN-108 2.5Gbit/5Gbe single port PCIe (Gen3 x4) network card.

Audio specifications
Features Specifications
Type High Definition Audio Codec (2 Channel)
Controller Integrated Realtek ALC3234

 System configurations options 17

Features Specifications
Internal Speaker 2W
Power Rating
Internal no
microphone
support

Audio and speakers

Table 6. Audio and speakers
Integrated Realtek ALC3234 High Definition Audio Codec (2 integrated on system board
channel)
Internal Chassis Speaker optional
Dell AX210 2.0 Desktop Speakers optional
Dell AX510/AX510PA Flat Panel Soundbar Speakers optional

Keyboard and mouse
Table 7. keyboard and mouse options
Dell USB Entry Keyboard optional
Dell Multimedia Pro Keyboard optional
Dell Smartcard Keyboard optional
Dell USB Optical Mouse optional
Dell Laser Mouse optional

Security and security software
Table 8. Security
Trusted Platform Module (TPM 2.0) Integrated on system board
Chassis Intrusion Switch Standard
Dell Smartcard Keyboard Optional
Chassis lock slot and loop support Standard

CAC/PIV card reader for slimline bay Optional

Kensington® lock slot Standard
Padlock ring Standard
lockable power supply Standard
Optional hard drive locking sleds (key lock) Standard

Table 9. Security software
Dell Data Guardian Standard

18 System configurations options

Table 9. Security software (continued)
Dell Data Protection | Endpoint Security Suite Standard

Misc. Software
Table 10. Misc. Software
Performance Optimizer (formerly Dell Precision Optimizer) Standard

Service and support
For more details on Dell Service Plans, see

Table 11. Service and support
3 Year Warranty1 Next Business Day On‐site2 (3‐3‐3) Standard
ProSupport Optional

Important information
1. For a copy of our guarantees or limited warranties, please write Dell USA L.P., Attn: Warranties, One Dell Way, Round Rock,
 TX 78682. For more information, visit www.dell.com/warranty
2. Service may be provided by third‐party. Technician will be dispatched if necessary following phone‐based troubleshooting.
 Subject to parts availability, geographical restrictions and terms of service contract. Service timing dependent upon time of
 day call placed to Dell. U.S. only

 System configurations options 19

3
 Detailed Engineering Specs
Topics:
• Physical specifications
• Environmental specifications
• Power specifications
• CMOS battery specifications
• Integrated LAN specifications
• Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) network card
• Aquantia AQN-108 2.5Gbit/5Gbe single port PCIe (Gen3 x1) network card
• Graphics specifications
• Storage specifications

Physical specifications
Features Specifications
Height 433mm
Width 218mm
Depth 566mm
Weight With front bezel
(Minimum) ● Min configuration 20.4 kg
 ● Typical configuration 24.3 kg
 ● Max configuration 33.1 kg

Environmental specifications
Temperature Specifications
Operating 5 °C to 35 °C (41 F to 95 °F)
 NOTE: * Starting at 5000 ft, the maximum operating ambient temperature is derated by 1 C (1.8 F)
 per 1000 ft up to 10,000 ft.

Storage -40 °C to 65 °C(-40 F to 149 F)

Relative Specifications
humidity
(maximum)
Operating 8% to 85% (non-condensing)
Storage 5% to 95% (non-condensing)

Maximum Specifications
vibration
Operating 0.52 Grms, 5 to 350 Hz
Storage 2.0 Grms, 5 to 500 Hz

20 Detailed Engineering Specs

Maximum Specifications
Shock
Operating 40 G half-sine 2.5 ms pulse
Storage 105 G half-sine 2.5 ms pulse

Power specifications
Features Specifications
Voltage Input voltage 100VAC - 240VAC
Wattage ● 1400W at 181VAC - 240VAC
 ● 1100W at 100VAC - 180VAC

CMOS battery specifications
This topic explains about CMOS battery specifications.

Table 12. CMOS battery specifications
Brand Type Voltage Composition Life
PANASONI CR‐2302L/BE 3V Lithium Continuous Discharge
C Under 15 kΩ Load to 2.5V
 End‐Voltage: 1100 hours
 or longer
MITSUBISHI CR2302 3V Lithium Continuous Discharge
 Under 15 kΩ Load to 2.5V
 Manganese End‐Voltage: 1000 hours
 Dioxide or longer

Integrated LAN specifications
Table 13. Integrated LAN specifications - Intel® i219 Gigabit Ethernet controllers with Intel Remote Wake
UP, PXE and Jumbo frames support
Type Intel I219 Gigabit1 Ethernet LAN 10/100/1000
External Connector Type
Data Rates supported
Controller Details
Controller bus architecture
Integrated memory
Data transfer mode (example Bus‐Master DMA)
Power consumption (full operation per data rate connection
speed)
Power consumption (full operation per data rate connection
speed)
IEEE standards compliance (example 802.1P)

 Detailed Engineering Specs 21

Table 13. Integrated LAN specifications - Intel® i219 Gigabit Ethernet controllers with Intel Remote Wake
UP, PXE and Jumbo frames support (continued)
Hardware Certifications (example FCC, B, GS mark…)
Boot ROM Support
Network Transfer Mode (example Full Duplex, Half
Duplex)

Environmental
Operating System Driver Support
Manageability (examples WOL, PXE)
Management Capabilities Alerting

Table 14. Integrated LAN specifications - Intel i210 Gigabit1 Ethernet LAN 10/100/1000
Type Intel I210 Gigabit1 Ethernet LAN 10/100/1000
External Connector Type
Data Rates supported
Controller Details
Controller bus architecture
Integrated memory
Data transfer mode (example Bus‐Master DMA)
Power consumption (full operation per data rate connection
speed)
Power consumption (full operation per data rate connection
speed)
IEEE standards compliance (example 802.1P)
Hardware Certifications (example FCC, B, GS mark…)
Boot ROM Support
Network Transfer Mode (example Full Duplex, Half
Duplex)

Environmental
Operating System Driver Support
Manageability (examples WOL, PXE)
Management Capabilities Alerting

Intel X550-T2 10GbE dual port PCIe (Gen 3 x4)
network card
This topic explains about Intel X550-T2 dual port PCIe Gen 3, x4 network card

Table 15. Specifications
Connector Type RJ45
Data Rates supported 100Mb/1GbE/2.5GbE/5GbE/10GbE
Controller Details Intel 550

22 Detailed Engineering Specs

Table 15. Specifications (continued)
Controller bus architecture (example PCIe 1.0a x1) PCIe Gen 3 x4
Data transfer mode (example Bus‐Master DMA) Two SMBus (Master/Slave + Slave)
Power consumption (full operatioon per data rate connection Single : 8.4 W / Dual Mode: 13 W at 10GbE
speed)
Power consump on (standby opera on) 3.9 W
IEEE standards compliance (example 802.1P) VEPA: IEEE 802.11Qbg
Hardware Cer fica ons (example FCC, B, GS mark…) Class A:USA-FCC; Canada-ICES-003/NMB-003,
 European Union-CE, Japan-VCCI,Taiwan-BSMI, Korea-
 MSIP,Australia/New Zealand-RCM, Safety EN/UL and CSA
 22.2 60950-1
Boot ROM Support PXE 2.0 Enabled through Boot Read-only Memory(ROM)
Network Transfer Mode (example Full Duplex, Half Duplex) Full Duplex

Aquantia AQN-108 2.5Gbit/5Gbe single port PCIe
(Gen3 x1) network card
This topic explains about Aquantia AQN-108 PCIe Gen3, x4 network card

Table 16.
Type PCIe 3.0 multi-gigabit 5GBASE-T/2.5GBASE-T/1000BASE-T/
 100BASE-TX Ethernet adapter
External Connector Type RJ45
Data Rates supported 5 G/2.5 G/1 G/100 Mbps
Controller Details
Controller bus architecture AQC-108
Integrated memory N/A
Data transfer mode (example Bus‐Master DMA) Two SMBus (Master/Slave + Slave)
Power consumption (full operation per data rate connection 4W at 5 Gbps with full length 100 M Cat5e
speed)
IEEE standards compliance (example 802.1P) IEEE 802.3an/bz
Hardware Certifications (example FCC, B, GS mark…) NBASE-T TM Alliance PHY
Boot ROM Support UEFI (Unified Extensible Firmware Interface) 2.3/2.5, PXE
 (Preboot Execution Environment) 2.0
Operating System Driver Support Windows 11, 10, 8.1, 8.0, and 7 (32-Bit/64-Bit), Linux 3.2, 3.10,
 3.12, 4.2 and 4.4

Graphics specifications
This section captures the detailed graphics specifications of the system.

 Detailed Engineering Specs 23

High end 3D graphics card features

NVIDIA Quadro GP100
PCIe slot width 2
Memory (GDDR5) 15 GB HMB2
Open GL 4.5
Open CL
DirectX 12.0
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 7680x4320 24bpp @120hz (four DisplayPorts)
 ● 7680x4320 24bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 4
Video connectors ● one Dual Link DVI-I
 ● four DisplayPorts
 ● 1 Stereo (optional) SYNC connector
card to card connectors 1 or 2 NVLink
Aux power connectors needed 12V 8-pin connector (ships with an adapter for 8pin to dual
 PCIe 6-pin for system power)
Maximum power 250 W

NVIDIA Quadro P5000
PCIe slot width 2
Memory (GDDR5) 24GB GDDR5X
Open GL 4.5
Open CL
DirectX 12.0
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 7680x4320 24bpp @120hz (four DisplayPorts)
 ● 7680x4320 24bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 6
Video connectors ● one Dual Link DVI-I
 ● four DisplayPorts

24 Detailed Engineering Specs

NVIDIA Quadro P5000
 ● 1 Stereo (optional) SYNC connector
card to card connectors SLI bridge
Aux power connectors needed 8-pin
Maximum power 180 W

NVIDIA Quadro P6000
PCIe slot width 2
Memory (GDDR5) 24GB GDDR5X
Open GL 4.5
Open CL
DirectX 12.0
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 7680x4320 24bpp @120hz (four DisplayPorts)
 ● 7680x4320 24bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 6
Video connectors ● one Dual Link DVI-I
 ● four DisplayPorts
 ● 1 Stereo (optional) SYNC connector
card to card connectors SLI bridge
Aux power connectors needed 12V 8-pin connector (ships with an adapter for 8pin to dual
 PCIe 6-pin for system power)
Maximum power 250 W

Radeon Pro SSG
PCIe slot width 2
Memory (GDDR5) 15 GB HMB2
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 7680x4320 @ 60Hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 6
monitor connections)
Maximum monitors (direct connection) 6
Max # of 4Kx2K displays @ 60hz 6

 Detailed Engineering Specs 25

Radeon Pro SSG
Max # of 5120x2880 pixel displays @ 60hz 6
Video connectors 6 mini-Display Port
card to card connectors
Aux power connectors needed 8 pin + 6 pin
Maximum power 250 W

Radeon Pro WX 9100
PCIe slot width 2
Memory (GDDR5) 15 GB HMB2
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 7680x4320 @ 60Hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 6
monitor connections)
Maximum monitors (direct connection) 6
Max # of 4Kx2K displays @ 60hz 6
Max # of 5120x2880 pixel displays @ 60hz 6
Video connectors 6 mini-Display Port
card to card connectors
Aux power connectors needed 8 pin + 6 pin
Maximum power 250 W

Mid-range 3D graphics card features

Radeon Pro WX 7100
PCIe slot width 1
Memory (GDDR5) 8 GB
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 7680x4320 30bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4

26 Detailed Engineering Specs

Radeon Pro WX 7100
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 2
Video connectors four DisplayPorts
Included video adapters (with systems or customer kits) 1 or 2 NVLink
Aux power connectors needed 2-pin
Maximum power 130 W

Radeon Pro WX 5100
PCIe slot width 1
Memory (GDDR5) 4 GB
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 7680x4320 30bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 2
Video connectors four DisplayPorts
Included video adapters (with systems or customer kits) 1 or 2 NVLink
Aux power connectors needed
Maximum power 75 W

Radeon Pro WX 4100
PCIe slot width 1
Memory (GDDR5) 4 GB
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 5120x2880 30bpp @ 60hz
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4

 Detailed Engineering Specs 27

Radeon Pro WX 4100
Max # of 5120x2880 pixel displays @ 60hz 1
Video connectors four DisplayPorts
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 50 W

NVIDIA Quadro P4000
PCIe slot width 1
Memory (GDDR5) 8 GB
Open GL 4.5
Open CL
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 7680x4320 24bpp @120hz (four DisplayPorts)
 ● 7680x4320 24bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 4
Video connectors ● four DisplayPorts
 ● one stereo (optional)
Included video adapters (with systems or customer kits)
Aux power connectors needed 6-pin
Maximum power 120 W

NVIDIA Quadro P2000
PCIe slot width 1
Memory (GDDR5) 5 GB
Open GL 4.5
Open CL
DirectX 12.0
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 7680x4320 24bpp @120hz (four DisplayPorts)
 ● 7680x4320 24bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4

28 Detailed Engineering Specs

NVIDIA Quadro P2000
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 2
Video connectors four DisplayPorts
Included video adapters (with systems or customer kits) 1 DP- SL-DVI
Aux power connectors needed
Maximum power 75 W

Entry level 3D graphics card features

Radeon Pro WX 3100
PCIe slot width 1
Memory (GDDR5) 4 GB
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 5120x3200, 24bpp, 60Hz
 ● 3840x4320, 24bpp, 60Hz (half 8K)
Maximum Monitors using DP Multi-Stream (monitor to 5
monitor connections)
Maximum monitors (direct connection) 3
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 1
Video connectors 2 miniDP + one DisplayPort
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 50 W

Radeon Pro WX 2100
PCIe slot width 1
Memory (GDDR5) 2 GB
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 5120x3200, 24bpp, 60Hz
 ● 3840x4320, 24bpp, 60Hz (half 8K)

 Detailed Engineering Specs 29

Radeon Pro WX 2100
Maximum Monitors using DP Multi-Stream (monitor to 5
monitor connections)
Maximum monitors (direct connection) 3
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 1
Video connectors 2 miniDP + one DisplayPort
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 50 W

NVIDIA Quadro P1000
PCIe slot width 1
Memory (GDDR5) 4 GB
Open GL 4.5
Open CL
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 7680x4320 24bpp @120hz (four DisplayPorts)
 ● 7680x4320 24bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 4
Video connectors four mini-DisplayPorts
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 47 W

NVIDIA Quadro P600
PCIe slot width 1
Memory (GDDR5) 2 GB
Open GL 4.5
Open CL
DirectX 11.2
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 5120x2880 24bpp @ 60hz

30 Detailed Engineering Specs

NVIDIA Quadro P600
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 2
Video connectors four mini-DisplayPorts
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 40 W

NVIDIA Quadro P400
PCIe slot width 1
Memory (GDDR5) 2 GB
Open GL 4.5
Open CL
DirectX 11.2
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 5120x2880 24bpp @ 60hz
Maximum Monitors using DP Multi-Stream (monitor to 3
monitor connections)
Maximum monitors (direct connection) 3
Max # of 4Kx2K displays @ 60hz 3
Max # of 5120x2880 pixel displays @ 60hz 3
Video connectors three mini-DisplayPorts
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 30 W

2D graphics card features

NVIDIA Quadro NVS 315
PCIe slot width 1
Memory 1 GB DDR3
Open GL 4.1
Open CL
DirectX 11.0
Vulcan
PCIe support x16 Gen2

 Detailed Engineering Specs 31

NVIDIA Quadro NVS 315
Max Resolution (# of DisplayPorts used) ● 2560x1600 (DisplayPort)
 ● 1920x1200 (DVI-I)
Maximum Monitors using DP Multi-Stream (monitor to 2
monitor connections)
Maximum monitors (direct connection) 2
Max # of 4Kx2K displays @ 60hz 0
Max # of 5120x2880 pixel displays @ 60hz 0
Video connectors 1 DMS-59
Included video adapters (with systems or customer kits) 1 DMS-59-dual DVI
Aux power connectors needed
Maximum power 19.5 W

NVIDIA Quadro NVS 310
PCIe slot width 1
Memory 1 GB DDR3
Open GL 4.1
Open CL
DirectX 11.0
Vulcan
PCIe support x16 Gen2
Max Resolution (# of DisplayPorts used) ● 2560x1600 (DisplayPort)
 ● 1920x1200 (DVI-I)
Maximum Monitors using DP Multi-Stream (monitor to 2
monitor connections)
Maximum monitors (direct connection) 2
Max # of 4Kx2K displays @ 60hz 0
Max # of 5120x2880 pixel displays @ 60hz 0
Video connectors two DisplayPorts
Included video adapters (with systems or customer kits) two DisplayPorts to SL-DVI
Aux power connectors needed
Maximum power 19.5 W

Radeon Pro WX 2100
PCIe slot width 1
Memory (GDDR5) 2 GB
Open GL 4.5
Open CL 2.0
DirectX 12.0
Vulcan
PCIe support x16 Gen3

32 Detailed Engineering Specs

Radeon Pro WX 2100
Max Resolution (# of DisplayPorts used) ● 5120x3200, 24bpp, 60Hz
 ● 3840x4320, 24bpp, 60Hz (half 8K)
Maximum Monitors using DP Multi-Stream (monitor to 5
monitor connections)
Maximum monitors (direct connection) 3
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 1
Video connectors 2 miniDP + one DisplayPort
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 50 W

NVIDIA Quadro P1000
PCIe slot width 1
Memory (GDDR5) 4 GB
Open GL 4.5
Open CL
DirectX 12.0
Vulcan Yes
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) ● 7680x4320 24bpp @120hz (four DisplayPorts)
 ● 7680x4320 24bpp @60hz (two DisplayPorts)
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 4
Video connectors four mini-DisplayPorts
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 47 W

NVIDIA Quadro P600
PCIe slot width 1
Memory (GDDR5) 2 GB
Open GL 4.5
Open CL
DirectX 11.2
Vulcan
PCIe support x16 Gen3

 Detailed Engineering Specs 33

NVIDIA Quadro P600
Max Resolution (# of DisplayPorts used) 5120x2880 24bpp @ 60hz
Maximum Monitors using DP Multi-Stream (monitor to 4
monitor connections)
Maximum monitors (direct connection) 4
Max # of 4Kx2K displays @ 60hz 4
Max # of 5120x2880 pixel displays @ 60hz 2
Video connectors four mini-DisplayPorts
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 40 W

NVIDIA Quadro P400
PCIe slot width 1
Memory (GDDR5) 2 GB
Open GL 4.5
Open CL
DirectX 11.2
Vulcan
PCIe support x16 Gen3
Max Resolution (# of DisplayPorts used) 5120x2880 24bpp @ 60hz
Maximum Monitors using DP Multi-Stream (monitor to 3
monitor connections)
Maximum monitors (direct connection) 3
Max # of 4Kx2K displays @ 60hz 3
Max # of 5120x2880 pixel displays @ 60hz 3
Video connectors three mini-DisplayPorts
Included video adapters (with systems or customer kits)
Aux power connectors needed
Maximum power 30 W

Storage specifications
This section captures the detailed storage specifications of the system.

Storage specifications - Hard disk drive(HDD)

2.5” 500 GB 7200 RPM HDD (7 mm)
Capacity (bytes) 500 GB HDD 7200 RPM
Dimensions inches (W x D x H) Approximately (2.760 x 3.959 x 0.276 inches)

34 Detailed Engineering Specs

2.5” 500 GB 7200 RPM HDD (7 mm)
Interface type and Maximum speed Up to 6Gb/s (SATA 3.0)
MTBF 550,000 hours
Logical Blocks 976,773,168
Power Source
Power Consumption (reference only) Idle 0.7W, Active 3.25 W
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 60°C
Relative Humidity Range 5% to 90%
Op Shock (@2ms) 350 G
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range -40°C to 65°C
Relative Humidity Range 5% to 95%

2.5” 1 TB 7200 RPM HDD (9.5 mm only)
Capacity (bytes) 1 TB HDD 7200 RPM
Dimensions inches (W x D x H) Approximately (2.760 x 3.959 x 0.374 inches)
Interface type and Maximum speed Up to 6Gb/s (SATA 3.0)
MTBF 550,000 hours
Logical Blocks 1,953,525,168
Power Source
Power Consumption (reference only) Idle 0.7 W, Active 3.25 W
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 60°C
Relative Humidity Range 5% to 90%
Op Shock (@2ms) 350 G
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range -40°C to 65°C
Relative Humidity Range 5% to 95%

2.5” 500 GB 7200 RPM OPAL SED FIPS (7 mm)
Capacity (bytes) 500 GB 7200 OPAL SED FIPS
Dimensions inches (W x D x H) Approximately (2.75 x 3.937 x 0.276 inches)
Interface type and Maximum speed Up to 6Gb/s (SATA 3.0)
MTBF 550,000 hours
Logical Blocks 976,773,168
Power Source
Power Consumption (reference only) Idle 0.7 W, Active 3.25 W
Environmental Operating Conditions (Non-condensing)

 Detailed Engineering Specs 35

2.5” 500 GB 7200 RPM OPAL SED FIPS (7 mm)
Temperature Range 5°C to 60°C
Relative Humidity Range 5% to 90%
Op Shock (@2ms) 350 G
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range -40°C to 65°C
Relative Humidity Range 5% to 95%

3.5” 1TB 7200 RPM HDD
Capacity (bytes) 1TB HDD 7200 RPM
Dimensions inches (W x D x H) Approximately ( 5.79 x4.0 x 1.0 inches)
Interface type and maximum speed Up to 6Gb/s (SATA 3.0)
MBTF 550,000 hours
Logical blocks 1,953,525,168
Power Source
Power consumption (reference only) Idle 5W, Active 10 W
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 60°C
Relative Humidity Range 5% to 90%
Op Shock (@2ms) 65 G
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range -40°C to 65°C
Relative Humidity Range 5% to 95%

3.5” 2TB 7200 RPM HDD
Capacity (bytes) 2TB HDD 7200RPM
Dimensions inches (W x D x H) Approximately ( 5.79 x4.0 x 1.0 inches)
Interface type and maximum speed Up to 6Gb/s (SATA 3.0)
MBTF 550,000 hours
Logical blocks 3,907,029,168
Power Source
Power consumption (reference only) Idle 5W, Active 10 W
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 60°C
Relative Humidity Range 5% to 90%
Op Shock (@2ms) 65 G
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range -40°C to 65°C

36 Detailed Engineering Specs

3.5” 2TB 7200 RPM HDD
Relative Humidity Range 5% to 95%

3.5” 4TB 5X00 RPM HDD
Capacity (bytes) 4TB HDD 5X00RPM
Dimensions inches (W x D x H) Apprximately (5.79 x4.0 x 1.0 inches)
Interface type and maximum speed Up to 6Gb/s (SATA 3.0)
MBTF 550,000 hours
Logical Blocks 7,814,037,168
Power Source
Power consumption (reference only) Idle 5W, Active 10 W
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 60°C
Relative Humidity Range 5% to 90%
Op Shock (@2ms) 65 G
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range -40°C to 65°C
Relative Humidity Range 5% to 95%

 NOTE: For hard drives, GB means 1 billion bytes ; actual capacity varies with pre-loaded material and operating environment
 and will be less.

Storage specification - Solid state drives (SSD)
1 TB M.2 2280 PCIe NVMe Class 40 SSD
Capacity (bytes) 1 TB
Dimensions mm (W x D x H) 22 x 80 x 3.73
Interface type and maximum speed PCIe Gen3 8Gb/s (up to 4 lanes)
MBTF 1.4M hours
Logical blocks 2,000,409,264
Power Source
Power consumption (reference only) Idle 1.7W, Active 4.5W

2.5” SATA SSD: Class 20 1 TB
Capacity (bytes) 1 TB
Dimensions inches (W x D x H) Approximately (2.75 x 3.94 x 0.276 inches)
Interface type and Maximum speed Up to 6Gb/s (SATA 3.0)
MTBF
Logical Blocks
Power Source
Power Consumption (reference only) Idle 0.5 W, Active 2.5 W

 Detailed Engineering Specs 37

M.2 PCIe SSD: Class 40 1TB/1TB SED
Capacity (bytes) 1 TB
Dimensions (W x D x H) 22mm x 42mm x 3.65mm
Interface type and maximum speed PCIe Gen3 8Gb/s (up to 4 lanes)
MBTF
Logical blocks
Power Source
Power consumption (reference only) Idle 1.7W, Active 4.5W

512GB M.2 2280 PCIe NVMe Class 40 SED SSD
Capacity (bytes) 512
Dimensions (W x D x H) 22mm x 42mm x 3.65mm
Interface type and maximum speed PCIe Gen3 8Gb/s (up to 4 lanes)
MBTF 1.4M hours
Logical blocks 1,000,215,216
Power Source
Power consumption (reference only) Idle 1.7W, Active 4.5W

Slim Optical drive specifications

8x Slimline DVD-ROM
External Dimensions (Without Bezel - W x H x D) 128.0 mm x 9.5mm x 26.1mm (5.05 ix0.37x4.97 inches)
Maximum Weight 140 g
Interface type and Maximum speed SATA 1.5Gbit/s
Disc Capacity standard
Internal buffer size 0.5 MB
Access Times (typical) supplier dependent
Maximum Data Transfer Rates
Writes NA
Reads 8x DVD/ 24x CD
Power Source
DC Power Requirements 5V
DC Current 1300 mA
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 50°C
Relative Humidity Range 10% to 90% RH
Maximum Wet Bulb Temperature 29°C
Altitude Range 0 to 3048 m
Environmental Non-Operating Conditions (Non-
condensing)

38 Detailed Engineering Specs

8x Slimline DVD-ROM
Temperature Range 40°C to 50°C
Relative Humidity Range 5% to 90% RH
Maximum Wet Bulb Temperature 38°C
Altitude Range 0 to 10600 m

8x Slimline DVD +/- R/W
External Dimensions (Without Bezel - W x H x D) 128.0 mm x 9.5mm x 26.1mm (5.05 ix0.37x4.97 inches)
Maximum Weight 140 g
Interface type and Maximum speed SATA 1.5Gbit/s
Disc Capacity standard
Internal buffer size 0.5 MB
Access Times (typical) supplier dependent
Maximum Data Transfer Rates
Writes 8x DVD/ 24x CD
Reads 8x DVD/ 24x CD
Power Source
DC Power Requirements 5V
DC Current 1300 mA
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 50°C
Relative Humidity Range 10% to 90% RH
Maximum Wet Bulb Temperature 29°C
Altitude Range 0 to 3048 m
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range 40°C to 50°C
Relative Humidity Range 5% to 90% RH
Maximum Wet Bulb Temperature 38°C
Altitude Range 0 to 10600 m

Half Height Optical drive specifications

16x Half Height DVD-ROM
External Dimensions (Without Bezel - W x H x D) 148.2mm x 42mm x 171 (6.0x2.0x7.7 inches)
Maximum Weight 700 g
Interface type and Maximum speed SATA 1.5Gbit/s
Disc Capacity standard
Internal buffer size 0.5 MB
Access Times (typical) supplier dependent

 Detailed Engineering Specs 39

16x Half Height DVD-ROM
Maximum Data Transfer Rates
Writes NA
Reads 16x DVD/48x CD
Power Source
DC Power Requirements 12 V, 5 V
DC Current 1.5A (12V)/ 1A (5V)
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 50°C
Relative Humidity Range 20% to 80% RH
Maximum Wet Bulb Temperature 29°C
Altitude Range -200 m to 3048 m
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range 40°C to 65°C
Relative Humidity Range 5% to 95% RH
Maximum Wet Bulb Temperature 38°C
Altitude Range -200 m to 10600 m

16x Half Height DVD +/- R/W
External Dimensions (Without Bezel - W x H x D) 148.2mm x 42mm x 171 (6.0x2.0x7.7 inches)
Maximum Weight 700 g
Interface type and Maximum speed SATA 1.5Gbit/s
Disc Capacity standard
Internal buffer size 0.5 MB
Access Times (typical) supplier dependent
Maximum Data Transfer Rates
Writes 16x DVD/48x CD
Reads 16x DVD/48x CD
Power Source
DC Power Requirements 12 V, 5 V
DC Current 1.5A (12V)/ 1A (5V)
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 50°C
Relative Humidity Range 20% to 80% RH
Maximum Wet Bulb Temperature 29°C
Altitude Range -200 m to 3048 m
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range 40°C to 65°C

40 Detailed Engineering Specs

16x Half Height DVD +/- R/W
Relative Humidity Range 5% to 95% RH
Maximum Wet Bulb Temperature 38°C
Altitude Range -200 m to 10600 m

8X Half Height BD-RE
External Dimensions (Without Bezel - W x H x D) 148.2mm x 42mm x 171 (6.0x2.0x7.7 inches)
Maximum Weight 700 g
Interface type and Maximum speed SATA 1.5Gbit/s
Disc Capacity standard
Internal buffer size 0.5 MB
Access Times (typical) supplier dependent
Maximum Data Transfer Rates
Writes 8X BD/16x DVD/48x CD
Reads 8X BD/16x DVD/48x CD
Power Source
DC Power Requirements
DC Current
Environmental Operating Conditions (Non-condensing)
Temperature Range 5°C to 50°C
Relative Humidity Range 20% to 80% RH
Maximum Wet Bulb Temperature 29°C
Altitude Range -200 m to 3048 m
Environmental Non-Operating Conditions (Non-
condensing)
Temperature Range 40°C to 65°C
Relative Humidity Range 5% to 95% RH
Maximum Wet Bulb Temperature 38°C
Altitude Range -200 m to 10600 m

 Detailed Engineering Specs 41
