CI/SfB
(23.4) Rn7 (M2)
April 2021
POLYISOCYANURATE
INSULATION BOARD
FOR FLOORS
energy saving for the future
Introduction
Ballytherm Insulation
This brochure describes the use of Ballytherm Polyisocyanurate insulation About Ballytherm
to create well insulated, energy efficient buildings; it contains design
Ballytherm is committed to the
guidance, design details, installation instructions and advice on sitework
manufacture and supply of effective
for using Ballytherm in all flooring applications.
insulation products to the construction
industry.
Introduction 2-4
Ballytherm operates from a purpose built
manufacturing plant in County Cavan
Floors 5 - 13 from where its products are distributed
Ballytherm Insulation can be used in a to the Republic of Ireland, Northern
wide variety of floor constructions Ireland and the United Kingdom.
including groundbearing concrete floors,
Ballytherm can supply insulation from
suspended floors of pre-cast concrete
stock or can produce bespoke boards to
units and suspended timber floors.
match the requirements of a specific
project.
Sitework/References 14 - 15
Ballytherm Insulation may be ordered
through builders' merchants or directly Ballytherm Insulation
from Ballytherm. Call us for details of our Ballytherm Insulation is a foil-faced
overnight delivery service. Polyisocyanurate (PIR) insulation board.
The PIR board is formed by a continuous
foaming process which gives the board
its tight cell structure and bonds the
facing to the foam. After foaming the
boards are cut to size and left to cure.
Introduction
02
Introduction
Ballytherm Floor Insulation
Technical description Table 01 Ballytherm Insulation product dimensions
Dimensions Characteristics Units Values
Ballytherm Insulation floor boards are Length 2400
available in 2400 by 1200mm size and in Width mm 1200
thicknesses from 25mm up to 150mm Thicknesses 25, 30, 40, 50, 60, 70, 75, 80, 90, 100, 110, 120, 125, 130,
140, 150, 160 (non-stock) & 165 (non-stock)
thick. Ballytherm floor boards are butt
edged. Edge profile Butt edged
Appearance
Ballytherm insulation boards have a
yellow foam core with laminated foil
facings printed with the company logo.
Structural CERTIFICATE Nos. 07/4422 & 07/4427
Certificate No. 05/0220
Ballytherm is a strong, rigid board
suitable for self-supporting applications
in floors, walls and roofs. It can
withstand the loadings in
groundbearing floors.
Environmental
Ballytherm Insulation is produced with a
zero ozone depletion blowing agent.
The Insulation boards' low thermal
conductivity mean less material is
required to achieve a given thermal
resistance than for most other insulants.
Ballytherm Insulation has a GWP
(Global Warming Potential) of
Introduction
Ballytherm Insulation
Fire
Table 02 Performance of Ballytherm Floors Insulation
Ballytherm Insulation remains stable at
Properties Standards Units Values
temperatures up to 400ºC; at higher
temperatures a protective char forms on Thermal conductivity I.S. EN 12667 W/mK 0.022
the surface, slowing the spread of flame.
Compressive strength EN 826 kPa >140
Ballytherm insulation may be used safely
behind non-flammable materials such as Dimensional stability EN 1604 DS(TH) 6
plasterboard; it has achieved a Class 1
Water absorption EN 12087 % vol Foil 1.2
surface spread of flame rating when
tested to BS 476-7:1997.
Moisture Table 03 Ballytherm Floors Insulation pack sizes and thermal performance
The PIR core of Ballytherm Insulation
Sheets Sheets m2 Thermal
boards has a low moisture absorption Thickness per lift per pallet per pallet resistance
capacity, making Ballytherm Insulation 25mm 56 112 328.32 1.136m2K/W
suitable for use in damp environments. 30mm 46 92 270.72 1.364m2K/W
The foil laminate facing gives the boards 40mm 36 72 201.60 1.818m2K/W
a high vapour resistance. 50mm 28 56 161.28 2.272m2K/W
Biological 60mm 23 46 132.48 2.727m2K/W
70mm 20 40 115.20 3.181m2K/W
Ballytherm Insulation does not rot and
75mm 18 36 103.68 3.409m2K/W
does not contribute to the growth of
80mm 17 34 97.92 3.636m2K/W
mould, nor does it support insects or
90mm 15 30 86.40 4.091m2K/W
other pests.
100mm 14 28 80.64 4.545m2K/W
Thermal 110mm 12 24 69.12 5.000m2K/W
The PIR core of Ballytherm Insulation 120mm 11 22 63.36 5.454m2K/W
boards has an extremely low thermal 125mm 11 22 63.36 5.681m2K/W
conductivity, making the required 130mm 10 20 57.60 5.909m2K/W
thickness of insulation less than for most 140mm 10 20 57.60 6.363m2K/W
other insulants. The foil laminate facings 150mm 9 18 51.84 6.818m2K/W
of Ballytherm boards can also contribute 160mm (non-stock) 8 16 - 7.272m2K/W
to improved thermal performance: the 165mm (non-stock) 8 16 - 7.500m2K/W
low emissivity surface of the reflective
foil can cut radiation heat transfer across
an adjoining air space.
Durability
When Ballytherm Insulation is installed
Introduction
in accordance with manufacturer's
guidance and industry codes of practice
it has a service life comparable to that of
the rest of the building.
04
Floors
General considerations
Introduction Thermal performance
Ballytherm Insulation can be used in a U-values for ground floors are calculated For the most part radon percolating to
wide variety of floor constructions according to EN ISO 13370: 2017. the surface disperses harmlessly in the
including groundbearing concrete floors, Because the ground has an innate atmosphere; however, radon generated
suspended floors of pre-cast concrete thermal resistance the overall thermal beneath buildings can seep in through
units and suspended timber floors. performance of the floor depends upon gaps and cracks in the structure and
the floor's dimensions and form factor, build-up to dangerous concentrations.
Loading represented by the ratio P/A (the floor To protect building occupants from risk
perimeter, P, divided by the floor area, A) of harm, buildings in at-risk areas must
Floor insulation must be able to
as well as the insulation and other layers include radon protection measures*.
withstand the deadload of the floor
in the construction. The minimum measure will be the
construction and the imposed loads
provision of a radon barrier across the
resulting from occupation of the The thickness of Ballytherm Insulation
entire footprint of the building.
building. Ballytherm has a sufficiently required to meet the U-values required
high compressive strength for it to be by regulations is shown in tables 04 to The detailing of the barrier will depend
used in domestic projects. 07. To use the tables, calculate the ratio upon the floor construction, but in many
P/A and consult the appropriate column cases one membrane can act as damp-
Consult Ballytherm for advice on using
in the table. Contact Ballytherm for proof membrane (DPM) and radon
the material in projects with more
U-value calculations for other floor barrier. Difficulties can arise at external
demanding loadings.
constructions. walls, where the radon barrier has to be
carried across a cavity: one solution is to
Thermal bridging seal the radon barrier to a gas-proof
Building Regulations and
Improved standards of thermal Standards damp-proof course (DPC) which is
insulation within building elements have stepped down from the inner to outer
Building Regulations and Building
focussed attention upon the amount of leaf.
Standards set targets for the overall
heat lost at junctions between elements
energy efficiency of buildings, as well as For details of radon protection measures
where there is no continuity of insulation
setting limiting U-values for building refer to:
or there are exposed heat paths.
elements.
The simplest method to avoid thermal • BR 211. Radon: Guidance on
bridging at the floor/wall junction is be The U-value tables in this brochure protective measures for new
to ensure the insulation in the two indicate the maximum area-weighted buildings. 2015.
elements meet. Where structural U-values permitted by local regulations. • Radon in the workplace. A guide for
considerations make that impossible, for However, it may be necessary to achieve building owners and managers. 2011.
example when the wall insulation is U-values lower than those shown, in
• HomeBond House Building Manual.
inside a cavity, thermal bridging may be order to attain the whole-building
7th edition.
avoided by continuing the floor energy efficiency target.
insulation vertically at the perimeter of
the floor so it overlaps the wall Radon protection * In the Republic of Ireland all new dwellings
insulation. The minimum thickness of must include a radon barrier. In England and
Radon is a naturally occurring gas which Wales, Scotland and Northern Ireland radon
Ballytherm boards for edge insulation is
Floors
is generated during the radioactive protection measures are required in areas
20mm. It is sometimes more convenient
decay of uranium to lead. High assessed as high risk.
to use the same board thickness as 05
concentrations of radon can cause
specified for the rest of the floor.
cancer.
Floors
Insulating below a groundbearing slab
“...is well suited to new build and
refurbishment projects where a
timber floor is to be replaced
by a concrete floor...”
1
8
7 Ballytherm wall insulation boards 1
2 Cavity tray 2
6
Hardcore with sand binding 3
DPM / radon barrier 4
5
Ballytherm floor Insulation boards 5
VCL / slip sheet 6
4 Concrete slab 7
Floor finish 8
3

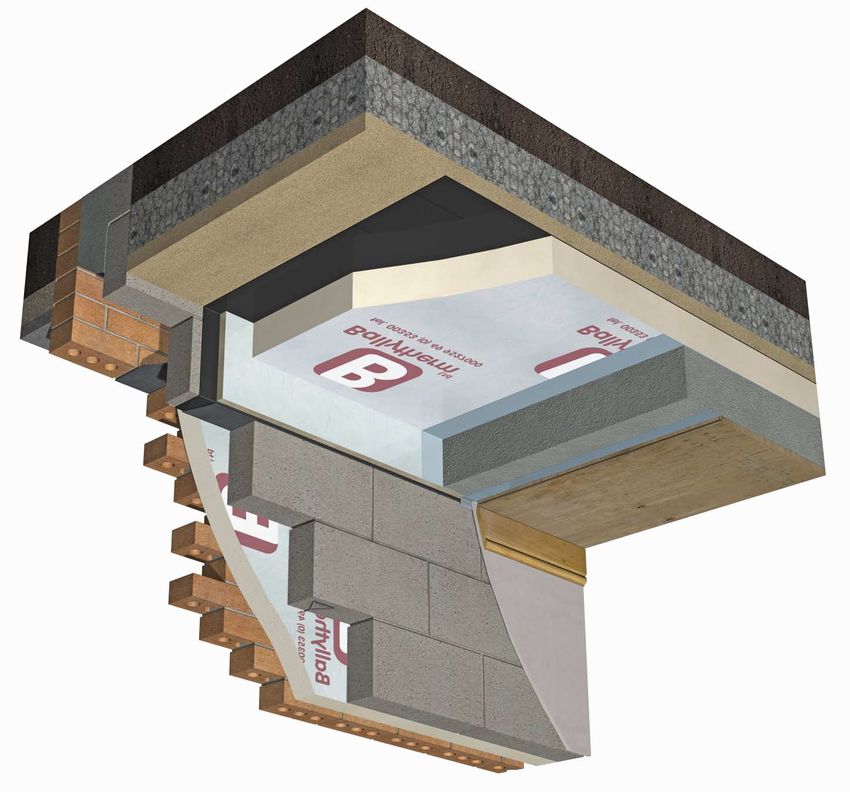

Insulating below a groundbearing slab
Figure 01
Insulating a groundbearing floor below This construction is compatible with The properties of Ballytherm insulation
the slab brings the thermal mass of the masonry wall constructions and match those required for this
slab within the insulation envelope, underfloor heating. Below slab insulation application: it is robust and moisture
helping to maintain the building at an is well suited to new build and to resistant, whilst its low thermal
even temperature: the construction is refurbishment projects where a timber conductivity minimises the thickness of
suited to buildings which are floor is to be replaced by a concrete insulation within the floor construction.
continuously heated. floor.
The thickness of Ballytherm insulation
required to meet regulations may be
determined from table 04.
Table 04 Thickness (mm) of Ballytherm required for insulating below a groundbearing slab
U-value P/A 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
U-values (W/m2K) calculated according to
ISO 6946:2017 and ISO 13370: 2017. 0.16 25 60 75 90 100 100 100 - - -
These calculations are approximate and can 0.18 25 45 65 75 80 90 90 90 90 90
Floors
vary with different constructions etc. 0.20 0 35 55 60 65 70 75 75 80 80
Floor construction: Ballytherm Insulation below
0.21 0 30 50 55 65 65 70 70 75 75
150mm concrete slab with 25mm thick edge
06 insulation, extending 150mm vertically. 0.25 0 25 30 40 45 50 55 55 55 60
Design guidance Sitework
The Ballytherm boards should be laid on Installation sequence (tile finish)
top of the DPM / radon barrier to protect 1. Blind the hardcore with sand to give a
the boards from ground moisture and smooth surface. a
contaminants. 2. Install the DPM / radon barrier.
The DPM should be laid on sand 3. Cut Ballytherm boards to height and
blinding to prevent puncturing and fit vertically around the perimeter of
joined to the DPC at all edges. Any radon the floor.
barrier should be laid beneath the slab 4. Lay boards across the floor surface in Avoiding thermal bridges at threshold
and should extend across the whole broken bond. Butt boards tightly Figure 02
footprint of the building. A correctly together and cut to fit neatly at edges
specified membrane can function as and around penetrations.
DPM and radon barrier. 5. Lay VCL: lap and seal all joints. b
A VCL, such as 1000 gauge polyethylene, 6. Pour and tamp slab.
should be placed between the insulation 7. Pour screed.
and the concrete slab to prevent
condensation at the interface and to Points to watch
stop concrete penetrating between the
- Test any embedded services before
insulation boards.
pouring the slab,
Screed incorporating floor heating elements
Edge insulation at least 20mm thick - Protect Ballytherm boards from
should be installed around the perimeter damage while the slab and screed are Figure 03
of the floor to eliminate thermal being poured: use barrow boards.
bridging at the edge of the slab (see - Protect the exposed edge of the
figures 02 & 04). The depth of the edge Ballytherm boards when levelling the
insulation should be equal to the slab.
combined thickness of the insulation,
- Cut boards to fit tightly together.
slab and screed.
Loadbearing partitions must not be built a
off the slab, but must have their own
foundations.
A variety of floor finishes can be used
including floorboards (shown on 3D left) Avoiding thermal bridges at party walls
or ceramic tiles on screed (shown in Figure 04
2D sections right). Floor heating
elements can also be incorporated into
the screed (see figure 03). NOTES
Floors
a 20mm min. edge insulation at perimeters
b heating elements
07
Floors
Insulating above a groundbearing slab
“...when installed with a
screed is ideal for
underfloor heating...”
1
9
8
7 Ballytherm wall insulation boards 1
2 Cavity tray 2
6 Hardcore with sand binding 3
DPM / radon barrier 4
Concrete slab 5
5 Ballytherm floor Insulation boards 6
4 VCL / slip sheet 7
Screed 8
3 Floor finish 9

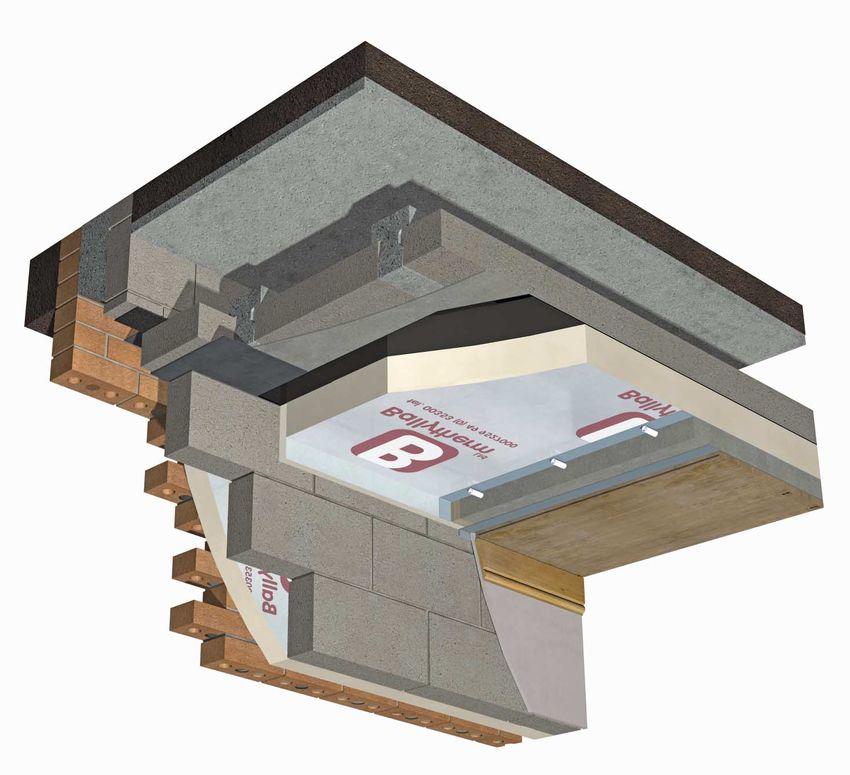

Insulating above a groundbearing slab
Figure 05
Insulating a groundbearing floor above The properties of Ballytherm insulation The thickness of Ballytherm insulation
the slab excludes the thermal mass of match those required for this required to meet regulations may be
the slab from the building envelope, application: it is robust and moisture determined from table 05.
making the building more responsive to resistant, whilst its low thermal
heating: the construction is suited to conductivity minimises the thickness of
buildings which are intermittently insulation within the floor construction.
heated. This construction is compatible
with masonry and timber framed wall
constructions and, when installed with a
screed, is ideal for underfloor heating.
Table 05 Thickness (mm) of Ballytherm required for insulating above a groundbearing slab
U-values (W/m2K) calculated according to
U-value P/A 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
ISO 6946: 2017 and ISO 13370: 2017.
0.16 25 60 75 90 100 100 100 - - -
These calculations are approximate and can vary
with different constructions etc. 0.18 25 45 65 75 80 90 90 90 90 90
Floors
Floor construction: 150mm concrete slab, 0.20 0 35 55 60 70 70 75 75 80 80
Ballytherm insulation, 60mm cement:sand screed. 0.21 0 25 50 55 65 65 70 75 75 75
25mm thick edge insulation extending 60mm
08 vertically. 0.25 0 25 30 40 45 50 55 55 60 60
Design guidance
The DPM should be laid beneath the At thresholds and other places where
slab. Any radon barrier should be laid heavy traffic or high loadings are a
beneath the slab and should extend expected (for example beneath kitchen
across the whole footprint of the or sanitary fittings) timber battens
building. A correctly specified should be installed to prevent the
membrane can function as DPM and flooring sagging.
radon barrier. The upper surface of the
slab should be blinded with sand or Sitework
ground down to produce a level surface
Installation sequence - beneath screed
for laying Ballytherm boards (maximum Avoiding thermal bridges at thresholds
1. Blind slab with sharp sand or grind off
posible deflection +/- 5mm over 2m). Figure 06
protrusions.
Where the Ballytherm boards will be 2. Fit vertical edge insulation.
overlaid with a screed, a VCL/slip sheet b
3. Lay Ballytherm boards across the
of 1000 gauge polyethylene should be
surface of the floor in broken bond.
placed between the insulation and the
4. Lay VCL/slip sheet over the boards
screed to prevent condensation at the
with joints lapped and sealed.
interface and possible screed migration.
The screed should be at least 65mm 5. Pour screed.
thick and may incorporate pipework for
underfloor heating. Installation sequence - beneath sheet
flooring Screed incorporating floor heating elements

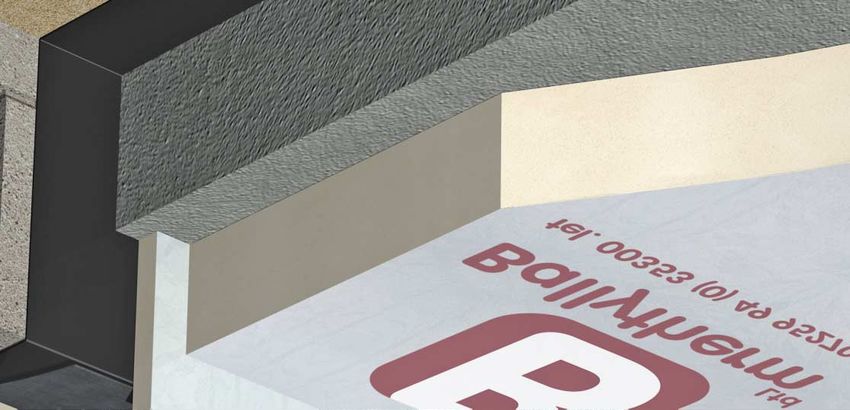

Edge insulation at least 20mm thick
1. Blind slab with sharp sand or grind off Figure 07
should be installed around the perimeter
protrusions.
of the floor to eliminate thermal

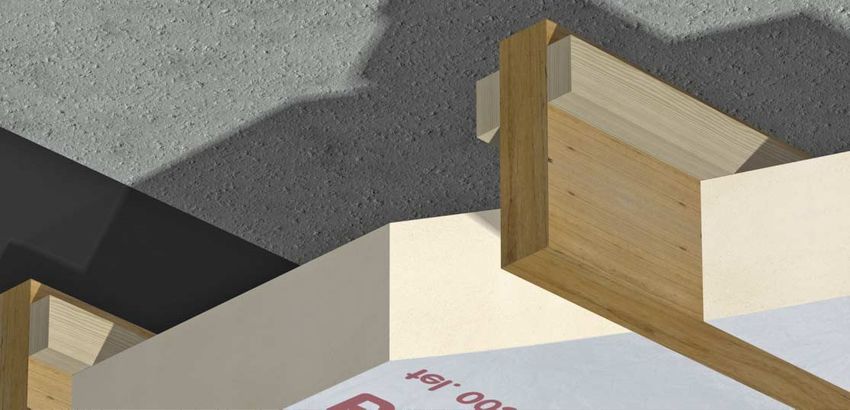

bridging at the edge of the screed 2. Fit timber battens at thresholds and
(figure 06). The depth of the edge points of high loading.
insulation boards should be equal to the 3. Lay Ballytherm boards across the
combined thickness of the insulation surface of the floor in broken bond.
c
and screed. Where chipboard or other 4. Lay VCL/slip sheet over the boards
sheet flooring is to be laid onto the with joints lapped and sealed.
Ballytherm boards without a screed a 5. Lay sheet flooring.
VCL/slip sheet should be placed
between the insulation and the flooring.
Points to watch
The VCL/slip sheet will allow for
- Ensure boards fit tightly together. Loadbearing at internal threshold
differential movement and protect the
flooring from construction moisture, - Seal service penetrations with sealant. Figure 08
particularly during the drying out period. - Test any services before pouring the
The VCL should be turned up behind the screed. NOTES
Floors
skirting. - Protect Ballytherm boards from traffic a 20mm min. edge insulation at perimeters
while laying screed or flooring. b heating elements
Intermediate walls should be built c timber battens at loadbearing areas 09
directly off the floor slab (figure 08). - Protect exposed board edges when
levelling the screed.
Floors
Insulating above pre-cast concrete floors
“...is compatible with
masonry and timber framed
wall constructions...”
1
9
8
7
6
2 Ballytherm wall insulation boards 1
5 Cavity tray 2
Site concrete 3
4 Pre-cast concrete floor 4
Radon barrier 5
Ballytherm floor Insulation boards 6
3
VCL / slip sheet 7
Screed 8
Floor finish 9
Insulating above pre-cast concrete floors
Figure 09
Floors consisting of pre-cast concrete The properties of Ballytherm insulation The thickness of Ballytherm insulation
units, including concrete plank or beam match those required for this required to meet regulations may be
and block, can be rapidly installed and application: it is robust and moisture determined from table 06.
are suitable for use where conditions resistant, whilst its low thermal
preclude a groundbearing floor. conductivity minimises the thickness of
Insulation should be installed above the insulation within the floor construction.
bearing surface.
This construction is compatible with
masonry and timber framed wall
constructions and may be used with
underfloor heating set in a screed.
Table 06 Thickness (mm) of Ballytherm required for insulating above pre-cast concrete floors
U-values (W/m2K) calculated according to U-value P/A 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
ISO 6946: 2017 and ISO 13370: 2017. 0.16 50 80 100 100 - - - - - -
These calculations are approximate and can vary 0.18 35 70 80 90 90 90 100 100 100 100
Floors
with different constructions etc.
0.20 25 55 70 75 75 80 80 90 90 90
Floor construction: 100mm medium density
0.21 25 50 60 70 70 75 75 80 80 80
concrete blocks supported on concrete beams,
10 Ballytherm insulation, 50mm cement:sand screed. 0.25 0 35 45 50 55 60 60 60 65 70Design guidance
A suspended floor does not require a or sanitary fittings) timber battens
DPM. Where a radon barrier is required it should be installed to prevent the
may be installed across the top of the flooring sagging (figure 11).
structural floor beneath the insulation, or
may be installed within the concrete Sitework
covering of the sub-floor void. In all
Installation sequence - beneath screed
cases the radon barrier must extended
1. Grout slab and lay levelling screed.
across the entire footprint of the
building. Joints in the surface of the 2. Fit vertical edge insulation. Avoiding thermal bridges at threshold
structural floor should be grouted and a 3. Lay Ballytherm boards across the Figure 10
13mm levelling screed laid (maximum surface of the floor in broken bond.
possible deflection +/- 5mm over 2m). 4. Lay VCL/slip sheet over the boards
with joints lapped and sealed.
Where the Ballytherm boards will be
overlaid with a screed, a VCL/slip sheet 5. Pour screed. a
of 1000 gauge polyethylene should be
placed between the insulation and the Installation sequence - beneath sheet
screed to prevent condensation at the flooring
interface and possible screed migration. 1. Grout slab and lay levelling screed. Loadbearing at internal threshold
The screed should be at least 65mm 2. Fit timber battens at thresholds and Figure 11
thick and may incorporate pipework for points of high loading.
underfloor heating. Edge insulation
3. Lay Ballytherm boards across the
should be installed around the
surface of the floor in broken bond.
perimeter. The depth of the edge
4. Lay VCL/slip sheet over the boards
insulation boards should be equal to the
with joints lapped and sealed.
combined thickness of the insulation
and screed. 5. Lay sheet flooring.
Where chipboard or other sheet flooring
Points to watch
is to be laid onto the Ballytherm boards
- Ensure boards fit tightly together. Avoiding thermal bridges at threshold
without a screed, a VCL/slip sheet should
using hollow core concrete plank
be placed between the insulation and - Seal service penetrations with sealant.
Figure 12
the flooring. The VCL/slip sheet will allow - Test any services before pouring the
for differential movement and protect screed.
the flooring from construction moisture - Protect Ballytherm boards from traffic b
particularly during the drying out period. while laying screed or flooring.
The VCL should be turned up behind the - Protect exposed board edges when
skirting. At thresholds and other places levelling the screed.
where heavy traffic or high loadings are
Floors
expected (for example beneath kitchen
NOTES
Screed incorporating floor heating elements
a timber battens at loadbearing areas
Figure 13
11
b heating elementsFloors
Insulating below suspended timber floors
“...may be used to upgrade
existing floors or to create
new floors...”
1
7
6
5
Ballytherm wall insulation boards 1
Radon barrier 2
Site concrete 3
Timber joists and support battens 4
4
2 Ballytherm floor Insulation boards 5
VCL / slip sheet 6
Floor finish 7
3

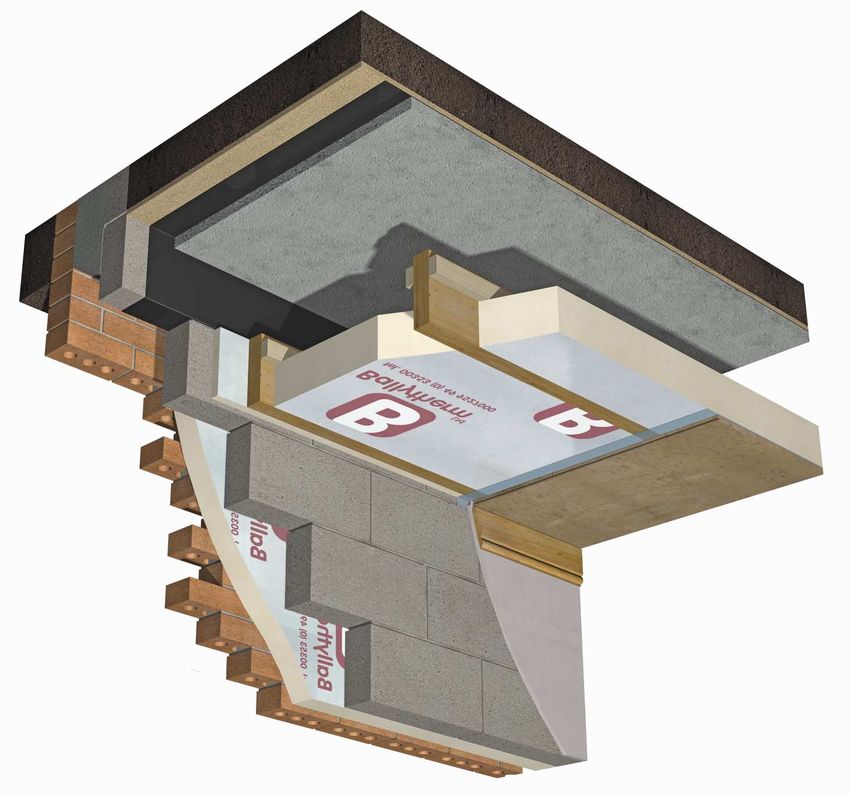

Insulating below suspended timber floors
Figure 14
The thermal performance of timber The Ballytherm boards are installed In the latter construction the reflective
floors may be improved by fitting between the joists, resting on battens surface of the boards will result in a
installation between the joists, fixed to the sides of the joists or on nails. series of low emissivity air spaces which
immediately beneath the deck. This The boards may be set either directly will cut the rate of radiation heat loss
construction may be used to upgrade under the flooring with no air gap or, across the cavity and improve the
existing floors or to create new floors. close to the base of the joists, leaving thermal performance of the floor.
Timber floors in extensions can be easily voids between the boards and the
The thickness of Ballytherm insulation
matched to the levels of existing floors. flooring.
required to meet regulations may be
The properties of Ballytherm Insulation determined from table 07.
match those required for this
application: it is robust and self-
supporting, whilst its low thermal
conductivity minimises the thickness of Table 07 Thickness (mm) of Ballytherm required for insulating below suspended timber floors
insulation between the joists. U-value P/A 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
U-values (W/m2K) calculated according to 0.16 70 - - - - - - - - -
ISO 6946: 2017 and ISO 13370: 2017. 0.18 50 100 - - - - - - - -
Floors
These calculations are approximate and can vary 0.20 30 80 100 - - - - - - -
with different constructions etc.
0.21 25 70 90 100 - - - - - -
Floor construction: Ballytherm insulation between
12 joists (11% bridging), boarding across the joists. 0.25 0 45 65 75 80 90 90 90 90 100Design guidance Sitework
Any radon barrier should be installed Installation sequence
within the concrete covering of the void 1. Install joists at specified centres.
beneath the floor and should extend b
2. Fix timber battens to the sides of the
across the entire footprint of the joists.*
building.
3. Cut Ballytherm boards to fit between
To ensure the insulation extends to the the joists and set them on the
battens. a
perimeter of the floor Ballytherm
Insulation should be packed between 4. Lay and fix flooring.
the inner surface of a wall and the joist Avoiding thermal bridges at threshold
* The distance from the top of the
which runs next to it (figure 15). Figure 15
battens to the top of the joists will
Service penetrations should be designed depend upon the thickness of
out wherever possible: at any Ballytherm board specified and
unavoidable penetrations the Ballytherm whether a service void is specified.
boards should be cut neatly to accept
the pipework or cable and the remaining Points to watch
gap sealed.
- Cut Ballytherm boards carefully to
An alternative method is to fit the give a snug fit.
Ballytherm boards at the base of the - Pack insulation between the
joists to form a series of service voids perimeter joists and the wall to avoid
(figure 16). thermal bridging.
- Seal service penetrations with flexible
sealant.
Ballytherm Insulation positioned
to allow for services
Figure 16
NOTES
Floors
a radon barrier (if required)
b Ballytherm Insulation packed between
inner surface of wall and joist
13Sitework
Ordering, supply and delivery
Ballytherm insulation may be ordered Technical support
through your local builders' merchants
Ballytherm Trading Limited offers
or distributor.
designers and installers a full technical
Ballytherm insulation is supplied in support service to advise them on the
shrink wrapped packs on pallets. best way of utilising Ballytherm
For pack sizes see table 3. insulation in new build and renovation
projects.
Handling and storage The service includes:
Store Ballytherm boards on a level - Technical literature
surface supported on battens. - Copies of reports and certificates
Protect boards from moisture and
- U-value calculations
direct sunlight.
- Condensation risk analysis
Only unpack the quantity of boards - Design advice
required for the day's work. Take care
- Samples
not to knock and damage board edges
- Site visits
and corners.
Working Disclaimer: the information contained in
Ballytherm insulation can be worked this brochure is based on our best
with normal hand tools and may be cut information at the time of issue, however
with a fine tooth saw or craft knife. Ballytherm Trading Limited cannot
Where a large amount of cutting is accept any responsibility for errors or
expected make arrangements for dust any liability out of the use of information
extraction. provided on the material supplied.
Sitework
14References
References
Building regulations - England and • EN 12087: 2013. Thermal insulating
Building regulations - Scotland
Wales: products for building applications.
• Technical handbook - domestic
Determination of long term water
• Approved Document C Site buildings, sections 3 and 6.
absorption by immersion.
preparation and resistance to • Technical handbook - non-domestic
contaminants and moisture. • EN 13165: 2012+A2:2016. Thermal
buildings, sections 3 and 6.
insulation products for buildings.
• Approved Document L1A
Standards Factory made rigid polyurethane
Conservation of fuel and power in
foam (PUR) products. Specification.
new dwellings. • BS 5250: 2011+A1:2016. Code of
• EN ISO 6946: 2017. Building
• Approved Document L1B practice for control of condensation
components and building elements.
Conservation of fuel and power in in buildings.
Thermal resistance and thermal
existing dwellings. • BS 5534: 2014+A2:2018. Code of
transmittance. Calculation method.
• Approved Document L2A practice for slating and tiling
• EN ISO 13370: 2017. Thermal
Conservation of fuel and power in (including shingles).
performance of buildings.
new buildings other than dwellings. • PD 6697: 2010. Recommendations for
Heat transfer via the ground.
• Approved Document L2B the design of masonry structures to
Calculation methods.
Conservation of fuel and power in BS EN 1996-1-1 and BS EN 1996-2.
• EN ISO 13788: 2012. Hygrothermal
existing buildings other than • EN 1604: 2013. Thermal insulating
performance of building components
dwellings. products for building applications.
and building elements - Internal
Determination of dimensional
Building regulations - Republic of surface temperature to avoid critical
stability under specified temperature
Ireland surface humidity and interstitial
and humidity conditions.
• Technical Guidance Document C - Site condensation - Calculation methods.
Preparation and Resistance to • EN 1991-1-4: 2005+A1:2010. Eurocode
Moisture. 1. Actions on structures. General Other guidance
actions. Wind actions.
• Technical Guidance Document L - • BRE Digest 465. U-values for light
Conservation of Fuel and Energy - • EN 1996-2: 2006. Eurocode 6. Design steel-frame construction.
Dwellings. of masonry structures. Design
• BRE 443. Conventions for U-value
considerations, selection of materials
• Technical Guidance Document L - calculations. 2006 edition.
and execution of masonry.
Conservation of Fuel and Energy - • National House Building Council
Buildings other than dwellings. • EN 826: 2013. Thermal insulating
Standards. NHBC.
products for building applications.
Building regulations - Northern Ireland • House building manual 7th edition
Determination of compression
(Homebond). NHBGS.
• Technical booklet C Site preparation behaviour.
and resistance to moisture. • BR 211. Radon: guidance on
• EN 1606: 2013. Thermal insulating
protective measures for new
• Technical booklet F1 Conservation of products for building applications.
buildings. 2015.
fuel and power in dwellings. Determination of compressive creep.
References
• Radon in the workplace. A guide for
• Technical Booklet F2 Conservation of • EN 12086: 2013. Thermal insulating
building owners and managers.
fuel and power in buildings other products for building applications.
BRE. 2011.
than dwellings. Determination of water vapour
transmission properties. [current] 15Ballytherm Trading Ltd.
Annagh Industrial Park
Ballyconnell
Co. Cavan H14 X528
Ireland
Ballytherm (UK) Ltd.
Netherton Road
Overross Industrial Estate
Ross on Wye
Herefordshire HR9 7QQ
Tel: +353 4995 27000
Fax: +353 4995 27002
E-mail: info@ballytherm.ie
www.ballytherm.ieYou can also read
