ARBONIA CONDI®LINE CEILING CASSETTE:
GENERAL INFORMATION

                              In the following section,
                              you will find:

                              Ŷ   Introduction, model overview
                              Ŷ   Information on water as a
                                  coolant
FAN COILS CONDILINE CEILING CASSETTE PRICES AND TECHNOLOGY 2021-N - right to the point
CONDI ® LINE CEILING CASSETTE | GENERAL INFORMATION
         Introduction, model overview

INTRODUCTION
                                                                                                                       Applications:
Cooling, heating, and ventilating at the highest level – the fan coils from the
Condiline series have been developed to meet this challenge.                                                           Decentralised heating and ventilation in:

Product advantages are short reaction times and pleasant thermal comfort, right to                                     Ŷ Hotels
the point where it is needed – at an unbeatably low price.                                                             Ŷ Office buildings
                                                                                                                       Ŷ Museums
With a specially shaped fan, the fan coils propel the air to be cooled or heated into                                  Ŷ Large housing units
a specially designated heat exchange register. The circulating air is cooled or heated                                 Ŷ etc.
by convective heat exchange on the slats and pipes of the heat exchange register.
Circulating the air ensures a quick and even heat distribution throughout the room.
A side effect of cooling mode is dehumidifying the air with a positive effect on
pleasant thermal comfort.
Water is intentionally used as a heat transfer medium. As an ideal transfer medium
for heat energy, it is absolutely natural, non-toxic, and non-flammable. This means
there are no limits to the uses of our Condiline fan coils.
For building owners, planners and architects, efficient real estate is gaining import-
ance. Heating and cooling systems account for a majority of building costs.
This is why we offer tailored, energy-efficient fan coil control concepts for a wide
range of projects. We accompany you from planning, to providing e.g. BIM data or
configuring a control concept tailored to your exact needs.
The noise principle of Arbonia Condiline fan coils takes top priority. With EC motor
technology developed for silent operation, the fan coils enable sound pressure le-
vels of under 28 dB(A).

MODEL OVERVIEW

                                                                 DXB ECM                                                                     DXB

 Motor                                                           EC motor                                                                 AC motor
 Register rows                                                     2–3                                                                      1–3
                                                                                                Copper pipe register
 Material of register
                                                                                                with aluminium slats
 Material of housing                                             Galvanised sheet steel with polyolefin foam and anti-fog coating on the outside
 Sizes                                                             1–5                                                                      0–6
 Cooling capacity 7/12/27 °C [kW]                                1.9 – 11.0                                                               1.2 – 11.1
 Airflow [m³/h]                                                 310 – 1770                                                               310 – 1820
 Installation methods                                                              Ceiling fitting (subceiling or below the ceiling)

4                Prices and Technology 2021-N                                                      Prices without value added tax. Technical specifications subject to change.
FAN COILS CONDILINE CEILING CASSETTE PRICES AND TECHNOLOGY 2021-N - right to the point
GENERAL INFORMATION |           CONDI ® LINE CEILING CASSETTE
                                                                                                                                             Water as a coolant

WATER AS A COOLANT
What planners, architects, operators and building owners have to consider in terms        Water as a natural cooling exchanger medium
of building air conditioning.                                                             The major advantage of water over conventional coolants is that it is non-toxic,
EU Regulation 517/2014, also known as the F-Gas Regulation, entered into force in         inflammable and also non-explosive like the newly advertised coolant R32 (difluoro-

                                                                                                                                                                                   General information
2015. This Regulation aims to reduce the emissions of chlorofluorocarbons (CFCs)          methane). This means it is safe to use anywhere, plus water does not leak as easily
and hydrochlorofluorocarbons (HCFCs). By 2030, the maximum amounts will gradu-            as coolant under pressure, which presents a major benefit in terms of time and
ally be introduced for HCFCs and more strict regulations will take effect for tightness   money, as simple screw connections can be used. Above all, water is inexpensive
checks on cooling systems. As a result, simple screw connections are no longer            and available in large volumes, so it can be topped up at any time. In case of partial
sufficient, so that connections have to be brazed. In direct evaporation systems,         retrofits years later, e.g. due to another building complex, additional fan coils can
large amounts of coolants have to be led through the building straight to the cooling     easily be integrated into the existing cooling water network. In direct evaporation
exchangers. This poses a huge leak risk. By law, a tightness check has to be perfor-      systems, entire systems may have to be replaced, including pipes, as they no longer
med by a professional once yearly; for systems weighing 25 kg and up, two checks          meet current requirements and directives.
are required per year. Most conventional coolants are hazardous to the environment,
                                                                                          Benefit for planning: No pressure losses in small coolant lines
toxic, odourless and cause air displacement, which makes gas detection devices
                                                                                          In larger buildings especially, cooling system planners and manufacturers face the
necessary in order to prevent a risk of suffocation. Plus, they are more often than not

                                                                                                                                                                                   Ceiling cassette DXB ECM
                                                                                          challenge of ensuring a sufficient flow rate and thus cooling capacity despite long
inflammable and some are even explosive.
                                                                                          distances. A cooling water set with fan coils is just the right solution to overcome
Arbonia made the conscious decision to take a natural approach with water as a            long distances.
coolant in its fan coils, providing you with the following benefits:
Coolant volume reduced to an acceptable level

                                                                                                                                                                                   Model
By using water as an exchanger medium, the coolant is kept out of sensitive spaces
in the building, such as offices, hotel rooms etc. It can only be found in the circuit
of a cold water set of your choosing or the reversible heat pump. Mandatory inspec-
tions are kept to an absolute minimum.

                                                                                                                                                                                    Ceiling cassette DXB
                                                                                                                                                                                    Model
                                                                                                                                                                                    Planning information
                                                                                                                                                                                    Models
                                                                                                                                                                                    Accessories
                                                                                                                                                                                    Models
                                                                                                                                                                                    information
                                                                                                                                                                                    Further

Prices without value added tax. Technical specifications subject to change.                                                       Prices and Technology 2021-N               5
FAN COILS CONDILINE CEILING CASSETTE PRICES AND TECHNOLOGY 2021-N - right to the point
FAN COILS CONDILINE CEILING CASSETTE PRICES AND TECHNOLOGY 2021-N - right to the point
ARBONIA CONDI®LINE CEILING CASSETTE:
MODEL DXB ECM

                              In the following section,
                              you will find:

                              Ŷ   Tender specification
                              Ŷ   Model overview
                              Ŷ   Dimensional drawings
                              Ŷ   Prices
                              Ŷ   Technical data
FAN COILS CONDILINE CEILING CASSETTE PRICES AND TECHNOLOGY 2021-N - right to the point
CONDI®LINE CEILING CASSETTE | MODELS

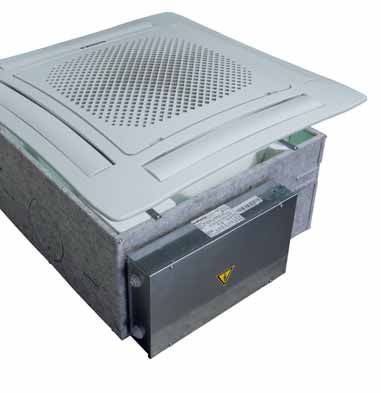

          Condi®line ceiling cassette DXB ECM

CONDILINE CEILING CASSETTE DXB ECM
Fan coils from the DXB model series are designed for installation in subceilings.                                 Benefits:
A wide range of ceiling cassettes are available in seven versions with dimen-                                     Ŷ     Energy-efficient operation
sions 600 x 600 mm and 800 x 800 mm. The cassettes available in dimension                                         Ŷ     Silent
600 x 600 mm are the perfect fit for a standard ceiling grid. Available as 2-pipe                                 Ŷ     EC motors
or 4-pipe versions for heating and cooling, the ceiling cassettes are designed for a                              Ŷ     5 sizes
wide range of applications with optimised performance and acoustic power levels.                                  Ŷ     Suitable for panelled ceilings
With cooling capacities from 1.3 kW to 11.1 kW*, the DXB ceiling cassettes are                                    Ŷ     Easy cleaning and maintenance
suitable for medium-sized to large rooms (e.g. open-plan offices). An additional                                  Ŷ     Long service life
connection enables air distribution to adjacent rooms. The filter can be conveniently                             Ŷ     ErP-compliant (Directive 327/2011)
accessed from below and cleaned or replaced quickly without any tools. In addition,
a safety catch is attached to the panel to keep the hands free for filter replacement.
In terms of lower power consumption and acoustic power level, the ceiling cas-
settes meet or exceed all current requirements for new buildings. As with all other
Arbonia fan coils, the specially developed heating registers are made of copper
pipes with aluminium slats.
* at 7/12/27 °C

TENDER SPECIFICATION
The DXB ECM ceiling cassette is available in 5 model sizes and can also be supplied       up to 70 % energy savings can be made in comparison to conventional single-phase
equipped with a Modbus controller board. A connection for up to 20 % fresh air            alternating current motors.
is also possible. The internal supporting structure is made of galvanised steel and
                                                                                          Fan unit:
thermal/acoustic insulation made of polyolefin foam (class M1). The unit is covered
with an anti-fog coating on the outside. The panel (has to be ordered separately) is      Dynamically balanced centrifugal fan with separate inlet. Air intake from below
made of impact-resistant ABS plastic and comes in white (RAL 9003) as standard.           while heated/cooled air is output on the side. Specially developed backward curved
Other colours are available on request.                                                   blades optimised for flow convey the maximum possible air volume with minimal
                                                                                          energy consumption.
Filter:
                                                                                          Connection:
The filter for coarse particles can be easily reached from below via four quick-release
                                                                                          Water connection on side (½“ in all sizes), electrical connection on side in switch-
fasteners and is extremely easy to clean. The panel is also equipped with a safety
                                                                                          box. Drain valves and air vents on the outside.
catch.
                                                                                          Arbonia packaging concept:
Heat exchange register:
                                                                                          Sophisticated packaging concept, space-saving disposal, no need to break down
Depending on the model variant, 2-pipe or 4-pipe, one- to three-row register made         boxes, highly stable.
of copper pipes with aluminium slats with a round shape for operation with water.
Not suited for environments where aluminium corrosion may occur.                          Operating conditions:
                                                                                          Max. water temperature: 80 °C
Condensate collection tray:
                                                                                          Min. water temperature: 5 °C
Made of ABS plastic, integrated into unit.
                                                                                          Max. operating pressure: 8 bar
Condensate pump:
                                                                                          Rel. humidity:              15 – 75 %
Installed in the unit, delivery head 650 mm (bottom edge of unit). Controlled directly
                                                                                          Max. air temperature:       40 °C
via the control board, a float switch system controls the condensate level and is
connected to an alarm. A valve condensate collection tray is installed in the unit so     Min. air temperature:       6 °C
that this condensate is also drained with the pump.
Electric motor EC:
Ultra efficient EC motor with continuous speed adjustment (0 – 10 V), 230 V/50 Hz,
mounted to reduce vibrations, especially low-noise, self-lubricating and thus
maintenance-free. By using modern EC motors,

8                 Prices and Technology 2021-N                                                 Prices without value added tax. Technical specifications subject to change.
MODELS |     CONDI®LINE CEILING CASSETTE
                                                                                                                   Condi®line ceiling cassette DXB ECM

                                                                                                               Special features:
                                                                                                               Ŷ 5 sizes
                                                                                                               Ŷ Condensate pump and valve condensate collecti-
                                                                                                                 on tray included as standard (max. delivery head

                                                                                                                                                                              General information
                                                                                                                 650 mm)
                                                                                                               Ŷ Panel has to be ordered

                                                                                                                                                                              Ceiling cassette DXB ECM
MODEL OVERVIEW DXB ECM

                                                                                                                                                                              Model
                                  Heating/cooling                                                Airflow                                        Acoustics

        1

        2

        3

                                                                                                                                                                                Ceiling cassette DXB
 Size

        4

                                                                                                                                                                                Model
        5

            0        2        4         6        8          10         12     0        500       1000         1500      2000        40        50         60         70

                ––   Heat output [kW]       ––       Cooling capacity [kW]        ––         Airflow [m³/h]                        ––      Acoustic power level [db(A)]

                                                                                                                                                                                Planning information
                                                                                                                                                                                Models
                                                                                                                                                                                Accessories
                                                                                                                                                                                Models
                                                                                                                                                                                information
                                                                                                                                                                                Further

Prices without value added tax. Technical specifications subject to change.                                                    Prices and Technology 2021-N               9
CONDI®LINE CEILING CASSETTE | MODELS
         Condi®line ceiling cassette DXB ECM

TECHNICAL DRAWING DXB ECM

 DXB ECM sizes 1 to 3 (version 600 x 600)

                                      182                  572                75
                                                  286             286
                                                            150

                                                                        21

                                                                                     14
                                                                                                                                              55       48 25                        34

                                                                                                     100
           26 73 55 142

                                                                                         224

                                                                                                                                                                                     44
                                                                                                     170

                                                                                                                                                                                            82
                                                                                                                                                              3
                                                                                                                                                      4                                            21,5
                            41

                                                                                                                                                                  1

                                                                                                     67
                                                                                                                                                      2

                                                                                                                                                                                            26,5
                                            ø14
                                                                                         445

                                                                                                                                                                                     21,5
                                  470

                                                           572
                                                                                                                           102      67   42
                                 0

                                                           364
                                 11

                                                                                                                                              59

                                                                                                                                               44

                                                                                                                                                          103,5
                                                                                                                                              82

                                                                                                                                                                      129,5
                                                                                                                                                                              151
                                                                                   207

                                                                                                                                              34
                          357
   670
         572

                                                                                               597

                                                                                                                                              107

                                                                                                                                                                              418
                                                                                   354
                          160

                                                           364                                                            73
                                   11

                                                                               0
                                                                             11

                                                                                                                               55
                                        0

                                                           670
                                                                                                                                 270

Note:
The electrical terminal box is located at different positions in sizes 600 x 600 mm and 800 x 800 mm.
Refer to the drawings for the exact position.

                                                                                                                                                   2-pipe system
                                                                                                                                                   3. Cold water inflow ½“
                                                                                                                                                   4. Cold water discharge ½”

                                                                                                                                                   4-pipe system
                                                                                                                                                   1. Hot water inflow ½”
                                                                                                                                                   2. Hot water discharge ½”
                                                                                                                                                   3. Cold water inflow ½”
                                                                                                                                                   4. Cold water discharge ½”

10                          Prices and Technology 2021-N                                                   Prices without value added tax. Technical specifications subject to change.
MODELS |   CONDI®LINE CEILING CASSETTE
                                                                                                                 Condi®line ceiling cassette DXB ECM

TECHNICAL DRAWING DXB ECM

 DXB ECM sizes 4 to 5 (version 800 x 800)

                                                                                                                                                                                                General information
                                                         819
                                     180         409,5          409,5

                                                                                         120

                                                                                                                                                             149,5
                                                                                 99 55 175

                                                                                                                                                                        22
                                                                                                                                                                     24,5
                        59 72

                                                                                                                                                2

                                                                                                                                                                               29
                                                                                                                                  1
                                                                                                                                           4

                                                                                                                                                             10,5

                                                                                                                                                                                                Ceiling cassette DXB ECM
                                           ø14                                                                                    3

                                                                                       645
                                 470

                                                                                                                                                 56
                                                                                                                       62                       21

                                                                                                                                            31

                                                                                                                                                                                                Model
                                                                                                                                      21
                                                                                                                                  12

                                                         819                                                                108
                                                         705                                                85 51 224                 28
                                4

                                                                                                                                                                                                  Ceiling cassette DXB
                                18

                                                                               18
                                                                                 4
                  130

                                                                                                                                           76
                                                                                                                                                    149,5

                                                                                                                                                                           206,5
                                                                                                                                                            160
                                                                                                                                                                     182

                                                                                                                                                                                   235,5

                                                                                                                                                                                                  Model
                  357

                                                                                                                                       56
     819

            705

                                                                                       560

                                                                                               965

                                                                                                                                       77
                                                                                                                                      108
                                                                                                                            129
                                                                                                                            141

                                                                                                                                                                                                  Planning information
                                                                                                                73
                                                                                                                     55 115           60
                                                         560

                                                                                                                                                                                                  Models
                                                                                                           26         303
                                                                                      4
                                                                                    18

                                                         965

Note:
The electrical terminal box is located at different positions in sizes 600 x 600 mm and 800 x 800 mm.
Refer to the drawings for the exact position.
                                                                                                                                                                                                  Accessories
                                                                                                                                                                                                  Models

                                                                                                                                       2-pipe system
                                                                                                                                       3. Cold water inflow ¾“
                                                                                                                                       4. Cold water discharge ¾”

                                                                                                                                       4-pipe system
                                                                                                                                       1. Hot water inflow ½”
                                                                                                                                       2. Hot water discharge ½”
                                                                                                                                                                                                  information

                                                                                                                                       3. Cold water inflow ¾“
                                                                                                                                                                                                  Further

                                                                                                                                       4. Cold water discharge ¾”

Prices without value added tax. Technical specifications subject to change.                                                       Prices and Technology 2021-N                             11
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB ECM

SIZE 1

                                                                                      572
                                                                                                                                                 102        67        42

                                                                 0
                                                                                      364

                                                               11
                                                                                                                                                                           59

                                                                                                                                                                             44

                                                                                                                                                                                   103,5
                                                                                                                                                                            82

                                                                                                                                                                                           129,5
                                                                                                                                                                                                   151
                                                                                                                  207
                                                                                                                                                                           34
                                                         357
                                             670

                                                   572

                                                                                                                         597

                                                                                                                                                                                                         585
                                                                                                                                                                           107

                                                                                                                                                                                                   418
                                                                                                                  354
                                                         160

                                                                                      364                                                        73
                                                                  11

                                                                                                              0
                                                                                                            11
                                                                                                                                                       55
                                                                     0

                                                                                      670
                                                                                                                                                        270

PRICES

        Size                                                                                            1                                                                                                      1
        Models                                                                                     2-pipe system                                                                                    4-pipe system
                                                               Without electric heating register                    With electric heating register                                 Without electric heating register
        Electric heating register
                                                                                                                        1500 watts/230 V~
                                                               Without                 With                        Without                  With                                  Without                                  With
        Modbus RTU board
                                                               MB board               MB board                     MB board               MB board                                MB board                                MB board
        Mass M [kg]                                              22.00                  22.00                           22.00                    22.00                                24.00                                24.00
        Product code                                     DXB31100575X00A         DXB31100575X02A            DXB31110575X00A              DXB31110575X02A                     DXB31200575X00A                       DXB31200575X02A
        Price per piece [EUR]                                  1291.76                 1520.21                      2177.42                    2216.91                             1479.47                                1707.92

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                            Correction factors for deviating temperatures

                                                                                                                                               Main register                                                   Auxiliary register
                                                                                                                  °C            20      30       40              50         60         70            40            50       60       70
                                                                                                                   K            0.94   0.90     0.86         0.82          0.78      0.74           1.14           1.08    1.02      0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                   Explanation of version code
                                                                                                                  DXB ECM 1 2
                                                                                                                                                       DXB                 : Ceiling cassette with centrifugal fan
                                                                                                                                                       ECM                 : With EC motor
                         1                                                                                                                             1                   : Size
                               100                        1000                                                                                         2                   : 4-pipe system (max. heating)
                                        Water flow ṁ [kg/h]

                          ––         DXB ECM 11                          ––   DXB ECM 12 (max. heating)

12                                    Prices and Technology 2021-N                                                               Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                      Condi®line ceiling cassette DXB ECM

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                       General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                               General information
                                  Overall Sensitive    Air                     Water                    Air               Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water      pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow         loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V           Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        2806       2056        14       486          10.3        3189      39       274          3.2           535       38           47    16
  DXB ECM 11         Average      2224       1594        13       385           6.8        2470      41       212          2.0           380       30           39    8
                       Min.       1892       1338        12       328           5.1        2073      42       180          1.5           310       24           33    5

                                                                                                                                                                               Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                       General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                               Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air               Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water      pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow         loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V           Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        2824       2047        14       490           9.8        1915      14       166          3.9           535       38           47    16

                                                                                                                                                                                 Ceiling cassette DXB
  DXB ECM 12
                     Average      2235       1589        13       385           6.4        1533      33       133          2.6           380       30           39    8
 (max. heating)
                       Min.       1898       1334        13       328           4.8        1315      34       112          2.0           310       24           33    5

                                                                                                                                                                                 Model
                                                                                                                                                                                 Planning information
                                                                                                                                                                                 Models
                                                                                                                                                                                 Accessories
                                                                                                                                                                                 Models

                                                                                                                  Accessories in section “Models, Accessories”
                                                                                                                  Screen ZA0142 .... or ZA0149 0001 must be ordered
                                                                                                                  separately
                                                                                                                  Ŷ 2- or 3-way valves
                                                                                                                  Ŷ Valve condensate collection trays
                                                                                                                                                                                 information

                                                                                                                  Ŷ Condensate pumps
                                                                                                                  Ŷ Control panel
                                                                                                                                                                                 Further

                                                                                                                  Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                         Prices and Technology 2021-N          13
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB ECM

SIZE 2

                                                                                      572
                                                                                                                                                 102        67        42

                                                                 0
                                                                                      364

                                                               11
                                                                                                                                                                           59

                                                                                                                                                                             44

                                                                                                                                                                                   103,5
                                                                                                                                                                            82

                                                                                                                                                                                           129,5
                                                                                                                                                                                                   151
                                                                                                                  207
                                                                                                                                                                           34
                                                         357
                                             670

                                                   572

                                                                                                                         597

                                                                                                                                                                                                         585
                                                                                                                                                                           107

                                                                                                                                                                                                   418
                                                                                                                  354
                                                         160

                                                                                      364                                                        73
                                                                  11

                                                                                                              0
                                                                                                            11
                                                                                                                                                       55
                                                                     0

                                                                                      670
                                                                                                                                                        270

PRICES

        Size                                                                                            2                                                                                                      2
        Models                                                                                     2-pipe system                                                                                    4-pipe system
                                                               Without electric heating register                    With electric heating register                                 Without electric heating register
        Electric heating register
                                                                                                                        1500 watts/230 V~
                                                               Without                 With                        Without                  With                                  Without                                  With
        Modbus RTU board
                                                               MB board               MB board                     MB board               MB board                                MB board                                MB board
        Mass M [kg]                                              24.00                  24.00                           24.00                    24.00                                24.00                                24.00
        Product code                                     DXB32100575X00A         DXB32100575X02A            DXB32110575X00A              DXB32110575X02A                     DXB32300575X00A                       DXB32300575X02A
        Price per piece [EUR]                                  1335.01                 1563.47                      2364.31                    2403.77                             1550.87                                1779.32

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                            Correction factors for deviating temperatures

                                                                                                                                               Main register                                                   Auxiliary register
                                                                                                                  °C            20      30       40              50         60         70            40            50       60       70
                                                                                                                   K            0.94   0.90     0.86         0.82          0.78      0.74           1.14           1.08    1.02      0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                   Explanation of version code
                                                                                                                  DXB ECM 2 3
                                                                                                                                                       DXB                 : Ceiling cassette with centrifugal fan
                                                                                                                                                       ECM                 : With EC motor
                         1                                                                                                                             2                   : Size
                               100                        1000                                                                                         3                   : 4-pipe system (max. cooling)
                                        Water flow ṁ [kg/h]

                          ––         DXB ECM 21                          ––   DXB ECM 23 (max. cooling)

14                                    Prices and Technology 2021-N                                                               Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                       Condi®line ceiling cassette DXB ECM

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                        General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                                General information
                                  Overall Sensitive    Air                     Water                    Air                Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water       pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow          loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V            Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]        [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        4435       3135        12       767          15.6        4902      42       421           4.6           710       45           54    31
  DXB ECM 21         Average      3140       2161        11       544           8.3        3366      44       288           2.4           445       34           43    11
                       Min.       2308       1562        10       400           4.8        2433      46       209           1.3           310       24           33    5

                                                                                                                                                                                Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                        General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                                Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air                Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water       pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow          loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V            Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]        [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        3979       2888        13       691          10.4        1629      28       140           2.4           710       45           54    31

                                                                                                                                                                                  Ceiling cassette DXB
  DXB ECM 23
                     Average      2867       2019        12       497           5.7        1267      29       108           1.5           445       34           43    11
 (max. cooling)
                       Min.       2141       1476        11       371           3.4        1017      31           86        1.0           310       24           33    5

                                                                                                                                                                                  Model
                                                                                                                                                                                  Planning information
                                                                                                                                                                                  Models
                                                                                                                                                                                  Accessories
                                                                                                                                                                                  Models

                                                                                                                   Accessories in section “Models, Accessories”
                                                                                                                   Screen ZA0142 .... or ZA0149 0001 must be ordered
                                                                                                                   separately
                                                                                                                   Ŷ 2- or 3-way valves
                                                                                                                   Ŷ Valve condensate collection trays
                                                                                                                                                                                  information

                                                                                                                   Ŷ Condensate pumps
                                                                                                                   Ŷ Control panel
                                                                                                                                                                                  Further

                                                                                                                   Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                          Prices and Technology 2021-N          15
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB ECM

SIZE 3

                                                                                      572
                                                                                                                                                 102        67        42

                                                                 0
                                                                                      364

                                                               11
                                                                                                                                                                           59

                                                                                                                                                                             44

                                                                                                                                                                                   103,5
                                                                                                                                                                            82

                                                                                                                                                                                           129,5
                                                                                                                                                                                                   151
                                                                                                                  207
                                                                                                                                                                           34
                                                         357
                                             670

                                                   572

                                                                                                                         597

                                                                                                                                                                                                         585
                                                                                                                                                                           107

                                                                                                                                                                                                   418
                                                                                                                  354
                                                         160

                                                                                      364                                                        73
                                                                  11

                                                                                                              0
                                                                                                            11
                                                                                                                                                       55
                                                                     0

                                                                                      670
                                                                                                                                                        270

PRICES

        Size                                                                                            3                                                                                                      3
        Models                                                                                     2-pipe system                                                                                    4-pipe system
                                                               Without electric heating register                    With electric heating register                                 Without electric heating register
        Electric heating register
                                                                                                                        1500 watts/230 V~
                                                               Without                 With                        Without                  With                                  Without                                  With
        Modbus RTU board
                                                               MB board               MB board                     MB board               MB board                                MB board                                MB board
        Mass M [kg]                                              24.00                  24.00                           24.00                    24.00                                24.00                                18.00
        Product code                                     DXB33100575X00A         DXB33100575X02A            DXB33110575X00A              DXB33110575X02A                     DXB33300575X00A                       DXB33300575X02A
        Price per piece [EUR]                                  1468.51                 1719.80                      2600.73                    2644.14                             1705.95                                1957.25

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                            Correction factors for deviating temperatures

                                                                                                                                               Main register                                                   Auxiliary register
                                                                                                                  °C            20      30       40              50         60         70            40            50       60       70
                                                                                                                   K            0.94   0.90     0.86         0.82          0.78      0.74           1.14           1.08    1.02      0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                   Explanation of version code
                                                                                                                  DXB ECM 3 3
                                                                                                                                                       DXB                 : Ceiling cassette with centrifugal fan
                                                                                                                                                       ECM                 : With EC motor
                         1                                                                                                                             3                   : Size
                               100                        1000                                                                                         3                   : 4-pipe system (max. cooling)
                                        Water flow ṁ [kg/h]

                          ––         DXB ECM 31                          ––   DXB ECM 33 (max. cooling)

16                                    Prices and Technology 2021-N                                                               Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                       Condi®line ceiling cassette DXB ECM

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                        General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                                General information
                                  Overall Sensitive    Air                     Water                    Air                Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water       pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow          loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V            Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]        [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        5094       3655        13       886          20.3        5769      42       497           6.2           880       51           60    62
  DXB ECM 31         Average      3990       2792        12       691          12.9        4350      43       374           3.7           610       41           50    21
                       Min.       2641       1800        10       457           6.1        2802      45       241           1.7           360       28           37    7

                                                                                                                                                                                Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                        General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                                Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air                Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water       pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow          loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V            Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]        [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        4527       3343        14       788          13.2        1815      27       155           3.0           880       51           60    62

                                                                                                                                                                                  Ceiling cassette DXB
  DXB ECM 33
                     Average      3597       2582        13       623           8.6        1505      28       130           2.1           610       41           50    21
 (max. cooling)
                       Min.       2433       1692        11       421           4.2        1121      30           97        1.2           360       28           37    7

                                                                                                                                                                                  Model
                                                                                                                                                                                  Planning information
                                                                                                                                                                                  Models
                                                                                                                                                                                  Accessories
                                                                                                                                                                                  Models

                                                                                                                   Accessories in section “Models, Accessories”
                                                                                                                   Screen ZA0142 .... or ZA0149 0001 must be ordered
                                                                                                                   separately
                                                                                                                   Ŷ 2- or 3-way valves
                                                                                                                   Ŷ Valve condensate collection trays
                                                                                                                                                                                  information

                                                                                                                   Ŷ Condensate pumps
                                                                                                                   Ŷ Control panel
                                                                                                                                                                                  Further

                                                                                                                   Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                          Prices and Technology 2021-N          17
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB ECM

SIZE 4

                                                                                           819                                                               108
                                                                                           705                                                85 51 224            28

                                                                            4
                                                                        18

                                                                                                                18
                                                                                                                   4
                                                              130

                                                                                                                                                                        76
                                                                                                                                                                             149,5

                                                                                                                                                                                                  206,5
                                                                                                                                                                                     160
                                                                                                                                                                                            182

                                                                                                                                                                                                          235,5
                                                              357

                                                                                                                                                                    56
                                                  819

                                                        705

                                                                                                                        560

                                                                                                                               965
                                                                                                                                                                    77
                                                                                                                                                                   108
                                                                                                                                                            129
                                                                                                                                                            141

                                                                                                                                                   73
                                                                                                                                                        55 115     60
                                                                                           560
                                                                                                                                             26          303

                                                                                                                        4
                                                                                                                       18
                                                                                           965

PRICES

        Size                                                                                            4                                                                                                         4
        Models                                                                                     2-pipe system                                                                                          4-pipe system
                                                               Without electric heating register                 With electric heating register                                        Without electric heating register
        Electric heating register
                                                                                                                     1500 watts/230 V~
                                                              Without                  With                     Without                  With                                        Without                                  With
        Modbus RTU board
                                                              MB board                MB board                  MB board               MB board                                      MB board                                MB board
        Mass M [kg]                                                 36.00               36.00                          39.00                       36.00                                   39.00                              39.00
        Product code                                    DXB34100820X00A           DXB34100820X02A           DXB34110820X00A             DXB34110820X02A                      DXB34200820X00A                          DXB34200820X02A
        Price per piece [EUR]                                  1832.23                 2073.29                     3038.74                        3078.21                              2103.52                               2344.56

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                            Correction factors for deviating temperatures

                                                                                                                                                  Main register                                                   Auxiliary register
                                                                                                                °C              20     30          40        50          60                70              40         50       60       70
                                                                                                                   K           0.94   0.90        0.86      0.82         0.78              0.74           1.14        1.08    1.02      0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                        Explanation of version code
                                                                                                               DXB ECM 4 2
                                                                                                                                                          DXB           : Ceiling cassette with centrifugal fan
                                                                                                                                                          ECM           : With EC motor
                         1                                                                                                                                4             : Size
                               100                       1000                                                                                             2             : 4-pipe system (max. heating)
                                        Water flow ṁ [kg/h]

                          ––         DXB ECM 41                         ––      DXB ECM 42 (max. heating)

18                                    Prices and Technology 2021-N                                                              Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                      Condi®line ceiling cassette DXB ECM

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                       General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                             General information
                                  Overall Sensitive    Air                     Water                    Air               Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water      pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow         loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V           Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        6440       4646        14      1112          22.9        7516      41       648          7.5          1165       39           48    33
  DXB ECM 41         Average      5259       3726        13       907          15.9        5993      42       515          5.0           870       30           39    17
                       Min.       4313       3009        12       745          11.1        4816      44       414          3.4           630       24           33    10

                                                                                                                                                                             Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                       General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                             Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air               Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water      pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow         loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V           Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.        6680       4779        13      1156          20.5        5019      34       432          7.7          1165       39           48    33

                                                                                                                                                                               Ceiling cassette DXB
  DXB ECM 42
                     Average      5426       3817        12       936          14.0        4111      35       353          5.4           870       30           39    17
 (max. heating)
                       Min.       4432       3073        12       763           9.7        3387      37       292          3.8           630       24           33    10

                                                                                                                                                                               Model
                                                                                                                                                                               Planning information
                                                                                                                                                                               Models
                                                                                                                                                                               Accessories
                                                                                                                                                                               Models

                                                                                                                  Accessories in section “Models, Accessories”
                                                                                                                  Screen ZA0143 .... or ZA0149 0002 must be ordered
                                                                                                                  separately
                                                                                                                  Ŷ 2- or 3-way valves
                                                                                                                  Ŷ Valve condensate collection trays
                                                                                                                                                                               information

                                                                                                                  Ŷ Condensate pumps
                                                                                                                  Ŷ Control panel
                                                                                                                                                                               Further

                                                                                                                  Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                         Prices and Technology 2021-N        19
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB ECM

SIZE 5
                                                                                           819                                                               108
                                                                                           705                                                85 51 224            28

                                                                        4
                                                                       18

                                                                                                                18
                                                                                                                   4
                                                              130

                                                                                                                                                                        76
                                                                                                                                                                             149,5

                                                                                                                                                                                                  206,5
                                                                                                                                                                                     160
                                                                                                                                                                                            182

                                                                                                                                                                                                          235,5
                                                              357

                                                                                                                                                                    56
                                                  819

                                                        705

                                                                                                                        560

                                                                                                                               965
                                                                                                                                                                    77
                                                                                                                                                                   108
                                                                                                                                                            129
                                                                                                                                                            141

                                                                                                                                                   73
                                                                                                                                                        55 115     60
                                                                                           560
                                                                                                                                             26          303

                                                                                                                        4
                                                                                                                       18
                                                                                           965

PRICES

        Size                                                                                            5                                                                                                         5
        Models                                                                                     2-pipe system                                                                                          4-pipe system
                                                               Without electric heating register                 With electric heating register                                       Without electric heating register
        Electric heating register
                                                                                                                     1500 watts/230 V~
                                                              Without                  With                     Without                  With                                        Without                                  With
        Modbus RTU board
                                                              MB board                MB board                  MB board               MB board                                      MB board                                MB board
        Mass M [kg]                                                 39.00               39.00                          39.00                       39.00                                   39.00                              39.00
        Product code                                    DXB35100820X00A          DXB35100820X02A            DXB35110820X00A             DXB35110820X02A                   DXB35300820X00A                             DXB35300820X02A
        Price per piece [EUR]                                  1949.83                 2190.86                     3173.95                        3213.86                             2175.74                                2416.79

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                            Correction factors for deviating temperatures

                                                                                                                                                  Main register                                                   Auxiliary register
                                                                                                                °C             20      30          40        50          60                70             40          50       60       70
                                                                                                                   K           0.94   0.90        0.86      0.82        0.78           0.74               1.14        1.08    1.02      0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                     Explanation of version code
                                                                                                               DXB ECM 5 3
                                                                                                                                                         DXB            : Ceiling cassette with centrifugal fan
                                                                                                                                                         ECM            : With EC motor
                         1                                                                                                                               5              : Size
                               100                       1000                                                                                            3              : 4-pipe system (max. cooling)
                                        Water flow ṁ [kg/h]

                          ––         DXB ECM 51                         ––    DXB ECM 53 (max. cooling)

20                                    Prices and Technology 2021-N                                                              Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                      Condi®line ceiling cassette DXB ECM

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                       General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                             General information
                                  Overall Sensitive    Air                     Water                    Air               Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water      pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow         loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V           Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.       11035       7834        12      1915          34.8       11881      42       1022         9.8          1770       48           57   108
  DXB ECM 51         Average      8007       5518        11      1382          19.3        8334      44       716          5.2          1130       38           47    32
                       Min.       5469       3688        10       943           9.7        5609      46       482          2.5           710       25           34    10

                                                                                                                                                                             Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                       General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                             Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air               Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water      pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow         loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V           Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]         [m³/h]   [dB(A)]   [dB(A)]    [W]
                      Max.       10176       7297        13      1768          33.6        4856      29       418          5.6          1770       48           57   108

                                                                                                                                                                               Ceiling cassette DXB
  DXB ECM 53
                     Average      7495       5214        12      1296          19.2        3757      31       324          3.5          1130       38           47    32
 (max. cooling)
                       Min.       5189       3532        10       893           9.9        2803      33       241          2.1           710       25           34    10

                                                                                                                                                                               Model
                                                                                                                                                                               Planning information
                                                                                                                                                                               Models
                                                                                                                                                                               Accessories
                                                                                                                                                                               Models

                                                                                                                  Accessories in section “Models, Accessories”
                                                                                                                  Screen ZA0143 .... or ZA0149 0002 must be ordered
                                                                                                                  separately
                                                                                                                  Ŷ 2- or 3-way valves
                                                                                                                  Ŷ Valve condensate collection trays
                                                                                                                                                                               information

                                                                                                                  Ŷ Condensate pumps
                                                                                                                  Ŷ Control panel
                                                                                                                                                                               Further

                                                                                                                  Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                         Prices and Technology 2021-N        21
ARBONIA CONDI®LINE CEILING CASSETTE:
MODEL DXB

                              In the following section,
                              you will find:

                              Ŷ   Tender specification
                              Ŷ   Model overview
                              Ŷ   Dimensional drawings
                              Ŷ   Prices
                              Ŷ   Technical data
CONDI®LINE CEILING CASSETTE | MODELS
          Condi®line ceiling cassette DXB

CONDILINE CEILING CASSETTE DXB
Fan coils from the DXB model series are designed for installation in subceilings.                                  Special features:
A wide range of ceiling cassettes are available in seven versions with dimen-                                      Ŷ     Energy-efficient operation
sions 600 x 600 mm and 800 x 800 mm. The cassettes available in dimension                                          Ŷ     Silent
600 x 600 mm are the perfect fit for a standard ceiling grid. Available as 2-pipe                                  Ŷ     AC motors
or 4-pipe versions for heating and cooling, the ceiling cassettes are designed for a                               Ŷ     7 sizes
wide range of applications with optimised performance and acoustic power levels.                                   Ŷ     Suitable for panelled ceilings
With cooling capacities from 1.3 kW to 11.1 kW*, the DXB ceiling cassettes are                                     Ŷ     State-of-the-art motor technology even for sing-
suitable for medium-sized to large rooms (e.g. open-plan offices). An additional                                         le-phase alternating current motors
connection enables air distribution to adjacent rooms. The filter can be conveniently                              Ŷ     Easy cleaning and maintenance
accessed from below and cleaned or replaced quickly without any tools. In addition,                                Ŷ     Long service life
a safety catch is attached to the panel to keep the hands free for filter replacement.                             Ŷ     ErP-compliant (Directive 327/2011)
In terms of lower power consumption and acoustic power level, the ceiling cas-
settes meet or exceed all current requirements for new buildings. As with all other
Arbonia fan coils, the specially developed heating registers are made of copper
pipes with aluminium slats.
* at 7/12/27 °C

TENDER SPECIFICATION
The DXB ceiling cassette is available in 7 model sizes and can also be supplied equip-    Fan unit:
ped with a Modbus controller board. A connection for up to 20 % fresh air is also         Dynamically balanced centrifugal fan with separate inlet. Air intake from below whi-
possible. The internal supporting structure is made of galvanised steel and thermal/      le heated/cooled air is output on the side. Specially developed backward curved
acoustic insulation made of polyolefin foam (class M1). The unit is covered with an       blades optimised for flow convey the maximum possible air volume with minimal
anti-fog coating on the outside. The panel (has to be ordered separately) is made         energy consumption.
of impact-resistant ABS plastic and comes in white (RAL 9003) as standard. Other
colours are available on request.                                                         Connection:
                                                                                          Water connection on side (½“ in all sizes), electrical connection on side in switchbox.
Filter:
                                                                                          Drain valves and air vents on the outside.
The filter for coarse particles can be easily reached from below via four quick-release
fasteners and is extremely easy to clean. The panel is also equipped with a safety        Arbonia packaging concept:
catch.                                                                                    Sophisticated packaging concept, space-saving disposal, no need to break down
                                                                                          boxes, highly stable.
Heat exchange register:
Depending on the model variant, 2-pipe or 4-pipe, one- to three-row register made         Operating conditions:
of copper pipes with aluminium slats with a round shape for operation with water.         Max. water temperature: 80 °C
Not suited for environments where aluminium corrosion may occur.
                                                                                          Min. water temperature: 5 °C
Condensate collection tray:                                                               Max. operating pressure: 8 bar
Made of ABS plastic, integrated into unit.                                                Rel. humidity:               15 – 75 %
Condensate pump:                                                                          Max. air temperature:        40 °C
Installed in the unit, delivery head 650 mm (bottom edge of unit). Controlled directly    Min. air temperature:        6 °C
via the control board, a float switch system controls the condensate level and is
connected to an alarm. An optional valve condensate collection tray is installed in
the unit so that this condensate is also drained with the pump.
Electric motor AC:
Single-phase AC motor, mounted to reduce vibrations. Six possible speeds, three
speeds connected at the factory. Insulation with automatic reset, protection type
IP20, class B.

24                Prices and Technology 2021-N                                                 Prices without value added tax. Technical specifications subject to change.
MODELS |     CONDI®LINE CEILING CASSETTE
                                                                                                                         Condi®line ceiling cassette DXB

                                                                                                                 Special features:
                                                                                                                 Ŷ 7 sizes
                                                                                                                 Ŷ Condensate pump and valve condensate collecti-
                                                                                                                   on tray included as standard (max. delivery head

                                                                                                                                                                            General information
                                                                                                                   650 mm)
                                                                                                                 Ŷ Panel has to be ordered

                                                                                                                                                                              Ceiling cassette DXB ECM
MODEL OVERVIEW DXB
                                     Heating/cooling                                               Airflow                                        Acoustics

                                                                                                                                                                              Model
        0
        1
        2
        3
 Size

        4

                                                                                                                                                                            Ceiling cassette DXB
        5
        6
            0        2         4       6      8        10       12       14    0        2000       4000         6000      8000        40        50         60         70

                                                                                                                                                                            Model
                ––       Heat output [kW]     ––       Cooling capacity [kW]       ––          Airflow [m³/h]                        ––      Acoustic power level [db(A)]

                                                                                                                                                                              Planning information
                                                                                                                                                                              Models
                                                                                                                                                                              Accessories
                                                                                                                                                                              Models
                                                                                                                                                                              information
                                                                                                                                                                              Further

Prices without value added tax. Technical specifications subject to change.                                                      Prices and Technology 2021-N          25
CONDI®LINE CEILING CASSETTE | MODELS
         Condi®line ceiling cassette DXB

TECHNICAL DRAWING DXB

 DXB sizes 0 to 3 (version 600 x 600)

                                      182                  572                75
                                                  286             286
                                                            150

                                                                        21

                                                                                     14
                                                                                                                                              55       48 25                        34

                                                                                                     100
           26 73 55 142

                                                                                         224

                                                                                                                                                                                     44
                                                                                                     170

                                                                                                                                                                                            82
                                                                                                                                                              3
                                                                                                                                                      4                                            21,5
                            41

                                                                                                                                                                  1

                                                                                                     67
                                                                                                                                                      2

                                                                                                                                                                                            26,5
                                            ø14
                                                                                         445

                                                                                                                                                                                     21,5
                                  470

                                                           572
                                                                                                                           102      67   42
                                 0

                                                           364
                                 11

                                                                                                                                              59

                                                                                                                                               44

                                                                                                                                                          103,5
                                                                                                                                              82

                                                                                                                                                                      129,5
                                                                                                                                                                              151
                                                                                   207

                                                                                                                                              34
                          357
   670
         572

                                                                                               597

                                                                                                                                              107

                                                                                                                                                                              418
                                                                                   354
                          160

                                                           364                                                            73
                                   11

                                                                               0
                                                                             11

                                                                                                                               55
                                        0

                                                           670
                                                                                                                                 270

Note:
The electrical terminal box is located at different positions in sizes 600 x 600 mm and 800 x 800 mm.
Refer to the drawings for the exact position.

                                                                                                                                                   2-pipe system
                                                                                                                                                   3. Cold water inflow ½“
                                                                                                                                                   4. Cold water discharge ½”

                                                                                                                                                   4-pipe system
                                                                                                                                                   1. Hot water inflow ½”
                                                                                                                                                   2. Hot water discharge ½”
                                                                                                                                                   3. Cold water inflow ½”
                                                                                                                                                   4. Cold water discharge ½”

26                          Prices and Technology 2021-N                                                   Prices without value added tax. Technical specifications subject to change.
MODELS |   CONDI®LINE CEILING CASSETTE
                                                                                                                        Condi®line ceiling cassette DXB

TECHNICAL DRAWING DXB

 DXB sizes 4 to 6 (version 800 x 800)

                                                                                                                                                                                                General information
                                                         819
                                     180         409,5          409,5

                                                                                         120

                                                                                                                                                             149,5
                                                                                 99 55 175

                                                                                                                                                                        22
                                                                                                                                                                     24,5
                        59 72

                                                                                                                                                2

                                                                                                                                                                               29
                                                                                                                                  1
                                                                                                                                           4

                                                                                                                                                             10,5
                                           ø14                                                                                    3

                                                                                                                                                                                                  Ceiling cassette DXB ECM
                                                                                       645
                                 470

                                                                                                                                                 56
                                                                                                                       62                       21

                                                                                                                                                                                                  Model
                                                                                                                                            31
                                                                                                                                      21
                                                                                                                                  12

                                                         819                                                                108
                                                         705                                                85 51 224                 28

                                                                                                                                                                                                Ceiling cassette DXB
                                4
                                18

                                                                               18
                                                                                 4
                  130

                                                                                                                                           76
                                                                                                                                                    149,5

                                                                                                                                                                           206,5
                                                                                                                                                            160
                                                                                                                                                                     182

                                                                                                                                                                                   235,5

                                                                                                                                                                                                Model
                  357

                                                                                                                                       56
     819

            705

                                                                                       560

                                                                                               965

                                                                                                                                       77
                                                                                                                                      108
                                                                                                                            129
                                                                                                                            141

                                                                                                                                                                                                  Planning information
                                                                                                                73
                                                                                                                     55 115           60
                                                         560

                                                                                                                                                                                                  Models
                                                                                                           26         303
                                                                                      4
                                                                                    18

                                                         965

Note:
The electrical terminal box is located at different positions in sizes 600 x 600 mm and 800 x 800 mm.
Refer to the drawings for the exact position.
                                                                                                                                                                                                  Accessories
                                                                                                                                                                                                  Models

                                                                                                                                       2-pipe system
                                                                                                                                       3. Cold water inflow ¾“
                                                                                                                                       4. Cold water discharge ¾”

                                                                                                                                       4-pipe system
                                                                                                                                       1. Hot water inflow ½”
                                                                                                                                       2. Hot water discharge ½”
                                                                                                                                                                                                  information

                                                                                                                                       3. Cold water inflow ¾“
                                                                                                                                                                                                  Further

                                                                                                                                       4. Cold water discharge ¾”

Prices without value added tax. Technical specifications subject to change.                                                       Prices and Technology 2021-N                             27
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB

SIZE 0

                                                                                        572
                                                                                                                                                102        67    42

                                                                  0
                                                                                        364

                                                                11
                                                                                                                                                                      59

                                                                                                                                                                       44

                                                                                                                                                                              103,5
                                                                                                                                                                      82

                                                                                                                                                                                      129,5
                                                                                                                                                                                              151
                                                                                                                207
                                                                                                                                                                      34
                                                          357
                                              670

                                                    572

                                                                                                                      597

                                                                                                                                                                                                    585
                                                                                                                                                                      107

                                                                                                                                                                                              418
                                                                                                                354
                                                          160

                                                                                        364                                                     73
                                                                  11

                                                                                                            0
                                                                                                          11
                                                                                                                                                      55
                                                                     0

                                                                                        670
                                                                                                                                                       270

PRICES

        Size                                                                                  0                                                                                       0
        Models                                                                        2-pipe system                                                                         4-pipe system
        Electric heating register                                           Without electric heating register                                                   Without electric heating register
                                                                      Without                             With                                       Without                                                 With
        Modbus RTU board
                                                                      MB board                           MB board                                    MB board                                               MB board
        Mass M [kg]                                                      22.00                             22.00                                       24.00                                                  24.00
        Product code                                            DXB00100575X00A                       DXB00100575X02A                       DXB00200575X00A                                         DXB00200575X02A
        Price per piece [EUR]                                         1017.11                             1242.61                                     1189.29                                               1391.29

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                          Correction factors for deviating temperatures

                                                                                                                                            Main register                                                 Auxiliary register
                                                                                                                °C          20      30          40          50         60         70            40           50       60       70
                                                                                                                 K          0.94   0.90     0.86           0.82       0.78      0.74           1.14         1.08      1.02     0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                 Explanation of version code
                                                                                                                DXB    0     2
                                                                                                                                          DXB          : Ceiling cassette with centrifugal fan (with AC motor)
                                                                                                                                          0            : Size
                         1                                                                                                                2            : 4-pipe system (max. heating)
                               100                        1000
                                        Water flow ṁ [kg/h]

                          ––         DXB 01                              ––      DXB 02 (max. heating)

28                                    Prices and Technology 2021-N                                                           Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                          Condi®line ceiling cassette DXB

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                      General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                              General information
                                  Overall Sensitive    Air                     Water                    Air              Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water     pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow        loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V          Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        1983       1578        19       349          10.3        2451      32       212          3.6          610       40           49      57
    DXB 01           Average      1615       1253        18       284           7.0        1935      34       166          2.3          420       31           40      32
                       Min.       1236       931         17       216           4.3        1446      35       126          1.4          310       24           33      25

                                                                                                                                                                                Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                      General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                                Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air              Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water     pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow        loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V          Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        2298       1816        17       407          13.1        1599      29       137          4.8          610       40           49      57

                                                                                                                                                                              Ceiling cassette DXB
    DXB 02
                     Average      1951       1502        16       342           9.6        1360      30       115          3.6          420       31           40      32
 (max. heating)
                       Min.       1506       1119        15       263           6.0        1068      31           94       2.3          310       24           33      25

                                                                                                                                                                              Model
                                                                                                                                                                                Planning information
                                                                                                                                                                                Models
                                                                                                                                                                                Accessories
                                                                                                                                                                                Models

                                                                                                                   Accessories in section “Models, Accessories”
                                                                                                                   Screen ZA0142 .... or ZA0149 0001 must be ordered
                                                                                                                   separately
                                                                                                                   Ŷ 2- or 3-way valves
                                                                                                                   Ŷ Valve condensate collection trays
                                                                                                                                                                                information

                                                                                                                   Ŷ Condensate pumps
                                                                                                                   Ŷ Control panel
                                                                                                                                                                                Further

                                                                                                                   Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                        Prices and Technology 2021-N          29
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB

SIZE 1

                                                                                       572
                                                                                                                                                     102        67        42

                                                                  0
                                                                                       364

                                                                11
                                                                                                                                                                               59

                                                                                                                                                                                44

                                                                                                                                                                                      103,5
                                                                                                                                                                               82

                                                                                                                                                                                              129,5
                                                                                                                                                                                                      151
                                                                                                                   207
                                                                                                                                                                               34
                                                          357
                                              670

                                                    572

                                                                                                                          597

                                                                                                                                                                                                            585
                                                                                                                                                                               107

                                                                                                                                                                                                      418
                                                                                                                   354
                                                          160

                                                                                       364                                                           73
                                                                   11

                                                                                                               0
                                                                                                             11
                                                                                                                                                           55
                                                                      0

                                                                                       670
                                                                                                                                                            270

PRICES

        Size                                                                                             1                                                                                                        1
        Models                                                                                      2-pipe system                                                                                      4-pipe system
                                                                Without electric heating register                    With electric heating register                                   Without electric heating register
        Electric heating register
                                                                                                                         1500 watts/230 V~
                                                                Without                 With                        Without                  With                                     Without                                Without
        Modbus RTU board
                                                                MB board               MB board                     MB board               MB board                                   MB board                               MB board
        Mass M [kg]                                               22.00                  22.00                           22.00                       22.00                               24.00                                24.00
        Product code                                      DXB01100575X00A         DXB01100575X02A            DXB01110575X00A              DXB01110575X02A                       DXB01200575X00A                       DXB01200575X02A
        Price per piece [EUR]                                   1094.38                 1319.90                      1727.24                     1941.00                              1282.09                                1507.61

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                             Correction factors for deviating temperatures

                                                                                                                                                 Main register                                                    Auxiliary register
                                                                                                                   °C            20      30          40              50         60        70            40            50       60       70
                                                                                                                    K            0.94   0.90     0.86            0.82          0.78     0.74           1.14           1.08    1.02      0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                       Explanation of version code
                                                                                                                   DXB      1     2
                                                                                                                                               DXB          : Ceiling cassette with centrifugal fan (with AC motor)
                                                                                                                                               1            : Size
                         1                                                                                                                     2            : 4-pipe system (max. heating)
                               100                         1000
                                        Water flow ṁ [kg/h]

                          ––         DXB 11                               ––   DXB 12 (max. heating)

30                                    Prices and Technology 2021-N                                                                Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                         Condi®line ceiling cassette DXB

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                     General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                             General information
                                  Overall Sensitive    Air                     Water                    Air             Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water    pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow       loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V         Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]      [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        2641       1927        14       461           7.6        3114      40       266         2.3          520       36           45      44
    DXB 11           Average      2313       1666        14       403           6.0        2684      41       230         1.8          420       31           40      32
                       Min.       1826       1289        13       317           3.9        2073      42       180         1.1          310       24           33      25

                                                                                                                                                                               Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                     General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                               Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air             Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water    pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow       loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V         Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]      [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        2666       1924        14       464           8.2        1782      31       155         1.3          510       36           45      44

                                                                                                                                                                             Ceiling cassette DXB
    DXB 12
                     Average      2333       1666        14       407           6.4        1565      32       133         1.1          410       31           40      32
 (max. heating)
                       Min.       1836       1287        13       320           4.2        1251      33       108         0.7          310       24           33      25

                                                                                                                                                                             Model
                                                                                                                                                                               Planning information
                                                                                                                                                                               Models
                                                                                                                                                                               Accessories
                                                                                                                                                                               Models

                                                                                                                  Accessories in section “Models, Accessories”
                                                                                                                  Screen ZA0142 .... or ZA0149 0001 must be ordered
                                                                                                                  separately
                                                                                                                  Ŷ 2- or 3-way valves
                                                                                                                  Ŷ Valve condensate collection trays
                                                                                                                                                                               information

                                                                                                                  Ŷ Condensate pumps
                                                                                                                  Ŷ Control panel
                                                                                                                                                                               Further

                                                                                                                  Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                       Prices and Technology 2021-N          31
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB

SIZE 2

                                                                                          572
                                                                                                                                                     102        67        42

                                                                    0
                                                                                          364

                                                                  11
                                                                                                                                                                               59

                                                                                                                                                                                 44

                                                                                                                                                                                         103,5
                                                                                                                                                                                82

                                                                                                                                                                                                  129,5
                                                                                                                                                                                                          151
                                                                                                                     207
                                                                                                                                                                                34
                                                           357
                                              670

                                                    572

                                                                                                                           597

                                                                                                                                                                                                                 585
                                                                                                                                                                               107

                                                                                                                                                                                                          418
                                                                                                                     354
                                                           160

                                                                                          364                                                        73
                                                                    11

                                                                                                                 0
                                                                                                               11
                                                                                                                                                           55
                                                                        0

                                                                                          670
                                                                                                                                                            270

PRICES

        Size                                                                                    2                                                                                                 2
        Models                                                                         2-pipe system                                                                                  4-pipe system
                                                          Without electric heating register         With electric heating register                                    Without electric heating register
        Electric heating register
                                                                                                        1500 watts/230 V~
                                                            Without              With                Without             With                 Without                       With                          Without                  With
        Modbus RTU board
                                                            MB board            MB board            MB board           MB board               MB board                     MB board                       MB board                MB board
        Mass M [kg]                                              24.00            24.00                24.00                24.00              36.00                            26.00                           24.00               24.00
                                                              DXB          DXB          DXB          DXB                                     DXB          DXB          DXB          DXB
        Product code
                                                          02100575X00A 02100575X02A 02110575X00A 02110575X02A                            02200575X00A 02200575X02A 02300575X00A 02300575X02A
        Price per piece [EUR]                                1137.63             1363.14             1914.11               2127.87            1349.28                          1574.81                     1353.49                 1579.01

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                               Correction factors for deviating temperatures

                                                                                                                                                 Main register                                                         Auxiliary register
                                                                                                                      °C         20      30          40              50          60              70             40        50      60        70
                                                                                                                      K          0.94   0.90     0.86            0.82           0.78        0.74           1.14          1.08    1.02       0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                      Explanation of version code
                                                                                                                     DXB     2      3
                                                                                                                                               DXB          : Ceiling cassette with centrifugal fan (with AC motor)
                                                                                                                                               2            : Size
                         1                                                                                                                     3            : 4-pipe system (max. cooling)
                               100                         1000
                                        Water flow ṁ [kg/h]

                          ––         DXB 21                  ––          DXB 22 (max. heating)              ––        DXB 23 (max. cooling)

32                                    Prices and Technology 2021-N                                                               Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                          Condi®line ceiling cassette DXB

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                      General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                              General information
                                  Overall Sensitive    Air                     Water                    Air              Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water     pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow        loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V          Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        4296       3034        13       752          12.3        4902      42       421          3.6          710       44           53      68
    DXB 21           Average      3337       2307        12       583           7.8        3704      44       317          2.2          500       36           45      44
                       Min.       2250       1521        10       392           3.8        2433      46       209          2.9          320       24           33      25

                                                                                                                                                                                Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                      General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                                Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air              Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water     pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow        loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V          Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]       [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        3257       2402        16       572          11.9        2182      30       187          1.9          710       44           53      68

                                                                                                                                                                              Ceiling cassette DXB
    DXB 22
                     Average      2608       1878        14       457           7.9        1744      31       151          1.3          500       36           45      44
 (max. heating)
                       Min.       1836       1287        13       320           4.2        1251      33       108          0.7          320       24           33      25
                      Max.        3942       2851        13       691          10.4        1629      28       140          2.4          710       44           53      68

                                                                                                                                                                              Model
    DXB 23
                     Average      3093       2183        12       540           6.7        1352      29       115          1.7          500       36           45      44
 (max. cooling)
                       Min.       2121       1456        11       371           3.4        1017      31           86       1.0          320       24           33      25

                                                                                                                                                                                Planning information
                                                                                                                                                                                Models
                                                                                                                                                                                Accessories
                                                                                                                                                                                Models

                                                                                                                   Accessories in section “Models, Accessories”
                                                                                                                   Screen ZA0142 .... or ZA0149 0001 must be ordered
                                                                                                                   separately
                                                                                                                   Ŷ 2- or 3-way valves
                                                                                                                   Ŷ Valve condensate collection trays
                                                                                                                                                                                information

                                                                                                                   Ŷ Condensate pumps
                                                                                                                                                                                Further

                                                                                                                   Ŷ Control panel
                                                                                                                   Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                        Prices and Technology 2021-N          33
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB

SIZE 3

                                                                                          572
                                                                                                                                                     102        67        42

                                                                    0
                                                                                          364

                                                                  11
                                                                                                                                                                               59

                                                                                                                                                                                 44

                                                                                                                                                                                         103,5
                                                                                                                                                                                82

                                                                                                                                                                                                  129,5
                                                                                                                                                                                                          151
                                                                                                                     207
                                                                                                                                                                                34
                                                           357
                                              670

                                                    572

                                                                                                                           597

                                                                                                                                                                                                                 585
                                                                                                                                                                               107

                                                                                                                                                                                                          418
                                                                                                                     354
                                                           160

                                                                                          364                                                        73
                                                                    11

                                                                                                                 0
                                                                                                               11
                                                                                                                                                           55
                                                                        0

                                                                                          670
                                                                                                                                                            270

PRICES

        Size                                                                                    3                                                                                                 3
        Models                                                                         2-pipe system                                                                                  4-pipe system
                                                          Without electric heating register         With electric heating register                                    Without electric heating register
        Electric heating register
                                                                                                        1500 watts/230 V~
                                                            Without              With                Without             With                 Without                       With                          Without                  With
        Modbus RTU board
                                                            MB board            MB board            MB board           MB board               MB board                     MB board                       MB board                MB board
        Mass M [kg]                                              24.00            24.00                24.00                24.00              24.00                            24.00                           24.00               24.00
                                                              DXB          DXB          DXB          DXB                                     DXB          DXB          DXB          DXB
        Product code
                                                          03100575X00A 03100575X02A 03110575X00A 03110575X02A                            03200575X00A 03200575X02A 03300575X00A 03300575X02A
        Price per piece [EUR]                                1251.40             1499.45             2105.53               2340.66            1484.22                          1732.27                     1488.85                 1736.91

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                               Correction factors for deviating temperatures

                                                                                                                                                 Main register                                                         Auxiliary register
                                                                                                                      °C         20      30          40              50          60              70             40        50      60        70
                                                                                                                      K          0.94   0.90     0.86            0.82           0.78        0.74           1.14          1.08    1.02       0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                      Explanation of version code
                                                                                                                     DXB     3      3
                                                                                                                                               DXB          : Ceiling cassette with centrifugal fan (with AC motor)
                                                                                                                                               3            : Size
                         1                                                                                                                     3            : 4-pipe system (max. cooling)
                               100                         1000
                                        Water flow ṁ [kg/h]

                          ––         DXB 31                  ––          DXB 32 (max. heating)              ––        DXB 33 (max. cooling)

34                                    Prices and Technology 2021-N                                                               Prices without value added tax. Technical specifications subject to change.
MODELS |       CONDI®LINE CEILING CASSETTE
                                                                                                                         Condi®line ceiling cassette DXB

TECHNICAL DATA FOR 2-PIPE SYSTEM
                                                       Cooling                                          Heating                                     General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C
                                            48 % relative humidity

                                                                                                                                                                             General information
                                  Overall Sensitive    Air                     Water                    Air             Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water    pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow       loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V         Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]      [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        4941       3546        13       864          15.9        5769      42       497         4.8          880       50           59      90
    DXB 31           Average      3870       2705        12       677          10.2        4350      43       374         2.9          610       40           49      57
                       Min.       2942       2019        11       511           6.2        3229      45       277         1.7          430       32           41      32

                                                                                                                                                                               Ceiling cassette DXB ECM
TECHNICAL DATA FOR 4-PIPE SYSTEM
                                                       Cooling                                          Heating                                     General
                                                   7 °C/12 °C/27 °C                               50 °C/40 °C/20 °C

                                                                                                                                                                               Model
                                            48 % relative humidity
                                  Overall Sensitive    Air                     Water                    Air             Water                   Sound Acoustic Power
                                 cooling cooling discharge Water              pressure   Total heat discharge Water    pressure         Air    pressure power consump-
                                 capacity capacity temperature flow             loss       output temperature flow       loss          flow      level   level  tion
                                   Pges     Psen       RLT       V               Δp         Pges        RLT     V         Δp             V̇        LP     LW      P
      Size         Speed level     [W]       [W]         [°C]     [l/h]        [kPa]       [W]       [°C]     [l/h]      [kPa]        [m³/h]   [dB(A)]   [dB(A)]      [W]
                      Max.        3668       2757        16       648          14.8        2489      29       212         2.4          880       50           59      90

                                                                                                                                                                             Ceiling cassette DXB
    DXB 32
                     Average      2971       2166        15       522          10.1        1982      31       169         1.6          610       40           49      57
 (max. heating)
                       Min.       2333       1666        14       407           6.4        1565      32       133         1.1          430       32           41      32
                      Max.        4499       3315        14       788          13.2        1815      27       155         3.0          880       50           59      90

                                                                                                                                                                             Model
    DXB 33
                     Average      3561       2546        13       623           8.6        1505      28       130         2.1          610       40           49      57
 (max. cooling)
                       Min.       2756       1929        12       479           5.4        1238      29       108         1.5          430       32           41      32

                                                                                                                                                                               Planning information
                                                                                                                                                                               Models
                                                                                                                                                                               Accessories
                                                                                                                                                                               Models

                                                                                                                  Accessories in section “Models, Accessories”
                                                                                                                  Screen ZA0142 .... or ZA0149 0001 must be ordered
                                                                                                                  separately
                                                                                                                  Ŷ 2- or 3-way valves
                                                                                                                  Ŷ Valve condensate collection trays
                                                                                                                                                                               information

                                                                                                                  Ŷ Condensate pumps
                                                                                                                                                                               Further

                                                                                                                  Ŷ Control panel
                                                                                                                  Ŷ Airflow

Prices without value added tax. Technical specifications subject to change.                                                       Prices and Technology 2021-N          35
CONDI®LINE CEILING CASSETTE | MODELS
                              Condi®line ceiling cassette DXB

SIZE 4

                                                                                         819                                                                108
                                                                                         705                                                 85 51 224            28

                                                                          4
                                                                      18

                                                                                                              18
                                                                                                                 4
                                                            130

                                                                                                                                                                       76
                                                                                                                                                                            149,5

                                                                                                                                                                                                 206,5
                                                                                                                                                                                    160
                                                                                                                                                                                           182

                                                                                                                                                                                                         235,5
                                                            357

                                                                                                                                                                   56
                                                819

                                                      705

                                                                                                                      560

                                                                                                                              965
                                                                                                                                                                   77
                                                                                                                                                                  108
                                                                                                                                                           129
                                                                                                                                                           141

                                                                                                                                                  73
                                                                                                                                                       55 115     60
                                                                                         560
                                                                                                                                            26          303

                                                                                                                      4
                                                                                                                     18
                                                                                         965

PRICES

        Size                                                                                          4                                                                                                          4
        Models                                                                                   2-pipe system                                                                                           4-pipe system
                                                             Without electric heating register                 With electric heating register                                         Without electric heating register
        Electric heating register
                                                                                                                   1500 watts/230 V~
                                                            Without                   With                    Without                  With                                          Without                                Without
        Modbus RTU board
                                                            MB board                 MB board                 MB board               MB board                                        MB board                               MB board
        Mass M [kg]                                               36.00               36.00                          36.00                        36.00                                   39.00                              39.00
        Product code                                  DXB04100820X00A           DXB04100820X02A           DXB04110820X00A              DXB04110820X02A                      DXB04200820X00A                          DXB04200820X02A
        Price per piece [EUR]                                1652.50                 1891.02                     2599.47                         2813.65                              1923.78                               2162.32

PRESSURE LOSS CHART, CORRECTION FACTORS

Pressure losses on main registers refer to an average water temperature of 10 °C in cooling mode and on additional registers to an average water temperature of 65 °C in
heating mode. Deviating temperatures must be multiplied by coefficient K from the table.

                         50
                                                                                                          Correction factors for deviating temperatures

                                                                                                                                                 Main register                                                   Auxiliary register
                                                                                                              °C               20     30          40        50          60                70              40         50       60       70
                                                                                                                 K            0.94   0.90        0.86      0.82         0.78              0.74           1.14        1.08    1.02      0.96

                         10
Pressure loss Δp [kPa]

                                                                                                                                                       Explanation of version code
                                                                                                             DXB          4     2
                                                                                                                                            DXB           : Ceiling cassette with centrifugal fan (with AC motor)
                                                                                                                                            4             : Size
                         1                                                                                                                  2             : 4-pipe system (max. heating)
                               100                     1000
                                        Water flow ṁ [kg/h]

                          ––         DXB 41                           ––      DXB 42 (max. heating)

36                                    Prices and Technology 2021-N                                                             Prices without value added tax. Technical specifications subject to change.
You can also read
