Green Building Network – Meeting the
nZEB with DAIKIN Heat Pump Solutions
          30th of January, 2019

                                       1
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
First packaged type
     heat pump developed      1958
                                     1957   First Japanese
                                            rotary compressor developed

             First packaged
  air conditioner produced    1951

                                     1933   Research on fluorine refrigerants

Akira Yamada founds Osaka
                              1924
     Kinzoku Kogyosho Ltd.
               - 90 years -
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
Daikin manufactures:

                       Units for indirect & direct
                       temperature exchange

                        +        Refrigerant

                        +        Compressor

                       = unique
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
EXPERTS THROUGH
   EXPERIENCE
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
Produce any temperature for any application

            0°C

-45°C             Refrigeration
                  Chilling and freezing from -45C° to 10°C
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
Produce any temperature for any application

           0°C

5°C         Winery
            Cold room storage of grapes at 5°C
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
Produce any temperature for any application

           0°C

20°C             Server room
                 Stable operations
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
Produce any temperature for any application

            0°C

22°C Office
             Comfort
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
Produce any temperature for any application

            0°C

45°C Home
             Underfloor heating
Green Building Network - Meeting the nZEB with DAIKIN Heat Pump Solutions 30th of January, 2019
Produce any temperature for any application

            0°C

80°C Domestic
             Hot water supply
What does Daikin Ireland offer that is different to other
                      manufacturers:

• Irish based office with 20 staff members for sales & technical support

      • EDC – European Development Centre and testing rooms

• Heat Pumps Solutions for Domestic and Commercial for both new and
                            retrofit market
Renewable energy is derived from natural
What Is     processes that are replenished constantly.
Renewable
            In its various forms, it derives directly from
Energy?     the sun or from heat generated deep
            within the earth.

            Renewable energy can be used to generate
            electricity or produce heat.
A heat pump is an environmental energy
technology that extracts heat from low
temperature sources (air, water, ground),
upgrades it to a higher temperature and
releases it where it is required for space
and water heating.
From April 2018 – SEAI Better Energy Home
Heat Pump Grants
€3500 grant for an Air-to-water, Exhaust-air or Ground
source heat pump, providing will cover 100% the
heating load and 80% the DHW load
€600 grant for a Air-to-air heat pump, as above
€824 from Electric Ireland grant (as it stands)
€170 switching bonus, Electric Ireland from one provider
to them.

                                                           14
What Is A Heat Pump?
How does a heat pump work?
Have I got a heat pump at home?

                                                        “
                                                         “A fridge is a heat pump”
• The inside of the fridge is kept cool by extracting energy from inside the fridge.
• This energy is then rejected to the kitchen ( if you put your hand behind the fridge it
feels warm)
          An air source heat pump doing heating works like a fridge in reverse!
Benefits of the ASHP: for 1kW consumed produces on average 3-4kW=400-500% efficiency
Air-to-air heat pumps, a closer look at aerothermal
Air-to-air heat pumps – outdoor unit connected to
multiple indoor fan coils – up to 5
Each have independent time & temp control
High wall of Floor mounted
Hot water heated separately*

*DAIKIN is developing a model that will be able to do
heating & DHW from the same outdoor unit
Multi Split Air to Air Wall or Floor Mounted

Ideal for replacement of old inefficient storage heaters!

                                                            18
Air to Water Heat Pumps:

Split and Monobloc Solutions:

                                19
DAIKIN Altherma LT Split options:
                     Integrated
                   Integrated    solar indoor
                           Walldesign
                                hung
Integrated design

                    Compact heating and domestic hot water
                     ▸ Easy and fast installation
                     ▸ 180 or 230/260l hot water tank
                     ▸ Space saving
                     ▸ Up to 55deg heating
                     ▸ Up to 60deg DHW

                                  The standard solution for
                                  most applications.
AWHP Low Temp Split
Outdoor unit
Indoor unit contains Hot water cylinder
Controller
•   Refrigerant pipework runs between the
    outdoor unit and the indoor unit
•   Outdoor unit and indoor unit can be
    some distance apart e.g. 30 meters
•   Water circuit all inside the building – no
    glycol required. No Freezing issues
•   All in one unit, (valves, sensors, cylinder
    etc.)
•   Easy Maintenance
•   Quicker more cost effective installation      No quibble over who
•   New MADOKA controller
                                                  covers warranty.
                                                                    22
LT Integrated

Stainless steel Cylinder built in
180lt & 260lt
Modern Design
600w x 1732H x 728D
Eliminates Hot Press
Meets compliance without PV
Small Footprint
Easy servicing
Highly insulated
Controller can be used as wall
Thermostat.
24
Choice of Integrated or Wall Hung with separate cylinder
AWHP R32 Low Temp Split Systems
Outdoor unit
Indoor unit contains DHW cylinder
MMI Controller
BRC1 stylish thermostats – for 2019

•   Refrigerant pipework runs between the
    outdoor unit and the indoor unit
•   Outdoor unit and indoor unit can be
    some distance apart e.g. 27 meters
•   Water circuit all inside the building – no
    glycol required. No Freezing issues
•   All in one unit, (valves, sensors, cylinder
    etc.)
•   Easy Maintenance                              No quibble over who
•   Quicker more cost effective installation.     covers warranty.
27
Daikin Altherma LT Monobloc and
Hydrosplit options: ▸ High sesonal efficiency
                            ▸ Easy to install: only hydraulic
                              connections
                            ▸ Minimal wiring
                            ▸ Space saving: only DHW tank
                              inside the house
                            ▸ Quick and easy to install
                            ▸ True monobloc, all hydraulics
                              integrated
                            ▸ 150-180-200-250-300l hot
                              water tanks

                                5     7    11    14    16 kW
All in one compact outdoor unit - All key hydraulic components included in the
outdoor unit

                                                 Expansion vessel (7 litres)
         Refrigerant to water
         plate heat exchanger                    Manual air purge with flexible hose

         Flow sensor

                                                 High efficiency pump

         Isolation valves                        Pressure Relief Valve
         delivered separately

                                                 Clip-on, inline water strainer
Altherma3 R32 Hydrosplit solution: 11-14-16kW

                 Compact heating and domestic hot water

                   ▸ 180 or 230/260l Integrated hot water tank
                   ▸ Space saving
                   ▸ Up to 60deg heating down to -10deg
                   ▸ Up to 60deg DHW
                   ▸ New Madoka controller
                              The standard solution for
                              most new and retrofit bigger
                              houses applications.

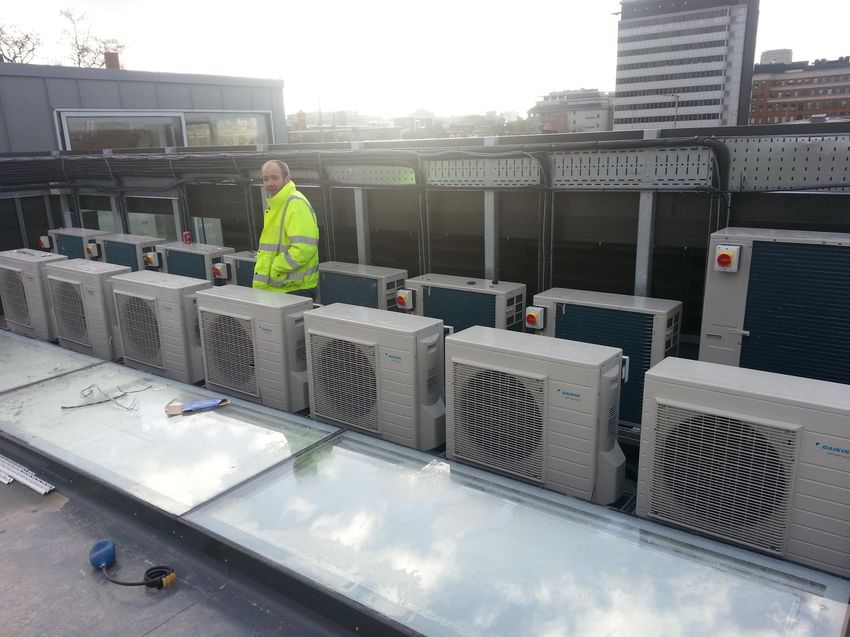

Outdoor Unit Positioning

Easy and safe access for maintenance

Adequate airflow around unit – observe
minimum clearances above, below and
to the sides

Acceptable air discharge route

Operational noise considerations

Consideration of condensate drainage
from outdoor unit
Noise levels examples:

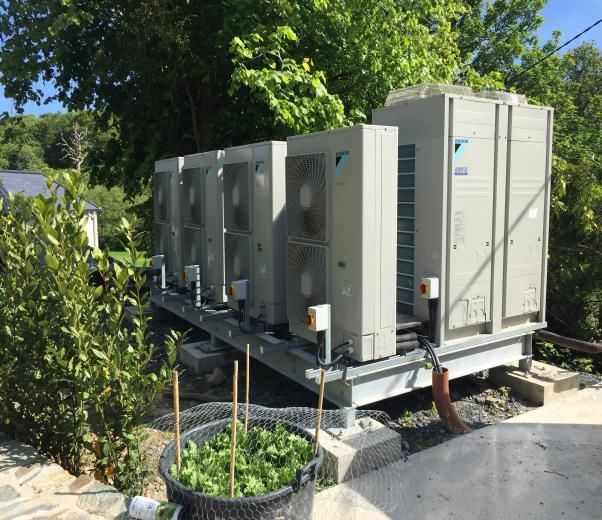

Outdoor unit locations examples:
Installations
Full range of installation accessories

             All installations                  Floor mounting
             -   Flexible hoses – straight      Flexible feet –
                 and elbow connections          only 2 required
                                                Pair 600 mm

 Wall                                        Protective Guard –
 mounting                                    950 X 1050 X 460mm

 Wall
 brackets
 and drip
 trays

                                                                      Solution TW –
                                                                      Insulated Sleeve
 Floor                                       Protective part guard    • 2 x 330mm
 mounted                                     – were exposed coil is      straight lengths
 drip tray                                   an issue                    28mm ID 19mm
                                                                         thick PVC
                                                                         insulation
                                                                      • 2 x slit elbows
Weather
Compensation
Comes fitted as standard.

Flow temperature varied according to
external air temperature.

High flow temp at low ambient
Low flow temp at high ambient

Improves system efficiency.

Recommended to use this on all heat
pump installations as results in lower
running costs
Gauging suitability
for heat pump
New-build – ideal
 > Building well-insulated, small heat loss
 > Heating distribution
                     system can be
  designed for maximum efficiency

Retrofit – considerations
 > Major refurbishment    or straight boiler
   replacement?
 > What are the insulation levels?
 > What is the existing heating distribution
   system?
 > What type of heat emitters?
DESIGNS FOR OPTIMAL PERFORMANCE

 Selecting

 heat emitters                                                           Underfloor heating

Aim for lowest possible water flow temperature
to achieve
   >   Highest SCOP
   >   Lowest running costs
   >   Lowest CO2 emissions

Fan assisted radiators               Water filled radiators
Emitters:
underfloor heating
Works best with heat pumps
Provides near-ideal heat profile with:
warmer at foot level, cooler at head level
Large surface area so can operate at low
flow temperatures – as low as 30oC
Temperature in a room heated by UFH can
be 2oC lower than one with radiators to
achieve the same comfort levels
Avoids large, unsightly radiators
Great for tiled floors and modern floor
finishes
No draughts, less dust transport
Emitters:
radiators

Most common form of heating
Typically designed for water temperature of 70oC
or more
Obtain correction factors to size at lower water
temperatures
Low temperature radiators up to 45deg flow
Steel panel and aluminium radiators suitable for
temp applications
No radiators covers to be used, as it reduces the
output of the radiator

                                                    40
Daikin Altherma LAN Adapter: PV Integration and
                   WiFi Cloud Control
     PV / Smart Grid Connection (Connect to Smart Grid or PV to minimize the energy cost)
     APP Control           (Remotely control the heating system by smartphone APP)
       PV / Smart Grid Connection                                          APP Control

                                         Daikin Altherma units

            LT split          Monobloc            Ground         Hybrid          Multi +
           (WM, FS)            (GBS)              Source                         Hybrid
41

                                                                          Available : 2018
Daikin Altherma Solution meets Part L compliance and
nZEB requirements
▪ TGD L 2011-Dwellings has been
  amended to include numerical
  indicators for NZEB Dwellings on the
  22nd Feb 2017. The numerical
  indicators provide MPEPC of 0.30
  and MPCPC of 0.35 for dwellings
  completed after 31st Dec 2020.
▪ Planned to complete full review of
  Part L for NZEB Dwellings and Major
  Renovations in 2018 to apply from
  2019
▪ Renewables requirement will be
  included in TGD L Buildings other
  than Dwellings as Renewable Energy
  Ratio (RER)-20%
DEAP 3.2.1 Daikin Altherma3 R32 4kW split & 180ltr example
92sqm, semidetached house:
DEAP 3.2.1 Daikin Altherma3 R32 4kW&180ltr DCV example:

•    Semi-detached house 92.4m²
                                    Efficiency of Main Heating System                   531%
•    Extract Ventilation, AERECO
                                    Efficiency Adjustment Factor - Main Heating          1.00
•    Air permeability 0.25          Efficiency of Main Hot Water System                 252%

•    Low temp radiators GF and FF   Efficiency Adjustment Factor - Main Hot Water        1.00

•    U-values:
       ➢ Floor 0.12 W/m²K
       ➢ Wall 0.13 W/m²K
                                    Additional Renewable Contribution from Heat Pump   543.83
       ➢ Roof 0.11 W/m²K
       ➢ Windows 0.7 W/m²K
       ➢ Doors 1.0 W/m²K

       Daikin Altherma3 R32 4kW split & 180ltr solution
                  meets A2 and nZEB rating!
DEAP 3.2.1. Daikin Altherma3 R32 4kW&180ltr MVHR example:

 •   Semi-detached house 92.4m²
                                    Efficiency of Main Heating System                   551%
 •   MVHR, Kinetic B, K+3           Efficiency Adjustment Factor - Main Heating          1.00
 •   Air permeability 0.15          Efficiency of Main Hot Water System                 252%

 •   Low temp radiators GF and FF   Efficiency Adjustment Factor - Main Hot Water        1.00

 •   U-values:
       ➢ Floor 0.12 W/m²K
       ➢ Wall 0.13 W/m²K
                                    Additional Renewable Contribution from Heat Pump   543.83
       ➢ Roof 0.13 W/m²K
       ➢ Windows 1.3 W/m²K
       ➢ Doors 1.8 W/m²K

       Daikin Altherma3 R32 4kW split & 180ltr solution
                  meets A2 and nZEB rating!
DEAP 3.2.1 Daikin Altherma centralised heat pump for
    heating and individual apartment DHW exhaust-air HP:
•    Top floor apartment 82.4m²
•    MVHR, KineticB, K+2
•    Air permeability 0.15
•    Low temp radiators GF
•    U-values:
       ➢ Floor N/A
       ➢ Wall 0.16 W/m²K
       ➢ Roof 0.15 W/m²K
       ➢ Windows 1.3 W/m²K
       ➢ Doors 1.0 W/m²K
DEAP 3.2.1 Daikin Altherma centralized heat pump for
heating and individual apartment DHW exhaust-air HP:

                                                  AMBIENT AIR
                                                RECIRCULATION
                                                          FAN
                           ROTARY
                           COMPRESSOR

                                                   EXPANSION
                                                       VALVE

                           UPPER PROBE

                           LOWER PROBE
                                                        TANK

                           WRAP
                           CONDENSER
Mechanical ventilation and exhaust-air DHW heat pump
   With the mechanical ventilation function of your heat pump you can ventilate your home
   and use your polluted inside air to make your heat pump function.
How does it work?
         I.      Polluted inside air is extracted                          Polluted warm air from
         II.     The air is transported to your heat pump.                 ventilation system
         III.    Heat is extracted from the polluted air.
         IV.     The cooled air is exited through an exhaust pipe
                                                                               Cooled air to
Where can I use this feature                                                   outside climate
         I.      Apartment building (decentral)
         II.     One or more family houses.

When can I apply this feature?
    I.          The air flow ratio of the ventilation system will have to be enough to
                foresee the heat pump with sufficient air supply
    II.         There can be no interaction possible on the controls of the ventilation
                system.
                                                                                                    48
DEAP 3.2.1. Daikin Altherma Centralised System example:

                                                          49
DEAP4.1-Draft Daikin Altherma3 R32 4kW&230ltr MVHR example:

•   Detached house 128m²
•   MVHR, Kinetic PlusB, K+5
•   Air permeability 0.15
•   UFH system GF and FF
•   U-values:
      ➢ Floor 0.15W/m²K
      ➢ Wall 0.17 W/m²K
      ➢ Roof 0.11W/m²K
      ➢ Windows 0.94 W/m²K
      ➢ Doors 0.95W/m²K
DEAP4.1-Draft Daikin Altherma3 R32 4kW&230ltr MVHR example:
Installer
Competency and Requirements
Appropriate training and certification is
required for installers

Refrigerants and refrigerant pipework –
F gas registered to be able to handle
refrigerant gases

Full electrical and plumbing qualifications

Wiring regulations

Working at Heights Directive

      “Installation Experience counts”

                                              52
Not what we would recommend….
DAIKIN Air-to-Water Heat Pumps
    •     Delivering all of a homes heating and hot water requirements, even when
                               outside temperature drops to -28ºC!

•       ENSURES SAVINGS ON HEATING BILLS
•       EASY TO INSTALL
•       SPACE SAVING AND LOW NOISE
•       SOLUTIONS FOR NEW HOME AND RETROFIT
•       UP TO 5 TIMES MORE EFFICIENT THAN BACK BOILERS OR STORAGE HEATERS
•       LOW MAINTENANCE
•       EASE OF USE FOR HOME OWNER (Simplified Controls)
•       ONLY ONE UTILITY BILL
•       CLEANER: Coal fires no cleaning, Oil Tanks remove and no sludge, safer than gas
Any Questions?

                 55
You can also read
