HYDRONEWS
No. 25 / 06-2014 • ENGLISH MAGAZINE OF ANDRITZ HYDRO
VALVES
Lifetime safety and reliability (Page 05)
VIETNAM
The rising country in Southeast Asia (Page 08)
MUSKRAT FALLS
Powerhouse and spillway hydromechanical equipment
for a Canadian project (Page 14)

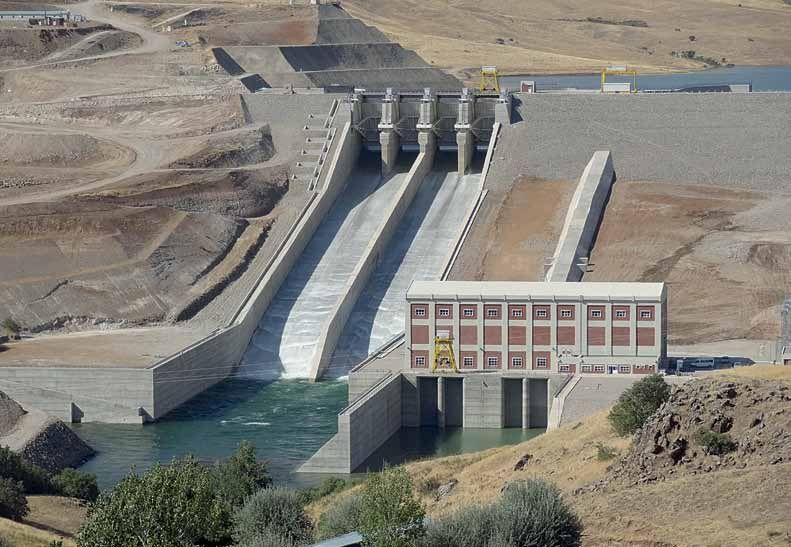

TATAR
Units 1 & 2 have started commercial operations
in a Turkish hydropower plant (Page 26)
www.andritz.com
02 HYDRONEWS • 25
Latest Angola
News
Pakistan
WAPDA awarded a contract to
ANDRITZ HYDRO for the manufac-
turing and installation of three Pelton
turbines and the electromechanical
Key Figures 2013 equipment at Golen Gol hydropower
plant in northwestern Pakistan.
Business development:
Order Intake: 1,865.4 MEUR
Order Backlog Dec. 31: 3,722.4 MEUR
Sales: 1,804.8 MEUR ANDRITZ HYDRO will supply the elec-
Employees as of Dec. 31: 7,445 tromechanical equipment for the new
Laúca hydropower plant in Angola to
GAMEK (Gabinete de Aproveitamento
do Médio Kwanza), an office of the All works will be done by our ANDRITZ
Angolan Ministry of Energy and Water. HYDRO teams from Austria, China,
Mali
Switzerland, Germany and Pakistan.
The new hydropower plant on the The start of commercial operation is
ANDRITZ HYDRO was awarded a Kwanza River will comprise two power scheduled for 2016.
contract from SOGEM for revisions at houses for which ANDRITZ HYDRO
Manantali hydropower plant, located will deliver six 340 MW Francis tur-
on the Bafing River, a tributary of the bines, as well as generators and addi-
Senegal River in southwestern Mali. tional equipment and a 72 MW mini- Hydro News on iPad
mum flow unit adjacent to the dam
site.
Since July 2013 the Hydro News is
The project lead is with ANDRITZ a v a i l a b l e f o r i P a d s . Yo u h a v e a n
HYDRO Ravensburg, Germany. Com- access to the customer magazine
missioning is scheduled for 2017. everywhere, offline and online, free
of charge to the App-Store.
QR code to download the Hydro News
mobile kiosk onto your iPad.
Austria
After several minor repairs at existing
units over the last years the scope in-
cludes the general renovation of unit 3 ANDRITZ HYDRO has been awarded
and a large number of modernization a contract from VERBUND Hydro
works on the remaining four turbines, Power AG for the rehabilitation of the
generators and governors. complete secondary equipment for the
hydropower plant Spielfeld in Austria.
The good relationship with the cus-
tomer and the success of our already
delivered automation solutions, have
been the reason to choose ANDRITZ
HYDRO again.
HYDRONEWS • 25 Contents 03
24
08
26
10 23 31
CONTENTS
02 LATEST NEWS 18 Dariali, Georgia
19 Cethana and Fisher, Australia
04 Introduction 20 Shardarinskaya, Kazakhstan Cover:
Spherical valve at HPP Tongbai, China
21 Safe Harbor, USA
Top story 22 Kpong, Ghana
05 Valves
technology
MARKETS 23 EMEC, Scotland
08 Vietnam
10 Brazil Site reports
24 Bajina Bašta, Serbia
New projects 25 Iovskaya, Russia
12 Olivone, Switzerland 26 Tatar, Turkey
13 Nam Lik 1, Lao PDR 27 Paloona, Australia
14 Muskrat Falls, Canada
15 Lysebotn II, Norway 28 Highlights
16 Peusangan, Indonesia
17 Revin, France 34 Events
Imprint
Publisher: ANDRITZ HYDRO GmbH, A-1120 Vienna, Eibesbrunnergasse 20, Austria, Phone: +43 50805 0
Responsible for the contents: Alexander Schwab Editorial Board: Christian Dubois, Clemens Mann, Bernhard Mühlbachler, Jens Päutz, Edwin Walch
Project Manager: Judith Heimhilcher Copyright: © ANDRITZ HYDRO GmbH 2014, All rights reserved Graphic design: Layout / production: A3 Werbeservice
Circulation: 20,750 • Printed in German, English, French, Spanish, Portuguese and Russian language
This issue includes links to videos on external websites whose content we can’t influence. The opinions expressed in the videos are personal views of the speaker,
which must not match with the positions of ANDRITZ HYDRO GmbH. The initiator of the video is responsible for the accuracy of the content.
04 Introduction HYDRONEWS • 25
Dear business friend
E
ven in 2013, ANDRITZ HYDRO In Europe, a traditionally competitive the South American continent are the
remained with a top market po- market, we could win a large number projects Renance II in Guatemala and
sition notwithstanding globally of projects, e.g. San Pedro II in Spain, Barra Bonita in Brazil.
declining investments. This is again Upper Kaleköy in Turkey or Komani in
reflected by positive key figures. Albania. Our mini compact hydro busi- In the highly competitive Asian hydro-
ness, too, could further expand its power market, the new contracts for
Worldwide project activities regarding market position with contracts in coun- the projects Peusangan in Indonesia,
electromechanical equipment for hydro- tries such as Turkey, Switzerland, Italy Nam Lik in Laos, Sharadarinskaya in
power plants were satisfactory in 2013, and Romania. Kazakhstan, Dariali in Georgia, Gongri
however were at a comparable level in India and Whakamaru in New Zea-
with 2012 and hence consequently be- One of the most exciting markets with land give proof of the advantage of a
low the high level of the years before. enormous future potential is Africa. New strong local presence.
projects such as Kpong in Ghana and
Hydropower represents a stable and Djoué in the Republic of Congo, as well The continuous development of our
reliable factor in the global energy market. as several compact hydropower con- technologies, committed staff and local
The reasons for its success include tracts are the impressive evidence for presence, as well as the contract-
competitive products as well as the this. A major project milestone was the compliant handling of our projects to
application of the latest technologies. successful award for the second unit in the utmost satisfaction of our clients are
ANDRITZ HYDRO with 7,500 highly Kindaruma, Kenya.The market in the ANDRITZ HYDRO’s mainstays. Owing
qualified and committed employees Americas developed very positively, too, to the trust and confidence generously
makes a significant contribution to this. for ANDRITZ HYDRO, both as regards placed in us, we deem ANDRITZ
new construction and rehabilitation HYDRO ideally prepared for the years to
We were successful in all segments and projects. Important contracts in North come.
all regions of the world. 2013 highlights America are Muskrat Falls, Spray and
were: Lower Notch in Canada. Highlights on With sincere thanks
M. Komböck H. Heber W. Semper
HYDRONEWS • 25 Top story 05
Valves
Lifetime safety and reliability
V
alves have withstood the
operating conditions within
Butterfly Valves
hydropower plants for more
Spherical Valves
than a century and they fulfill vari-
ous important tasks; from safety
3
Design Head [m]
elements in powerhouses or pen-
stocks to tight sealing in waterways
for maintenance purposes on hy-
draulic machinery.
In addition to butterfly and spherical
v a l v e s d e s c r i b e d h e re i n A N D R I T Z
HYDRO’s product range includes other
Diameter [mm]
valve types, like ring gates and cone
valves. ▲ Design range of shutoff valves within ANDRITZ HYDRO
Design
At the design stage, safety and func-
tionality during operation come first.
Analytical verifications are made based
on customer requirements, and interna-
tional standards (e.g. ASME), as well as
ANDRITZ HYDRO internal instructions.
Modern ANDRITZ HYDRO valves offer
numerous innovative technical features,
which appeal to customers.
▲ Exploded view:
main components of butterfly valve
Spherical valves are mainly used in high
head applications, whereas butterfly
valves are selected for the low to medi-
um head range. Indicative design limits
for each valve type are shown in the di-
agram above.
Both valves allow flow in both directions
and fit perfectly for the use in the water-
ways of reversible pump turbines. They
can be equipped with service and main-
tenance seals to allow significant reduc-
tion in plant downtime during mainte-
nance. ▲ Exploded view: main components of spherical valve
06 Top story HYDRONEWS • 25
Among other features, ANDRITZ losses of approximately 15%. This
HYDRO now offers an auto-oscillation could be managed after several optimi-
(self-excited pressure pulsation with in- zation loops by the utilization of CFD
creasing amplitudes, which can lead to (Computational Fluid Dynamics) calcula-
penstock rupture) detection device. By tion programs and by taking existing
opening or closing of the maintenance model test results from the standard
seal the oscillating system is de-tuned valve disc geometry as a basis.
and damages due to auto-oscillation
can be prevented. This function can ei- Furthermore, this design features leak-
ther be performed fully automatically or age monitoring of the maintenance seal,
manually after an alarm. which allows operators to check its
tightness before dismantling, thus in-
Recently, the design of the butterfly creasing safety for maintenance staff.
▲ CFD plot for head loss analysis at lattice type
main inlet valve for HPP Cerro del valve disc
Águila in Peru (DN 3150 mm/PN 36 bar) The spherical valve for HPP Teesta Urja
was completed. In this high pressure in India (DN 1,900 mm/PN 90 bar) is and consequently subject to erosion
application ANDRITZ HYDRO achieved exposed to high concentrations of ag- damage. Therefore essential compo-
a substantial reduction in the valve head gressive sediments in the river water nents of the service and maintenance
seals were furnished with a tungsten-
carbide coating, which ensures a signifi-
cant extension of the maintenance in-
terval.
Manufacturing, installation and
commissioning
Nominated ANDRITZ HYDRO technical
competence centers for spherical and
butterfly valves are located in Ravens-
burg, Germany and Linz, Austria. The
strictest requirements are enforced con-
cerning material and fabrication quality
as well as machining tolerances during
the manufacturing process.
Main components can be made either
from castings, forged or welded struc-
▲ Finite element analysis plot for stress and deformation verification
tures based on size and pressure rating
criteria.
▼ Simulation of pressure pulsation due to auto-oscillation
Modern narrow gap welding techniques
(e.g. submerged arc or electron beam)
are applied on thick walled items to en-
sure competitive manufacturing costs.
These reduce the required quantity of
filler material and, incidentally, minimize
welding distortions too.
Penstock pressure [mwc]
Valve opening
Functionality of single components as
well as the overall system are checked
during workshop assembly (including
pressure and tightness tests) to ensure
smooth installation of the valves at site.
Commissioning ensures the correct set-
up and optimization of operational pa-
rameters, for example tuning of the
valve closing times to prevent unac-
Time [sec]
ceptable penstock water hammer.
HYDRONEWS • 25 Top story 07
s Spherical valve for HPP Herdecke during assembly in the workshop
Service which were discussed and defined with
Valves are exposed to high loads during the customer. Following the completion
operation but the years of operation are of the overhaul and the valve re-assem-
less critical than the effective number of bly, final tightness and functional tests
load changes. Nowadays hydraulic were immediately performed in the
machinery and their valves are subject workshop, whereupon a “drop-tight”
to an increased number of start/stop rating could be reached. s Spherical valve for HPP Herdecke: completion
cycles due to changes in the grid de- of tightness testing after service
mands, however their layout and design With this valve service our customer
was calculated for far fewer cycles. can rely on safe and undisturbed opera-
Therefore valve maintenance and reha- tion in the upcoming years. TECHNICAL DATA
bilitation are becoming even more es- Projects currently under execution:
sential to guarantee both the operation- The global ANDRITZ HYDRO valve Cerro del Águila:
al safety and the availability of the entire fleet covers more than 3,500 installed 3 butterfly valves
hydropower plant. units. Due to one century of valve ex- Nominal diameter: 3,150 mm
perience in combination with constant Design pressure: 36 bar
Condition assessments of important research and development efforts, ev- Nant de Drance:
components and design improvements ery size, pressure rating and technical 2 butterfly valves
can be made in cooperation with cus- challenge can be managed individually, Nominal diameter: 6,000 mm
tomers in a pre-service phase to opti- be it for new applications or service
Design pressure: 10 bar
mize the rehabilitation and its dura- tasks.
Upper Tamakoshi:
tion. For example, at the total overhaul
1 spherical valve
of the spherical valves at HPP Herdecke Andreas Rippl
Nominal diameter: 2,500 mm
in Germany (DN 3,300 mm/PN 28 bar/ Phone: +49 (751) 29511 538
Design pressure: 90 bar
170 tons), where all components had to andreas.rippl@andritz.com
Teesta Urja:
undergo non-destructive testing and
6 spherical valves
documentation. Wear and defective Markus Meisinger
areas were assessed referring to func- Phone: +43 (732) 6986 73158 Nominal diameter: 1,900 mm
tional safety and rectification measures, markus.meisinger@andritz.com Design pressure: 89.3 bar
08 Markets HYDRONEWS • 25

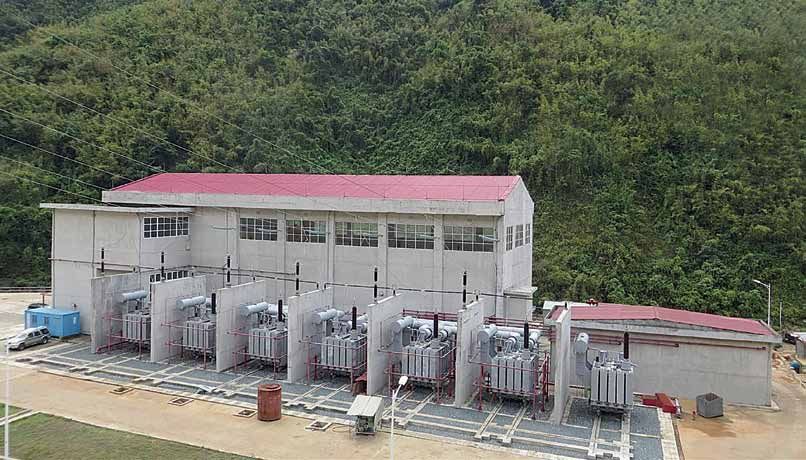

s Xekaman 3 hydropower plant
Vietnam
The rising country in Southeast Asia
L
ocated between India and electricity. Nowadays Vietnam has an October 2013. About 60 participants
China, Vietnam is a booming electrification rate of 97%. The country from the Ministry of Industry and Trade,
country in the exposed area is focusing on renewable energy, mainly engineering companies, private cus-
of Indochina. hydropower, which contributes 45% of tomers and financial institutions, like the
the total electricity production. The World Bank and the ADB, attended this
Vietnam has a fast growing population electricity masterplan intends to deliver successful event.
of about 90 million people who live more than 20,000 MW in Vietnam and
mainly along the 3,400 km long coast in the border area of Laos in the up- Current projects
line. In the mountainous area, towards coming years. Besides electricity sever- ANDRITZ HYDRO Vietnam is currently
the borders with Laos and China, we al other exporting industries, like pepper executing the following projects: HPP
find ethnic minorities. The country has a (world no. 1), coffee (world no. 2), and Chi Khe (2 x 20.5 MW, bulb), HPP Hang
history of more than 2,100 years, but in seafood as well as high-tech products, Dong A (2 x 8 MW, Pelton), HPP Nam
the 19th century Vietnam was integrated are gaining international importance. Can 2 (2 x 10 MW, Pelton), HPP Nam
into French Indochina and so had its Chim 1A (2 x 5 MW, Francis), HPP Nam
first contact with Europe. ANDRITZ HYDRO representative He (2 x 8 MW, Francis), HPP Ngoi Phat
office (3 x 24 MW, Francis), HPP Tra Xom
Starting from scratch in the early 1970s F o r m o re t h a n 1 5 y e a r s A N D R I T Z (2 x 10 MW, Pelton), HPP Thuong Kon
the economy of the country is now tak- HYDRO has run a representative office Tum (2 x 110 MW, Pelton) and HPP Xe-
ing off at enormous speed. In 1975 only in the Vietnamese capital of Hanoi. kaman 1 (2 x 142 MW, Francis). Mean-
10% of the population had access to The office sells equipment for new while, the projects HPP Suoi Lum
hydropower plants, manages project (2 x 10 MW, Pelton) and HPP Xekaman
▼ Ha Long bay in northern Vietnam execution and gives support to clients 3 (2 x 125 MW) successfully started
for spare parts and services. operations in 2013.
Customer Day HPP Chi Khe
Due to the request for stable electricity At the end of 2013 ANDRITZ HYDRO
supply and integration into an Indochina received an order from AGRIMECO for
grid, Vietnam is developing the con- the supply, supervision and the com-
struction of pump storage power plants. missioning of electromechanical equip-
Dedicated to these activities, ANDRITZ ment for the Vietnamese Chi Khe hydro-
HYDRO organized a Customer Day in power plant. Equipped with two bulb
HYDRONEWS • 25 Markets 09
s Contract signing of HPP Xekaman 1
turbine units HPP Chi Khe will have an
installed capacity of 41 MW.
The hydropower plant is located on the
Ca River, approximately 150 km south
of Hanoi. The project is being devel-
oped by Agrita-Nghe Tinh Power JSC
(consisting of AGRIMECO and Tan Tao
Group). ANDRITZ HYDRO will supply
electromechanical equipment, including s Contract signing of Chi Khe project
two bulb turbines, horizontal genera-
tors, mechanical auxiliaries, electric The scope of supply includes two Fran- mechanical equipment for hydropower
power systems and automation. The cis turbine generator sets, the govern- p l a n t s i n a l l s i z e s , f ro m 1 M W t o
energy generated by HPP Chi Khe will ing system, automation and protection 1,000 MW. We consider Vietnam to be
be supplied to the national grid via a system and auxiliary systems as well as one of the most vital and prospective
new transmission line. The project is the complete switchyard. Song Da Con- hydropower markets today.
scheduled to begin commercial opera- struction Corp of Vietnam, the main
tion in December 2015. shareholder of Viet-Lao Power Invest-
ment and Development Joint Stock Martin Koubek
HPP Xekaman 1 Company and EPC contractor, will take Phone: +43 (664) 6151486
In December 2013 ANDRITZ HYDRO care of local transport and erection martin.koubek@andritz.com
signed a contract for the delivery of the under the supervision of ANDRITZ
complete electromechanical equipment HYDRO.
for the Xekaman 1 hydropower plant TECHNICAL DATA
(Laos PDR). Following on from the finali- The majority of the generated electricity
Chi Khe:
zation of the Xekaman 3 project, this will be exported to Vietnam, though a
Output: 2 x 20.5 MW
was the second order for ANDRITZ small proportion will be supplied for do-
Head (max.): 11.28 m
HYDRO from Song Da Construction mestic consumption in the vicinity of the
Speed: 100 rpm
Corp of Vietnam and Viet-Lao Power project site. The finalization of the HPP
Runner diameter: 5,500 mm
Investment and Development Joint Xekaman 1 project is planned for 2016.
Xekaman 1:
Stock Company within a year. HPP Xe-
Output: 2 x 145 MW
kaman 1 is the second hydropower ANDRITZ HYDRO Vietnam holds the
project in Laos PDR backed by the Viet- technical competence for tailor-made Head (max.): 105.4 m
Lao Power Investment and Develop- solutions to serve its clients in this chal- Speed: 187.5 rpm
ment Joint Stock Company. lenging market by supplying electro- Runner diameter: 4,128 mm
10 Markets HYDRONEWS • 25
Nova Avanhandava, HPP Água Vermel-
ha, HPP Promissão, HPP Ibitinga, HPP
Bariri, HPP Barra Bonita, HPP Rosana,
HPP Taquaruçu, HPP Capivara, HPP
Chavantes, HPP Estreito and HPP Ma-
rimbondo.
The branch office is staffed with skilled
and experienced experts from compa-
nies which used to provide the same
scope of service. Due to the high num-
ber of hydropower plants, the region
also offers a workforce with plenty of
relevant skills.
The new ANDRITZ HYDRO branch of-
fice will enable better integration of field
services into the company structure in
Brazil
areas such as engineering, project man-
agement, procurement, quality control
and others. This integration will ensure
even minor field maintenance jobs
maintain quality and will also boost the
execution of large rehabilitation and
modernization projects with a 100%
ANDRITZ HYDRO team, consequently
enabling the desired quality, agility and
A country with great potential for hydropower speed in rehabilitation projects.
modernization
Current projects
In the past view years ANDRITZ HYDRO
s ANDRITZ HYDRO Inepar office in Araçatuba has received many modernization con-
tracts in Brazil. Some of these Service
B
razil holds an enormous po- the refurbishment and reparation of tur- and Rehab projects involving field ser-
tential for hydroelectric pow- bines, generators and hydromechanical vice activities with expected execution
er generation and thus pres- equipment, as well as electrical and in 2014 are as follows:
ents many infrastructure challenges mechanical auxiliary services. The proj-
for the coming years. ects cover a wide field of maintenance ANDRITZ HYDRO was awarded a con-
activities, from small interventions up to tract for the rehabilitation of the genera-
At present, a large number of Brazilian the exchange of some components or tor and 39 MW Kaplan turbine at Barra
hydropower plants have been operating even the complete substitution of the Bonita 1 hydropower station within 10
for more than 40 years. Many of them equipment. The services aim for an in- months (Hydro News 24).
demand upgrades, offering opportuni- crease in productivity and improved
ties for modernization and rehabilitation cost-benefit ratios, reliability and/or out- In mid-2013 Vigario signed a contract
of equipment. put capacity, therefore improving the with ANDRITZ HYDRO for the mod-
return on the invested capital. er nization of four 20 MW pumps at
ANDRITZ HYDRO branch offices the eponymous hydropower station
Currently, ANDRITZ HYDRO runs three The new facility is located in a strategic in Brazil.
branch offices in Brazil, of which the lat- region. W ithin a radius of approxi-
est one has recently been inaugurated. mately 300 km from Araçatuba you At the Mogi Guaçu hydropower project
T h e n e w b r a n c h o ff i c e i s l o c a t e d can find more than 100 large turbine- ANDRITZ HYDRO will supply a small
in Araçatuba, in the northwest of São generator units, offering significant repair service on the generator and a
Paulo state. potential. Some of the most important 3.5 MW Kaplan turbine.
hydropower plants in the region are
It focuses on the execution of Service HPP Ilha Solteira, HPP Três Irmãos, In January 2012 ANDRITZ HYDRO re-
and Rehab works, covering tasks like HPP Jupiá, HPP Porto Primavera, HPP ceived an order from ENDESA for theHYDRONEWS • 25 Markets 11
s Cavitation service repair in HPP Taquaruçu s Winding asssembly in HPP Cachoeira Dourada
modernization of three generators at HPP Salto Grande, HPP Taquaruçu and TECHNICAL DATA
HPP Cachoeira Dourada (Hydro News HPP Rosana. HPP Barra Bonita:
23). Output: 39 MW
Mário Cunha HPP Vigario:
Furthermore ANDRITZ HYDRO received Phone: +55 (18) 3637 0100 Output: 4 x 20 MW
a contract for the cavitation service re- mario.cunha@andritz.com
HPP Mogi Guaçu:
pair of various hydropower plants from
Output: 3.5 MW
DUKE Energy. The contract includes the Rodrigo Parada
HPP Cachoeira Dourada:
projects HPP Canoas 1 & 2, HPP Juru- Phone: +55 (11) 4133 0017
Output: 3 x 93 MVA
mirim, HPP Chavantes, HPP Capivara, rodrigo.parada@andritz.com
▼ Services on Kaplan runner at Mogi Guaçu project12 New projects HYDRONEWS • 25
Olivone
Replacement of main components in a hydropower station in Switzerland
▲ Centrale to be replaced by Powerplant
© OFIBLE

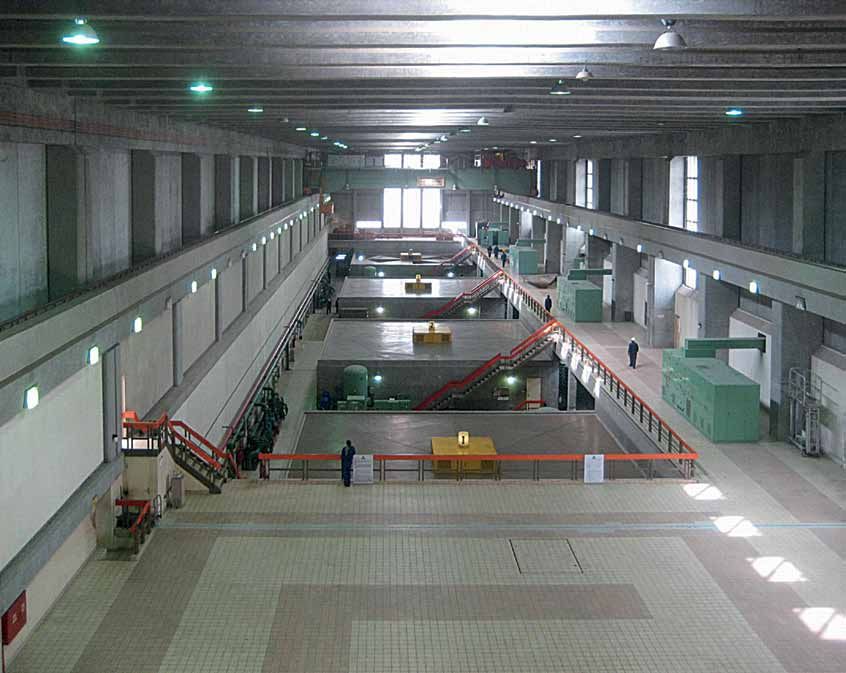

s Machine hall s Contract signing
A
NDRITZ HYDRO was recently taries. Their hydropower stations were The dismantling of the existing units
awarded the contract for the constructed between 1956 and 1963 are scheduled for January 2016 (unit 1)
complete replacement of the and include the power stations of Luz- and January 2017 (unit 2). After a con-
hydroelectrical production units of zone, Olivone and Biasca, the storage version period of around one year, the
Olivone power station by Officine basins of Carassina, Luzzone and Mal- replaced units are due to start commer-
Idroelettriche di Blenio SA (OFIBLE). vaglia, as well as numerous forebays in cial operation in February 2017 (unit 1)
the catchment area. Luzzone dam was and February 2018 (unit 2).
The contract comprises hydraulic model increased by 17 m from 1995 to 1998,
tests as well as the supply, installation which increased the storage capacity Walter Scherer
supervision, and commissioning of the from 87 to 107 million m3. Phone: +41 (41) 329 54 40
following equipment: walter.scherer@andritz.com
n
Two horizontal 4-jet double Pelton Over the course of the project,
TECHNICAL DATA
turbines ANDRITZ HYDRO will replace the two
n
Output: 60.5 MW/67 MVA
Two turbine governors existing horizontal 2-jet Pelton turbines
n
Voltage: 12 kV
Four spherical valves including at the Olivone hydropower station by
hydraulic control two more powerful 4-jet double Pelton Head: 582 m
n
Two oil pressure systems for the hy- turbines optimized for the present hy- Speed: 428.6 rpm
draulic control and the spherical valves draulic conditions. The new, low-loss Runner diameter: 2,709 mm
n
Two horizontal synchronous genera- generators are perfectly adapted to the
tors with cooling system higher turbine capacity and speed; the
n
F our generator bearings with lifting new machinery is designed for primary
device and oil cooling system and secondary control.
n
Two brushless excitation systems
n
Two voltage regulators By upgrading HPP Olivone, OFIBLE is
n
Two 12 kV bus ducts. making a contribution to covering the
increasing demand for peak energy and
Blenio Kraftwerke AG uses the hydro- operating reserve for compensating un-
power of the river Brenno and its tribu- predictable wind and solar energy.HYDRONEWS • 25 New projects 13
s Schematic drawing of turbine
Nam Lik 1
New Order for a hydropower plant in the Lao People’s Democratic Republic
I
n June 2013 ANDRITZ HYDRO Company Ltd, Hydro Engineering Com- 64.5 MW and will meet the electrical
signed a contract with POSCO En- pany Ltd. and POSCO Engineering and energy demands of approximately
gineering and Construction Com- Construction Company Ltd. (POSCO 200,000 people in Laos from renewable
pany Ltd. (POSCO E&C) for the sup- E&C). ANDRITZ HYDRO‘s client, POS- resources.
ply, erection and commissioning of CO E&C, is the appointed EPC contrac-
the electromechanical equipment tor as well. HPP Nam Lik 1 will be put into opera-
for the Nam Lik 1 hydropower plant tion in 2016.
in the Lao People’s Democratic Re- An important aspect of the final deci-
public. sions to award ANDRITZ HYDRO the Frank Mette
contract was its global leadership in Phone: +86 (10) 6561 3388 887
HPP Nam Lik 1 is located 90 km north bulb turbine technology, technical com- frank.mette@andritz.com
of Vientiane in the province of Vientiane, petence, the high quality of equipment
TECHNICAL DATA
Laos, downstream from the Nam Lik and services supplied, and especially all
Output: 2 x 32.25 MW/39.3 MVA
1-2 dam. It was designed to regulate running reference projects in Laos (HPP
Head: 22.31 m
the outflow within the river as an envi- Huay Ho, HPP Nam Theun 2, HPP
ronmental protection measure. Theun Hinboun, HPP Theun Hinboun Speed: 166.7 rpm
Extention, HPP Xekaman 3, etc.). Runner diameter: 4,500 mm
ANDRITZ HYDRO’s scope of supply in-
cludes two 32.25 MW bulb turbines, The electricity, generated by HPP Nam
horizontal generators, mechanical Lik 1, will be supplied directly into the
auxiliaries, electric power systems, national grid for domestic use. It will
gates and additional equipment. make an important contribution to the
security of electricity supply and opens
The Nam Lik 1 hydropower project is up the future potential to boost eco-
being developed by a four-member nomic growth in Vientiane province. The
consortium, consisting of Nam Lik 1 two bulb turbine units of HPP Nam Lik 1
Power Company Ltd, PTT International will have a total installed capacity of14 New projects HYDRONEWS • 25
Muskrat Falls
Powerhouse and hydromechanical spillway equipment for Canada
ANDRITZ HYDRO locations in Canada,
Europe and China. ANDRITZ HYDRO is
committed to achieving all of Nalcor
Energy’s objectives regarding safety,
environment, schedule compliance and
quality of materials and workmanship.
To that end, quality surveillance activity
is reinforced at all manufacturing loca-
tions.
Fabrication and delivery will start in
early 2014 with the first stage embed-
ded items followed by staged deliveries.
This is the second contract for ANDRITZ
HYDRO with Nalcor Energy, having earli-
er been awarded the order to supply four
206 MW Kaplan turbines and generators
(Hydro News 23).
© Nalcor Energy
ANDRITZ HYDRO is pleased to have
secured this contract, which represents
a significant step in broadening its
portfolio of products on the Canadian
s Conceptual Illustration of Muskrat Falls hydropower plant market.
I
n December 2013 Nalcor Energy ducing power in 1971, uses about 65% Françoys Gauthier
awarded a contract to ANDRITZ of the river’s generating capacity. The Phone: +1 (514) 428 6785
HYDRO for the supply and instal- remaining 35% are located at two sites francoys.gauthier@andritz.com
lation of the Muskrat Falls power- on the lower part of the river: Muskrat
house and spillway hydromechani- Falls and Gull Island. TECHNICAL DATA
cal equipment. Total weight: 9,000 tons
ANDRITZ HYDRO’s scope of supply for 8 draft tube exits
The Muskrat Falls hydroelectric devel- the Muskrat Falls project includes all 5 spillway bays:
opment project includes a generating mechanical, electrical and other asso-
Roller gates: 10.5 m x 23 m
station, located on the lower Churchill ciated hydromechanical equipment,
12 intake channels:
River, approx. 35 km west of Canadian required for the spillway, the intake
Roller gates: 6.5 m x 20 m
Happy Valley-Goose Bay in Labrador, and the draft tube. The equipment and
as well as more than 1,500 km of trans- facilities consist of fixed wheeled gates,
mission lines and associated infra- bulkhead gates, trashracks, stoplogs,
structure. fixed and mobile wire rope hoists, hoist
towers and buildings, trash cleaner and
The Churchill River is a significant selective electrical and mechanical
source of renewable, clean electrical auxiliaries. The scope of this contract is
energy; however, the potential of this one of the largest in the world, with
river has not been fully developed yet. deliveries totaling 9,000 tons. Due to
The existing 5,428 MW Churchill Falls this large volume, the major fabricated
generating station, which began pro- components will be supplied by globalHYDRONEWS • 25 New projects 15
Lysebotn II
© Lyse Energi A.S.
Replacement of an existing Norwegian hydropower plant

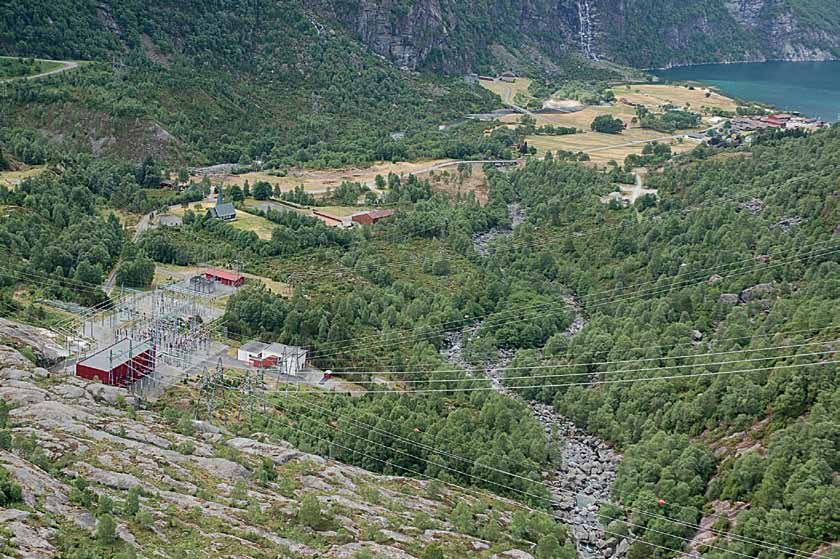

s Existing switchyard at HPP Lysebotn
I
n December 2013 ANDRITZ Francis turbines. Because of the favor- Furthermore, ANDRITZ HYDRO will per-
HYDRO signed a contract with able reservoir situation, the generating form the model testing of the Francis
Lyse Produksjon AS for the con- units are designed for frequent starts/ turbines.
struction of the new Lysebotn II stops to optimize profits in the elec-
hydropower station in Norway. tricity production. ANDRITZ HYDRO won the contract on
the back of a successful project record,
HPP Lysebotn II is located close to Changing water levels and the choice of a high efficiency level and experience,
Stavanger in southwestern Norway, reservoir bring varying gross heads from especially in this high-head market
right at the innermost end of the Lyse- 686 m to 618 m. ANDRITZ HYDRO will segment. The start-up of production is
fjorden. This popular tourist area is well deliver these extreme high head Francis planned for spring 2018.
known for outdoor activities, the Lyse- and generator units as well as the hy-
fjorden itself and impressive rock forma- draulic steelworks and the steel linings. Oliver Gielesberger
tions such as Preikestolen, which offers Phone: +43 50805 52638
a vertical drop of some 600 m. t Schematic model of the turbine and oliver.gielesberger@andritz.com
mechanical components
TECHNICAL DATA
HPP Lysebotn II will replace the existing
Output: 2 x 185 MW/2 x 215 MVA
Lysebotn hydropower plant. The pro-
ject consists of construction, delivery Voltage: 13.8 kV
and installation of a new hydropower Head: 665 m
plant, with an estimated average annual Speed: 600 rpm
electricity production of 1.5 TWh. This Runner diameter: 2,550 mm
implies an increased annual energy
production of approximately 180 GWh
(14%). HPP Lysebotn II will be built as
an underground power station with new
tailrace tunnel and headrace tunnel
leading upwards to the plant’s two al-
ternative intake reservoirs, Strandvatn
and Lyngsvatn.
Power will be generated by two identi-
cal units with 185 MW high-pressure16 New projects HYDRONEWS • 25
Peusangan
1&2
First large hydro project in Aceh, Indonesia
s Lake Laut Tawar
I
n August 2013 ANDRITZ HYDRO strengthens our position as market
signed a contract with the state- leader in Indonesia. It is the first new
owned utility PT. Perusahaan Lis- large hydro project with PLN since
trik Negara (Persero) (PLN) for elec- HPP Musi in 2004, for which ANDRITZ
tromechanical works at hydropower HYDRO delivered turbines and auxiliary
plants Peusangan 1 & 2. equipment. The project completion is
planned for April 2017.
The project is located in the central re- s Contract signing team
gion of Aceh province in Indonesia’s
northwestern Sumatra, approximately mechanical and electrical auxiliaries Gerhard Enzenhofer
280 km southeast of Banda Aceh. of the plant. Phone: +62 (0) 21 3906929
HPP’s Peusangan 1 and Peusangan 2 gerhard.enzenhofer@andritz.com
are run-of-river power plants at the The hydropower potential of Indonesia
eponymous river adjacent to the Lake is estimated to be 75 GW. To date,
Laut Tawar. PLN has utilized approximately 3.9 GW TECHNICAL DATA
of which 2.3 GW were supplied by Peusangan 1:
T h e h y d ro p o w e r p ro j e c t i s j o i n t l y ANDRITZ HYDRO. Output: 2 x 23.1 MW/26.5 MVA
financed by the Japan International Voltage: 11 kV
Cooperation Agency (JICA) and the HPP’s Peusangan 1 and Peusangan 2 Head: 205.3 m
government of Indonesia. Nippon Koei will be the first larger hydropower plants Speed: 600 rpm
Co., Ltd. of Japan is the consultant ap- in this region with an expected annual Runner diameter: 1,200 mm
pointed to oversee the implementation output of 327 GWh. Once finished, they Peusangan 2:
of this project. will play an important role in providing Output: 2 x 22 MW/25.3 MVA
more stable and sustainable electricity Voltage: 11 kV
ANDRITZ HYDRO’s scope of supply for supporting the development of local Head: 187.7 m
HPP’s Peusangan 1 and Peusangan 2 infrastructure and improving quality of Speed: 600 rpm
consists of vertical Francis turbines, life of the local population. Runner diameter: 1,200 mm
generators, transformers, 150 kV switch-
yards, EOT cranes and comprehensive ANDRITZ HYDRO is proud that the
combination of global leading-edge ex-
t Takengon town pertise, local contracting and execution
know-how has made us the preferred
partner and market leader for hydro-
power projects in Indonesia.
ANDRITZ HYDRO prevailed during chal-
lenging contract negotiations against
two other international competitors. It is
a big success for ANDRITZ HYDRO andHYDRONEWS • 25 New projects 17
Revin
Generator rehabilitation project in France
▲ Unit 2 of HPP Revin
the existing sets, new brake tracks, re-
furbishment of pony motors and refur-
bishment of stators for units 3 & 4.
The on-site refurbishment works will
start with unit 3 in March 2015, followed
by one each year. The rehabilitation of
HPP Revin is expected to be completed
▲ Inside the cavern in September 2018.
I
n October 2013 ANDRITZ HYDRO The Revin project is the first generator Charles Regy
signed a contract with Électricité rehabilitation project for ANDRITZ Phone: +43 50805 52680
de France (EDF), the main energy HYDRO in France since HPP Chastang charles.regy@andritz.com
producer in France, for the electri- in 2000. This newly won project is an
cal rehabilitation of the motor- opportunity for ANDRITZ HYDRO to
generators in HPP Revin, one of come back to the French generator
TECHNICAL DATA
its largest hydropower plants. rehabilitation market being the home
Output: 4 x 200 MVA
market of a powerful competitor.
Voltage: 13 kV
ANDRITZ HYDRO will supply engineer-
Head: 240 m
ing, manufacturing, delivery and erec- Due to very tough specifications of
tion of two new stators as well as the EDF and the overall dimensions of Speed: 300 rpm
refurbishment of two existing stators. the stator, the project is a great chal- Stator inner diameter: 6,900 mm
lenge for ANDRITZ HYDRO. All erection
HPP Revin, commissioned in 1975, is works, including stacking and winding,
located in the northeastern part of have to be performed locally in the
France, in the municipality of Saint cavern and EDF required to arrange the
Nicolas – Les Mazures, a few kilometers maximum available number of French-
from the Belgian border. It is a very speaking personnel on site.
strategic pumped storage hydropower
p l a n t , t h e t h i rd l a r g e s t i n F r a n c e ANDRITZ HYDRO’s scope of supply in-
(800 MW) and one of the oldest hydro- cludes two new stators for units 1 & 2,
power plants with reversible Francis one new stator frame, one set of new
turbines. pole windings and the refurbishment of18 New projects HYDRONEWS • 25
Dariali
Next important step in the hydropower market
of Georgia
s Contract signing team
I
n October 2013 ANDRITZ HYDRO founded by Georgian based construc- The award-winning and most challeng-
signed a contract with DARIALI tion company Peri ltd., the state-owned ing element of this project is the short
JSC for building the Dariali hydro- development institution the JSC Geor- duration of only 23 months from the
power plant. This agreement consti- gian Energy Development Fund (GEDF) acceptance of the order until hand over
tutes a significant milestone in en- and the US based tunnel drilling ma- of the last unit. This requires top perfor-
tering into the Georgian hydropower chine producer Robbins. mance in manufacturing, logistics and
market. project management.
HPP Dariali is located at an altitude of
Georgia is designated as one of the 2,400 m at the Tergi River in Qazbegi
most attractive future markets for hydro- district, near the city of Stepantsminda Thomas Wolf
power. This is based on three facts: the in northern Georgia. Phone: +43 (732) 6986 2704
rapid economic growth and general thomas.wolf2@andritz.com
economic liberalization, the proximity The landscape is characterized by high
of the Turkish electricity market and the mountains and deep valleys, which is
TECHNICAL DATA
fact, that only 25% of the feasible tech- typical for the Caucasus region. The
Output: 3 x 37 MW/3 x 43 MVA
nical potential of about 30 TWh per capacity of the project is 108 MW and
Voltage: 13.8 kV
year has been developed. the annual electrical energy generation
Head: 371 m
is estimated at 500 GWh. Around 70%
To u s e t h i s p o t e n t i a l , t h e s p e c i a l of the generated electricity will be pro- Speed: 375 rpm
purpose company DARIALI JSC was duced during summer months (May – Runner diameter: 2,100 mm
October).
t Mr. Zurab Alavidze (General Director DARIALI
ENERGY JSC.), Mr. Wolfgang Köhldorfer and Mr.
Josef Grininger during contract signing
The Dariali hydropower plant is con-
structed with a 2 km open channel and
a 5.6 km headrace tunnel (diameter
5.5 m) to supply water flow to the pow-
erhouse on the right bank of the river.
The scope of supply and services con-
sists of engineering, supply of three
37 MW vertical Pelton turbines and
three 43 MVA generators including aux-
iliaries, installation and commissioning.
The net head is estimated at 371 m with
rated water discharge of 33 m³/sec.HYDRONEWS • 25 New projects 19
Cethana
and Fisher
First major generator refurbishment project in Australia
I
n July 2013 ANDRITZ HYDRO A comprehensive design review of the
signed a contract with Hydro Tas- complete generator will give a full analy-
mania (Tasmania’s premier electri- sis of the components that can be re-
cal utility and one of the major hy- tained, based on their condition and
dropower utilities in Australia) for suitability for their operational life span.
the supply of new generator stators
and auxiliary equipment for the Some challenges of the project are the
hydropower stations Cethana and access and crane restrictions at HPP
Fisher. Cethana, which require a split stator s Entrance to the power station tunnel
at HPP Cethana
design. The jointing of the three stator
HPP Cethana is an underground power- parts will be performed in situ on a spe-
station, located on the Forth River in cially designed stand-jacking system,
Northern Tasmania, Australia. Together located above the rotor. Once the wind-
with HPP Fisher the two stations ing connections are completed, the sta-
are part of the Mersey Forth Power tor parts will be lowered by hydraulic
Scheme in Northern Tasmania, though jacks.
the latter runs as a surface power
station on the Fisher River. The delivery of the stator is scheduled
for the end of 2014 in order to allow the
The two hydropower stations comprise site works to be started in the beginning
s Hydropower station Fisher
of one 100 MVA synchronous generator, of 2015. This project represents another
commissioned 1971 in HPP Cethana, important contract with Hydro Tasmania
TECHNICAL DATA
and one 48 MVA synchronous gen- as ANDRITZ HYDRO is also currently
Cethana:
erator in HPP Fisher, commissioned in executing various other contracts for
1973. Being more than 40 years old modernization and replacement of Ka- Output: 1 x 113 MVA
they are in need of rehabilitation, up- plan turbines and control systems in a Voltage: 13.8 kV
grade and modernization. number of their power stations. Speed: 200 rpm
Fisher:
The refurbishment contract includes Output: 1 x 48 MVA
completely new stators for the units, Michael Stepan Voltage: 11 kV
new air baffles and stator sole plates Phone: +43 50805 52627 Speed: 500 rpm
interfacing with the existing generator. michael.stepan@andritz.com
▼ View on the generator at HPP Fisher20 New projects HYDRONEWS • 25
Shardarinskaya
First major contract for ANDRITZ HYDRO in Kazakhstan
I
n December 2013 ANDRITZ meeting ANDRITZ HYDRO won the
HYDRO signed a contract with project in the second stage. In Decem-
JSC “Shardarinskaya HPP”, sub- ber 2013 the contract came into force.
sidiary of the state-owned Kazakh
utility company Samruk Energy, ANDRITZ HYDRO will replace four
to upgrade the electromechanical Kaplan turbines and extend the runner
equipment at the Shardarinskaya diameter from 5 m to 5.3 m. The power
hydropower plant, which was origi- output will be increased by around
nally commissioned in 1967. 20% from the current 26 MW to
31.5 MW per unit. Furthermore, the or- s Contract signing
HPP Shardarinskaya is located on the der includes the supply of new genera-
Syr-Darya River in southern Kazakhstan tors and new equipment for automation, The challenge for ANDRITZ HYDRO will
close to the border of Uzbekistan and control and protection as well as the be to implement an efficient local set up
Kyrgyzstan, where the mountains fade replacement of the entire electrical within a short period of time. Site mobi-
into the wide planes around the Aral power system and other elements of lization is scheduled for October 2014
Sea. The Shardara reservoir covers an the auxiliary installations within the and dismantling of the first unit will start
area of 900 km 2 with a total storage powerhouse. within the year after contract signature.
volume of 5.2 km3. Completion of the refurbished hydro-
This is the first major contract in Central power plant is scheduled for June 2017.
The Shardara hydropower system is of Asia, a region with great expectations
utmost importance to secure stable of further business opportunities in This project will help clients and busi-
power supplies to the south of Kazakh- the near future, and a milestone for ness partners in the region to recognize
stan and it is vital for the irrigation of ANDRITZ HYDRO. the reliability of the ANDRITZ HYDRO
the same area. In December 2012, a loan equipment and services.
agreement was signed between JSC During Soviet times, large hydropower
Shardarinskaya and the European Bank plants were built in Central Asia, which Wolfgang Thoma
for Reconstruction and Development now need rehabilitation. The positive Phone: +49 (751) 29511 422
(EBRD) to finance the project. As a re- economic development of the region wolfgang.thoma@andritz.com
sult the relevant works were tendered in during recent years has also contribut-
a two-stage bidding process. After a ed to making rehabilitation financially TECHNICAL DATA
technical and commercial clarification feasible. Output: 4 x 31.5 MW/35 MVA
Voltage: 10.5 kV
▼ Powerhouse Head: 22 m
Speed: 115.4 rpm
Runner diameter: 5,300 mmHYDRONEWS • 25 New projects 21
rocks in the river, about half a mile be-
low the Safe Harbor dam.
This is the first large scale hydro service
contract for ANDRITZ HYDRO on the
Susquehanna River System. The gener-
ator modernizations will be completed
on two of the 14 units in the power-
© Safe Harbor Water Power Corp.
house. ANDRITZ HYDRO will supply
new generator stator frames, cores and
windings, new rotor spiders and rims,
new packing boxes, refurbished rotor
poles and bearings, complete unit
disassembly, installation and the reas-
© Safe Harbor Water Power Corp.
sembly.
s Aerial view of hydropower plant Furthermore, ANDRITZ HYDRO is the
Safe
original equipment manufacturer of
these units. ANDRITZ HYDRO Canada
provides the best value for the cus-
tomer given their knowledge of the origi-
nal design. Safe Harbor Water Power
▲ Powerhouse Corp’s goal is to extend the life of unit 3
Harbor
and unit 7. ANDRITZ HYDRO will assure
a preeminent refurbishment.
The award of this project shall also give
a substantial reference to ANDRITZ
HYDRO for future work on the Susque-
hanna River System.
First hydropower project on the Susquehanna John Parker
River in the USA Phone: +1 (704) 731 8878
john.parker@andritz.com
I
n September 2013, Safe Harbor HPP Safe Harbor is located on the TECHNICAL DATA
Water Power Corp. assigned a Susquehanna River, which starts in Output: 2 x 36 MVA
contract to ANDRITZ HYDRO for Lake Otsego, New York, and flows Voltage: 13.8 kV
the refurbishment of two gen- through the entire state of Pennsylvania Speed: 109 rpm
erators, which are greater than into the Atlantic Ocean via the Chesa- Stator diameter: 7,925 mm
80 years old, at the Safe Harbor peake Bay in Maryland. 448 km in
hydropower plant in Pennsylvania, length, the Susquehanna River is one of
USA. the largest rivers in the northeastern
US.
Power generated from the Safe Harbor
project is used primarily to meet peak Throughout history, the Safe Harbor
demands for electricity in the grid and area has always played an important
to operate the railroad system in the role in the lives of those living nearby.
area. Continuous operation occurs Many intriguing reminders have been
when the river flow equals or exceeds left of these early inhabitants. Petro-
the plant’s maximum water-handling glyphs (inscriptions and carvings) are
capacity of 3,115 m3/s. still visible on the Big and Little Indian22 New projects HYDRONEWS • 25
Kpong
Important rehabilitation contract in Ghana
s Machine hall with four generating units
I
n July 2013, after an international The main objective for the rehabilitation
c o m p e t i t i v e b i d d i n g p ro c e s s , of HPP Kpong is to ensure continuous
s Kpong hydropower plant
ANDRITZ HYDRO signed a con- supply, improve service delivery and
tract with Volta River Authority, a increase sustainable power generation
100% state-owned public entity with stabilized energy security. The old
of Ghana, for the Kpong retrofit pro- equipment and auxiliary parts will be
ject. Kpong is the second largest upgraded and replaced with modern
hydroelectric dam built in Ghana, equipment to enhance efficiency and
and it covers about 12% of the ensure a prolonged life for the plant.
country’s electricity production. The rehabilitated turbines will be oper-
ated as base-load units. With upgraded
The existing power generation system governors it will be possible to increase
in Ghana is dominated by two stations, their role in frequency control on the in- ▲ Contract signing
HPP Akosombo (912 MW) and HPP terconnected grid.
Kpong (160 MW), both located on the Harald Schmid
Volta River below Lake Volta, 80 km Before the contract was signed, the Phone: +43 (732) 6986 3343
from the city of Accra. The tailrace of plant was thoroughly inspected by harald.schmid2@andritz.com
HPP Akosombo forms the head pond ANDRITZ HYDRO specialists to ensure
TECHNICAL DATA
for HPP Kpong. Together both hydro- smooth and timely execution of the key
Output (max.): 4 x 46.23 MW
power plants supply about 70% of the elements. Assessments of the turbines
Voltage: 13.8 kV
national electricity. showed only marginal improvement
could be achieved here, so greater em- Head: 11.75 m
The contract covers the moderniza- phasis was placed on the generators. Speed: 62.5 rpm
tion of the entire hydropower station. As a result the stators will be recored Runner diameter: 8,238 mm
ANDRITZ HYDRO will carry out the de- and the rotor poles will be completely
sign, manufacturing, supply, erection, replaced.
and testing as well the commissioning
for the retrofit of electrical and mechani- During the execution phase the units
cal equipment at HPP Kpong. This will be shut down one by one and put
comprises generators and excitation back into operation after having been
equipment, turbine and auxiliary equip- dismantled, rehabilitated, re-assembled
ment, governors, generator transformer, and commissioned. The project will be
powerhouse station service facilities as completed within 43 months.
well as hydromechanical equipment.HYDRONEWS • 25 Technology 23
Promising ▲ Transport to test site
Results
From tidal turbine testing at EMEC in Scotland
▲ Installation at EMEC site
D
elivering reliable and sustain- winter. With measured wind speeds ex- maintenance activities took place using
able technology for the gen- ceeding 100 knots at times, meticulous local workshops and labor, and the re-
eration of energy from tidal planning was required to take advan- installation was carried out utilizing local
currents is the primary objective of tage of each weather window as it was vessels, operated by various companies
ANDRITZ HYDRO Hammerfest. presented. based in Orkney. In its own right, this
Thus, in proving the functionality of maintenance operation has provided
the demonstrator device, the tidal During the first 12 months of operation, extremely valuable experience and es-
turbine HS1000 at the European Ma- the turbine underwent extensive testing, sential knowledge required for commer-
rine Energy Centre (EMEC) is a ma- with particular focus on comparing cialization.
jor milestone in realizing the com- measured loads and performances with
mercial potential of this technology. figures calculated during the project de- Since re-installation in late August 2013
sign phase. Results were very positive, the turbine has been operating continu-
The first machine of its kind, the with the turbine performing as expected ously in a bid to prove its reliability. The
HS1000, represents the forerunner of and loading remaining within the design original target was to operate continu-
the commercial tidal turbines that will envelope. Specifically, it was clear that ously for 6 months, and export at least
be installed in the near future in order the turbine could export in excess of 1 GWh to the grid. At the time of writ-
to harness energy from strong water 3 GWh to the grid annually. ing, energy export is more than 1.2 GWh
currents generated by the lunar tides firmly surpassing the performance tar-
(Hydro News 22). This machine was in- Following this initial 12-month period, gets deemed necessary for the com-
stalled at EMEC’s tidal test site in De- the turbine was retrieved for inspection mercial operation of this technology.
cember 2011 and the installation was and maintenance. The machine was
carried out in three stages, using a found to be in excellent condition, with Peter Gnos
special offshore construction vessel in a only some minor modifications being Phone: +43 50805 52694
32-hour operation in the middle of made on internal components. These peter.gnos@andritz.com
▼ Mobilisation at EMEC port
TECHNICAL DATA
Type: HS1000
Output: > 1 MW
Rotational speed: 10.2 rpm
Rotor diameter: 21 m24 Site report HYDRONEWS • 25
s View of Bajina Bašta hydropower station s Handing over ceremony
Bajina Bašta
Final taking over of last unit in Serbia
I
n November 2007 Serbia’s state- um voltage and outdoor high voltage and timely completion of this project
owned hydropower provider EPS switchgear. ANDRITZ HYDRO has again proven
(Electric Power Industry of Serbia) its leading position as a supplier of
awarded a contract to ANDRITZ The refurbishment of the fourth and last equipment for hydroelectric plants.
HYDRO for the refurbishment of the unit of HPP Bajina Bašta brought this
run-of-river power station Bajina important project to a successful end. Gerhard Emsenhuber
Bašta. The investment was made by Despite many difficulties that occurred Phone: +43 50805 53612
Drinsko Limske power plants Bajina during implementation, like damage gerhard.emsenhuber@andritz.com
Bašta (DLBB), the owner of the hydro during transportation of one of the com-
power plant, in cooperation with the pletely new power transformers, the
Germany-based KfW Bank. The re- works were completed on time and to
furbishment of the 4 x 105.6 MW the full satisfaction of DLBB. TECHNICAL DATA
hydropower station was success- Output: 4 x 105.6 MW/109.5 MVA
fully completed recently. After refurbishment the output in- Voltage: 15.56 kV
creased by 13% and the annual energy Head: 66.5 m
HPP Bajina Bašta is located on the generation rose by 40 GWh. Two of the Speed: 136.4 rpm
Drina River, on the border between four units are also operating back-to- Runner diameter: 4,336 mm
Bosnia and Serbia. With 420 MVA it is back with two 315 MVA pump storage Step-up transformers:
the second largest hydropower plant in units. As a result of the refurbishment Output: 4 x 112 MVA
Serbia and was originally commissioned works, the vibration behavior of the Voltage: 15.56 kV/242 kV
in 1966. A pumped storage plant on the original units was also significantly im-
same location increases the total output proved.
to approximately 1,000 MW. The power
plant covers approximately 8% of the In October 2013, the official handing-
country’s total electricity demand. over ceremony of the fourth unit to the
owner took place. The Serbian Prime
HPP Bajina Bašta refurbishment project Minister Mr. Ivica Dačić, the German
consists of design, uprating, manufac- Ambassador in Serbia, government of-
turing, transport, installation and com- ficials of the Serbian State and senior
missioning of four 105.6 MW Francis management members of EPS/DLBB,
turbines, generators, control and excita- as well as journalists were amongst
tion systems, main transformers, medi- the attendees. W ith the successfulHYDRONEWS • 25 Site report 25
Iovskaya
First unit successfully handed over in Russia
I
n July 2011 ANDRITZ HYDRO
signed a contract with Kolsky
Branch of JSC TGK-1 (Regional
Utility - Territorialnaya Generiruy-
ushchaya Kompaniya No 1) for the
modernization of the Iovskaya hy-
dropower plant in Russia (Hydro
News 23).
HPP Iovskaya is part of the Nivskiy
Cascade in the Murmansk oblast and
is located on the edge of the Arctic
Circle. The reservoir spans an area of
5,240 km2. It is fed by the Kowda River
(Russian: Ковда, Finnish: Koutajoki close
to the Finnish border. HPP Iovskaya is
the second hydropower plant of the
Kovdinsky Cascade and was commis-
sioned in 1960.
▲ Unit 1 supplied by ANDRITZ HYDRO
ANDRITZ HYDRO’s scope of supply in-
cludes two double regulated Kaplan Iovskaya, with harsh and biting climatic
turbines with seven runner blades, au- conditions.
tomation (control, protection, excitation
and governor), a new generator winding The first unit was successfully synchro-
as well as the renewal of the balance of nized and the load tests were per- ▲ Unit 1 and 2 at Iovskaya hydropower plant
plant equipment. formed to the full satisfaction of the
customer at ambient temperatures of Peter Jaunecker
In order to improve cavitation behavior, up to -20 °C. Phone: +43 50805 53590
to reduce the tremendous vibrations peter.jaunecker@andritz.com
and to increase the turbine output, the In December 2013, the 72-hour test run
runner diameter of the new turbine of the first unit was successfully finished
TECHNICAL DATA
needed to be increased from 4,500 mm and the Taking Over Certificate (TOC)
Output: 2 x 50 MW
to 4,600 mm. That all targets were was signed by representatives of TGK-1
Head: 32 m
reached could be demonstrated to our and ANDRITZ HYDRO in an on-site cer-
client during the first month of opera- emony. Speed: 136.36 rpm
tion. Runner diameter: 4,600 mm
In January 2014 the official inauguration
The complexity of the rehabilitation took place, attended by regional press
works was challenging, with ANDRITZ and local politicians, management of
HYDRO being responsible as a general the TGK-1 Kola branch, suppliers and
contractor on a “turn-key basis”. This TGK-1 power plant team.
task required a lot of coordination work
between the client, the design institute, Simultaneously, after 20 years of opera-
the installation company and a number tion, unit 2 was taken out of service and
of different ANDRITZ HYDRO locations disassembly work commenced. Hand-
involved in this project. Another chal- over of this second modernized unit is
lenge was the remote location of HPP scheduled for September 2014.You can also read
