Kalray MPPA ®
Massively Parallel Processor Array
Engineering a Manycore Processor Platform for
Mission-Critical Applications
Benoît Dupont de Dinechin, CTO
Kalray Solutions Target Two Strategic Markets
Cloud and Data Center acceleration
Kalray is the ideal co-processor to off-load x86 or
accelerate real-time or compute intensive functions
Domains of application: Networking, Storage, Big Data
analytics, Cybersecurity, Deep learning
High Performance Embedded Computing
Embedded applications require higher
performance without increasing power
consumption and more integration of functions
including those constrained by real-time
Domains of application: aerospace, automotive,
transport, energy
2016 – Kalray SA All Rights Reserved MCSoC 2016 2
Outline
Mission-Critical Applications
MPPA®-256 Bostan Processor
MPPA® NoC Management
MPPA® Software Environment
MPPA® Coolidge Processor
Conclusions
2016 – Kalray SA All Rights Reserved MCSoC 2016 3
Evolution of Sensor Fusion for Autonomous Driving
(figures from M. Fausten keynote presentation at ESWEEK 2015)
2016 – Kalray SA All Rights Reserved MCSoC 2016 4
“Number Crunching” in Sensor Fusion Units
(figures from M. Fausten keynote presentation at ESWEEK 2015)
2016 – Kalray SA All Rights Reserved MCSoC 2016 5
Mission-Critical Computing
Dependability requirements
Detect, isolate or mitigate errors that occur in digital circuits
Transient electrical problems, soft errors, physical damage
Timing requirements
Time constraints associated with information manipulation
Execution time determinism, predictability, composability
Certification of worst-case response time by static analysis
2016 – Kalray SA All Rights Reserved MCSoC 2016 6
Execution Timing on a Multicore Processor
Intra-core non-
deterministic timing
Speculative execution,
branch prediction
Cache content
Inter-core interferences
Concurrent accesses
to caches, busses, and
peripheral devices
Cache coherence
invalidations
Main issue
Growing gap between
average execution
time and static WCET
2016 – Kalray SA All Rights Reserved MCSoC 2016 7

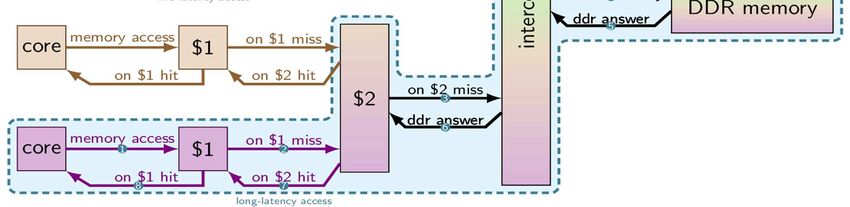

Classic Multicore Memory Hierarchy
Challenge: managing interference between cores
2016 – Kalray SA All Rights Reserved MCSoC 2016 8

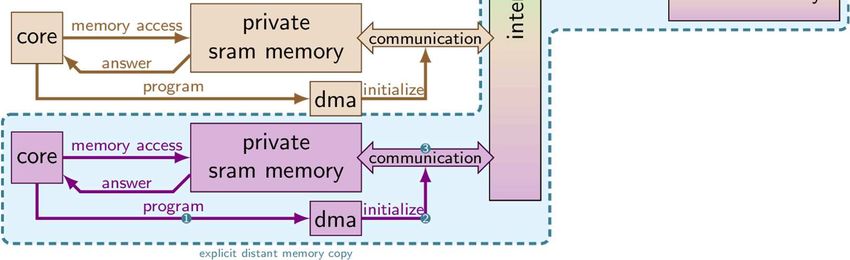

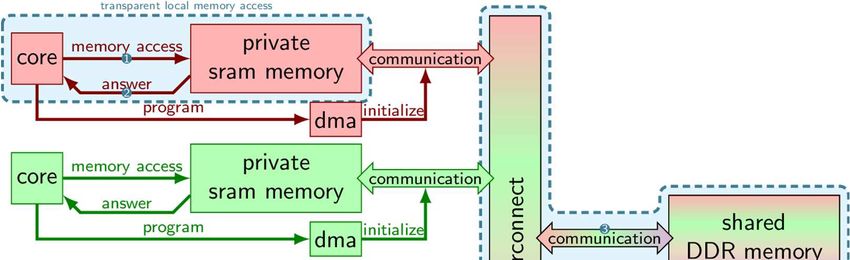

Embedded Multicore Memory Hierarchy
Challenge: programmability of DMA and private memories
2016 – Kalray SA All Rights Reserved MCSoC 2016 9
Outline
Mission-Critical Applications
MPPA®-256 Bostan Processor
MPPA® NoC Management
MPPA® Software Environment
MPPA® Coolidge Processor
Conclusions

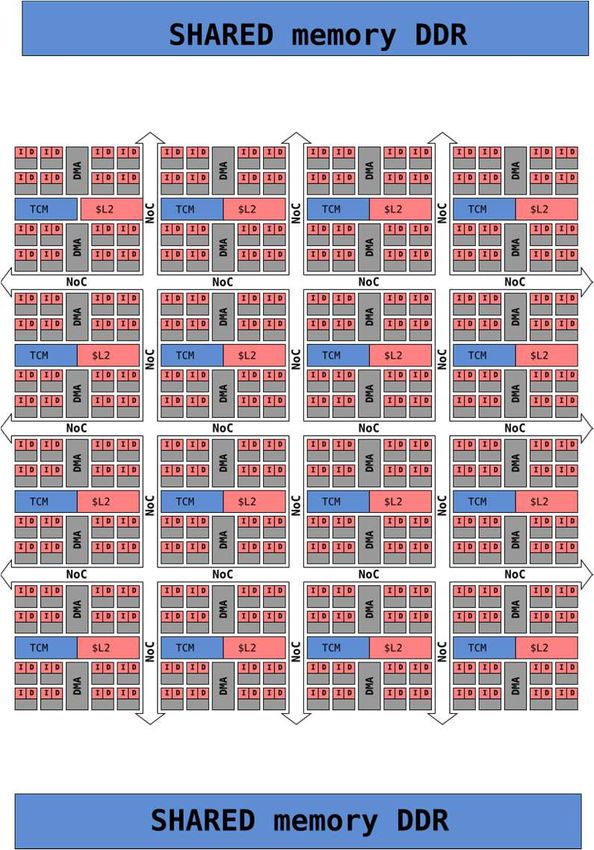

2016 – Kalray SA All Rights Reserved MCSoC 2016 10MPPA®-256 Manycore Architecture Highlights
DSP type of processing Integrated many-core processor
Energy efficiency 32 management cores on chip
Timing predictability 256 application cores on chip
Software programmability High-performance I/O
CPU ease of programming Scalable parallel computing
C/C++ GNU environment MPPA® processors can be tiled
32-bit/64-bit, little-endian together through NoC extension
Rich operating system (Linux Run-time support for pooling the
with dynamic loading&linking) external DDR memory resources
Courtesy Altera
2016 – Kalray SA All Rights Reserved MCSoC 2016 11MPPA®-256 Bostan Processor Architecture
Manycore Processor Compute Cluster VLIW Core
16 compute clusters 16 user cores + 1 system core 32-bit or 64-bit addresses
2 I/O clusters each with quad-core CPUs, NoC Tx and Rx interfaces 5-issue VLIW architecture
DDR3, 4 Ethernet 10G and 8 PCIe Gen3 Debug & Support Unit (DSU) MMU + I&D cache (8KB+8KB)
Data and control networks-on-chip 2 MB multi-banked shared memory 32-bit/64-bit IEEE 754-2008 FMA FPU
Distributed memory architecture 77GB/s Shared Memory BW Tightly coupled crypto co-processor
634 GFLOPS SP for 25W @ 600Mhz 16 cores SMP System 2.4 GFLOPS SP per core @600Mhz
2016 – Kalray SA All Rights Reserved MCSoC 2016 12MPPA®-256 Bostan Processor

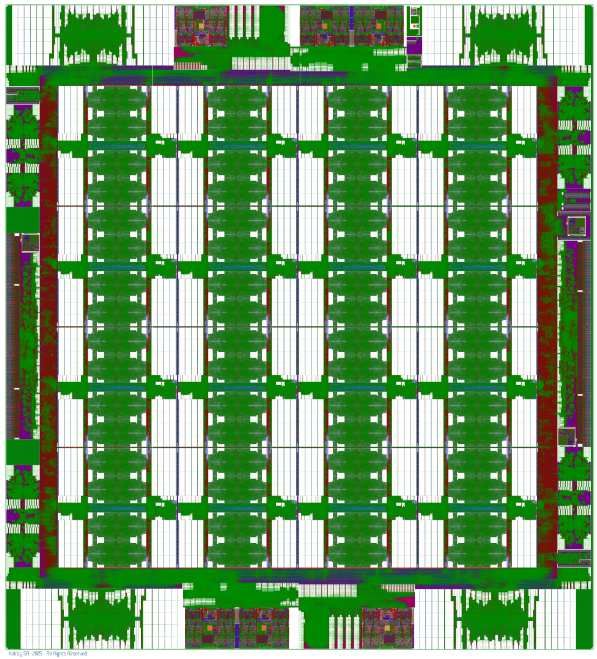

256 + 32 VLIW cores / 18 address spaces / 400 MHz – 800 MHz
Physical characteristics
TSMC CMOS 28HP
100µW/MHz per core + L1 caches
2W to 3W leakage
Processor interfaces
2x DDR3 Memory interfaces
2x PCIe Gen3 8-lane interface
8x 1G/10G Ethernet or 2x 40G
Ethernet interfaces
SPI/I2C/UART interfaces
Universal Static Memory
Controller (NAND/NOR/SRAM)
GPIOs with Direct NoC Access
NoC extension through
Interlaken interface (NoCX)
2016 – Kalray SA All Rights Reserved MCSoC 2016 13MPPA® Processor Co-Design for Avionics
U. Saarland / AbsInt GMBH recommendations on VLIW
core and cache micro-architecture design
AbsInt provides the aiT static timing analysis tool
used to certify flight control systems at Airbus
AbsInt aiT tool also targets the Kalray VLIW cores
Architecture design with a focus on timing predictability
Core level: micro-architecture
Fully timing compositional core
LRU caches and write buffer
Cache bypass memory opcodes
Cluster level: multi-banked shared memory
Core-private buses for memory bank access
Address interleaving or blocking across banks
Processor level: NoC/DDR guaranteed services
NoC minimum bandwidth & maximum latency
DDR controller configurations and address mapping
2016 – Kalray SA All Rights Reserved MCSoC 2016 14MPPA®-256 Bostan VLIW Core Data Path
5-issue, polycyclic property Shared ACC read port
Unified 10 read, 5 write Unified MAU and FPU
64x32-bit register file LSU and MAU also execute
64-bit data in register pairs single-cycle ALU instructions
2016 – Kalray SA All Rights Reserved MCSoC 2016 15MPPA® Bostan VLIW Core Energy Efficiency
600 pJ per Instruction on Matrix Multiply
500
400
300
497
200
100 225
117
0 46
Kalray Bostan ARM Cortex A7 GPU** ARM Cortex A15
(Little)* (Big)*
Kalray Bostan at 141 pJ per bundle with 3.14 instructions average per bundle
*: “An Instruction Level Energy Characterization of ARM Processors” FORTH-ICS/TR-450, March 2015
**: Source: Measured on Matrix Multiply EPI Test + Source Bill Dally, “To ExaScale and Beyond” - NVidia
2016 – Kalray SA All Rights Reserved MCSoC 2016 16Outline
Mission-Critical Applications
MPPA®-256 Bostan Processor
MPPA® NoC Management
MPPA® Software Environment
MPPA® Coolidge Processor
Conclusions
2016 – Kalray SA All Rights Reserved MCSoC 2016 17MPPA®-256 Bostan Network-on-Chip (NoC)
Dual 2D-torus NoC
Direct, wormhole switching
D-NoC: high-bandwidth RDMA
C-NoC: low-latency mailboxes
4B/cycle per link direction per NoC
Nx10Gb/s NoC extensions for
connection to FPGA or other MPPA®
Predictability
Data NoC is configured by selecting
routes and injection parameters
Routing ensure deadlock-free traffic
Injection parameters are the (σ,ρ) or
(burst, rate) of network calculus
2016 – Kalray SA All Rights Reserved MCSoC 2016 18Wormhole Switching Illustrated
1 2 3 4
5 6 7 8
A packet is composed of several flits
The header flits governs the route
The payload flits follow the header in
9 A
a pipeline fashion
When the required channel is busy,
the hop flow control blocks the trailing
flits and they stay in flit buffers along
the established route B
2016 – Kalray SA All Rights Reserved MCSoC 2016 19Wormhole Switching Network Issues
Complex to implement
May be true for input queueing
& output matching (e.g. iSLIP)
The MPPA® NoC routers only
include demultiplexers, output
queues and RR arbiters
Prone to deadlocking
In this example, the red flow
cannot use R3→R2 because the
blue flow is using it
Likewise, the blue flow needs
R1→R4 held by the red flow
Deadlock requires full queues
2016 – Kalray SA All Rights Reserved MCSoC 2016 20Deadlock-Free Routing Wormhole Switching
Deadlock results from circuits of agents and resources
connected by a wait-for relation [Dally & Seitz 1998]
Wormhole switching: agents are packets; resources are link buffers
Links between routers and links internal to routers (‘turns’)
Solutions when the network topology is a 2D mesh
Dimension order (X-Y on 2D meshes)
Turn model [Glass & Ni 1994] (not the same as ‘turn prohibition’)
Odd-Even [Chiu 2000] (better path diversity than turn model)
Hamiltonian Odd-Even [Bahrebar & Stroobandt 2015] (multicasting)
Strategy for the MPPA® NoC management
Isolate a 2D mesh in topology and apply deadlock-free routing
2016 – Kalray SA All Rights Reserved MCSoC 2016 21Hamiltonian Odd-Even Prohibited Turns
Even rows Odd rows
East-South turn prohibited North-East turn prohibited
North-West turn prohibited West-South turn prohibited
Odd Odd
Even Even
Odd Odd
Even Even
2016 – Kalray SA All Rights Reserved MCSoC 2016 22Hamiltonian Odd-Even on the MPPA® NoC
Routing between I/O Ethernet 0
compute clusters
Routes generated
assuming a 6x6 mesh
Impossible routes are
discarded I/O DDR 1
Routing between I/O
I/O DDR 0
and compute cluster
Always possible,
thanks to the 4 NoC
nodes per I/O cluster
I/O Ethernet 1
2016 – Kalray SA All Rights Reserved MCSoC 2016 23MPPA® NoC Path Selection Problem
For each flow, select a single path among those proposed by
adaptive routing so as to maximize utility
If multi-path allowed, reduces Numerical results for all pairs of
to a multi-commodity flow flows between 8 clusters (55 flows)
problem with a direct solution
Flow Route Bandwidth
Adding the single path constraints F48 R1 0.441901304029376
makes the problem NP-hard R1 0
Practical instances are solved with R2 0.375611423014079
F49
mixed integer programming R3 0
R4 0
Utility function is the max-min
F50 R1 0.13862940041161
fairness of flow rates F51 R1 0.23889251894024
Maximize the lowest flow rate, R2 0
then the next lowest flow rate etc.
2016 – Kalray SA All Rights Reserved MCSoC 2016 24Principle of the MPPA NoC Guaranted Services
Data NoC packet injection implements a (σ,ρ)regulation
No more than σ+ρ(t-s) flits are injected for any interval [s,t]
Cumulative flit count
~ρ
L
σ
time
Application of Deterministic Network Calculus prevents NoC
congestion and provides bounds on end-to-end delays
Network Calculus application requires feed-forward flows
Deadlock-free wormhole switching implies feed-forward flows
2016 – Kalray SA All Rights Reserved MCSoC 2016 25Outline
Mission-Critical Applications
MPPA®-256 Bostan Processor
MPPA® NoC Management
MPPA® Software Environment
MPPA® Coolidge Processor
Conclusions
2016 – Kalray SA All Rights Reserved MCSoC 2016 26Complete AccessCore™ SDK
Standard C/C++ C - Low Level/ Lib
Programming Environment Programming DSP Style
Simulators & Profilers, C - POSIX-Level
Debuggers & System Trace Programming CPU Style
Operating Systems OpenCL
& Device Drivers Programming GPU Style
AccessLib™ OpenDataPlane
Optimized Libraries Open API for networking
2016 – Kalray SA All Rights Reserved MCSoC 2016 27MPPA® Distributed Memory Architecture Challenge
Approaches to communication
Load/Store to unified memory
Remote DMA to unified memory
Remote DMA to private memories
Send/receive to private memories
Approaches to synchronization
Locks, semaphores, conditional variables
Barriers, collectives (reduce/scan/all2all)
Remote atomic operations
Remote atomic queues
Classic HPC clusters vs MPPA
The working memory of HPC clusters is the
collection of identical node memories
The working memory of the MPPA is the
collection of SMEMs backed by the DDRs
2016 – Kalray SA All Rights Reserved MCSoC 2016 28MPPA® Distributed Memory Architecture + Runtime
MPPA local memory benefits
Local memory accesses are more energy-
efficient than a Last-Level Cache (LLC)
Local memory access interferences can be
managed for time-critical applications
MPPA DSM for implicit DDR access
Escape code size and data size restrictions
Mostly used for application porting
Some implicit global memory accesses
cannot be converted to remote DMA
MPPA Asynchronous Operations
Using of local memories and sharing DDR
memories through remote DMA over NoC
Remote atomic operations and queues
Co-exist with the DSM or run stand-alone
2016 – Kalray SA All Rights Reserved MCSoC 2016 29MPPA Asynchronous Operations Ordering 2016 – Kalray SA All Rights Reserved MCSoC 2016 30
MPPA® Software Stack Overview
GNU C, C++, Fortran OpenCL C
POSIX threads + OpenMP
Language OpenCL
Libraries runtime
Rich OS RTOS
RPC, Asynchronous Operations, DSM
Hypervisor (Exokernel)
Low-level programming interfaces
MPPA® platform
2016 – Kalray SA All Rights Reserved MCSoC 2016 31SCADE Code Generation for the MPPA®
Safety-critical control-command applications
Model-based programming using SCADE Suite® from Esterel Technologies
Complemented with static timing analysis of binary code (aiT from AbsInt)
Motivations for multicore and manycore execution
Distribute the compute load across cores and reduce memory interferences
Effective implementation of multi-rate harmonic applications
Envision use of fast Model Predictive Control (MPC) techniques
2016 – Kalray SA All Rights Reserved MCSoC 2016 32eMCOS for MPPA® Processors
eSOL eMCOS is the world’s first many-core RTOS for embedded use
Runs on the MPPA® clusters on top of Low-Level programming
2016 – Kalray SA All Rights Reserved MCSoC 2016 33Automotive Software Development Kit Vision
Number-crunching applications
Use OpenCL hosted on an I/O cluster quad-core running Linux
Partition the compute clusters using OpenCL subDevices
Enable OpenCL Data Parallel and Task Parallel models
Inside Task Parallel model, support Posix programming
C/C++/Pthread/FILE instead of OpenCL-C
MPPA Asynchronous operations instead of OpenCL async_copy
Control-command applications
SCADE Suite® code generation for compute clusters
Exchange with I/O application part using RDMA through NoC
Automotive RTOS & middleware
OSEK/VDX RTOS and support of AUTOSAR deployment environment
2016 – Kalray SA All Rights Reserved MCSoC 2016 34Outline
Mission-Critical Applications
MPPA®-256 Bostan Processor
MPPA® NoC Management
MPPA® Software Environment
MPPA® Coolidge Processor
Conclusions
2016 – Kalray SA All Rights Reserved MCSoC 2016 35MPPA® Coolidge Processors
Compute cluster as CPU
Courtesy Rambus
Direct access to DDR memory
Optional L1 cache coherence
Full 64-bit OS support
Functional safety
Power domains
Robust partitioning
Courtesy Inside Secure
NoC error protection
Security architecture
Trust provisioning
Secure boot chain
Authenticated debug
2016 – Kalray SA All Rights Reserved MCSoC 2016 36MPPA® Coolidge Main Evolutions
TSMC 16FFC technology node Compute cluster
50% maximum frequency increase 4MB memory capacity, 128-bit busses
compared to 28nm HPC Local memory / L2 cache partitioning
40% dynamic power reduction at same Interleaved or locked memory map
frequency compared to 28nm HPC RM core as L2 cache controller
3rd generation Kalray VLIW core Unified NoC
1GHz typical core frequency Dual virtual channel, 128-bit flits
RDMA, load/store and control
64-bit 5-issue VLIW core architecture
2D grid topology
128-bit load/store unit (16 bytes /cycle)
16-bit, 32-bit and 64-bit IEEE 754 FPU External memory
One DDR4 channel per 4 compute clusters
16KB, 4-way associative L1 cache s
1 channel on MPPA®-64
4 privilege levels like in ARMv8 4 channels on MPPA®-256
Co-processing High-speed peripherals
Transcendental function acceleration for Ethernet 25Gbps
deep learning and scientific computing PCIe Gen4
Block cipher and hashing acceleration Interlaken 25Gbps
Pixel pre-processing for computer vision
2016 – Kalray SA All Rights Reserved MCSoC 2016 37MPPA® Processors on Deep Learning Application
Kalray KANN tool interprets
Berkeley Caffe files of trained
networks and generates code Neural Network
(Googlenet - FP32)
Network architecture
250
Parameters (filter coefficients)
Focus on low-latency neural 200
network inference
150
Convolutional layer neurons are
Fps
spread across compute clusters 100
NoC multicasting to copy
parameters from DDR to SMEM 50
in compute clusters
0
All data transfers and
Kalray** Nvidia* Kalray**
coordination with MPPA Bostan Tegra Coolidge
asynchronous operations
2016 – Kalray SA All Rights Reserved MCSoC 2016 38Outline
Mission-Critical Applications
MPPA®-256 Bostan Processor
MPPA® NoC Management
MPPA® Software Environment
MPPA® Coolidge Processor
Conclusions
2016 – Kalray SA All Rights Reserved MCSoC 2016 39Lessons from Engineering Manycore Processors
Target applications that benefit from manycore processors
High performance computing (GPU, MIC)
High performance networking (Cavium, Mellanox/Tilera)
High integrity embedded computing (robotics, aerospace, defense)
Achieving ‘near-data computing’ (using local memory) is key
Required for energy efficiency and timing predictability
Local memory is naturally exploited by KPN models of computation
Must also support transparent and effective access to global memory
Programming models must be adapted
Explicit memory hierarchy and relaxed memory consistency
OpenCL a first step but local memory exploitation is too restrictive
2016 – Kalray SA All Rights Reserved MCSoC 2016 40Multiple applications … Cost efficiency
Sensing
Running in
PARALLEL
Networking Computing
& in
REAL TIME
Safety Security
2016 – Kalray SA All Rights Reserved MCSoC 2016 41Thank you
KALRAY S.A. KALRAY S.A. KALRAY INC.
Paris - France Grenoble - France Los Altos - USA
86 rue de Paris, 445 rue Lavoisier, 4962 El Camino Real
91 400 Orsay 38 330 Montbonnot Los Altos, CA
France France USA
Tel: +33 (0)4 76 18 09 18 Tel: +1 (650) 469 3729
Tel: +33 (0) 184 00 00 45
email: info@kalray.eu email: info@kalrayinc.com
email: info@kalray.eu
MPPA, ACCESSCORE and the Kalray logo are trademarks or registered
trademarks of Kalray in various countries.
All trademarks, service marks, and trade names are the marks of the respective owner(s), and any unauthorized use thereof is strictly
prohibited. All terms and prices are indicatives and subject to any modification without notice.
2016 – Kalray SA All Rights Reserved MCSoC 2016 42MPPA®-256 Bostan Backup Slides 2016 – Kalray SA All Rights Reserved MCSoC 2016 43
Kalray VLIW Architecture Compared to HP Labs Lx
The Lx architecture begat the STMicroelectronics ST200 VLIW family
Optimize use of the data memory bandwidth
Widening to 64-bit, no alignment restrictions
Enable large immediate values in instruction stream
All memory accesses may bypass the L1 data cache & write buffer
Eliminate DLX ISA features and restrictions
Instructions with 3 or 4 source operands, 1 or 2 target operands
No aliasing between registers and special resources (LR, zero)
Memory addressing modes similar to those of PowerPC
Effective floating-point support with Fused Multiply Add
Rework if-conversion support
Remove Boolean registers and SELECT instructions
Use CMOV and conditional load/store instructions
Support hardware looping
2016 – Kalray SA All Rights Reserved MCSoC 2016 44MPPA2®-256 Bostan Compute Cluster
20 bus masters 16-banked shared memory
16 application cores 2MB extensible to 4MB
1 management core No bus interferences between cores
NoC Tx and Rx interfaces RR arbitration between bus masters
Debug support unit (DSU) Interleaved or blocked address map
2016 – Kalray SA All Rights Reserved MCSoC 2016 45MPPA2®-256 Bostan Ethernet Support
Ethernet as the main high-
performance / low-latency IO
Integration of Ethernet Rx and
Tx to the D-NoC architecture
Per Ethernet Rx port
8 classification tables for
hardware dispatch
Round-robin or classified cluster
& core allocation
Per Ethernet Tx port
64 independent Tx FIFOs
Weighted round-robin between
Tx FIFOs
Flow control between clusters
and Tx FIFOs
2016 – Kalray SA All Rights Reserved MCSoC 2016 46You can also read
