Latest EU Regulatory Developments on
Assoc. Prof. Leonidas Ntziachristos Euro Standards and Measurement
Mech. Eng., PhD
Requirements
In collaboration with the Labs of
Heat Transfer & Applied Thermodynamics
EMISIA Workshop, Zurich, 2017-11-17
Aristotle University Thessaloniki
Outline
1. European regulations in controlling vehicle emissions and
associated vehicle technologies
2. Latest components of emissions regulations
3. Short Assessment and Outlook
EMISIA Workshop, Zurich, 2017-11-17 2
EUROPEAN REGULATIONS IN CONTROLLING VEHICLE EMISSIONS AND ASSOCIATED VEHICLE TECHNOLOGIES
Overview of latest EU emission limits
Parameter LD HD
Cycles WLTP + RDE WHSC + WHTC
Durability (km) 160,000 700,000
NOx (g/km) / (g/kWh) Petrol: 0.060, RDE: 0.090 WHSC: 0.4
Diesel: 0.080, RDE: 0.120 WHTC: 0.46
PM (g/km) / (g/kWh) 0.0045 0.01
PN (particles/km) Diesel: 6×1011, RDE: 9×1011 WHSC: 8 × 1011
GDI: 6×1011, RDE: 9×1011 WHTC: 6 × 1011
CO (g/km) Petrol: 1.0 WHSC: 1.5
Diesel: 0.5 WHTC: 4.0
THC (g/km) Petrol: 0.10, NMHC: 0.068 WHSC: 0.13
Diesel: 0.17 HC+NOx WHTC: 0.16
System Each vehicle Each vehicle
Other provisions Low T CO&HC, OBD, Evap, Extended RDE, In-use compliance using PEMS, max NH3 = 10
Relaxed for LDT ppm, access to OBD, crankcase (no limits)
EMISIA Workshop, Zurich, 2017-11-17 4
Activity in the regulatory front - LDVs
Year Regulation Content
715/2007 Introduction of Euro 5 and Euro 6
2007
2007/46 New regulation on vehicle type approvals
2008 692/2008 Euro 5 & 6 implementation procedures and modalities
79/2009 Extension of type approval for H2 vehicles
2009 443/2009 CO2 specific targets from passenger cars
661/2009 Mandatory implementation of GSIs and TPMs on PCs
2010 406/2010 Certificate of conformity of H2 vehicles
510/2011 CO2 specific targets from vans
2011 566/2011 IUPR and In-Service conformity testing for Euro 6
725/2011 Certification of eco-innovations
65/2012 Implementation of GSIs
2012
459/2012 PN number for GDIs and Euro 6 OBD limits
630/2012 TA provisions for H2, H2NG, and hybrid electric vehicles
2013 195/2013 Introduction of eco-innovations as part of the type approvals
427/2016 1st Package of RDE: Procedures, requirements, evaluation method
2016
646/2016 2nd Package of RDE: Boundary conditions, conformity factors, timing
1151/2017 WLTP replaces NEDC, repeals 692/2008
2017 1152&3/2017 CO2 correlation between WLTP and NEDC – LCV & PC
1154/2017 3rd Package RDE: Cold start, PN and hybrids
2018 ???? 4th Package RDE: In service conformity method revision
EMISIA Workshop, Zurich, 2017-11-17 5
Emissions regulations evolution
2014 2015 2016 2017 2018 2019 2020 2021 2022
New Types Emissions Euro 6 b Euro 6 c
Homologation OBD OBD Euro 6-1 OBD Euro 6-2
Homologation Cycle NEDC WLTP
RDE Monitoring E6d Temp RDE E6d RDE
Emissions Euro 6 b Euro 6 c
New Vehicles
Registration
OBD OBD Euro 6-1 OBD Euro 6-2
Homologation Cycle NEDC WLTP
RDE E6d Temp RDE E6d RDE
Euro 6c/d compliance requirements:
For GDI vehicles the Particle Number (PN) limit aligned with the diesel one: 6×1011 particles/km
OBD thresholds reduction both for NOx and Particulate Matter (PM)
WLTP replaced NEDC
RDE (Real Driving Emissions) with Conformity Factors (CF) limits on:
▪ NOx 2.1 temporary RDE – 1.5 Final RDE
▪ PN 1.5 to account for measurement uncertainties
EMISIA Workshop, Zurich, 2017-11-17 6
Real drive emissions control - procedure
1. Testing with PEMS 2. Averaging window 3. Calculations
NTEpollutant = CFpollutant × EURO-6
NTE applies for whole RDE and urban parts
EMISIA Workshop, Zurich, 2017-11-17 7
Typical Euro 5 diesel emission control
Aged EGR
valve Source: Faurecia
Main elements of a typical diesel Euro 5 LDV:
Turbo-charged, common rail engine
Close-coupled oxidation catalyst
Diesel Particulate Filter (GPF), close-coupled or underfloor
HP cooled EGR for NOx control
EMISIA Workshop, Zurich, 2017-11-17 8

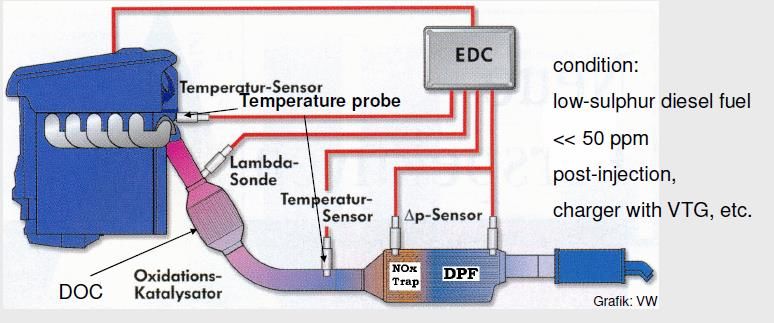

Typical Euro 6(a&b) diesel emission control
Main elements of a typical diesel Euro 6a&b LDV:
Euro 5
Lean NOx Trap upstream of DPF to reduce NOx emissions (50-70%)
EMISIA Workshop, Zurich, 2017-11-17 9
Typical Euro 6(c) aftertreatment
4NO + 4NH3 + O2 → 4N2 + 6H2O
2NO2 + 4NH3 + O2 → 3N2 + 6H2O
Source: Adapted from www.dieselforum.org
Main elements of a typical diesel Euro 6c LDV:
SCR added in the exhaust line
EMISIA Workshop, Zurich, 2017-11-17 10Latest Euro 6(d) diesel emission control (RDE Compliant)
SCRF+SCR DOC
Urea Injection
Main elements of first diesel Euro 6d LDV (RDE Compliant): Source: Mercedes - Benz
Turbo-charged, common rail, high pressure injection
Close-coupled oxidation catalyst
Selective catalytic reduction (SCR) coated DPF
Additional SCR
Hybrid HP (low load) and LP (high load) EGR for NOx control
EMISIA Workshop, Zurich, 2017-11-17 11GDI passenger cars in the EU and the US
Source: ICCT, 2016
➢ In 2015 the market share of GDIs represented 40 % of new gasoline car sales in both the EU and the US
➢ In 2005, GDI appeared as a mere 3% of cars sold in the EU (zero in the US)
➢ These vehicles complied with a temporary EURO6 PN emission limit of 6×1012 particles/km
EMISIA Workshop, Zurich, 2017-11-17 12Latest Euro 6 petrol emissions control (RDE compliant)
GPF substrate, Source: AECC GPF, Source: Faurecia
Possible Aftertreatment
Configurations
Source: Umicore
Main elements of a typical RDE-compliant petrol Euro 6 aftertreatment:
Close-coupled TWC, similar to Euro 5 vehicles
Catalysed Gasoline Particulate Filter (GPF), close-coupled or underfloor
Possible secondary air injection for fast production of exotherm in catalyst
EMISIA Workshop, Zurich, 2017-11-17 13PN emissions in lab (PMP) and on the road (PEMS)
w GPF
Sources:
GDI1,2, DPF : Giechaskiel et al. 2015, Frontiers in Env. Sci. Air Pollution
GDI3: Demuynck (AECC) 2016, Bonn, ICPC 4
GDI4: Bosteels (AECC) 2016, ICPC 3rd
EMISIA Workshop, Zurich, 2017-11-17 14Real world influence on particle generation
➢The previous was just a snapshot Fuel
Ambient temperature
➢Many other influences: Payload
Aggressive Driving
Heavy fuel
Sources:
• Giechaskiel et al. 2015, Frontiers in Env. Sci. Air Pollution
• Riccobono et al. 2016
Lab results (WLTP) on-road • ACEA/JAMA presentation
EMISIA Workshop, Zurich, 2017-11-17 15How low can PN from GDIs go in real life?
Theoretical scenario
➢ Even with a GPF several influences can amount to a significant contribution
➢ Care needs to be taken to have efficient GPFs
➢ Current practice suggests 60% efficiency, but can reach 80% or higher
16 EMISIA Workshop, Zurich, 2017-11-17 16LATEST COMPONENTS OF EMISSION REGULATIONS
Inclusion of cold start in RDE
➢RDE starts with a cold engine following certain soaking conditions
(min 30 min driving then soaking in ambient conditions for 5-56 hours)
➢Additional driving requirements for 5 first min of driving
(urban start, mx first idle 15s , mean speed 15-40 km/h, max continuous stop 90s)
➢Retention of minimum number of hot start trips to avoid cold start
specific tuning
EMISIA Workshop, Zurich, 2017-11-17 18Regeneration
➢ If vehicle below limit: PASS
➢ If vehicle above limit, then check if regeneration occured
If yes, then take away Ki-factors and check if results are below limit: PASS
If yes, but results above the limit, finish regeneration and retest
• If retest and regeneration recurs, new test is valid
EMISIA Workshop, Zurich, 2017-11-17 19Plug-In Hybrid vehicles (OVC-HEVs)
Measured pollutant
level
Weighted test result
CO2 over WLTC
Weighted test result
urban
Source: Franco et al, ES&T, 2016
➢Additional provisions:
Suggested to test in charge sustain mode
Minimum ICE operation in urban conditions: 12 km
Method to be reviewed if so suggested by evidence
EMISIA Workshop, Zurich, 2017-11-17 20RDE 4
➢RDE 4 discussions initiated January 2017
➢Main topics in the agenda include:
RDE method revisions from RDE3 implementation evidence (cold-start,
hybrids, evaluation methods, conformity factors, etc.)
In-service conformity requirements (independent labs, responsibilities
beyond manufacturers)
Multi-stage LCVs
Fuel issues and transfer function
EMISIA Workshop, Zurich, 2017-11-17 21Regulations in the pipeline
➢ Regulated air pollutants
RDE 4 Package
Euro 6 and VI OBD (incl. PM/PN monitoring)
L-category vehicles (scooters, motorcycles, …)
Euro 7?
➢ CO2 regulations
New CO2 emissions targets for PCs and Vans
CO2 labeling for HDVs
RDE considerations
➢ Other issues (durability, NO2, NH3, tyre and brake wear…)
EMISIA Workshop, Zurich, 2017-11-17 22Real driving emissions control – need & approach
Euro 6 at different driving conditions - LAT
NOx
Driving CO2 (g/km) CO (mg/km) CFNOx
(mg/km)
RDE 150 2.9 360 4.5
Hilly 334 10.7 3907 49
Euro 6 at different ambient temperature - TNO
NOx
Driving CFNOx
(mg/km)
CADC 23oC 26 0.3
PEMS 2oC 665 8.3
EMISIA Workshop, Zurich, 2017-11-17 23SHORT ASSESSMENT & OUTLOOK
Summary of emission limits around the world
Region LD HD Remarks
Australia Euro 6 (2017/18) Euro VI (2016)
China China 6b (2023) China VI (2018) Based on Euro 6 with inclusion of
NOx 0.035 g/km Same as Euro VI RDE w/o cold start (MAW
PM 0.003 g/km method)
N2O 0.02 g/km
India Bharat Stage VI (2020) = Euro 6 Bharat Stage VI (2020) = Euro VI
Japan WLTP (2018) WHTC (2016)
NOx D - 0.15 g/km, P - 0.05 g/km NOx 0.4 g/kWh
PM 0.005 g/km PM 0.01 g/kWh
Korea Petrol follows CA LEV-ZLEV since 2013 Korea Stage 3, SS and transient
Max NOx: 0.044 g/km (FTP-75) NOx: 0.4 g/kWh
Diesel follows Euro 6 since 2014 (NEDC) PM: 0.02 g/kWh
Russia Euro 5 (2014) Euro V (2016)
Turkey Euro 6 (2017) Euro VI (2015)
USA NOx+NMOG FTP = 0.019 g/km SET + NTE
SFTP = 0.031 g/km NOx 0.26 g/kWh
PM 0.013 g/kWh
The Reduction of Particulate Matter & Nitrogen Oxides from Automobiles, Seoul, 2017-11-07 25Short assessment and outlook
➢New European Regulations have no margin to fail
➢Aggressive CO2 regulations in EU trade-off with NOx
➢RDE with PN inclusion and WLTP much more robust than NEDC
➢Living procedure: continuous review of approach and methods
➢Thoughts for more stringent limits, new pollutants, following global
developments. Euro 7?
EMISIA Workshop, Zurich, 2017-11-17 26Thank you for your attention!
