Momentum
Reliable, Affordable, Digital Communications
pspc.harris.com
Understanding Your Next Radio System
A Brief Introduction
to DMR
Digital Mobile Radio (DMR)
is an international standard
for land mobile radios that
allows for two concurrent
conversations on a single
channel. The DMR standard
is supported by a growing
number of manufacturers
of Tier III digital trunking
systems and Tier II digital
conventional products.
DMR is the new standard for professional radio
users. When you select Harris Momentum, you can be
certain that all your equipment is fully compliant with
the DMR standard. The Momentum solution is the
perfect choice for budget-minded public agencies
or private enterprises.
IOP Certification Means Peace of Mind
The DMR Association has created certification through the Interoperability
Process (IOP) to ensure equipment from various manufacturers complies
with the standard, resulting in interoperability between radios from different
suppliers. Interoperability testing is conducted and the results of successful
tests are posted on the DMR Association web site for users to review
when considering a DMR purchase.
Momentum radios have been certified by the DMR Association IOP. IOP
certified Momentum products provides customers with peace of mind
that our radios and systems will work in conjunction with other IOP
certified products and systems.
2 pspc.harris.com
Tier II System: Conventional DMR
Ideal for Transitioning from Analog to Digital
Momentum Tier II systems are ideal for customers transitioning from analog to digital Land Mobile Radio. Repeaters can be
located at a single site or dispersed over a large geographic area such as a county or state. Momentum portable and mobile
radios are able to automatically roam to each repeater within the network allowing work groups to stay connected throughout
a busy day. Radio roaming and wide area coverage make Momentum Tier II an excellent solution for customers in need of
affordable, reliable communications with a mobile workforce.
2
HDR100 (1)
HDM150 Mobile
HDP150 HDP250 Router
Portable Portable 4
1 HDR100 (3)
COMMUNICATIONS
HDR100 (2) NETWORK
IP LAN
IP WAN/LAN
Router
IP LAN
Router 3 Router
HDR100 (1)
HDR 100 Repeater T2 Dispatch Solution
The heart of the Momentum Tier II system is the HDR100 The T2 Dispatch solution is a scalable, PC-based voice dispatch
repeater. This multimode capable analog and digital repeater and Automatic Vehicle Location (AVL) solution designed
is truly state of the art in interconnectivity and reliability. The for any size budget. From a single PC to multiple dispatch
HDR100 is easily interconnected to other HDR100 repeaters consoles at remote locations, T2 Dispatch is flexible enough to
via standard IP protocol. This IP interconnectivity gives handle it.
enhanced flexibility to create very large networks. In addition,
the HDR100 repeater is engineered for years of reliable
performance. A key feature is an externally mounted power
amplifier that allows internal circuitry to remain cool,
ensuring years of service.
HDR 100 Repeater T2 Dispatch Screenshot
Momentum 3
Tier III System: Trunked DMR
Powerful, Scalable, and Feature-Rich
Momentum Tier III systems are among the most powerful, scalable and feature rich systems in the DMR market today. Through
the use of a “carrier class” multi-redundant architecture, Momentum Tier III Systems can be designed to have no single point
of failure. With Integrated Network Manager and optional GPS Dispatch functionality, the Momentum Tier III System brings
the benefits of digital communication, enhanced safety and productivity to budget-conscious customers.
MSO CONTROL SITE
Momentum Network Dispatch
Mobile Switching Management Work Station
Office (MSO) Console
HDP150 HDP250 Site Router 2-16 Channels
Portable Portable
MSO Router
REMOTE ACCESS
COMMUNICATIONS
NETWORK
IP WAN/LAN
Network Management Dispatch Work
Console (remote) Station (Remote)
HDM150 Mobile
Router
The HDT 300 Mobile Switching
Base Station Office (MSO)
The HDT300 Base Station is the The Momentum Mobile Switch
radio frequency transmitter and Office (MSO) is comprised of standard
receiver that allows portable and commercial-off-the-shelf components
mobile radio users to communicate that include a primary server, IP switch
throughout a Momentum Tier III and router. The MSO contains the
network. HDT300 base stations can centralized network database, handles
be configured with up to 16 channels call switching and network control,
per site and are available in VHF, UHF, and routes communications to and
800 MHz and 900 MHz frequency bands. from base stations. Dispatch consoles
The HDT300 uses blade architecture to can be linked to the MSO via an optional
allow easy service access and “hot swap” Media Translation Unit. The MSO can
of critical base station assemblies. The support up to 50 Momentum HDT300 HDT 300
base station also includes a Base Station Tier III Base Station sites. Base Station
Control Unit that contains a subset of
the MSO network database, providing
uninterrupted trunking at the site in
the event that an IP network link fails.
4 pspc.harris.comThe Power of Digital Communications
In the Palm of Your Hand.

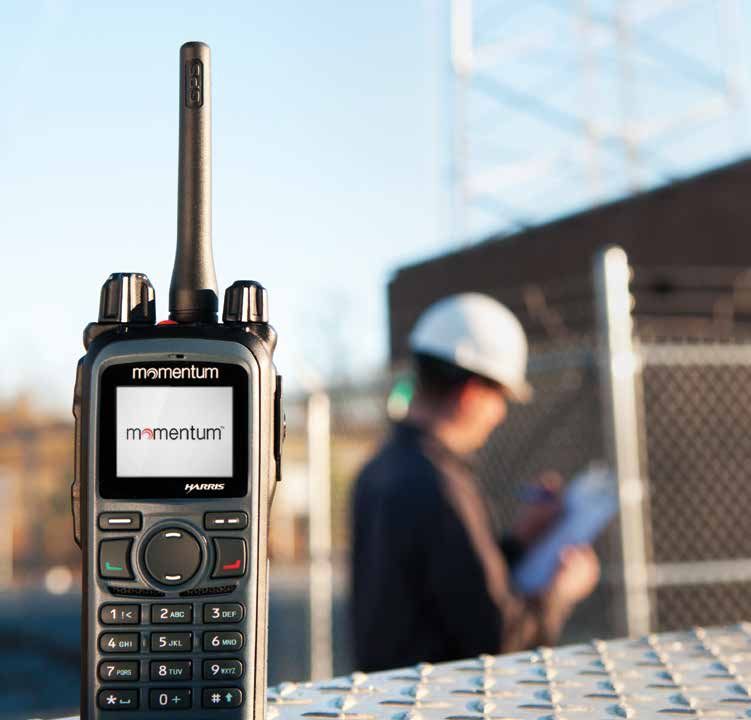

The Momentum family of radios includes a complete line of portable and mobile radios available in VHF, UHF, 800 MHz,
and 900 MHz frequency bands. Momentum portables are designed to meet IP-67 ratings for immersion and MIL-STDs for
ruggedness. The mobiles meet IP-54 for dust and water protection and MIL-STDs for years of reliable operation.
All Momentum radios include GPS receivers integrated into the radio, eliminating the need for expensive add-on accessories.
Momentum radios support analog conventional and DMR Tier II/Tier III operation. Radios can be field upgraded via software
from Tier II to Tier III to allow migration from digital conventional to digital trunking.
Momentum 5Connecting your team members

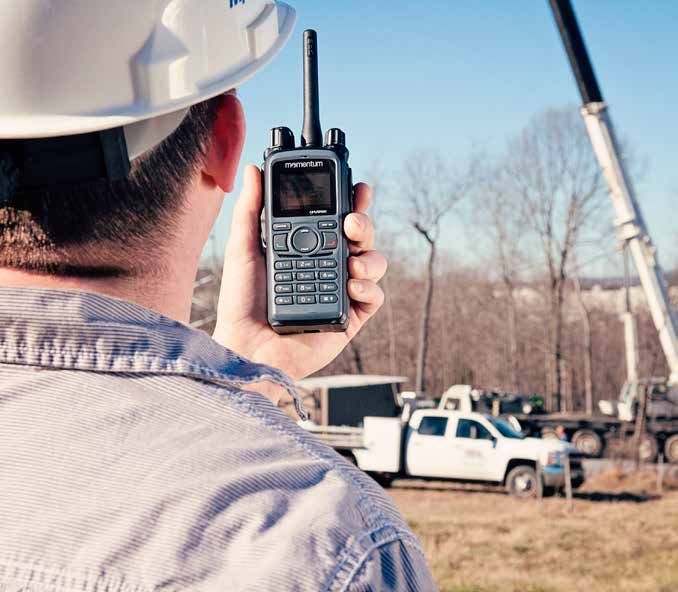

Momentum radios include both handheld portables, and
vehicle-mounted mobile units with integrated GPS.
Easy to use Full color Display
16 position Menu Navigation
rotary knob
Intrinsically Safe
Intrinsically Safe
136-174 MHz
136-174 MHz 400-470 MHz
400-470 MHz 450-520 MHz
450-520 MHz 800/900MHz
HDP100 HDP150
The affordable, reliable, lightweight HDP100 portable radio The HDP150 combines impressive performance, durable
is compliant to the DMR standard, and provides a simplified construction and a robust feature set to support a wide
user interface offering: range of users. All Momentum portables and mobiles support
analog and DMR digital signaling. HDP150 features include:
»» Voice annunciation
»» Complete HDP 100 feature set, plus
»» Group and individual calls
»» Free form SMS
»» Vibrate alert
»» Menu driven user interface
»» Remote enable/disable
»» Intrinsically safe models available
»» Remote monitor
»» MDC 1200® analog encode decode:
emergency and PTT ID
»» Pre-programmed SMS text messages
6 pspc.harris.comRadios are software upgradeable from
Tier II to Tier III. A common software
platform between radios provides a
similar user interface—keeping
training to a minimum.
Extremely small Flexible mounting
size configurations.
Military standard
rugged
Full power
transmitter 136-174 MHz
400-470 MHz
450-520 MHz
800/900 MHz
136-174 MHz
400-470 MHz
450-520 MHz
800/900 MHz
HDP250 HDM150
The HDP250 portable is one of the smallest high-power The HDM150 mobile is a rugged radio designed to withstand
digital radios available, providing DMR trunking, DMR day-to-day operation in demanding work environments. When
conventional and analog conventional operating modes. used with an optional desktop microphone and power supply,
This pocket-sized, portable includes: the HDM150 can operate as a desktop control station.
»» Complete HDP150 feature set, plus »» Front or remote mount
»» Bluetooth® »» Six I.O. ports to support telemetry applications
»» Man-down (standard) »» Four programmable softkeys
The HDP250 sets a new standard for customer value at
a fraction of the size and weight of other digital radios.
Momentum 7Learn more about Momentum™ pspc.harris.com/solutions/momentum A complete line of accessories are available. Visit the Momentum web page to find a dealer near you. pspc.harris.com Harris is dedicated to developing best-in-class assured communications® products, systems and services. Harris is an international communications and information technology company serving government and commercial markets in more than 125 countries. Headquartered in Melbourne, Florida, the company has approximately $5 billion of annual revenue and about 14,000 employees — including 6,000 engineers and scientists. Harris is dedicated to developing best-in-class assured communications® products, systems and services. Additional information about Harris Corporation is available at harris.com. The Harris logo, assured communications, and Momentum are registered trademarks of Harris Corporation. All other trademarks are held by their respective owners. BR1336B © 2014 Harris Corporation
