UV LightBox ( UV Transilluminator )
UV2020-X, UV2035-X, MGIS2020-X
Operation manual
( Rev. 07-20/2014 )
Royal Biotech - US Office Bioolympics Ltd
9350 Wilshire Blvd, Suite 203, Beverly Hills info@bioolympics.com
CA 90212,USA Tel +1-805-309-0329
Tel : + 1-424-204-1738 Fax +1-805-285-5460
Bioolympics UV LightBox ( UV Transilluminator ) UV2020-X, UV2035-X, MGIS2020-X Operating manual Section 1 Safety Warning, Caution ………………………………………. 1 Section 2 Specification …………………………………………………….. 4 Section 3 Product overview ……………………………………………….. 6 Section 4 Installation ……………………………………………….………. 7 Section 5 Operation ………………………….......................................... 8 Section 6 Maintenance …………………………………...……………….. 11 Section 7 Trouble Shooting ………………………………………………… 12 Section 8 UV tube replacement ………………………….………………… 14 Section 9 Customer and Technical Support ………………………………. 17 UV LightBox Manual , Rev 07-20/2014 ( UV Transilluminator )
Bioolympics
1) Safety Caution & Warnings
Caution – means the contents Warnning- means the contents
may get hurt or cause the system may results in death or serious
! damage ! hurt
! The symbol indicate must be follow The symbol indicate must be inhibited
This symbol defines a potentially hot
The symbol means stop to use, touch
surface. Use caution when working near
or installation
these areas to avoid bodily injury
The symbol inhibit to touch, may get This symbol is used to indicate that non-
contamination from dangerous compliance with instructions may lead to
chemical solutions. injury or even death
The symbol indicate the system of The symbol means some area is danger-
power source need to connect with ous will lead to fire. Keep flammables
earth for safety and combustibles at a safe distance.
1. UV light box only turn on when start to capture images or view the gel and must be turn off
immediately after job is finished, UV can’t light up when it is not in use. Any mistake on
! operation and light up for a long time will cause the UV glass filter ( black glass) degrade on
its UV transmission. The replacement of UV glass filter is expensive.
2. UV light box can not light up all the time, switch on when use and switch off immediately
when not in use. Any mistake on operation will lead to light intensity of UV tubes degrade
! and weak , even results in short life time and earlier to replace new UV tubes
3. UV light box is a dangerous light source. User can’t expose under this light or illustrate to
eyesand skin directly. Over expose to UV light will cause seriously damage on user’s eyes
! and skin eg. blind, suntan, skin cancer. Protect your eyes and skin with UV resistant
goggle and face shield
4. Use the DNA dye EtBr ( Ethidium Bromide ), must pay attention on free from contamination
Don’t contaminate with user and machine body. The dye solution is high binding chemical
with human skin or any part of body will lead to DNA mutation and cause any diseases e.g.
cancer. Use this kind of DNA dye solution must follow up the safety precaution of the
instruction manual of chemical supplier . Any user or service engineer must wear gloves
when touch the system. The best protection rule will be one hand wear with glove and the
other hand without glove and touch the contaminate area e.g. UV glass filter ( deep blue
color ) and DNA gel with glove hand, the other clean hand touch with other clean parts of
the system, in order to keep all the system area is clean and safety. Don’t forget that is
inhibit to use the glove hand to touch other area of the machine except the UV glass filter
area .
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )
Bioolympics
1) Safety Caution & Warnings
5. Use the DNA dye Sybr Green or other similar safe dye e.g. Sybr Safe , Sypro Orange, Sypro
Ruby etc. although most of these dye are low mutagenic , but still highly recommend to wear
glove take gels and touch UV filter glass area and pay attention on free from contamination
Use this kind of DNA dye solution must follow up the safety precaution of the instruction
manual of chemical supplier . Any user or service engineer must wear gloves when touch
he system. The best protection rule will be one hand wear with glove and the other hand
without glove and touch the contaminate area e.g. UV glass filter ( deep blue color ) and
DNA gel with glove hand, the other clean hand touch with other clean parts of the system,
in order to keep all the system area is clean and safety. Don’t forget that is inhibit to use
the glove hand to touch other area of the machine except the UV glass filter area.
6. Use correct voltage and current outlet.
!
7. Disconnect from power supply before maintenance and servicing. Refer servicing to qualified
! personnel.
8. The unit described in this manual is designed to be operated only by trained personnel. Any
! adjustments, maintenance or repair must be carried out as defined in this manual, by a
person qualified to be aware of hazards involved.
9. The covers of the electronic ballast should only be removed by personnel who have been
trained to avoid the risk of electrical shock.
10. Any suspected that safety protection has been impaired in any way or feeling of electrical
shock even weak on any parts of the machine , then the unit must be made inoperative
and secured against any intended operation. The fault condition should immediately be
reported to the appropriate servicing authority for detail checking
11. Only put the wet gel on the center of black glass filter, please wipe the wet area to dry with
clean wipe paper ( e.g. lens clean paper) and also keep the glass filter dry after use. Don’t
let the gel dye solution residue stay on the glass or spread to every where of the system. It
may be lead to un-revival dirty background filter, system short circuit damage and electronic
shock.
12. Pay attention on the following electronic safety which will maybe lead to short circuit, over
heat, fire, electronic shock.
1) power plug is not fix or insert completely into the power outlet socket
2) manifold have many power cable inserted and over loading ( don’t over manufacture
specification for power consumption )
3) power cable damage, drag, modification. ( prohibit these damage )
4) ensure insert the power plug into the socket which connect with earth).
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )
Bioolympics
1) Safety Caution & Warnings
13. The power specification of the system will be difference according to each
! countries regulation. Please check the back label of the machine will
marked with 120V, 60HZ or 220V, 50Hz
Note: Please use 2A fuse in power source 100~120/50~60Hz countries, while 1A fuse
! is for power source 200~220V/50~60Hz countries.
10. Don’t use the power source which is not specified in this manual especially highly
prohibit to use any transformer to increase or decrease the power voltage .
11. Don’t touch the machine with wet hand or naked feet without shoes will lead to
electrical shock dangerous.
12. It is prohibited to release or take off the power plug from the wall power source
socket when the machine is in switch on and standby to use. It is dangerous to
have sparkle and lead to damage the machine or fire.
13. It is prohibited to insert the power plug into the wall power source socket when the
machine switch is in “ on “ position . It is dangerous to have sparkle and lead to
damage the machine or fire.
14. The machine can switch on when start to use, but it need to be turn off immediately
when not in use, otherwise will results in over heat on the machine outside shell and
UV filter glass , will maybe damage the machine and hurt user.
15. Don’t install the machine in the highly humidity and dust environment area . The
parts inside of the machine will lead to electrical shock dangerous.
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )
Bioolympics
2) Specification
Specification
1. Wavelength: 306nm (or 254nm, 365nm)
2. UV View size: 20x20cm (or 20x35cm)
3.Light source: 15W x 6 tubes
4. Light intensity: high & low selectable ( 100% or 30%)
5. Dual wavelength unit has 254 / 365 nm selectable ( without high / low intensity )
6. Fast lighting up: lighting up at once when switch on and no blink
7. Extra magnetic working area for tube rack or operating tool (15x30cm)
8. Big size UV resistant plastic cover 30x34cm ,
9. Cool fan is included to blow out the inner heat which release from UV tubes
10. Safety device: UV leakage indicator will have color change, if UV come out
from plastic cover
11. UV resistant cover can be closed completely by 4 sides to stop UV inside.
12. UV resistant cover can be easily stopped on any angle when open to view
13. UV resistant cover can be fixed on the front side or back side of light box.
14. Size: 50(w) x 32(D) x 15 (H) cm
15. Weight: 11.3 kg
cat. no. UV2020-1 UV2020-2 UV2020-3 UV2020-B
wavelength 254nm 306nm 365nm 254 / 365nm
UV view area 200 x 200mm 200 x 200mm 200 x 200mm 200 x 200mm
high/low intensity O O O X
voltage 120V or 220V 120V or 220V 120V or 220V 120V or 220V
cat. no. UV2035-1 UV2035-2 UV2035-3 UV2035-B
wavelength 254nm 306nm 365nm 254 / 365nm
UV view area 200 x 350mm 200 x 350mm 200 x 350mm 200 x 350mm
high/low intensity O O O X
voltage 120V or 220V 120V or 220V 120V or 220V 120V or 220V
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )
Bioolympics
2) Specification
cat. no. MGIS2020-1 MGIS2020-2 MGIS2020-3 MGIS2020-B
wavelength 254nm 306nm 365nm 254 / 365nm
UV view area 200 x 200mm 200 x 200mm 200 x 200mm 200 x 200mm
high/low intensity O O O X
voltage 120V or 220V 120V or 220V 120V or 220V 120V or 220V
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )
Bioolympics

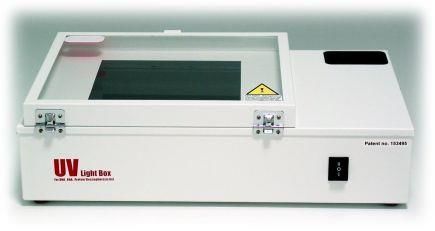

3) Product overview
UV resistant cover
UV Leakage UV filter glass
safety label magnetic area
150x300mm
switch
cover hinge UV Logo
open level
adjust screw UV warning label
hand holder
power socket
cool fan output
rubber pad fuse chamber
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )
Bioolympics
4) Installation
1. Place the machine on a steady, flat table.
2. Set the location away from the sink of laboratory and prevent from water splash
3. Set the location away from the windows and prevent from direct sun light to degrade the
function of machine and also environment bright light will affect the fluorescent DNA
sample detection.
4. Decide the UV resistant cover to be fixed on the front side or back side.
5. Adjust the hinge central screw to moderate tighten in order to let the cover can be stay at
any angle and won’t drop down. Don’t tighten too much.
6. Peal off the transparent plastic sheet on the UV filter glass ( deep blue glass ) . If the
sheet do not peal off, user still can view the DNA bands when start to us in the first 2
weeks, but will not see anymore when the sheet is changed to a little bit yellow color
7. Peal off the transparent plastic sheet on the UV resistant cover when start to use
8. Keep the machine back side at least 10cm from the wall to let the cooling fan blow out the
heating air from the inside of machine
9. Keep the bottom of the machine clear for air inlet freely, don’t set any lab table paper
under the machine , otherwise will stop the air circulate.
10. Connect the power cord to the power socket in the rear of the machine and make sure the
plug is fully insert to the end.
11. Connect the power cord to the power socket in wall and make sure the plug is fully insert
to the end.
12. Check the power source on the lab wall socket is compatible with your machine’s fuse
rating input, is 115V or 220V
UV LightBox
side view
clockwise to tighten
counterclockwise to loosen
cover can stay in any angle and won’t drop
down , convenience for gel cutting job
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )Bioolympics
5) Operation
1. Open the cover to stand up position
2. Set the DNA gel on the UV filter viewing area
3. Close the cover
4. Switch on to view the sample bands :
single wavelength UV LightBox : dual wavelength UV LightBox :
II = up = high UV intensity II = up = 254nm or 306nm
I = low = low UV intensity I = low = 365nm
high 254 or 306nm
II II
off O off O
low I 365nm I
5. finish, set the switch to “O”
Caution:
1. Must turn off the UV light box after watching gel. The life of the UV filter glass
will be decrease , if the UV light continuous lighting on, so please don’t forget to
turn off the box after used.
2. UV light box is a dangerous light source. User can’t expose under this light or
illustrate to eyes and skin directly without protection. Over expose to UV light
will cause seriously hurt on eyes and skin e.g. blind, suntan, skin cancer.
3. Highly recommend when user access the UV LightBox:
Protect eyes and skin with UV resistant goggle and face
! shield when use the machine, also close down the UV
resistant cover
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )Bioolympics
5) Operation
Caution : !
1. The color of fixed UV light indicator label on top left corner will be changed
from white to red, if the plastic transparent UV resistant cover fail to block
UV, then the transparent UV resistant cover need to be replace.
2. Another UV light indicator label is not fixed locate in the right front corner
of the machine plastic bag , user can check the UV resistant cover any time
for safety.
Usage procedure:
1. Place the UV light indicator label on the black UV filter glass ( white side
face up), turn on UV Light Box, then you will see the color change ( white to
red and word UV PASS) that means the label is still work and valid.
2. Place the light indicator label on top of the plastic UV resistant cover
(white face up) when the cover is in close position, turn on UV Light Box
and see whether or not the color change. It should be no color changed
under normal condition, if color change and see the back side words “ UV PASS”.
That means has UV light penetrated the protect cover. The cover should be
replace.
3. If the indicator label not work or no color change when it is exposed on UV light,
then It should be replace a new one. ( Life of light indicator: 500 sec. )
UV LightBox Manual , Rev 07-20/2014
( UV Transilluminator )Bioolympics
5) Operation
Other function:

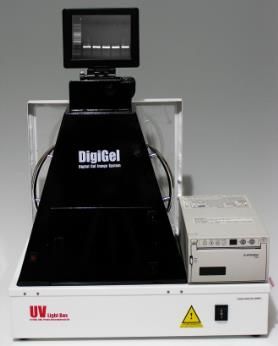

1. Cover can be fix on front side or back side when combine with other Gel
documentation e.g. DigiGel or VideGel
2. User need to open and pull up the UV resistant cover and face the
UV box behind the cover and even adjust the cover level with any
angle for convenience to see the gel.
Caution:
User need to wear the UV resistant
goggle and the face shield when UV
working in this dangerous light
Multiple protection will be more safe
and essential.
3. More space on the right side :
Accommodate other upgrade products
e.g. Mitsubishi or Sony thermal printer.
That can save laboratory bench space
when all of Gel documentation components
come together. Magnetic pad can fix
steel tube rack or other cutting tools.
UV LightBox Manual , Rev 07-20/2014 < 10 >
( UV Transilluminator )Bioolympics
6) Maintenance and safety:
1. Clean the outside of UV Light Box by wiping with a clean , dry cloth. Never
use harsh or abrasive cleaners or organic solvents on the UV Light Box or
any of its parts.
2. Clean the black UV filter glass with clean water and wipe the surface gently
with a clean soft, lint-free cloth. Never use organic solvents to clean
surface. Don’t let Agarose gel stay on the UV filter glass after use,
otherwise the gel will dry and stick on the glass.
3. Don’t have pressure on the UV filter glass. It will damage the expensive
glass filter .
4. Caution: In order to avoid electrical shock , the protective ground conductor
of power cord must be connected to ground.
5. Use the commercial EtBr decontaminate spray solution to clean the main
body of the light box.
6. Place a UV transparent plastic plate on the UV filter glass when cut a gel,
don’t direct operate or cut on the surface of the filter glass.
7. Use a brush to clean up the dust of the fan output net which located on the
back side of the machine.
UV LightBox Manual , Rev 07-20/2014 < 11 >
( UV Transilluminator )Bioolympics
7) Trouble shooting :
Symptom Probable Causes Solution
UV light and fan are not 1. power plug do not insert to the 1. fully insert the power plug
activated when switch on machine power socket fully to to the end of machine
the end. power socket.
2. power plug do not insert to 2. fully insert the power plug
the wall power socket fully to the end of wall power
to the end. socket.
3. fuse damage 3. replace fuse
120V -- 2A
220V -- 1A
100-240V – 2A
UV light and fan are not 1. power plug do not insert to the 1. fully insert the power plug
activated when switch on, machine and wall power socket to the end of wall and
new fuse fully to the end machine power socket
damage repeatedly 2. the voltage of wall power socket 2. choose a correct wall
do not match the machine power power voltage to connect
voltage sepc. e.g. 120V machine 3. stop to use immediately
connect with 220 wall power and unplug the power
3. some of machine parts fail . cable, contact with local
distributor for service
Gel image is very weak 1. the stain time of gel is not 1. extend the gel stain time
after CCD capture, even enough. more.
viewing actual gel when 2. one or more UV tubes fail to light 2. replace new UV tube,
wear UV resistant goggle on prefer to change all of UV
and face shield. 3. there are transparent plastic tubes, in order to get
sheet cover on the UV filter glass homogeneous UV
affect the UV transmission intensity.
3. peal off the plastic sheet.
Black Glass UV filter 1. ever give a pressure or hit on the 1. stop to use immediately
rupture UV filter glass prevent buffer drop into
the machine internal
parts will lead to electrical
shock dangerous
2. contact with local
distributor for service
there are dry gel stick on 1. did not remove the gel and clean 1. wet a few pieces of soft
the Black glass UV filter can the filter glass too long after use tissue paper cover on the
not wipe off or clean result in gel dry and binding on filter glass over night and
the surface of glass use soft detergent to
clean it.
UV LightBox Manual , Rev 07-20/2014 < 12 >
( UV Transilluminator )Bioolympics
7) Trouble shooting:
Symptom Probable Causes Solution
some of UV tubes work and 1. The tube life is reach need 1. please follow the
some of tubes do not work, need to be replaced procedure of section
but fan is normally work 8 to replace or call l
local distributor for
2. replace new UV tube,
prefer to change all of UV
tubes, in order to get
homogeneous UV
intensity.
UV resistant cover can not 1. the central crew of the 1. adjust the central screw
fix on expecting angle hinge is loosen of the hinge
2. the hinge is damage to moderate tension
2. replace a new hinge
UV leak indicator not 1.Ultraviolet leak indicator 1. call local distributor for a
working, put on the filter repeat too many times and new one replacement
glass UV, can not see the loss activity
back letters when light on
put the UV leak indica-tor 1. Failure of UV-resistant cover 1. Please stop using it
on the top of UV-resistant immediately
cover clearly see the back 2. Contact the local
letters with red background distributor to replace the
when UV light turn on UV-resistant transparent
cover
Black Glass UV filter 1. do not immediately wipe the 1. With soft detergent
surface with many stains black glass after viewing the gel, cleaning several times to
cannot be removed wet liquid buffer stay on glass remove, if it would affect
top too long image capture,
recommend to contact
manufacturer or local
distributor for new black
UV filter replacement
2 edge UV tubes or middle 1. Failure of the 2 tube electronic 1. contact manufacturer or
4 UV tubes can not light on ballast or 4 tube electronic local distributor for new
when switch on , but fan ballast electronic ballast
can work normally. The 2. Failure of the wire connection to replacement
problem still can not solve the ballast
after new tubes replaced
UV LightBox Manual , Rev 07-20/2014 < 13 >
( UV Transilluminator )Bioolympics
8) UV tube replacement :
Caution : UV tubes is dangerous light !
Wear the UV resistant goggle and face shield
UV light box is a dangerous light source. User can’t expose under this light or illustrate to eyes
and skin directly without protection. Over expose to UV light will cause seriously hurt on eyes
and skin e.g. blind, suntan, skin cancer.
Step :
1. take off the power plug from back left
socket
2
2. release the screws of 4 edges
3. remove the UV resistant cover
背面
4. remove the UV filer glass frame.
( be careful, expensive )
5. take off each UV tube
1
6. replace with new UV tube and rotate
to fix position.
7. test :
wear UV resistant goggle and face shield
insert the power plug into socket end.
3
switch on to upper position ( II )
confirm each tube can be light up
switch off to middle position ( O )
正面
4
disconnect the power plug
8. return the UV filter glass frame to its
original position.
9. return the UV resistant cover to its
original position
10. fix 4 edges screws of frame and cover
11. insert the power plug in the
back power socket.
12. switch on to upper position ( II )
confirm again each tube can be
light up, then switch off to middle
position ( O ) out in 6
5
END fan
switch
UV LightBox Manual , Rev 07-20/2014 < 14 >
( UV Transilluminator )Bioolympics
8) UV tube replacement :
rotate tube 45o
release tube
rotate tube -45o
back to original position
UV LightBox Manual , Rev 07-20/2014 < 15 >
( UV Transilluminator )Bioolympics
8) UV tube replacement :
each model UV tube format
UV2020-2
UV2035-2
MGIS2020-2
UVB / 306nm , 6 tubes
(white), 15W
single
wavelength UV2020-1
UV2035-1
MGIS2020-1
UVC / 254nm , 6 tubes
(transparent), 15W
UV2020-3
UV2035-3
MGIS2020-3
UVA / 365nm , 6 tubes
(dark blue), 15W
UV2020-B
UV2035-B
dual MGIS2020-B
wavelength UVA / 365nm, 2 tubes
(dark blue), 15W
UVC / 254nm, 2 tubes
(transparent), 15W
UV LightBox Manual , Rev 07-20/2014 < 16 >
( UV Transilluminator )Bioolympics 9) CUSTOMER AND TECHNICAL SUPPORT: Bioolympics Ltd 2945 Townsgate Road, Suite 200, Westlake Village CA 91361 USA info@bioolympics.com Tel +1-805-309-0329 Fax +1-805-285-5460 Royal Biotech - US Office 9350 Wilshire Blvd, Suite 203, Beverly Hills CA 90212,USA Tel : + 1-424-204-1738 UV LightBox Manual , Rev 07-20/2014 < 17 > ( UV Transilluminator )
You can also read
