PHAU00805103 ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL SE5 0XQ - Southwark Council
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
Asset Identifier PHAU00805103
Address ABERFELDY HOUSE, 29-155,JOHN
RUSKIN STREET,BRANDON
ESTATE,CAMBERWELL
Post Code SE5 0XQ
Code FRA-PB
Version 13
Description FRA-PURPOSE BUILT BLOCKS
Assessment Date 01/04/2020
Assessment Version Current
Assessor Name Paul May
Produced using Rowanwood Apex Health and Safety1 CONTENTS 1.1 Contents ...................................................................................................................................... 1.1.1 Contents - 1.1.2 Introduction - 1.1.3 Summary - 1.1.4 General Building Information - 1.1.5 Maintenance Schedules - 1.1.6 Fire Hazards and their Elimination and Control - 1.1.7 Fire Protection Measures - 1.1.8 Management of Fire Safety - ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 2/25
2 INTRODUCTION
2.1 Introduction
......................................................................................................................................
2.1.1 Introduction -
This Fire Risk Assessment (FRA) has been carried out by a competent Fire Risk Assessor on
behalf of the Responsible Person (Southwark Council) in accordance with Article 9 of the
requirements of the Regulatory Reform (Fire Safety) Order 2005 (FSO). This report is an
assessment of the risk to life from fire and does not address the risk to property or business
continuity from fire.
In compliance with the scope of the FSO this FRA is limited to the common areas of the
premises. The site survey undertaken to produce the assessment is limited to a TYPE 1 (non-
destructive) survey of common areas only, in accordance with the Responsible Person`s
instructions.
However, where it is deemed relevant, a sample dwelling(s) will be inspected to determine its
relationship and dependence on the common areas to understand the nature of fire separation
between dwellings and common areas.
Further investigation may be required by qualified and competent individuals to ascertain the
appropriate fitment and fire protection of encased shafts, ducts, risers or voids where a
sampled non-destructive flat survey cannot confirm this.
In accordance with the limitations of the FSO risk assessment; this report does not include an
assessment of external flame spread unless it is identified as impacting on the fire safety of
common areas. However, the report may make reference to such issue and/or recommend
further investigation and assessment if it has been identified as being relevant to the overall
fire safety of the premises.
Where appropriate, the FRA will make recommendations to ensure compliance with relevant
fire safety legislation. However, it should be understood that this assessment does not replace
the Council's other obligations to carry out fire safety assessments such as those required by
the Health and Housing Safety Rating System (HHSRS) assessment to dwellings under
section 9 of the Housing Act 2004.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 3/253 SUMMARY
3.1 Summary
......................................................................................................................................
3.1.1 Risk Rating LOW MODERATE
Trivial: These risks are considered acceptable. No further action is necessary other than to
ensure that the controls are maintained.
Tolerable: No additional actions are required unless they can be implemented at very low cost
(in terms of time, money and effort). Actions to further reduce these risks are assigned low
priority. Arrangements should be made to ensure that the controls are maintained and
monitored
Low Moderate: Consideration should be given as to lowering the risk where applicable, to a
tolerable level, and preferably to a trivial level, but the costs of additional risk reduction
measures should be taken into account unless these are managerial issues. The risk reduction
measures should be implemented within a defined time period. Arrangements should be made
to ensure that the controls are maintained and monitored.
High Moderate: Considerable efforts should be made to reduce the risk to a tolerable level, and
preferably to a trivial level, but the costs of additional risk reduction measures may be taken
into account unless these are managerial issues.
The risk reduction measures should be implemented within a defined time period.
Arrangements should be made to ensure that the controls are maintained and monitored.
Substantial: Substantial efforts should be made to reduce the risk. Risk reduction measures
should be implemented urgently within a defined time period. Consideration should be given to
suspending or restricting the use, or to apply interim control measures, until this has been
completed. Controls should be maintained and monitored. Consideration should be given to
consulting with the Enforcing Authority.
Intolerable: These risks are unacceptable. Substantial improvements in risk controls are
necessary, so that the risk is reduced to a tolerable or trivial level. The activity should be halted
until risk controls are implemented. If it is not possible to reduce risk the activity should remain
prohibited. Enforcing Authority must be consulted.
3.1.2 Next Physical Assessment Due 2021
3.1.3 FRA Type PB
3.1.4 Storeys Ground and Above 8
3.1.5 Storeys Below Ground 0
3.1.6 Units 31
3.1.7 Status COMPLETE
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 4/253 SUMMARY
3.1.8 Building Dimensions. Length, width and height.
60m x 12m x 15m to highest accessible communal floor plate.
3.1.9 List any tasks that once completed can reduce the risk rating
of this assessment.
Owing to advice given by Government relating to the Coronavirus pandemic Southwark
Council has implemented certain measures with regards to undertaking Fire Risk
Assessments. This will limit the scope of the assessment to the communal areas of a
residential block, and will not include any information on systems within individual residences
to avoid increasing the exposure of the surveyors to the virus. Assumptions will not be made
relating to the level of passive fire protection or automatic fire detection systems in dwellings,
so any areas relating to these aspects that are deemed to be a concern but cannot be
sufficiently determined at the time, should be highlighted as such to ensure they are assessed
as soon as is practicable following a return to normal operations.
The overall risk rating for the building has been deemed as 'low moderate'. There are two
areas related to the same concern that have been classed as 'high' risk and this relates to the
timber cladding and infill feature on the external facades. Ordinarily this would denote a 'High
Moderate' rating but in this case it is not linked directly to the risk of fire starting and adversely
affecting the internal escape route(s) to the detriment of the population of the building. People
should still be able to evacuate the building internally should a fire begin on the external aspect
of the building.
Ideally and more importantly, the timber classing, spandrel and infill features will be removed
which is believed to be the intention from LBS. Until then, the measures advised are to assess
the localised concerns such as the LPS fixed to the cladding and the lack of effective
separation between the garages and facade at the rear. Until the cladding in its entirety is
removed it may be necessary to undertake measures to safeguard against fire spread using
appropriate products which must be undertaken by an approved, accredited contractor. This
includes consultation of the highlighted concerns which will then form the basis for remediation
if that is deemed necessary.
The internal aspect is very simple in terms of layout and with little in the way of intrinsic fire
risk. The flats in any building are often the primary source of fire and as far as assessed
(limitations taken into account) the door sets and general state of the fabric of the building are
of a good standard. The previous FRAs have highlighted the heating service risers as a
concern requiring FD30S fire doors to be installed, this would equate to a large number of such
doors at a huge cost which would not result in much benefit to the PFP in the escape routes.
The service riser spaces are required to be sound in regard to construction (ablative coated
batt has been used in the top of the risers) and where sampled collars have been used on the
larger pipes (this has not been verified just visually assessed).
The chances of a fire starting in any of the riser spaces is very low as there is no risk or fire
loading within. However, it is important to ensure separation between the flats and risers to
avoid fire spread via this route. The doors to the heating risers should therefore be serviceable,
robust secure doors that can be locked when not in use.
3.1.10 Does this assessment require a review? Yes No N/A
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 5/254 GENERAL BUILDING INFORMATION
4.1 General Building Information
......................................................................................................................................
4.1.1 Building information
This address range forms part of a larger estate of identical blocks that are part of the same
estate. This premises (subject to the FRA) is accessed from an end of elevation stair and lift
core and is structurally separated from the sister block that forms part of the overall footprint.
The design and construction of the premises is typical formed of a concrete frame and floor
plates (slab design) under a flat roof with garages located on the ground floor level. The
internal stair and lift shaft are formed of concrete. The building includes service rooms/spaces
and risers that are part of the original design concept and are located internally from the
circulation areas.
The internal design/means of escape is based on secondary MOE for the flats which are
maisonettes. The ground floor flats have access to gardens, the sixth floor flats have an
alternative external MOE leading to the lift lobby on that level. All other maisonettes have
internal routes that lead to the corridor above or below according to the location of the flat. The
doors that form the final exit from these SMOE are FD30S and secured closed with no opening
mechanism on the external side for security reasons.
The internal horizontal travel distances are not acceptable according to current standards,
however, at the time of construction and with the secondary means of escape for all dwellings,
this can be considered mitigated and poses no issue. The refuse arrangements for each floor
consists of a small dedicated room housing the refuse hopper opening into the chute that then
leads to a ground floor refuse room. The room is provided with permanent ventilation and is
separated from the corridor by a metal frame and safety glazing bulkhead.
Doors that form part of the original design concept open onto the half landings in the stairway.

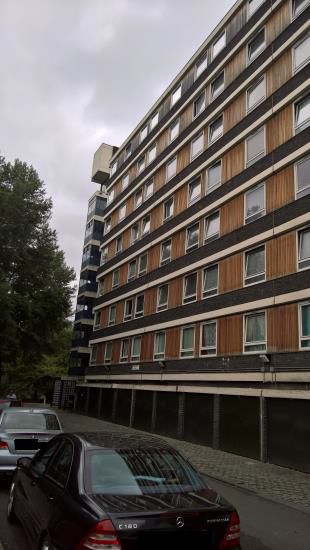

These doors are no longer needed and are not in use. The external aspect of the building
consists of timber spandrel panels between uPVC casement windows. This feature is
consistent for the entire height of the building. On the rear elevation are balconies that have
timber panels in place as a cosmetic feature. The timber infill panels and spandrels have, in
some cases, have had lightning strips fitted directly onto the material which will be raised a s a
concern in the relevant section of this FRA.
4.1.2 Any further building comments?
This is a type 1 fire risk assessment which focuses on the shared means of escape and
samples the FED's (flat entrance doors) where possible. The internal and external aspect is
assessed to determine if the general means of escape are adequate and unobstructed.
In addition to the external aspect the assessment also considers if any immediate external fire
risks are present that may potentially adversely affect the property should a fire break out. This
relates predominantly to refuse/recycling bins as well as unkempt shrubbery that may promote
external fire spread and areas where obvious signs of anti social behaviour are taking place.
The primary focus of the FRA is the active and passive fire safety provisions where applicable.
The assessment considers the shared means of escape from the FEDs to the final exit but will
also sample the flat doors where possible to determine the type of doors within the stair core
that open onto the vertical and horizontal escape route(s) if relevant to the building design.
There has been no information provided to the surveyor or FST pre survey of any individual(s)
that require a PCFRA or need to be considered as higher than normal risk in regard to being
able to self rescue from their dwelling if that is appropriate. The surveyor will consider the
occupants as ‘General Needs’ and conduct the survey accordingly.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 6/255 MAINTENANCE SCHEDULES
5.1 Maintenance Schedules
......................................................................................................................................
5.1.1 Maintenance Schedules
All equipment relating to fire fighting and fire protection in the building are subject to scheduled
maintenance which is recorded and stored off site. This maintenance will be in line with the
requirements and test methods as given in the relevant British standard. Where no such record
exists or where maintenance has not been undertaken (or carried out appropriately), the
surveyor will make comments in the relevant section. This survey will be updated in the near
future to provide the last test dates for all active fire safety measures installed in this building.
Dry/Wet Riser - Annual Wet Test - 12-Nov-19
Dry/Wet Riser - Visual Inspection - 12-Nov-19
Electrical Periodic Inspection Rep. - 18-Feb-17
Lightning Protection Test - 15-Aug-18
-
-
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 7/256 FIRE HAZARDS AND THEIR ELIMINATION AND
CONTROL
6.1 Electrical Sources of Ignition
......................................................................................................................................
6.1.1 Are there reasonable measures taken to prevent fires of Yes No N/A
electrical origin?
6.1.2 Are fixed installations periodically tested and inspected? Yes No N/A
6.1.3 Is the fuseboard/mains intake suitably fire resistant? Yes No N/A
6.1.4 Comments
The electrical intake void is located on the basement level which is dedicated to this
installation. The intake room is part of the fabric of the building formed of brick elevations and
concrete floor plates under the stairway.
The room is protected by a modern FD60S door set which is locked and signed accordingly. A
secure metal door set is in place to protect the apparatus within as well as prevent
unauthorised use of this space.
Southwark Council undertake 5 yearly inspections and testing of the landlord's electrical
installation. Records of any testing or maintenance are held on the Council's internal database.
No portable appliances were observed in communal areas which would be subject to PAT
testing.
Portable electrical appliances are used in the common areas by councils own staff and
approved contractors. The council has a system in place for testing its own portable
appliances. Those appliances used by contractors are subject to the contractors own
company's Health and Safety arrangements which are required by the council.
6.2 Gas
......................................................................................................................................
6.2.1 Is there gas supplied in the area of inspection? Yes No N/A
6.2.2 Is gas equipment protected/located so as to prevent Yes No N/A
accidental damage?
6.2.3 Are gas installations and appliances free from any obvious Yes No N/A
defects?
6.2.4 Comments
No observations were made on this inspection of any gas installations which may be prone to
accidental damage or have any defects.
6.3 Smoking
......................................................................................................................................
6.3.1 Is there evidence of smoking in areas where this has been Yes No N/A
prohibited?
6.3.2 Comments
No evidence of smoking in the internal common areas was observed at the time of inspection.
Smoking in the communal areas is not permitted, however it is understood that residents may
smoke within their own dwellings. No Smoking signs have been installed.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 8/256 FIRE HAZARDS AND THEIR ELIMINATION AND
CONTROL
6.4 Arson
......................................................................................................................................
6.4.1 Does basic security against arson from outsiders appear to be Yes No N/A
reasonable?
6.4.2 Is there an unnecessary fire load within the building or in close Yes No N/A
proximity of the premises which is available to ignition from
outsiders?
The previous FRA has highlighted a structure in the garden area of a flat four along from the
entrance. This is not going to be re-raised as the instruction is to remove this or apply
measures to mitigate against a fire involving this structure affecting the timber cladding.
Obviously, that is a concern but it is unreasonable to impact on the residant's home to this
extent especially when other gardens have the potential to contribute to fire loading. The key to
this is the removal of the timber cladding that will reduce the potential for fire spread on the
external elevation completely.
Should a fire begin or spread to this structure it will likely dissipate most of the heat and
products of combustion to open air with radiant or direct application of heat/flame affecting the
cladding at a latter stage of the fire.
As with all residential blocks the RSO should be monitoring (where possible) housekeeping in
the communal areas and where applicable, resident properties such as balconies and to a
lesser extent, gardens.
A task action will be raised to request an RSO to look further into this and determine if the
structure has the potential to directly affect the timber cladding in the event of a fire.
The RSO (if able to gain entry) is urged to gather information and email the FST (FAO Paul
May) with the findings so a more informed decision can be made. Photographs would be ideal.
6.4.3 Is there any shrubbery that needs pruning or removing to Yes No N/A
prevent fire spread if ignited?
6.4.4 Comments
The building has secured access control with key fob and intercom system with a drop key
override to the front of the building and to each residential corridor, which prevents
unauthorised persons from entering the building. At the time of the assessment there were no
signs or evidence of arson or anti-social behaviour within the area.
6.5 Portable Heaters and Heating Installations
......................................................................................................................................
6.5.1 Does the area of inspection have any portable heaters or Yes No N/A
heating installations?
No heating installation provided within the common areas.
6.6 Lightning
......................................................................................................................................
6.6.1 Does the premises have a lightning protection system? Yes No N/A
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 9/256 FIRE HAZARDS AND THEIR ELIMINATION AND
CONTROL
The LPS has, in some areas, been fixed to the timber infill feature located on the external
elevations front and rear. The timber cladding on this building forms part of the balcony design.
The LPS should not be fixed to timber as this poses a potential ignition risk with an aspect of
fire loading. Overtime the timber cladding has become affected by dirt and affected by the
environment making the combustibility more probable.
A task action will be raised to address this concern related to the timber infill/cladding aspect.
At this point, there is an unknown element to the effect that a lightning strike might have on this
timber and so it is deemed prudent to explore this as a potential fire risk.
6.6.2 Comments
The lightning conductor system is inspected and tested annually in accordance with BS EN
62305. All records of such inspecting and testing are held centrally at Southwark Council`s
offices. The issue relating to the LPS being fixed to the timber infill panels is exploratory to
ensure this condition is controlled. A LPS engineer will need to make this assessment and
effectively sign off the current format as acceptable. The timber is, at some point in the future,
due to be removed but as yet there is no time line for this. In the mean time it is prudent to
ensure this condition does not pose an immediate threat relating to fire.
6.7 Housekeeping
......................................................................................................................................
6.7.1 Is the standard of housekeeping adequate? Yes No N/A
6.7.2 Are combustible materials separated from any sources of Yes No N/A
ignition?
This may be potentially linked to the garden structure detailed in section 6.4.2 which has been
addressed awaiting further information. At this time no further concerns were noted.
6.7.3 Comments
All Southwark council properties undergo regular cleaning in communal areas. No storage or
combustibles which would either obstruct or impede escape were observed on this inspection.
6.7.4 What is the housekeeping regime for the premises MANAGED
This type of managerial approach to housekeeping is deemed to be appropriate. The premises
has alternative routes that allows people to bypass the usual corridor means of escape.
However, housekeeping is an essential aspect to the day to day management of the building
and will require continuous monitoring by RSOs and the residents.
6.8 Dangerous Substances
......................................................................................................................................
6.8.1 Are there any hazardous substances in the area of Yes No N/A
inspection?
6.8.2 Are the general fire precautions adequate to address the Yes No N/A
hazards associated with dangerous substances used and
stored on the premises?
6.8.3 Comments
No dangerous substances noted.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 10/256 FIRE HAZARDS AND THEIR ELIMINATION AND
CONTROL
6.9 Hazards Introduced by Contractors or Works
......................................................................................................................................
6.9.1 Are there contractors or works taking place in the area of Yes No N/A
inspection?
6.9.2 Is there satisfactory control over works carried out by the on Yes No N/A
site contractors (including hot works permits)?
6.9.3 Comments
No hot works were being carried out at the time of the inspection with no evidence of any hot
works having been carried out was observed.
Contractors carrying out work at Southwark Council premises are pre-selected from an
approved list. They will have undergone a selection and training process prior to being allowed
to carry out work at council premises. All contractors should receive a permit to work. There
should be no reliance on council staff to perform safety checks on hot works carried out by
contractor
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 11/257 FIRE PROTECTION MEASURES
7.1 Measures to Prevent Fire Spread and Development
......................................................................................................................................
7.1.1 Is compartmentation suitable? Yes No N/A
7.1.2 Is there reasonable limitation of linings that might promote fire Yes No N/A
spread?
7.1.3 Where ducting is provided can it be ascertained if fire Yes No N/A
dampers are provided to prevent the spread of fire through
compartments to protect the means of escape?
7.1.4 Comments
It is considered that the concrete slab and brick/block construction will provide the required fire
separation. However this form of construction is subject to general building conditions of age,
and incorrectly installed/maintained services/works that can lead to smoke or fire spread. For
this standard of construction we deem this risk to be medium to low. Any riser within the
building requires inspection for fire stopping between floors. These risks are continually
monitored through post fire investigation and the void process. The common parts internal
walls are in a good order but it was not possible to ascertain the construction of compartment
walls and floors within the individual flats.
No ventilation ducts were identified in communal areas which would allow the spread of fire or
smoke to other parts of the building. It should be confirmed however that no ducts exist inside
the flats which may allow the spread of fire or smoke to other flats or other parts of the building.
Internal decoration of the stairwell appeared to be emulsion paint onto a concrete surface.
Almost all service riser doors are 54mm (60 minute) rated door sets that are relatively modern
and in good condition. Those door sets are located within protected lift lobbies that are
ventilated and with little to no intrinsic risk of fire. The doors to the heating service risers
located in the corridors are not required to be FD30S door sets as there is no risk within these
riser spaces as long as the internal aspect is sound. Separation between the flats and the
risers is achieved by thermalite block work (or similar) and fire batt that has been installed at
the top of the space. The floor is part of the concrete slab. There is an alternative means of
escape from each flat which will allow the occupants to bypass the affected corridor if it has
been prejudiced by smoke or heat/flame from a flat fire that has breached the riser via an open
penetration.
That being said, it is important that the internal aspect of these risers are inspected regularly to
ensure the construction is sound. The riser next to flat has a damaged penetration point
where a soil pipe passes through the batt at the top. It is recommended this is repaired to
ensure compartmentation.
7.2 Means of Escape from Fire
......................................................................................................................................
7.2.1 Are there adequate provisions for exits in the area assessed? Yes No N/A
7.2.2 Are exits immediately openable where necessary? Yes No N/A
7.2.3 Are the means for securing the exit doors appropriate? Yes No N/A
7.2.4 Is there suitable protection for the escape routes? This is to Yes No N/A
include any glazing.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 12/257 FIRE PROTECTION MEASURES
The corridors and lift lobbies are formed of the natural construction of the building with
additional passive protection in the form of modern sixty minute bulkheads and fire door sets
that separate the lobbies from the corridors. The original design of the internal aspect includes
metal frame and safety glazing partitions between the refuse rooms and corridor. All aspects of
this original construction have permanent vents and openable windows incorporated into the
design.
The corridors have FEDs that are ,mainly, FD30S and relatively modern. Some are secure by
design types and self closing. it is not possible to sample the FEDs at this stage owing to
restrictions placed on the assessment process. All flats have a alternative means of escape
separate from the primary route used daily.
The previous FRA has stated that not all of the protection is adequate and has raised task
actions to replace a great deal of the existing construction with thirty minute protection, this
includes door panels. The chances of sustained application of heat affecting this area of the
route is very low as this is a sterile environment with no fire loading or combustible surface
material.
This is mainly a smoke control measure designed to protect the lift lobby from the products of
combustion should a fire breach an FED. The current level of passive fire protection (PFP) to
the corridors is deemed to be adequate. To undertake the proposed highlighted in the previous
FRA would have a large financial impact with no real benefit or improvement to what is already
in place. The design and construction of the building is such that at no point will any of the
occupants be required to enter an area that is smoke filled, this is why smoke control to the lift
lobbies is imperative.
The stairway is separated from the residential aspect and lift lobbies by sixty minute fire door
sets and the natural construction of the building. The flats do not open onto the stairway or
associated landings meaning the vertical escape route is far less likely to be directly (or even
indirectly) affected by fire or smoke. Permanent ventilation and openable windows are in place
within this vertical route.
The previous task actions will not be re-raised for the reasons stated in this section. The
original TA details; APEX-HSI-1004215 which is the original task number.
7.2.5 Are there any inner room scenarios? Yes No N/A
7.2.6 Are the escape routes free from obstructions or Yes No N/A
electrical/telecom installations likely to give rise to an
obstruction in the event of a fire?
Electrical and media services routed to the flats in the corridors are located within metal
conduits mechanically fixed to the wall and upper floor plate. Conduit within the lift lobbies is a
mix of both metal or plastic. The plastic conduit is not ideal but there is little chance of a
serious fire resulting in sustained application of heat to the plastic.
There is very little intrinsic risk (all electrical distribution apparatus is located behind a fire door
as are other services such as water and the DRM) that will start a fire in the open area and no
fire loading to exacerbate a developing fire. As with all areas in the building, a secondary
means of escape is available to the occupants that will allow them to bypass any affected
areas.
A previous FRA has highlighted the plastic conduit as a fire safety concern. This is not felt to
be the case and the task will therefore not be re-raised. In its current state this aspect of the
internal escape route(s) is deemed to be sufficient. The original APEX task action details;
APEX-HSI-1004218.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 13/257 FIRE PROTECTION MEASURES
Images
7.2.7 Do any doors have additional security grilles or gates fitted Yes No N/A
over the means of escape that will hamper an individual in the
event of a fire?
7.2.8 Where final exit doors are fitted with electrical overrides to Yes No N/A
open will this door open in the event of an electrical failure?
7.2.9 Do the travel distances in the common areas comply with Yes No N/A
those escape distances specified in current/previous building
regulations?
7.2.10 Comments
The building is designed to allow for a single direction of escape from all of the FEDs (and
alternative routes within the flats) to a final exit and ultimate safety.
The internal layout is simple with no protracted route to any aspect within the building that may
potentially confuse evacuating occupant(s). In that regard directional signage is not considered
necessary as the natural day to day access/egress is the primary escape route. However,
directional signage has been installed and is comprehensive.
The fabric of the internal aspect is brick and concrete with no openings or penetrations (other
than the FEDs) such as glazing features above the doors that can be considered as a potential
'weak point' in the protected escape route requiring a specific application of fire safety to
support an evacuation. Service riser doors are within ventilated lobbies and those that are
located in the residential corridors housing water pipe systems and plumbing with sterile voids.
The horizontal means of escape from the flats are ventilated by permanent open vents at the
storey exit end and openable windows at the end of elevation. The level of permanent
ventilation is adequate as there are secondary means of escape from all dwellings mitigating
the need for anybody to have to pass through a smoke filled environment to evacuate the floor
or building.
The stairways are remote from the flats and should therefore be at a safe distance from what is
deemed to be the primary risk of fire which are the flats. The vertical means of escape are
concrete, sterile and with very little to no intrinsic risk.
7.3 Emergency Escape Lighting
......................................................................................................................................
7.3.1 Is Emergency Lighting provided and if so is there full Yes No N/A
compliance?
7.3.2 Comments
Emergency lighting has been installed within the building. It must be assumed that it is installed
in line with BS5266: Pt. 1: 2016.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 14/257 FIRE PROTECTION MEASURES
Images
7.4 Fire Safety Signs and Notices
......................................................................................................................................
7.4.1 Is there reasonable provision for all notices? Yes No N/A
Fire action notices are displayed in each lift lobby. Managerial signage such as No smoking is
also displayed where required. Important signage such as directional is in place to support an
evacuation especially from areas that may not be well known to occupant or visitor such as the
alternative external route from the top floor maisonettes.
Fire doors that are required to be locked or shut are signed. This includes only some of the
door sets to the heating risers. Most of the doors are open or unsecured and showing signs of
being forced open which will require some sort of managerial signage to remind contractors to
close and lock the doors after use. The doors are not fire doors and are not required to be,
however, signs of this nature will help to avoid future unauthorised access and storage as well
as accidental or malicious damage to the contents.
7.4.2 Is there suitable signage for automatic, self closing and locked Yes No N/A
fire doors?
This relates to the heating riser doors detailed in the previous section.
7.4.3 Is the fire action notice fitted in the correct area and displaying Yes No N/A
the correct information?
7.4.4 Are the 'No Smoking' signs fitted and are there sufficient Yes No N/A
notices?
7.4.5 Have 'areas of special risks' such as boiler rooms, oil Yes No N/A
transformer rooms, switchgear rooms and telecommunication
rooms been appropriately signed?
7.4.6 Comments
Directional escape signage is fitted throughout and is considered acceptable. Managerial
signage such no smoking and 'fire door keep locked' are in place where assessed. The
requirement for a fire action notice is not important in a general needs block such as this where
the occupants will naturally gravitate to the access/egress points which are used daily.
There is no orchestrated evacuation strategy which can be formulated and practiced and so
FANs, although beneficial, are not considered to be essential for all areas. If person(s) are
either directly or indirectly affected by fire they will evacuate accordingly via the normal escape
routes without requiring instructions to do so. This includes any alternative escape routes that
are not on the primary circulation areas where way finder signage is most important.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 15/257 FIRE PROTECTION MEASURES
Images
7.5 Means of Giving Warning in Case of Fire
......................................................................................................................................
7.5.1 Does the common area of the building have an automatic Yes No N/A
detection and warning fire alarm system?
7.5.2 Is the extent of the detection fitted appropriate for the Yes No N/A
occupancy and fire risk?
7.5.3 Is there the remote transmission of alarm signals to an Alarm Yes No N/A
Receiving Centre in place?
7.5.4 Comments
In Line with normal practice for purpose built and converted residential blocks designed to
facilitate a ‘defend in place’ evacuation strategy there is no need for communal automatic fire
detection and alarm system to be fitted in the building. Such a system is not normally required
for purpose built residential blocks and is not required under the Building Regulations 2010,
other than to activate any automatic opening vents.
7.6 Smoke Ventilation Requirements
......................................................................................................................................
7.6.1 Is it considered that the premises has been provided with Yes No N/A
reasonable means of smoke ventilation in the event of a fire?
7.6.2 Is the building ventilated naturally? Yes No N/A
There are elements of permanent vents in the lift lobbies, corridors and refuse rooms.
however, this is not natural ventilation in the same way as an open balcony building design and
is a small part of the buildings fabric in regard to area.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 16/257 FIRE PROTECTION MEASURES
Images
7.6.3 If permanently ventilated in the common area is there Yes No N/A
sufficient free area?
7.6.4 If permanently ventilated in the stair is there sufficient free Yes No N/A
area?
7.6.5 Are vents/openings obstructed in any location where they are Yes No N/A
required?
7.6.6 Is the building ventilated naturally by AOV's, shutters or Yes No N/A
doors?
7.6.7 Are detectors that operate AOV's, shutters and vents silent Yes No N/A
operating?
7.6.8 Is the building ventilated by a mechanical smoke extraction Yes No N/A
system?
7.6.9 Comments
Smoke ventilation is considered to be adequate for a building of this design. The horizontal
escape routes are influenced by permanent vents as is the refuse rooms that are separated
from the corridors by a FD60S SC door set and bulkhead.
The stairway has PV's on each half landing. The lift lobbies have PV's and manually openable
windows to assist with smoke dispersion if required. Residents can opt to use the secondary
means of escape from their flat if the horizontal route from the FED is smoke filled.
The building met the benchmark standards of the day at the time of construction whereby
extended travel distances and cross flow ventilation were negated by the provision of
alternative means of escape from each dwelling, subsequent installation of AFD/FED
replacement has provided early warning and extended safe evacuation time thus the building
is considered to be adequately ventilated where required.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 17/257 FIRE PROTECTION MEASURES
7.7 Fire Brigade Access and Facilities
......................................................................................................................................
7.7.1 Is there suitable access for fire appliances with adequate Yes No N/A
provision for a turning circle, hammerhead or other point a
vehicle can turn if required?
7.7.2 Are there any obstructions in the form of a gate, bollards or Yes No N/A
removable posts that may hinder appliance access?
7.7.3 Is the building fitted with either a wet or dry rising main? Yes No N/A
7.7.4 Is the hose distance to the riser or dwelling acceptable? Yes No N/A
7.7.5 Does the front entry door have a firefighter's override? Yes No N/A
7.7.6 Is the current access provision suitable and sufficient for Yes No N/A
firefighters? Is there an inappropriate level of security before
entry is made into an affected dwelling by Firefighters?
7.7.7 Where locked do all firefighting facilities have FB locks? Yes No N/A
7.7.8 Are firefighting lifts installed? Yes No N/A
7.7.9 Do the lifts in the area inspected have firefighting overrides? Yes No N/A
7.7.10 Where fitted are all wet/dry riser outlets and inlets accessible? Yes No N/A
7.7.11 Is there suitable signage for firefighting facilities that would Yes No N/A
allow for effective use during firefighting operations?
7.7.12 Where panels are fitted for smoke ventilation and fire alarm Yes No N/A
systems-have zonal charts been sited in a prominent position
which have easy to follow instructions and are accurate?
7.7.13 Does the building signage give correct directions to dwellings Yes No N/A
in an emergency?
7.7.14 Where fitted does the Premises Information Box contain the Yes No N/A
correct and relevant information?
7.7.15 Comments
Access to the building envelope is not an issue. There is signage denoting the location of the
DRM inlet and additional signage to that affect on each level regarding outlets. Security to the
building is standard with fire fighter overrides on each floor. There are no concerns related to
fire fighter access in or around this building.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 18/257 FIRE PROTECTION MEASURES
Images
7.8 Fire Doors
......................................................................................................................................
7.8.1 Are all dwelling front entry doors and hardware (where Yes No N/A
required) compliant with certification carried out to BS476-
22/BSEN 1634-1 or of a suitable notional value? (Consider
seals and strips)
There is currently a restriction in place to the sampling of the FEDs. However most seem to be
sound from a visual assessment. The letter plate to FED flat is missing. This is a spring
loaded smoke control flap and forms part of the PFP to the door set. Although this is not a
serious concern it is necessary to ensure the letter plate is complete to provide adequate
protection to the escape route. As there is an alternative means of escape this is not a primary
escape route.
7.8.2 Are all cross corridor, stair and lobby doors certified to a test Yes No N/A
regime under BS476-22 or BS EN 1634-1 or of a suitable
notional value?
All such door sets are FD60S and self closing.
Images
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 19/257 FIRE PROTECTION MEASURES
7.8.3 Are all electrical intake/boiler/utility service room doors Yes No N/A
suitably fire resistant as tested under the BS476-22 or BS EN
1634-1 regime or of a suitable notional value?
7.8.4 Are all ancillary doors (in escape routes) suitably fire resistant Yes No N/A
as tested against BS476-22/BS EN 1634-1 or of suitable
notional value?
7.8.5 Are all doors leading to rubbish areas or bin chutes where Yes No N/A
they are in the escape routes suitably tested to BS476-22/BS
EN 1634-1 regime or of a suitable notional value?
The refuse areas are located at the access and egress point on each residential corridor. This
is part of the original design with construction formed of metal framed doors and partitions with
safety glazing (Georgian wire). The refuse chute and associated hoppers are located in open
landings from the 1st floor upward. the ground floor is within a ventilated housing.
Images
7.8.6 Do all fire doors have self closing devices compliant with BS Yes No N/A
EN 1154? Where not applicable are fire doors kept locked
shut?
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 20/257 FIRE PROTECTION MEASURES
7.8.7 Are any fire doors surveyed at this site constructed of Yes No N/A
anything else other than wood?
7.8.8 Do doors on the means of escape open in the direction of Yes No N/A
escape where necessary?
7.8.9 Are doors on the means of escape fitted with appropriate Yes No N/A
panic bolts or latches where required?
7.8.10 Where applicable are doors appropriate for use by disabled Yes No N/A
individuals?
No such persons were identified at the time of the FRA.
7.8.11 Where applicable does the door have a vision panel fitted? Yes No N/A
All door sets (other than FEDs) and their associated partitions/bulkheads have glazing panels
in place.
7.8.12 Comments
The fire doors in the building are generally of a good standard and appropriate for this building
design and use. The FEDs are equally as robust and FD30S with self closers (this from an
external assessment only)
Doors to the electrical and service risers were locked at the time of the FRA and were noted to
be modern and in good condition. Those that were sampled were 54mm timber. It was not
possible to sample all doors owing to the fact the surveyor does not have the correct keys for
this site.
The refuse room door sets can be considered to be old and potentially inadequate compared
to today's standard of door set. However, the risk of a serious fire in the refuse lobbies is very
low, the chance of smoke migration from a serious refuse room fire to the residential corridors
is higher but again, the design of the building will help to mitigate the effects and dissipate
smoke to air before it affects the corridor. The secondary means of escape from the flats
allows people to turn away from an affected means of escape and reach a storey or final exit
without being exposed to the products of combustion.
7.9 External Wall Finish
......................................................................................................................................
7.9.1 Is this building over 18 metres in height? Yes No N/A
7.9.2 Does this building have an external cladding system which Yes No N/A
overlays the original structure?
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 21/257 FIRE PROTECTION MEASURES
The building is partially clad with timber panelling on the rear elevation, flat balconies and the
ground floor rear entrance ceiling, the assessor was not able to determine the level of fire
resistance achieved by the cladding. Inspection and testing should be carried out to establish
the suitability of the cladding. The building is linked to other purpose built flats therefore
considering should be given to the testing of the cladding in order to prevent external fire
spread.
It could not be clarified on site information about the panels are in line with requirements of
Paragraph B4 of Schedule 1 of the Building Regulations 2010 (as amended) (External Fire
Spread). This can be clarified via design information and building records. Where the panel
product type can be confirmed on the building, a check of the fire performance with the
manufacturer by requesting test certification should be completed. Where there is no
information about the panel or there is uncertainty, it will be necessary to investigate the panel
composition by sample testing.
In addition to the LPS there are garages that from the ground floor of the block. The garages
are structurally separated vertically and have secure metal doors on them to avoid anti social
behaviour. Historically, fires are fairly common in garages where not only vehicles are kept but
also hazardous substances some of which are accelerant's.
Garages do not have the same level of control as a dwelling. It was noted that above the
garages and below the timber cladding is a row of lites formed of (visual assessment only at
this stage) safety glazing (georgian wire). In some places this has been removed, broken and
are placed with ply wood or something similar. This would allow a fire originating in the garage
to spread beyond the space and affect the cladding. Potentially very quickly owing to the fact
the lites are at the top of the garage space and will be directly affected by fire and heat from
the start.
The advice at this time is to replace any broken or missing lites with a suitable fire stopping
product to achieve 60 minutes fire resistance between the two aspects. The product used does
not have to be expansive fire resisting glazing and so a product such as ablative coated batt
will suffice. A third part accredited contractor will be able to decide the most appropriate
product for this use.
This will be deemed as a 'high' risk task action where appropriate but it is still expected that
occupants can evacuate internally via the normal routes if required.
7.9.3 Does the building's exterior wall contain infill panels? Yes No N/A
This relates to the timber infill panels associated with the balconies. This has been highlighted
and detailed in the section on LPS and cladding.
7.9.4 Comments TBC
All buildings at the time of construction and/or alteration the external walls would have
complied with the building regulations at the time. Southwark Council has an assessment
process in place that will ensure the external fabric of a block is compliant to the current
building regulations. This assessment not only includes the external finish of the wall but the
materials used for insulation and fire breaks and how these materials are fixed to the building.
All panels are being examined as part of a process. This includes any that form part of the
external fascia and those on escape routes with a single direction of escape. Where found to
be deficient or the fire rating cannot be ascertained they will be replaced as part of the Major
Works programme.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 22/258 MANAGEMENT OF FIRE SAFETY
8.1 Procedures and Arrangements
......................................................................................................................................
8.1.1 Are procedures in the event of fire appropriate and properly Yes No N/A
documented?
This is not appropriate for this premises.
8.1.2 Have staff and relevant individuals been given appropriate fire Yes No N/A
safety training?
This is not appropriate for this premises.
8.1.3 Are checks carried out by staff on fire safety systems where Yes No N/A
appropriate and logged?
8.1.4 Are external stairs and in particular those devised as a means Yes No N/A
of escape regularly inspected, maintained and appropriate for
use in all weathers?
8.1.5 Comments
The fire evacuation policy for this building being a purpose built block of flats is; if in a
protected dwelling stay put unless affected by fire or smoke. If in the dwelling on fire or in the
common parts, leave the building immediately, if safe to do so, and remain a safe distance
from the building.
It is understood that tenants are provided with a planned evacuation policy in the tenant’s
information pack which are given to them on tenancy sign up. Additionally fire action notices
displayed throughout the building forms a crucial part of the evacuation policy.
It is expected that the person discovering the fire will summon the fire service by telephone.
Details of how to summon the fire service are contained within the tenants pack and on fire
action notices. It is not considered practicable to provide a controlled emergency evacuation
assembly point for purpose built blocks of flats. It should be communicated to residents that in
the event of fire, all evacuees should wait in a safe place at a distance from the building so as
not to be affected by smoke, flame, possible explosion and fire fighting. Residents should also
understand that they should remain local to be available for liaison with the fire fighting crew.
Council Staff that frequently visit the building are given regular fire safety training. This training
clearly informs them what to do in the event of fire. Employees from other organisations are
expected to have regular training on carrying out an evacuation in the event of an emergency.
The training records are submitted to the council before these persons are allowed to visit
council property.
Southwark carry out a strict regime of inspection, testing, repair and maintenance of all building
services and systems in accordance with the relevant statutory regulations. Records relevant
to testing & maintenance are available for inspection at the council’s offices but not on site as it
is not practicable to store them.
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 23/25Action Plan
Issue No: 6.4.2.1
.............................................................................................................................................
Priority LOW
Location
Floor
Question Is there an unnecessary fire load within the building or in close proximity of the premises which
is available to ignition from outsiders?
Issue Potential exccesive fire loading in garden of flat from Entrance 3 (29-155).
Action RSO to attempt to gain access and photograph structure and proximity to main building. All
info to be emailed to FST FAO. Paul May
Status Outstanding
Target Date 08/04/2021
Issue No: 6.6.1.1
.............................................................................................................................................
Priority HIGH
Location
Floor
Question Does the premises have a lightning protection system?
Issue LPS fixed to timber infill/cladding features associated with the balconies and rear elevation.
Action A qualified electrical engineer must assess the LPS to determine if this is a fire risk or a
condition which can remain until the timber is removed in the future.
Status Resolved
Target Date 08/05/2020
Resolution Issue resolved from Works Order: APEX-HSI-1047053
Images
Issue No: 7.4.1.1
.............................................................................................................................................
Priority LOW
Location
Floor
Question Is there reasonable provision for all notices?
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 24/25Issue Heating cupboard doors do not have "fire door - keep locked signs".
Action Provide "fire door - keep locked" signs to all heating cupboard doors (x48)
Status Outstanding
Target Date 08/04/2021
Issue No: 7.8.1.1
.............................................................................................................................................
Priority LOW
Location
Floor
Question Are all dwelling front entry doors and hardware (where required) compliant with certification
carried out to BS476-22/BSEN 1634-1 or of a suitable notional value? (Consider seals and
strips)
Issue Missing letter plate flap to FED flat
Action Reinstate the letter plate to include a spring loaded flap as designed.
Status Resolved
Target Date 08/04/2021
Comments Referred to CRTO. Works raised ane completed.
Resolution Reffered to CRTO. Works raised and completed.
Issue No: 7.9.2.1
.............................................................................................................................................
Priority HIGH
Location
Floor
Question Does this building have an external cladding system which overlays the original structure?
Issue The building is partially clad with timber panelling on the rear elevation, they cover
approximately over 60 % of the building.
Action Southwark Council has an assessment process in place that will ensure the external fabric of
a block is compliant to the current building regulations. This assessment not only includes the
external finish of the wall but the materials used for insulation and fire breaks and how these
materials are fixed to the building, add this block to the assessment process.
Status Resolved
Target Date 08/05/2020
Resolution Issue resolved from Works Order: APEX-HSI-1047056
Issue No: 7.9.2.2
.............................................................................................................................................
Priority HIGH
Location
Floor
Question Does this building have an external cladding system which overlays the original structure?
Issue Broken or missing glazing/lites above garages with potential for fire spread to cladding.
Action Where broken/missing an approved contractor should apply appropriate fire stopping to
separate the garage from the external facade.
Status Outstanding
Target Date 08/05/2020
ABERFELDY HOUSE, 29-155,JOHN RUSKIN STREET,BRANDON ESTATE,CAMBERWELL Page 25/25You can also read
