10 Accessories: From page 14. See our terms of sale and delivery on page 18. FORMAT (WIDTH X LENGTH) Delivered undrilled. STOCKED FORMAT UNIT 595 X 1,195 mm 595 x 2,395 mm 1,195 x 2,395 mm m2 m2 m2 TERRA BY STENI A robust and natural foundation panel with a surface of crushed natural stone. approx. 9.5 kg approx. 5 mm Weight per m2 Thickness QTY PER PACK 200 pcs 200 pcs 200 pcs WOOD SCREW FOR TERRA BY STENI (ACID-PROOF A4, ROBERTSON 1) ** Stocked screws for stocked panels, see colour Terra by STENI. PRODUCT STOCKED DIMENSIONS Painted grey Painted white Painted black * 4.0 X 28 mm 4.0 x 28 mm 4.0 x 28 mm STANDARD COLOURS SN 100 – WHITE Screw colour – SN 8013 M SN 201 – GREY Screw colour – SN 8004 M SN 305 – BLACK Screw colour – SN 8008 M Terra by STENI has a 25-year functional warranty. STENI has extensive experience and good references since 1965. 25Y
11 BEFORE AFTER
12 α (°) A (mm) B (mm) Length (mm) A+B max (mm) 70–89 60–595 60–595 100–1,500 1,600 1,501–2,000 1,250 2,001–2,400 1,000 2,401–3,000 800 3,001–3,495 700 90–150 60–1,195 60–1,195 100–1,500 1,600 1,501–2,000 1,250 2,001–2,400 1,000 2,401–3,000 800 3,001–3,495 700 Accessories: See page 14. See our terms of sale and delivery on page 18. STENI COLOUR DESIGN ELEMENTS All elements are delivered undrilled. Production tolerance for angles ± 2°. For element orders of less than 5 pcs, a start-up charge will apply per order. Orders over 50 pcs delivered on request. Total price for elements = (Manufacturing cost per lm + panel price per m2 ). There is a minium charge of 1 lm per element. NB: All measurements = internal dimensions. STANDARD L-ELEMENT 90º A B MAX L 295 mm 295 mm 395 mm 395 mm 295 mm 295 mm 395 mm 395 mm 1,195 mm 2,395 and 2,995 mm 1,195 mm 2,395 and 2,995 mm L-ELEMENT U-ELEMENT α1 (°) α2 (°) A (mm) D (mm) C (mm) Length (mm) A+C+D max (mm) 90–150 90–150 60–595 100– 1,195 100–1,500 1,600 1,501–2,000 1,250 60–595 2,001–2,400 1,000 2,401–3,000 800 3,001–3,495 700 α1 α2
13 Accessories: See page 14. See our terms of sale and delivery on page 18. MAX LENGTH MEDIUM MAX. LENGTH COARSE 2,995 mm 2,500 mm 2,500 mm 1,500 mm 1,500 mm 2,995 mm 2,500 mm 2,000 mm On request On request CUSTOM L-ELEMENT 90º A B MAX. LENGTH FINE 60–145 mm 60–295 mm 60–395 mm 60–150 mm 60–395 mm 60–145 mm 60–295 mm 60–395 mm 395–950 mm 396–1,000 mm 3,495 mm 3,200 mm 2,995 mm 1,500 mm 1,500 mm Coarse (C) on request. MAX LENGTH FINE MAX LENGTH MEDIUM 2,995 mm 2,395 mm 1800 mm 1,500 mm 1,500 mm 2,995 mm 2,395 mm 1800 mm 1,500 mm 1,500 mm CUSTOM U-ELEMENT 90º + 90º A D C 60–145 mm 60–200 mm 60–395 mm 60–595 mm 60–595 mm 120–595 mm 120–595 mm 120–395 mm 120–295 mm 395 mm 60–145 mm 60–395 mm 60–395 mm 60–295 mm 395 mm STENI NATURE DESIGN ELEMENTS All elements are delivered undrilled. Production tolerance for angles ± 2°. For element orders of less than 5 pcs, a start-up charge will apply per order. There is also an additional charge when changing angle. Orders over 50 pcs delivered on request. Total price for elements = (Manufacturing cost per lm + panel price per m2 ). There is a minium charge of 1 lm per element. NB: All measurements = internal dimensions.

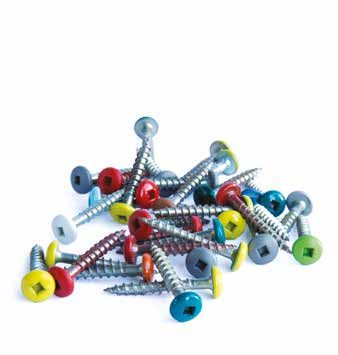

14 ACCESSORIES QTY PER PACK 500 pcs 500 pcs 500 pcs 500 pcs 500 pcs 500 pcs STENI STANDARD WOOD SCREW (ACID-PROOF A4, ROBERTSON 1) PRODUCT STOCKED DIMENSIONS Untreated Powder-coated HM gloss Powder-coated M gloss Untreated Powder-coated HM gloss Powder-coated M gloss X 4.0 x 28 mm 4.0 x 28 mm 4.0 x 28 mm 4.0 x 33 mm 4.0 x 33 mm 4.0 x 33 mm ** Stocked screws for stocked panels, see colour/gloss overview for STENI Colour / STENI Nature. QTY PER PACK 500 pcs 500 pcs 500 pcs STENI SELF-TAPPING SCREW FOR STEEL AND ALUMINIUM (ACID-PROOF A4, TORX 20) PRODUCT DIMENSIONS Untreated Powder-coated HM gloss Powder-coated M gloss 4.2 X 25 mm 4.2 x 25 mm 4.2 x 25 mm COLOUR (NCS CODE) Black (S 9000-N) Grey (S 6000-N) White (S 1005-Y20R) Black (S 9000-N) Grey (S 6000-N) White (S 1005-Y20R) STENI POLYMER VAPOUR BARRIER PRODUCT DIMENSIONS EPDM, rubber polymer EPDM, rubber polymer EPDM, rubber polymer EPDM, rubber polymer EPDM, rubber polymer EPDM, rubber polymer 95 mm x 25 m per roll 95 mm x 25 m per roll 95 mm x 25 m per roll 120 mm x 25 m per roll 120 mm x 25 m per roll 120 mm x 25 m per roll
15 PACKAGING PRODUCT WIDTH X LENGTH Pallet type 1 Pallet type 2 Pallet type 3 Pallet type 4 Pallet type 5 2-way: 1,205 x 1,230–1,450 mm 2-way: 1,205 x 2,050–3,050 mm 2-way: 1,205 x 3,350–3,550 mm 4-way: 1,220 x 2,100–2,810 mm 4-way: 1,220 x 3,100–3,500 mm QTY PER PACK 1 pc 2 pcs 1 pc 1 pc 1 pc 1 pc STENI BITS, SAW BLADES AND CUTTING DISCS PRODUCT HOLE SIZE DIMENSIONS STENI Multicut drill bits STENI Jigsaw blades STENI Diamond cutting disc (30 mm liner bushing) (30 mm liner bushing) (30 mm liner bushing Ø 30.0 mm (Ø 25.4 mm) (Ø 22.2 mm) (Ø 20.0 mm) 5.5 mm 100 mm 150 mm
16 PRODUCT INTENDED USE COLOUR SIZE Horizontal profile: HFP 7-30 STENI façade panels (single panel thickness) Natural (anodised) 15µ White (S 0502-Y) Black (RAL 9005) 3.0 m 3.0 m 3.0 m Horizontal profile: HP 7-30 STENI Colour/Vision/Nature F/FM (single panel thickness) Natural (anodised) 15µ White (S 0502-Y) Black (RAL 9005) 3.0 m 3.0 m 3.0 m Vertical profile: FP 6-30 STENI façade panels (single panel thickness) Natural (anodised) 15µ White (S 0502-Y) Black (RAL 9005) 3.0 m 3.0 m 3.0 m Vertical profile Outward corner: CP 15-13 STENI façade panels (single panel thickness) Natural (anodised) 15µ White (S 0502-Y) Black (RAL 9005) 3.0 m 3.0 m 3.0 m Vertical profile Outward corner: CP 15-18-33 STENI façade panels (single panel thickness) Natural (anodised) 15µ White (S 0502-Y) Black (RAL 9005) 3.0 m 3.0 m 3.0 m Vertical profile Outward corner: CP 15-25-40 STENI façade panels (double panel thickness) Natural (anodised) 15µ White (S 0502-Y) Black (RAL 9005) 3.0 m 3.0 m 3.0 m STENI PROFILE (for STENI façade panels) STENI Aluminium profiles (for external use)
17 NOBB NUMBERS
18 1 – General 1.1 STENI AS shall hereinafter be referred to as the “Company”. The party receiving a quotation, order confirmation or products from the Company, or otherwise in contact with the Company in connection with a potential or completed purchase/delivery of goods from the Company shall hereinafter be referred to as the “Customer”. 1.2 In addition to these general terms and conditions of sale and delivery, the Standards Norway contract NS 8409 “General conditions of contract for contracts concerning the purchase of construction products” (May 2008) shall apply. In case of any conflicts or other discrepancies between these contracts, the changes, additions and supplements herein shall take precedence over NS 8409. 2 – ORDER 2.1 The agreement shall only be considered finalised upon written confirmation from the Company, and the Customer’s written acceptance thereof. Specifications in catalogues, brochures, price lists, etc., in addition to verbal information about the product’s dimensions, weight and specific characteristics in general, are only binding for the Company when the specifications are expressly stated in the order confirmation. Any assistance with technical guidance and calculation of material consumption is exclusively a service provided by the Company, and cannot form the basis for any claim against the Company. Samples are expressions of the material’s average quality. The Company accepts no liability for any colour differences between samples and delivered goods, and minor colour differences between different production runs. 2.2 Agreements on amendments to the final agreement are not binding until they are confirmed in writing by the Company and accepted in writing by the Customer. Agreements on cancellation of the final agreement are not binding until they are confirmed in writing by the Company. Changes to quantities, dimensions, degree of processing or similar shall entitle the Company to an extended delivery time. 2.3 Incurred expenses and/or lost profits attributable to a cancellation, or additional expenses attributable to changed orders, shall be charged to the Customer. 3 – PRICES 3.1 Prices are, unless otherwise expressly agreed, excl. VAT, delivered EXW NO-3277 Steinsholt, INCOTERMS 2010, excluding pallets/packaging. 3.2 The Company’s prices do not include taxes, duties and fees of any kind, unless expressly stated in the order confirmation. 3.3 The Company’s prices are based on prevailing internal and external conditions at the time of the order confirmation. The Company reserves the right to adjust the price of the product in accordance with any changes in cost-levels from the time of the offer until a written order confirmation is sent. 4 – DELIVERY 4.1 The Company’s delivery time is stated in the order confirmation. The Customer shall be notified of the final delivery date after the parties have accepted the order confirmation. In case of delayed delivery, the provisions in Section 10.1 of NS 8409 shall apply. The customer is not entitled to claim daily penalties. 4.2 The specified delivery time assumes that there is complete agreement between the Company and the Customer regarding all particulars of the order when the order is confirmed. 4.3 The Company cannot be held liable for delays due to impediments beyond the Company’s control and which the Company cannot reasonably be expected to have foreseen at the time of the agreement; nor shall the Company be held liable for force majeure events. Force majeure events comprise, inter alia, war, sabotage, strikes, lockouts, changes in laws and regulations, raw material shortages, floods, storms, fires and other effects of natural forces. Force majeure events also comprise transport problems that are beyond the Company’s control. 4.4 Delivery shall be considered to have occurred once the goods have been unloaded at the agreed delivery address, cf. Section 4.3 of NS 8409. If the Customer does not wish to receive the goods at the agreed time and place, the Company is entitled to release itself from the contract immediately or demand immediate payment, even if the goods are not taken over by the Customer. In the latter case, the goods shall be stored at the Customer’s risk and expense. The Company shall have the same rights if a sale on an agreed call-off order/specification is not ordered or specified as provided for in the order confirmation or other agreement. 5 – RETURNS 5.1 The Company does not receive goods in return without prior agreement. Goods which are specially obtained for the customer cannot be returned (e.g., custom formats, pre-drilled panels or elements). 5.2 Return of disposable pallets shall not be credited without prior agreement. 6 – TERMS OF PAYMENT 6.1 The payment deadline is 28 calendar days after the Customer has received an invoice, cf. Section 8.4 of NS 8409. 6.2 Due amounts may not be withheld. Neither is the Customer entitled to off set any amount unless such is expressly agreed in writing. 6.3 The Customer shall furnish a satisfactory guarantee at the request of the Company prior to delivery of the goods. If the Customer does not comply with the stipulated terms of payment, or if the Customer becomes insolvent, or the Customer proves not to be creditworthy, the Company has the right immediately to declare all outstanding receivables due, regardless of any agreed payment dates, and immediately collect such receivables from the Customer. In such case, the Company may change the terms of all confirmed orders that have not already been delivered. The Company is entitled to full compensation for losses/expenses resulting from goods that cannot be sold to other parties, or must be sold at a reduced price. 6.4 The Company retains ownership of the sold goods until the purchase price, including interest and charges, is paid in full (cf. Sections 3-14 to 3-22 of the Norwegian Mortgages and Pledges Act. 7 – TOLERANCES 7.1 The Company’s standard tolerances for measurements and dimen- sions shall apply unless otherwise agreed. GENERAL TERMS OF SALE AND DELIVERY
19 8 – DRAWINGS, ESTIMATES, ETC. 8.1 The Company shall retain ownership of all proprietary drawings, cost estimates, etc. Such must therefore not be handled in violation of the Company’s interests. 9 – PATENT AND DESIGN PROTECTION 9.1 All intellectual property rights to the products covered by this agreement belong to the Company. The Customer is responsible for ensuring that the products are not used in such a way as to violate third-party rights, including intellectual property rights. The Customer shall indemnify the Company against claims made against the Customer or the Company on the basis of use of the products covered by this agreement, or any other circumstances beyond the Company’s control. 10 – DUTY TO INSPECT, COMPLAINTS AND THE COMPANY’S RESPONSIBILITY 10.1 The Customer shall inspect the received goods and submit any complaints in accordance with the provisions set out in Section 12 of NS 8409. 10.2 The Company shall not be held liable if the delivered product is modified, processed or used for purposes other than those stated in the Company’s product description. The same applies if there is any loss attributable to goods not being treated with due care subsequent to loading for transport. 10.3 If the product has any defects, the Company has the option to repair the defect or replace the product with a product free of defects. The Company’s liability is in all cases limited to the item’s invoice value. In addition, the Company shall not be held liable for any direct or indirect losses, including lost profits and revenue, decreased or discontinued production, as well as improper utilisation of the item, attributable to the Customer or a third party. 10.4 The Customer undertakes to make arrangements so that the repair/replacement delivery can be completed as quickly as possible and no later than six months after the complaint has been approved. If not, the Company’s responsibility in this regard shall lapse. 11 – PRODUCT LIABILITY 11.1 The Company’s liability only covers losses that are proven to be caused by the delivered product. 11.2 The Company is not liable for any damage attributable to improper application or unusual use of the product. The same applies if the item is used on a surface or exposed to conditions for which it was not intended. The Company is not responsible for damage resulting from inadequate or inappropriate storage. 11.3 Unless otherwise agreed, the Company’s liability for damages is limited to NOK 1 million for each occurrence. The Company’s liability shall under no circumstances cover operational losses, loss of income or other similar indirect losses. 11.4 If a third party brings a liability claim against one of the parties pursuant to this Section, the contracting parties shall notify each other thereof. 11.5 Reference is made to the provisions of Section 11 of NS 8409. 12 – WARRANTY 12.1 See the Company’s warranty policy. 13 - CHOICE OF LAW AND LEGAL VENUE This contractual relationship is subject to Norwegian law. Disputes shall be settled in the Company’s place of jurisdiction. NOTE: Please check our website for the latest updated version of the Company’s terms and conditions of sale and delivery, installation manuals and other product documentation. Berganmoen, 1 February 2017 STENI AS Janne Stenehjem CEO ADDITIONAL INFORMATION 1. Order confirmation: The products will be delivered according to the order confirmation from STENI AS. It is the Customer’s responsibility to check that the order confirmation is in accordance with the order. Unless otherwise agreed, the order confirmation is sent only to the Customer. It is the Customer’s responsibility to forward the order confirmation to its own customers. 2. Changing orders: Changes to the specifications of the order entail changes in price and delivery. Please contact our order department as soon as possible for information about whether your order can be changed. 3. Supplementary orders: If you would like to supplement a previous order, and you want the colour to match a previously supplied colour, you must provide the original order number as a reference. 4. Transport insurance: If STENI AS assumes responsibility for the shipment, transport insurance will be charged at 0.2% of the invoice value. 5. Our panels are stamped on the back unless otherwise agreed.
steni.com STENI AS Lågendalsveien 2633, NO-3277 Steinsholt, Norway T +47 33 15 56 00 E firstname.lastname@example.org STENI’s high-quality façade solutions will give your building a unique and enduring architectural expression. A sea of available surfaces, from colourful and smooth in different gloss levels, to surfaces of crushed stone in a variety of shades and grades – and printed surfaces so you can make your own custom designs. With STENI, you can design your building exactly the way you want it! Since our establishment in 1965, we have delivered more than 48 million square metres of quality panels around the world. STENI reserves the right to change product composition and specifications without prior notice. STENI AS accepts no liability for printing errors. // STENI-EN-0217
