2021/22
PRODUCT CATALOGUE
Conventional Light Fittings
Explosion-Proof Light Fittings
Dust- and Waterproof Light Fittings
Table of Contents
SCHUCH - The Company
Chronicle 2-3
All under Control 4
Quality 5
Substainability 5
Explosion Protected Fittings Zone 1/21 6-10
Light fittings with diffusers 8-10
Explosion Protected Fittings Zone 2/22 11-12
Light fittings with diffusers 11-12
Ex-Protected Installation Components 13-16
Dust-/Waterproof Light Fittings 18-41
Light fittings with diffusers 20-32
Light fittings without diffusers 33-35
Oval shaped light fitting 36
Tubular fittings 37
Vandal proof light fittings 38-39
Mounting rails/through wiring systems 40-41
Technical Attachment 42-43
Subject to technical changes, misprints and errors. 1 Catalogue conventional 2021/22
Explosion-Protected Light Fittings
Impressive innovation strength
in extreme conditions
For more than one hundred years HIGHLIGHTS OF TECHNOLOGICAL DEVELOPMENT
SCHUCH has been considered as an
expert in lighting in extreme environ-
- SCHUCH AS A PIONEER
ments. Applications in explosive gases 1910 1989
and dust environments set stringent The first SCHUCH mining light fittings World innovation: SCHUCH presents the
requirements. illuminate the coal mines in the Saarland first explosion-protected linear light fitting
With the results of its own intensive re- and in the Ruhr region and are delivered to with an ECG for standard 2-pin fluorescent
the mines in South Africa. tubes. A pioneering solution that enables to
search and design work, as well as more
generally use conventional fluorescent
than 100-year experience, SCHUCH still 1929 tubes in explosion-protected light fittings.
acts as an innovator in this challen- SCHUCH disposes of an extensive range of Thus, SCHUCH became the forerunner of
ging field. Thus, SCHUCH has decisively explosion-protected and mining luminaires, modern explosion-protected linear light
influenced much on the development of junction boxes, switches and sockets. The fittings.
conventional explosion-protected linear product line of explosion-protected light
light fittings, as well as of the relevant fittings is a major sector within the entire 1998
manufacturing program. With the world’s first approval of an
standards. Explosion-protected linear-
Ex-ECG with „end-of-life” shutdown, a
light fittings with 2-pin technology are 1952/53 safety gap in the operation of explosion
inseparably associated with SCHUCH. Introduction of „glass fiber reinforced proof light fititngs is being closed -
Using the new LED technology, SCHUCH Polyester” as material for the housings of SCHUCH is making history again. Immedia-
sets new benchmarks with its innovati- explosion-proof light fittings. tely afterwards, this becomes bindingly
ve solutions. Worldwide, SCHUCH has included in the standards.
one of the widest ranges of lighting 1953
products providing protection against First approval of an explosion-protected 2005
ceiling light fitting for single-pin fluorescent First approval of an explosion-protected
explosive gases and dusts. tubes. linear emergency light fitting with a
microprocessor-controlled intelligent
1986 emergency control unit and an integrated
After substantial development work, ECG with “end-of-life” cut-off system.
SCHUCH got the world’s first certification
of an explosion-protected electronic control 2010
gear for 2-pin fluorescent tubes. First explosion-protected linear light fitting
for Zone 2 and Zone 22 with the applicati-
on of an energy-saving T5 lamp technology.
Subject to technical changes, misprints and errors. 6 Catalogue conventional 2021/22
Explosion-Protected Light Fittings
Conventional Technology
Product Series Page
Light Fittings for Zone 1/21
Light Fittings with Diffuser
with central locking system e840... 8-10
• for connection to central or e840... ZB 9
group battery systems
• pole mounted light fitting e840... PM 9
Light Fittings for Zone 2/22
Light Fittings with Diffuser nD161/162... 11-12
Ex-Installation material
Carrier rail systems TRS 2000 13
AL 13
Through wiring systems DV 14
Built-in Disconnect Switch LS 32-20 15
Lamp Holder e2412/e8901 16
Explosion protected
e8911/e8912 16
Light Fittings
LED TechnologY
2011 2020
SCHUCH brought the first EX-pro- With the introduction of steep
tected LED headlights, emergency roof light fittings, compact wall
and compact light fittings to market and ceiling mounted light fittings
maturity. and the hand lamp e9310, the LED
range gets expanded continuously.
2014
First approval of explosion-protected 2021
linear LED light fittings, high bay Floodlights and High Bay light
LED light fittings and LED floodlights fittings of the ExSTREAM series
for Zone 2/22. complete the extensive program.
2016
World’s first explosion-protected
linear light fitting for Zone 1/21
using an innovative LED casting
technique.
2017-19
The range of LED light fittings is
expanding at a rapid pace.
The ExeLed1 N and ExeLed 2
N emergency light fittngs, LED
floodlights and surface floodlights
follow in short intervals.
JassadaWatt/Shutterstock.com
Subject to technical changes, misprints and errors. 7 Catalogue conventional 2021/22
Explosion-Protected Light Fittings
Series e840...
Application: Wiring: Electronic ballast with “end-of-
Hazardous areas of zones 1, 21 and 2, life switching-off system”.
22. Connection: Prepared for looping the
Design: mains cable on one small side. Terminal
Housing: Glass fibre reinforced polyester resin. L1 + N + PE up to 6mm² max.
Cover: Clear polycarbonate with internal Cable entries: 3 entries M25 x 1,5 (2 glands,
prisms, hinged. 1 of them with plug and 1 screw plug).
Gasket: Silicone, foamed. Mechanical installation: 2 suspension
Reflector: Glass fibre reinforced brackets with bolts (H8V P) or 2 ceiling
polyester, hinged and removable. brackets (15A P), see accessories.
Central locking system: Operated by a
hexagonal socket key 13mm.
Isolating switch: Switching off all poles
when the light fitting is opened.
Note: e840 Technical Data:
This light fitting is not suitable for application in areas Rated voltage: 220-240V AC/DC, 0 or 50-60Hz.
with permanent high humidity in combination with Ambient temperature: -20°C up to +60° (depending on version)
only short periods of operation, such as sewage or
stormwater retention tanks or water treatment plants.
Options:
– separate lamp monitoring device (T) – metal gland
e840 236 PM – with 2 individual electronic ballasts for – with 4 cable entries max.
2 separate mains – for 5-pole in/out-wiring
– f or connection to group or central – through-wiring 6 x 6mm² max.
battery (light fittings of version ZB – aluminium mirror-type reflectors –
only) narrow-beam version (SP 84...)
– w ith monitoring module for monito- – without switch (OS)
ring the individual light fitting
– with breather for pressure compensation
SCHUCH Quality - your advantage:
Pipe clamp mounting • sturdy design of high chemical resistance for application in rough industrial conditions:
– housing from glass fibre reinforced polyester
– polycarbonate diffuser of high impact strength (equal wall thickness: 2,5mm)
– highly resistant foamed silicone gasket of dimensional stability that stands for a permanently safe tight-
ness against water and dust
• reliable, fail-safe and long-life thanks to a special ex-protected ECG with high grade
quality features:
– „end-of-life swiching-off system” i.e. at the end of its life a fluorescent tube is safely
switched off
– in compliance with the requirements of overvoltage category III
– thanks to a special quartz sand encapsulation of the ballast inside an aluminium housing the operating
Suspension brackets H8V Ceiling brackets 15A temperatures are extremely favourable and consequently a long life time of the
control gear (about 100.000 hours)
• wide range of admissible ambient temperature from -20°C to +50/60°C (see
article table)
• excellent light distribution and glare limitation thanks to a light technically optimi-
zed prismatic diffuser
• excellent design allowing an easy and fast mounting/maintenance of the lumi-
naire
– central locking system with hinged diffuser allowing an easy/fast lamp replacement
– easily accessible connection chamber behind the hinged reflector
Looping the cable on one side:
All light fittings of series e840... have got 2 cable
entries on one small side of the housing for cable
looping instead of the through wiring system.
Subject to technical changes, misprints and errors. 8 Catalogue conventional 2021/22
without packing material
Energy efficiency class
Ambient temperature
Weight [kg]
Temp.-class
Lamps/W
max.[°C]
Article no. Type
1)
II 2 G Ex db eb q IIC II 2 D Ex tb IIIC
IP66
e840... T26 T4 Gb T80°C Db
EC-Type Examination Certificate: Marking:
PTB 07 ATEX 2040 II 2 G Ex db eb q IIC T4 Gb (Zone 1)
PTB 09 ATEX 2031, 2039 II 2 D Ex tb IIIC T80°C Db (Zone 21)
Ignition protection: e (increased safety)
84000 0001 e840118 T4 60 1 x T26/18 A 5,3
84000 0002 e840218 T4 60 2 x T26/18 A 5,4
84000 0003 e840136 T4 60 1 x T26/36 A 7,5
84000 0004 e840236 T4 55 2 x T26/36 A 7,6
84000 0005 e840158 T4 60 1 x T26/58 A 9,2
84000 0006 e840258 T4 50 2 x T26/58 A 9,2
Explosion protected
1) A climatic breather may reduce the IP rating (depending on the orientation of the breather)
Light Fittings
1)
II 2 G Ex db eb q IIC II 2 D Ex tb IIIC
IP66
e840... ZB T26 T4 Gb T80°C Db
for connection to central or group battery systems
Application: Design:
Emergency light fittings powered by Same as type e840 but with DC-detection
central- or group battery systems. and change-over to 1-lamp operation
(emergency mode).
84000 0303 e840218 ZB T4 60 2 x T26/18 A 5,4
84000 0304 e840236 ZB T4 55 2 x T26/36 A 7,6
84000 0305 e840258 ZB T4 50 2 x T26/58 A 9,2
1) A climatic breather may reduce the IP rating (depending on the orientation of the breather)
1)
II 2 G Ex db eb q IIC II 2 D Ex tb IIIC
IP66
e840... PM T26 T4 Gb T80°C Db

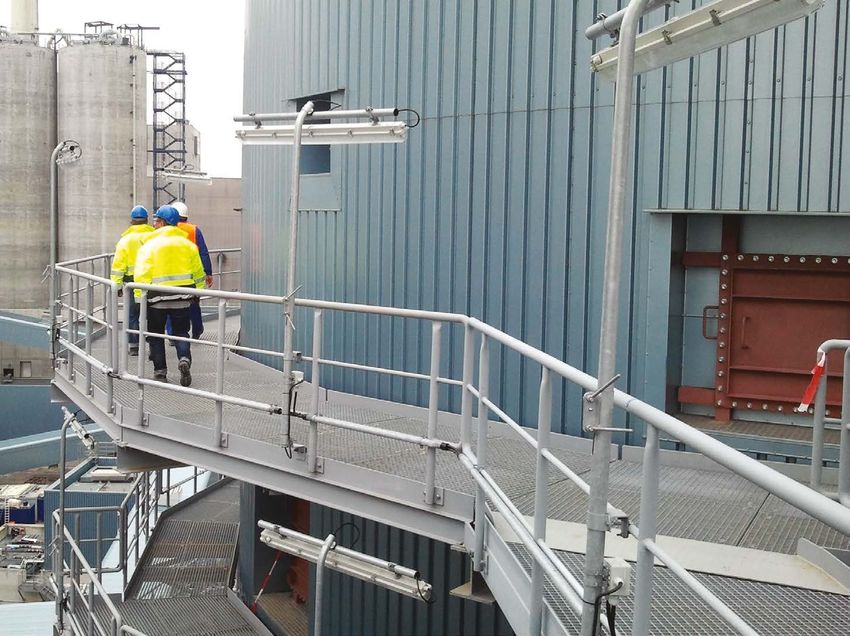

Pole mounted light fitting
EC-Type Examination Certificate: Mounting: To pole tops:
PTB 07 ATEX 2040 18W: Ø 42 x 150mm (length)
PTB 09 ATEX 2031, 2039 36W: Ø 42 x 245mm (length)
Ignition protection: e (increased safety)
Marking:
II 2 G Ex db eb q IIC T4 Gb (Zone 1)
II 2 D Ex tb IIIC T80°C Db (Zone 21)
84000 0101 e840118 PM T4 60 1 x T26/18 A 7,6
84000 0102 e840218 PM T4 60 2 x T26/18 A 7,7
84000 0103 e840136 PM T4 60 1 x T26/36 A 8,7
84000 0104 e840236 PM T4 55 2 x T26/36 A 8,8
1) A climatic breather may reduce the IP rating (depending on the orientation of the breather)
Foto: BAYER
Subject to technical changes, misprints and errors. 9 Catalogue conventional 2021/22
Mounting material
Suspension brackets H8V P
Accessories / Spare Parts
Article No. Type
Ceiling brackets 15A P Spare diffuser until 10/2013
84001 9000 8402 for 18W
84001 9001 8404 for 36W
84001 9002 8406 for 58W
Spare diffuser from 11/2013
18W version until 2018,
84001 9006 8402 SIL please see type plate of light fitting:
Distance compensation 84 AA article no. without “G” at the end
18W version from 2018,
84001 9007 8402 SIL G please see type plate of light fitting:
article no. with “G” at the end
84001 9004 8404 SIL for 36W
84001 9005 8406 SIL for 58W
Cable glands/ breather
Pipe clamps RO84...A P 90117 9000 2537 ex-protected plastic cable gland M25 x 1,5 with nut
90118 9000 2538 ex-protected plastic plug M25 x 1,5 with nut
90259 9000 Klimastutzen EX breather M25 x 1,5
Spare lamp holder
90189 9014 e8901 FH/1 1 pair of lamp holders incl. lamp holder supports (1-lamp version)
90189 9015 e8901 FH/2 2 pairs of lamp holders incl. lamp holder supports (2-lamp version)
Mounting material
Wall bracket W26/45 P
90001 0002 H8V P 2 suspension brackets, stainless steel
90000 0002 15A P 2 ceiling brackets, hot galvanized steel
90032 0002 15AV P 2 ceiling brackets, stainless steel
90000 0011 84 AA 1 pair of brackets, stainless steel, for compensating the different
mounting distances of types e840 / e152 or e841 / e148
90037 0004 RO84 112 A P 2 pipe clamps 1 ½”, stainless steel, with support
90038 0004 RO84 2 A P 2 pipe clamps 2”, stainless steel, with support
Further accessories such as carrier rail systems please 26000 0008 W 26/L P 2 wall mounting brackets
see installation material in this catalogue. 26000 0002 W 26/30 P 2 wall mounting brackets 30°
26000 0003 W 26/45 P 2 wall mounting brackets 45°
Subject to technical changes, misprints and errors. 10 Catalogue conventional 2021/22
Explosion-Protected Light Fitting
for Zone 2/22
Series nD161/162...
Applications: components which are protected against
Hazardous locations of zones 2 (gas) and accidental contact.
22 (dust). Connection: 3 poles up to 2,5 mm².
Design: Cable entries: 2 entries M20
Housing: Glass fibre reinforced polyester (2 glands - one of them is plugged)
resin. Through wiring system up to 5 x 2,5 mm²
Cover: Injected clear polycarbonate (PC) at additional charge.
with internal prisms. Standard: Facing downwards or forwards.
Closure: Stainless steel clips (KE), one of Mechanical installation: There are closed
them as safety clip (KES), to be opened knock-outs in the housing for direct ceiling
with screwdriver only. Stainless steel mounting. Sealing gaskets can be found
hinges (SC) on the opposite side. inside the luminaire. (Mounting accessories
Reflector: Suspendable, glass fibre please see spare parts/accessories).
reinforced polyester, carrying the electrical
Options:
– for connection to group or central bat- supports
tery (light fittings of version ZB only) - for outdoor application
nD161... nD162... – with monitoring module for monitoring - for higher ambient tempe-
Explosion protected
the individual light fitting ratures to + 55°C (upon
Light Fittings
- wide housing, for 1 lamp (nD162 1..) request)
- with through wiring up to 5 x 2,5 mm² - emergency versions
PVC (always with earth conductor!) (Series nD 161/162.../../.)
- 2 entries at one end of the housing for
looping the mains cable (only nD162...)
- vertical mounting with lamp holder
standardized by Deutsche Bahn AG Schuch Quality - your advantage:
• high-quality chemically resistant light fitting of a sturdy design, best suitable
Note:
for a long-time application in industrial areas
For application in outdoor areas a breather M25 for - housing of a high impact resistance
pressure compensation and for avoidance of any - cover impact resistance: 16 Nm
formation of condensation water are required. - captive clips made fom stainless steel
(Please order separately). - wide range of Permissible ambient temperature from -20°C to +40°C (55°C on
For critical cases we would.recommend the installation request)
of a hood. • „end-of-life swiching-off system” i.e. at the end of its life a fluorescent tube
is safely switched off
The light fitting is not suited for installation at an expo-
• for outdoor application (see note)
sed location with high mechanical stress (wind load)
• excellent light distribution and glare limitation thanks to the cover with its
nor for a rare operation only (such as maintenance and
light technically optimized internal prisms
inspection illumination).
• best suitable for installation and maintenance purpose ensuring simultaneously
- the cover is hinged on one side and can be suspended, the reflector can be suspended for quick mains-
connection and lamp inserting/replacement
- quick and cost saving wiring in a continuous row installation thanks to a looping facility on one small end
of the housing (special version)
Looping the cable on one side:
Upon request the light fittings for 2 tubes can be
supplied with 2 cable entries at one small end of the
housing for looping the mains cable.
Subject to technical changes, misprints and errors. 11 Catalogue conventional 2021/22
without packing material
Energy efficiency class
Lamp output Watt
Weight [kg]
Temp.-class
Tmax. [C°]
Article no. Type
II 3 G Ex nA IIC II 3 D Ex tc IIIC
IP65
Series nD 161... nD161/162... T 26 T4 Gc T80°C Dc
EC-Type Examination Certificate: Marking:
TÜV 00 ATEX 1541 II 3 G Ex nA IIC T4 Gc (Zone 2)
Ignition protection: nA II 3 D Ex tc IIIC T80°C Dc ( Zone 22)
Rated voltage: 230 V, 50Hz (VVG) Permissible ambient temperature:
220 - 240 V AC/DC - 0 or 50/60Hz -20°C bis +40°C (50°C upon request).
16105 0013 nD161118EVG T4 40 1 x T26/18 A 1,9
16105 0014 nD161136EVG T4 40 1 x T26/36 A 2,8
16205 0013 nD162218EVG T4 40 2 x T26/18 A 2,8
16205 0014 nD162236EVG T4 40 2 x T26/36 A 4,3
Series nD 162...
Series nD 161/162... T5
Accessories / Spare Parts
Article no. Type Article no. Type
Spare covers for nD161/162... with plastic latches KK
16111 9003 161 018 PC 16211 9003 162 018 PC
16111 9004 161 036 PC 16211 9004 162 036 PC
16111 9005 161 058 PC 16211 9005 162 058 PC
Spare covers with hinges for nD161/162... with stainless steel latches KE
16111 9012 161 018 PC SC 16211 9014 162 018 PC SC
Mounting material 16111 9013 161 036 PC SC 16211 9015 162 036 PC SC
16111 9014 161 058 PC SC 16211 9016 162 058 PC SC
Pipe clamps 183 RO... A P Fasteners
90053 9005 KK EX VE10 Ex-plastic fasteners (packing unit 10)
90053 9007 KK/KKS EX VE10 Ex-plastic fasteners incl 2 safety clips
(packing unit 10)
90055 9003 KE VE10 stainless steel (packing unit 10)
90055 9001 KES security clip stainless steel
Cable entries
90120 9008 2531 G Ex-plastic cable gland M20 x 1,5 with nut
Ceiling brackets 183 DS
90122 9001 2533 G Ex-plastic cable gland M20 x 1,5 with nut and plug
Lamp holders
90056 9011 161 T8 Ex P lamp holder T8
For pipe clamp mounting system
Attention: When using pipe clamps for any bracket mounting please consider mounting distances.
Continuous row installation and through wiring system 90093 0002 183 RO 112A P 1 1/2”, stainless steel, with support (1 pair)
are available. 90094 0002 183 RO 2A P 2”, stainless steel, with support (1 pair)
Accessories for ceiling mounting
Wire guards are available. Please consult us. 90095 0001 183 DS stainless steel bracket, with screw M5
90049 0002 183 S hook for chain suspension
Subject to technical changes, misprints and errors. 12 Catalogue conventional 2021/22Aluminium Carrier Rails for Continuous Row
Installation Series TRS 2000... and AL...
Application: ceiling brackets (183 A / TRS ED) or they
For rows of light fittings suspended from can be suspended from the ceiling by
the ceiling, allowing an easy installation means of the hook (183 H / TRS ER) in
and assembly. combination with the chain (KP 40) (max.
Design: distance of mounting rail elements 2.5m).
Aluminium profiled carrier rails Perlon pendulums are not suitable for this
(AL / TRS 2000) purpose.
Lengths: 2, 3 or 5 m. Additional covering 2 or 3 devices (183 L / TRS EL) serve for
strip (TRS A) for series TRS. mounting a light fitting to the rail. The
Mounting accessories: suspension devices 183 A / TRS ED and
For each length of a light fitting only one 183 H / TRS ER as well as the devices
suspension point is required. 183 L / TRS EL are movable in the longi-
Connection brackets (TRS V) - to be tudinal direction of the rails.
ordered separately - allow joining the
individual rails up to any length wanted.
The carrier rails can either be mounted
directly to the ceiling by means of the
TRS 2000...
Explosion protected
aluminium carrier rails with high loading capacity for series e840...
Light Fittings
Schuch Quality - your advantage:
• Universal quick-action mounting system for explosion- and weather-proof light fittings
• easy to install (mount the suspension devices to the light fitting, then push the light fitting into the carrier
rail profile)
TRS V TRS A
• higher load capacity due to new profile design
• inserting the mains cable into the cable channel is possible
• a cover strip serves as a protection against dirt deposit
TRS A TRS A
Weight
Article No. Type Product ca. [kg]
TRS ER TRS ED
90260 0001 TRS 2000 2 M Alu-rail 2 m long 3,03
90260 0002 TRS 2000 3 M Alu-rail 3 m long 4,55
90260 0003 TRS 2000 5 M Alu-rail 5 m long 7,58
TRS EL TRS EL 90265 0005 TRS A 1 covering strip, 1 m long 0,04
90265 0006 TRS A 2 covering strip, 2 m long 0,07
Mounting Devices
Article No. Type Product
90265 0004 TRS V stainless steel device (profile) for rail connection
90265 0008 TRS ED stainless steel ceiling bracket for mounting the rail
90022 0001 KP 40 chain 1 m long with 2 eyelets for fastening and
length compensation
90265 0007 TRS ER stainless steel ring nut for chain
90265 0009 TRS EL stainless steel mounting bracket
AL...
aluminium carrier rails for series nD161/162...
Weight
Article No. Type Product ca. [kg]
90005 0001 2 M AL Alu-rail 2 m long 1,6
90005 0002 3 M AL Alu-rail 3 m long 2,4
90005 0003 5 M AL Alu-rail 5 m long 3,9
Mounting Devices
Article -No. Type Product
90265 0004 TRS V stainlees steel device for rail connection
90185 0001 183 A stainless steel ceiling bracket for ceiling mounting of the carrier rail
90022 0001 KP 40 chain 1 m long with 2 eyelets for fastening and
183 H length compensation
183 A
90049 0001 183 H stainlee steel hook for chain pendulum
90050 0001 183 L stainless steel mounting bracket
183 L 183 L
Subject to technical changes, misprints and errors. 13 Catalogue conventional 2021/22Through wiring Systems
for Explosion-Protected Light Fittings
For all fittings installed in a continuous Through wiring systems:
row. Through wiring system with 2 2.5mm² up to 16A
multipole terminals which are fixed inside 4.0mm² up to 20A
the light fitting. (depending on the permissible ambient
(Since retrofitting the through wiring temperature of the light fitting).
system on site is subject to special regula-
tions in regard to hazardous areas, we do
recommend a factory-made through-wi-
ring system.)
Note: Factory-made through wiring system
With the “variable cable entries” most of our explo-
sion-protected fluorescent fittings are well suited for Our explosion-protected light fittings of Zone 1/21 and Zone 2/22 with factory-made through-wiring systems will
looping the cable at one end of the fitting. This be delivered with the standard through-wiring system 5x2.5mm2 PVC of 6x2.5mm2 PVC (emergency fittings
allows a perfect adaptation to the local conditions Zone1/21). Fittings with such standard through-wiring do have separate part numbers (on request).
and moreover in many cases this spares the classic
through-wiring system. (Through-wiring systems with other cable-cross sections (e.g. 4mm2) or different number of conductors (e.g.
Please contact us for details in regard to explosion-pro- 3x2.5mm2) are available.)
tected fittings with looping system
Through-wiring system for retrofit
Article No. Type
for ex-proof light fittings zone 1/21
11501 0017 DV/NS ZO1/36 e840. 5 x 2,5mm² PVC, for 36W - luminaires (series e840...)
11501 0018 DV/NS ZO1/58 e840. 5 x 2,5mm² PVC, for 58W - luminaires (series e840...)
for ex-proof light fittings zone 2
11891 0013 DV/NS Zo2/22 5 x 2,5mm² PVC, all wattages (series n/nD 161/162...)
Through wiring retrofit sets for other series or other cable cross sections are also available.
Subject to technical changes, misprints and errors. 14 Catalogue conventional 2021/22Explosion-Protected Built-in Disconnect Switch
Series LS 32-20
Applications: EC-Type Examination Certificate:
As (spare) disconnect switch in Ex light BVS 12 ATEX E055 U
fittings for isolation of all poles when Type of protection:
opening the fitting. d (flameproof enclosure)
Design: Marking:
Housing: With contact carrier, operating II 2 G Ex db IIC Gb or I M 2 Ex db I Mb
hood, 2 N/O contacts. for use in Group I light fittings.
With heat resistant moulded wire tails. Rating: 300V/2A (AC-5a, DC-12).
II 2 G Ex
LS32-20 db IIC Gb
Explosion protected
Article No. Type
Light Fittings
15440 9001 LS 32-20
Subject to technical changes, misprints and errors. 15 Catalogue conventional 2021/22Explosion-Protected Lamp Holder G13/G5
for Bi-Pin Fluorescent Lamps
Series e2412.. / e8901.. / e8911.. / e8912
Application: Certificates
As (spare) lamp holder in explosion-pro- PTB 00 ATEX 2126 U (e2412)
tected light fittings for fluorescent lamps PTB 09 ATEX 2007 U (e8901 / e8911 /
with bi-pin lamp holders G13/G5. e8912)
Design: Type of protection: e (increased safety)
White compression-moulded housing, Marking:
spring brass contacts, silver-plated. II 2 G Ex e II (Ex II) (e2412)
I M 2 Ex e I (Ex I) (e2412)
Scope of supply: II 2 G Ex e IIC Gb (e8901 / e8911 / e8912)
e2412/1 P without carrier Rated voltage:
e8901 without carrier 750 V (e2412)
e8901 FH/.. with holders 800 V (e8901 / e8911 / e8912)
Note:
e2412…/e8901...
Refer to manufacturing date of the light fitting when Turn-latch lamp holder G13
ordering. The combination of “old“ and “new“ lamp
Lamp holder/
holders is not possible in one fitting. Type Article no. for Series
Unit
e2412
II 2 G Ex e II I M 2 Ex e I
90100 9001 e2412/1-P 1 pair e152... and e148..(1-lamp) from 1997 until 08/2009
II 2 G Ex e IIC Gb
90189 9012 e8901 P 1 pair e152... and e148... (1-lamp) from 09/2009 and
e152... and e148... (2-lamps) from 1997
90189 9014 e8901 FH/1 1 pair e840... (1-lamp)
e8901 90189 9015 e8901 FH/2 1 pair e840... (2-lamp)
90189 9018 e8901 FH/1N 1 pair e841... (1-lamps)
90189 9019 e8901 FH/2N 1 pair e841... (2-lampis
e8911 / e8912
e8911 / e8912
Turn-latch lamp holder G13
Lamp holder/
Type Article no. for Series
Unit
II 2 G Ex e II I M 2 Ex e I
90189 9011 e8911 P 1 pair e181/182..., e187/188..., e191/192... until 09/2009
II 2 G Ex e IIC Gb
90189 9013 e8912 P 1 pair e800..., e801... until 2012 and e845..., e846...
Subject to technical changes, misprints and errors. 16 Catalogue conventional 2021/22Explosion protected
Light Fittings
Subject to technical changes, misprints and errors. 17 Catalogue conventional 2021/22Waterproof Light Fittings
Quality knows no compromises
Waterproof light fittings have a wide scope FROM WATERPROOF PORCELAIN LIGHT FITTINGS TO
of applications. Thus, a lighting system
shall meet various requirements, from
WATERPROOF LED LIGHT FITTINGS
simple storage rooms to industrial applica- 1895 1973
tions with extreme ambient conditions and Foundation of the company. Production of Start of production of legendary waterpro-
temperatures, mechanical and chemical the first waterproof porcelain lamp holder of light fittings series 161/162, which, in
impacts. for incandescent lamps. sub-sequent years, developed to the
Production of first porcelain and hand light waterproof light fitting for severe industrial
Requirements are as various as solutions fittings with protective glass for damp applications.
which SCHUCH offers being an experienced locations, namely for breweries, leather and
specialist in this field. As a result, a very chemical industries. 1975
wide range of light fittings has been Foamed polyurethane gasket is used for the
designed for special applications at 1934 first time instead of widespread conventio-
workshops and in production areas. SCHUCH launches the first gas-tight nal rubber seals.
pendant lamp (“completely hermetically
Numerous excellent references in all sealed”). Further “special lights” and 1995
industry branches witness SCHUCH’s “special mountings” such as barrel illumina- The range of waterproof light fittings
innovative strength, competence and tors, barn and cellar switches follow. extends by including special industry
reliability. Our customers appreciate the solutions for severe applications in the
proverbial high quality of SCHUCH 1949 industry and at workshops. In the following
products for over 125 years. Production of first waterproof light fittings years, an extensive program developed out
without diffusers for fluorescent tubes. of this, which impressively documents the
Our customers can also rely on it with competence and know-how of SCHUCH.
regard to all light fittings with the new 1952/53
LED technology. Quality knows no compro- Production of industry’s first waterproof 2007
mises. light fitting made of fiberglass-reinforced Industry’s first waterproof light fitting for
polyester. unprotected outdoor installation.
Launching own production of “PREPREG” A unique selling point that shows the high
and in-house production of fiberglass-rein- quality of SCHUCH lights.
forced polyester housings.
Subject to technical changes, misprints and errors. 18 Catalogue conventional 2021/22Dustproof/Waterproof Light Fittings
conventional Technology
Product Series Page
Light Fittings with diffuser
Series 161/162... 161/162... 20-25
• with mirror-type reflector ... S 21
• for outdoor installation ... AUS 22
• for food industry areas ... LM 23
• for high ambient temperatures ... H 24
Series 144...
with central locking system 144... 26-27
Series 163/164... 163/164... 28-29
• for food industry areas ... IFS 29
Series 164 KL...
small polyester light fittings 164 KL... 30
Series 130/131...
small PC light fittings 130/131/132... 31-32
Light Fitting without Diffusers
Series 175... (T8) 175... 33-35
• with protective tube S38/S50/SOT 34
Oval-Shaped Light Fitting
LED-TECHNOLOGY Series 3610... 3610... 36
2007 2019/20
Dustproof/Waterproof
The first waterproof LED light SCHUH intensely investigates the Tubular Light Fittings
Series 110... TUBEO 110... 37
Light Fittings
fittings (low power compact light influence of harmful gases on
fittings) are added to in the product LED lights. This has resulted in the
range. RESISTANT range of light fittings Vandal Proof Light Fittings
with the designations Series 140... 140... 38-39
2014 ER = increased protection
With light fitting series 161 VARIO HR = high protection Carrier Rails TRS 2000 40
SCHUCH introduces industry’s first XR = extremely tight. AL 40
waterproof light fitting with TRS 1000 41
adjustable luminous flux. One light 2020/2021
fitting can replace standard versions Introduction of the first `Gas Through Wirings DV 41
up to 2 x 58W. Tight` light fitting PRIMO XR
for applications in harmful gas
2015/16 environment.
First LED light fitting series for a
wide temperature range of -40°C to
+65 °C, designed for applications in
climatic zones with extreme
temperature conditions and
fluctuations.
Subject to technical changes, misprints and errors. 19 Catalogue conventional 2021/22Dustproof/Waterproof Light Fitting with Diffuser
Series 161/162...
Application: Closure: Three-part captive plastic clips
In humid, wet and dusty indoor areas of (KK).
industrial premises, for workshops and Reflector: Glass fibre reinforced polyester,
car parks, basements, power stations etc. T5-version with sheet steel reflector, can
Aggressive atmospheres: Please consult us. be suspended or removed and carries the
Design: electrical components, protected against
High-grade, robust, extremely stable and accidental contact.
chemically resistant dust-/waterproof light Connection: 3-pole terminal.
fitting. Cable entries: 2 plugs M20.
Housing: Glass fibre reinforced polyester Mounting: Closed knock-outs for direct
resin, foamed polyurethane gasket. ceiling mounting (to be opened at site).
Diffuser: Injected, clear acrylic glass with Sealing and pressure disks inside each
internal prisms or polycarbonate (PC) fitting.
Options:
– stainless steel clips (KE) or one-sided – cable entries M25x1,5
Note: stainless steel hinges (SC) – in halogen-free version
Unlike housings made from polycarbonate our – plug-in connection (FastConnect) – silicone-free
housings made from glass fibre reinforced polyester – 2 entries on one side for mains cable – shakeproof (RF) for areas subject to
are durable resistant against UV-radiation and chemical looping instead of the conventional vibrations and shocks (e.g. digger walk-
components. through wiring system ways, conveyor belts etc.)
Consequently they are all-purpose and enduring safe – for vertical wall mounting (with lam- – for connection to group or central
for long-term use. This is of significant importance pholder support) battery systems (ZB)
especially for industrial applications.
161 1... EVG 162 2... EVG 162 1... S 162 2... S
SCHUCH quality - Your advantage:
• h
igh grade, robust, chemically resistant light fitting of an excellent quality; especially suitable for
its application at a rough industrial environment:
– housing of a high impact resistance (wall thickness: 2mm), outstanding chemical- and UV-resistance.
– housing with 3 mounting points, espacially suited for areas with a risk of shocks and vibrations e.g.
power plants, boiler- or turbine rooms
– diffuser of a high mechanical stability (quadruble safety due to impact resisting component. Wall thick-
ness: 1,9mm). Excellent chemical resistance. 16Nm
– alternative: injected PC diffuser of a very high impact resistance (16 Nm) even at
a high continuous temperature
• best suitable for easy mounting and maintenance purpose
with a high security of continuous operation:
161... 162...
– tiltable cover allows a quick and easy lamp replacement without any tools
– captive clips consisting of several components made from high grade plastic (standard)
Option: Clips made from high-alloy chromium-nickel steel (in case of aggressive ambient conditions),
stainless steel hinges at one side if wanted.
– variable looping facility of the mains cable
versions with magnetic ballast for up to +50°C as a standard
•
– standardized by Deutsche Bahn AG
Cable entries for looping the mains cable on one
side (loop in/loop out):
Optionally the light fittings can be supplied with 2
cable entries on one small side.
This feature allows an optimal adjustment to all local
conditions and it will consequently save the typical
quite expensive through wiring system (preparation at
additional cost).
Subject to technical changes, misprints and errors. 20 Catalogue conventional 2021/22without packaging material
Energy efficiency class
Weight [kg]
Article no. Type Lamps W
IP65
161/162... T 26
16100 0010 161136 i 1 x T26/36 A 3,8
16100 0013 161158 i 1 x T26/58 A 4,3
16200 0010 162218 i 2 x T26/18 A 3,4
16200 0013 162236 i 2 x T26/36 A 6,5
16200 0016 162258 i 2 x T26/58 A 7,3
Uncomp.; article nos. for comp. see price list
16100 0018 161118 EVG 1 x T26/18 A 1,5
16100 0019 161136 EVG 1 x T26/36 A 2,4
16100 0020 161158 EVG 1 x T26/58 A 3,0
16200 0055 162218 EVG 2 x T26/18 A 2,2
16200 0056 162236 EVG 2 x T26/36 A 4,0
16200 0057 162258 EVG 2 x T26/58 A 4,7
IP65
161/162... (T5) T 16
16108 0008 161128/54 1 x T16/28/54 A+,A 2,8
16208 0010 162214/24 2 x T16/14/24 A+ 2,6
Dustproof/Waterproof
16208 0008 162228/54 2 x T16/28/54 A+,A 5,0
16208 0009 162235/49 2 x T16/35/49 A+ 6,2
Light Fittings
IP65
Series 162 1.. S Series 162 2.. S
162... S. T 26
with mirror-type reflector systems for installation in high rooms
Application: As standard type 162... but:
Industrial halls, warehouses, illumination of shelves, Reflector: Surface refined mirror type reflector made of
warehouse areas and corridors with heights from 5 to purest aluminium with a high efficiency factor.
12 m... Aggressive atmospheres: Please consult.
Mirror-type reflectors also for H/T- and LM versi-
Design:
ons available.
16200 0094 162136 S i 1 x T26/36 A 5,4
16200 0112 162158 S i 1 x T26/58 A 7,1
16200 0100 162236 S i 2 x T26/36 A 6,8
16200 0103 162258 S i 2 x T26/58 A 7,6
* Uncomp.; article nos. for comp. see price list
16200 0059 162136 S EVG 1 x T26/36 A 4,1
16200 0060 162158 S EVG 1 x T26/58 A 5,0
16200 0065 162236 S EVG 2 x T26/36 A 4,3
16200 0066 162258 S EVG 2 x T26/58 A 5,1
Subject to technical changes, misprints and errors. 21 Catalogue conventional 2021/22Note:
without packaging material
The light fitting is not to be used in areas with high
mechanical stress (wind) or seldom usage (i.e. mainte-
Energy efficiency class
nace and inspection only).
Within very critical environmental conditions we
Weight [kg]
recommend our series 144... in version AUS (please
contact us) or the mounting of a weather roof.
In the hinged version please use fittings with stainless Article no. Type Lamps W
steel hinges in the 2 outer positions only.
IP65
When mounting the light fittings on bracket poles or 161/162... AUS T 26
tubular beams/pipes always use original Schuch pipe
clamps with support (see accessories). for outdoor installation
Application: Design:
In protected and unprotected As type 161/162…, but: Mounting:
outdoor areas and industrial plants, Diffuser: UV proof Ceiling and horizontal wall mount
mounted to walls, ceilings, catwalks Gasket: Silicone. or mounting to outreaches, poles,
and steel structures, pipe brackets, Pressure compensation element: steel structures, catwalks, etc. by
grating, under canopies, bus stops, M20 means
train stations, subways, constructi- Entries: of pipe clamps.
on sites, etc. (please contact us in 1 gland M20 at one small side, For vertical mounting please consult
case of aggressive substances) pressure compensation element us.
M20 at the other small side.
pole mount with pipe clamps Advantages of the AUS design:
• glass fibre reinforced polyester housing, durable resistant againstUV-radiation and chemical components.
• our injected PMMA-covers are extremely UV-resistant and robust (wall thickness 1.9mm)
• profile gaskets are UV-, ozone-, weather-, chemically resistant and non-aging
pressure compensation element
• pressure compensation element provides controlled venting and thus protects against condensation
• the fitting can be installed in canopied as well as in entirely open outdoor areas
16100 0402 161136 AUS i 1 x T26/36 A 3,8
16100 0400 161158 AUS i 1 x T26/58 A 4,3
pressure compensation element 16200 0404 162218 AUS i 2 x T26/18 A 3,4
16200 0402 162236 AUS i 2 x T26/36 A 6,5
16200 0400 162258 AUS i 2 x T26/58 A 7,3
* Uncomp.; article nos. for comp. see price list
16100 0406 161118 AUS EVG 1 x T26/18 A 1,6
16100 0407 161136 AUS EVG 1 x T26/36 A 2,6
16100 0408 161158 AUS EVG 1 x T26/58 A 3,4
16200 0406 162218 AUS EVG 2 x T26/18 A 2,2
16200 0407 162236 AUS EVG 2 x T26/36 A 4,0
16200 0408 162258 AUS EVG 2 x T26/58 A 4,8
Subject to technical changes, misprints and errors. 22 Catalogue conventional 2021/22Notes:
without packaging material
These light fittings are also available in LM version:
• as LED-version
Energy efficiency class
• with PC cover when no cleaning solvents are
being used (version IFS)
• for higher ambient temperatures`up to +60°C
Weight [kg]
(H60)
The Light Fittings may not be cleaned with water-jet Article no. Type Lamps W
units.
IP65
161/162... LM T 26
for application in food industry areas
Application: standards or who are subject to Diffuser: Shatterproof, highchemical
Food industry or food processing comparably strict requirements (e.g. resistance.
factories especially in risky areas of production of food packaging). Profile gasket: Non-absorbing,
the food production or processing, non-porous, physio logically perfect.
suppliers to the food industry who Design: Closure clips: Stainless steel (KE).
are falling in the IFS, BRC or HACCP Same as type 161/162... but:
Advantages of the LM version:
• shatterproof diffuser with very high impact resistance (20Nm) even at a high continuous opera-
ting temperature
• resistant against grease and aggressive cleaning agents, disinfectants and solvents (We recom-
mend potential used cleaning agents and disinfectants to be proofed on their consistency! Consis-
tency index on request.)
IFS/BRC/VDMA/HACCP
SCHUCH Light Fittings designed for food and beverage industry applications are in accordance with
IFS/BRC/VDMA standards. They can be operated without restrictions in operations that must fulfill the
HACCP Concept.
Dustproof/Waterproof
16114 0003 161136 LM i 1 x T26/36 A 3,8
16114 0005 161158 LM i 1 x T26/58 A 4,3
Light Fittings
16216 0001 162218 LM i 2 x T26/18 A 3,4
16216 0003 162236 LM i 2 x T26/36 A 6,5
16216 0005 162258 LM i 2 x T26/58 A 7,3
Uncomp.; article nos. for comp. see price list
16114 0007 161118 LM EVG 1 x T26/18 A 2,8
16114 0008 161136 LM EVG 1 x T26/36 A 5,0
16114 0009 161158 LM EVG 1 x T26/58 A 7,4
16216 0007 162218 LM EVG 2 x T26/18 A 2,8
16216 0008 162236 LM EVG 2 x T26/36 A 5,0
16216 0009 162258 LM EVG 2 x T26/58 A 6,2
Subject to technical changes, misprints and errors. 23 Catalogue conventional 2021/22Notes:
without packaging material
Especially for the food industry we deliver
Energy efficiency class
version LM with a special surface finish of the
PC cover which complies with the IFS Food (Inter-
national Featured Standard Food), also available for
Weight [kg]
high temperatures.
Please consult us.
Article no. Type Lamps W
IP65
161/162... H... T 26
for high ambient temperatures up to +70°C
Application: Closure: External plastic clips (KK). tube.
Power stations, garbage incinerati- For a. t. up to +60°C: Diffuser: Injected, clear (PC) with
on plants, recycling plants, chemical Diffuser: Injected, clear polycarbo- internal prisms.
industries ... nate (PC) with internal prisms. Gasket: Silicone.
Design: Gasket: Silicone. Closure: External stainless steel
For a. t. up to +40°C Closure: External plastic clips (KK). clips (KE).
Diffuser: Injected, clear acrylic with For a. t. up to +70°C:
internal prisms. Wide housing: For 1 fluorescent
for a. t. up to +60°C
16102 0013 161136 H60 i 1 x T26/36 A 3,8
16203 0010 162218 H60 i 2 x T26/18 A 3,4
16203 0013 162236 H60 i 2 x T26/36 A 6,5
Uncomp.; article nos. for comp. see price list
for a. t. up to +70°C
16203 0036 162136 H70 i 1 x T26/36 A 5,2
for a. t. up to +40°C
16102 0055 161118 H40 EVG 1 x T26/18 A 1,7
16102 0056 161136 H40 EVG 1 x T26/36 A 2,8
16102 0057 161158 H40 EVG 1 x T26/58 A 3,5
16203 0105 162218 H40 EVG 2 x T26/18 A 2,9
16203 0106 162236 H40 EVG 2 x T26/36 A 4,9
16203 0107 162258 H40 EVG 2 x T26/58 A 6,5
Subject to technical changes, misprints and errors. 24 Catalogue conventional 2021/22Accessories / Spare Parts
Article no. Type Article no. Type
Rotatable snap-on mirror reflectors Spare acrylic glass covers (PMMA) Spare polycarbonate glass covers (PC)
16111 9000 161 018 16111 9003 161 018 PC
16111 9001 161 036 16111 9004 161 036 PC
16111 9002 161 058 16111 9005 161 058 PC
16211 9000 162 018 16211 9003 162 018 PC
16211 9001 162 036 16211 9004 162 036 PC
16211 9002 162 058 16211 9005 162 058 PC
Spare covers LM
16111 9017 161 018 LM 16211 9017 162 018 LM
- standardized by Deutsche Bahn AG 16111 9018 161 036 LM 16211 9018 162 036 LM
16111 9019 161 058 LM 16211 9019 162 058 LM
Wire guards Spare polycarbonate glass covers PC SC
16111 9012 161 018 PC SC 16211 9014 162 018 PC SC
16111 9013 161 036 PC SC 16211 9015 162 036 PC SC
16111 9014 161 058 PC SC 16211 9016 162 058 PC SC
Dustproof/Waterproof
Spare polycarbonate glass covers PC 2SC
16111 9020 161 018 PC 2SC 16211 9020 162 018 PC 2SC
Light Fittings
16111 9021 161 036 PC 2SC 16211 9021 162 036 PC 2SC
16111 9022 161 058 PC 2SC 16211 9022 162 058 PC 2SC
Rotatable snap-on mirror reflectors
High anodized mirror-type reflectors clamped onto the 26mmØ fluorescent tubes, with snap-on device,
allowing a reflector setting in steps of 15°. Suitable for the following light fittings:
16112 0001 161/21 16212 0001 162/22
16112 0002 161/41 16212 0002 162/42
16112 0003 161/61
Wire guards, powder coated
90004 0001 SK 120 90004 0004 SK 220
90004 0002 SK 140 90004 0005 SK 240
90004 0003 SK 165 90004 0006 SK 265
Clips
90053 9006 KK FR VE10 plastic clips (packing unit 10)
Pipe clamp R1 1/2” - Ø 48,3mm
90055 9003 KE VE10 stainless steel clips (packing unit 10)
R2” - Ø 60,3mm
Cable entries
90063 9000 2511 grommets, Pg13,5/M20
25610 9000 2561 plastic cable gland M20 x 1,5
25600 9000 2560 plastic cable gland M25 x 1,5
90259 9002 DAE20 pressure compensation element M20
90259 9003 DAE 20/25 adapter gland M20 -> M25 with pressure compensation
Lamp holders
90056 9003 161/1 lamp holder
Ceiling bracket 183 DS 90056 9006 161/1 T140 lamp holder for a. t. of +60°C
90057 9000 183/1 starter holder
90056 9002 190 FS lamp holder support
Lamp holders for T5-lamps
90056 9008 161 T5 lamp holder for all fluotubes
Mirror-type alu reflectors for subsquent installation into our standard light fittings
90238 9001 S 162/2 36 for 162 2367228/254
90238 9002 S 162/2 58 for 162 258/235/249/280
Lamp holder support 190 FS Pipe clamps
90093 0002 183 RO 112 A P 2 pcs., 1 1/2” stainless steel, with support
90094 0002 183 RO 2 A P 2 pcs., 2” stainless steel, with support
Consider mounting distances when installing the light fittings by pipe clamps to pole outreaches or any brackets.
Angle brackets, aluminium for series 161/162..., 163/164... and 175/176...
90045 9001 HW 30 P pair of angle brackets 30°
90045 9002 HW 45 P pair of angle brackets 45°
90045 9004 HW 60 P pair of angle brackets 60°
90045 9003 HW 90 P pair of angle brackets 90°
Note: Accessories for ceiling mounting
Further accessories as well as carrier rail systems and 90049 0002 183 S hook for chain suspension
through-wiring system are available. 90095 0001 183 DS stainless steel bracket with bolt M5
Subject to technical changes, misprints and errors. 25 Catalogue conventional 2021/22
18.05.2021Extremely robust Dustproof/Waterproof
Light Fitting with Central Locking System
Series 144...
Application: Reflector: Glass fibre reinforced polyester,
Indoor and outdoor protected or unpro- hinged and removable.
tected locations with high mechanical Central locking system: Operated by a
strains as well as areas where any external hexagonal socket key 13mm.
clips are not wanted or where such clips Connection: 3-pole terminal.
could create problems. Food industry and Cable entries: 3 entries M25 x 1,5
food processing industry etc.. (2 glands and 2 screw plugs).
Design: Looping the mains cable at one end of
Housing:Glass fibre reinforced polyester the housing up to 3 x 2,5mm² possible.
resin. Mechanical installation: 2 suspension eyes
Diffuser: Polycarbonate, clear with inter- with bolts (H8V P) or 2 ceiling brackets
nal prisms, hinged. (15A P), see accessories.
Note: 144 2.. Gasket: Silicone.
In unprotected outdoor areas a gland with pressure
compensation must be used to avoid formation of Options:
condensation (see options) – a dapter gland with pressure compen- – through wiring system up to
sation suitable for outdoor application 6 x 2.5mm2
(AUS)
–2 individual electronic ballasts for 2
separate mains
Schuch Quality - your advantage:
• extremely sturdy design of high mechanical and chemical resistance for a long term
use in rough industrial areas:
20Nm
- housing of an impact resistance of 20Nm
- polycarbonate diffuser of high impact strength
(equal wall thickness: 2.5mm)
- stable internal central locking system
- highly resistant silicone gasket of dimensional stability for permanently safe tightness (IP66)
Pipe clamp mounting • easy to install and maintain:
- time saving easy mechanical installation by means of eye bolts or ceiling brackets without
opening the light fitting
- time saving easy lamp replacement due to the central locking system and hinged diffuser
• best suitable in the food industry and in the food processing industry especially in risky areas falling under
the IFS Food standards (International Featured Standards Food)
• with adapter gland with pressure compensation (see options) allowing an application in all unprotected
outdoor areas
Suspension brackets H8V Ceiling brackets 15A
without packaging material
Energy efficiency class
Weight [kg]
Article no. Type Lamps W
IP66
144... T 26
14400 0013 144118 EVG 1 x T26/18W A 5,3
14400 0014 144218 EVG 2 x T26/18W A 5,4
14400 0015 144136 EVG 1 x T26/36W A 7,5
14400 0016 144236 EVG 2 x T26/36W A 7,6
14400 0017 144158 EVG 1 x T26/58W A 9,2
14400 0018 144258 EVG 2 x T26/58W A 9,2
Looping the cable on one side:
All light fittings of series 144... have got 2 cable entries
on one small side of the housing for cable looping.
This allowing a more economical cable looping at one
end instead of the classical through wiring system
(surcharge for 5-pole version).
Subject to technical changes, misprints and errors. 26 Catalogue conventional 2021/22Dustproof/Waterproof
Light Fittings
Mounting material
Suspension eyes with bolts H8V P
Accessories / Spare Parts
Ceiling brackets 15A P Article no. Type
Spare diffusers for series 144…
spare glass for 18W version until 2018,
84001 9006 8402 SIL please see type plate of light fitting:
article no. without “G” at the end
spare glass for 18W version from 2018,
84001 9007 8402 SIL G please see type plate of light fitting:
Pipe clamps RO84...A P article no. with “G” at the end
84001 9004 8404 SIL spare cover PC for 36 W
84001 9005 8406 SIL spare cover PC for 58 W
Cable glands / adapter gland with pressure compensation
25600 9000 2560 ex-proof plastic cable gland M25 x 1,5
90118 9000 2538 ex-proof plastic plug M25 x 1,5
90259 9002 DAE20/25 adapter gland M20 -> M25 with pressure compensation
Lamp holders
Wall bracket W26/45 P 90056 9006 161/1 T140 lamp holder
Mounting material
90001 0002 H8V P 2 suspension eyes with bolts, stainless steel
90000 0002 15A P 2 ceiling brackets, hot galvanized steel
90032 0002 15AV P 2 ceiling brackets, stainless steel
90037 0004 RO84 112 A P 2 pipe clamps 11/2”, stainless steel, with support
90038 0004 RO84 2 A P 2 pipe clamps 2”, stainless steel, with support
26000 0008 W 26/L P 2 wall mounting angles, sendzimized
Further accessories such as carrier rail systems please 26000 0002 W 26/30 P 2 wall mounting angles 30°, sendzimized
see Ex-installation material in this catalogue. 26000 0003 W 26/45 P 2 wall mounting angles 45°, sendzimized
Subject to technical changes, misprints and errors. 27 Catalogue conventional 2021/22Dustproof/Waterproof Light Fitting with Diffuser
Series 163/164 ...
Application: Rotary fasteners for quick assembly.
In humid, wet and dusty interior areas of Electrical connection: 3-pole terminal
industrial and agricultural premises, for block.
car parks, basements... Cable entries: Variable, closed knock-outs
Aggressive atmospheres: Please consult on the short and long sides, and on the
us. top, 2 blanking plugs M20. Cable looping
Design: in/out at one end (see grey box).
Housing: Glass fibre reinforced polyester Mounting system: 2 holes for ceiling
resin, foamed polyurethane gasket. mounting. Sealing and pressure disks are
Diffuser: Stippled clear PMMA, modified supplied inside the fitting.
for higher impact resistance or polycar-
bonate (PC).
Fasteners: External plastic clips (KK).
Reflector: Removable white sheet steel,
complete with electronic components.
Options:
– polycarbonate diffuser (PC) – f or applications in food industry areas
– s tainless steel fasteners (KE) (IFS)
– P VC or silicone through wiring system – f or connection to central battery
up to max. 7 x 2.5mm² or 5 x 4mm² systems (ZB)
– cable entries M25 x 1.5
163 ... 164 ... 164 1 ... ST 164 2 ... ST
163...
SCHUCH quality - Your advantage:
• q
uality Dustproof/Waterproof light fitting with higher than average mechanical strength and
chemical resistance
– robust glass fibre reinforced polyester enclosure
– robust, modified PMMA diffuser (alternatively PC) with thicker walls
top – reliable and infallible sealing, due to polyurethane gasket situated inside a deep groove
• easy to install and maintain
long side – fast dismantling and assembly of the reflector using rotary fasteners on moulded-in studs
– large terminal compartment for up to to 7 x 2.5mm² or 5 x 4mm² terminals
Additional entries (knock-outs) – problem-free, single-handed installation (2-point suspension)
164... – e asily adaptable to all local structural conditions due to the variable cable entries on the short and long
sides, as well as the top
– quick and economic single-ended IN-OUT wiring instead of the classic through wiring for strip lighting
without packaging material
Energy efficiency class
top
Weight [kg]
Additional entries (knock-outs)
Article no. Type Lamps W
IP65
163/164.. T 26
16300 0010 163118 EVG 1 x T26/18 A 1,3
16300 0011 163136 EVG 1 x T26/36 A 2,3
16300 0012 163158 EVG 1 x T26/58 A 2,6
16400 0011 164236 EVG 2 x T26/36 A 3,2
16400 0012 164258 EVG 2 x T26/58 A 4,1
Standard design with cable entries for 3-pole
single-ended IN-OUT wiring:
The variable cable entries make it possible to adapt
for all local structural conditions and enables the use
of single-ended IN-OUT wiring instead of the classic
through wiring. All entries are knock-out.
Subject to technical changes, misprints and errors. 28 Catalogue conventional 2021/22
28.04.2021without packaging material
Energy efficiency class
Weight [kg]
Article no. Type Lamps W
163/164... IFS T 26
IP65
for application in food industry areas
Application:
Food industry and suppliers who are falling in the Design:
International Featured Standard Food (IFS Food), BRC, As standard version 163/164..., but:
bzw. HACCP or who are subject to comparably strict Diffuser: Polycarbonate, shatterproof
requirements. Closure: Stainless steel clips (KE)
IFS/BRC/VDMA/HACCP 16314 0007 163136 IFS EVG 1 x T26/36 A 2,3
SCHUCH Light Fittings designed for food and 16314 0008 163158 IFS EVG 1 x T26/58 A 2,6
beverage industry applications are in accordan- 16416 0007 164236 IFS EVG 2 x T26/36 A 3,2
16416 0008 164258 IFS EVG 2 x T26/58 A 4,1
ce with IFS/BRC/VDMA standards. They can be
operated without restrictions in operations that Also available for T5-lamps.
must fulfill the HACCP Concept.
Accessories / Spare Parts
Dustproof/Waterproof
Aluminium narrow beam mirror reflector
for retrofitting into standard light fitting Article no. Type Article no. Type
Light Fittings
ST 163 ST 164 Spare diffuser PMMA Spare diffuser polycarbonate (PC)
16311 9000 163 018 16311 9003 163018 PC
16311 9001 163 036 16311 9004 163036 PC
16311 9002 163 058 16311 9005 163058 PC
Protective guard
16411 9000 164 018 16411 9003 164018 PC
16411 9001 164 036 16411 9004 164036 PC
16411 9002 164 058 16411 9005 164058 PC
Fasteners
90123 9003 163 KK VE08 plastic (packing unit 8)
90123 9002 163 KE VE08 stainless steel (packing unit 8)
Cable entries
90063 9000 2511 blanking plug M20
25610 9000 2561 plastic cable gland M20 x 1,5
25600 9000 2560 plastic cable gland M25 x 1,5
Lamp holders
from manufacturing date 2008 (focal point 30mm)
90124 9003 164/1/30 without starter holder (cut-out 25.5 x 13.2)
90125 9002 164/2/30 with starter holder (cut-out 25.5 x 13.2)
... for T5
90124 9002 163/1 T5
. for 163/164... LW (with corrosion protected metal parts)
Pipe clamp R1 1/2” - Ø 48,3mm 90124 9005 164/1/30 LW without starter holder (cut-out 25.5 x 13.2)
R2” - Ø 60,3mm 90125 9005 164/2/30 LW with starter holder (cut-out 25.5 x 13.2)
Aluminium narrow beam mirror reflector for retrofitting into standard light fitting (not for T5)
16412 0001 ST 164/36 for 164 236 and 164 228/54
16412 0002 ST 164/58 for 164 258, 164 235/49 and 164 280/2E
Protective guard, powder coated
90004 0001 SK 120 for 163 x 18/14/24 W
90004 0002 SK 140 for 163 x 36/28/54 W
90004 0003 SK 165 for 163 x 58/35/49/80 W
Ceiling bracket 183 DS 90004 0004 SK 220 for 164 x 18/14/24 W
90004 0005 SK 240 for 164 x 36/28/54 W
90004 0006 SK 265 for 164 x 58/35/49/80 W
Pipe clamp
90245 0003 163 RO 112A P 1 1/2”, stainless steel, without retaining bracket (pair)
90245 0004 163 RO 2A P 2”, stainless steel, without retaining bracket (pair)
90245 0005 164 RO 112A P 1 1/2”, stainless steel, with support (pair) for 164...
90245 0006 164 RO 2A P 2”, stainless steel, with support (pair) for 164...
Attention: Observe the fixing distance when mounting on boom with pipe clamps (boom length!)
Note: Accessories for ceiling mounting
Light-band rails and through wiring see end of 90049 0002 183 S swing hook for chain suspension
chapter “Dustproof/Waterproof lighting” 90095 0001 183 DS stainless steel bracket, with screw M5
Subject to technical changes, misprints and errors. 29 Catalogue conventional 2021/22Compact Dustproof/Waterproof Light Fitting
Series 164... KL
Application: complete with electrical components.
In wet, humid and dusty locations, Rotary fasteners for quick assembly.
corridors, staircases, basements, below Connection terminal: 3 poles
canopies and balconies etc. (Please con- Cable entries: Variable, at the ends and
tact us regarding use where detergents top of the housing, 2 plugs M20.
and similar chemical materials occur). Wiring options: Cable looping in/out at
Design: one end (see grey box).
Housing: Glass fibre reinforced polyester, Mounting system: 2 holes for ceiling
inlaid profile gasket. mounting. Sealing and pressure disks are
Diffuser: Stippled clear impact resistant supplied inside the fitting.
PMMA, hinged on both sides.
Clips: Single-piece plastic clips (KK).
164 111 KL
Reflector: Detachable, white sheet steel,
Options:
–d iffuser clear stippled polycarbonate
(PC)
– stainless steel clips (KE)
– cable entries M25 x 1.5
– vibration-reducing suspension
Energy efficiency class
without packaging
Weight [kg]
material
Article no. Type Lamps W
IP65
164... KL TC-L TC-SEL
for compact lamps, lamp holder G23 or 2G11
16404 0003 164218 KL i 2 x TC-L 18 (Tandemschaltung) A 2,5
Uncomp.; article nos. for comp. see price list
for compact lamps, lamp holder 2G7 or 2G11
16404 0063 164111 KL EVG 1 x TC-SEL 11 A 1,1
16404 0072 164211 KL EVG 2 x TC-SEL 11 A 1,3
16404 0017 164124 KL EVG 1 x TC-L 18-24 A 1,2
16404 0018 164224 KL EVG 2 x TC-L 18-24 A 1,3
EVG = electronic ballast (ECG)
Standard design with cable entries for single-en-
ded IN-OUT wiring:
The variable cable entries make it possible to adapt
for all local structural conditions and allows the use
of single-ended IN-OUT wiring instead of the classic
through wiring. All entries are knockout. (5-pole IN-
OUT-wiring at additional charge)
Wall bracket 45° (WA45)
Accessories / Spare Parts
Article no. Type
Spare diffusers
16413 9000 164 000 PMMA, stippled clear acrylic
Wall bracket 90° (WA90) 16413 9002 164 000 PC PC, stippled clear polycarbonate
Cable entries
90063 9000 2511 blanking plug M20
25610 9000 2561 plastic cable gland M20 x 1,5
25600 9000 2560 plastic cable gland M25 x 1,5
Lamp holder
90253 9004 G23 for 164... KL (magnetic ballast)
90253 9005 2G7 for 164. 11 KL ECG
90253 9006 2G11 for 164. 24 KL magnetic ballast/ECG
Ceiling bracket (DA) Mounting brackets
90232 0012 WA 45 ALU wall bracket 45°
90232 0013 WA 90 ALU wall bracket 90°
90232 0004 DA of ceiling bracket 90°
Fasteners
90123 9003 163 KK VE08 plastic (packing unit, 8 pcs.)
90123 9002 163 KE VE08 stainless steel (packing unit, 8 pcs.)
Subject to technical changes, misprints and errors. 30 Catalogue conventional 2021/22You can also read
