Simplicity
Confidence
Value
Hilti firestop systems
Guide to Specification, Installation and Inspection
Specifier Guide
Passive Fire Resistance
How often do fires
actually break out?
Worldwide, about 4 million fires
break out every year, claiming
more than 15,000 human lives,
costing some £ 40,000 million
and causing inestimable
ecological and cultural damage.
Hilti firestop systems have been
developed to reduce the amount
of damage, to protect human
lives and to avoid hazards. All
Hilti products have been tested,
inspected and approved
according to stringent standards
internationally.
Why are firestop
systems used and how
do they work?
All system used for passive fire
prevention serve the purpose of
preventing flames, heat, smoke
and toxic gases from spreading
to neighbouring rooms or other
floors in the event of a fire.
Wherever undesirable openings
can appear because of melting
cables or pipes during a fire,
intumescent materials are the
answer to the problem. Under
the influence of heat, they
expand up to seven times their
original volume quickly and
effectively and permanently
close openings created by a fire.
"Intumescent" - what does the word mean?
It's a difficult word that had a This phenomenon has been adopted for
simple explanation: the working principle of some firestop
intumescent means that a products: they foam or swell when
substance has the physical exposed to the heat of a fire and thus
property of increasing its close cracks and gaps.
volume under the influence of
heat. Dough for bread, for
example, increases its
volume many times in the
heat of an oven.Specifier Guide
Fire is costly
Every seven seconds a fire breaks out systems. Thousands of people die in firefighting, the other the use of passive
somewhere in the World. In a single year, fires every year. Damage to property is firestop systems.
the consequences are about four million also tremendous. Perhaps damage to a
fires, some 15,000 victims, damage building can be made good through
costing 70,000 million US dollars, and insurance, but cultural artefacts are lost Passive firestop systems
immense consequential damage. The trend forever for future generations. Even
is rising and will continue if no preventive when fire damage, such as that to If a fire breaks out, it should be
measures are taken. It is false to assume production equipment, has been contained in a so-called fire
that all outbreaks can be stopped. On the repaired, the consequences can often compartment by passive firestop
other hand, there are ways and means of still be far reaching. Hard-won market systems. To achieve this, each and every
reducing the damage. One is to use Hilti shares might be lost from one day to opening or penetration in a fire wall or
firestop systems. Fires break out without another. In this way, actual implications floor must be sealed against the escape
warning because their causes are so of a fire may only be felt by a company of fire and fumes. Materials used for this
numerous. Highly flammable materials after many years. It might even go out of purpose expand in a fire and close any
may be ignited by short-circuits in business. gaps which might result from melted
damaged electric lines or may even be the components. A properly installed fire
result of arson. Once a fire breaks out in a seal can prevent fire from spreading to a
building, it spreads rapidly due to the high Spread of fire in buildings neighbouring room for a time of one to
pressure generated by the increase in four hours. As a result, escape routes
temperature. These temperatures can A supply conduit containing many are kept safe and the work of fire-
exceed 1000°C and cause even large, solid electric lines and pipes passes through fighters supported. Active fire
building components to buckle and snap all floors of an entire building. If a fire prevention uses sprinkler systems, fire
like match sticks. The fumes and gases breaks out, it can advance twenty extinguishers and the fire service, and
produced can cause death in a short time. metres every minute through this supply comes into action when a fire is actually
conduit. All seven floors are then fought.
engulfed by the spreading fire in only
Tremendous damage one minute. And, not only large supply
in Hong Kong conduits are a big risk, but also the
many small penetrations made after a
20 Nov, 97: building is finished to install electric
5th Alarm fire in Garley Building, Nathan supply lines and all other pipes. Many
Road. (40 deaths, 81 injury). buildings contain what are, from a fire
10 Jan 94: prevention aspect, weak points of this
Shek Kip Mei Branch, Hong Kong Bank kind. Measures to stop fires are either
(12 deaths, 1 injury) not given consideration during the
Often, people in burning buildings have building planning phase or, if so, the
no chance of escape because acrid firestop systems are not installed
smoke makes them lose their orientation properly. There are two approaches to
and permanently injures their respiratory stopping fire in a building: one is active
Why use Hilti firestop systems? openings in fire walls and floors. Each product has been
optimised for the diverse requirements in buildings.
Firestop representatives from Hilti provide professional Installers benefit from the easy use of Hilti firestop systems.
advice about firestop systems for building owners, They themselves can install the planned and necessary
specifiers and installers. They work closely with customers firestop systems, while resting assured that Hilti systems
from the building planning stage to the firestop installation have been tested world-wide and approved in accordance
phase to select ideal solutions or applications from Hilti’s with national regulations.
firestop programme. A full range of systems can be
supplied by Hilti to seal joints, cable penetrations and pipeSpecifier Guide
Abstract of Fire Resisting Construction Code
Compartmentation Vertical Shafts Basements
Inhibit the spread of fire Holes in a liftwell wall around frames or ......that every element of construction,
reveals of life landing door indicator compartment wall and compartment
Compartment walls, compartment panels and lift call buttons should be floor in such storeys and the
floors, ......should be constructed such properly filled and sealed to maintain the construction separating the uppermost
that all joints are completely filled with FRP of the wall. of such storeys from the storey above
non-combustible material to prevent the have the same FRP as that of the
passage of smoke or flame...... basement.
Protection against
Spread of Fire and
Openings through Fire Smoke between Floors Doors
Resisting Walls and Floors
Any void formed between the curtain All such doors should be closely fitted
Every opening for the passage of air- wall and the perimeter of the building around their edges to impede the
conditioning ducts, ventilation ducts, onto which the curtain wall is fixed passage of smoke or flame. The bottom
electrical trunking, conduits, pipes and should be solidly infilled at each floor gap between such doors and the floor
wires through a compartment wall or level by non-combustible materials should not exceed 4 mm.
floor, and every holde in such a wall or having an FRP of not less than that
floor left after construction should be required for the floor.
protected with fire dampers or other
suitable form of fire stop to maintain the Special Hazards
required FRP of that wall or floor.
Areas for electrical or hazardous
a. the sealing system should be tested installations or storing dangerous good
or assessed in accordance with the should be separated from the rest of the
general princples for fire resistance building by enclosures of non-
given in BS476 : Part 20 : 1987; combustible construction having an FRP
b. the sealing system should be firmly of not less than 2 hours or 4 hours
fixed. where adjoining required staircases. Any
permitted openings to such enclosures
should be provided with a door having
an FRP of not less than 1 hour.
Remarks:) The information in this page is extracted from "Code of Practice for Fire Resisting Construction 1996".Specifier Guide
Abstract of Fire Resisting Construction Code
Elements of construction or other components Criteria to be satisfied Method of exposure
Stability Integrity Insulation
1. Structural frame, beam or column Y N N exposed faces only
2. Floor including compartment floor Y Y Y each side separately
3. Roof forming part of an exit route or performing the Y Y Y from underside
function of a floor
4. Loadbearing wall not forming a separating wall or Y N N each side separately
compartment wall
5. External wall Y* Y Y each side separately
6. Compartment wall Y* Y Y each side separately
7. Protected shaft, lobby and corridor Y* Y Y each side separately
8. Fire shutter, fire stop or barrier N Y N each side separately
9. Smoke outlet shaft Y Y Y from outside
10. Enclosure around or sealing system for a duct, pipe or N Y N from outside
wire
11. Door (including frame and fixing) N Y N each side separately
(unless specified) (except lift doors - from landing side only)
12. Fixed light (including frame, glazing & fixing) Y* Y Y each side separately
13. Enclosure around services in staircase / lobby N Y Y each side separately
Notes: (1) Y = required
N = not applicable
Y* = required for loadbearing elements only
(2) Lintels, posts or jambs of an opening in a separating or compartment wall should be regarded as an integral part of that wall.
(3) Any restriction of the cross-section area of the smoke outlet shaft to 75% or less of its original area should be deemed to constirute failure in stability.
Remarks:) The information in this page is extracted from "Code of Practice for Fire Resisting Construction 1996".Specifier Guide
Contents
Page no.
Hilti firestop systems - Areas of applications 1/2
Review of applications and approvals 3/6
CP 601S elastic firestop sealant 7/8
CP 606 intumescent joint filler 9/10
CP 611A intumescent firestop mastic 11/13
CP 636 firestop mortar 14/16
CP 642 firestop jacket 17/19
CP 643 firestop jacket 20/22
CP 649 intumescent pipe wrap 23/25
CP 651 firestop cushion 26/28
CP 655 firestop brick 29/31
CP 656 firestop plug 32/34
CP 667 intumescent door strip 35/37
CP 671 firestop coating system 38/41
CP 678 cable coating 42/43
Notice and test reports available 44Feel safe and confident in all areas with
Hilti firestop systems
Cable Coating
CP 678

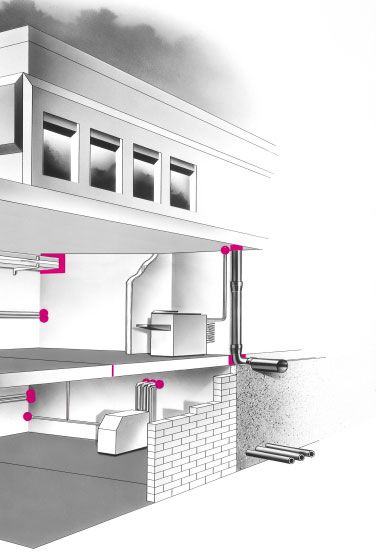

All penetrations and openings in all
kinds of buildings through which
flames, heat or fumes from a fire could
spread, can be sealed with Hilti firestop
systems to minimise fire damage.
Building joints
CP 606
CP 601S
Flammable pipes Flammable pipes ≤ 40 mm Non-flammable pipes
CP 642 CP 611A CP 601S
CP 643 CP 606
CP 649
1Cable trays
Permanent
CP 636
CP 671
CP 678
Cable trays
Simple retrofitting
of cables
CP 655
Single cables/cable bundles
CP 656 CP 611A CP 651
2Specifier Guide
Application / trade Hilti system Use Feature
■ Passive fire prevention
Field of application
■ Fire rated closing of openings
with approved systems from
Hilti
CP 606 ■ Rigid or low movement ■ Paintable
Metal pipe Penetration
Intumescent joint filler joints where fire prevention ■ Water and gas tight
Building joint
requirement must be met.
CP 601S ■ Expansion joints and connection ■ Highly flexible when
CP 601S Elastic joints subjected to expansion cured
firestop sealant in fire-rated walls and floors ■ Water and gas tight
CP 606
CP 611 A ■ Single cables and ■ Broad range of
pipe penetrations
Intumescent bunched cables in small applications
Sealing cable /
firestop mastic penetrations ■ Water based;
■ Plastic pipes up to easy to clean up.
40 mm dia.
■ Metal pipes
CP 642 ■ Plastic pipes with ■ Quick and reliable
pipe penetrations
Firestop jacket diameters up to closing with ”click”
250 mm connection
Sealing
CP 643 ■ Plastic pipes with ■ Flexible positioning of
Firestop jacket diameters up to fastening hooks
100 mm ■ Excellent acoustic
insulation properties
CP 649 ■ Plastics pipes ■ Lightweight, easy to
pipe penetrations
Intumescent pipe with diameters install overhead
wrap 50 mm - 160 mm ■ Self-adhesive tab allows
Coating
wrap to be positioned
■ Can be installed and
left for building finishing
work
CP 667 ■ Edge sealing of ■ Self-adhesive – no
Intumescent door fire-rated doors additional fixings required
strip to meet leakage ■ Range of colours
Doors
requirement of ■ Hard casing to prevent
Building Regulations damage and vandalism
■ Plain or fitted with
bursh seal
3Specifier Guide
Field of application Dimensions / Installation / working Special properties Page
Fire rating
Substrate
plasterboard etc.
Fire rating (hrs)
Removable and
2 components
if penetrations
Ready-to-use
opening size
opening size
without dust
Intumescent
often change
Very suitable
Application
thickness,
thickness,
Required
Required
Concrete
Masonry
reusable
Drywall,
product
Max.
Max.
floor
floor
wall
wall
30 30 Mineral
● ● ● 100 100 4H joint joint — — wool — ● — 9/10
integrity width width ≥100kg/m3
100 100 Mineral
● ● — 100 100 4H joint joint — — wool — — — 7/8
integrity width width ≥100kg/m3
Mineral
wool
Ø 160 Ø 130 melting-
● ● — 150 150 4H or or — — point — ● — 11/13
integrity 300cm2 300cm2
(Cables) ≥1000°C
4H
● ● ● 100 120 integrity Ø 250 Ø 250 ● ● — — ● ● 17/19
2H
● ● — 150 150 integrity Ø 115 Ø 115 ● ● — — ● ● 20/22
● ● — 150 150 4H Pipe Ø Pipe Ø ● ● CP 636 — ● — 23/25
integrity + 30 mm + 30 mm
— — — — — 1/2 — — ● ● — — ● — 35/37
or 1H
*All information mentioned in this document is based on tests or assessments as per BS 476:Part 20.
4Specifier Guide
Application / trade Hilti system Use Feature
■ Passive fire prevention
Field of application
■ Fire rated closing of openings
with approved systems from
Hilti
CP 656 ■ Temporary closing of ■ Quick and clean
Firestop plug penetrations cored installation
during construction
+ ■ Sealing individual
cables and bunched
CP 611A cables in small
Intumescent firestop mastic breaches
CP 655 ■ Bunched cables and ■ No forms required when
Firestop brick cable runs / trays in me- built in floor
dium-sized penetrations ■ Quick and clean
+ ■ Temporary or permanent installation
sealing of openings
CP 611A during construction
Intumescent firestop mastic
Sealing of cable penetrations
CP 651 ■ Bunched cables and ■ Flexible use if cables
Firestop cushion cable runs / trays in are frequently changed
medium-sized to
large penetrations
■ Temporary or permanent ■ Also for light partition
applications walls / drywall
CP 636 ■ Cable runs / trays in ■ Very good integrity /
Firestop mortar large openings fire rating
■ Closing of large ■ Excellent working
openings properties due to
adjustable consistency;
Can be pumped.
CP 671 ■ Cable runs / trays in ■ Approved, also for light
Firestop coating large openings partition walls / drywalls
■ Cable coating to delay
the spread of fire
5Specifier Guide
Field of application Dimensions / Installation / working Special properties Page
Fire rating
Substrate
plasterboard etc.
Fire rating (hrs)
Removable and
2 components
if penetrations
Ready-to-use
opening size
opening size
without dust
Intumescent
often change
Very suitable
Application
thickness,
thickness,
Required
Required
Concrete
Masonry
reusable
Drywall,
product
Max.
Max.
floor
floor
wall
wall
● ● — 150 150 90 min. Ø 200 Ø 200 ● ● CP 611A ● ● ● 32/34
integrity
2H
● ● — 220 220 integrity 600 600 ● ● CP 611A ● ● ● 29/31
and X X
insulation 400 400
● ● ● 75 250 2H 1000 1000 ● ● — ● ● ● 26/28
integrity X X
and 1150 1150
insulation
● ● — 150 150 4H 1200 600 — — — — — — 14/16
integrity X X
2000 1000
Mineral
2H wool
insulation 800x600 panel
● ● ● 100 150 and Drywall 1000 — — — ● — 38/41
>150 kg/m3
integrity X
unre-
stricted
*All information mentioned in this document is based on tests or assessments as per BS 476:Part 20.
6Specifier Guide
CP 601S
Elastic firestop sealant
4 hrs FRP
Areas of application
Construction joints/sealing penetration for metal pipes
■ Sealing expansion joints and stretched connection joints
where stringent fire prevention requirements must be met.
■ Tested to BS 476:Part 20, 1987. Insulation/integrity 4 hours for
floors and walls.
For use on
- Various base materials such as masonry, concrete, metal
glass, etc.
- Wall and floor thicknesses greater than 100 mm
- Joint widths from 6 to 100 mm
Examples
- Connections between reinforced concrete components
and masonry (skeleton construction)
- Joints in walls or fire compartements e.g. stairways
- Sealing joints exposed to great heat and with stringent System advantages/customer benefits
requirements for sealing against smoke and fumes ■ Simple use and application
Recommendations for use ■ Good adhesion without use of a primer
■ Use non-flammable mineral wool (min. 100 kg/m3) as ■ Smoke, gas and water tight
backfilling material. ■ Excellent movement capability
■ Apply CP 601S in walls on both sides, depending on joint width.
Internationally tested and approved
British Standard
BS 476
Installation instructions (seal for matal pipes)
■ Clean joint and joint sides, The joint sides must be in sound
condition, dry and free of dust and grease.
■ Insert backfilling material (mineral wool)
Leave sufficient joint depth for applying the sealant.
■ Apply the fire prevention sealant from both sides of the joint. The
use of a manual dispenser
(e.g. Hilti CB200-P1) is recommended.
■ Smooth the joint/sealant. Use soap solution or smoothing agent
and smooth carefully with a finger or narrow spatula to give a
concave surface. The working time of CP 601S is 10 to 30
minutes. The completed application should be left undistrubed for
48 hours.
■ Cleaner can be used to clean around the joint or
remove surplus sealant before it has cured.
CP 601S elastic firestop sealant
310 ml cartridge
Packaging Ordering Item no.
contents (pcs) designation
Firestop sealant, white 20 CP 601S 310633/3
Firestop salant, grey 20 CP 601S 310635/8
Firestop sealant, anthracite 20 CP 601S 310634/0
Manual dispenser 1 CB 200-P1 55205/9
Other colours and packaging are available on request.
7Specifier Guide
CP 601S
Elastic firestop sealant
Product description
■ Elastic firestop sealant (neutral silicone) classified as
material class B1
Product features
■ Halogen and solvent free
■ Weather and UV-resistant
Technical data
CP 601S elastic firestop sealant
(at 23°C and 50% relative air humidity)
Density: approx. 1.4 g/cm3
Cartridge contents: 310 ml
Application temperature: +5°C to +40°C
Skin-forming time: approx. 15 min.
Curing rate: approx. 2 mm in 3 days Dimensions
Volume shrinkage: 0 – 5% The following dimensions must be observed when using
Max. deformation: 25% CP 601S elastic firestop sealant.
Temperature resistance: -30˚C to +150˚C
Material class as per DIN 4102, P.1: B1 a Joint Joint
b
Shelf-life after production: 12 months (at 20˚C in a dry place) width mm depth mm
b a 6 6
CP 601S is subject to surveillance by an independent inspection authority. 12 6
30 15
Application Floor Wall 100 15
■ Joint sides must be sound, dry and free from dust, oil or grease.
■ Check whether a primer is required for the substrate. Check with
Hilti application engineering for recommended primer if needed. Consumption guide
■ In walls apply CP 601S to both sides of the joint. ■ Consumption guide values are given as joint length in meters per
■ Insert backfill of non-flammable mineral wool (at least 100 kg/m3). cartridge.
■ Smooth firestop sealant with smoothing agent or soap b = Joint depth a = Joint width (mm)
solution before the skin forms.
6 12 20 30 100
■ Remove CP 601S firestop sealant before it cures using white spirit.
6 mm 8.6 4.3
Once cured, it can only be removed mechanically. 10 mm 1.6
15 mm 0.7 0.1
Chemical resistance
■ At room temperature the cured silicone sealant is resistant for a
short time to diluted (≤5%) acids and lyes/alkalis as well as Notice about approvals
commercially available cleaning agents and disinfectants (except those ■ When making a joint using Hilti CP 601S elastic firestop sealant,
containing iodine). nationals approvals must be observed in principle. Please refer to
■ Concentrated acids and lyes/alkalis destroy silicone rubber in time. them for restrictions as to joint size, type and thickness of wall or
■ Solvents and mineral oils cause cured silicone to swell. floor.
■ Consequently, proper functioning of the sealant should be
Do not (no approval)…
checked after exposure to a solvent / mineral oil.
■ Use on areas immersed in water
■ It must be remembered that the resistance of silicone rubber to
■ Paint
chemicals decreases with increasing temperature.
■ Please contact your local sales representative or the nearest Hilti Storage
centre if special requirements for chemical resistance have to be met. ■ Store only in the original packaging in a location
protected from moisture at a temperature of 5˚C to 25˚C.
Safety precautions ■ Observe expiry date on top of cartridge.
■ Keep out of reach of children. ■ Dispose only complete empty cartridges
■ Observe the EC safety data sheet.
■ Eyes and hands must be suitably protected when working and Backfilling
contact with mucus membranes or with foodstuffs must be Max. joint width Base material Backfilling Fire rating per BS 476
avoided. Insulation Integrity
■ Avoid contact with eyes/skin. If contacted, thoroughly rinse with 15 mm Gas concrete Mineral wool 4h 4h
water and, if necessary contact a doctor. 30 mm Gas concrete Mineral wool 4h 4h
■ Only use in well ventilated areas or under an extraction system. 100 mm Gas concrete Mineral wool 4h 4h
■ A product only for professional users.
8Specifier Guide
CP 606
Intumescent joint filler
4 hrs FRP
Areas of application
■ Sealing rigid or low movement joints where fire prevention
requirements must be met.
■ Tested to BS 476:Part 20, 1987. Integrity: 4 hours for floors
and walls
For use on
- Various base materials such as light partitions (e.g. drywall),
- concrete, masonry and gas concrete
- Wall and floor thickness from 100 mm
- Joint widths from 6 to 30 mm
Examples
- Connections between light partition components
- Floor and wall connection joints with low movement
- Sealing joints exposed to great heat and with stringent
requirements for sealing against smoke and fumes
System advantages/customer benefits
Recommendations for use ■ Paintable
■ Use non-flammable mineral wool (min. 100 kg/m3) as ■ Simple use and application
backfilling material or Hilti CF 125-50 foam in the joint. ■ Smoke, gas and water tight
■ Apply CP 606 in walls on both sides, depending on joint width. ■ Easy clean up with water
■ On porous absorptive substrates to achieve better adhesion,
Internationally tested and approved
mix CP 606 with water and apply on base material
British Standard
BS 476
Installation instructions (seal for matal pipes)
■ Clean joint and joint sides, The joint sides must be in sound
condition, dry and free of dust and grease.
■ Insert backfilling material (mineral wool)
Leave sufficient joint depth for applying the sealant.
■ Apply the fire prevention sealant from both sides of the joint. The
use of a manual dispenser
(e.g. Hilti CB 200-P1) is recommended.
■ Smooth the joint/sealant. Use soap solution or smoothing agent
and smooth carefully with a finger or narrow spatula to give a
concave surface. The working time of CP 606 is 10 to 30 minutes.
The completed application should be left undistrubed for 48 hours.
■ Cleaner can be used to clean around the joint or remove surplus
sealant before it has cured.
CP 606 joint filler 310 ml cartridge
Packaging Ordering Item no.
contents (pcs) designation
Firestop sealant, white 20 CP 606 310638/2
Firestop sealant, grey 20 CP 606 310639/0
Manual dispenser 1 CB 200-P1 55205/9
9Specifier Guide
CP 606
Intumescent joint filler
Product description
■ Firestop sealant (acrylic-dispersion)
Product features
■ Silicone free
■ Halogen and solvent free
■ UV resistant
Technical data
CP 606 fire resistant joint filler
(at 23°C and 50% relative air humidity)
Density: approx. 1.5 g/cm3
Cartridge contents: 310 ml
Application temperature: +5°C to +40°C
Skin-forming time: approx. 15 min.
Curing rate: approx. 2 mm in 3 days
Volume shrinkage: approx. 20% Dimensions
Max. deformation: 10% The following dimensions must be observed when using CP 606
Temperature resistance: -40˚C to +80˚C intumescent joint filler.
Shelf-life after production: 12 months (at 20˚C in a dry place)
a b
CP 606 is subject to surveillance by an independent inspection authority.
b a
Application
■ Joint sides must be sound, dry and free from dust, oil or grease.
■ Check wheter a primer is required for the substrate. Floor Wall
■ In walls apply CP 606 to both sides of the joint.
■ Insert backfill of non-flammable mineral wool (at least Consumption guide
100 kg/m3) or Hilti CF 125-50 foam into the joint. ■ Consumption guide values are given as joint length in meters per
■ Smooth firestop sealant with water before the skin forms. cartridge.
■ Remove CP 606 firestop sealant before it cures using water b = Joint depth a = Joint width (mm)
Once cured, it can only be removed mechanically. 6 12 20 30
Joint side material/primer recommendations 6 mm 8.6 4.3
■ To improve adhesion of firestop sealant if the 10 mm 1.6
substrate is porous and absorptive, mix CP 606 with water and 15 mm 0.7
apply as a primer on base material.
■ The compatibility of the sealant with any encountered paints must Safety precautions
always be checked. In particular, this concerns dispersion paint ■ Keep out of reach of children.
systems and alkyd resin systems that can be diluted in water. ■ Observe the EC safety data sheet.
■ Checks of compatibility must be repeated at reasonable intervals ■ Eyes and hands must be protected when working and contact with
because the chemical composition of paint systems may change. mucus membranes or with foodstuffs must be avoided.
■ A product for professional users.
Chemical resistance
■ Normally, there is no need for resistance to chemicals with the Storage
applications recommended by Hilti. ■ Store only in the original packaging in a location
■ Unprotected acrylic sealants have only slight resistance to chemicals. protected from frost and moisture at a temperature of 5˚C to 25˚C.
■ Please contact your local sales representative or the nearest Hilti ■ Observe expiry date on top of cartridge
centre if special requirements for chemical resistance have to be met. ■ Dispose only complete empty cartridges.
Notice about approvals
■ When making a joint using Hilti CP 606, fire resistant joint filler, Backfilling
national approvals must be observed in principle. Please refer to
Max. joint Base material Backfilling Fire rating per BS 476
them for restrictions as to joint size, type and thickness of wall or
width
floor. Insulation Integrity
Do not (no approval)… 6 mm Gas concrete Mineral wool 4H 4H
■ Use on areas immersed in water or when permanently exposed to 15 mm Gas concrete Mineral wool 4H 4H
water. 20 mm Gas concrete PE 24 mm 130 min. 4H
20 mm Gas concrete PU foam CF 125-50 208 min. 4H
■ Use marble/natural stones
30 mm Gas concrete Mineral wool 216 min. 4H
■ Use bituminous substrates
30 mm Steel-steel Mineral wool 36 min. 4H
■ Use where subjected to heavy abrasion (floor joints)
10Specifier Guide
CP 611A
Intumescent firestop mastic
4 hrs FRP
Areas of application
Sealing small to medium-sized penetrations
■ Permanent fire seals for single and bunched cables.
■ Tested to BS 476:Part 20, 1987.
■ Sealing around flammable pipes up to max. 40 mm diameter
Tested to BS 476:Part 20,1987.
■ Resealing of penetrations previously sealed with CP 636
firestop mortar, after installing additional cables.
For use in
- Round penetrations up to max. 200 mm diameter and square
openings up to max. 300 cm2
- Concrete, porous concrete or masonry
- Walls and floors from 150 mm thick
Examples
- Breaches, irregular openings in fire walls and floors
- Sealing around plastic pipes up to 40 mm diameter
System advantages/customer benefits
■ Easy to work with thanks to thick consistency
■ Wide range of applications
Recommendations for use ■ Paintable
■ Use non-flammable mineral wool as backfilling material (100kg/m3) ■ Quick sealing of remaining gaps
■ Particularly suitable for laying new cables
■ Can be used for outdoor applications
Internationally tested and approved
British Standard
BS 476
CP 611 A intumescent
firestop mastic – 310 ml cartridge
Packing Ordering Item no.
contents designation
(pcs)
Intumescent firestop mastic 20 CP 611A 220370/1
Manual dispenser 1 CB200-P1 55205/9
11Specifier Guide
CP 611 A
Intumescent firestop mastic
Product description
■ Water-based intumescent acrylic, mastic
Product features
■ Expands in fire, protecting pipe and cable penetrations
■ Smoke, gas and water tight
■ Halogen and solvent free
■ Odourless
Technical data
CP 611A intumescent firestop mastic
(at 23°C and 50% relative air humidity)
Density: approx. 1.3 g/cm3
Colour: Grey
Application temperature: +5°C to +40°C
Temperature resistance: -40°C to +140°C Dimensions
Skin-forming time: approx. 10 min.
Curing rate: 3 mm in 3 days
Intumescent phase: from +140°C to +180°C
Movement acceptance: 10%
Material class as per DIN 4102, P.1: B2
Shelf-life after production: 12 months (at 20˚C in a dry place)
Cartridge contents: 310 ml
Consumption guide
■ Cable penetrations
CP 611 A (pcs)
Opening size Cross sectional area of cables
area diameter 0% 10 % 30 % 60 %
0.006 m2 Ø 90 mm 2 2 2 1
0.01 m2 Ø 120 mm 4 3 3 2
0.015 m2 Ø 140 mm 5 5 4 2
0.02 m2 Ø 160 mm 7 6 5 3
0.025 m2 Ø 180 mm 9 8 6 4
0.03 m2 Ø 200 mm 10 9 7 4
Volume in cartridges of 310 ml for 40 mm depth The following dimensions must be observed when applying
CP 611 A intumescent firestop mastic.
■ Pipe penetrations
Wall seal Floor seal
Min. thickness of building component 150 mm 150 mm
Opening Nominal pipe size in mm Max. opening size
mm2 Dia mm 15 20 25 32 40 50 Diameter 160 mm 160 mm
Area 300cm2 300cm2
1075 37
Min. distance from cables to
1257 40 edge of opening 10 mm 10 mm
1385 42 Min. distance to
1735 47 0.05 next opening 200 mm 200 mm
2124 52 0.065 0.06 Single cables min. 20 mm min. 20 mm
2463 56 0.075 0.07 0.065 Bunched cables/flammables pipes
(ø ≤ 40 mm) min. 25 mm min. 25 mm
3019 62 0.009 0.085 0.075
Annular space around:
3526 67 0.1 0.095 – Singles cables min. 20 mm min. 20 mm
4072 72 0.11 0.095 – Bunched cables/inflammables pipes
4657 77 0.11 (Ø≤ 40mm) min. 25 mm min. 25 mm
5281 82 0.13 0.11 Compacted depth of non-flammable
5945 87 0.13 mineral wool (melting temp. >1000˚C) ≥ 50 mm ≥ 50 mm
6648 92 0.155 Application thickness of CP 611 A 40/60 mm 40/40 mm
- cable / pipes both sides soffit only
7399 97 0.175
Max. cable loading
Volume in cartridges of 310 ml for 10 mm depth (as % of opening size) 60 % 60 %
12Specifier Guide
Installation instructions for CP 611A
Clean opening Pack in Apply CP 611A Smooth CP 611A Fasten installation
mineral wool plate in place
(if required)
Opening Do not (no approval)...
■ Clean the opening ■ Use for drywalls.
■ Cables and cable supporting structures must be installed in ■ Use in areas immersed in water.
compliance with local building and electrical standards. ■ Use on building materials which bleed oils, plastizers or solvents
(e.g. impregnated wood, oil-based sealant, green or partially
Application of firestop mastic vulcanised rubber).
a) Mineral wool packing
- Pack in non-flammable mineral wool as Safety precautions
backfill around cables. ■ Keep out of the reach of children.
Leave minimum 40 mm free at each side of opening. ■ Observe the EC safety data sheet.
b) Application of firestop mastic
- Build up CP 611A in the remaining opening layer by Storage
layer using the CB 200-P1 manual dispenser. Always ■ Store only in the original packaging in a location protected
make sure the applied thickness is minimum 40 mm. from moisture at temperatures between +5˚C and +30˚C.
- Tightly fill gaps and spaces between cables. ■ Observe expiry date on top of cartridge.
c) Smoothing of firestop mastic
- Smooth CP 611A before the skin forms using water and a
spatula/possibly a paint brush. The completed seal should be
left undisturbed for 48 hours.
Notice about approvals
■ When making a cable or pipe seal using Hilti CP 611 A
intumescent firestop mastic, national approvals must be
observed in principle. Please refer to them for
restrictions as to opening size, type and thickness of wall or floor,
maximum pipe and cable diameter, etc.
■ For maintenance reasons, a penetration seal could be
permanently marked with an installation plate. In such a case,
mark the installation plate and fasten it in a visible position next
to the seal.
Installation instructions for CP611A
(Seal for flammable pipe up to 40mm diameter)
■ Clean joint and joint sides, The joint sides must be in sound
condition, dry and free of dust and grease.
■ Insert backfilling material (mineral wool)
Leave sufficient joint depth for applying the sealant.
■ Apply the fire prevention sealant from both sides of the joint. The
use of a manual dispenser
(e.g. Hilti CB 200-P1) is recommended.
■ Smooth the joint/sealant. Use soap solution or smoothing agent
and smooth carefully with a finger or narrow spatula to give a
concave surface. The working time of CP 611A is 10 to 30
minutes. The completed application should be left undistrubed for
48 hours.
■ Cleaner can be used to clean around the joint or
remove surplus sealant before it has cured.
13Specifier Guide
CP 636 Firestop mortar
4 hrs FRP
Areas of application
Sealing medium-sized to very large penetrations with the
possibility of installing further cables
■ Permanent fire seal for cables and cable trays
Tested to BS 476:Part 20, 1987. Integrity: from 2 1/2 hours up
to 4 hours.
For use in
- Walls with a max. opening 1200 mm x 2000 mm
- Floors with a max. opening 600 mm x 1000 mm
- Concrete, porous concrete and masonry
- Walls from 100 mm thick and floors from 150 mm thick
Examples
- Office buildings, hospitals, shopping centres and
industrial buildings
Recommendations for use System advantages/customer benefits
■ Mix the mortar in the ratio of approx. 3 :1 (mortar to water). ■ Excellent application characteristics
Stir the mortar into the water. ■ Resistant to ageing
■ Apply the mixed mortar in the penetration manually or using ■ Paintable
a pump. ■ Simple application by trowel or commercially available
■ The mixed mortar is stiff, but forms are still required for large plastering machine or pump
penetrations.
■ Hilti firestop products approved for making provision for the Internationally tested and approved
installation of cables at a later date: CP 651 firestop cushion,
CP 655 firestop bricks, CP 611 A intumescent firestop mastic.
British Standard
BS 476
CP 636 firestop mortar
Packaging Ordering Item no.
contents designation
(pcs)
Firestop mortar, 1 CP 636-20 334897/6
20 kg sack
CP 636-20
14Specifier Guide
CP 636 Firestop mortar
Product description
■ Fire-resistant, cement-based mortar with thermal
insulating properties from admixed perlite
Product features
■ High yield
■ Stiff (forms not always required)
■ No additional components required (except when cable runs/trays
are directly on an opening surface)
■ Adheres very well to common substrates (steel, concrete or
masonry)
■ Impervious to smoke or gas and water resistant
■ Contains no asbestos, phenol or halogen constituents
Technical data
CP 636 firestop mortar
(at 23°C and 30% relative humidity)
Mix ratio: 3 :1 (mortar to water) Dimensions
Application temperature: ideal between 5° and 45°C
Colour: grey
Form removal after 2-4 hours (walls)
(depending on consistency): after 2-12 hours (floors)
Density of hardened mortar: 0.82 g/cm3
Compressive strength
(after 28 days at 23°C): 2.9 N/mm2
Material class as per DIN 4102, P.1: B1
Shelf-life after production: 12 months (at 30˚C in a dry place)
Consumption guide
Opening Example of CP 636 (kg)
size dimensions Cross sectional area of cables
(m2) (cm) 0% 10% 30% 60%
0.01 10x10 1.75 1.60 1.25 0.70
0.02 10x20 3.50 3.25 2.45 1.40
0.05 10x50 9.00 7.90 6.25 3.50
0.10 10x100 18.00 15.75 12.25 7.00
The following dimensions must be observed when using CP 636
0.20 20x100 35.00 31.50 24.50 14.00 firestop mortar.
0.40 40x100 70.00 63.00 49.00 28.00
Wall & floor Wall with
0.50 50x100 87.50 78.75 61.25 35.00
CP 611 A
0.80 80x100 140.00 126.00 98.00 56.00
included
1.00 100x100 175.00 157.50 122.50 70.00
Min. building component thickness 150 mm 100 mm
1.20 120x100 210.00 189.00 149.00 84.00
Max. opening size Wall 1200 x 2000 mm 600 x 600 mm
1.40 140x100 245.00 220.50 171.50 98.00
(width x height x length) Floor 600 x 1000 mm
1.50 150x100 262.50 236.25 183.75 105.00
Min. distance from cable tray
1.75 175x100 306.00 275.40 214.00 122.00
to opening 0 mm 0 mm
2.00 100x200 350.00 315.00 245.00 140.40
Min. distance between cables tray
3.00 100x300 525.00 472.00 367.00 210.00
Horizontal 10 mm 10 mm
4.00 100x400 700.00 630.00 490.00 280.00
Vertical 40 mm 40 mm
4.25 100x425 787.00 708.00 550.00 314.00
Min. distance
For a seal 180 mm thick between openings 200 mm 200 mm
Re-installation possibility (max. opening)
with CP 651 250 x 170 mm
with CP 655 200 x 100 mm
with CP 611 A Ø ≤ 160 mm
Max. cable loading
(as % of opening size) 60% 60%
15Specifier Guide
Installation instructions for CP 636
Clean opening, Mix CP 636 mortar Put mortar into place Optional: add CP 651 Fasten installation Re-installation:
moisten surfaces or CP 655 for future plate in place lay cables and
cable changes (if required) close remaining
opening
Opening Notice about approvals
■ Clean and premoisten surfaces ■ When making a cable seal using Hilti CP 636 firestop
■ Cables and cable supporting structures must be installed in mortar, national approvals must be observed in principle. Please
compliance with local building and electrical standards. refer to them for restrictions as to opening size,
type and thickness of wall or floor, maximum cable diameter, etc.
Placing the firestop mortar ■ For maintenance reasons, a penetration seal could be
a) Mix the mortar permanently marked with an installation plate. In such a case
- Add mortar to water in a ratio of about 3:1 (mortar to water). mark the installation plate and fasten it in a visible position next to
Stir the mixture thoroughly with, for example, a Hilti TE-MP/TE the seal.
18M paddle. The mix ratio of water to CP 636 determines the
desired consistency (stiffness). Safety precautions
- Do not use any other binders or additives/aggregates. ■ Keep out of the reach of children.
b) Apply the mortar ■ Observe the EC safety data sheet.
- Use forms on one or both sides for larger penetrations.
Apply mixed mortar in the opening using a trowel or a Storage
pump and compact it. Make sure all gaps and spaces are ■ Store only in the original packaging in a location protected from
completely filled and closed. moisture.
- CP 611A can be used in conjunction with mortar. In ■ Observe expiry date on sack.
such a case, apply CP 611A to the cables over a width
of approx. 30 mm and 5 mm thick. Fill gap between cables
with CP 611A. Application of the mortar can be
continued immediately after CP 611A has been applied.
c) Changing cables
CP 651 firestop cushion, CP 655 firestop brick and CP 611A
intumescent firestop mastic can be incorporated in the initial seal
when additional cables may be installed at a later date. In doing
so, attention must be paid to the maximum permitted size of the
reserved opening.
- CP 651 opening max. 250 x 170 mm in 150 mm wall
- CP 655 opening max. 200 x 100 mm in 150 mm wall
- CP 611A opening max. Ø 160 mm in 150 mm wall
16Specifier Guide
CP 642 Firestop jacket
4 hrs FRP
Areas of application
■ Sealing flammable pipes from 110 to 250 mm in diameter
with pipe wall thicknesses from 1.8 to 16.2 mm.
Tested to BS 476:Part 20: 1987 Integrity: 4 hours
■ Suitable for:
- B1/B2 pipes
- PVC, PVCC, PVC-U, PVC-HI, PP, PE, PE-HC
- Pneumatic tube conveyors with two lines (mail)
- Pipes with acoustic insulation.
For use in
■ Concrete, masonry, porous concrete and drywall
■ Walls from 100 mm thick and floors from 120 mm thick
Types of installation
- Wall: two jackets, one on each side
- Floor: one jacket on underside
System advantages/customer benefits
■ Snap connection for quick and easy closure without use of a tool
Example ■ Optionally positioned tabs for convenient fastening
■ Waste water pipes, fresh water pipes ■ Good acoustic insulating properties
■ Vacuum lines (dust) ■ Little space required – ideal where pipes run close together
Internationally tested and approved
Recommendations for use
■ Fit the jacket around the pipe and lock the closure by pressing British Standard
firmly.
■ Fit the fastening hooks on the firestop jacket to suit the BS 476
available space.
■ Secure the firestop jacket using approved Hilti anchors.
CP 642 firestop jacket*
Packaging Ordering Item no.
contents Designation
(pcs)
Firestop jacket # 1 CP 642-50/1.5" 236703/5
Firestop jacket # 1 CP 642-63/2" 236704/3
Firestop jacket # 1 CP 642-75/2.5" 236705/0
Firestop jacket # 1 CP 642-90/3" 236706/8
Firestop jacket # 1 CP 642-110/4" 236707/6
Firestop jacket 1 CP 642-125/5" 236708/4
Firestop jacket 1 CP 642-160/6" 236709/2
Firestop jacket 1 CP 642-180/7" 308799/6
Firestop jacket 1 CP 642-200/8" 308800/2
Firestop jacket 1 CP 642-225/9" 308801/0
Firestop jacket 1 CP 642-250/10" 308802/8
* incl. fastening hooks
Fastening hook 10 CP 642 hook 236711/8
Spare part CP 642
# Special request item
17Specifier Guide
CP 642 Firestop jacket
Product description
■ Galvanised sheet steel containing sections of
intumescent material (which foams and expands in a fire)
Product features
■ Ready-to-use jacket, no preparatory work required, therefore fast
installation time
■ No minimum distance required between several jackets
Dimensions
Jacket/plastic pipes
Designation Suitable for out- Jacket outside Jacket No. of
side pipe dia. dia. length hooks and
(mm) (mm) (mm) fasteners
CP 642-50/1.5’’ * 32-50 73 47.5 2
CP 642-63/2’’ * 50-63 88 52.5 2
CP 642-75/2.5’’ * 63-75 100 2.5 3 Dimensions
CP 642-90/3’’ * 75-90 125 72.5 3 Wall Floor
CP 642-110/4’’ * 90-110 149 82.5 4
CP 642-125/5’’ 110-125 162 92.5 4
CP 642-160/6’’ 135-160 209 112.5 6
CP 642-180/7’’ 180 229 150.0 7
CP 642-200/8’’ 200 255 175.0 7
CP 642-225/9’’ 225 283 200.0 8
Flush mounted Flush mounted
CP 642-250/10’’ 250 315 230.0 9
* Special request item
Acoustic insulation – installation tips
■ Close the remaining opening (max. 20 mm wide annular space)
with non-flammable mineral wool with a melting temperature >
1000˚C. For a neat finish, apply CP 601S elastic firestop sealant
or CP 611A intumescent firestop mastic about 10 mm thick on
both sides. Surface mounted
■ Position the firestop jacket to ensure that it and the pipe Surface mounted
are not touching at any point.
The following dimensions must be observed when fitting the
CP 642 firestop jacket.
Wall Floor
Material drywall panel cellular concrete cellular concrete
masonry
solid concrete
Min. thickness of
building component
for pipes:
32 – 160 mm dia. 100 mm 100 mm 120 mm
160 – 250 mm dia. 150 mm 150 mm
Min. pipe diameter 32 mm 32 mm
Max. pipe diameter 250 mm 250 mm
CP 642 two mounted, one mounted
one on each on underside
side
18Specifier Guide
Installation instructions for CP 642
Close remaining gap to seal Clean plastic pipe. Close jacket. Attach fastening Fasten jacket and
ensure smoke and gas tight hooks. installation plate.
(If required)
seal.
Penetration 7. Cast-in mounting
■ Drill through the wall /floor using Hilti DCM diamond drilling - Ensure the penetration is large enough to accommodate the
equipment and a core bit of suitable size. outside diameter of the CP 642 jacket.
■ Install the plastic pipe. - Slide the CP 642 jacket into the opening.
- For ceilings, CP 642 must be flush with the soffit
Fit the CP 642 firestop jacket For walls, a) Insert one jacket from each side or,
1. Seal the opening b) Insert one jacket, position it centrally if
Large gaps must be closed with mortar. Alternatively, they jacket length + 80 mm ≥ wall thickness.
can be closed with CP 611A or CP 601S. - Backfill around the installed jacked with mortar.
The approved methods vary and are given in the test certificates
and approvals. Notice about approvals
2. Clean the plastic pipes ■ When making a or pipe seal using Hilti CP 642 intumescent
Expansion of the intumescent material during a fire closes firestop jacket, national approvals must be observed in principle.
the plastic pipe. Very dirty pipes with, for example, remains of Please refer to them for restrictions as to opening size, type and
mortar, may lead to a delay in this closing action. Badly soiled plastic thickness of wall or floor, maximum pipe diameter, etc.
pipes should, therefore, be cleaned in the area where the CP 642 ■ For maintenance reasons, a penetration seal could be permanently
firestop jacket is to be installed. marked with an installation plate. In such a case mark the
3. Seal against smoke and gases installation plate and fasten it in a visible position next
Gaps between the plastic pipe and the opening must be sealed on to the seal.
one side of the wall with sealant CP 611A, or CP 601S to seal
against smoke and gases passing through the gaps during the first Not for use...
minutes of fire. The intumescent inlay of CP 642 will close the ■ With, folded and coiled sheet-metal and cast-iron pipes (not
opening, when activated by heat and fire. tested)
4. Attach fastening hooks ■ In highly corrosive surroundings
The fastening hooks can be attached to various points on ■ With unapproved anchors/fasteners
the metal housing. This allows the fastening points to be
made to suit the space available in each case. The hooks must be Safety precautions
positioned as symmetrically as possible. The required number of ■ Keep out of the reach of children.
fastening hooks is indicated on the packaging and in the table on the ■ Observe the EC safety data sheet.
previous page.
5. Close the CP 642 firestop jacket Storage
Place the CP 642 firestop jacket around the plastic pipe and lock the ■ Store only in the original packaging in a location protected from
closure with firm pressure until it latches. No tools, pins or screws moisture.
are necessary. Ensure CP 642 is placed the correct way up for the
fitting of the hooks.
6. Fastening the CP 642 firestop jacket
Only when fastened properly can CP 642 protect against fire
passing through.
19Specifier Guide
CP 643 Firestop jacket
2 hrs FRP
Areas of application
■ Sealing flammable pipes from 32 to 115 mm in diameter
with pipe wall thicknesses from 1.8 to 16.2 mm in
penetrations through fire compartment walls and floors.
Tested and approved as per BS 476 Part 20: 1987
■ Suitable for the following Pipe materials:
PVC, PE and ABS
For use in
■ Concrete, masonry, porous concrete
■ Walls and floors from 150 mm thick
Types of installation
■ Wall: two jackets, one on each side
■ Floor: one jacket on underside
System advantages/customer benefits
Example
■ Waste water pipes, fresh water pipes ■ Quick and easy closure without use of a tool
■ Drinking water pipes ■ Optionally positioned tabs for simple fastening
■ Extraction ducts (dust)
Internationally tested and approved
Recommendations for use
■ Fit the jacket around the pipe, lock the closure with firm British Standard
pressure until it latches. BS 476
■ Fit the fastening hooks on the firestop jacket to suit the
available space.
■ Secure the firestop jacket using approved Hilti anchors.
CP 643 firestop jacket*
Packaging Ordering Item no.
contents Designation
(pcs)
Firestop jacket 1 CP 643-50/1.5" 307707/0
Firestop jacket 1 CP 643-63/2" 307708/6
Firestop jacket 1 CP 643-90/3" 307709/4
Firestop jacket 1 CP 643-110/4" 307710/2
Hook 30 CP 643-Hook 307711/0
* incl. fastening hooks
CP 643
20Specifier Guide
CP 643 Firestop jacket
Product description
■ A ready-to-use firestop jacket, made of a galvanized steel housing,
intumescent inserts and the required number of fastening hooks.
Product features
■ No minimum distance required between several jackets
■ Ready-to-use jacket; no preparatory work required, therefore
fast installation time
Technical data
Jacket/plastic pipes
Designation/ Pipe outside Jacket outside Jacket length No. of
size dia. (mm) dia. (mm) (mm) hooks and
fasteners
CP 643-50/1.5” 36 – 51 69 + 1 22.4 2
CP 643-63/2” 52 – 64 85 + 1 32.4 2
CP 643-90/3” 65 – 91 121 + 1 42.4 3
CP 643-110/4” 92 – 115 151 + 1 47.4 3
Dimensions
Wall Floor
Acoustic insulation – installation tips
■ Close the remaining opening (max. 20 mm wide annular
space) with non-flammable mineral wool with a melting
temperature >1000˚C. For a neat finish, apply CP 601S
elastic firestop sealant or CP 611A intumescent firestop
mastic about 10 mm thick on both sides.
■ Position the firestop jacket to ensure that it and the pipe
are not touching at any point.
The following dimensions must be observed when fitting the CP 643
firestop jacket:
Wall Floor
Material cellular concrete cellular concrete
masonry
solid concrete
Min. thickness of building
component for pipes 150 mm 150 mm
Min. pipe diameter 32 mm 32 mm
Max. pipe diameter 115 mm 115 mm
CP 643 two mounted, one one mounted on
on each side underside
21Specifier Guide
Installation instructions for CP 643
1
Close remaining gap Clean plastic pipe Seal against smoke Attach fastening Close jacket Fasten jacket
to ensure smoke and and gases hooks
gas tight seal
Penetration Notice about approvals
■ Drill through the wall/floor using Hilti DCM diamond drilling ■ When making a pipe seal using Hilti CP 643
equipment and a core bit of suitable size.
intumescent firestop jacket, national approvals must be
■ Install the plastic pipe
observed in principle. Please refer to them for restrictions
Fit the CP 643 firestop jacket as to opening size, type and thickness of wall or floor,
1. Seal the opening maximum pipe diameter, etc.
Large gaps must be closed with mortar. Alternatively, they
■ For maintenance reasons, a penetration seal could be
can be closed with CP 611A or CP 601S.
The approved methods vary and are given in the test permanently marked with an installation plate. In such a
certificates and approvals. case, mark the installation plate and fasten it in a visible
2. Clean the plastic pipes position next to the seal.
Expansion of the intumescent material during a fire closes
the plastic pipe. Very dirty pipes with, for example, remains
of mortar, may lead to a delay in this closing action. Badly Not for use...
soiled plastic pipes should, therefore, be cleaned in the area ■ In penetrations for non-flammable pipes, such as
where the CP 643 firestop jacket is to be installed. steel, cast iron, cement, GFU etc.
3. Seal against smoke and gases
■ In areas with high condensation unless they are integrated
Gaps between the plastic pipe and the opening must be
sealed on one side of the wall with sealant CP 611A with the building component
or CP 601S to seal against smoke and gases passing ■ In outdoor areas
through the gaps during the first minutes of fire. The ■ In drywall (Use CP 642)
intumescent inlay of CP 643 will close the opening, when
activated by heat and fire. ■ With unapproved anchors/fasteners
4. Attach fastening hooks
The fastening hooks can be attached to various points on Safety precautions
the metal housing. This allows the fastening points to be made to
■ Keep out of the reach of children.
suit the space available in each case. The hooks must be
positioned as symmetrically as possible. The required number of ■ Observe the EC safety data sheet.
fastening hooks is indicated on the packaging and in the table on
the previous page. Storage
5. Close the CP 643 firestop jacket
■ Store only in the original packaging in a location protected
Place the CP 643 firestop jacket around the plastic pipe and lock
the closure with firm pressure until it latches. No tools, pins or from moisture.
screws are necessary. Ensure CP 643 is placed the correct way up
for the fitting of the hooks.
6. Fastening the CP 643 firestop jacket
Only when fastened properly can CP 643 protect against fire
passing through.
22Specifier Guide
CP 649 Intumescent pipe wrap
4 hrs FRP
Areas of application
■ Sealing flammable pipes from 50 mm up to 160 mm in diameter
with pipe wall thickness from 2.3 to 3.8 mm.
Tested to BS 476: Part 20: 1987 integrity 4 hours.
■ Suitable for:
uPVC pipes
Diameters from 50 mm up to 160 mm
Pneumatics tube conveyors
For use in
■ Concrete and masonry
■ Walls and floors from 150 mm thick
Types of installation
– Wall: two wrap, one on each size
– Floor: one wrap, on underside System advantages/customer benefits
■ Simple to use intumsecent seal
Excample ■ Easy to fasten in place
■ Waste water pipes, fresh water pipes ■ Long term stability of installation
■ Vacuum lines (dust) ■ Little space required – ideal where pipes run close together
■ Canbe installed with pipe – Backfilling can be executed later
Recommendations for use when all services have been completed especially in multi-service
■ Fit the wrap around the pipe. Use the self adhesive tape fastening. penetrations
■ Slide the wrap into the opening.
■ Back fill the opening around the wrap with CP 636 firestop mortar.
Tested and approved
British Standard
BS 476
CP 649 Pipe wrap
Packaging Ordering Item no.
contents Designation
(pcs)
Pipe wrap 1 CP 649/50 00259122
Pipe wrap 1 CP 649/110 00259123
Pipe wrap 1 CP 649/160 00259124
Firestop mortar 20kg CP 636-20 334897/6
* incl. fastening hooks
23Specifier Guide
CP 649 Intumescent pipe wrap
Product description
■ Flexible intumescent graphite strip contained within a polyethylene
sleeve.
Product features
■ Ready-to-use wrap, no preparatory work required.
■ Little space required – Ideal where pipe run close together.
■ Resistant to industrial atmospheric conditions, humidity and water.
■ Manufactured from high performing graphite.
■ Carbon seal structure on expansion.
Technical data
Chemical basis Graphite and non combustible inorganic
materials in latex binder.
Colour White
Fixing Self-adhesive tape
Dimensions
Wrap dimensions Floor Wall
Designation Suitable for outside Length Depth Thickness
pipe Dia. (mm) (mm) (mm) (mm)
fasteners
CP 649/50 50 222 50 10
CP 649/110 110 395 100 10
CP 649/160 160 580 100 10
The follow dimensions must be observed when fitting the CP 649
firestop wrap.
Wall Floor
(mm) (mm)
Minimum component
thickness 100 150
Minimum pipe diameter 50 50
Maximum pipe diameter 160 160
Base materials blockwork
masonry
concrete concrete
CP 649 Install Install
flush to flush to
both faces soffitt
1 No. 100mm
CP 636 Mortar Backfill all voids around Backfill all voids
CP 649 around CP 649
24Specifier Guide
Installation instructions for CP 649
Fit CP 649 around Slide CP 649 into the Back fill the opening Remove formwork
the pipe opening with CP 636 mortar once CP 636 has
cured
Penetration Notice about approvals
■ Drill through the wall/floor using Hilti DCM diamond drilling ■ When making a pipe seal using Hilti CP 649 firestop wrap, national
equipment and a core bit of suitable size. approvals must be observed in principle. Please refer to them for
■ Install the plastic pipe. restrictions as to opening size, type and thickness of wall or floor,
maximum pipe diameter, etc.
Fit the CP 649 wrap ■ For maintenance reasons, a penentration seal could be
1. Clean the plastic pipe permanently marked with an installation plate. In such a case,
Expansion of the intumescent material during a fire closes the mark the installation plate and fasten it in a visible position next to
plastic pipe. Very dirty pipes with, for example, remains of mortar, the seal.
may lead to a delay in this closing action. Badly soiled plastic pipes
should therefore, be cleaned in the area where the CP 649 firestop Not for use...
wrap is installed. ■ In drywall (use CP 642)
2. Attach the wrap ■ In hollow core concrete floors (use CP 642)
Fit the appropriately sized CP 649 around the pipe so that it fits ■ In penetrations for non flammable pipes, such as steel, cast iron,
snugly and that the product label appears on the outside of the cement, GFU, etc.
fitted wrap. Secure the endflap of the CP 649 to itself with the self-
adhesive tape fastening Safety precautions
3. Slide the wrap into the opening ■ Keep out of the reach of children.
Slide the fitted wrap into the opening so that it is flush with the ■ Observe the EC safety data sheet.
soffit (if it is a floor penetration) or the face of the wall. In wall
penetration the CP 649 must be flush with both faces of the wall. Storage
4. Back fill the opening ■ Store only in the original packaging in a location protected
Back fill the opening around the CP 649 with CP 636 Firestop
mortar. Use formwork where necessary.
Follow the instructions for mixing CP 636.
For narrow openings it is possible to mix CP 636 so that it is of a
pumpable consistency. If the opening has been drilled and the
annulus between the pipe and the hole is no greater than 10 mm,
seal the opening with CP 611A intumescent firestop mastic.
Remove formwork once mortar has been cured.
25You can also read
