Putting warmth at the heart of the home
In 1966, a family started an
Feel the warmth
engineering business in Dorset Output
with the ideals of creating The most important consideration when purchasing a stove is the required
output to heat the room it will be placed within. As a very rough guide,
affordable, enjoyable and lasting measure the room and multiply width x depth x height (in metres), and
products for British homes. then divide this by 14. This will provide the average heating requirements
for the room in kilowatts. e.g. For a room measuring 4.9m x 4.9m x 2.4m,
Over 50 years later these multiply these together and then divide by 14. This makes a 4.1kW output.
values are still at the heart
Freestanding or Inset
of our stoves today. Our freestanding stoves offer the most versatile heating solution,
perfect for all spaces. Alternatively, you could opt for an inset stove
model, designed to replace an open fire utilising an existing fireplace.
Choose a stove that is perfectly
designed for the British home Fuel
All of our Hamlet stoves are multi fuel, giving you the freedom
and your way of life. to choose between burning solid fuel or wood. If you live
in one of the UK’s Smoke Control Areas, take a look at our
Solution 5 Widescreen and Solution 5 SC stoves.
Solution 10
Solution 5 | 4.9kW
APPROVED
FOR SMOKE
CONTROL
AREAS
Solution 5 Widescreen
4.9kW
Model shown: Solution 5 Widescreen
Highly efficient, yet simply designed, our Solution range of
stoves allow you to generate more heat using less fuel.
With a gently curved steel body, large fire viewing glass and
concealed hinges, the Solution stove is a stunning addition
to any room and is sure to keep your home warm and cosy.
Features Solution 7 | 6.1kW
• Burns wood or solid fuel
• Pre-stressed curved body for superior strength
• Preheated airwash system for clean glass
• Non-smoker paint
• 10 year guarantee on the stove body
• Secondary burn for higher efficiency
• Externally controlled riddling grate
• Top or rear flue outlet
Optional extras:
Add-in boiler / Floor fixing kit / Safety handle Solution 9 | 8.8kW Solution 11 | 11kW
Solution Inset 10
Featuring all the perks of our Solution Freestanding Features
models, but fitting perfectly into a standard • Burns wood or solid fuel
• Preheated airwash system for clean glass
British fireplace, the Solution Inset is a great choice.
• Externally controlled riddling grate
The Inset 5 model even fits neatly around the
• No need to remove the chair brick (Inset 5 model)
chair brick minimising the need for alterations. • Radiant and convected heat
Solution Inset 5 Solution Inset 7
4.8kW 7.1kW

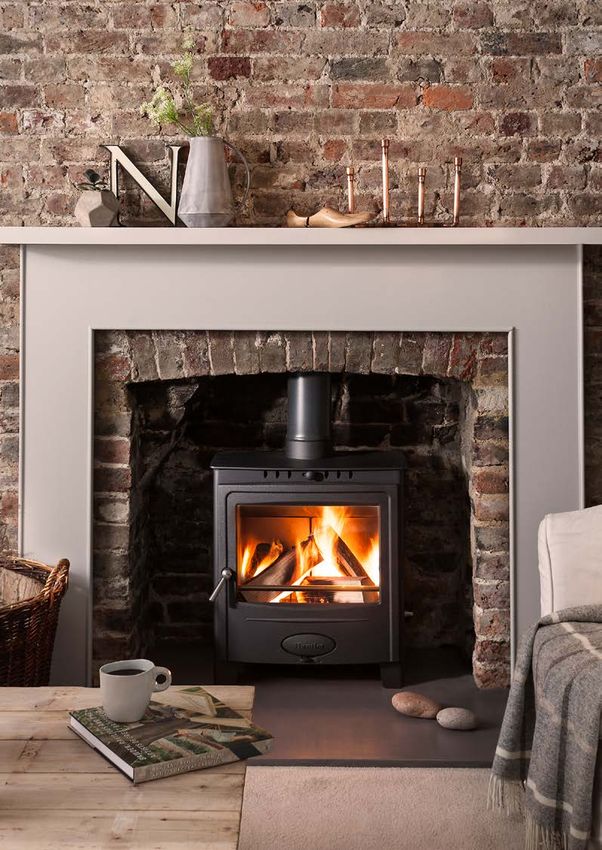

Model shown: Solution Inset 5
Optional extras: Standard flue gather / Long reach flue gather / Safety handle / 5-6’ vertical flue adapter
Solution 5 SC 10 SMOKE
CONTR OL
Developed to meet the demand for stoves in the
UK’s Smoke Control Areas, the Solution 5 SC
enables you to burn wood or smokeless solid
fuel. It’s clean styling and easy operation make
it a very practical option for urban living.
Features
• Burns wood or smokeless fuel (with optional kit)
• Preheated airwash system for clean glass
• Non-smoker paint
• Secondary burn for higher efficiency
• Externally controlled riddling grate
• Top or rear flue fitting
• Direct air supply compatible
Solution 5 SC S3 | 4.9kW
Optional extras:
Floor fixing kit / Safety handle / Heat shield / Multi fuel kit
Hardy 10

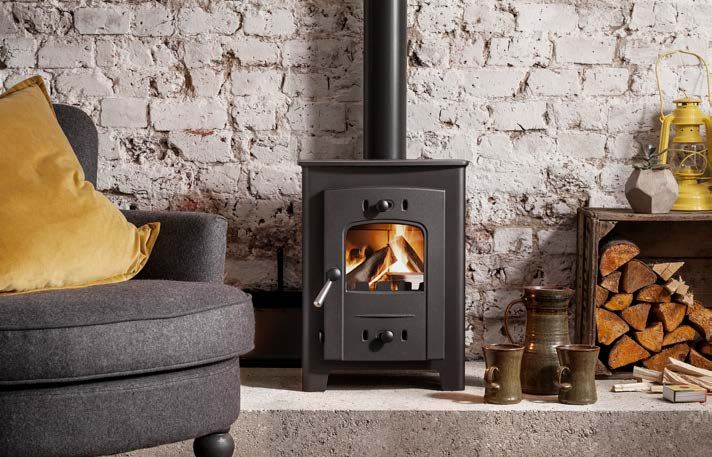

Model shown: Hardy 5
The smallest of the Hamlet range, the Hardy has
been designed with small living areas in mind.
Whilst compact in size, these stoves still offer all
the heat and cosiness needed to stay warm through
the winter months. A reliable and controllable
heating supply combined with a simple design.
Features
• Burns wood or solid fuel
• Preheated airwash for clean glass
• Non-smoker paint
Hardy 4 | 4.2kW Hardy 5 | 4.9kW
• Secondary burn for higher efficiency
• Externally controlled riddling grate
• Top or rear flue fitting
Optional extras: Add-in boiler / Floor fixing kit
Technical information
Depth Min. Min.
Height to from back Flue Max. distance to distance to
Nominal Output Nett centre of to centre outlet log combustibles combustibles
output range efficiency Energy Height Width Depth rear flue of top flue diameter length from rear from sides
Product name (kW) (kW) (%) Rating (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
Freestanding
Hardy 4 4.2 1 - 5.5 84.1 A+ 458 330 323 370 93.5 102 200 650 500
Hardy 5 4.9 1 - 6.5 80.9 A+ 475 370 333 387 93.5 102 200 675 500
Solution 5 SC 4.9 1 - 4.9 79.8 A 585 457 375 447 134 127 300 from 75mm* from 500mm*
Solution 5 4.9 1 - 6.5 74.7 A 522 397 388 424 94 102 254 625 525
Solution 5
4.9 1.5 - 9 79.3 A 600 541 365 484 108 127 380 300 300
Widescreen
Solution 7 6.1 1.5 - 9 72.1 A 558 476 386 449 109 127 300 650 450
Solution 9 8.8 2 - 11 71.6 A 600 586 396 485 103 127 457 750 500
Solution 11 11 2.4 - 14 74.7 A 605 672 442 479 141 152 457 800 500
*When optional rear heat shield is installed and combined with a twin-walled flue
Depth
Height Max. Depth of Max.
Nominal Output Nett in width in into front log
output range efficiency Energy Height Width Depth fireplace fireplace fireplace fascia Flue length
Product name (kW) (kW) (%) Rating (mm) (mm) (mm) (mm) (mm) (mm) (mm) outlet (mm)
Inset
Solution Inset 5 4.8 1-6 80.1 A+ 590 545 362 535 372 190 127 Letterbox style 200
127mm
Solution Inset 7 7.1 2-9 72.1 A 590 537 492 539 392 360 127 250
30° sloping flue
MAKE IT YOUR OWN
We appreciate that everybody is different, so when choosing your stove,
ensure it suits your lifestyle and home décor. With this in mind, our stoves,
log stores and accessories are available in a wide selection of colours to
match them to your home.
Midnight Sandcastle Slate Chestnut Mist
All Hamlet stoves come with a ten
year guarantee, ensuring long-lasting
enjoyment and added peace of mind.
†
Actual paint and colours may vary from this
printed representation. Ask your local retailer
Terms and conditions apply. Please ask
for a colour sample.
your retailer for more information.
Spice Atlantic
All Arada stoves are designed, built and tested in the UK to ensure full compliance with CE certification and UK
building regulations. Stated outputs for room heaters are quoted using wood log fuel.
Every effort has been made to ensure that the information contained in this brochure is accurate as of May 2019.
Arada Ltd reserves the right, whilst preserving the essential characteristics of our product range, to introduce,
at any time, modifications, changes of details or accessories.
E and OE.
Some of the photographs in this brochure have been created for illustration purposes only and may not represent
real live installations. This brochure is copyright 2019 and may not be reproduced in any part or form without The Fireworks, Weycroft Avenue, Axminster EX13 5HU
prior written consent from Arada Ltd. T +44 (0) 1297 632 050 hamletstoves.co.uk
SBHAMLET2019-20
