QUALITY GUIDE QUALITY, FUNCTION & PLANNING TIPS
QUALITY & FUNCTION
23
CONTENTS
THE CARCASE 4 5
PRODUCT FEATURES OF CABINETS 6 7
THE PLINTH 8 9
HINGE TECHNOLOGY | HINGED DOORS 10 11
DRAWER AND PULL-OUT SYSTEM 12 13
CARCASE DÉCORS | FRONTS | WORKTOPS | UPRIGHT PANELS 14 17
XTRA – THE WORKTOP FOR EXTRA WEAR AND TEAR! 18 19
SYSTEM GRID | SYSTEM HEIGHTS AND FRONT DESIGNS 20 23
STANDARD HEIGHT | XL HEIGHT 24 25
PERFECT ERGONOMICS 26 29
THE HANDLE-LESS KITCHEN LINE N 30 33
DRAWER- | PULL-OUT- | BASE UNIT ORGANISATION 34 37
INDIVIDUALISED COMFORT 38 39
CORNER UNITS 40 41
TALL UNITS | HIGHBOARDS 42 43
WALL UNITS | DRESSER UNITS 44 45
WALL UNIT FITTINGS 46 47
INTEGRATED LIGHT DESIGNS | EMOTION TECHNOLOGY | COLOR SWITCH 48 49
As you know, competent and effective customer service is essential to successful sales.
AMBIENT LIGHTING | SOCKETS | USB CHARGER 50 51
This includes sound product knowledge that goes beyond what is in the general sales COLOR CONCEPT | DESIGN FRONTS 52 53
documents, leaflets and image brochures. This QUALITY GUIDE is a comprehensive NICHE CLADDINGS | CONVENIENCE FOR THE NICHE 54 57
compendium of „327 good reasons“ to choose a nobilia kitchen.
The Quality Guide provides you with answers to pivotal questions so that you are well
NICHE PROFILES | BASE UNITS IN SPECIAL HEIGHTS | DESIGN VARIANTS 58 59
prepared for sales consultations. We will show you what makes a nobilia kitchen so valuable: UTILITY ROOM | ACCESSORIES 60 63
an intelligent and practical design of the individual components in addition to BATHROOM DESIGNS 64 67
sophisticated fittings and functional technology with superior quality!
From the quality to the distinctive features and characteristics of the different materials POLE-MOUNTED SHELVING SYSTEM 68 69
and surfaces to the planning specifics and special installation aids: We have compiled PACKING | INSTALLATION 70 71
the most important information about nobilia in this comprehensive guide. In the chapter
QC Laboratory, we also introduce you to the preventative tests as well as load tests and
QC-TEST LABORATORY 72 83
testing methods used during series production, which nobilia kitchens must pass. PRODUCT STRATEGY | DESIGN 84 85
We hope you enjoy reading this Quality Guide. ADMINISTRATIVE SERVICES | FIELD SERVICES | MARKETINGPRODUCTION 86 87
PRODUCTION MADE IN GERMANY 88 89
QUALITY | ENVIRONMENT | CERTIFICATES 90 91
THOROUGHLY WELL-MADE
nobilia manufactures more than 3,500 different cabinets in highly
automated production. The basis of production is an intelligent
1 CARCASE MATERIAL 16 MM
modular system with four base unit heights, four wall unit heights,
five dresser unit heights, two highboard heights, four tall unit Side panels 16 mm thick,
heights and three special heights for multi-functional designs. both faces melamine direct
coated – thus, extremely
durable and easy-care.
Side panels 16 mm thick,
both faces melamine direct coated
Back panels 2.8 mm hardboard, both faces
lacquered, screw-mounted to carcase
Crossbars 19 mm thick,
both faces melamine direct coated
Carcase front edges
with PP thick edging (1.2 mm thick)
Shelf, 16 mm thick,
front edge with PP thick edging (1.2 mm thick)
Shelf and side panels glued in
with hardwood dowels (8 x 30 mm)
Construction shelf 19 mm thick,
both faces melamine direct coated
Plinth feet with height adjustment
6 ALL METAL
SHELF SUPPORTS
–10 and + 20 mm
All metal shelf supports with
locking pin, high load-bearing
capacity in accordance with
MDF plinth panels DIN standard. The locking pin
with floor profile prevents the shelves from
70 mm, 100 mm, 150 mm, 200 mm shifting. Maximum load for
13 mm thick, melamine coated wooden and glass shelves:
50 kg/m2.
Minimises complaints Load capacity Easy to assemble Great value 2700K-
Emotion
6500K Technology
45
THE CARCASE
2 FRONT EDGE OF CARCASE/
SHELVES
3 CONSTRUCTION SHELVES/
CROSSBARS 19 MM
4 MOISTURE DOESN’T
STAND A CHANCE HERE
5 HARDWOOD DOWELS
8 X 30 MM
Carcase front edge and Extremely sturdy construction Edges on shelves and side Shelves, construction shelves
shelves coated with PP thick shelves and crossbars for base panels sealed all round and side panels are glued in
edging 1.2 mm. Extremely and tall units. Top crossbars to ensure a clean finish with hardwood dowels.
resilient and impact resistant. for base units: white edge colour and prevent
Attractive appearance due for a uniform appearance. penetration of
to soft rounding. dirt and moisture.
The high quality construction of the
carcase elements in addition to the
well-thought out fittings technology
is the result of many years of experience
and continual process improvements
in the production flow.
Uwe Schirmer,
Employee in the Product
Development department
7 COVER PLUGS
8 GLASS SHELVES
9 50 KG PER M2 SHELF
LOAD CAPACITY
10 REAR PANELS OFFSET
TOWARD FRONT
Perfection, even inside the unit: Glass wall units come It all fits! 2.8 mm HDF board, treated with Advantages: No interior gap
The 5 mm drill holes can standard with a 5 mm All shelves (including loose protective lacquer coating on formation visible. Long-lasting,
optionally be closed with glass shelf for a uniform, shelves) can hold a load of up both faces. Back panels are also permanently sturdy, yet
plastic cover plugs. These are transparent appearance. to 50 kg/m2. screw-mounted to the carcase in variable for the fitter on site.
perfectly matched to the colour Units with swivel flap doors This is equivalent to, for 6 mm deep grooved sides. Both faces are lacquered, which
of the carcase interior. and folding-lifting doors have instance, over 80 dinner plates. Protruded back panels ensure prevents moisture absorption,
6 mm thick glass shelves. good air circulation between the and is thus
wall and kitchen furniture and mould-resistant.
thus will not get damp.
561 MM
IT’S WHAT’S INSIDE THAT COUNTS!
522 MM
11 IT ALL FITS! 12 WATERPROOF BOTTOM PANEL
n Carcase depth for base As extra protection against There is no centre post for two-door
and tall units: 561 mm moisture, sinks and vanity base sink base units.
n Useable depth: 522 mm units can be equipped with
n Maintenance-free fittings/ a waterproof bottom shelf for a
easy-to-assemble surcharge MP-WPB, Grey metallic.
M
1M
46
13 SIDE DEPTH OF 461 MM
ON BASE UNITS
14 MOISTURE
PROTECTION SHELF
15 WATERPROOF MAT
WSMS
AT NO SURCHARGE
The side depth of 461 mm Optional: The moisture protection Additional moisture protection
provides planning flexibility sheet for sink units and units sheet beneath the sink: For
for planning of narrow room subjected to tough conditions, optional use in sink base units
layouts without surcharges for instance broom cupboards, and chamfered corner sink units.
for custom productions. prevents scratching of the bottom Made of easy-to-clean plastic,
shelf by vacuums and other Slate grey. Suitable for elements
devices. Residual moisture without front pull-outs with a side
protection for buckets, brooms or depth of 561 mm.
cleaning products.
6 7
PRODUCT FEATURES OF CABINETS
Our kitchen components meet the highest standards
when it comes to construction, stability, safety and
longevity, with quality that has been tested and
certified. Extremely durable metal crossbars,
functional protection plates, and robust connecting
fittings as well as all components guarantee
“quality made in Germany."
Christoph Kümmel,
Head of Product Strategy
16 STURDY METAL CROSSBARS
17 FULLY USABLE
18 STEAM PROTECTION PLATE
FOR DISHWASHERS
19 STEAM PROTECTION PLATE
WALL UNITS
20 CORNER BASE UNITS
CAN BE DISASSEMBLED
Cooker housing units, sink units, The odour trap recess cover for Tall units for raised dishwashers Here, the heat doesn’t stand Corner base units can be
carousel corner units and use in sink and vanity base units come standard with an extra a chance: optional steam disassembled on site
1.200 mm wide base units are can be freely positioned. Thus, deep steam protection plate. protection plate for wall (i.e. UEK 90). This allows
exceptionally sturdy due to a recess for the odour trap is not units adjacent to the cooker them to fit through even tight
integrated metal crossbars. Hot necessary, which allows the hood (DDS/4502). stairwells and narrow doors.
plate and vanity base units entire pull-out to be utilised.
upwards of 800 mm width are
also equipped with a special
reinforced metal crossbar.
STEADY !
PLINTH ADAPTER
200 MM
150 MM
+28 MM
100 MM
70 MM
20 MM
10 MM
21 4 STANDARD-
PLINTH HEIGHTS
22 PLINTH RETURNS
28 MM ADDED
n The sturdy plinth construction n Plinth feet independently The fitters will be happy:
with adapters and feet adjustable. Ideal for uneven By adding another 28 mm
comes in the standard heights tiled floors, as the cabinet to plinth returns the fitter
70, 100, 150 and 200 mm. always stands straight! can adjust the panel on site.
n Adjustable range: –10 to + 20 mm n Load capacity: 250 kg per
n Intermediate heights unit /4 feet.
(10 and 20 mm) are possible with Also suitable for
adapter, see Sales Manual, use with granite
chapter 3, MP-SO (order no. 4187). worktops.
89
THE PLINTH
23 PLINTH PANELS 13 MM
24 JUST TO MAKE SURE
Plinth panels are produced Stand-alone base units must always be equipped
from 13 mm MDF (= medium with safety bracket KIPPS. It is available in
density fibreboard) and are two designs and is supplied automatically with
direct coated. stand-alone base units at a
This makes them extremely surcharge.
SB-PROFIL 4863 resilient and easy to care for.
25 FLEXIBLE
FLOOR SEALING PROFILE
26 WATERPROOF
PLINTH PANEL
27 SLATTED PLINTH
OF ALUMINIUM
28 TERRIFIC EFFECT –
PLINTH LIGHTING
Plinth panels with attached floor The profile SB-PROFIL Waterproof plinth panels are The slatted plinth is not only a This is how to highlight plinths:
profile form an elegant closure (order no. 4863) must be ordered available in a variety of colours stunning visual detail, but it also with the LED plinth light that
with the floor and prevent the separately to compensate for for a surcharge. They are serves as plinth ventilation when can be individually mounted
ingress of moisture and dirt into uneven floors with larger useful wherever there is a lot using downdraft extractor fans. or with the Flex LED flexible
the plinth area. deviations. On uneven floors, of moisture or dampness and n Can be planned in all four light tape.
The profile included in delivery precise height and width adjust- they look fabulous as well. plinth heights
compensates for uneven floors ments are only possible on site! n Available colours:
with deviations of up to 2 mm. 114 Stainless steel appearance,
058 Black, 193 Alpine white
Sensys PERFECT CUSHIONING, FLAWLESS DESIGN
The use of SENSYS hinges as standard equipment means even more quality
and perfection in fittings technology from nobilia kitchens. The multi-award-
The SENSYS wide angle hinge was
distinguished with the “red dot design
29 CLOSING COMFORT
WITH EASE
30 SILENT SYSTEM
CUSHIONING
winning SENSYS hinge with integrated cushioning by Hettich marks the award 2014” as well as the “iF product
latest generation of hinge technology on the market. All nobilia kitchens design award 2014” for its outstanding The doors close with just a light SENSYS hinges are equipped
come with SENSYS hinges as standard, without a surcharge, from the entry design. movement of your hand – as standard with the SILENT
level price to the high end segment. Just one more way that the company smoothly and silently. The SYSTEM integrated cushioning
offers innovative technology at a first-class value for money. unique, automatic self-closing system. SENSYS always closes
device ensures secure closure reliably, while providing
upwards of an angle of 35°. cushioning for doors of varying
sizes and weights.
40 °C
20 °C
35°
5 °C
31 AWARD-WINNING DESIGN
32 RELIABLE
QUALITY
33 INSTALLATION-FRIENDLY
Discreet lines from the hinge SENSYS ensures smooth, even Assembles or disassembles
cup to the mounting plates closure within an unusually high quickly and easily without tools
ensure a modern hinge design. temperature range of +5°C to by pressing lightly with your
All edges and radii coordinate +40°C as well as at a relative finger on the concealed release
perfectly with one another for humidity of 90 percent. With tab. Then, in one smooth,
a harmonious overall look. The at least 80,000 tested cycles, ergonomic movement the hinge
Silent System cushioning is as SENSYS stands for reliability and is released from the release tab
invisible as the release tab of long service life. and hinge arm.
the hinge.10 11
HINGE TECHNOLOGY | HINGED DOORS
34 PERFECT ADJUSTMENT
35 DOOR HINGE BUFFER
SENSYS hinges are three- All fronts are cushioned as
dimensionally adjustable. Thus, standard with 2 mm thick
SENSYS always provides a plastic bumpers on the door
perfect gap pattern interior.
in the kitchen,
even on thick doors
with small radii.
36 110°–HINGE FOR
HINGED DOORS
37 95° HINGE FOR DIAGONAL
CORNER WALL UNITS
38 85°–OPENING ANGLE
LIMITER
39 165°–WIDE ANGLE HINGE
40 PUSH-TO-OPEN
SYSTEM
Hinged doors are equipped 95° hinges are used for diagonal The opening angle limiter on Corner base units, corner wall For handle-less planned
as standard with 110° hinges corner wall units. The restricted 95° and 110° hinges ensures units and units with internal pull- kitchens, hinged doors can
with integrated cushioning. The opening angle prevents contact safety when planning corner outs are equipped at the factory also optionally be equipped
large opening angle provides with the door handle of the solutions, wall unit attachments with 165° wide angle hinges. with the push-to-open system.
convenient access, allowing you adjacent unit. and glass doors adjacent to the Opening angle limits (adjustable The system can be
to reach even into back corners. cooker hood. The limited angle to 90°/135°) are supplied as retrofitted at any time.
also prevents contact between standard equipment.
handles on corner units. Designs adjacent to upright
panels are possible, except next
to extra deep or protruding units.QUALITY BECOMES AN EXPERIENCE
41 METALLIC STEEL FRAME
42 EXCEPTIONALLY SMOOTH
RUNNING ACTION
43 SYSTEM
LOAD CAPACITY
The Profi+ drawer system has The drawer frame has an exception-
an extremely high quality steel ally smooth running action. Width Excerpt depth in mm
frame, that gives it a gorgeous The opening and closing noise is in mm 270 400 500
modern and timeless look. The virtually imperceptible. The >/=600 30 kg 30 kg 30 kg
frame has a double-coated silver synchronous guidance guarantees 800-900 30 kg 40 kg 45 kg
finish, the colour-coordinated absolutely even and seamless 1,000 30 kg 40 kg 55 kg
bottom panel is 16 mm thick. motion of the drawer runners. 1,200 30 kg 40 kg 65 kg
44 SIMPLE ASSEMBLY
AND ADJUSTMENT
45 JOINT PATTERN
46 GUIDES WITH
PRISM PRINCIPLE
The panels can be assembled The front panels can be Drawer guides with unique
and removed without tools, adjusted quickly and easily. prism principle. The prism
one-dimensionally and in a The front panel adjustment principle guarantees an
single motion: The panel is is simple to carry out, with optimally aligned motion
simply clipped on. A audible instructions for vertical and sequence and ensures high
“click” confirms that the horizontal movement clearly side stability as well as low
drawer front is shown on the units themselves. sag rates.
firmly in place.12 13
DRAWER AND PULL-OUT SYSTEM
47 HIGH-QUALITY DESIGN
48 HIGH-QUALITY
WORKMANSHIP
nobilia’s Profi+ drawer system represents an innovative product highlight
of the highest calibre, which sets the standard on the kitchen market.
The award-winning Profi+ system impresses due to its outstanding motion
The Profi+ frame shape conveys Enclosed side panelling is Profi+ inspires with its high- comfort, extraordinary stability, superior quality design and added storage
quality, durability and re- available in steel or glass sides quality workmanship. The space. Moreover, Profi+ scores points for simple installation and convenient
mark-able stability. The pull-outs as shown below for a small connections between front adjustment. nobilia fits all its kitchens exclusively with this innovative
are surcharge. For internal drawers panel, rear panel and frame drawer system as standard equipment.
equipped with a rounded railing with steel or glass sides, the as well as that between
as standard. front panel is supplied standard drawer and guides are sturdy
in a glass design. and secure.
49 INNOVATIVE
CUSHIONING SYSTEM
50 EASY-TO-CLEAN
51 ASSEMBLY
WITHOUT TOOLS
52 OPENING SUPPORT
MECHANISM
Super comfort with silent The adaptive cushioning is Particularly easy-to-clean due Due to the quick assembly Electromechanical or sensor
closure. The newly developed effective for both empty as to flush-surface integrated and removal, Profi+ drawers operated systems facilitate the
standard cushioning system well as fully loaded drawers. soft edges in the drawers. are very fitter-friendly, opening of pull-outs. For instance,
ensures a smooth closing move- Drawers open virtually easy to clean and suitable a slight touch of the knee to the
ment every time. In the last effortlessly for comfortable for relocating. waste collector is sufficient to
stage of the closing process, and simple use, even with han- open the pull-out. Thus, there is
the movement slows down dleless fronts. no need to touch the door with
similar to a slow-motion effect full or dirty hands.
and closes silently.WHAT TYPE OF WOOD IS MY KITCHEN MADE FROM?
53 CARCASE DÉCORS –
CLEANLINESS FIRST
n Interior carcase colour: n Wall units with glass doors,
standard = White. shelf units and dresser units
n Bright interior: good overview, with plastic or glass roll-up
everything is easier to find. fronts are supplied with both
n End customers connect White with sides in carcase décor (inside
factors such as hygiene, cleanliness, and outside) at no surcharge.
health. This eliminates the need
n Carcase colour exterior: In your to specify which side will be
choice of 14 trendy carcase colours visible.
n No surcharge for exterior
décors. And with a later
relocation, all units can be
repositioned.
FOIL LAYERS FOIL LAYERS
LACQUER LACQUER
DÉCOR PAPER MELAMINE
MELAMINE
WOOD MATERIAL
PET FILM
MELAMINE PET FILM
MELAMINE
MELAMINE
DÉCOR PAPER
WOOD MATERIAL
MDF PP EDGING
MELAMINE
MELAMINE
n Information regarding care
of carcase and fronts can be
54 MELAMINE DIRECT
COATED
55 LACQUERED LAMINATED
FRONTS
56 LACQUERED LAMINATE
FRONTS WITH
found at: ANTI-FINGERPRINT COATING
https://www.nobilia.de/en/
services/instruction-manuals n Optimal for kitchen furniture n Lacquered PET film n Ultra matt with PP edging on
n Extremely resilient n High gloss or softmatt version all sides
n Surfaces could contain n Smooth front vertically n Extremely resilient
fine textures which only seamless n Outstanding care properties
enhance the beautiful wood n In the framed version rounded thanks to innovative
reproduction appearance. on all sides and without seams anti-fingerprint coating
n Easy-care n Attractive alternative for n Wear-resistant and highly
n Affordable genuine lacquer fronts cross-linked functional layer
n Outstanding value for money14 15
CARCASE DÉCORS | FRONTS
QUALITY FOR
ALL PRICE GROUPS
State-of-the-art processing
technologies and the highest
quality materials speak in
favour of the entire spectrum
of nobilia fronts and carcases.
Here, we will show you the
characteristics and advantages
of the selected materials.
MULTI-LAYERED PE (POLYETHYLENE PLASTIC)
DÉCOR PAPER PU (POLYURETHANE ADHESIVE) FOIL LAYERS
MELAMINE
MELAMINE
MDF LACQUER
MELAMINE
CRAFT PAPERS MELAMINE
ACRYLIC HIGH GLOSS LACQUER
PRIMER, MULTILAYER FOIL VENEERED INFILL PANEL
LAMINATE
SOLID WOOD
WOOD MATERIAL
MDF
PP EDGING MDF
LAMINATE
MELAMINE MELAMINE
57 LAMINATE FRONTS
58 LACQUER FRONTS
59 FOIL-COATED FRONT
60 GENUINE WOOD FRONTS
n Extremely resilient n Pure material appeal n Seamless rounding on all n Genuine wood framed door
n The surface is multi-layered n Hard-wearing, easy to clean sides possible with veneer infill panel,
and therefore thicker than the n Seamless front faces in honed n Extremely resilient lacquered
melamine front. lacquer and high gloss lacquer n Also ideal as a framed front, n Panel made of solid wood,
n Sturdier than the melamine n Fronts in ultra high gloss seamless front face lacquered
fronts with PP edging on all sides n An attractive alternative to n Due to the lacquer coating
n Easy-care n Honed lacquer with slight genuine wood or lacquer the surface is hard-wearing
texture, for better n Outstanding value for money and easy to clean
scratch-resistance n Upper price structureOUR WORKTOP IS THE TOUGHEST!
nobilia worktops are distinguished by outstanding functional value.
n The substrate of the 38 mm thick worktop is high quality 3-layer chip board.
61 THE SURFACE:
SUPER TOUGH!
n They are coated with hard-wearing plastic laminate panels (HPL high
pressure laminate and CPL continuously pressured laminate surfaces). Worktop surfaces demonstrate a high degree of resistance to scratching and
n Lateral cut edges are provided with décor edging. abrasion in accordance with DIN standard 68930. This is to ensure that the
n Useable depth: Standard 600 mm up to max. 1,170 mm, 1,200 mm for N edge worktops can withstand the wear associated with conventional household use.
n Butted glued joints are ensured with waterproof D3 glue
(PVAC - polyvinyl acetate glue).
62 N EDGE
63 DÉCOR EDGE
64 WELL PROTECTED:
AGAINST MOISTURE AND HEAT!
The panel is laminated around Décor edges are 1.5 mm thick PP front edges enable The bottom face of the worktop is surfaced with a water repellent, resin
the rounded front edges. PP plastic bandings available individualised freeform impregnated paper and has a moisture protection seal along the rear edge.
The sides can be finished with in any worktop décor or surfaces for worktops, Heat resistant up to 180°C with dry heat and up to 100°C with moist heat
1.5 mm thick décor edging or COLOR CONCEPT colour. tables and breakfast bar (DIN 68930). Nevertheless, hot pans should always be placed on top of a trivet.
inset N edge (for a surcharge). The PP bandings are glued with attachments. Cutting boards should always be used for chopping food items.
For optimum protection against waterproof PUR adhesive. To seal sink and hot plate cut-outs, worktop sealing tape with respective
moisture the N edge is sealed instructions is automatically included in the delivery. All worktops are also
over the transition to the supplied with a 9 metre long worktop sealing tape for worktop cut-outs as
bottom face. well as for insulating the worktop above dishwashers.16 17
WORKTOPS | UPRIGHT PANELS
16 MM 25 MM 50 MM
65 WORKTOP
SLIM LINE 16 MM
66 CONSOLE PANEL 100 MM
67 UPRIGHT PANEL SYSTEMS: 87 DÉCORS
IN 3 MATERIAL THICKNESSES AND 8 DESIGNS
Slim Line worktops have a Creating small dining areas and breakfast bar solutions is effortless with nobilia upright panel systems are available in 87 décors and
high quality laminate coating 100 mm thick console panels. They are coated with laminate on both faces and in 16 mm, 25 mm and 50 mm widths.
on both faces. are polymer edged all around. Available product range dependent upon material thickness:
Greater practical utility due maximum depth: 1,200 mm, maximum height: 1,800 mm. upright panels, wall shelves, top shelves, plinth panels and
to HPL and CPL surfaces. Décor 50 % of the console panel must rest on the support panel. Unfortunately its not cornice shelves.
edges all around in 1.2 mm. possible to have built -in hobs and sinks into the 100 mm console panel. For details see chapter 02 design overviews.
Upright panel shoe available in 2 colours:
014 Stainless steel appearance
010 BlackXTRA LAMINATE 1.2 MM
FUNCTIONAL LAYER 9.4 MM
CHIPBOARD CORE 28.0 MM
STABILISING LAYER
68 3-D SURFACE
69 INNOVATIVE MULTI-
LAYERED CONSTRUCTION
Our Xtra worktop décors impress with their very distinctive 3D surface texture, Xtra worktops are characterised by a special 3D surface, which has the Thanks to their innovative
which creates an authentic looking natural stone or solid wood appearance. appearance of natural stone or solid wood. The 3D surface is achieved with multi-layered structure, not only
Matching upright panels and niche cladding are additional possibilities for an extremely thick laminate (1.2 mm instead of 0.8 mm). Xtra worktops do Xtra worktops look stylish, they
surround designs in this look. Xtra worktops are so much more than just stylish, thus achieve exceptionally authentic reproductions while providing all the also provide practical
they also offer superior practical benefits, such as enabling flush-mounting of advantages of a conventional HPL worktop. They can be adapted on site advantages and enable flush
sinks and hot plates. The Xtra worktop is patent-protected and was awarded the and are significantly lighter in weight as well as easier on the wallet than mounting of sinks and hot plates.
"Kitchen innovation of the year 2018" genuine natural stone.
For further information please refer to the Sales Manual, chapter 2.18 19
XTRA – THE WORKTOP FOR EXTRA WEAR AND TEAR!
70 XTRA –
SWELLING RESISTANT

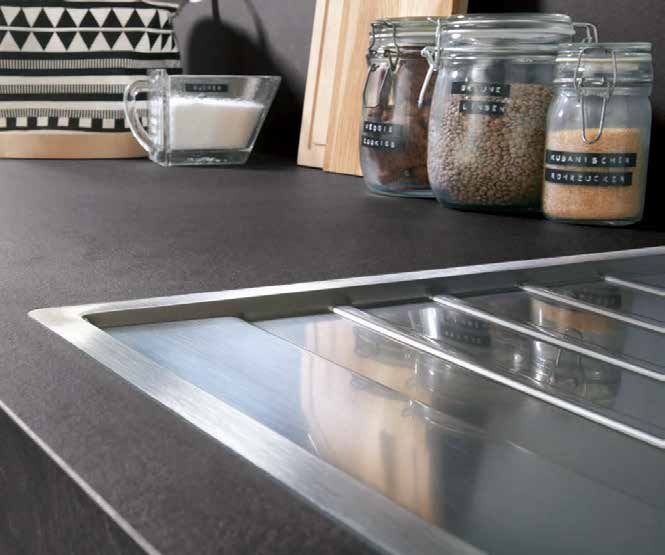

71 FLUSH MOUNTED
INSTALLATION
72 DÉCOR DESIGNS
The innovative functional layer The milled-out portion for the flush mounting of hot plates and sinks is in the n Available in 4 décors
prevents water from seeping functional layer. This achieves optimal water resistance. The smooth transition n maximum length: 4,000 mm
into the worktop from above between worktop and sink or hot plate has no protruding edges. This not n Xtra décors are available in 38 mm thick worktop finishes as 16 mm Slim Line
and thus also prevents swelling. only creates an exceptional aesthetic, but it also makes cleaning a breeze. and as 100 mm thick console panel.
The work-top is even more Flush mounting of hot plates and sinks is not possible in Slim Line worktops n Xtra décors are also available as upright panels in 16 mm, 25 mm and 50 mm
water-resistant than conventional or console panels. widths.
worktops.
73 XTRA – DURABLE,
IMPACT RESISTANT
74 FLUSH MOUNTED
CUT-OUTS
75 SIMPLE INSTALLATION
The innovative wear layer The appropriate cut-outs for flush mounting can be made at the factory for In developing the Xtra worktop, that we provide, are a premium
ensures the exceptional a surcharge. Flush cut-outs can only be made for technically approved hot plates it was important to us – alongside silicone for natural stone, a
sturdiness of the panel. In this and sinks. You will find a selection of hot plates and sinks approved for this the functional features – that adhesive smoother, adhesive tape
way, Xtra worktops in 38 mm in the respective chapters of the appliances and sinks list. They are identified with on-site installation could be and spacers in 1 and 2 mm as
thickness are especially suited a symbol. Moreover, additional technically approved hot plates and sinks outside performed simply and safely. well as detailed installation
to stand up to the demands of of the nobilia product range can also be flush mounted. Compared to conventional instructions. In addition, you
everyday kitchen wear and tear. Our technically approved list for flush mounting can be found in the nobilia installation, there are only three will find installation videos for the
Extranet. This list is regularly updated in our Extranet. additional steps necessary: Xtra worktop on our home page
masking, positioning and sealing. www.nobilia.de/en/services.
Included in the kitchen 'bits box'MADE TO MEASURE KITCHENS
5 STAGE GRID 4 STAGE GRID
The diversity of our system heights allows for a perfect
union between different individual requirements for
HEIGHTS VOLUME
77 4 BASE UNIT HEIGHTS
organisation, storage space, ergonomics and design.
Design-oriented kitchen planning, combined with Worktop 38 mm
the respective optimum height for the main tasks that
make up the daily routine in the kitchen – both Slim Line 16 mm 120 %
technically and ergonomically perfect! Maxi height 864 mm
XLXLHöhe 792792
height mmmm
Standard height 720 mm
110 %
76 32 ACTIVITY HEIGHTS Mini height 576 mm 100 %
Our range ensures design-oriented kitchen planning
coupled with the right activity height by offering a total
80 %
of 32 different working heights. The 32 different activity
heights are achieved through a combination of four base
unit heights, four plinth heights and two worktop heights,
which perfectly meets the ergonomic needs of today’s Plinth height 200 mm
kitchen users for the various activity zones in the kitchen. Plinth height 150 mm
The right size for every task. Plinth height 100 mm All measurements are in mm.
Plinth height 70 mm20 21
SYSTEM GRID
4 STAGE GRID
78 4 PLINTH HEIGHTS
79 2 WORKTOP HEIGHTS
80 4 WALL UNIT HEIGHTS
81 5 DRESSER UNIT HEIGHTS
82 6 TALL UNIT HEIGHTS
000 000W-03 W-02 W-01
904 MM 718 MM 651 MM 359 MM
576 MM 720 MM 792 MM 864 MM 1,485 MM 1,584 MM 1,930 MM 1,997 MM 2,069 MM 2,183 MM
MINI STANDARD XL MAXI HIGH- HIGH- HS-01 HS-02 HS-02 XL HS-03
HEIGHT HEIGHT HEIGHT HEIGHT BOARD BOARD XL
HEIGHT HEIGHT
Which front design is my favourite and which working height is best for me in order to perform all kitchen activities in a
relaxed and normal posture? This system comparison shows you all the various front divisions of the different unit systems, as
well as the different activity heights. Choose between carcases in standard height 720 mm, XL height 792 mm and Maxi height
864 mm. The activity heights can be individually fine-tuned by combining with 4 different plinth heights for all systems
(70, 100, 150, 200 mm), and 2 worktop heights in 16 and 38 mm. The right size for every task.
The individual systems are assigned different drawer and pull-out heights depending on their front design. All drawers are based
on the classic 5 stage grid and the modern 4 stage grid. The XL height comes with a combination of 2 pull-out heights. The Maxi
height is optionally available with 5 stage or 4 stage grid.22 23
SYSTEM HEIGHTS AND FRONT DESIGNS
STANDARD HEIGHT: 720 MM HIGH, WITH HANDLE XL HEIGHT: 792 MM HIGH, WITH HANDLE MAXI HEIGHT: 864 MM HIGH, WITH HANDLE
5 STAGE GRID
141 MM
141 MM
141 MM
285 MM
mm
mm
720 mm
789 MM 285 MM
717 MM 573 MM 717 MM
864
792
285 MM 357 MM 357 MM
STANDARD HEIGHT: 720 MM HIGH, HANDLELESS
XL HEIGHT: 792 MM HIGH, HANDLELESS
164 MM
330 MM
mm
720 mm
762 MM
792
402 MM
83 STANDARD SYSTEM HEIGHT: 720 MM
84 SYSTEM HEIGHT XL: 792 MM
85 SYSTEM HEIGHT MAXI: 864 MM
The standard height of base units is 720 mm. There are two The new generation of kitchens in XL grid beautifully merges The Maxi height is based on the standard height base unit plus
different front designs available for planning at this height. With optimum storage space, a higher activity zone, and a balanced, a drawer. Which is why this height combines so well with the
a 5 stage grid, the standard height is divided into a maximum aesthetic front design. The carcase height is 792 mm and standard height. With a total carcase height of 864 mm, the Maxi
of five 141 mm high drawers. This arrangement is the first choice for
classic front designs. Then, there is the 4 stage grid available with a
thus provides roughly 10 percent more storage space than
standard height.
height is perfect for raising specific individual activity zones. For
maximum storage space requirements or particularly tall users,
maximum of four 177 mm high drawers. This front design The XL height is also available for handleless LINE N kitchens. entire kitchens can be planned in Maxi height.
features mainly where there are contemporary and markedly Worktop heights: 878 to 1,030 mm, body height: from 175 cm. Worktop heights: 950 to 1,102 mm, body height: from 180 cm.
international lines in the kitchen.
The standard height is also available for handleless LINE N kitchens.
Worktop heights: 806 to 958 mm, body height: from 150 cm.
STANDARD CARCASE | XL CARCASE
86 EFFICIENT STORAGE SPACE ORGANISATION
Nowadays people are growing taller. While at the same time, living spaces are
-02 W-01 getting smaller – especially in urban settings. For this reason, many buyers
18 651 359 325,5 are very concerned with efficient storage space and ergonomics when planning
their new kitchen. By the way, storage in base units can be organised
particularly efficiently: No other unit category has such an extensive selection
of functional fittings and interior organisation possibilities available as here.
Thus, there are some great functional advantages here.
100% 110%
720 MM 792 MM
20 792 864 1485 1930 1997 2069 2183 720
STANDARD 792
XL
ndard- XL-Höhe Maxi-Höhe Highboard- HS-01 HS-02 HS-02 XL HS-03 Standard-
HEIGHT XL-Höhe
HEIGHT
öhe höhe höhe
87 XL CONVENIENCE FOR EVERY USER SIZE
The decision to purchase a new fitted kitchen is based on many different factors, since a customised kitchen design must take XL creates 10 per cent more storage space – while only minimally changing
many facets into consideration if it is to be perfectly tailored to the needs of your customers. When it comes down to providing the activity height. The XL carcase is thus not only (but also) ideal for
more convenience, ergonomics and planning options, then, offer your customers the best possible design possibilities with the taller people. For XL, one can simply use the next shorter plinth. It’s as if the
new XL height. storage space has extended into the plinth while the activity height remains
The new XL height in base units provides 10 percent more storage space than standard height, and with it, even more almost unchanged.
possibilities for accommodating kitchen utensils and supplies. It also benefits the user by forming a perfect synthesis between
the desire for ergonomics and the need for storage.24 25
XL–THE NEW GENERATION OF KITCHENS
88 THE PERFECT DRAWER HEIGHT
The 141 mm high drawer provides enough room for storing large-size kitchen
utensils. Even the soup ladle and egg whisk have found a place here. The most
important kitchen equipment is easily accessible at all times right where
you need them most, namely, near the hot plate.
792 MM 1,584 MM 2,069 MM
XL HIGHBOARD HS-02 XL
HEIGHT HEIGHT XL
89 ONE FOR ALL
90 ERGONOMICALLY PERFECT
n The new XL height is completely integrated in our kitchen system as an In terms of optimising space as well as activity heights, the XL base unit height
additional system height. There is no need for a separate product list for is the ideal size between the standard height and the Maxi height of our vast
planning and ordering. kitchen system. In addition, XL tall units and XL highboards are available to pair
n In order to make the arrangement as easy as possible, we have used a dark with the XL height base units to continue the uniform line of the kitchen. All
grey colour for the XL chapter tabs. three base unit heights - standard, XL and Maxi – can be adapted to
n The abbreviations are easy to remember: the individual ergonomic requirements of kitchen users by combining with four
Simply add an X to the existing abbreviation, thus: different plinth heights and two worktop thicknesses. We also have a Mini height
XL Base units U*-X, XL Cooker housings HU*-X, available for lowering individual activity areas.
XL Hot plate units K*-X, XL Highboards, 1,584 mm high H*-X,
XL Tall units, 2,069 mm high H*-02X91 ERGONOMICALLY CORRECT
KITCHEN DESIGNS
When deciding upon the proper working height for the
individual kitchen activities, it is not the height of the body
which is decisive, but rather that of the elbow. With a
modern measuring device such as the AMK Ergonometer
the ergonomically correct working height can be determined
precisely and quickly.
92 SINK
IN MAXI HEIGHT
For a sink, the active surface is actually the base of the sink.
This is why it should be planned at a height above the normal
working height. Optimally, the sink bottom should reach
100 to 150 mm below elbow height. This relieves the pressure
in the spinal discs.26 27
PERFECT ERGONOMICS
An ergonomically well-planned kitchen always meets personalised needs. It is the perfect adjustment of n Electric opening support mechanisms and silent closure cushioning on base units provide additional
the kitchen architecture and kitchen organisation to people and their work flows. convenience.
Here are several points which should be taken into consideration: n Wall units with flaps, folding/lifting doors or swivel flap doors make opening and closing easier and
n The ergonomically correct working height for the individual tasks in the kitchen is essential to ensure also provide headroom.
healthy and relaxed kitchen activities. n For angled kitchens, it is preferable to plan corner units for optimum use of storage space.
n In order to take the stress off the spine it is also important to alternate postures. This means, in n Good lighting is indispensable in the kitchen. Whether it be in the niche with a good task light, in
addition to standing workspaces, a seating area for preparatory work should also be incorporated. base and wall units or in the dining area.
n Electrical appliances should be planned at heights comfortable for viewing as well as reaching.
n Plan on including base units with full pull-outs as these offer plenty of clearly arranged storage space
and are easily accessible.
93 PREPARATORY WORK
AT STANDARD HEIGHT
94 HOT PLATE
AT MINI HEIGHT
The standard height of 720 mm used in this planning example The actual activity height for cooking is the upper edge of an
is only intended for the preparatory work area. Depending average height cooking pot/pot sitting on the hot plate.
upon the plinth height, this activity height corresponds to the Optimally the carcase at mini height should fall approx. 250 mm
normal posture of average size persons while performing below elbow height. This facilitates relaxed cooking since stress
preparatory activities in the kitchen. is taken off of shoulders and arms.The U-shaped kitchen shown with attached island for preparatory work and
with a dining area is planned such that only short walking distances are
necessary in normal everyday kitchen use. This is demonstrated particularly
well in the main kitchen run with hot plate, cooking preparation and sink areas.
The raised electrical appliances and the plentiful storage space have also been
sensibly grouped in terms of ergonomics and are thus easily accessible.
Here, we introduce you to ergonomics with numerous sensible functions and
details in a space of merely 16 m2.
95 RAISED ELECTRICAL
APPLIANCES
96 PHARMACIST PULL-OUT
Electrical appliances at user- In addition to ovens, steam Thus, no valuable workspace on The larder unit, with cushioned
friendly heights make loading cookers, dishwashers or fridges, the worktop is wasted, and the opening and closing, glides
and unloading extremely even microwaves and coffee everyday kitchen routine with all quietly in and out of the carcase
convenient, ensure that kitchen machines can be integrated at its activities is guaranteed to be until the movement is gently
activities are easier on the ergonomically correct heights. relaxed. damped. Everything is clearly
back and prevent back problems. arranged and can be accessed
from both sides. The height
of the baskets can be adjusted
and upon request they can be
equipped with side glass panels.28 29
PERFECT ERGONOMICS
97 FRONT PULL-OUTS
Front pull-outs offer the Special pull-out organisers can
convenience of easy accessibility, be found on page 35.
optimum use of storage space
and customisable organisation
possibilities. You are spared the
wearisome stooping that is
necessary with hinged door units.
98 HEADROOM
99 STEPLADDER
100 OPENING SUPPORT
MECHANISM LIBERO
101 OPENING SUPPORT
MECHANISM SENSOMATIC
102 ROLL-UP FRONT DRESSER
UNIT WITH TRIPLE SOCKET
Wall units with flaps, folding/ A step ladder is indispensable With the sensor-operated opening The electro-mechanical opening An electrical connection right
lifting doors or swivel flap doors when you want to reach the support mechanism Libero for the system Sensomatic for drawers where you need it – roll-up front
offer a great overview of con- uppermost compartments of waste separation systems Separato-K, and front pull-outs functions by dresser units have an integrated
tents and are freely accessible, highboards and tall units. Separato-M, Cargo frame and Syncro, lightly touching the front. As triple socket and offer
since no open doors are in the Folded up, the step ladder can the front pull-out can be opened though moved by an invisible convenient storage for mobile
way. The new generation of be stowed away practically in slightly with the simple touch of a hand, the pull-outs open through small kitchen appliances.
cooker hoods also guarantees a bottom full pull-out. foot via a sensor in the plinth. an electro-mechanical mecha- For an overview of plugs that are
optimum headroom, even for The integrated feature light can be nism on the rear of the carcase available, please refer to the
taller people, due to the slanted dimmed or switched off; the light and thus make opening easier. accessories list, chapter 2.
extraction surface of the hood. intensity is adjustable.THE HANDLE-LESS KITCHEN
Modern designer kitchens appear large with straight lines. High quality lacquer RECESSED HANDLES: DESIGN AND MATERIAL
fronts or perfectly crafted matt fronts with seamless, laser-welded edges are best
shown to advantage without handles. Handle-less fronts automatically create the n The handle profile is anodised aluminium and is available in eight colours.
impression of a linear and uniform appearance. It is no wonder, then, n End caps as well as inner and outer corners are made of plastic in
that handle-less kitchens have advanced to the ranks of new designer kitchens. a matching colour, lacquered in a stainless steel finish.
Of course, handle-less kitchens are not really without handles. n Carcase side panels are routered and thus ready for mounting the recessed handles.
The ergonomically shaped recessed handles are perfectly positioned on the n Handle profiles are cut to size and ready for mounting, with straight
carcase to enable comfortable access to doors, drawers and pull-outs. cuts and mitre cuts for inner and outer corners.
n L profiles on base units and highboards can be optionally equipped with
an LED light design for a surcharge.
4 BASE UNIT HEIGHTS 3 WALL UNIT HEIGHTS
360 mm | 432 mm | 720 mm 359 mm | 718 mm | 904 mm
792 mm
4 TALL UNIT HEIGHTS WITH 5 TALL UNIT HEIGHTS WITH
HORIZONTAL RECESSED HANDLE VERTICAL RECESSED HANDLE
1,485 mm | 1,584 mm | 1,997 mm 1,485 mm | 1,584 mm | 1,997 mm
2,069 mm 2,069 mm | 2,183 mm
103 LINE N
THE PRODUCT RANGE
104 RECESSED HANDLES
L AND C PROFILE
105 RECESSED HANDLES
HORIZONTAL
106 RECESSED HANDLES
VERTICAL
n LINE N kitchens are available in n No separate distribution line, n As a rule, L profiles are used n The maximum profile length n Vertical recessed handles are
12 ranges and 46 front designs. but rather fully integrated beneath the worktop on base for horizontal recessed supplied in suitable lengths
n Wide price range from the into the nobilia range; units and beneath the top handles is 4,000 mm. for highboards and tall units.
introductory price level in price clearly arranged in a separate shelf on highboards. n The horizontal handle profile n They are designed and
groups 2 to 4 and up to the chapter. n The recessed handle with as well as the required mount- invoiced individually and are
high end price group 9. n The nobilia kitchen block C profile is used between the ing materials, 90° corners and not included in the price of
n Extensive range of units with pricing method also applies fronts on base and tall units. end caps are included in the the units. They are available
4 base unit heights, 5 tall unit to LINE N kitchens. unit price. as intermediate and end
heights and 3 wall unit heights. profiles. The planning width
is 25 mm.30 31
107 ROUTERED OPENINGS
108 PROFILE END CAPS
109 TALL UNITS – VERTICAL
RECESSED HANDLE
110 TALL UNITS – HORIZONTAL
RECESSED HANDLE
Milled openings are used on The profile end caps are Vertical recessed handles are Recessed handles are especially
connections to walls, front supplied with routered pockets particularly suited to the con- suited for combinations of tall
fillers, end uprights, front end as well as routered openings venient opening of the large-size and base units. This achieves a
uprights and continuous profiles for assembly on site. doors. Intermediate and end of uniform visual line.
for the transition from C to L run recessed handles (25 mm
profiles. planning widt h) are individually
planned and invoiced. An end
111 TRANSITIONS
HORIZONTAL
112 ROUTERED POCKETS 113 RECESSED
HANDLE LIGHTING
When planning with horizontal Routered pockets occur at open The top horizontal recessed handle upright is always required for
recessed handles, the aim is to ends of runs, but also in on base units and highboards the planned end of run and for
achieve a continuous visual line conjunction with a C profile (L profile) is available with adjacent base units.
from base units to directly adjacent at transitions to dishwashers LED light design for surcharge
tall units. A hairline gap is formed in or built-under fridges and (MP-NGML). Lighting can be
the profile at the transition between freezers. Carcase sides are selected individually for connected
the L profile of the base unit and the routered by 8 mm. planning units. In this way, a
C profile of the tall unit. If this is single run out of multiple kitchen
considered unsightly, an upright runs can be planned with an End of run Intermediate
panel should be planned at the end LED light design. recessed handle recessed handle
of the base unit.DISTINCTIVE PLANNING FEATURES
114 ALL UNITS ARE PLANNED
15 MM FROM THE WALL
115 PLANNED END OF RUN
WITH END UPRIGHTS
n As a rule, various built-in End uprights are available in all the last carcase side is routered
appliances must protrude by décor groups in a depth of through and the recessed handle
15 mm when planned with 597 mm for a front line that is ends at the upright.
600 mm deep worktops or flush with uprights.
top shelves. If the end of run is planned with
n Spacers for mounting are a front upright or end upright,
included in the scope of delivery.
15 MM
580 MM
595 MM
600 MM
116 PLANNED END OF RUN
WITH FRONT UPRIGHTS
117 PLANNED END OF RUN
WITH COVER PROFILE NADP
118 CORNER SOLUTIONS
WITH FILLERS
n Example: With front-finish upright panels, For a price-oriented solution Angle fillers are mitre cut at
580 mm = Base unit footprint it is possible to have the handle without uprights, a cover profile the factory. The planning
+15 mm Distance to wall recess run straight through the NADP is available in a stainless dimensions must be specified
= 595 mm Planning dimensions panel. Front-finish uprights are steel finish. This clads the planning with the order. Adjustments on
n Overhang of worktop, at the front available finished on the rear distance of 15 mm to the wall. The site are not possible.
3 mm, at the side 1.5 mm as well as the front, for designs visible carcase side comes standard A shortened carcase blank panel
with islands. Front-finish upright with a pocket for affixing to adjacent units is
panels are available in all Line N routered opening. included in the scope of delivery.
front finishes.32 33
119 HANDLE PROFILE
FOR WALL UNITS
120 PLANNING WITH DISHWASHERS
121 PLANNING WITH
INDUCTION HOT PLATE
n LINE N wall units are n The handle profile is visually n Only fully integrated dishwashers can be planned. L profiles beneath induction
available in heights 359 mm, identical to the MP-WOG from n Designs placing dishwashers at the end of a run require an upright panel as hot plates can be milled in three
718 mm and 904 mm. the standard range. planned end of run. lengths: 550, 750, 850 mm.
n The wall units have a profile Handle-less wall units can n For designs with continuous recessed handle, a special front upright is available The milling depth is 5 mm. The
strip attached to the wall unit thus be combined with the in addition to the end upright. For additional planning information please refer necessary width is determined
bottom shelf. LINE N range. to the Sales Manual, chapter 8 LINE N. based upon the ordered hot plate.
122 INTEGRATED LIGHTING
FOR WALL UNITS
123 DISHWASHERS WITH
CONTINUOUS BAR HANDLE
124 DISHWASHERS WITHOUT
CONTINUOUS BAR HANDLE
For a surcharge, the integrated Dishwasher designs with continuous Dishwasher designs without the recessed handle is thus not
lighting designs NOVA PLUS bar handle require a minimum plinth continuous bar handle require a possible and must be interrupted
and MANILA PLUS can also height of 150 mm, and LINE N minimum plinth height of in the area of the appliance.
be integrated into the top or designs in XL height a minimum 100 mm, and LINE N designs The recessed handles of
bottom shelf of the wall unit. plinth height of 70 mm. The in XL height a minimum plinth adjacent base and tall units will
For a surcharge, a profile strip appliance is mounted beneath the height of 70 mm. be equipped with end caps.
with LED lighting or a lighted recessed handle. Thus, the recess The appliance is mounted directly
bottom shelf are available. is 50 mm smaller. This enables a beneath the worktop. The recess
continuous LED light design for the can be used in its entirety.
recessed handle. A continuous LED light design inDRAWER ORGANISERS
125 CUTLERY TRAYS
A large selection of cutlery
trays made of plastic or wood
provides the very best drawer
organisation.
Fits all drawer widths from
300 mm to 1,200 mm
with 561 mm side depth.
Several cutlery trays are available
for a side depth of 461 mm.34 35
PULL-OUT ORGANISERS
Versatile organiser systems for drawers and pull-outs offer
structured storage for everything you want to accommodate in
126 FLOCKED LINER
MAT EMB
the kitchen. From cutlery, cling film and spices to baking trays
and even entire beverage crates. Variable designs, easy-care Fits elements with a
plastic, sophisticated solid wood or a combination of both. side depth of 561 mm.
With fixed or variable division possibilities – the perfect solution Available in all
for every need! drawer widths
from 300 mm to
1,200 mm.
127 FULL PULL-OUT/
UNIVERSAL ORGANISER
n Made of beech, oak, black ash and n Unit widths: 600, 800, 900,
anthracite-coloured plastic or with 1,000 and 1,200 mm
aluminium profiles n Full pull-out load capacity
n Enables customised divisions with
flexible positioning of solid wood Width Excerpt depth in mm
partitions, partitions or dividers in mm 270 400 500
made of aluminium or plastic. >/=600 30 kg 30 kg 30 kg
800-900 30 kg 40 kg 45 kg
1,000 30 kg 40 kg 55 kg
1,200 30 kg 40 kg 65 kgTHIS CALLS FOR ORDER!
128 FULL PULL-OUT 150 MM
TOWEL RAIL
129 FULL PULL-OUT 150 MM
2 METAL BASKETS
130 FULL PULL-OUT 150 MM
BAKING TRAY HOLDER
Only 150 mm wide, but very practical: In a narrow space of just 150 mm, Finally, a clever solution
Base unit pull-outs with towel rails. next to the cooker or hot plate, for storing those countless
Alternatively, the nobilia range also for instance, everything you need baking trays and grids.
offers towel rails behind hinged is at hand. Perfect for storing oil
doors or open shelf base units with and vinegar or spices.
towel rails. n Load capacity per shelf 6 kg36 37
BASE UNIT ORGANISATION
We can offer our customers practical solutions
specifically designed for their individual needs,
especially in the area of pull-out organisation.
Sabine Trossehl,
Interior designer in the Creative Studio
131 FULL PULL-OUT 300 MM
INTERNAL PULL-OUT
132 FULL PULL-OUT 300 MM
RECYCLABLES COLLECTOR
133 LARDER PULL-OUT JUNIOR
300 MM UBOXX
134 LARDER PULL-OUT JUNIOR
300 MM
An interesting solution that won‘t Pull-out unit with recyclables With its width of 300 mm, the Base unit with larder pull-out
interrupt the lines of your kitchen. collector and lid for 40 litre larder pull-out Junior requires little Junior, 2 hanging baskets with
It looks like a door, but provides recycling sack. Due to the space and offers a high degree of wooden bottoms and metal
ingenious and ergonomic organisation narrow design of only 300 mm, convenience with access to stored railing, adjustable.
possibilities. the pull-out unit can be items from both sides. Shown here
n Load capacity per shelf 30 kg integrated practically anywhere. is the variant with the organiser
system UBOXX with an adjustable
division for knives and cutting
board holder.INDIVIDUALISED COMFORT
For kitchens with diverse floor plans, from the small to the very large,
the nobilia kitchen system helps you find the right answers for effectively
135 SPACEFLEXX
planning your kitchen space.
For instance, optimising storage space with the plinth drawer and additional Flexible organising system for
internal drawers, the concealed pull-out table in the base unit or the shapely storage containers, fits widths
Z solution for end of run units when space starts to get tight in the kitchen. upwards of 600 mm, Anthracite/
Chrome. The nesttex® material
adapts to the stored items and
prevents storage containers of all
different sizes from tipping over.
136 OPEN FRIDGES WITHOUT
HANDLES
137 END OF RUN UNIT
Z SHAPE
138 APPLIANCES
ALL-PURPOSE SLICER
139 FOLD-OUT STEPLADDER
140 OPEN SPACE
UNIVERSAL ORGANISER UOOS
The electromechanical opening For a gentle transition into the The accessories range offers an The aluminium fold-out step- Flexibility down to the smallest
system EASYS enables easy room’s free space or for better electric all-purpose slicer for ladder can easily be stored in detail: Open Space offers high
opening of fridges with slight access to adjacent doors, drawer widths starting at 500 mm. a drawer, a pull-out or hung quality elements for individualised
pressure, even in handleless the Z-shaped end of run unit The all-purpose slicer can simply on an integrated universal divisions. The wooden trays
kitchens. The door opens wide is ideal. Not to mention that be folded away into the drawer for holder. For installation in base made of solid oak are held in
enough, so that it can be opened the perfect Z shape also space-saving storage. and tall units. place on the flocked liner mat by
the rest of the way by hand. If creates an optimum seamless steel dividers.
the door isn‘t opened, it simply appearance. Height 51 mm, fits drawer depth
closes again on its own. of 500 mm.38 39
ABSOLUTELY SUITED TO DAILY USE
141 ORGANISING SYSTEM
PANTRY BOX
The pantry box offers practical
storage and fresh-keeping of
fruit, vegetables, baked goods
and other foodstuffs. The basis
is a rigid plastic box that can
be easily wiped clean.
142 PLINTH DRAWER
143 INTERNAL DRAWERS
144 PULL-OUT TABLE
A plastic bottom is inserted The remarkably practical plinth Additional internal drawers can Many units from the wide range The base unit with pull-out table
which has drain and ventilation drawer maximises storage space be planned for front pull-out and of products are already provides a space-saving solution
slots to ensure ideal storage by utilising the “dead space” hinged door units. The internal equipped with internal pull-outs ideal for small kitchens.
conditions. A tempered glass beneath the plinth. drawer behind front pull-outs as standard. n Available widths:
sliding lid guarantees that It is available in the widths opens automatically using a They can also be retrofitted at 500, 600 and 900 mm
foodstuffs are hygienically 400, 450, 500, 600, 800, latch for simultaneous opening. a later date. n Table heights (with plinth
covered while remaining visible. 900, 1000 mm and 1,200 mm. height 150 mm): 685 mm,
For installation in 600 mm wide 825 mm
pull-outs. n Max. load capacity: 30 kg
n Tabletop always in whiteTHERE IS SPACE IN EVEN THE SMALLEST CORNER
With nobilia corner units you have absolute planning security thanks
to alternative dimensions, customised comfort options and super storage
space access.
n Planning dimensions for corners without storage space:
650 x 650 mm (angle filler for “dead corner”)
n Planning dimensions for corner units: 800 x 800 mm, 900 x 900 mm
n Planning dimensions for diagonal corner units: 800 x 800 mm, 900 x 900 mm
n Planning dimensions for half corner base units:
650 (630) - 750 mm x 1,050 (1,030) - 1,150 mm
650 (630) - 750 mm x 1,100 (1,080) - 1,200 mm
650 (630) - 750 mm x 1,150 (1,130) - 1,250 mm
650 (630) - 750 mm x 1,250 (1,230) - 1,350 mm
Planning dimension changes from minus 20 mm to plus 100 mm are possible
at the factory.
145 ANGLE FILLER UPE*
“UNUSED CORNERS”
146 CORNER BASE UNIT U(D)TE*
WITH SHELVES
147 CORNER WALL UNIT WE*
WITH SHELVES
148 CAROUSEL UNITS
UE(D)K*/UE(D)T*, 360°
n Affordable n Price-oriented storage n Easy access due n Mid-priced segment
n The corner solution with solution to 165° hinge n Intermediate level operating
an angle filler offers n Easy access due n Maximum load comfort
no storage space. to 165° hinge capacity 75 kg n Clear overview thanks to height-
n Can be disassembled on site n Load capacity per shelf 16 kg adjustable rotary shelves
n Load capacity per shelf n Optimum design n Can be disassembled on site
up to 50 kg/m2 continuity with the n 3D Front adjustment
corner base unit n Adjustable closing force
n Load capacity per shelf: 25 kgYou can also read
