RANGER FX4 MAX - WORK HARD, PLAY ROUGH Introducing the Ranger FX4 MAX - Ford New Zealand
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
RANGER FX4 MA X WORK HARD, PLAY ROUGH Introducing the Ranger FX4 MAX

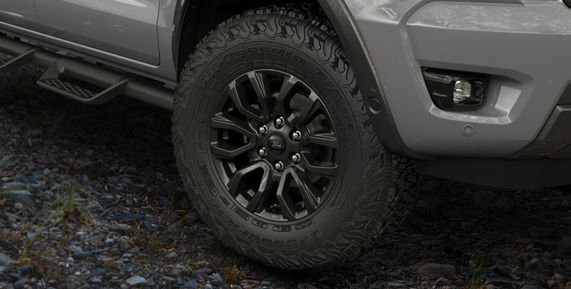

Advanced FOX™ Shocks BFGoodrich® All-Terrain Tyres with 17” Alloy Wheels
The off-road tuned front and rear suspension comes with increased travel These tyres boast a precise tread pattern and tougher side walls than
and overall ride height, this suspension has been crafted to soak up standard factory tyres. Combine that with the newly designed 17” Bolder
punishing impacts and smooth out bumps and ruts with ease, while still Grey alloy wheels, featuring a +42mm offset for 26mm increase in wheel
providing comfortable on-road driving. track width for greater stability in unforgiving terrain.

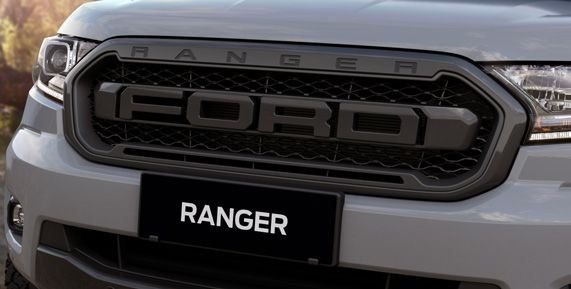

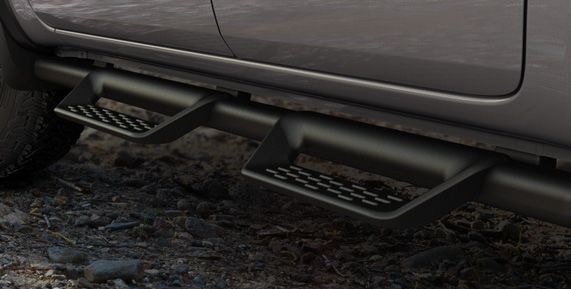

Off-Road Side-Steps FORD Grille and Sports Bar
Featuring a non-slip finish, providing off-road styling and functionality The F-O-R-D grille and long-legged tubular sports bar create an athletic
without sacrificing FX4 MAX’s 256mm ground clearance. profile that demands a second look. The sports bar also features a high-level
lamp so you can access the load box whenever and wherever you go.
Upfitter Auxiliary Switch Pack FX4 MAX Embroidered Seats
Ranger FX4 Max’s upgraded 250A alternator is matched to an upfitter Going off grid has never been this comfortable with Ranger FX4 MAX’s
auxiliary switch pack allowing you to control your aftermarket accessories unique embroidered leather accented seats with Miko suede inserts,
from the comfort of the driver’s seat. contrast stitching and carbon-look accents.
Available in:
Arctic White Conquer Grey Lightning Blue
Meteor Grey Shadow Black
2021.25MY Ranger FX4 MAX Specifications Visit ford.co.nz for full details.
Body Type Exterior (continued)
Double Cab Pick-Up S 17" Alloy Wheels - Bolder Grey S
Drivetrains Tyres - 33' BF Goodrich All-Terrain T/A ® KO2 (265/70 R17) S
4x4 S Wheel Arch Mouldings S
Bi-Turbo Diesel Engine Load Box Elements
Engine Type Inline 4 Cylinder Bedliner with 12V Socket S
Engine Size (cm3) 1996 Inner Tie Downs S
Maximum Power 157kW @ 3750rpm Load Box Illumination S
Maximum Torque 500Nm @ 1750-2000rpm Tailgate Lock - Manual S
Fuel Management System Turbocharged direct common rail injection Tailgate with Lift Assistance S
Combined Fuel Economy (L/100km)1. 8.0 Seating
CO2 Emissions (g/km) 1. 210 6-way Manual Driver Seat Adjustment S
Fuel Tank Capacity (L) 80 FX4 MAX Embroidered Seats with Leather Accents & Miko Suede Inserts S
Fuel Type Diesel Comfort and Convenience
Transmission 10 Speed Auto 230V Inverter - Rear of Centre Console S
Suspension Acoustic Windshield S
2.0-inch monotube FOX shock absorbers with coil springs. Featuring new lock-stop Auxillary 12V Power Outlet - Lower Dashboard & Rear of Centre Console S
Front Suspension
profile steering knuckles, new front jounce bumpers and a 29mm front stabiliser bar
Centre Console - Single Lid with 2 Cup Holders S
Rear Suspension 2.0-inch monotube FOX shock absorbers with remote reservoir and leaf springs
Child Seat Upper Anchorage Points (x 2) & ISOFIX Anchorage Points (x 2) S
Pick-up Box Dimensions (mm)
Climate Control - Dual Zone Automatic S
Height - at centreline of axle 542
Floor Coverings - Carpet S
Height - floor height to ground 871
Floor Mats - All Weather S
Length - at floor 1549
Headlamps - Auto On/Off Function S
Length - top of box 1485
Leather Wrapped Steering Wheel & Gear Knob S
Width - between wheelhouses 1139
Power Rear Windows & Front Windows (Auto Driver) S
Width - pick-up box 1560
Rain Sensing Windscreen Wipers S
Width - rear opening 1330
Rear Window Defrost S
Exterior Dimensions (mm)
Rear View Mirror - Electrochromatic S
Length - including rear bumper 5446
Upfitter Auxiliary Switch Pack S
Width - exterior mirors extended 2163
WindScreen Mounted USB Port S
Width - exterior mirrors folded 1977
Audio And Communication
Width - excluding mirrors 1867
FordPass Connect - Embedded Modem 5. S
Height 1852
8" Colour Touch Screen S
Overhang - Front 928
6 Speakers (2 Tweeters, 4 Woofers) S
Overhang - Rear 1226
AM/FM Stereo Radio, DAB+ Digital Radio S
Track - Front Rear 1586
Apple CarPlay & Android Auto 6. S
Wheelbase 3220
Bluetooth® with Phone/Audio Streaming 7. S
Ground Clearance (unladen, mm) 256
Satellite Navigation S
Wading Depth (mm) 800
SYNC®3 with Voice-Activated Controls 8. S
Approach Angle (unladen, degrees) 31
USB Ports x 2 S
Departure Angle (unladen, degrees) 23
Safety, Security and Driver Assistance
Ramp Breakover Angle (degrees) 25
3 Point Lap Sash Seat Belt - All Positions S
Turning Circle - Kerb to Kerb (m) 12.7
Adaptive Cruise Control S
Interior Dimensions(mm)
Active Park Assist S
2nd Row Headroom 986
Adjustable Speed Limiter S
2nd Row Legroom 902
Airbags - Driver & Front Passenger, Front Seat Side, Side Curtain (Full Length) S
2nd Row Shoulder Room 1430
Alarm with Perimeter, Interior Motion & Vehicle Inclination Sensors S
Front Headroom 1022
Anti-Lock Braking System (ABS)9. S
Front Legroom 1058
Auto High Beam 9. S
Front Shoulder Room 1440
Beltminder™ - All Positions S
Vehicle Masses(kg)
Driver Impairment Monitor 9. S
Kerb Weight - Total 2. 2,212
Dynamic Stability Control (DSC) 9. S
Payload 3.
988
Emergency Brake Assist & Brake Light S
Gross Vehicle Mass 3200
Hill Descent Control 9. S
Gross Combined Mass 6000
Hill Launch Assist 9. S
Maximum Braked Towing Capacity 4. 3500
Lane Keeping Aid 9. S
Exterior
Load Adaptive Control 9. S
Centre High Mounted Stop Light S
MyKey® S
Exterior Door / Tailgate Handles - Bolder Grey S
Parking Sensors - Front & Rear S
Exterior Lighting - LED Daytime Running Lamps, Front Fog Lamps (Halogen) &
S Autonomous Emergency Braking (AEB) with Pedestrian Detection 9. S
High Performance Bi-LED Headlamps
Rear Differential - eLocking S
Exterior Mirrors - Bolder Grey, Power Adjustable, Power Folding &
S
Heated with Turn Indicator Rear View Camera S
Front Bumper - Body Colour S Roll Over Mitigation 9. S
F-O-R-D Grille S Smart Keyless Entry with Push Button Start - 2 Fobs Provided S
Mud Flaps - Front & Rear S Traction Control System 9. S
Privacy Glass - Rear Doors & Window S Traffic Sign Recognition 9. S
Rear Bumper - Bolder Grey S Trailer Sway Control 9.
S
Side Steps - Off-Road Hoop Design with Non-Slip Finish S Tyre Pressure Monitoring System S
Rear Sports Bar - Long-Legged Black Tubular S
S = Standard
1. Fuel consumption and emissions as per ADR 81/02 (combined cycle) and to be used for vehicle comparison purposes only. It is unlikely that these fuel consumption and emissions figures will be achieved in real world driving conditions. Actual fuel consumption and emissions will depend on many
factors including the driver’s habits, prevailing conditions and the vehicle’s equipment, condition and use. 2. Kerb Weight includes the vehicle with a full tank of fuel, without occupants, luggage or cargo and with all standard equipment. Additional weight of optional features must be taken into account
when calculating kerb weight. Vehicle dimensions/weights are approximate and subject to individual variances. Vehicles should be weighed before adding additional load, accessories or towing a trailer to ensure the maximum Gross Vehicle Mass (GVM) and Gross Combined Mass (GCM) are not exceeded.
3. Payload is defined as the Gross Vehicle Mass minus the kerb mass. Payload is the maximum combined value of occupants, cargo, added options, added structures and tow ball download (when towing). GVM must not be exceeded. 4. Maximum braked towing capacity when fitted with a genuine
Ford Tow Pack. Further weight restrictions apply, please consult your authorised Ford Dealer and/or refer to the Owner’s Manual for guidance. 5. Use of FordPass is subject to the FordPass Terms and Privacy Policy and the Connected Vehicle Terms and Privacy Policy available on ford.co.nz/fordpass and
requires a compatible mobile device, internet access and software (including software updates from time to time). You are responsible for internet access, mobile network data and voice call services required for your use of the FordPass App on your mobile device, including associated fees. The FordPass
Connect Modem and FordPass App can only work when connected to the telecommunications network. Ford cannot guarantee that FordPass will be in fully operating condition at all times and the FordPass App may be unavailable or particular FordPass services interrupted. Ford is not responsible for
any limitations or restrictions of the telecommunications network or of your mobile device. 6. Apple CarPlay / Android Auto requires phone with compatible version of Apple iOS / Android™ (as applicable), active data service, and connection cable (sold separately). SYNC® does not control Apple CarPlay
/ Android Auto while in use. Apple / Google and other third parties are responsible for their respective functionality. Message and data rates may apply. Apple CarPlay, Siri Eyes Free, iPod and iPhone are trademarks of Apple Inc. registered in the US and other countries. Android Auto and Google Maps are
trademarks of Google Inc. Ford Applink® is available on selected SYNC® models and is compatible with select smartphone platforms. 7. Bluetooth® is a registered trademark of Bluetooth SIG, Inc. and is under license. Some phones not compatible. 8. SYNC®3 features may not be compatible with all
phones. For compatibility, see ford.co.nz/sync. 9. Driver-assist features are supplemental and do not replace the driver’s attention, judgment and need to control the vehicle. May not operate in some driving and road conditions (including at certain speeds) or adverse weather.
