ROTO DOOR THE COMPLETE RANGE OF COMPONENTS FOR PERMANENTLY TIGHT SHUTTING DOORS - WINDOW AND DOOR TECHNOLOGY CATALOGUE FOR DOORSAFE DOORLINE ...
Window and door technology

Roto Door
The complete range of components
for permanently tight shutting doors

Catalogue for
DoorSafe       DoorLine   DoorPlus

           R
ROTO DOOR THE COMPLETE RANGE OF COMPONENTS FOR PERMANENTLY TIGHT SHUTTING DOORS - WINDOW AND DOOR TECHNOLOGY CATALOGUE FOR DOORSAFE DOORLINE ...
Imprint
Copyright: July 2018
Roto Frank AG
Wilhelm-Frank-Platz 1
70771 Leinfelden-Echterdingen
Germany
Phone: +49 711 7598 0
Fax:    +49 711 7598 253
info@roto-frank.com
www.roto-frank.com
ROTO DOOR THE COMPLETE RANGE OF COMPONENTS FOR PERMANENTLY TIGHT SHUTTING DOORS - WINDOW AND DOOR TECHNOLOGY CATALOGUE FOR DOORSAFE DOORLINE ...
Content

General              Product liability guidelines.......................................................................... 2

                     General operation instructions..................................................................... 4

                     Abbreviations used...................................................................................... 7

DoorSafe             Eletro-mechanical lock E610 Eneo CC......................................................... 8

                     Cilinder operated C500 / C600................................................................... 12

                     Single doors............................................................................................... 13

                     Double doors............................................................................................. 14

                     Shootbold and striker................................................................................ 15

                     P600 operating instructions...................................................................... 16

                     Panic lock.................................................................................................. 17

                     Handle set ................................................................................................ 19

                     Accessories............................................................................................... 20

                     Electical openers........................................................................................ 21

DoorLine             ATB 120 hinge........................................................................................... 22

                     ATB 80 hinge............................................................................................. 23

                     Jigs............................................................................................................ 24

                     Installation and fixing................................................................................ 25

DoorPlus             Door threshold system.............................................................................. 28

Subject to change.                              Roto Door                                          CWE036_EN_v5       .   July 2018   .   1
ROTO DOOR THE COMPLETE RANGE OF COMPONENTS FOR PERMANENTLY TIGHT SHUTTING DOORS - WINDOW AND DOOR TECHNOLOGY CATALOGUE FOR DOORSAFE DOORLINE ...
DoorSafe
End-user information

Product liability guidelines

    Product liability/maintenance                       To ensure stipulated application, also the              If additional loads are exerted on the
                                                        correct combination of permissible hardware             door leaf.
    According to the defined manufacturer’s             and locking appliances is valid (i.e. keys &            If while closing the doors someone
    liability described in paragraph 4 of the           cylinders), as well as accessories (i.e. striker        reaches­between door leaf and frame.
    “product liability law”, the following informa-     plate) and their installation according to DIN-         (Risk of injury!)
    tion regarding locking hardware systems for         standards and maintenance requirements.
    doors made of timber, PVC or aluminium              Doors for damp rooms and for use in
    should be observed.                                 environments­with aggressive, corrosive air-         3. Product performance
    Non-compliance exempts the manufacturer             content require special hardware. Mandatory
    of his liability.                                   legal regulations must be adhered.                   If the product performances are not specifi-
                                                        The locking systems are for not approved for         cally stated in our catalogues and brochures,
                                                        the use on fire/smoke protection doors.              the requirements of the individual locking
    1. Product information and stipulated                                                                   system must be individually agreed upon
        application                                                                                          with us.
                                                        2. Misuse                                            The adequacy of the locking systems is de-
    Locking hardware systems as covered by                                                                   pendent among other things on operational
    this definition is hardware for vertically built-   Misuse – therefore not the specified product         frequency, operational manner, environ­
    in doors made of timber, PVC or aluminium           utilisation – of locking systems occurs in           mental influences and care.
    and their corresponding material combina-           particular:                                          The locking cylinder and key are to be
    tions, which mainly has the task of shutting             If because of the use of a non-Roto or         replaced­as soon as malfunctions occur in
    and locking doors.                                        non-specified object in the locking system     particular while inserting or pulling out the
    What is meant by closing is that the door                 or striker plate prevents perfect operation.   key, in spite of proper maintenance.
    is held in such a manner that it cannot be             If obstacles are inserted in the opening­        Combination of the hardware: The manu­
    opened by means of draught or pressure,                 vicinity­, thus preventing its proper            facturer’s regulations that deal with the
    however can be opened easily for example                specified­use.                                   combination of hardware are obligatory – (for
    with a lever handle. The latch is used for             If a burglary attempt is carried out on the      example: the order of lever handles, cylin-
    closing.                                                locking system or striker plate, which re-       ders or additional hardware components).
    What is meant by locking is that the closed             sults in a modification of the construction,
    door is secured by means of a non spring-               or affects its function.
    loaded rigid bar and/or via two or more                If in order to keep the door open, the           4. Product maintenance
    additional­locking points: i.e. cams or bolts.          protruding shootbolts and/or the locking
    All locking devices engage into correspond-             devices have been incorrectly used.              Security relevant hardware components are
    ing recesses in the door frame, and/or striker         If the locking devices have been mounted         to be regularly examined for stability and
    plates, lock casings etc.                               incorrectly or have been retro-treated, for      wear and tear. Depending on the require-
    The locking function is carried out by the              example painted over.                            ments, the fixing screws are to be tightened
    deadbolt and/or the additional locking                 If manual force exceeding the normal             and/or parts to be replaced.
    devices­(for example cams or bolts).                    force has been applied on the lever              In addition to this – depending on demand
    The deadbolt and the additional locking                 handle.                                          also more often – the following maintenance
    devices are moved by means of turning the              If manual force exceeding the normal force       work is to be carried out annually:
    profile cylinder key and/or by activating of            has been applied to the locking system via           All movable parts and all locking points of
    the lever handle in order to lock and unlock.           the profile cylinder key.                            the locking system are to be greased and
    The locking systems are designed for profile           If non corresponding locking appliances,             tested.
    cylinders resp. round cylinders. Refer to the           for example with differing dimensions,               Only cleaning and maintenance agents
    technical documentation of these locking                have been used.                                      that do not damage the corrosion protec-
    systems for the necessary dimensions and               If an enlargement or reduction of the re-            tion of the hardware components are to
    requirements for these cylinders.                       quired door gap arises while adjusting the           be used.
    The locking systems are not suitable for                butt hinges or door.                             Work on the locking systems and corres­
    deformations and modifications of the final            If a non specified 2-leafed door has been        ponding hardware components, as well as
    sealing-closure as a result of differences in           opened via the passive leaf.                     the replacement of parts, are to be carried
    temperature or building modifications.                 If a simultaneous lever-handle and cylinder      out by a specialist company.
    The respective entire hardware set (locking             operation is carried out.
    system) may only consist of Roto original              If tools or lever-effective aids have been
    hardware components. Damage can arise                   used to operate the locking system.
    from the use of non-Roto hardware compo-
    nents, which excludes any liability on our
    part.

2   .   July 2018   .   CWE036_EN_v5                                       Roto Door                                                      Subject to change.
ROTO DOOR THE COMPLETE RANGE OF COMPONENTS FOR PERMANENTLY TIGHT SHUTTING DOORS - WINDOW AND DOOR TECHNOLOGY CATALOGUE FOR DOORSAFE DOORLINE ...
DoorSafe
End-user information

 5. O
     bligation to issue information              In order to ensure the perfect function of          tions as well as operating manuals from
    and instructions                              locking systems for doors                           the manufacturer, and to pass these on to
                                                      Planning engineers are obliged to request      the builders and end users.
 The following documentation is available             and comply with the manufacturer’s
 to planning engineers, specialised dealers,          product­ information.
 fabricators, builders and users in conjunction       Specialised dealers are obliged to observe   6. Application for related hardware
 with our obligation to issue information and         and request product information from
 instructions, as well as for maintenance work        the manufacturer and to pass this on to       The possible variations within the individual
 according to the “product liability code”:           the fabricators, in particular installation   locking systems are to be treated accord-
     Planning documentation                          instructions, factory drawings, service &     ing to the corresponding valid features of
     Catalogues                                      maintenance instructions as well as oper-     product performance, product maintenance,
     Installation instructions                       ating manuals.                                information and instruction obligations,
     Factory drawings                                Fabricators are obliged to observe the       product information, specified application
     Maintenance and care instructions               product information and in particular to      and misuse.
     Operating instructions                          request service & maintenance instruc-

Subject to change.                                                  Roto Door                                     CWE036_EN_v5     .   July 2018   .   3
ROTO DOOR THE COMPLETE RANGE OF COMPONENTS FOR PERMANENTLY TIGHT SHUTTING DOORS - WINDOW AND DOOR TECHNOLOGY CATALOGUE FOR DOORSAFE DOORLINE ...
DoorSafe
End-user information

General operation instructions

Do not protrude the locking points on an open door
and press these against the frame.

                                                                 Do not paint over the lock respectively the locking
                                                                 components (deadbolt, latch etc.).

Various impurities on the top area of the door leaf
(i.e. plaster residue) may not be wiped in the lock
direction­(or floating mullion) – impurities can reach
in behind the locks’ faceplate and block the locking
points’ mechanisms.
                                                                 Lubricate the locking points (latch, deadbolt &
                                                                 additional­locking points) at least once annually.

4   .   July 2018   .   CWE036_EN_v5                     Roto Door                                        Subject to change.
DoorSafe
End-user information

General operation instructions

During transport and handling, the door leaf must
be braced to the frame with suitable packers (sash-
support components, wedges etc.). Remove the
cylinder­fixing (transportation lock) just before
installing­the cylinder!
                                                                  The door leaf may not be drilled through in the lock
                                                                  area if the lock is installed (for example for protective
                                                                  hardware).

Install cylinders stress-free respectively aligned at a
90 degree angle to the door leaf.

                                                                  Mount long-plate handles and rosettes stress-free.

Subject to change.                                        Roto Door                             CWE036_EN_v5  .   July 2018   .   5
DoorSafe
End-user information

General operation instructions

Screw in screws straight so that no tension can occur.
(With Roto Sil Nano surface finish do not use stain-
less-steel screws. With stainless-steel components
use stainless-steel screws.)

                                                                 Produce the door with the designated axis dimension
                                                                 so that perfect operation of the locking points can
                                                                 always­be warranted.

The door or the door leaf should not be carried by the
lever handle.

                                                                 When the original cylinder is not installed, lock or
                                                                 unlock­the door only with the Roto installation key.

6   .   July 2018   .   CWE036_EN_v5                     Roto Door                                       Subject to change.
DoorSafe
General information

Abbreviations used

                                       General abbreviations
                                             C500 / C600 = Cylinder-operated multi-point
                                                            locking system
                                                   H600 = Lever-handle operated multi-
                                                            point locking system
                                             E500 / E600 = Electromechanical multi-point
                                                            locking system
                                                    P600 = Emergency exit locking
                                                            system­
                                                    P650 = Panic door locking system

                                      16 / 2 (15.8 / 2.25)     Faceplate width/thickness
                                                             =
                                      16 / 3, 20 / 3, 24 / 3   in mm
                                           U6 / 24, U7 / 24 = F
                                                               aceplate height/width of the
                                                              U-profile in mm

                                                     SRH = Sash rebate height

                                                      V# = Striker location pattern
               V#

                                       Abbreviations in the tables

                      B                                B = Backset
                                                       D = Distance
                                                      HH = Handle height
                          D

                                     		 = Spindle-receiver (hole)
                                                      SF = Surface finish
                                                      SL = Roto Sil Nano
                                                     STS = Stainless steel
                                                      BL = Black, RAL 9005
                                                       W = White, RAL 9016
                                                      BR = Brown, RAL 8014
                                                      PQ = Packaging quantity

                                       Abbreviations in the illustrations:
                          HH

                                                       B = Backset
                                                       D = Distance
                                                      HH = Handle height
                                                     RW = Routing width
                                                       M =	MVS (magnetic locking and
                                                            opening­monitoring system) –
                                                            upon request
                                                    SHC = Spindle-hole centre
                                                    CGC = Centre of gear casing
                                                          = croppable

Subject to change.             Roto Door                             CWE036_EN_v5 .   July 2018   .   7
DoorSafe
Electromechanical ‘E’

E610 – Eneo CC
2 combination locks (2C)
V02 / 03, SRH 1900 mm – 2200 mm
E610 – Faceplate 16/3
B        D               HH    SF   Mat. no.   PQ
40       92    8        1020   SL   774103      1

                                                                                                300

                                                                                                                                     300
                                                                                    450

                                                                                                                     450
                                                                                          43                                    43

                                                                                                150

                                                                                                                                     150
                                                                       1202

                                                                                                        1202
                                                                                                                                FB 16
                                                                              752

                                                                                                               752
                                                                2200

                                                                                               2200

                                                                                                                                D

                                                                                                                                              MN
                                                                                                                           MS

                                                                                                                                        E92

                                                                                                                                    FB 16
                                                                                    438

                                                                                                                     438

                                                                                          60                                    60
                                                                                                151.5

                                                                                                                                     151.5
                                                                              738

                                                                                                            738
                                                                                                         220

                                                                                                                                             220
                                                                       998

                                                                                                        998

                                                                                                                                                   G 1020

                                                                                                                                 FB 16
                                                                                    260

                                                                                                                     260

8   .   July 2018   .   CWE036_EN_v5                Roto Door                                                                   Subject to change.
DoorSafe
Electromechanical ‘E’

Eneo – Access systems

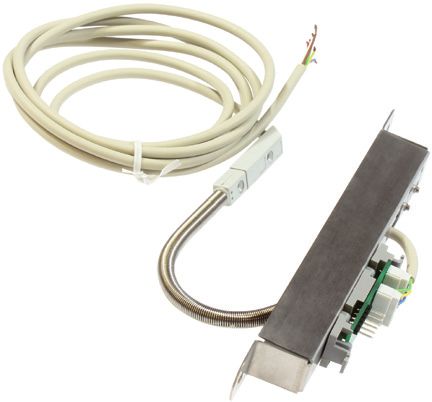

                                             Finger scan
                               44,6
                                             Description                                            PQ       Material no.

                                             Finger scan, stainless-steel front panel,
                                             three attachment variants
                                                                                                        1    633288
                                             (adhesive, front and side attachment),
                                             1700 mm cable length
                        75,4
                        41,0

                               26,0

                                             Phone & code
                                             Description                                            PQ       Material no.

                                             Phone & Code keypad,
                                                                                                        1    781836
                                             Black glass cover
                                             Phone & Code keypad,
                                                                                                        1    781837
                                             Silver plastic cover

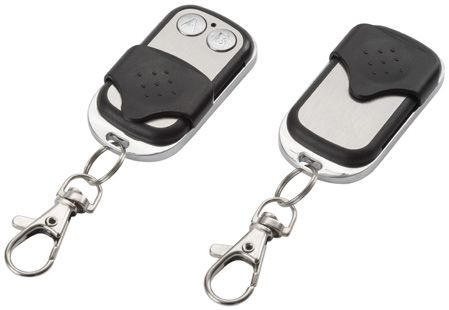

                                             Hand-held radio transmitter / radio receiver
                                             Description                                            PQ       Material no.

                                             Hand-held radio transmitter / radio receiver               1    769388

                                             Eneo universal magnet (Eneo C/CC)
                                             Description                                            PQ       Material no.

                                             Eneo universal magnet                                      1    738182

Subject to change.                    Roto Door                                                     .
                                                                                         CWE036_EN_v5       July 2018   .   9
DoorSafe
Electromechanical ‘E’

Eneo – Accessories

                                                                                Cable – type E
                                                                                Description                                             PQ   Material no.

                                                                                Pre-assembled cable with plugs for connecting the
                                                                                cable junction with the Eneo multi-point locking        1    633291
                                                                                system­; 3 m length

                                                                                Cable – type EZ
                                                                                Description                                             PQ   Material no.

                                                                                Pre-assembled cable with plugs for connecting cable
                                                                                junction, Eneo multi-point locking system, and access   1    633292
                                                                                control system; 0.3 m and 3 m length

                                                                                Detachable miniature cable junction; 6-pin

                                            25                20                Description                                             PQ   Material no.

                                        1                                       Concealed detachable cable junction,
                                                                                180° opening angle, made of stainless steel,
                                                       67,5

                                                                                                                                        1    633293
                                                                                detachable connector on the frame side;
                                                                                on the frame side 4 m cable length
                                                 180

                                                                   210

10   .   July 2018   .   CWE036_EN_v5                                    Roto Door                                                  Subject to change.
DoorSafe
Electromechanical ‘E’

Eneo – Accessories, spare parts

                                               Cover plate for PVC and aluminium
                                               Description                                           PQ      Material no.

                                               For fixing the cable junction on the frame side,
                                               made of stainless steel,
                                               dimensions (W x H x D): 16 x 126 x 3 mm

                                               Delivery scope:

                                  110
                                  126
                                                                                                      1      619589
                                               1 cover plate
                                               2 screws M3 x 12 mm
                                               2 screws M4 x 6 mm
                        42

                                               2 screws 3.5 x 25 mm

                             16

                                               Eneo Control Unit
                                               Description                                           PQ      Material no.

                                               Eneo Control Unit with 1 m connecting cable               1   495064

                                               Eneo power supply unit
                                               Description                                           PQ      Material no.

                                               Eneo power supply unit, 24 V, top-hat rail mounting    1      563512

                                               Eneo plug
                                               Description                                           PQ      Material no.

                                               Eneo plug, 3-pin, 2 pieces (green and black)           2      494801

Subject to change.                      Roto Door                                    CWE036_EN_v5    .   July 2018    .     11
DoorSafe
Cylinder operated ‘C’

C600 – Roto Sil Nano
2 combination locks (2C)
V02 / 03, SRH 1900 mm – 2200 mm
C500 – Faceplate 16/3
B        D            HH      SF   Mat. no.   PQ
40       92    8     1020     SL   776532      5

                                                                                           300
                                                                             450
                                                                                    43

                                                                                            150
                                                                                     SW 16
                                                                  “M”

                                                               2200

                                                                      1202
                                                                             752
                                                               557

                                                                                    B
                                                                             CGC

                                                                                                  SHC
                                                                                           D92

                                                                                         SW 16
                                                                                                  HH 1020
                                                                      998
                                                                              738
                                                                             260

For strikers, refer to “frame components”

12   .   July 2018   .   CWE036_EN_v5              Roto Door                             Subject to change.
DoorSafe
Single doors

Single door solution

  1       Strikers                                                         1           2

Confort striker                     L    738473
Confort striker                     R    738474
E-opener striker                    L    738815
E-opener striker                    R    738816

  2       Combination lock
      B        D             HH     SF   Mat. no.
  40           92    8       1020   SL   776532

Subject to change.                                  Roto Door              .
                                                                CWE036_EN_v5   July 2018   .   13
DoorSafe
Double doors

Double door solution

                                                                   3
 1   Contra espagnolette
Description                                 Mat.-No.
Contra espagolette                      L   762905
Contra espagolette                      R   762906                 2

 2   Shootbolt
Description                                 Mat.-No.
Shootbolt                               L   762907
Shootbolt                               R   762908

 3   Striker
Description                                 Mat.-No.
Striker                                     738817

 4   Lock
Description                                 Mat.-No.
Lock                                        776532

                                                                   1   4

14   .   July 2018   .   CWE036_EN_v5                  Roto Door           Subject to change.
DoorSafe
Double doors

Shootbolt protrusion and striker

Shootbolt protrusion
                                                        5
Description                SF Mat. no. PQ
 5 150 / 2x16 with lever   SL 388354 10

Top striker
                                                        6
Description                   Mat. no. PQ
 6 Top striker                738817 50

Subject to change.                          Roto Door                  .
                                                            CWE036_EN_v5   July 2018   .   15
DoorSafe
Emergency exit locking system DIN EN 179

P600
Operating instructions

1. General description                                          4. Application range
The DoorSafe P600 emergency exit lock is only to
                                                                DoorSafe P600 is designed for emergency exit doors
be used in conjunction with Roto frame components
                                                                with one door leaf with lever handle according to
and lever handle sets certified in accordance with
                                                                DIN EN 179, e.g. for offices.
DIN EN 179.
                                                                Only lever-handle sets, listed in the EC certificate of
DoorSafe P600 can be used on emergency exit doors
                                                                conformity No. 0432-CPT 0158, tested according to
where panic scenarios are not expected, as well as on
                                                                DIN EN 179, may be applied.
apartment entrance doors and main entrance doors
                                                                Max. door height = 2520 mm, max. door width = 1320 mm
in single-family houses and apartment buildings and
is suitable for all door materials (timber, PVC and
aluminium­). Even existing doors can be retrofitted
with the appropriate modification work on the door.

2. Operation and function

Unlocking the door from the outside
Unlocking and opening of the door is only possible with
the key.

Unlocking the door from the inside
The door can be opened at any time via the lever
handle. The latch and all locking points are withdrawn
automatically.

Locking the door from the outside or from the
inside
Locking is effected by turning the key 720° (2 x 360°).

In order to avoid malfunctions of the emergency
exit lock, always remove the key!

3. Installation instructions

         aution! If the free cam cylinder is not suitable,
        C
        the lock or the key of the emergency exit lock can
        be blocked.
A suitable free cam cylinder has to be
– equipped with a free rotating locking nose
– approved for the use of emergency exit locks
– free rotatable after the key withdrawal position.
It is compulsory to use a suitable free cam cylinder.
For further questions, please contact the manufacturer
of the free cam cylinder. FZG certified cylinders are
suitable.
Check as to whether the door sash meets the frame
and check the hardware and locking parts’ smooth
operation­. Check the functional clearance (4 mm).
Manually check the closing and opening function via
both the lever handle and the key.

16   .   July 2018   .   CWE036_EN_v5                     Roto Door                                     Subject to change.
DoorSafe
Emergency exit locking system

Panic lock

P600 – Faceplate 16/3 – DIN EN 179
 B    D           HH     SF    Mat. no.     PQ
 40   92   9     1020    SL    611451        1

 P650 – Faceplate 16/3 – DIN EN 1125
 B    D           HH     SF    Mat. no.     PQ
 40   92   9     1020    SL    611517        1

                                                                                        300
                                                                           450
                                                                                 43

                                                                                           150
                                                                                 SW 16

                                                             2200

                                                                    1202
                                                                           752
                                                             557

                                                                                 B
                                                                           CGC

                                                                                                 SHC
                                                                                        D92

                                                                                      SW 16
                                                                    998
                                                                           738

                                                                                                 HH 1020
                                                                           260

Please observe the installation and mainte-
nance instructions which are supplied with
the product.

For strikers, refer to “frame components”

Subject to change.                               Roto Door          CWE036_EN_v5       .   July 2018       .   17
DoorSafe
Panic lock DIN EN 1125

                                                          Push bar
                                                          Description                    Specification                                               Material no.

                                                          Push bar stainless steel       Stainless steel, rust-proof, matt                           619036
                                                                                         EN 1125, EN 1634, DIN 4102 part 18,
                                                                                         PC 92 mm, applicable DIN L and DIN R
                                                          Push bar aluminium             Silver-coloured F1                                          619037
                                                                                         EN 1125, EN 1634, DIN 4102 part 18,
                                                                                         PC 92 mm, applicable DIN L and DIN R

                                                          External fitting without roller-bearer pin
                                                          Description                    Specification                                               Material no.

          76                                              External fitting stainless steel Handle plate 160 / surface: ER stainless steel 1.4301     619038

                                                          External fitting aluminium     Handle plate 160 / surface: F1 aluminium                    619039
                               256
                          85

                  53

                                                          Roller-bearer pin with screws for external fitting
          M 12

                       22                L
                                                          Description                    Specification                                               Material no.

                                                          9 / 120 mm                     Roller-bearer pin with eccentric drill hole                  619041
                                                                                         spindle 9 mm / length 120 mm / door leaf thickness 86–110 mm
                                                    9

               SW 14

                                     L                    Spindle with insertable clip for the use without external fitting
             9                                      3,1   Description                    Specification                                               Material no.

                                                          9/95 mm with insertable clip   Spindle 9 mm for the fastening on the side of the           619046
                                                                                         passive­ leaf
                                             16,6   4,5                                  spindle 9x9 mm / with groove and insertable clip
                                                                                         length 95 mm / door leaf thickness 80-104 mm

18   .   July 2018   .   CWE036_EN_v5                                       Roto Door                                                        Subject to change.
DoorSafe
Emergency exit locking system DIN EN 179

Lever-handle set

                                 Lever-handle set
                                 Description              Specification                                            Material no.

                                 Lever-handle set         F1-Aluminium natural matt / PC-92, 9 mm                  618987
                                 aluminium                door leaf thickness 67–72 mm
                                                          screw-fixing M6 / EN 179 DO 20.5.02

                                 Lever-handle set         F9016 – Traffic-white / PC-92, 9 mm                      618988
                                 white                    door leaf thickness 67–72 mm
                                                          screw-fixing M6 / EN 179 DO 20.5.02

                                 Lever-handle set         F69 – Stainless steel matt / PC-92, 9 mm                 618989
                                 stainless steel          door leaf thickness 67–72 mm
                                                          screw-fixing M6 / EN 179 DO 20.5.02

                                 Spindle 92 mm                                                                     774942

Subject to change.                                  Roto Door                                              .
                                                                                                CWE036_EN_v5   July 2018   .   19
DoorSafe
Accessories

Accessories

Rolling latch (only for DoorSafe C 600!)          Reduced latch (only for DoorSafe C 600!)

Backset                           Mat. no.   PQ   Backset                    Mat. no.   PQ
40 mm                             784981     50   40 mm                      784991     50

Rolling latch reciever-insert                     Faceplate end cover cap

                                                  Size              Colour   Mat.-Nr.   PQ
                                                  16/3              silver   317787     50

Version                           Mat. no.   PQ
for timber strikers               222543      –

20   .   July 2018   .   CWE036_EN_v5                          Roto Door                     Subject to change.
DoorSafe
Electrical opener

Electrical opener
Model E 17R and E 20

 Model E 17R

                     Product description:                   Description                Mat. no.    PQ
                                                            Model E 17R                446263      20
                       Symmetrical standard opener
                        with radial latch function –
                        pre-wired
                        D
                         imensions: Length 75.1 mm x
                        width 17.1 mm x depth 28 mm
                        Non-handed
                        W
                         eight 165 g
                        Latch adjustment range +1/–2 mm

                                             28
                                      17.1

                                                     46.5
                                                                 14.1

Subject to change.                Roto Door                                        .
                                                                        CWE036_EN_v5   July 2018   .   21
DoorSafe
Surface mounted hinges

120 ATB
Product description

Application ranges

  For heavily used aluminium doors up to 160 kg
  For inward and outward opening doors

Product characteristics

  The as-delivered condition is preset to zero
  adjustment DIN left or DIN right
  Modular design: combination of various hinge and
  accessory modules
  The patented door leaf and frame aluminium cover
  plate hugs the contours of the profile
   Maintenance-free bearing bushes containing Teflon
    Contemporary design of the diecast hinge casing
     Trendsetting surface treatment
  One-man adjustment of the door
  Certified in accordance with DIN EN 1935 : 2002

Adjustment possibilities

  Linear adjustments without changing the hinge
  body aesthetics
   All adjustments possible without removing the
    sash and frame cover plates

                                                                Variants

                              ± 0.75 mm

                                                                                             A          B

                                                                                                   C

                                                                                                  A          B       C     Mat. no.
                                                                120 ATB including mounting set   20,5       47,0    62,5   738886
                                                                120 ATB including mounting set   47,0       47,0    94,0   738887

                 + 3 mm
                                          ± 3 mm

22   .   July 2018   .   CWE036_EN_v5               Roto Door                                                      Subject to change.
DoorSafe
Surface mounted hinges

80 ATB
Product description

Application ranges

   For all conventional aluminium doors up to 120 kg
   For inward and outward opening doors

Product characteristics

   The as-delivered condition is preset to zero
   adjustment DIN left or DIN right
   Modular design: combination of various hinge and
   accessory modules
   The patented door leaf and frame aluminium cover
   plate hugs the contours of the profile
    Maintenance-free bearing bushes containing Teflon
     Contemporary design of the diecast hinge casing
      Trendsetting surface treatment
   One-man adjustment of the door
   Certified in accordance with DIN EN 1935 : 2002

Adjustment possibilities

   Linear adjustments without changing the hinge
   body aesthetics
    All adjustments possible without removing the
    sash and frame cover plates

                                                                    Variants

                       ± 0.75 mm

                                                                                                 A          B

                                                                                                      C

                                                                                                      A          B      C      Mat. no.
                                                                    120 ATB including mounting set   20,5       47,0   62,5    738888
              + 3 mm
                                   ± 3 mm                           120 ATB including mounting set   47,0       47,0   94,0    738889

Subject to change.                                      Roto Door                                    CWE036_EN_v5      .   July 2018   .   23
DoorLine
Surface-mounted hinges

120 ATB and 80 ATB drilling jig

Drilling jig

Drilling jig
Description                             Material no.   PQ

80 ATB / 120 ATB drilling jig           Upon request

24   .   July 2018   .   CWE036_EN_v5                       Roto Door   Subject to change.
DoorLine
Surface-mounted hinges

80 / 120 ATB
Installation and fixing technology

Linkdrill I                                                      Support pin

                        50

Linkdrill I
Description                       Material no   PQ

M14 x 50 mm, with screw M8 x 40   548515        1                Support pin
                                                                 Description                                   Material no.       PQ

                                                                 Ø 8 x 28 mm                                   550245             1

                                                                 Stainless-steel security pin

                                                                               45

                                                                 Stainless-steel security pin
                                                                 Description                                   Material no.   PQ

                                                                 Ø 5 x 45 mm                                   547534         24

Subject to change.                                   Roto Door                                             .
                                                                                                CWE036_EN_v5     July 2018    .   25
20.5               47

                                                          naar binnendraaiend
DoorLine
Surface-mounted hinges                                            10
                                                                                                      113
                                                    39                                        88
                                                               20.5               47

                                                             9
                                                                             12
                                                                                                      113
80 / 120 ATB                                        39               10                       88

Installation examples

                                    91

                                                             9
                                                                          12
                                                          naar binnendraaiend

                                                               20.5               47

                                    91
                                                                    80                  10                72

                                                                                                      113
                                                    39               10                       88

                                                             9
                                                                    80                  10                72
                                                                             12
                                    91

                                                          naar buitendraaiend

                                                                    80                 5,5         58,5
                                                                    80                  10                72

                                                                     Inward opening
                                                          naar buitendraaiend

                                                                    80                 5,5         58,5
                                         91
                                         91

                                                          naar buitendraaiend
                                                     39            10                                     120

                                                                    80                 5,5         58,5

                                                               20.5               47

                                                     39              10                                   120

                                                               20.5               47
                                         91

                                                                         Outward opening

                                                                            82

                                                     39              10                                   120

                                                                            82

                                                               20.5               47

                                                                            82

                                                                     47                  47

                                                                         Outward opening

26   .   July 2018   .   CWE036_EN_v5
                                                                     47                  47
                                                                                 Roto Door                      Subject to change.

                                              naar buitendraaiend
DoorLine
Surface-mounted hinges

80 / 120 ATB
Strength table according to DIN EN 1935 : 2002

                       3500
                       3400
                       3300                                                                                                                                           –6%
                       3200                                                                                                                                         – 12 %
                       3100                                                                                                                                –6%      – 18 %
                       3000                                                                                                                              – 13 %     – 24 %
                       2900                                                                                                                –7%           – 19 %     – 29 %
                       2800                                                                                                              – 13 %          – 25 %     – 35 %
                       2700                                                                                                    –7%       – 20 %          – 31 %     – 41 %
 Sash height SH (mm)

                       2600                100 kg = 80 ATB = 2 parts                                                         – 14 %      – 27 %          – 38 %     – 47 %
                       2500                                                                                   –8%            – 21 %      – 33 %          – 44 %     – 53 %
                       2400                                                                                 – 15 %           – 29 %      – 40 %          – 50 %     – 59 %
                       2300                                                                       –8%       – 23 %           – 36 %      – 47 %          – 56 %     – 65 %
                       2200                                                                     – 17 %      – 31 %           – 43 %      – 53 %          – 63 %
                       2100                                                             –9%     – 25 %      – 38 %           – 50 %      – 60 %          – 69 %
                       2000                                                           – 18 %    – 33 %      – 46 %           – 57 %      – 67 %
                       1900                                                  – 10 %   – 27 %    – 42 %      – 54 %           – 64 %
                       1800                                                  – 20 %   – 36 %    – 50 %      – 62 %
                       1700                                    – 11 %        – 30 %   – 45 %    – 58 %      – 69 %
                       1600                                    – 22 %        – 40 %   – 54 %    – 66 %
                       1500                          – 13 %    – 33 %        – 50 %   – 63 %
                       1400                          – 25 %    – 44 %        – 60 %
                       1300               – 14 %     – 38 %    – 55 %
                       1200               – 29 %     – 50 %    – 67 %                          Dimensions not recommended
                       1100   – 17 %      – 43 %     – 63 %
                       1000   – 33 %      – 57 %
                               600         700        800       900          1000     1100      1200        1300             1400        1500            1600       1700

                                                                                 Sash width SW (mm)

Examples of use to                                    120 ATB without door closer:
determine­the max.                                    H=2100, W=1100, 160 kg, -9 % = sash weight max. 145 kg
permissible­sash weight                               120 ATB with door closer without damping on opening:
                                                      H=2100, W=1100, 160 kg, –9 %-(20 %) = sash weight max. 145 kg –20 % = 116 kg
                                                      120 ATB with door closer with damping on opening or restrictor device:
                                                      H=2100, W=1100, 160 kg, –9 %-(75 %) = sash weight max. 145 kg -75 % = 36 kg

Door hinge positioning
                                Private application range                                                   Public application range
               Application without     Application without    Application without       Application without             Application                 Application
               door closer             door closer            door closer               door closer                     Door closer without         Door closer with
                                                                                                                        damping on opening          damping on opening
                                                                                                               200 mm

                                                                                                                                                200 mm

                       x2                     x3                        x2                     x3                             x3                              x4

               2300 x 1000 mm
               Max. sash weight        Max. sash weight       Max. sash weight         Max. sash weight        Max. sash weight        Max. sash weight
               according to table      according to table     according to table       according to table      according to table –20% according to table –75%

Subject to change.                                                               Roto Door                                            CWE036_EN_v5        .   July 2018   .   27
Door
Door threshold system

Eifel TB balcony door threshold
Product description

Application ranges                                        Eifel TB striker receiver*

  For Tilt&Turn units made of PVC and timber             Robust, flush striker insertion without machining the
  For new buildings and renovation projects              threshold profile

                                                          * Corresponding strikers are available from Tilt&Turn manufacturers.

Product characteristics

  Barrier-free in accordance with DIN 18040
  20 mm threshold height
  Resistant to driving rain
  Isothermal efficiency DIN 4108-4 compliant
  Concealed screw-fixing
  15 installation depths (40 mm – 140 mm)
  Cover with ribbed design
  Use of UV-resistant, high-impact resistant PVC

 Isothermal efficiency according to DIN 4108-4

                                 –5 °C outside                                                                                   +20 °C inside
                                                                         0°             5°               10°

                                                                                                                         13.61 °C

28   .   July 2018   .   CWE036_EN_v5               Roto Door                                                                     Subject to change.
Door
Door threshold system

Eifel T / Eifel TB accessories
Cover bridges

Application range
                                                                             Cover bridge for shootbolt protrusions

   For mounting the strikers and/or the shootbolt
   protrusions­

Product characteristics

   Adapter made of high-quality aluminium

 Threshold                                                              Please note: The use of the cover bridge changes the Uf,BW value and the isothermal curve.
 Description                                   Material no.

 70 TB, 6 m (PQ = 30 m)                        623978

Strikers
Description                                    Material no.

Striker 2-leafed double door inward opening    640220
Striker 2-leafed double door outward opening   816481

                                                                       183
                                                                       103
                                                                                19
                                                                                                24
                                                                  9
                          2

                                                                                10
                                                              Bolzen

                                                                              Loch für Bolzen

Subject to change.                                            Roto Door                                                   CWE036_EN_v5          .   July 2018   .    29
Roto Frank AG                       Roto Frank NV
Window and door technology          Window and Door Technologies

Wilhelm-Frank-Platz 1               Rue du Bosquet, 1
70771 Leinfelden-Echterdingen       1400 Nivelles
Germany                             Belgium

                                                                                                  Dated: December 2014. Subject to change. CWE036_EN_v0
Telephone +49 711 7598 0            Telephone: +32 67 89 41 40

                                                                                                  © 2014 Roto Frank AG ® Roto is a registered trademark
Telefax      +49 711 7598 253       Fax: +32 67 84 14 56
info@roto-frank.com                 info.west@roto-frank.com

www.roto-frank.com                  www.roto-frank.com

From a single source: Optimum hardware systems to meet all challenges:

        Roto Tilt&Turn          |   The Tilt&Turn hardware system for windows and balcony doors

          Roto Sliding          |   Hardware systems for large sliding windows and doors

            Roto Door           |   Matching hardware technology “everything about doors”

       Roto Equipment           |   Additional technology for windows and doors
You can also read
