WHEEL SIZE ADJUST - FLIP CHIP
INTRODUCTION
This service applies to MY17 Tallboy and Hightower models. The wheel size adjust allows you to run
either a 27.5+ or 29 inch wheel size using a “flip chip” design at the upper link, while maintaining
frame geometry measurements such as bottom bracket height and head angle.
NOTE: You must change your fork when changing wheel sizes.
TALLBOY HIGHTOWER
29er Configuration 27.5+ Configuration 29er Configuration 27.5+ Configuration
120 mm fork 130 mm fork 140 mm fork 150 mm fork
Chip: Low Position Chip: High Position Chip: Low Position Chip: High Position
HTA: 68° HTA: 67.8° HTA: 67° HTA: 66.8°
STA: 73° STA: 72.8° STA: 74.3° STA: 74.1°
CS: 17 in (432 mm) CS: 17 in (432 mm) CS: 17.13 in (435 mm) CS: 17.09 in (434 mm)
TOOLS AND SUPPLIES
• Safety glasses
• Latex or nitrile gloves
• 6 mm hex wrench
ENGLISH
3
MY17 TALLBOY FRAME GEOMETRY
TOP TUBE LENGTH
REACH
HEAD TUBE
LENGTH
STACK
HEAD TUBE
ANGLE
SEAT TUBE
ANGLE
BOTTOM BRACKET DROP
REAR CTR./CHAINSTAY LENGTH FRONT CENTER
STANDOVER BOTTOM BRACKET HEIGHT
S High (27.5+) / M High (27.5+) / L High (27.5+) / XL High (27.5+) / XXL High (27.5+) /
Low (29) Low (29) Low (29) Low (29) Low (29)
Reach 403 / 405 mm 428 / 430 mm 448 / 450 mm 473 / 475 mm 503 / 505 mm
Stack 595 / 594 mm 605 / 603 mm 605 / 603 mm 619 / 617 mm 633 / 631 mm
Head Tube Angle 68 / 68° 68 / 68° 68 / 68° 68 / 68° 68 / 68°
Head Tube Length 90 / 90 mm 100 / 100 mm 100 / 100 mm 115 / 115 mm 130 / 130 mm
Seat Tube Angle 73 / 73° 73 / 73° 73 / 73° 73 / 73° 73 / 73°
Seat Tube Length 390 / 390 mm 420 / 420 mm 450 / 450 mm 480 / 480 mm 510 / 510 mm
Rear Center 432 / 432 mm 432 / 432 mm 432 / 432 mm 432 / 432 mm 432 / 432 mm
Front Center 687 / 684 mm 716 / 713 mm 736 / 733 mm 767 / 763 mm 802 / 799 mm
BB Height 328 / 330 mm 328 / 330 mm 328 / 330 mm 328 / 330 mm 328 / 330 mm
BB Drop 33 / 40 mm 33 / 40 mm 33 / 40 mm 33 / 40 mm 33 / 40 mm
Top Tube Length 575 / 574 mm 604 / 603 mm 624 / 623 mm 654 / 653 mm 689 / 689 mm
Standover 702 / 705 mm 703 / 706 mm 704 / 707 mm 706 / 709 mm 700 / 704 mm
ENGLISH
4
MY17 HIGHTOWER FRAME GEOMETRY
TOP TUBE LENGTH
REACH
HEAD TUBE
LENGTH
STACK
HEAD TUBE
ANGLE
SEAT TUBE
ANGLE
BOTTOM BRACKET DROP
REAR CTR./CHAINSTAY LENGTH FRONT CENTER
STANDOVER BOTTOM BRACKET HEIGHT
S High (27.5+) / M High (27.5+) / L High (27.5+) / XL High (27.5+) / XXL High (27.5+) /
Low (29) Low (29) Low (29) Low (29) Low (29)
Reach 403 / 405 mm 428 / 430 mm 448 / 450 mm 473 / 475 mm 503 / 505 mm
Stack 606 / 604 mm 610 / 604 mm 615 / 613 mm 624 / 623 mm 643 / 641 mm
Head Tube Angle 66.8 / 67° 66.8 / 67° 66.8 / 67° 66.8 / 67° 66.8 / 67°
Head Tube Length 90 / 90 mm 90 / 90 mm 100 / 100 mm 110 / 110 mm 130 / 130 mm
Seat Tube Angle 74.1 / 74.3° 74.1 / 74.3° 74.1 / 74.3° 74.1 / 74.3° 74.1 / 74.3°
Seat Tube Length 390 / 390 mm 420 / 420 mm 450 / 450 mm 490 / 490 mm 510 / 510 mm
Rear Center 434 / 435 mm 434 / 435 mm 434 / 435 mm 434 / 435 mm 434 / 435 mm
Front Center 707 / 703 mm 734 / 730 mm 756 / 752 mm 784 / 781 mm 822 / 818 mm
BB Height 335 / 337 mm 335 / 337 mm 335 / 337 mm 335 / 337 mm 335 / 337 mm
BB Drop 27 / 33 mm 27 / 33 mm 27 / 33 mm 27 / 33 mm 27 / 33 mm
Top Tube Length 575 / 574 mm 602 / 601 mm 623 / 622 mm 651 / 650 mm 689 / 685 mm
Standover 707 / 710 mm 707 / 710 mm 710 / 713 mm 717 / 720 mm 725 / 727 mm
ENGLISH
5
ADJUST THE GEOMETRY
FLIP THE CHIPS

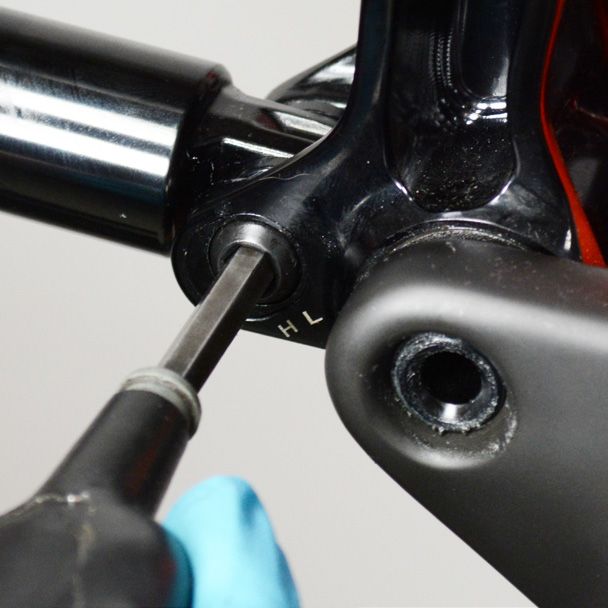

1. Use a 6 mm hex wrench to remove the
lower shock mounting bolt.

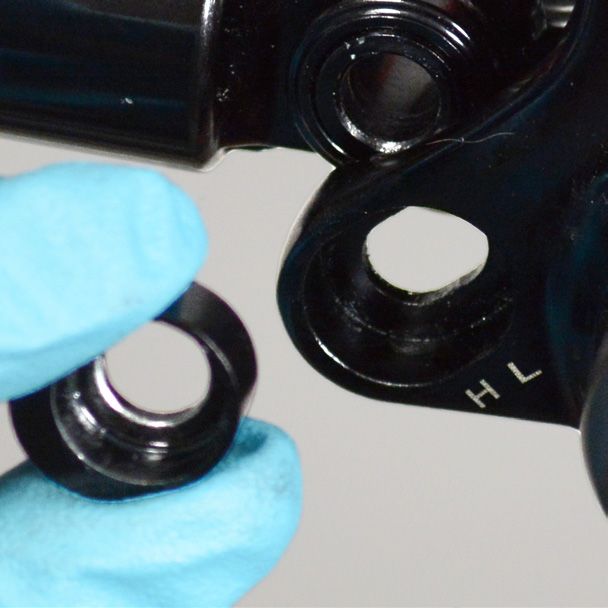

2. Remove the flip chip from the non-drive
side of the shock mount.
3. For the 29er wheel size: turn the chip so
that the hole in the chip is in the “L” for low
position.
For the 27.5+ wheel size: turn the chip so
that the hole in the chip is in the “H” for
high position.

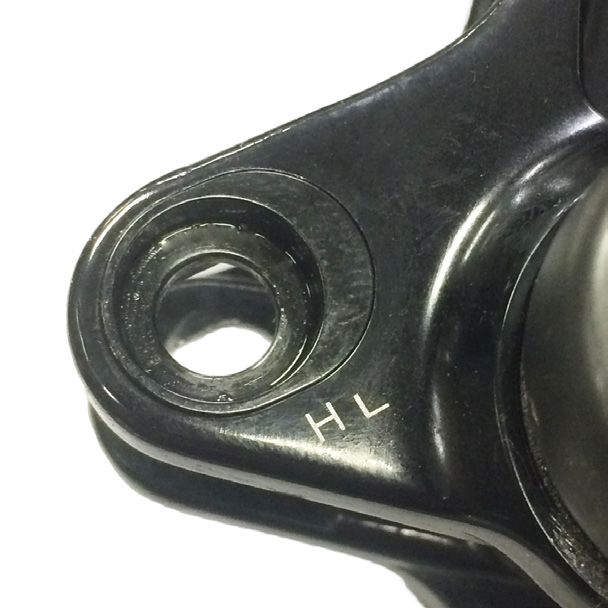

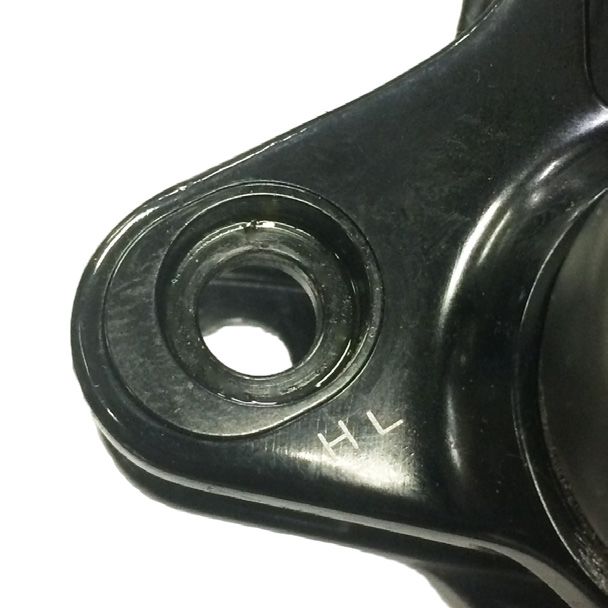

THE CHIP IS SHOWN IN “L” FOR LOW POSITION THE CHIP IS SHOWN IN “H” FOR HIGH POSITION
ENGLISH
6

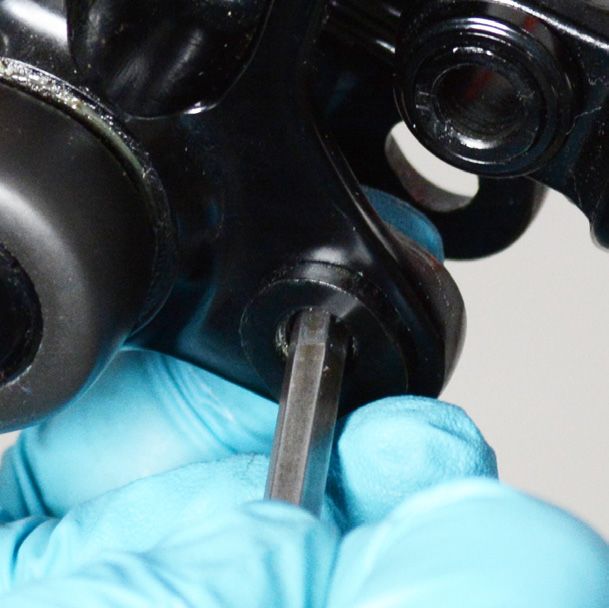

4. Use a hex wrench to gently pry the flip
chip from the drive side of the shock
mount. Make sure to position both chips in
the same orientation.

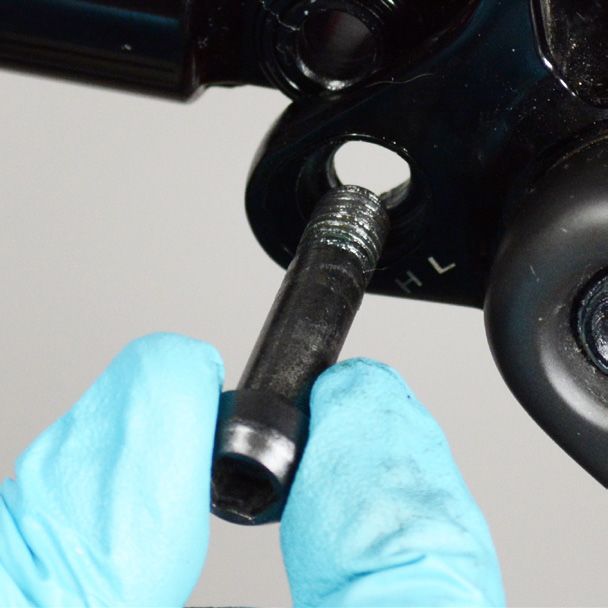

5. Use a 6 mm hex wrench to reinstall the
shock bolt and torque to 15.8 N.m
(140 in-lb).
Inspect the bicycle for safe operation
before riding it. Consult your dealer for
more information.
ENGLISH
7MAINTENANCE SCHEDULE
Bicycle service requires special knowledge and tools and should be performed
by a professional bicycle mechanic. This user manual is to be used in conjunction
with the manuals supplied by the component manufacturers. If you did not
receive the manual provided by the component manufacturer, download the
materials off the Internet or contact your local dealer. Consult your local dealer
to create a maintenance plan and refer to this Maintenance Schedule as a guide
for frequent inspection, service, and replacement of parts.
BEFORE EVERY RIDE WEEKLY MONTHLY EVERY 3 MONTHS ANNUALLY
Check the frame and fork for Check that all bolts are Check the shifter and brake Inspect the drivetrain for wear Annual servicing at your
signs of stress: scratches, tightened to proper torque cables for wear dealer: overhaul service
cracks, dents, deformation specifications. Make sure and inspection of frame,
or discoloration. Inspect the to include pedals and any suspension, and all other
chainstay guard and ensure accessories or luggage components. Repair, service,
it is correctly and securely carriers. and/or replace parts
attached as needed
Check that the wheels Check the rims and spokes Check that the bottom Inspect the crank arms Clean and lubricate all parts
are true for damage bracket is tightened to proper and pedals as recommended by your
torque specifications component manufacturer’s
instructions or consult
your dealer
Check the tire pressure Clean the bicycle Check that the headset is Top off grease ports in frame Check for service instructions
adjusted correctly lower links, if applicable and intervals for your frame at

www.santacruzbicycles.com
Check the brakes, including Check the tires for damage Check that the chain is Check tire sealant levels
brake pads and brake lines and wear tensioned correctly
Check that both wheels are Clean dust seals on Inspect suspension parts
secure suspension for wear
Check that the handlebar and Check the chainstay guard
stem are correctly positioned and bottom bracket guard (if
and inspect for signs of stress: applicable) for wear
scratches, cracks, dents,
deformities, and discoloration
Check that the suspension
settings are at your
preferences
Check that the lighting system
and reflectors are in good
working order
Check that the saddle
and seatpost are correctly
positioned and tightened
Check for smooth
shifting operation
Lubricate the chain
This list provides some guidelines, but is not to be considered a complete inspection. Following these guidelines will help maintain the performance of your
bicycle and prevent more serious problems from arising. It is important to remember that service intervals can vary depending on climate, trail conditions and
riding frequency. For service instructions for your specific components, visit the manufacturer’s website. If you detect any problems with your bike, and you are
not able to repair them, take your bike to your authorized dealer for service.
CLEANING
ENGLISH
Clean your bicycle with a soft, moist cloth and bicycle cleaner or a solution of dish soap and water. Do not use
industrial solvents or harsh chemicals that can damage the paint or moving parts. Do not use high-pressure
water. Every three months, clean and polish the frame finish. Some finishes do not require polish. If you are
8 not certain, consult your retailer.WARRANTY
