TAV Tunisie
FIFTH INTERNATIONAL FORUM ON
ENERGY FOR SUSTAINABLE DEVELOPMENT
International Airport Enfidha-Hammamet
4-7 November 2014
PRESENTATION OF THE INTERNATIONAL AIRPORT ENFIDHA-HAMMAMET
CO2 EMISSIONS IN TRANSPORT SECTOR
SUSTAINABLE ENERGY
ENERGY-EFFICIENCY : TRIGENERATION PLANT & ENERGY PROFILE
ENERGY MANAGEMENT
CARBON FOOTPRINT
2
PRESENTATION OF THE INTERNATIONAL AIRPORT
ENFIDHA-HAMMAMET
3
2007-2009
BAT ADMINISTRATIF TOUR de CONTRÔLE
MOYENS GENERAUX
CENTRALE D’ENERGIE
Accès Véhicules AEROGARE PASSAGERS
AEROGARE de FRET ZONE DE STOCKAGE DE CARBURANT
APRON CONTACT
PAVILLON PRESIDENTIEL
BATIMENTS Assistance au sol & SSLIA
APRON ELOIGNE
VOIES de CIRCULATION
PISTE
CENTRE METEOROLOGIQUE
4
CO2 EMISSIONS IN TRANSPORT SECTOR
5
Contribution of Aviation to 2013 CO2 Emissions
(tonnes)
36,000,000,000
~30,000,000
~700,000,000
Other Sector CO2 Emissions Aircra CO2 Emissions Airport CO2 Emissions
6
Main Sources of Aviation CO2 Emissions
Airport Operator Business Partners
• Electricity • Aircraft
• Heating and cooling • Electricity & heating
• Vehicles • Vehicles
• Ground support
equipment
• Airport access
7
Energy Unit Prices Evolution in Tunisia (euro)
Projections
0.180 3.000
Cancellation of subsidies by 2020
0.160 3,71 X (2010 unit price)
2.500
0.140
0.120 2.000
0.100 2,3 X (2010 unit price)
1.500
0.080
0.060 1.000
6,03 X(2010 unit price)
0.040
0.500
0.020
0.000 0.000
2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
Fuel Unit Price (euro) Gaz Unit Price (euro) Electricity Unit Price ( euro)
8
SUSTAINABLE ENERGY
9
Sustainable Energy
200 Photovoltaic solar panels 112m² solar water heaters for annexes
along the south fence Buildings
10Sustainable Energy

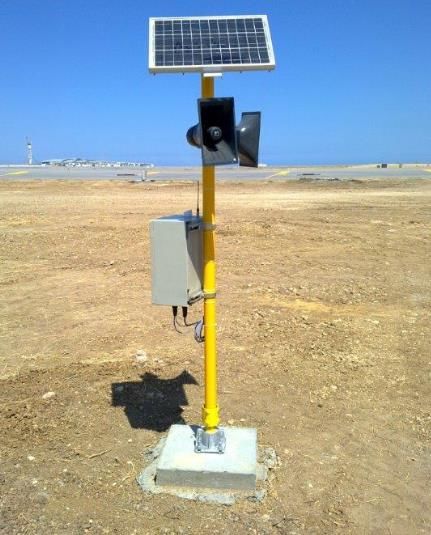

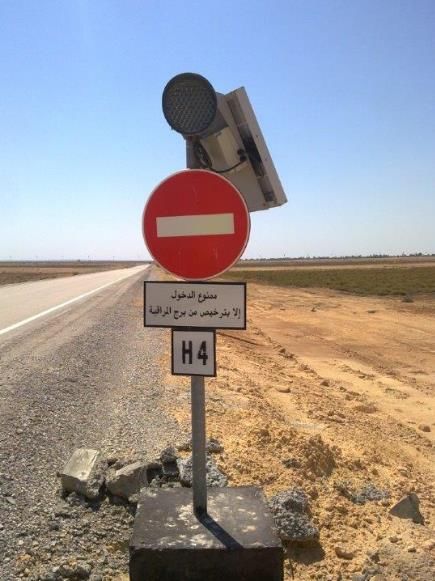

Solar panels for bird hazard devices and light traffics
11ENERGY-EFFICIENCY
12Construction Practices
• Reduction of heat transfer at the roof and walls in the
terminal, using high-performance materials with a heat
transfer coefficient less than 0.33.
• Construction and operation of a Trigeneration plant.
13TRIGENERATION PLANT
14Legal Framework
Political Environment
The cogeneration is governed by the decree 3232 dated on 3 December 2002, that allows, for
industrial and tertiary sectors, to produce, simultaneously, thermal energy and electrical
energy from a primary energy and inject its surplus power on the national grid upon the
respect of the following conditions of efficiency:
The global efficiency ratio shall be above or
equal to 60% : Rg = (C+E)/Q ≥60%,
The thermal recovery ratio shall be above or
equal to 50% : Rr = C/E ≥50%,
For Installed powers < 3MW For Installed powers > 3MW
66% of produced electricity can be 50% of produced electricity can be
transferred to national grid transferred to national grid
E: Thermal Equivalent of produced electricity, C: Thermal & Effective energy recovered, Q: primary consumed energy
The decree 2773 dated in September 2009, allows the transport of Electricity from one point
to another one via the grid. In this framework TAV Tunisie is willing to send the excess of
Electricity produced to Monastir International Airport.TRIGENERATION PLANT
• Upon completion of the Airport construction works, a comparative analysis was
undertaken at the aim of reducing the power bill. The outcome was that Trigeneration
shows a higher profitability than the standard power solutions, with a satisfactorily
return on investment rate.
• On May 2012, TAV Tunisia started to operate its new 4 MW trigeneration power plant,
extendable to 6 MW. This new trigeneration plant, leader in Tunisia, enables the
simultaneous production of electricity, heating and cooling from natural gas.
• To this end, two gas engines, developing respectively, an electrical power of 2022 KW,
enable to cover the airport demand. The exhaust gas as well as the engines coolant will
be used for the production of heating in winter, and cooling via two lithium bromide
absorption chillers with a single capacity of 2000 KW to meet the air conditioning
demand on summer.
• The investment cost of this plant is around 10 million of dinars (5 M€).

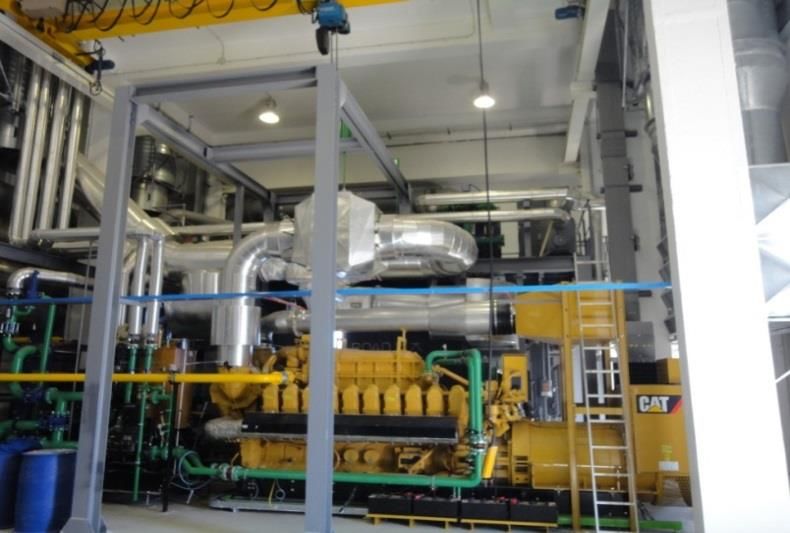

16TRIGENERATION PLANT
• L'installation de Tri génération est composée de ;
• Deux moteurs à gaz de type Caterpillar développant une puissance nominale de
2 022 KW chacun,
• Deux échangeurs à plaques dont la puissance unitaire est de 995Kwth,
• Deux groupes d'eau glacée à absorption Type Broad de puissance frigorifique
2173Kwc et 994Kwth chacun.
• Cette installation devrait couvrir les besoins électriques et calorifiques de l’aéroport
ainsi qu’une grande partie des besoins frigorifiques.ENERGY PROFILE
18Energy Cost / Operational Expenses (OPEX)
Total Energy Cost (€) Total Opex Cost (€)
7%
2013 7%
2012 9%
9%
2011
2010
2010 2011 2012 2013
Electricity Cost (€) 1 059 012 1 095 206 734 779 188 130
Gas Cost (€) 34 171 43 377 452 407 840 100
Fuel Cost (€) 129 567 117 258 176 338 213 634
Total Energy Cost (€) 1 222 751 1 255 841 1 363 523 1 241 864
Total OPEX (€) 13 194 718 14 329 606 18 442 966 17 985 883
Percentage 9% 9% 7% 7%
19As of May 2013, the Airport self-sufficiency in the electrical energy has reached 100%
and the excess of electricity produced is being sold the national provider of Electricity.
Monthly Electrical Consumption 2013 -2014 at NBE
3000
2500
Thousands
2000
1500
1000
500
0
-500
-1000
Jan-13 Feb-13 Mar-13 Apr-13 May-13 Jun-13 Jul-13 Aug-13 Sep-13 Oct-13 Nov-13 Dec-13 Jan-14 Feb-14 Mar-14 Apr-14 May-14 Jun-14 Jul-14 Aug-14 Sep-14
Grid (Kwh) -774302 -290784 -563154 374990 -394024 -337842 -5564 -212792 -748221 -245278 -260507 -218685 -257303 -363114 -602842 -371829 -61660 -306700 -568889 -437850 -672801
Trigen(KWh) 1915918 1326812 1675283 715316 2054150 2071664 2171020 2349166 2647180 2049132 1519293 1415088 1405124 1394199 1787452 1476122 1549748 2115664 2578173 2533515 2628728.8ENERGY MANAGEMENT

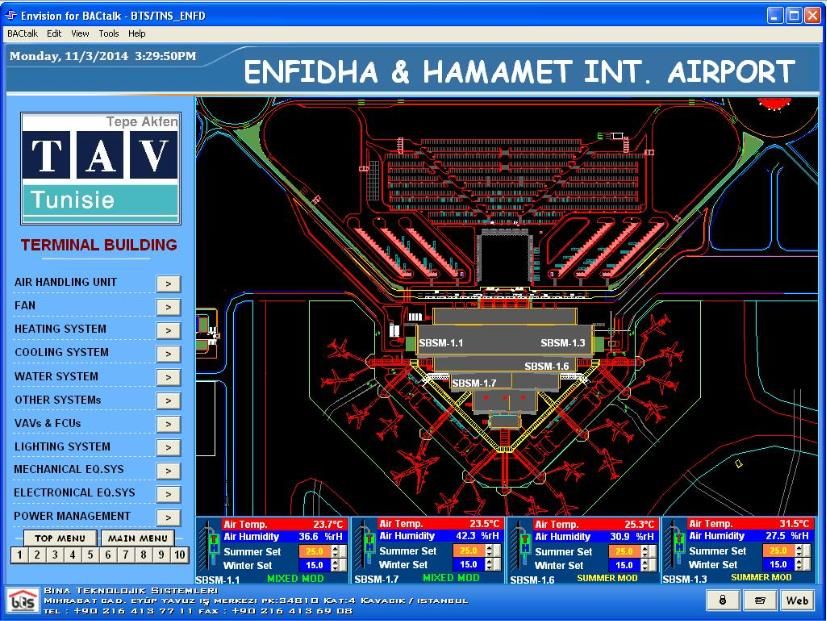

21Building Management System
BMS is used to simplify
and automate airport
systems :
• Lighting System
• Electronic System
• Mechanical System
• HVAC System
This kind of management
enables to operate the
system according to the
traffic needs resulting in
consistent energy savings
22CARBON FOOTPRINT
23GHG footprint
CO2 Carbon emissions of the airport have been decreasing year by year. TAV Tunisia has
reduced carbon emissions by 48% in 2013, compared to the base year 2010.
CO2 Emission Trend
10000.00 9,273
9000.00 8,449
8000.00
7,238
7000.00
6000.00
5000.00
4,839
4000.00
3000.00
2000.00
1000.00
0.00
2010 2011 2012 2013
Total GHG Emission (metric tonnes CO2)GHG footprint KPI’s
UP September
Core Year 2010 Year 2011 Year 2012 Year 2013
2014
PAX 496 641 PAX 1 281 963 PAX 2 082 487 PAX 2 272 074 PAX 1 829 934 PAX
Occupied area 111 264 m2 111 264 m2 114 524 m2 114 524 m2 114 524 m2
KPI Year 2010 Year 2011 Year 2012 Year 2013
Carbon Footprint
9 349 Tones of CO2 8 449 Tones of CO2 7 238 Tones of CO2 4 839 Tones of CO2
GHG
GHG/PAX 19 kg of CO2/ PAX 7 kg of CO2/ PAX 4 kg of CO2/ PAX 3 kg of CO2/ PAX
GHG/m² 45 kg of CO2/ m² 43 Kg of CO2/m2 41 Kg of CO2/m2 27 Kg of CO2/m2On 10th of June 2013,
TAV Tunisia was the
first African airport to
receive ACI’s "Airport
Council International"
carbon accreditation at
the mapping level
The 11th of September
2014, TAV Tunisia has
met all necessary
requirements to upgrade
its participation to the
Airport Carbon
Accreditation program to
Level 2 ReductionTHANK YOU
