THE CLAY TILE COLLECTION
Classic Mediterranean beauty for contemporary times
The Coverland clay roof tile collection is imported from France, Italy and Germany. With the varied selection of shapes and
colours the range displays true quality and every tile design tells a unique story. When fitted to your roof, the profiles and
colours will evoke impressions of Europe’s beautiful countryside, coastal villages and ancient cities.
Durable Aesthetics All Weather ROOFING SOLUTIONS

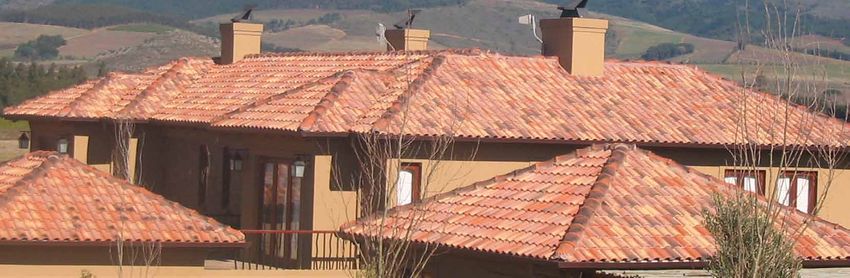

COPPO DOMUS STRUCTURAL DATA
Tile Size [mm] 460 x 278
The Coppo Domus profile resembles the handcrafted clay roof tiles of Ancient Rome. The rustic Weight/piece [kg] 3,6
colours are inspired by the Tuscan landscapes of Italy – colourful rolling hills, rustic villas and warm
Weight/m² [kg/m²] 41,4
sunshine. Coppo Domus Clay collection embodies the distinctive style of this region.
Covering capacity tiles [pcs/m²] 11,5
Min. pitch 17°
Batten distance [mm] 365 - 380 (recommended 375)*
Laying Application Straight bond
RUSTICO ANDALUSO RUSTICO ELLENICO RUSTICO ETRUSCO
DOROTEA
The Dorotea clay roof gives the appearance of the ancient Tyrrhenian fascia roofing on the Italian peninsula. The
spectacular mélange of colours and warm tones from the surface finish are synonymous with the country of art,
history and charm and model Italian peninsula roof designs.
COTTO COPERTURE
The Cotto Coperture range characterize traditional Mediterranean roofs. Available in the five shaded blend, Dorotea finish
and the natural Red Argilla.
STRUCTURAL DATA DOROTEA
Tile Size [mm] 438 x 270
Weight/piece [kg] 3,2 ARGILLA
The natural red Argilla clay tile is beautifully shaped and when laid on a roof gives the immediate impression of
Weight/m² [kg/m²] 40,6
cobblestone streets and beautiful winding staircases.
Covering capacity tiles [pcs/m²] 12,7
Min. pitch 17°
Batten distance [mm] 337 - 357
(recommended 345)*
Laying Application Straight bond
RED ARGILLA

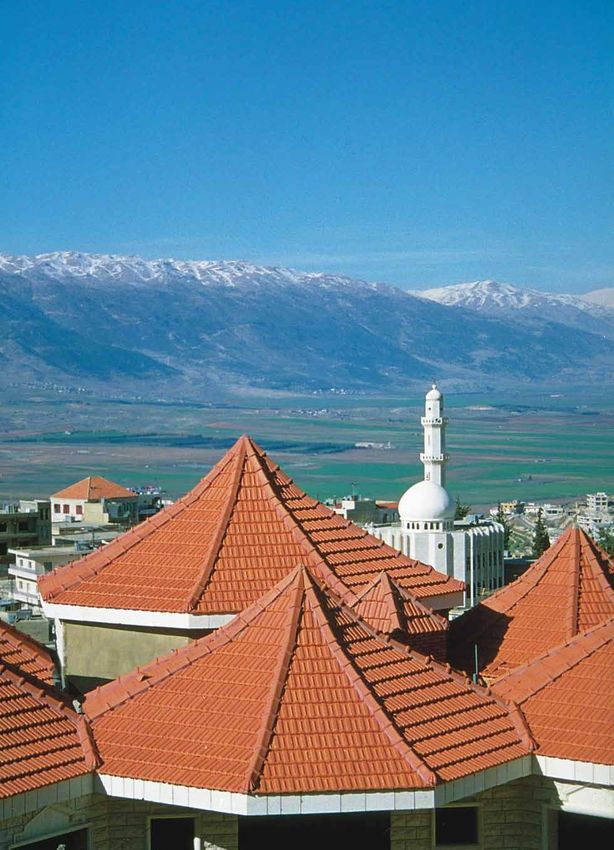

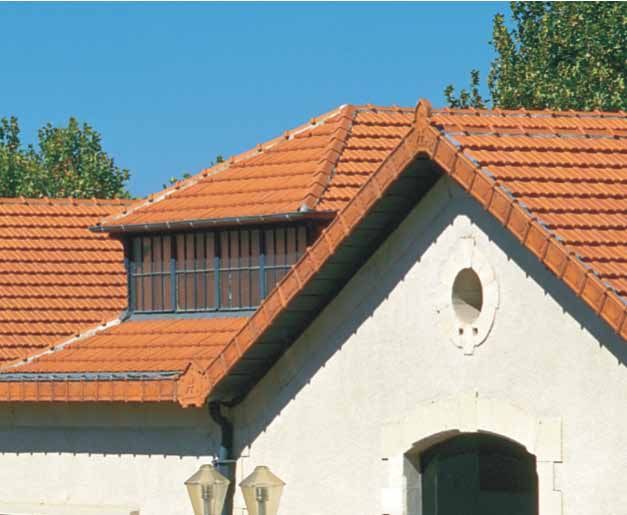

STRUCTURAL DATA FRANCE ITALY
MARSEILLE Tile Size [mm] 433 x 260 412 x 250
Weight/piece [kg] 3,4 2,9
Dating back to 1874, the Marseille tile was first produced at the Marseille’s tile works in France thereby deriving its name.
Weight/m² [kg/m²] 42,5 - 47,6 40,6
A “Bee” mark imprinted on the top of the tile is a unique and exclusive feature to the Monier Group import.
The authentic red colour and unique features capture the unique appeal of Southern Europe and the Covering capacity tiles [pcs/m²] 12,5 - 14 14
landmark views of the red roofs. Linear Cover [mm] 223 221
Min. pitch 17° 19.5°
Treble lock and double lappin, variable gauge [mm] Variable gauge: 360 - 320 Batten gauge: 300 - 350 (recommended 345)*
Laying Application Broken bond (from right to left) Broken bond (from right to left)
Undertile membrane Recommended at all pitches 19° - 25°
MARSEILLE FRANCE
MARSEILLE ITALY
RED
STRUCTURAL DATA
OCCITANE Tile Size [mm] 477 x 302
Weight/piece [kg] 4,2
L’Occitane has character like the wine regions of France. Its grand mould simulates a gauge, and
Weight/m² [kg/m²] 42
has double lock and double lapping. The subtle variety of colours that the Occitane Silvacane
range displays, gives a unique charm and patina of age. Covering capacity tiles [pcs/m²] 10
Linear Cover [mm] 235
Min. pitch 17.5°
Batten distance [mm] 425*
Laying Application Straight bond, right to left
Undertile membrane Recommended at all pitches 17.5° - 25°
SILVACANE LITTORAL SILVACANE XAHARA RED

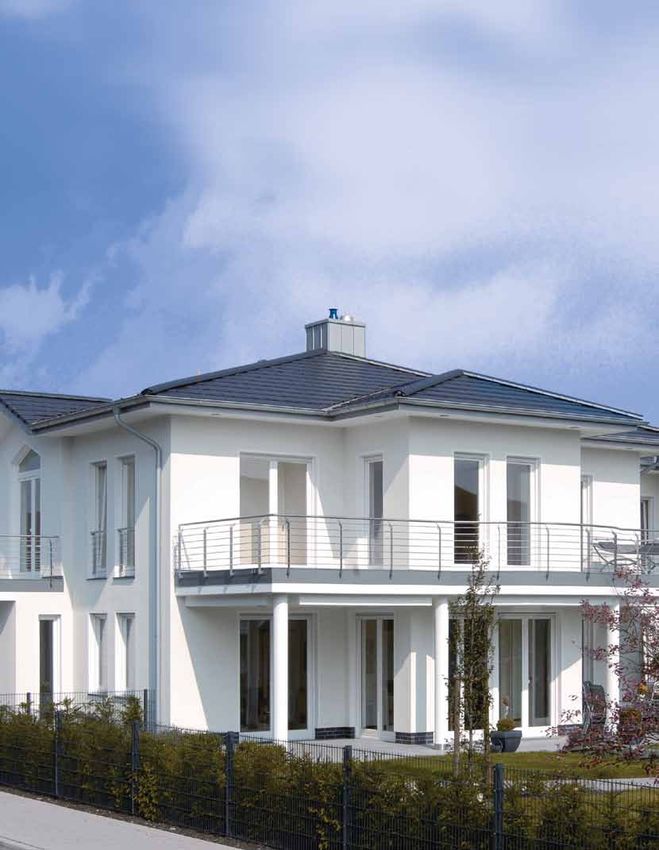

TOURMALINE STRUCTURAL DATA
Tile Size [mm] 280 x 475
The Tourmaline clay tile is the first flat clay profile in the Coverland Collection. Its linear
nature underlines the special character of a purist roof. This tile gives the roof Weight/piece [kg] 4,4
a visual serenity and balance.
Covering capacity tiles [pcs/m²] 11,0 - 11,8
Min. pitch 30°
Batten distance [mm] 355 - 380*
Laying Application Straight and Broken bond
Linear cover [mm] 238**/240
**Anthracite
NATURAL RED ANTHRACITE
CLAY FITTINGS
Ridge Hip Starter Three-way Ridge
No. per LM 3.3 tiles No. per LM One No. per LM Where necessary
Fixing 405 - 280 mm Fixing 405 - 280 mm Fixing 440 - 475 mm
Mass 3,1 kg Mass 3,2 kg Mass 5,2 kg
Four-way Ridge Interlocking Hip Tile 40 Interlocking End Hip 40
No. per LM Where necessary No. per LM 2.5 tiles No. per LM Where necessary
Fixing 405 - 405 mm Fixing 435 - 250 mm Mass 3,3 kg
Mass 8,6 kg Mass 3 kg
Three-way Junction Half-round Ridge/Hip Tile 50 End Hip Tile 50
No. per LM Where necessary No. per LM 2.5 tiles No. per LM Where necessary
Mass 3,5 kg Fixing 470 - 240 mm Mass 4,2 kg
Mass 4,3 kg
Coverland mortarless Dry Ridge is recommended for laying of ridges and fittings. Laying specification for all fittings is overlapping.
Visit the website for further information.
DISCLAIMER: The Coverland Clay tile ranges are sourced from Germany, Italy and France. Minimum 6-8 weeks lead time on all clay tile orders once payment is received. The colour of all illustrations may vary due
to the printing process.We recommend that you view actual tile samples before reaching a purchase decision.The tiles are made of natural raw materials. Production-related variations in colour or surface texture within a
narrow tolerance range are therefore quite normal for samples and delivery batches. * It is advisable to measure approximately 20 tiles on site before battening the roof as the tile sizes can vary during the firing of the clay.
