THE DELHI METRO PROJECT - Presented by: Anshul Chaudhary Meenu Francis Rishav Raj Sashi Ranjan

THE DELHI METRO
PROJECT

    Presented by:
                    Anshul Chaudhary
                       Meenu Francis
                           Rishav Raj
                        Sashi Ranjan

DELHI AND THE NEED FOR AN
MRTS
„ The capital city observes a phenomenal
  growth in population, being about 13.8 million
  today
„ About 11.7 million transit trips per day
„ 62%- public transport
„ 99% road based
„ 1% rail based

STUDIES FOR THE METRO
„ 1989: Rail India Technical and economic Services
  (RITES), commissioned by the State Government of
  Delhi and the Central Government of India,
  conducted feasibility studies

„ Recommended a rail- based system comprising of
  underground, elevated and surface corridors of 198.5
  kms

ADVANTAGES OF A RAIL-BASED
SYSTEM
„ High carrying capacity
„ Non-polluting and environment friendly
„ Utilizes only one-fifth energy per passenger
  km compared to road transport
„ Use less space for carrying same amount of
  traffic
„ Fast, reliable, safe and comfortable for the
  commuters

THE DELHI METRO RAIL
                    CORPORATION

„ DMRC was registered in May 1995

„ Equal equity participation by Central
  Government and Delhi State Government

FUNDING

                      28%- Equity Contributions
                      by Central and State
                      Governments

60%- Japanese Govt.

                          7%- Property
                          Development

                      5%- Interest free
                      Subordinate loan

THE COMPLETED PHASE
„ Construction began on 1st October 1998
„ Phase 1 consisting of three lines and 65.10 km is
  fully operational
„ Line 1:
 - Opened in 3 stages
 - 8.5 kms between Shahdara – Tis Hazari
   inaugurated by the Prime Minister of India on 24th
  December 2002.
 - 4.7 kms between Tis – Hazari and Inderlok
   0n 3rd October 2003.
 - 8.8 kms Inderlok- Rithala section on 31st march,
  2004

„ Line 2:
 - Underground Corridor
 - First section between Vishwavidyalaya
   and Kashmere Gate, covering 4 kms
  inaugurated by Dr. Manmohan Singh on 19th
  December, 2004
 - Second section between Kashmere Gate and
  Central Secretariat, was inaugurated by Mrs. Sonia
  Gandhi, on 2nd July 2005
 -Kashmere Gate and Rajiv Chowk are interchange
  stations

„ Line 3:
   - Dr. Manmohan Singh inaugurated the
  Barakhamba road – Dwaraka on 30th
  December 2005
   -on 31st December, 2006 6.4 kms and 6
  stations were added with extension of line
  into Dwaraka sub city
   - on 11th November, 2006 2.81 km extension
  linking Barakhamba Road with Indraprastha
  completed

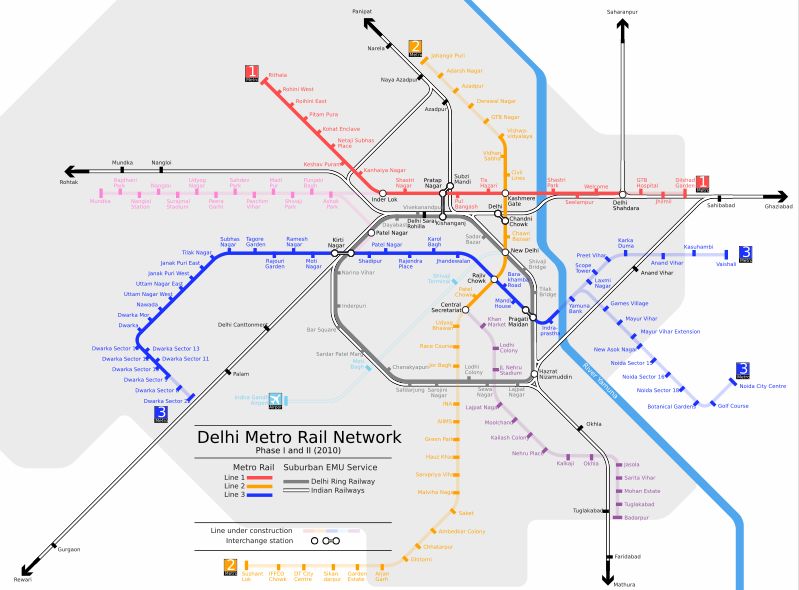

Plan of Phase 2

Metro Timings
„ The trains start at 6 am and run till almost 11
  pm in the night.

„ The trains on the elevated section between
  Shahdara and Rithala cover a distance of
  22.8 Kms in about 39 minutes. The frequency
  of train services in the elevated section varies
  from 4 minutes during peak hours upto 12
  minutes during non peak hours.

„ On the Underground section the train frequency
  varies from 8 minutes at peak time upto 12 minutes in
  non peak hours. The 11 Kms Underground section
  between Vishwavidyalaya and Central Secretariat is
  covered in 18 minutes 30 seconds approximately.

„ Line III (Barakhamba - Dwarka Sector 9) cover a
  distance of 29.29 Kms. The frequency varies 8
  minutes at peak hours and 12 minutes in non peak
  hours. The 29.29 Kms section between Barakhamba
  - Dwarka Sector 9 section is covered in 55 minutes
  30 seconds approximately.

SYSTEM
PARAMETERS

TRACTION

 - Lines 1,2 and have 25 KV Ac traction line
 - Line 2 and underground portion of line 3 are
 provided with 25 KV rigid catenary system
 - Line 1 and elevated section of line 3 use
 flexible catenaries

ROLLING STOCK

„ The Metro rolling stock is being manufactured
  by a consortium comprising ROTEM (formerly
  KOROS), Mitsubishi Corporation, and
  Mitsubishi Electric Corporation. The trains
  were initially built in Korea and imported. Now
  assembly work has begun at an Indian facility
  by Bharat Earth Movers Limited and we are
  moving gradually towards a 100% indigenous
  construction.

- 3.2 mtrs light weight modern state-of-the-art
coaches with 8 cars train formation
-Stainless steel shells
- 3 phase motors
- chevron rubber/ air bag suspension system
and regenerative system

SIGNALLING

 -   Continuous automatic signaling with automatic
     train supervision and protection
 -   Underground Line 2 is equipped with
     Automatic Train Operation system (ATO),
     being introduced for the first time in India

TELECOMMUNICATION

- State-of-the-art fibre optic Transmission
System
- Close Circuit Television for underground
Line No. 2 and for curved platforms in Line
No. 1
- Master clock
-Centralised Public Address System and
Public Information Display System

TRACK STRUCTURE

 „   Built on broad gauge with 60kg Head
     Hardened rails and Vossloh fastenings without
     ballast

FARE COLLECTION

- Fully automatic Ticketing System
- Passengers can use smart cards and contact-less tokens
- tokens are for single journey while smart cards are for multiple
journeys
-Stored Value cards available in denominations of Rs 100, Rs.
200,
Rs. 500
-Tourist cards are for unlimited travel over short period of time
like 1 or 3 days.
-Maximum Fare: Rs. 22/-
-Minimum Fare: Rs. 6/-
-Automatic flap type ticket gates installed

Other Resources
„ Park and Ride facilities have been provided for
    private vehicle owners
„   Special feeder buses are also provided
„   World Class Safety Standards have been ensured at
    all stations and on train.
„   All geared to evacuate passengers within 5.5 mts
    from elevated stations and 4 mts from underground
    stations
„   Operational Control Center ensures that if a train
    breaks down others will stop at a safe distance
    automatically

„ Trains and all underground stations have been air
  conditioned and tunnels ventilated
„ Train frequency of 3mts during peak hours to carry
  60,000-75,000 passengers per hour each way
„ Maintenance Depots at Shastri Park, Khyber Pass
  and Najafgarh
„ Gradual Indigenisation: After initially importing the
  coaches, they are presently being made by Bharath
  Earth Movers Ltd.(BEML), Bangalore

„ All stations have ATMs, food outlets, coffee
  shops, newspaper vendors etc. In addition,
  the areas around the stations have been
  given in lease for development of
  supermarkets, commercial establishments
  and office buildings which would act as
  additional revenue source.

A MARVEL OF
INNOVATIVE
CONSTRUCTION

THE HIGH TECH UNDERGROUND
PROGRESS
„ U/G section developed with the latest
  International Technology
„ Has 10 stations
„ Maintenance depot along with coach
  stabilising facilities developed at Khyber Pass
  area
„ Rock TBMs used for boring Quartzite rock
  sections
„ EPBM for boring softer soil
„ NATM also used

THE YAMUNA BRIDGE
„ Completed on 2nd February 2001 in just 30
  months
„ Special technique - Incremental Launching
„ 553 metres long and continuous
„ Single pre-stressed box girder
„ No joints and smoother journey

BALLASTLESS TRACKS

„ Used on elevated viaduct and underground
  corridor
„ Minimised track maintenance
„ Reduce running dimensions on structures
„ Minimal vibrations
„ Greater riding comfort
„ Higher safety

SPECIAL FEATURES OF
UNDERGROUND METRO
„ Air conditioned
„ Extremely Modern Train Operations and
  Signalling Systems with ATO
„ Lifts and escalators at all stations
„ Carrying capacity of lifts - 13 persons
„ Close Circuit Television coverage
„ Mobile connectivity at all stations and inside
  train

ELEVATED SECTION
„ Built on single piers
„ General height – 10 meters
„ Segmental construction technique

TECHNOLOGICAL EXTRA DOSE

„ India’s first extra dosed bridge near Pragati
  Maidan
„ Main span 93 metres long and no piers to
  support
„ Total length – 196.3 metres
„ Radius of curvature – 302 metres as required

FUTURE PLANS
„ Airport link through a 19.5 km long corridor,
  total journey taking about only 16 mts.
„ Check-in facilities will be available at the
  stations
„ Connecting the outskirts to the main city.

Metros in other Indian Cities
„ DMRC has prepared detailed reports for
  Bangalore, Hyderabad, Mumbai,
  Ahmedabad, Kolkatta and Kochi metros
„ The State Govt of Tamil Nadu has
  approached DMRC for a detailed project
  report for the Chennai Metro

„ Thank You
