The Spanish Transmission Grid: from an “isolated grid” to an “integrated grid” José Luis Fernández 8th Workshop of the International Feed-in Cooperation (IFIC) November 18th-19th, 2010
Spanish Peninsular Power System.
Installed Capacity (July 2010)
Energy Supplied (year 2009)
Photovoltaic Minihydro
30% of the 2,0% 2,0%
Energy Rest of special Hydro‐power
produced regime 8,9%
Nuclear
12,4%
by special Wind 19,1%
regime 13,7%
Coal
12,1%
Combined
cycle
29,0%
2
Fuel‐Gas
0,7%
Spanish Peninsular Power System: Present
wind power capacity and evolution.
22.000
20.000 19.440
Eólica 18.119
18.000
Solar 15.873
16.000
14.000
13.467
12.000 11.099
9.653
MW
10.000
8.304
8.000
6.138
6.000 4.927
4.000 3.442 3.459 3.635 3.874
2.298
1.525
2.000 798 701
1831 4281 2 2 4 7 11 23 47 146
1
0
1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Source: Wind Power : Sep 2010 REE/ Solar: Jun 2010 CNE
Maximum share of demand : 54% (09/11/2010)
Maximum instantaneous production 14.962 MW (09/11/2010)
3
Some Spanish System data: Prevision of
installed capacity
Evolución de potencia instalada - Previsión REE
Previsión de evolución de potencia instalada
140
120
100
80
60
GW
40
20
0
2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
R.E. Renovable 21.881 24.964 27.156 30.138 32.899 35.087 37.222 40.624 42.807 44.902 46.823 48.691 50.392
R.E. No Renovable 6.529 6.750 6.800 7.200 7.650 8.100 8.590 9.040 9.380 9.670 9.920 10.170 10.320
Turbinas de Gas 0.300 0.000 0.000 0.000 0.000 0.000 0.000 0.100 0.200 0.300 0.400 0.500 0.600
Ciclos Combinados 21.420 22.920 23.720 25.000 25.000 25.000 25.000 25.860 27.510 28.830 29.260 30.090 31.380
Fuel-gas 3.900 2.530 1.540 1.250 0.840 0.510 0.000 0.000 0.000 0.000 0.000 0.000 0.000
Carbón 10.870 10.870 10.870 9.650 9.650 9.650 9.360 8.560 8.170 7.960 7.960 7.960 7.610
Nuclear 7.470 7.470 7.470 7.470 7.470 7.010 7.010 7.010 7.010 7.010 7.010 7.010 7.010
Bombeo puro 2.667 2.667 2.667 2.667 2.667 3.507 3.507 3.507 3.907 3.907 5.233 5.443 5.753
Hidráulica convencional 14.429 14.430 14.450 14.490 14.490 14.720 14.730 14.730 14.730 14.880 14.880 14.880 14.880
4
Installed capacity by 2020
40% RES
150 GW
38000 MW of wind power
13000 MW of solar power
5
Expected demand 60 GW
Energy production in 2020 (estimation)
41% RES
6
Wind Power penetration with respect to peak load
80,00
PT
70,00 Penetración 2008
Penetración 2015 ES
60,00
DK DE
50,00
%
40,00
NL
30,00
UK GR
20,00
AT BE
CZ FR SWE
PL
10,00 HU IT
FI NO
7
0,00
Wind Power penetration with respect to minimum load
180,00
DE PT
Penetración 2008 ES
160,00
Penetración 2015
140,00
120,00
100,00
%
GR
DK
80,00
NL
60,00 UK
SWE
40,00 AT FR
BE CZ
PL
HU IT
20,00 FI NO
8
0,00

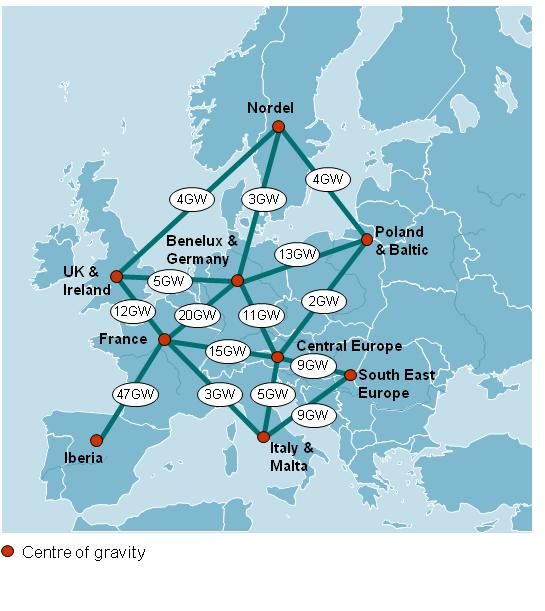

The Iberian System has the highest wind penetration
For Spain and Portugal, due to the weak interconnection Spain –
France, the relevant system for wind penetration is the Iberian
System.
For Germany, Austria… given the strong interconnections, the
relevant region for wind penetration is the whole central Europe:
Germany, France, Switzerland, Italy, Netherlands, Belgium,
Austria,. Czech Rep., Slovak Rep., Hungary and Poland.
Wind Penetration Central European System :
2008: 11% ; 2015: 22%
But with respect to
Values referred to minimum load, wind
peak demand 2008 penetration in 2015
Wind Penetration Iberian System: will be 160% !!!
9
2008 : 31% ; 2015 : 64%
Challenges integrating high volume RES integration
Variability of RES production.
RES Production forecast.
Distributed generation(high geographical and property
dispersion)
Who provides the needed ancillary services?
Balancing in off peak situations with high wind production.
Technological issues: fault ride through capability (solved),
no short circuit current from RES generation, voltage
control, frequency control. R&D in progress.
System Flexibility : Storage, Higher export/import capacity,
Demand to follow RES production (Smart Grids)
10
Network developmentHow to integrate large renewable capacity in the
system? REE solutions for secure RES integration
• Wind Farm Requirements and Power system studies: network
codes
• RES production forecast tools: Sipreolico, SiprePV (under
development)
• RES Monitoring and controllability with CECRE (Pioneer control
centre for RES integrated in the national control centre)
¾Curtailment orders given when needed and followed
reliably
• Pumping Storage (new 3000 MW to be installed by 2020)
• DSM including electric cars charging (Smart Grids)
• Network Development :
• Internal network reinforcement
• New Interconnections 11RED ELÉCTRICA DE
