Trends in Supermarket Architecture E360 Forum • Houston, TX • October 25, 2018 Andre Patenaude Director, Food Retail Marketing and Growth Strategy Cold Chain Emerson
Food Retail Is Dealing With Extraordinary Dynamics
Consumer Driven Operations Driven
Digital Shoppers Regulations
Seamless Desktop + Mobile + In-Store F-Gas + EPA + CARB + ECCC+ DOE =
Experience Complexity
Focused on Convenience Technician Shortage
Do more with Less, Last-Mile Challenge Complexity vs. Simplification
Experiential Retail IoT & Cloud-Based Services
Retail-tainment Simple, Safe, Sustainable
New Retail Formats Energy Costs and Incentives
Retail/Foodservice Blurs Demand Peak Charge, Time of Use Rates
Strategic Locations New System Architectures
Urban, Smaller, High-Turnover Products Steep Learning Curve
2
Digital Shoppers – Seamless + Mobile + In-Store Experience
3
Focused on Convenience – Last Mile Challenge
4

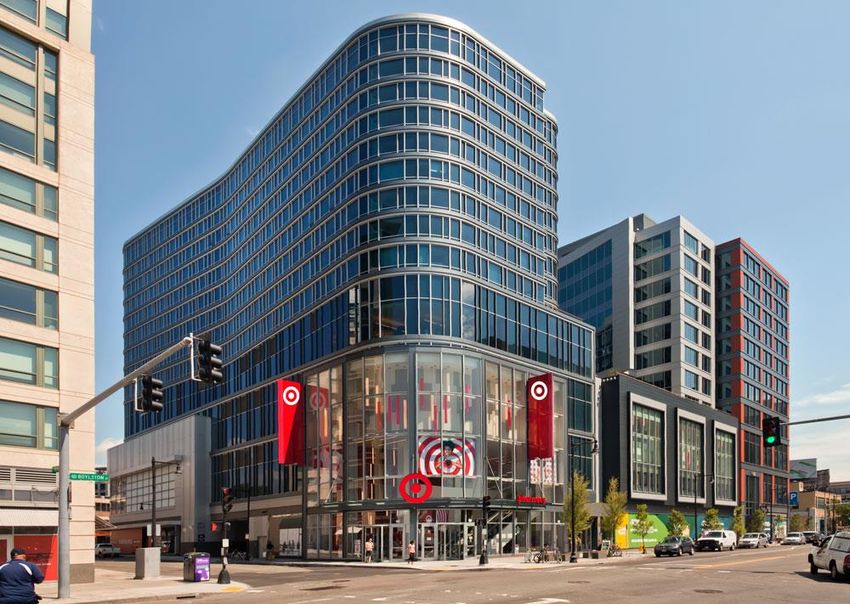

Strategic Locations, Urban, Small
5
IoT Cloud Based Services
6

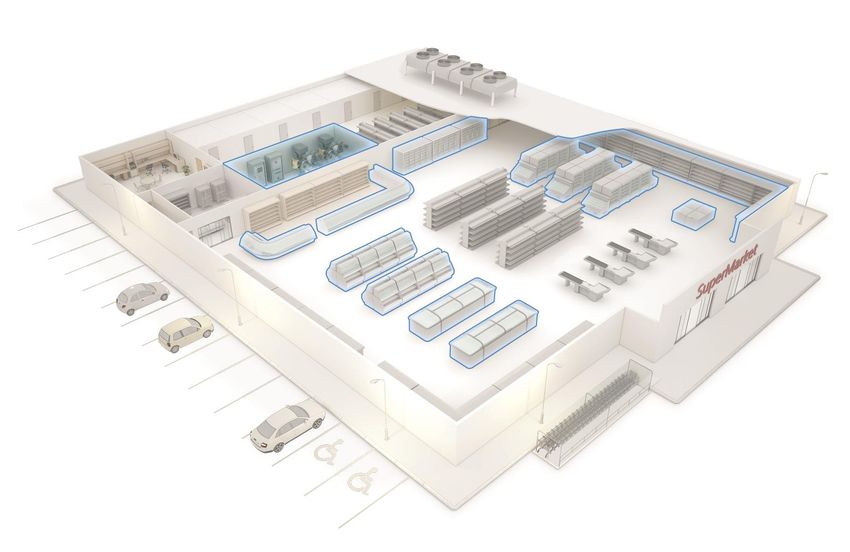

Ecosystem Management & Energy Costs
Lighting
Food Waste
Cargo Monitoring
Recycling
Cold Rooms
Bakery
Supervisory &
Building HVAC
Management
Enterprise
Monitoring
Refrigeration Evaporator
Controllers
7
CARB Rulemaking #2 (in part) (Oct.24th Meeting)
Pressure = A1 Non-Flammable = A2L Mildly Flammable
CO2 = A3 Flammable = B2L Toxic, Mildly Flam.
AC 2023/24
R32 R410A
R410A “US
Like
Climate
Alliance”
NH3
R444B May
R404A R404A
Like R290
R448A R407A
(3922)
Follow
CA Lead
1234yf R515A R513A R134a
R134a
Like
GWP Level
500 1000 1500 2000
CARB 2021 (New) CARB 2021 (New)
>50 lbs charge
Refrigerant & Architecture Decisions In
Refrigerant ContextDecisions
& Architecture of Store Format
In Context of Store Format
Holistic Facility Approach to Equipment Selection
Key Variables Stakeholders Trends
Toxicity New Formats
Legal
Equipment Flammability
Operations
Lack of Technicians
Pressures Experimental Choices
Utility Incentives
Heat transfer, Energy Mgr.
Energy latent heat Design Eng.
Clean Energy
System Integration
Revenue CEO E-Commerce
Economics First Cost Merchandizing Millennials
TCO Finance Fresh, Urban Stores
GHG Reduction Sustainability Natural & Low GWP
Environment Targets Officers Refrigerants Options
12End Users/Operators – What Do They Want?
13End Users/Operators – What Do They Want?
Sustainable Stable
Simple
Serviceable Secure SmartQuotes from Various Food Retail Engineering Managers
“Preferred system is plain, simple DX “The biggest desired improvement is an open
refrigeration” with some “intelligent design” that protocol system where all monitoring devices across
improves overall energy efficiency” equipment and the whole building have the ability
simple - smart - sustainable to communicate with one another.” -smart-
“I believe in keeping things simple.” “We have to move to green!”
-sustainable-
“ One of my biggest pet peeves is the various
telemetry systems we have. It would be “We see case controllers as simple because we’ve
ideal to have one system, at a high level, and trained our techs on them. We put the time and
to have that information pushed to me effort in to training.” -simple-
globally.” -smart-
“One of the things we need to see, we’re going
“ As far as what’s out there today, & as far as me
to see, is more of a plug-and-play type
protecting the company; still lean to strong DX operation
situation.” -simple-
with ease of operation ” -safe/stable/simple-
“We keep our Design Relatively simple DX refrigeration”
15Future Refrigerant Options For “Future
A1 Non Flammable
Growing/Decreasing
A2L Mildly Flammable
Proof” Systems in North America A3 Flammable Likely Refrigerant After 2021
Food Service / Cold Rooms Micro Distributed & De-Centralised Retail Centralised
Remote Unit - Cold Rooms Integrated Display Cases Centralised Racks Hybride / Cascade

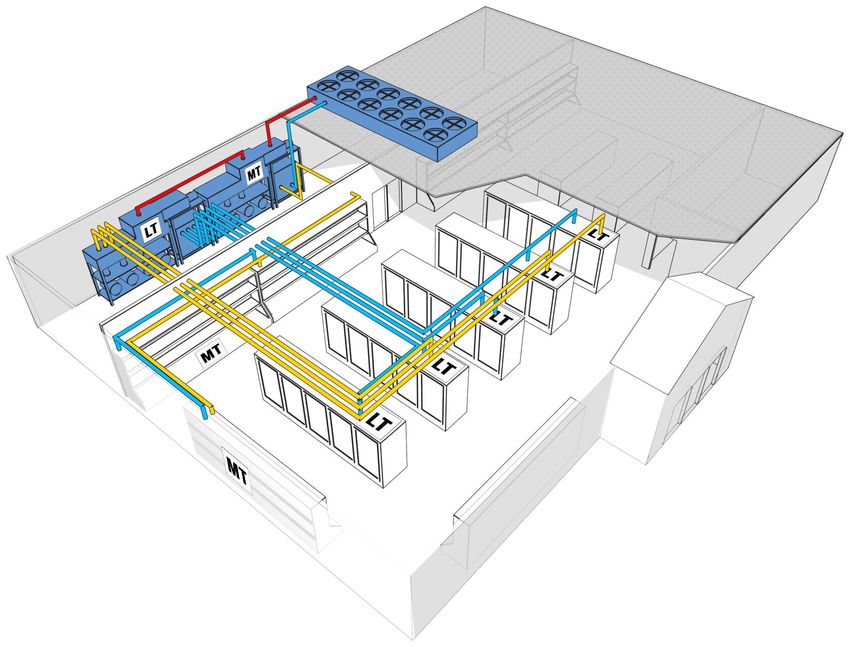

A1 (Large Centralized DX
• Most Common Architecture
• Many Refrigerant Options: R22, R404A, R407A&F (High GWP)
• Highest Average Leak Rates, 25% Ave
(Targeted by Global Refrig Reg.)
• Highest CO2e or LCCP footprint
• Thousands of feet of pipe
• 3000lbs+ per System
• Familiar, Simple
MT
LT Today Future

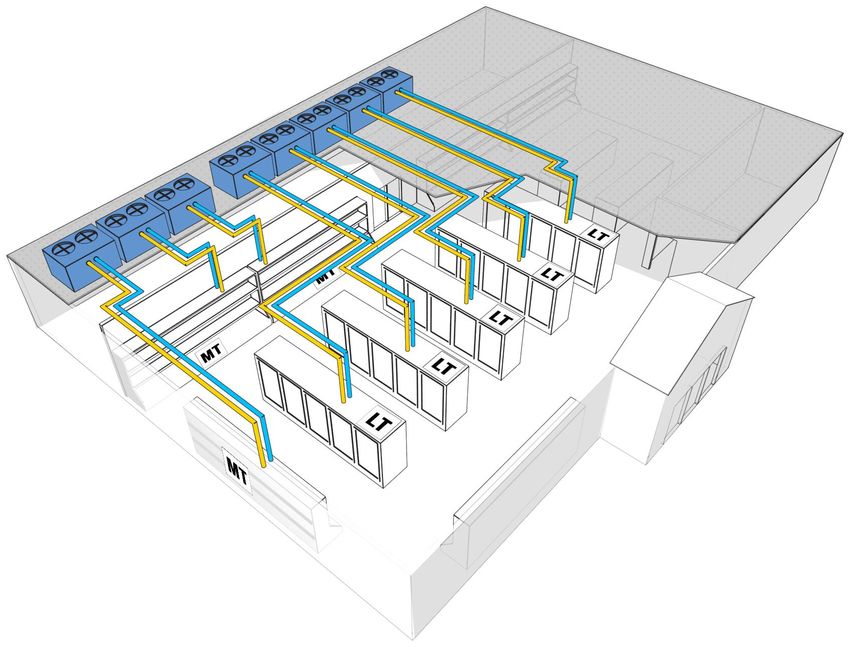

A1 CO2 CO2Individual Condensing Units
• Simple, Stable, Serviceable
• Equipment redundancy
• Optimize suction pressure form MT & LT
• Many A1 refrigerant options
• Lower leak rates in store Vs centralized
• Too many unit for large supermarket
• Poor remote visibility
• Difficult to pull performance data
• High maintenance cost
Today Future
A1 Application Specific

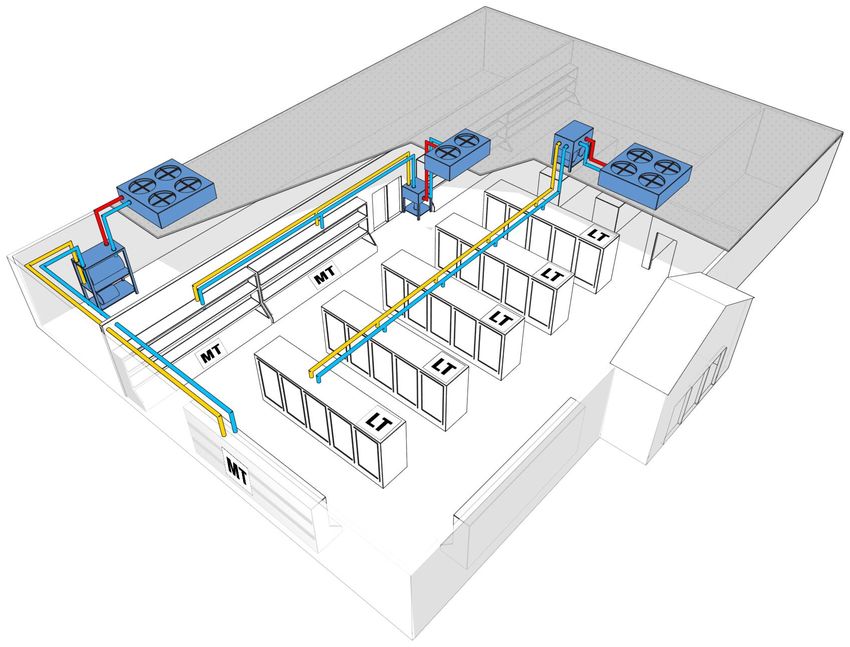

A1 (Distributed DX
Multiple Units Distributed Throughout Store
• Many A1 Refrigerant Options
• Optimize Suction Pressure for MT & LT
• Lower charge Vs centralized
• Location flexibility
• Small footprint
Low Temp Medium Temp
Condenser Condenser
Today Future
A1 Application Specific

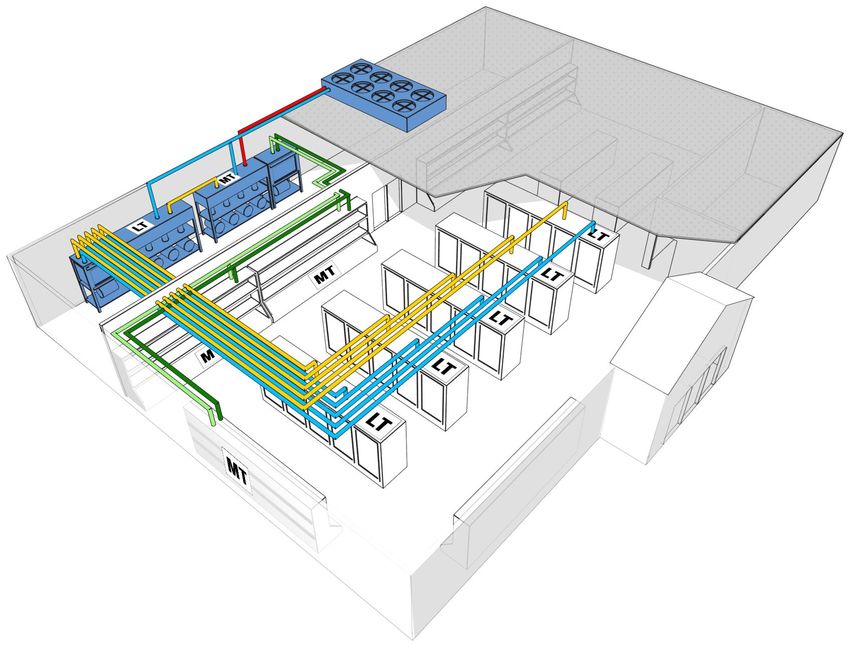

A1 (Indirect Systems Chiller MT – Indoor Machine Room
Chiller MT
• Niche Application
• Commercial /Industrial
• HFC/HFO & Natural Option
• Full Natural Option
• Low Charge MT Chiller
• Low LCCP
• AHJ Approvals (for A3, A2L)
Today Future
MT

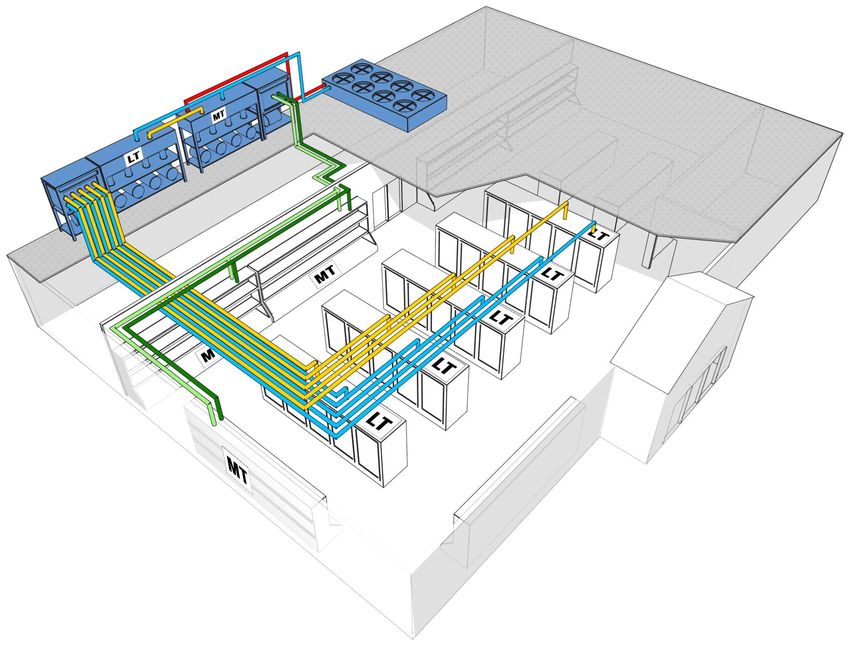

HFC A1 HFC A1Indirect Systems Chiller, MT, A3, A2L, B2L, Outdoor Machine Room
Chiller MT
• Niche Application
• Commercial /Industrial
• HFC/HFO & Natural Option
• Full Natural Option
• Low Charge MT Chiller
• Low LCCP
• AHJ Approvals
Today Future
MT

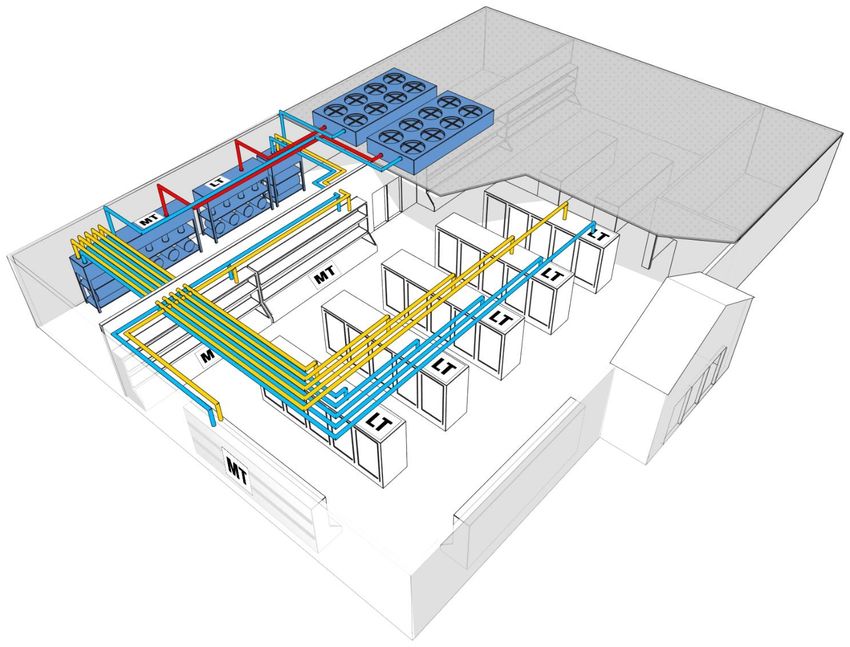

HFC A1 HFC A1Hybrid Cascade Centralized, MT DX (
CO2 Booster Transcritical
• All Natural Solution, 0 ODP, 1 GWP 1 , A1
• Higher Pressures Vs HFC
• Higher Standstill Pressures Vs HFC
• Good Low Ambient Performance
• Long Piping runs
• High Ambient Strategies Required to
Improve Performance
Today Future
CO2 A1 CO2 A1Integrated Case or Micro Distributed
• R-290 150g Limit, Future ?
• A2L 500g Limit, Future ?
• Water loop or Air Cooled Condensing
• Heat Pump Integration Option
• Flexible
• AHJ Approvals
Today Future
HFC A1 HFC A1Self Contained Packages Systems • “Window Shaker Like” for Refrigeration • Evaporator & Condenser on Same Frame • R290 Compatible due to low charge •
Self Contained Packages Systems • “Plug and Play” • Evaporator & Condenser on Same Frame • R290 Compatible due to low charge •
Self Contained
Cases
• “Plug and Play”
• Evaporator / Condenser on Same Frame
• R290 Compatible due to low charge
• Roof Mount
• Side Mount
Today Future
R290 A3
A1 HFO A2LRefrigeration Solution
Safe and Flexible Retail Solutions For All Store Formats of the Future
Cargo Food Waste
Monitoring Recycling 4 Food Service Units
Cold Rooms Bakery
Supervisory & Cold Room Solutions
Building HVAC Restaurants/ Catering / Kitchens
Enterprise Management Stations / Urban Stores / C-Stores R290 (150g) or A2L Limited
Monitoring A1Thank You!
Questions?
