Uniclass L5367 EPIC E42 CI/SfB (71.3) X creating better environments January 2015 ENTRANCE FLOORING SYSTEMS RIGID AND TEXTILE

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

4 Contents INTRODUCTION 1 Entrance flooring systems save money... 1.0.1 ... and protect people and interiors 1.0.2 Which entrance flooring system should I choose? 1.0.3 What do I need to consider? 1.0.4 Why choose Nuway? 1.0.5 Nuway – the range at a glance 1.0.7 Why choose Coral? 1.0.9 Coral – the range at a glance 1.1.1 Reversible NUWAY entrance FLOORING systems 2 Nuway Tuftiguard 2.0.1 Nuway Tuftiguard technical specification 2.0.3 Nuway Tuftiguard HD 2.0.5 Nuway Tuftiguard HD technical specification 2.0.7 Nuway Flameguard 2.0.7 Single sided NUWAY entrance FLOORING systems 3 Nuway Connect 3.0.1 Nuway Connect technical specification 3.0.5 Nuway Grid 3.0.7 Nuway Grid technical specification 3.0.9 Forbo’s FESSI network 3.1.0 Nuway ADDITIONAL INFORMATION 4 Nuway site preparation and matwell measuring 4.0.1 Nuway accessories 4.0.2 A collection of rigid entrance systems for entrances with very heavy or intense traffic.

A collection of textile clean-off products for entrances with heavy traffic.

Coral – textile clean-off systems 5 Coral Duo 5.0.1 Coral Duo technical specification 5.0.2 Coral Brush Pure 5.0.3 Coral Brush Pure technical specification 5.0.4 Coral Brush Blend 5.0.5 Coral Brush Blend technical specification 5.0.6 Coral Welcome 5.0.7 Coral Welcome technical specification 5.0.8 Coral Classic Sheet 5.0.9 Coral Classic Sheet technical specification 5.1.0 Coral Classic Tiles 5.1.1 Coral Classic Tiles technical specification 5.1.2 Coral Grip 5.1.3 Coral Grip technical specification 5.1.4 Coral Logo 5.1.5 Coral Logo technical specification 5.1.6 Coral T32 Marine 5.1.7 Coral T32 Marine technical specification 5.1.8 ADDITIONAL INFORMATION 6 Adhesive guide 6.0.1 Forbo Floor Care Method – Nuway Tuftiguard 6.0.2 Forbo Floor Care Method – Nuway Tuftiguard HD 6.0.2 Forbo Floor Care Method – Nuway Tuftiguard Black Anodised 6.0.2 Forbo Floor Care Method – Nuway Bamboo 6.0.2 Forbo Floor Care Method – Nuway Connect 6.0.3 Forbo Floor Care Method – Nuway Grid 6.0.4 Forbo Floor Care Method – Coral Textile 6.0.5 Forbo Floor Care Method – Coral Grip 6.0.6 Creating Better ENVIRONMENTS 7 other forbo brands 8 what to do next 9 WHY DEAL WITH MULTIPLE SUPPLIERS WHEN YOU CAN DEAL WITH ONE? FORBO FLOORING SYSTEMS IS A GLOBAL PRODUCER OF FLOORING SOLUTIONS.

Our flooring solutions offer includes: • Environmentally friendly, functional and design-oriented Marmoleum • An extensive range of sheet Project vinyls, Acoustic vinyls and Safety vinyls • Static control flooring for areas with sensitive electronic equipment • High quality European manufactured Luxury Vinyl Tiles • Entrance flooring systems that keep interior floors clean, dry and safe • Carpet tiles for both public and commercial environments • Flocked sheet and tile for areas that need the benefits of both textile and resilient floor coverings • Cushioned vinyls for the home Here is a selection of the thousands of men and women that create Forbo floor coverings in 12 manufacturing sites across Europe, including five in the UK.

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

1.0.2 1.0.1 Research shows that up to 94% of the dirt entering a building is brought in on the soles of shoes and the tyres of wheeled traffic. This wet and dry soiling makes interiors look dirty and unattractive, causes structural damage to interior floor coverings and finishes and creates unnecessary health and safety hazards. If effective measures are not taken to avoid this problem, the repair and maintenance costs of a typical floor covering over its lifespan could be nine times the cost of the original investment. A well designed entrance flooring system will prevent dirt and moisture from being tracked in and thereby prolong the life of interior flooring and reduce cleaning, repair and overall maintenance costs.

ENTRANCE FLOORING SYSTEMS SAVE MONEY ... 86% of the total cost of commercial floor coverings is maintenance Maintenance cost of buildings Sanitary 25% Flooring 60% Interior 15% Cost of floor coverings Purchase Repairs Maintenance Introduction to Forbo Entrance Flooring Systems | 1 Equality Act 2010 British Standard 8300: 2009+A1:2010 Design of Buildings and their approaches to meet the needs of disabled people – Code of practice ”…The ingress of soil and surface moisture to buildings, or their transfer between adjacent internal areas, should be reduced to the lowest practical level, e.g. through the use of appropriate entrance matting systems conforming to British Standard 7953…” Loose lay mats and coir are advised against.

The role of an entrance flooring system British Standard 7953 Part 5.1 “The entrance flooring system should scrape, wipe and retain soil, making contact with both feet of people entering the building and, in the case of wheeled traffic, with the circumference of the wheels.” British Standard 7953: 1999 states that an EFS is necessary in order to: • Reduce the risk of slip injuries • Prolong the life of the interior floor finish • Reduce the cost of ongoing maintenance ... AND PROTECT PEOPLE AND INTERIORS Wet and dry soiling can both create slip hazards but by taking sensible decisions over flooring surfaces and installing effective entrance matting, the potential for slipping can be dramatically reduced.

There are two major pieces of legislation/guidance documents that affect the specification of EFS’s. British Standard 7953: 1999 Part 3.1 Guidance document • Definition of an EFS • The role of an EFS • Product types British Standard 8300: 2009+A1:2010 Making entrances safe and accessible for all.

The British Standard states why we need an entrance system and also what its role is. Health and Safety and the Equality Act legislation imposes a duty of care on those who own and manage public buildings to prevent interior floor surfaces from becoming hazardous. Entrance flooring systems also have a critical safety role to play. Slips, trips and falls made up more than half of all reported injuries in 2012/13 (source: RIDDOR) causing suffering and financial loss for individuals, companies and society at large. The safety needs of the elderly, the infirm and those with impairments must be given a high priority.

Floors must be kept clean, dry and safe and offer an appropriate co-efficient of friction (slip-resistance) for pedestrians and good wheel grip for wheel chair users.

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

1.0.4 1.0.3 WHICH ENTRANCE FLOORING SYSTEM SHOULD I CHOOSE? If you really want to keep your building clean and safe. It’s not enough to throw down a mat at the door. In fact the Health and Safety Executive advises against the use of loose lay mats which they state ‘can introduce a range of hazards and are not always very effective’. Source: HSE elearning module, ‘Watch your step’ APPLICATION 1 APPLICATION 2 APPLICATION 3 OUTSIDE USE Any matting placed outside the building entrance is the first line of defence against foot-borne soil, scraping the coarsest dirt from the soles of shoes before they cross the threshold.

INSIDE USE Moving inside, the next line of defence, is used to remove foot-borne moisture and finer dirt particles. OTHER CIRCULATION AREAS Other areas in the building also suffer from soil and moisture; reception areas, corridors, walkways to other parts of the building, elevators, staircase exits, etc. All these areas will be prone to residual soiling and will benefit highly from a purposely designed Coral entrance mat to absorb this soiling. 1 2 3 1 2 3 1 2 3 Creating an effective entrance flooring system involves thinking about footfall – the number of people walking in and out in a given period – and walking routes (the directions they take once inside) and applying that information in the design of the entrance area.

One of the best ways to plan an entrance flooring system is to think in applications: The table opposite is designed to help you select which Forbo entrance product best meets your needs, from our Nuway range of engineered mats to our Coral range of textile clean off systems. Introduction to Forbo Entrance Flooring Systems | 1 WHAT DO I NEED TO CONSIDER?

Application Intense traffic Extreme point loading Reversible Guarantee nuway® tuftiguard + 15 years* nuway® tuftiguard HD + 15 years* nuway® connect + 7 years* nuway® grid + 7 years* coral® grip MD + 5 years coral® grip HD + 5 years coral® duo + 5 years coral® brush pure + 5 years coral® brush blend + 5 years coral® welcome + 5 years coral® classic + 5 years coral® classic tiles + 5 years coral® logo + 3 years *Nuway installations undertaken by a Forbo Entrance System Specialised Installer (FESSI) are guaranteed for up to 15 years (7 years for Bamboo). DOUBLE DOUBLE DOUBLE DOUBLE Where to use? Internal or External? Reversible? Finishes – Reversible Removes Moisture Whichshould Ichoose? Guarantee Scraper bars Wiper strips Finishes – Single sided Carriers Inserts The location, type and level of traffic affects the choice of product.

Matting placed outside will defend against soil and the coarsest of foot-borne dirt. Inside it will defend against foot-borne moisture and finer dirt particles. Double sided rigid mats can be reversible, effectively doubling their lifespan. Please see the table below to see which products are reversible. There is a wide choice of wiper strips and scraper bars/ carriers and inserts to allow our Nuway mats to co-ordinate with all interior finishes. Removing moisture from the soles of shoes is vital to prevent slipping. Each product in our Nuway and Coral collections offers differing benefits and features.

See 1.0.7 and 1.1.1 for more details. Standard Guarantee is up to 10 years, depending on the product. Installations by FESSI’s (Forbo Entrance System Specialist Installer) have an extended guarantee*. Scraper Bars Wiper Strips As the name suggests, they scrape soil from the traffic walking across the mat.

Prime rubber and polyamide fibre remove moisture and fine dirt Single sided carriers Single sided inserts with crimping action to secure insert. Mix and match with Ultragrip rubber, bristle and a wide range of Coral inserts which allow colour coordination with interior finishes. DOUBLE DOUBLE 1 2 1 2 1 2 1 2 1 2 1 2 2 3 2 3 2 3 2 3 2 3 2 3 2 3

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

1.0.6 1.0.5 of aluminium and steel waste from our Nuway production is recycled. Nuway Tuftiguard HD is strong enough to cope with high point loads of up to 900Kg/cm2 . Nuway Tuftiguard is available in Bamboo, a sustainable species of grass.

Nuway Tuftiguard Bamboo is ideal for use alongside timber interior finishes. Nuway Tuftiguard Bamboo prevents strobing in bright entrances. of the aluminium used in Nuway Tuftiguard mats is recycled. Al Nuway Tuftiguard can be reversible, effectively doubling its life. + Nuway single sided ranges are available with Coral inserts for colour co-ordination. Most Nuway ranges offer a choice of open or closed construction to meet individual requirements. A collection of rigid entrance systems for entrances with very heavy or intense traffic. Introduction to Forbo Entrance Flooring Systems | 1 All Nuway mats can be customised with names, logos and corporate messages.

Can be colour co-ordinated with Coral textile entrance products. Nuway entrance systems use anodised aluminium to reduce reflection and glare. A well designed entrance system will prevent dirt and moisture entering a building, prolong the life of interior finishes, reduce cleaning and repair costs and prevent slips. Nuway Connect in open format is rollable for ease of cleaning.

Nuway grid is easy to shape on site. Available in both double and single sided versions to match all budgets. + WHY CHOOSE NUWAY?

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

1.0.8 1.0.7 A well designed entrance flooring system will prevent dirt and moisture from being tracked in, prolong the life of interior flooring, reduce cleaning, repair and overall maintenance costs and prevent slips and trips. The original and most widely used rigid entrance mat in the UK. Reversible, effectively doubling its lifespan and guaranteed for up to 15 years. Available in open or closed format with single or double wiper strips for increased moisture removal.

Tuftiguard plain Ideal for external entrances. Tuftiguard classic Our best seller. Tuftiguard design For increased colour and design. PAGE 2.0.1 Introduction to Forbo Entrance Flooring Systems | 1 Ideal for use alongside timber finishes and offering excellent sustainability credentials. The Bamboo scraper bars are available in Tuftiguard Classic or Tuftiguard Design.

All the benefits of Tuftiguard combined with a matt black aesthetic. The black anodised scraper bars are available in Tuftiguard Classic or Tuftiguard Design. Single sided product available with 15 inserts, including new Ultragrip Rubber for sure footing in multi-directional entrances. Single sided product offering‘mix and match’opportunities including bristle, Ultragrip Rubber and Coral inserts. For entrances with intense traffic and high point loads. THE NUWAY COLLECTION AT A GLANCE PAGE 2.0.1 PAGE 2.0.1 PAGE 2.0.5 PAGE 3.0.1 PAGE 3.0.7

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

1.0.9 Virtually ZERO landfill has been achieved by the Coral manufacturing plant.

6 metres of Coral can stop up to 94% of dirt and moisture entering a building. Source: TÜV Rheinland 94% 10% 0% 20% 30% 40% 50% 60% 70% 80% 90% 100% 1 2 3 4 5 6 Metres Stops % Soiling Is available in tile format for increased flexibility and reduced installation waste. MODULARITY AFTER CLEANING Removes soiling Retains soiling Releases soiling Recovers as new Many Coral products use Econyl® yarn which is made from abandoned fishing nets. primary backing is made from recycled pop bottles. Textile clean-off products for entrances with heavy traffic. 1.1.0 Introduction to Forbo Entrance Flooring Systems | 1 All Nuway mats can be customised with names, logos and corporate messages.

Many Coral ranges are available with an FR version for fire sensitive areas Can be used alongside Nuway entrance flooring to further protect your interior space. Produced using 100% electricity from renewable resources WHY CHOOSE CORAL? Enhance your entrance flooring by using Coral Logo to express your logo or identity.

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

1.1.1 Coral has been the international market leading textile entrance flooring brand for more than 40 years and now offers more choice than ever before. Each range in the collection has been designed to meet differing soiling needs as every entrance is a unique environment. A functional all-rounder that removes both moisture and dirt. Contemporary linear design in a striking range of colourways. For unbeatable soil removal for compact entrances. PAGE 5.0.1 PAGE 5.0.3 PAGE 5.0.5 1.1.2 Introduction to Forbo Entrance Flooring Systems | 1 Excellent moisture absorbing qualities combined with the convenience of a modular format.

Great for coarse dirt and grit removal, inside and out. Striking linear design with strong environmental credentials. The ultimate moisture absorbing clean-off system. Express your identity with bespoke logos. For use in seagoing vessels which require the IMO wheelmark classification. THE CORAL RANGE AT A GLANCE PAGE 5.1.5 PAGE 5.1.1 PAGE 5.0.7 PAGE 5.1.7 PAGE 5.1.3 PAGE 5.0.9

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

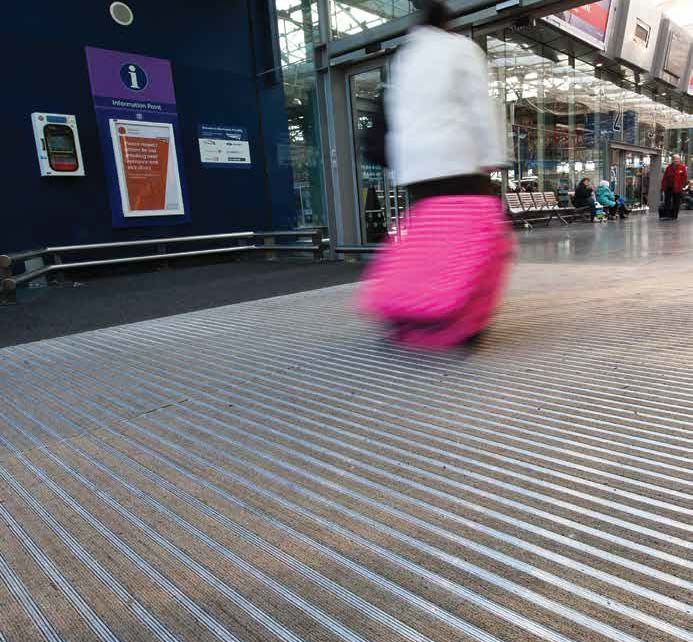

Reversible Entrance Flooring Systems | 2 REVERSIBLE ENTRANCE SYSTEMS The Tuftiguard range of entrance mats is designed to be reversible providing the configuration of the entrance allows, thereby effectively doubling the lifespan of the product.

So although these mats may have a higher initial cost than a single sided solution, their durability is legendary and they come with a guarantee of up to 15 years* providing peace of mind. The reversible feature also makes Tuftiguard the more sustainable option as the use of the existing mat is extended rather than replaced. The collection has been expanded to include a Bamboo option for those clients looking for additional sustainability credentials. A Black anodised aluminium version now offers a new matt aesthetic.

* When fitted by a Forbo Entrance System Specialist Installer (FESSI). Visit www.forbo-flooring.co.uk/FESSI for more details.

ENTRANCE FLOORING SYSTEMS - RIGID AND TEXTILE

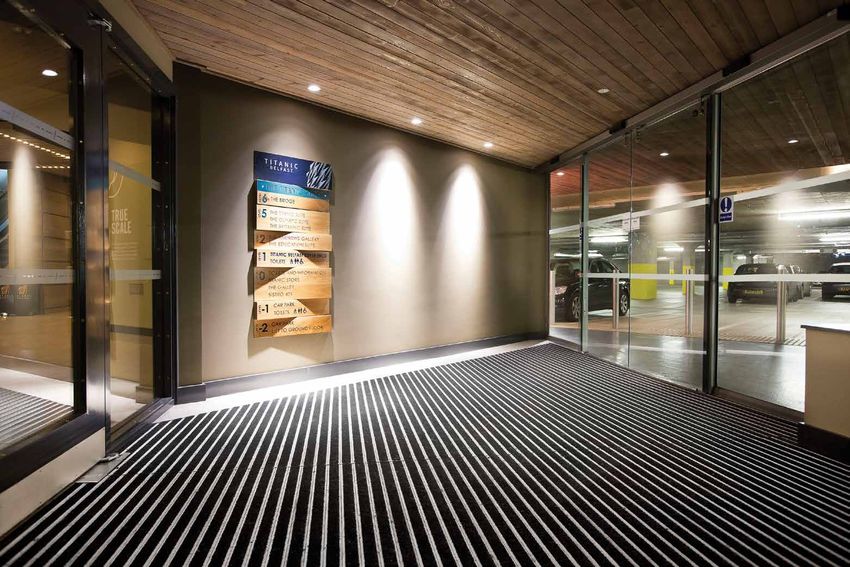

2.0.2 2.0.1 • High tensile steel linkages give Nuway Tuftiguard construction integrity • Tuftiguard mats can sit in a matwell or can be used with ramp systems • For multi-directional entrances, Nuway Tuftiguard is available in 50cm tile format • Tuftiguard is available in open or closed construction to suit the location of the mat and preferred cleaning regime • Tuftiguard is available with single wiper strips or double wiper strips where extra moisture absorption is required or where the entrance is less than 3 metres deep At the heart of the Nuway range, Tuftiguard Classic is the most widely used rigid engineered entrance mat in the UK.

Tuftiguard has the durability, strength and structural integrity to deliver excellent performance and appearance retention in intense traffic locations. LINKAGES BLACK ANODISED SCRAPER BARS ANODISED ALUMINIUM SCRAPER BARS WIPER STRIPS WIPER STRIPS • Tuftiguard is available in a choice of depths to match most matwells. Ramp frames are also available • Scraper bars, as the name suggests, scrape soil from the traffic crossing the entrance system • Wiper strips remove moisture and finer dirt • In our Black anodised aluminium mats, the black anodised finish is removed from the tip of the scraper bars to ensure a consistent appearance across the mat.

CONSIDERATIONS As with all aluminium matting systems of this type, in very brightly lit areas, the strong contrast between a light aluminium scraper bar and a dark wiper strip can sometimes create a strobe effect which should be prevented. To avoid disorientating pedestrians affected by this type of visual disturbance, consider using Bamboo or Black anodised scraper bars or a less contrasting wiper strip.

Nuway tuftiguard | 2 CHOOSE FROM THREE STYLES OF TUFTIGUARD There are three different styles of Tuftiguard, each offering a different level of design and performance flexibility. New Tuftiguard Bamboo – the sustainable choice * For details on FESSI’s please visit www.forbo-flooring.co.uk/FESSI • Bamboo is a sustainable species of grass • Tuftiguard Bamboo uses MOSO high Density which outperforms the very best hardwood species, making it the best natural solution in heavy traffic situations. • MOSO bamboo is the fastest growing plant in the world • MOSO bamboo is sourced from sustainably managed forests and plantations and is FSC certified • As Bamboo is a natural product, there will be some slight colour variances between the scraper bars • Again, as it’s a natural product, the mat may fade slightly over time and could lose some small splinters during its life cycle, however, this will not affect the structural integrity of the mat.

BAMBOO SCRAPER BARS Tuftiguard Classic Tuftiguard Plain Tuftiguard Design Suitable for external / interior entrances Reversible? Colours of wiper strips available Buffed for maximum dirt hiding Unbuffed rubber for use in external entrances Additional choice of 9 colours to reflect interior colour schemes Wiper strip format Single wiper strip Double wiper strip for increased moisture removal and where the entrance is less than 3m deep Colours of scraper bars available Anodised aluminium Black anodised aluminium (Internal only) Bamboo (Internal only) Suitable for most areas Offering a matt aesthetic and helps Sustainable and ideal for use prevent strobing in bright entrances alongside timber finishes Depth options 12mm or 17mm Construction of mat Open construction, ideal for external entrances or as it can store more wet and dry soil.

The new open construction design is heel proof. Guarantee *15 years if installed by a FESSI. 7 year guarantee for Bamboo if installed by a FESSI. Where to use? Very heavy and intense traffic areas. GUARANTEE YEARS* 10 OPEN CLOSED Best Seller

2.0.4 2.0.3 Tuftiguard classic Tuftiguard Plain Tuftiguard design Maximum length per module 2500mm (Bamboo 2400mm) Maximum width per module 750mm Maximum weight per module 23kg/m2 Depth 12mm 17mm Scraper bar material Aluminium / Black Anodised Aluminium Bamboo Aluminium / Black Anodised Aluminium Bamboo Construction Open Closed Open Closed Open Closed Open Closed Number of wiper strips 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 Total weight (kg/m2 ) 11 12 14 15 10 11 13 14 14 15 16 17 13 14 15 16 Max static load (kg/cm2 ) 200 100 200 Dynamic load (kg) 2 wheels 80mm, 20,000 passes 200 100 200 Frames A selection of recessed matwell frames are available, please see page 4.0.2 for details Ramp frame model ARF 50 ARF 70 Manufacturing method Entrance flooring system with scraper bars and rubber wiper strips Wiper designs Plain, natural fibres, coloured fibres Wiper material Rubber Pile material 100% Polyamide BCF CONSIDERATIONS Bamboo is a natural product so there will be a variance of colour within the scraper bars and although the Bamboo may fade and lose small‘splinters’, the structural integrity of the mat will not be affected.

In very brightly lit areas, the strong contrast between a light aluminium scraper bar and a dark wiper strip can sometimes create a strobe effect, which should be avoided. To prevent this type of occurrence, consider using scraper bars in Bamboo or Black Anodised Aluminium. Nuway tuftiguard | 2 Tuftiguard Classic and Design – dimensions Scraper bars Wiper bar options Plain and Classic Wiper bar options Design All dimensions are approximate. 12mm single open 12mm single closed 13mm 14mm 10mm 12mm 17mm single closed 14mm 16mm 15mm 17mm 17mm single open For more detailed information on the dimensions of our Nuway Tuftiguard Entrance Systems, please visit www.forbo-flooring.co.uk/downloads, or contact our Entrance Flooring Systems Customer Service team on 01773 740 688.

Unbuffed (Plain) Charcoal Scarlet Ocean Claret Petrol Violet Evergreen Sienna Willow Aluminium (Universal) Bamboo (Classic & Design) Black Anodised Aluminium (Classic & Design) Buffed (Classic) TECHNICAL SPECIFICATIONS 10mm 12mm 13mm 21mm 3mm Spacer 22mm 3mm Spacer 14mm 15mm 17mm

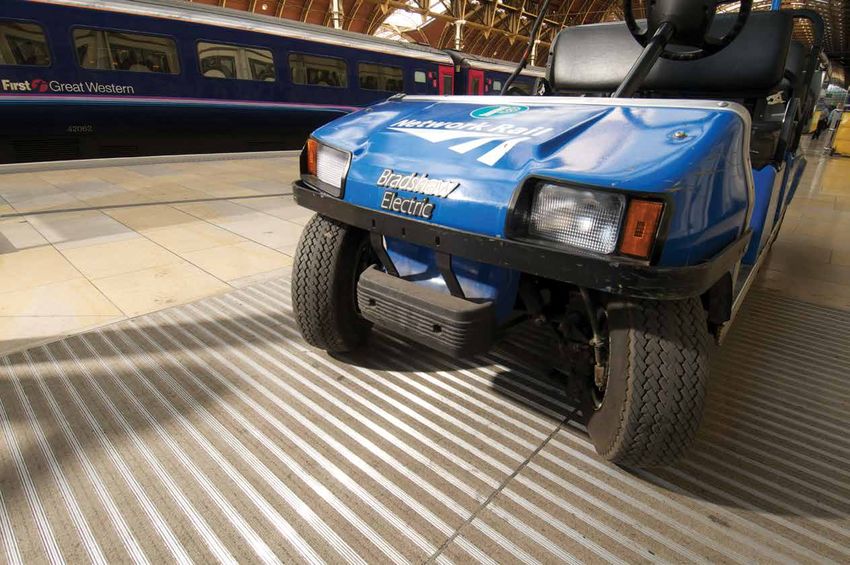

2.0.6 2.0.5 • The ideal matting solution for entrances with heavy duty loads and intense pedestrian and/or wheeled traffic. • Patented aluminium scraper bar ensures it’s the strongest type of matting in the Nuway range, and possibly in the UK. CONSIDERATIONS As with all aluminium matting systems of this type, in very brightly lit areas, the strong contrast between a light aluminium scraper bar and a dark wiper strip can sometimes create a strobe effect which should be prevented. To avoid disorientating pedestrians affected by this type of visual disturbance, consider using a less contrasting wiper strip.

• Tests have confirmed that Tuftiguard HD can withstand static loads of up to 900kg/cm2 compared with the maximum load of 200kg/cm2 for standard Tuftiguard mats. • Aluminium scraper bars have special ridges which effectively remove dirt while also being smooth enough for wheeled traffic to move easily. Nuway tuftiguard | 2 There are three different styles of Tuftiguard HD, each offering a different level of design and performance flexibility. Tuftiguard HD classic This is the best selling option in our HD collection.

• The wiper strip is buffed rubber for maximum dirt hiding as most dirt is light grey • The ridged scraper bars help to prevent glare Tuftiguard HD plain As the Classic offer but with an unbuffed wiper strip making it suitable for external entrances Tuftiguard HD design As the Classic offer but with an additional choice of nine wiper strips to reflect interior colour schemes CHOOSE FROM THREE STYLES OF TUFTIGUARD HD * For details on FESSI’s please visit www.forbo-flooring.co.uk/FESSI Tuftiguard HD Classic Tuftiguard HD Plain Tuftiguard HD Design Suitable for external / interior entrances Reversible? Colours of wiper strips available Buffed for maximum dirt hiding Unbuffed rubber for use in external entrances Additional choice of 9 colours to reflect interior colour schemes Wiper strip format Only available in closed format with double wiper strips to ensure maximum performance and durability Colours of scraper bars available Aluminium Depth options 12mm or 17mm Construction of mat Guarantee *15 years if installed by a FESSI.

Where to use? Very heavy and intense traffic areas with high point loading. GUARANTEE YEARS* 10 CLOSED

2.0.8 2.0.7 Tuftiguard HD classic Tuftiguard HD Plain Tuftiguard HD design Suitable for internal and external use, Nuway flameguard is specifically designed for particularly fire sensitive areas such as underground railway stations and with these locations in mind, has been tested to the following British Standards: • BS6853:1999:D8.6 – Smoke emission • BS476 Part 6 – Flammability • Bs476 – Part 7 – Surface spread of flame • Meets LUL standard: ST/Su/S Station/ Surface/Supine • London Underground Ltd Engineering Standard • 2-01 001-002 Issue A1 • Flameguard mats are 12mm deep. • Aluminium wiper bars are combined with single self coloured black flameguard wiper strips in a closed construction.

NUWAY HD NUWAY FLAMEGUARD Maximum length per module 2500mm 2500mm Maximum width per module 750mm 750mm Maximum weight per module 23kg/m2 23kg/m2 Depth 12mm 17mm 12mm Scraper bar material Aluminium Aluminium Aluminium Construction Closed Closed Closed Number of wiper strips 2 2 1 Total weight (kg/m2 ) 17 24 17 Max static load (kg/cm2 ) 900 900 900 Dynamic load (kg) 2 wheels, 80mm 20,000 passes 350 350 350 Fire behaviour EN13501-1 Cfl-s1 Cfl-s1 Meets LUL Standards: ST/Su/S Station/Surface/Supine London Underground Ltd Engineering Standard 2-010001-002 Issue A1 Bfl-s1 Frames A selection of recessed matwell frames are available, please see page 4.0.2 for details – Ramp frame model ARF 50 ARF 70 ARF 50 Manufacturing method Entrance flooring system with scraper bars and rubber wiper strips Entrance flooring system with scraper bars and rubber wiper strips Wiper design Plain, natural fibres, coloured fibres Plain Pile / wiper material 100% polyamide BCF VAMAC Rubber To find out more about how our Nuway ranges help to create better environments, please visit our web site and download the environmental data sheets www.forbo-flooring.co.uk/cbedownloads Nuway tuftiguard | 2 Tuftiguard HD plain – dimensions Tuftiguard HD classic/design – dimensions Scraper bars Universal Wiper bar options Plain and Classic Wiper bar options Design All dimensions are approximate.

17mm double closed 12mm double closed 12mm double closed 17mm double closed For more detailed information on the dimensions of our Nuway Tuftiguard Entrance Systems, please visit www.forbo-flooring.co.uk/downloads, or contact our Entrance Flooring Systems Customer Service team on 01773 740 688. Unbuffed (Plain) Charcoal Scarlet Ocean Claret Petrol Violet Evergreen Sienna Willow Aluminium Buffed (Classic) 14mm 21mm 17mm 16.5mm 14mm 16.5mm 17mm 21mm 13mm 17.5mm 11mm 12mm 13mm 17.5mm 11mm 12mm TECHNICAL SPECIFICATIONS

Single Sided Entrance Flooring Systems | 3 single sided ENTRANCE SYSTEMS Nuway Connect and Grid offer value for money alternatives in entrance systems where the level of traffic is very heavy and where aesthetics are key. With both ranges offering Coral textile inserts, these products allow the rigid mat element of the entrance flooring system to be colour matched with the textile clean off area, providing an effective, integrated entrance system solution.

3.0.2 3.0.1 • Bristles can be used for exterior and interior entrances to remove coarse dirt. • Rubber inserts can be used for interior and exterior use.

• Ultragrip rubber inserts have been tested using the Pendulum (the HSE recommended test method) in accordance with BS7976-2 and the UK Slip Resistance Group Guidelines and offer a low slip risk in wet and dry conditions. • Ultragrip rubber offers excellent sure footing and is ideal for multi-directional entrances. Its high rubber content prevents it getting slippy when wet. • Ultragrip rubber offers improved underfoot comfort and moisture removal due to its‘pocket’design. It also offers excellent fire rating properties.

• A choice of 6 Coral classic inserts allows colour co-ordination with matching Coral classic sheet product used in the secondary matting zone. • All four elements, Coral, bristles, rubber and Ultragrip rubber, can be mixed and matched to create the precise entrance system to meet your needs. • All inserts can also be replaced on site helping to extend the wear life of the product. • Available in a wide choice of heights from 10mm depth to 22mm and in open or closed construction. • Open construction Connect mats can be rolled up for ease of cleaning • The patented product design ensures that the mat can only be rolled inwardly, helping to prevent the bow wave that can occur on other rollable products.

Nuway connect is a very versatile roll-up single sided entrance system that’s easy to shape on site, making it ideal for awkwardly shaped entrances. It’s also available with a wide choice of inserts allowing the mat to be adapted to suit individual requirements. Nuway connect | 3 THE FLEXIBLE, RIGID ENTRANCE SYSTEM Inserts Available with a choice of 6 Coral classic inserts and 4 row bristle along with Ultragrip rubber and rubber inserts for internal and external use.

Carrier Section Low lustre aluminium anodised finish helps to prevent a strobing effect in bright conditions. Note: there is a slight difference in the profile between 10mm and 17/22mm Connect. (see image on the left). 17mm 10mm For technical information please turn to page 3.0.5. + Choose your combination Nuway Connect is one of the most flexible single sided entrance mats available in the UK. With a choice of 9 inserts, 3 heights and 2 constructions, a Nuway Connect mat can be precisely tailored to your individual requirements. PICK YOUR INSERT 1 MIX & MATCH YOUR OPTIONS 2 CHOOSE YOUR CONSTRUCTION 3 SELECT YOUR HEIGHT 4 Coral Classic • For picking up moisture and fine dirt • For interior use only (colours are shown overleaf) 4-row bristle • For removal of coarse dirt • For exterior and interior use • Available on 17mm and 22mm only Open • Collect dirt in the matwell rather than on the surface • Easily rollable for cleaning Rubber • For exterior and interior use Closed • Improved functionality of the mat as there is a greater surface of inserts Ultragrip • Ideal for multi directional entrances • Proven low slip risk • Fire rating of Bfls1 The following options are available if required • Ultragrip or rubber with bristles (alternating) • Textile with Ultragrip, rubber or bristles (alternating) Connect carrier component structure 10mm 17mm 22mm Please note: Due to the different construction of the 10mm depth product, there is a greater visibility of aluminium scraper bar than on the other 2 heights.

3.0.4 3.0.3 Nuway connect is flexible single sided solutions with four different inserts which can be mixed and matched for the ideal entrance. Different heights – different profiles The appearance of the 10 mm depth Connect differs from the 17 and 22 mm versions as the width of the profile of 10 mm Nuway Connect is larger and therefore shows more aluminium. Open or closed construction Mix and match – bristle and Ultragrip rubber / rubber 10mm Open (10mm height) Textile with bristles (10mm height) 17 / 22mm Closed (10mm height) Bristles with rubber (10mm height) Nuway connect | 3 THE FLEXIBLE, RIGID ENTRANCE SYSTEM CONSIDERATIONS As with all aluminium matting systems of this type, in very brightly lit areas, the strong contrast between a light aluminium carrier and a dark insert can sometimes create a strobe effect which should be prevented.

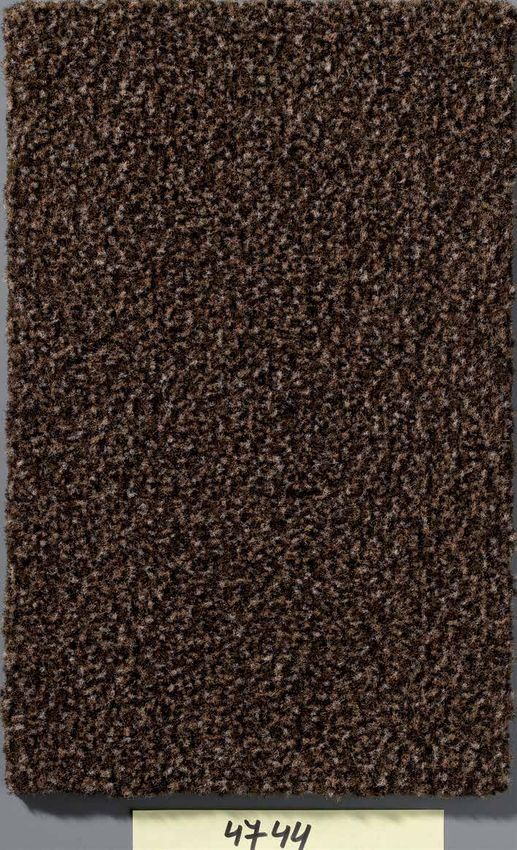

To avoid disorientating pedestrians affected by this type of visual disturbance, consider using a less contrasting insert. If you are considering Connect for an exterior mat in an exposed entrance we recommend using Ultragrip rubber or a combination of rubber and bristle for maximum slip resistance, please contact our Entrance Flooring Systems customer service team on 01773 740 688 to ensure compatibility. 4701 anthracite 4730 raven black 4727 navy blue 4764 taupe 4744 espresso 4750 warm black Coral Classic colours available in Nuway connect Specials Different colours of inserts are available at a small price premium and there is also the possibility of adding anodised aluminium branding strips.

To find out more, please contact our Entrance Flooring Systems customer service team on 01773 740 688. Ultragrip rubber Rubber Bristles * For details on FESSI’s please visit www.forbo-flooring.co.uk/FESSI Connect with Coral textile inserts Connect with bristle inserts Connect with Ultragrip and rubber inserts Suitable for external / interior entrances Inserts available 6 colours (see above for details) 4-row bristle Fluted rubber and slip resistant rubber (Ultragrip) Replaceable inserts Carrier Low lustre aluminium Construction of mat or Height options 10mm 17mm 22mm Mix and match inserts Offers a mix and match option including bristle and new Ultragrip rubber.

Rollable Rollable for ease of cleaning in open construction only Guarantee *7 years if installed by a FESSI.

Where to use? Very heavy traffic. GUARANTEE YEARS* 5 OPEN CLOSED +

3.0.6 3.0.5 Nuway connect with Coral classic textile insert Combination Textile only Textile and 4 row bristle System Open Closed Open Closed 10mm 17mm 22mm 10mm 17mm 22mm 10mm 17mm 22mm 10mm 17mm 22mm Depth to height of aluminium (mm) 8 14 19 8 14 19 8 14 19 8 14 19 Depth to height of insert (mm) 11 17 22 11 17 22 15 21 26 15 21 26 Distance between the profiles (mm) 5 0 5 0 Weight (kg) 9.5 13.2 14.9 10.5 15.1 17.1 11.1 15.1 16.9 12.4 17.4 19.4 Max width per module (mm) 3000 Max depth per module (mm) Relates to the weight Max weight per module (kg) 23 Dynamic load (kg) 2 wheels, 80mm 20,000 passes 200 200 200 200 200 200 50 50 50 50 50 50 Static load (kg/sqcm) 200 200 200 200 200 200 100 100 100 100 100 100 Fire behaviour EN ISO 9239-1 Bfls1 Cfls1 Frame A selection of recessed matwell frames are available, please see page 4.0.2 for details Ramp frame ARF 50 ARF 70 ARF 50 ARF 70 ARF 50 ARF 70 ARF 50 ARF 70 Material and manufacturing method Anodised aluminium profiles with PVC connector profiles, stainless steel clips Wiper design Coral clean-off system Coral clean-off system and 4 row bristles Wiper material 100% polyamide BCF 100% polyamide BCF for both textile and bristles Nuway connect with BRISTLE Combination Bristle only Bristle and Rubber System Open Closed Open Closed 10mm 17mm 22mm 10mm 17mm 22mm 10mm 17mm 22mm 10mm 17mm 22mm Depth to height of aluminium (mm) 8 14 19 8 14 19 8 14 19 8 14 19 Depth to height of insert (mm) 15 21 26 15 21 26 15 21 26 15 21 26 Distance between the profiles (mm) 5 0 5 0 Weight (kg) 12.7 17.1 18.8 14.2 19.6 21.6 12.3 16.6 18.3 13.8 19.1 21.1 Max width per module (mm) 3000 Max depth per module (mm) Relates to the weight Max weight per module (kg) 23 Dynamic load (kg) 2 wheels, 80mm 20,000 passes 50 50 50 50 50 50 50 50 50 50 50 50 Static load (kg/sqcm) 100 100 100 100 100 100 100 100 100 100 100 100 Fire behaviour EN ISO 9239-1 Cfls1 Cfls1 Frame A selection of recessed matwell frames are available, please see page 4.0.2 for details Ramp frame ARF 50 ARF 70 ARF 50 ARF 70 ARF 50 ARF 70 ARF 50 ARF 70 Material and manufacturing method Anodised aluminium profiles with PVC connector profiles, stainless steel clips Wiper design 4 row bristles 4 row bristles and ribbed rubber Wiper material 100% polyamide BCF 100% polyamide BCF for bristles and 100% EPDM for rubber To find out more about how our Nuway ranges help to create better environments, please visit our web site and download the environmental data sheets www.forbo-flooring.co.uk/cbedownloads Please note EPDM rubber is Ethylene Propylene Diene Monomer.

Nuway connect | 3 Technical specifications Nuway connect with rubber or Ultragrip rubber Combination Rubber only Ultragrip safety rubber only System Open Closed Open Closed 10mm 17mm 22mm 10mm 17mm 22mm 10mm 17mm 22mm 10mm 17mm 22mm Depth to height of aluminium (mm) 8 14 19 8 14 19 8 14 19 8 14 19 Depth to height of insert (mm) 12 18 23 12 18 23 10 16 21 10 16 21 Distance between the profiles (mm) 5 0 5 0 Weight (kg) 12 16.2 17.9 12 16.2 17.9 12 16.2 17.9 12 16.2 17.9 Max width per module (mm) 3000 Max depth per module (mm) Relates to the weight Max weight per module (kg) 23 Dynamic load (kg) 2 wheels, 80mm 20,000 passes 100 100 100 100 100 100 100 100 100 100 100 100 Static load (kg/sq cm) 100 100 100 100 100 100 100 100 100 100 100 100 Fire behaviour EN ISO 9239-1 Cfls1 Bfls1 Frame A selection of recessed matwell frames are available, please see page 4.0.2 for details Ramp frame ARF 50 ARF 70 ARF 50 ARF 70 ARF 50 ARF 70 ARF 50 ARF 70 Material and manufacturing method Anodised aluminium profiles with PVC connector profiles, stainless steel clips Wiper design Ribbed rubber Coarse rubber Wiper material 100% EPDM Rubber To find out more about how our Nuway ranges help to create better environments, please visit our web site and download the environmental data sheets www.forbo-flooring.co.uk/cbedownloads Main dimensions shown in mm Nuway connect 10mm Nuway connect 17mm Nuway connect 22mm

3.0.8 3.0.7 Nuway Grid offers a contemporary and cost effective alternative to Nuway Tuftiguard entrance matting and is an ideal solution in very heavy traffic entrance areas where aesthetic considerations are paramount. • Coral carrier sections can allow colour co-ordinated entrance areas to be created with primary and secondary entrance matting products. • Inserts include strips of textile inserts (for internal use only) in 13 different colourways drawn from the Coral classic, brush pure and burford ranges. CONSIDERATIONS As with all aluminium matting systems of this type, in very brightly lit areas, the strong contrast between a light aluminium carrier and a dark insert can sometimes create a strobe effect which should be prevented.

To avoid disorientating pedestrians affected by this type of visual disturbance, consider using a less contrasting insert. If you are considering using rubber infills for an exterior mat in an exposed entrance, please consider using Ultragrip rubber or contact our Entrance Flooring Systems Customer Service team on 01773 740 688 to ensure compatibility. • Other textile inserts from the Coral range are available to special order.

• Grid Ultragrip provides a slip resistant surface, ideal for entrances with multi directional traffic. • Ultragrip rubber inserts have been tested using the Pendulum (the HSE recommended test method) in accordance with BS7976-2 and the UK Slip Resistance Group Guidelines and offer a low slip risk in wet and dry conditions. • Grid Ultragrip offers improved underfoot comfort and moisture removal due to its ‘pocket’design. It also offers excellent fire rating properties. • Ultragrip rubber and standard rubber inserts are also available, which allow Nuway grid mats to be used in external entrances.

• Available in a choice of 12 and 17mm depths to suit the majority of matwells • Unique dovetail construction allows for easy shaping on site. Nuway grid | 3 TOUGH, DURABLE AND STYLISH 4701 anthracite 5710 asphalt grey 4730 raven black 5714 shark grey 4727 navy blue 5721 hurricane grey 4764 taupe 5724 chocolate brown 4744 espresso 5727 stratos blue 4750 warm black 5730 vulcan black Coral Classic colours available in Nuway grid Coral Brush Pure colours available in Nuway grid * For details on FESSI’s please visit www.forbo-flooring.co.uk/FESSI Inserts – Grid is available in a selection of 13 different textile inserts from the Coral classic, brush pure and burford ranges, Ultragrip and rubber inserts (for exterior entrances).

For technical information please turn to page 3.0.9. Grid carrier component structure Rubber insert Ultragrip rubber insert Burford insert Carrier Section – Low lustre anodised finish complies with Equality Act requirements. Patented crimping action firmly secures the insert within the carrier section.

Grid with textile inserts Grid with Ultragrip and rubber inserts Suitable for external / interior entrances Inserts available 6 colours 6 colours Fluted rubber and slip resistant rubber (Ultragrip) Carrier Low lustre aluminium height options 12mm or 17mm Construction of mat Guarantee *7 years if installed by a FESSI. Where to use? Very heavy traffic. CLOSED Burford GUARANTEE YEARS* 5

3.0.9 TECHNICAL SPECIFICATIONS All dimensions are approximate 12mm Grid 17mm Grid Maximum length per module 3000mm 3000mm Maximum width per module 750mm 750mm Maximum weight per module 23kg 23kg Rubber Textile Rubber Textile Depth to height of aluminium 12mm 12mm 17mm 17mm Depth to height of infill 14mm 18mm 19mm 23mm Infill material Rubber and Ultragrip Safety Rubber Burford/Coral Classic/ Coral Brush pure Rubber and Ultragrip Safety Rubber Burford/Coral Classic/ Coral Brush pure Construction Closed Closed Total weight 10.5kg/m2 Approx 9kg/m2 17.2kg/m2 Approx 15kg/m2 Max static load 100kg/m2 100kg/m2 Add row for Fire behaviour EN ISO 9239-1 Ultragrip Bfls1 Rubber Cfls1 Textile Bfls1 Dynamic load 2 wheels 80mm, 20,000 passes 200kg 200kg Ramp frame model ARF 50 ARF 70 Manufacturing method Entrance flooring system with carriers and rubber infills Entrance flooring system with carriers and textile infills Entrance flooring system with carriers and rubber infills Entrance flooring system with carriers and textile infills Wiper material Rubber Needlefelt/PVC backed textile Rubber Needlefelt/PVC backed textile Pile material N/A 100% polypropylene (Burford) /100% polyamide (Coral) N/A 100% polypropylene (Burford) /100% polyamide (Coral) To find out more about how our Nuway ranges help to create better environments, please visit our web site and download the environmental data sheets www.forbo-flooring.co.uk/cbedownloads Nuway grid 12mm Nuway grid 12mm with rubber or Ultragrip insert Nuway grid 12mm with textile insert Nuway grid 17mm Nuway grid 17mm with rubber or Ultragrip insert Nuway grid 17mm with textile insert To see full range of inserts, please refer to page 3.0.8.

CONSIDERATIONS In very brightly lit areas the strong contrast between a light aluminium scraper bar and a dark wiper strip can sometimes create a strobe effect, which should be avoided. To avoid disorientating pedestrians affected by this type of visual disturbance consider using a less contrasting insert. (Visual is 17mm) 3.1.0 Nuway grid / FESSI network | 3 Forbo Entrance System Specialist Installer Joe Bloggs Employed by: Forbo Flooring Ltd Approved FESSI Master Fitter FESSI Number: 0000 Expires: 11/3/2016 Working in partnership with Forbo Flooring Systems Forbo Entrance System Specialist Installer Joe Bloggs Employed by: Forbo Flooring Ltd Approved FESSI Technician FESSI Number: 0000 Expires: 11/3/2016 Working in partnership with Forbo Flooring Systems To find your nearest FESSI, please visit www.forbo-flooring.co.uk/FESSI FORBO’S FESSI NETWORK Forbo Entrance System Specialist Installer • FESSI contractors are independent companies, hand picked by Forbo on the basis of their experience in this important area of the flooring market and their commitment to deliver consistently high quality installations.

• Each FESSI contractor has undertaken intensive training on the installation of Forbo’s entrance flooring systems, and they have had to demonstrate their ability to deliver demanding Nuway installations incorporating complex shaping and breakouts. There are two levels of training, FESSI Technician and FESSI Master Fitter.

• All participants have to achieve an 80% or 85% score respectively in order to pass the training and be authorised to carry a FESSI ID card. • FESSI contractors will carry out the entire installation to the highest standards, including preparation of the subfloor and Nuway matting installed under the FESSI scheme is guaranteed for up to 15 years depending on the product fitted.

4.0.2 4.0.1 NUWAY SITE PREPARATION AND MATWELL MEASURING Nuway mats are made to order, assembled in the UK at our Telford plant to the client’s precise specification and template.

Matwell measuring Floor covering Screw fixing Levelling compound Screed Frame set at height of floor covering Typical cross section of frame set into screed with screw fixing Key DOT = Direction of traffic DOOR L/R F/B Diagonal Diagonal DOT Simple, rectangular mats should be easy to measure. For more complex and unusually designed entrance areas, Forbo can provide help with matwell measuring and templating. Please contact your Forbo Business Area Manager to find out more.

It is also important to ensure that the site where the mat is to be installed has been correctly prepared. Matwell subfloors must be of sound construction, dry, smooth and level, clean and free from contamination. For internal mat installations the screed should be flat and level to accommodate the depth of the chosen mat. For external mat installations the screed should again be flat and level to the depth of the frame, and consideration must be given to drainage. Additional information | 4 NUWAY ACCESSORIES Recessed frames/installations Nuway matwell frames are available in aluminium and are designed to anchor into sand and cement screeds for secure site installation.

All frames are custom built to fit specific site requirements, with curved frames available to special order.

Nuway frames are supplied in kit form for ease of transport, storage and on-site assembly. Ramped frames and surface mounted installations Internal and external ramp frames are supplied mitred and drilled. Straight cut, undrilled lengths are also available, allowing on site adjustments. Available in aluminium, the surface is ribbed for enhanced grip. T-Bars Nuway T-Bars provide separation between modules to facilitate easy removal for cleaning and reversibility. Tuftiguard T-Bars are available in aluminium or black anodised aluminium. Grid T-Bars are available in aluminium. Please note that T-bars are automatically included in each order.

ARF 70 70mm 17mm ARF 50 49mm 11mm 17.5mm 25mm 13mm 25mm AMF 163 21mm 16mm 3mm 13mm 3mm AMF 213 16mm 21mm 3mm 18mm 3mm AMF 253 25mm 25mm 3mm 22mm 3mm AMF 346 6mm 6.5mm 26mm 25mm 31.5mm Suitable for all large installations of Nuway 10mm, 12mm and 17mm AMF 506 6mm 6mm 44mm 50mm 50mm AMF 325 5mm 5mm 32mm 32mm Suitable for all extremely large installations of Nuway 10mm, 12mm and 17mm For use with all products requiring a curved frame AMF 266 6mm 6.5mm 31.5mm 26mm 20mm Suitable for all large installations of Nuway 10mm, 12mm and 17mm Suitable for standard 22mm Nuway installations Suitable for standard 10/12mm Nuway installations Suitable for standard 17mm Nuway installations Suitable for standard 10/12mm installations Suitable for standard 17mm Nuway installations

Textile clean-off Entrance Flooring Systems | 5 TEXTILE CLEAN-OFF ENTRANCE SYSTEMS Coral has been the market leading textile entrance flooring brand for more than 40 years. Coral offers more choice than ever before with attractive and sustainable clean-off systems in styles and constructions to suit all applications, budgets and aesthetic requirements. AFTER CLEANING Removes soiling Retains soiling Releases soiling Recovers as new

5.0.2 5.0.1 • Ideal solution for most entrances and especially smaller entrances • 75% of the yarn in Coral Duo is ECONYL® regenerated solution dyed polyamide • BREEAM A/A+ environmental rating across all sectors • Unbeatable performance for moisture and dirt removal • Complies with the highest fire class standard for a textile product: Bfl-s1 • Suitable for heavy contract use: wear class 33 • Ideal for interior entrances Research has shown that Coral Duo retains 10% more dirt in the first few metres than any other textile entrance flooring solution on the market.

Which makes it even the best choice for smaller entrances. Featuring a ribbed construction. Coral Duo is not only functional, it also provides an aesthetically pleasing Coral Duo combines our Coral Brush pure and Coral Classic technologies, reinforced with alternating strips of strong, thick yarns with additional dirt-scraping properties. As a result, Coral Duo outperforms all comparable textile solutions in the first few metres, making it ideal even for short entrances. Coral duo 9716 | imperial gold Coral brush pure 5724 | chocolate brown aspect to any entrance area and is easy to combine with our Coral Brush pure and Coral Classic collections.

The direction in which Coral duo is produced is not the traffic direction. Coral duo should be installed with the ribs at right angles to the direction of traffic. A short entrance and clean interior floor coverings don’t go together, do they? Well, yes, they can. Coral Duo is the ideal solution when you need maximum dirt removal, unrivalled dirt retention and exceptional moisture absorption all in just a couple of paces. is ideal for compact entrances. Coral Duo | 5 IDEAL FOR EVERY SPACE 9729 wiltshire red LRV 1 9730 black diamond LRV 1 9721 dark steel LRV 2 9727 volga blue LRV 1 9710 luna pearl LRV 4 9714 sicilian sand LRV 4 9716 imperial gold LRV 3 9725 cafe bahia LRV 1 Description Cut pile entrance system /Roll dimensions - width 205cm Roll dimensions - length Approx 27.5m =Total thickness Approx 9.0mm Pile height Approx 6.0mm Collection size 8 colourways GApplication Class 33, heavy contract use Pile composition 100% polyamide, where 75% is regenerated Econyl® Backing EVERFORT® vinyl pLight fastness >5 Creating Better Environments Renewable Electricity All Coral products are manufactured using 100% electricity made from renewable sources Recycled content Coral Duo contains 15% recycled content by weight Indoor Air Quality Coral Duo has passed AgBB/DiBT BREEAM certified Yes Ska Coral Duo meets Ska Rating criteria for M12 soft floor coverings in both office and retail schemes Coral Duo meets the requirements of EN 14041, excluding loose laid mats and rugs RReaction to fire EN 13501-1 Bfl-s1 ZSlip resistance EN 13893 DS LPersonal charging ISO6356
