WOOD BURNING FIREPLACES
napoleonfireplaces.com
1
Add an element of “home” to
your house with a Napoleon
Wood Burning Fireplace.
High Country 3000 ECO.............................................................4 - 5
™
High Country 5000......................................................................6 - 7
™
High Country 6000......................................................................8 - 9
™
High Country 7000..................................................................10 - 11
™
High Country 8000..................................................................12 - 13
™
Outstanding Features.....................................................................14
Options, Features & Accessories...................................................15
Anatomy of the Perfect Fireplace...................................................16
Specs, Options, Features & Accessories................................17 - 19
The High Country 7000 shown with Smooth Decorative Brick Panels.
™
Cover Photo - The High Country 8000 shown with Traditional Decorative Brick Panels.
™
2
FIND YOUR HAPPY (fire)PLACE.
Throughout the ages, people have gathered around fires to share in life’s greatest joys.
There’s just something about the glow of flickering flames that makes special moments feel even warmer.
A Napoleon fireplace is uniquely designed to brighten the vibe of any room in your house. Napoleon has
an incredible range of designer options to fit any vision.
A fire not only raises the warmth and ambiance of a room, it can raise the value of your home. A fireplace
offers some of the highest returns of any remodeling project. And that should make you feel good all over.
And so you can keep enjoying that positive glow for years and years and years to come, every Napoleon
fireplace is backed by the President’s Limited Lifetime Warranty.
We are proud to be recognized as one of Canada’s Best Managed
Companies and are dedicated to providing quality, home comfort
products for over 40 years and counting.
3
High Country 3000 Eco
™
Wood Burning Elegance
Napoleon’s High Country 3000 Eco wood burning fireplace is the smaller version
™
of the powerful High Country 6000. The High Country 3000 Eco has a catalytic
™ ™
combustor, yes, just like your car. This fireplace has lower emissions and burns
up to 25% longer than it's predecessors. Four stainless steel secondary air tubes
Complete Arched Wrought Iron Double Doors, Faceplate,
supercharge the fuel burning process and generates a fascinating display of Grill & Keystone
YELLOW DANCING FLAMES .
®
NZ3000H
Viewing Area: 31 11/16" h x 40" w
For more detailed specifications on this unit, see page 17
Arched Faceplate & Modern Inset in Painted Black Finish with
Painted Black Cast Iron Double Doors
Features & Accessories
Arched Faceplate & Heritage Inset in Painted Black Finish with
Painted Black Cast Iron Double Doors
Napoleon Handle Steel Andirons in Optional Heat Resistant Gloves
Charcoal Finish
4
The High Country 3000 Eco shown with arched faceplate with modern insets and black cast iron double doors.
™
5
High Country 5000
™
Wood Burning Elegance
Napoleon’s High Country 5000 Wood Burning Fireplace is perfect for adding the impact
™
of a European-inspired, clean face design, with the traditional look and feel of an old-
world fireplace. Built-in horizontal and vertical air flow directional ridges supercharge
the air below and behind the wood creating extremely fast start-ups and direct the Shown with Glass Door Down and Smooth Decorative
smoke up and to the back of the firebox for the ultimate clean burning experience. Brick Panels
The counterbalanced, ZERO GRAVITY screen and door operate with ease, making
™
lighting, and loading of this fireplace effortless. Bask in the glow of a wood fire that will
add impact and luxury to your favorite space.
NZ5000-T
Viewing Area: 26 5/8"h x 36 5/8"w
For more detailed specifications on this unit, see page 18

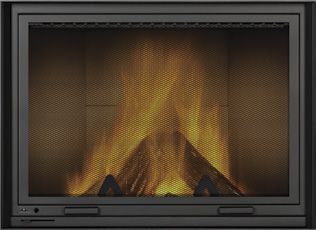

Shown with Screen Door Down and Smooth Decorative
Brick Panels
Features & Accessories
Shown with Glass Door Down and Traditional Decorative
Brick Panels
Steel Andirons in Heat Resistant Gloves Smooth and Traditional Door Handle (included)
Charcoal Finish (included) Decorative Brick Panels
6
The High Country 5000 shown with Smooth Decorative Brick Panels.
™
7
High Country 6000
™
A Showcase For Your Home
The perfect blend of elegant, rustic styling and state-of-the-art wood burning technology
makes this luxurious fireplace an ideal choice to add class and artistry to your home.
The High Country 6000 stands out in the crowd and is well deserving of the Napoleon
™
insignia. Treasured for its quality and performance, every Napoleon fireplace is hand
crafted to last for generations.

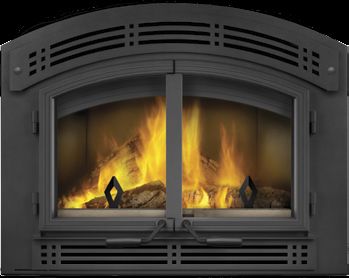

Complete Arched Wrought Iron Double Doors, Faceplate, Grill & Keystone
NZ6000-1
Viewing Area: 26 5/8"h x 48 1/2"w
For more detailed specifications on this unit, see page 18
Shown Complete with Arched Black Cast Iron Double Doors, Arched
Faceplate, Grill & Keystone in Painted Black Finish
Features & Accessories
Andirons Painted Black Optional Arched Screen Kit Optional Country Crane & Optional Heat Resistant Gloves
Finish Painted Black Finish Hearth Pot
8
The High Country 6000 shown with wrought iron finish double doors, faceplate, upper grill and keystone
™
9
High Country 7000
™
Natural Beauty on a Scale Never Seen Before
The Napoleon High Country 7000 wood burning fireplace is inspired by a European
™
clean face design and features a huge viewing area. An exclusive counterbalanced
ZERO GRAVITY door system operates the screen and heat radiating ceramic glass Shown with Glass Door Down and Smooth Decorative
™
Brick Panels
independently, allowing the fire to be viewed through either the glass, screen or
both. The large firebox holds up to 50 lbs of wood and is lined with custom molded
refractory brick panels.
NZ7000
Viewing Area: 17 3/16"h x 39 13/16"w
Shown with Screen Door Down and Smooth Decorative
Brick Panels
For more detailed specifications on this unit, see page 19
Shown with Glass Door Down and Fluted Decorative Brick
Panels
Features & Accessories
Steel Andirons in Heat Resistant Gloves Smooth Decorative Brick Panels Fluted Decorative Brick Panels
Charcoal Finish
10The High Country 7000 shown with Fluted Decorative Brick Panels.
™
11High Country 8000
™
Warming Homes & Hearts
The Napoleon High Country 8000 is a large, clean face wood burning fireplace with
™
an exceptionally wide viewing area. The exclusive counterbalanced ZERO GRAVITY
™
door system operates the screen and heat radiating ceramic glass independently. This
allows the fire to be viewed through either the glass, screen or both as they glide Shown with Smooth Decorative Brick Panels
effortlessly up behind the wall. Boasting a large firebox that is lined with custom molded
refractory brick, the High Country 8000 can hold up to 50 lbs of wood.
™
NZ8000
Viewing Area: 29 9/16"h x 39 13/16"w
For more detailed specifications on this unit, see page 19
Shown with Traditional Decorative Brick Panels
Shown with Herringbone Decorative Brick Panels
Features & Accessories
Steel Andirons in Heat Resistant Gloves Smooth Decorative Brick Panels Traditional Decorative Brick Panels Herringbone Decorative Brick Panels
Charcoal Finish
12The High Country 8000 shown with Traditional Decorative Brick Panels.
™
13Outstanding Features
of Napoleon’s Advanced Technology
Help Protect The Environment With A Outstanding Craftsmanship ZERO GRAVITY Door System
™
Napoleon Wood Burning Fireplace Fine details are designed in every aspect of Napoleon The ZERO GRAVITY door system found on the 5000,
™
Heating your home with a Napoleon high efficiency fireplaces... individually handcrafted with pride of excellence. 7000 and 8000 models, boast glass and screen doors
fireplace, stove or insert releases no more carbon that have precision 4 way roller systems that have been
dioxide than a dying tree would lying on the proven and tested to 60 years of operation. The door
WHISPER QUIET Heat Circulating Blower System
™
forest floor. In fact, when the entire carbon cycle system also allows glass and screen doors to operate
The extreme heat resistant “H” class bearings featured in
is considered, a Napoleon fireplace heats your independently and glide up behind the wall.
Napoleon’s superior heat circulating blower, creates a lasting
home more efficiently and with less impact on the “whole home” comfort with adjustable high & low speeds.
environment than any other heating fuel option. Available on the NZ3000H and NZ6000-1 only.
14Features, Options & Accessories
Decorative Brick Options
Smooth Decorative Brick Panels Traditional Decorative Brick Panels Herringbone Decorative Brick Panels Fluted Decorative Brick Panels
(NZ5000, NZ7000 and NZ8000 Models Only) (NZ5000 and NZ8000 Models Only) (NZ8000 Model Only) (NZ7000 Model Only)
Accessories
Steel Andirons Charcoal Finish Andirons Painted Black Finish Heat Resistant Gloves Decorative Handle Country Crane & Hearth Pot
(Excluding NZ6000 Model) (NZ6000 Model Only) (NZ6000 Model Only)
Arched Screen Kit Painted Black Finish
(NZ6000 Model Only)
15High Country 3000 Eco
™
Anatomy of the Perfect Fireplace
1. Primary combustion air is brought into the unit through the fresh air intake collar located on
the bottom side of the unit. 4
2. Catalytic combustor increases efficiency, decreases emissions and provides longer burn times.
3. Combustion takes place inside the firebox where smoke and gases are directed around a large baffle
and through a catalyst (similar to the technology in a car) which burns off harmful gasses. As these
gasses burn, the catalyst radiates more heat into the room providing maximum efficiency.
10
4. The optional hot air gravity central heating vent system may be used to distribute heat to an adjoining
room (located either above or beside the room containing the fireplace).
5. The optional blower provides an ideal means of circulating warm air within the home. Where location
permits and extreme cold temperatures are not experienced, this blower may also be installed to
utilize fresh outside air to introduce “positive pressure” to the home. The powerful 320 CFM blower
can be installed remotely from the unit (ie. basement) so you can enjoy increased air circulation with
WHISPER QUIET operation.
™
2 9
12
6. Radiant Heat.
7. A single air control regulates the burn rate.
11
8. High Heat Ceramic Glass for added durability.
9. Primary air is directed down along the glass before being combusted to help keep the glass clean.
10. Fully insulated outershell to reduce clearances. 8
3 6
11. Pre-heated secondary combustion air is injected into the top of the fire box to help combust any
un-burnt fuel gasses before they reach the catalyst. This provides both a dazzling blanket of fire and
extracts the maximum amount of heat per fuel load.
12. Cast iron baffle and bypass door are durable and allow for easy
start up and refueling.
1
13. Cool Room air circulates around the firebox and is pushed back
into the room for additional heat.
Approved with chimneys Any 7" diameter chimney listed to
these standards may be installed. In 13
accordance with these standards, the
unit may also be connected to any 5 7
chimney listed to CAN/ULC-S604
and CAN/ULC-S629 for Canada or
UL-103HT for the United States.
Minimum Clearance to combustibles
Minimum, fireplace 0" to stand offs (rear) 6" to sides
Ceiling enclosure 84" from the base of the unit HotNOAir
NOVenting
NO NO Options
NO GRAVITY
GRAVITY
GRAVITY
GRAVITY
GRAVITY
VENT
VENT
VENT
VENT
VENTGRAVITY
GRAVITY
GRAVITY
GRAVITY
GRAVITY
VENT
VENT
VENTVENT
VENT CENTRAL
CENTRAL
CENTRAL
CENTRAL
CENTRAL
HEATING
HEATING
HEATING
HEATING
HEATING
& && &&
DUCTING
DUCTING
DUCTING OPTION
DUCTING
DUCTINGOPTION
OPTION
OPTION
OPTION
(1 DUCT)
(1
(1DUCT)
DUCT)
(1(1DUCT)
DUCT)
OPTION
OPTION
OPTION
OPTION
OPTION
(2 DUCTS)
(2
(2DUCTS)
DUCTS)
(2(2DUCTS)
DUCTS) CENTRAL
CENTRAL
CENTRAL
CENTRAL
CENTRAL
HEATING
HEATING
HEATING
HEATING
HEATING
GRAVITY
GRAVITY
GRAVITY
GRAVITY
GRAVITY
VENT
VENT
VENT
OPTION
VENT
VENT
OPTION
OPTION
OPTION
OPTION
Ceiling (in front of fireplace) 84" from the base of the unit
Chimney 2" (follow manufacturer’s instructions)
Hot air gravity duct work 1"
Mantle to top of faceplate from 12" (with mantel protruding 2") No Ducting Gravity Vent Gravity Vent Central Heating Central Heating
to 18" (with mantel protruding 8") Option - One Duct Option - Two Ducts & Gravity Vent Option
Minimum hearth extension 20" x 54" non-combustible surface
16High Country 3000 Eco
™
Shown on pages 4 & 5
43 1/4" 15 9/16"
(1098.5mm) 37 3/16" (395.3mm) 29 1/4"
(944.6mm) (743mm)
ELECTRICAL INLET 26 1/4"
(666.7mm)
5"
(127mm)
40" (1016mm) 5 1/2" 17 1/8"
(139.7mm) (435mm)
AIR INLET ON LEFT SIDE 42" (1066.8mm)
Model Firebox Size Area Heated Emissions Log Size Chimney Outside Air for EPA Certified Mobile Home Central Heating Viewing Area Viewing Area Weight Weight
(cu. ft.) (sq. ft.) (Grams Per (Max) Diameter Combustion Approved and/or Blower (sq.inch) of Bricks without
Hour) 29 1/2” Width Height Bricks
(749,3MM)
NZ3000H* 2.3 2000 + 3.25 25" 8" Yes Yes No Optional 40" 31 11/16" 1268 103 lbs 448 lbs
*Tested and listed by Intertek Testing Services Ltd. as per North American standards: CAN/ULC S610, UL 127 for factory built fireplaces and to US EPA's crib wood emissions standards for 2015 (EPA 40 CRF Part 60).
CERTIFIED TO COMPLY WITH 2015 PARTICULATE EMISSIONS STANDARDS. NOT APPROVED FOR SALE AFTER MAY 15, 2020.
**Tested and listed by Intertek Testing Services Ltd. as per North American standards: CAN/ULC S610, UL 127 for factory built fireplaces.
6” (152,4MM)
42” (1066,8MM) 6” (152,4MM) 75 5/16”
MIN
MIN (1913MM)
2, /2” MM )
M
(2 10 71 8M
)
13 66,
55 6 1 ,6
0
54 ” (1
)
M
42
7M
”(
29 1/2”
(749,3MM)
Figures may vary with individual conditions such as floor plan layout, insulation value of the home and the firewood used.Rated BTU/h with softwood test fuel (for emissions only) - no refueling.
Wolf Steel Ltd. own test results showing realistic BTU’s using hardwood logs with regular refueling. Heat output will differ on chimney draft as well as type, moisture content and size of wood. 17LEFT SIDE VIEW FRONT VIEW
LEFT SIDE VIEW
TOP VIEW FRONT
LEFT SIDE
VIEW
VIEW TOPFRONT
VIEW VIEW TOP VIEW 10
LEFT SIDE VIEW LEFT SIDE
VIEWVIEW TOP
LEFTFRONT
VIEW
SIDE VIEW TOP VIEW TOP VIEW
73 3/8"
FRONT VIEW FRONT VIEW
1864mm 257m
65 3/16" 26 5/8"
1656mm 676mm
High Country 5000
™
9 3/4"
247mm
Shown on pages 6 & 7 20 15/16"
533mm
20 15/16"
533mm
26 5/8"
20 15/16"
533mm
676mm
1 1/16"
27mm 15 5/8"
4 3/16" 36 5/8" 397mm
4 15/16"
107mm 931mm
5 11/16" 125mm 29 7/
10 15/16" 10 15/16" 10 15/16"
278mm 278mm 278mm 144mm 41 15/16" 759m
1065mm
10" 10" 15 5/8" 10"
254mm 4 3/16" 254mm 397mm 254mm
4 15/16"
73 3/8" 73 3/8" 73 3/8" 107mm
125mm No screws
29 7/8" greater than 1/2” penetration No sc
67 5/16" 1863mm 67 5/16" 1863mm 67 5/16" 1863mm
759mm
1710mm 1710mm 1710mm
3 15/16" 3 15/16" 3 15/16"
99mm 99mm 99mm
AIR INLET AIR INLET AIR INLET
30 9/16" 30 9/16" No screws greater than 1/2” penetration
30 9/16" No screws
GAS INLET GAS INLET 776mm GAS INLET 15/16" 776mm 15/16"
776mm 15/16"
26 5/8" 26 5/8" 26 5/8"
(BOTH SIDES) 677mm (BOTH SIDES) 20 7/16" 677mm (BOTH SIDES) 24mm 20 7/16" 677mm 20 7/16" 24mm 24mm
519mm 519mm 519mm
36 5/8" 36 5/8" 36 5/8"
931mm 931mm 931mm
41 15/16" 41 15/16" 41 15/16"
1065mm 1065mm 1065mm
5 11/16" 5 11/16" 5 11/16"
144mm 144mm 144mm
9 5/8" 9 5/8" 9 5/8"
244mm 4 15/16" 4 3/16" 244mm 4 15/16" 4 3/16" 244mm 4 15/16" 4 3/16"
125mm 107mm 125mm 107mm 125mm 107mm
15 5/8" 15 5/8" 15 5/8"
FRONT VIEW RIGHT SIDE VIEW TOP VIEW
397mm 397mm 397mm
28 5/8" 28 5/8" 28 5/8"
726mm 726mm 726mm
NOTE: A ventilated enclosure (40 sq. inch) is required top and bottom.
29 3/4" 29 3/4" 29 3/4"
756mm 756mm 756mm
No screws greater than 1/2” penetration No screws greater than 1/2” penetration
No screws greater than 1/2” penetration
High Country 6000
™
27 3/16"
49 1/16"
Shown on pages 8 & 9 690mm
1246mm 25 1/8"
No screws No screws No screws 638mm 49 1/16"
1246mm
1 3/8" 24 1/2"
* Gas Inlet, see “use with gas log sets” section.
* Gas Inlet, see “use with gas log
* Gas
sets”
Inlet, see “use with 36mm
section. gas log sets” section. 623mm
50 1/8"
1273mm
BLOWER HOUSING
24 3/16"
614mm
10 1/2" 14 7/8"
378mm
11"
19 3/8" 12 3 /8"
8 7/16"
25 3/16"
214mm 4 1/4"
44 15/16" 108mm
1141mm
Model Firebox Size Area Heated Emissions Log Size Chimney Outside Air for EPA Qualified Mobile Home Central Heating Viewing Area Viewing Area Weight Weight
(cu. ft.) (sq. ft.) (Grams Per (Max) Diameter Combustion Approved and/or Blower (sq.inch) of Bricks without
Hour) Width Height Bricks
NZ5000** 6.6 1000 4.6 24" 8" Yes Yes No Optional 36 5/8" 26 5/8" 975 193 lbs 552 lbs
NZ6000-1** 4.8 3000 + N/A 32" 8" Yes N/A No Optional 48 1/2" 26 5/8" 1292 110 lbs 583 lbs
*Tested and listed by Intertek Testing Services Ltd. as per North American standards: CAN/ULC S610, UL 127 for factory built fireplaces and to US EPA's crib wood emissions standards for 2015 (EPA 40 CRF Part 60).
CERTIFIED TO COMPLY WITH 2015 PARTICULATE EMISSIONS STANDARDS. NOT APPROVED FOR SALE AFTER MAY 15, 2020.
**Tested and listed by Intertek Testing Services Ltd. as per North American standards: CAN/ULC S610, UL 127 for factory built fireplaces.
Figures may vary with individual conditions such as floor plan layout, insulation value of the home and the firewood used.Rated BTU/h with softwood test fuel (for emissions only) - no refueling.
18 Wolf Steel Ltd. own test results showing realistic BTU’s using hardwood logs with regular refueling. Heat output will differ on chimney draft as well as type, moisture content and size of wood.High Country 7000
™
FRONT VIEW RIGHT SIDE VIEW TOP VIEW
Shown on pages 10 & 11 59 5/8"
1514mm
R6 1/16"
154mm
80 13/16"
2053mm 31 1/2"
800mm
46 3/8"
39 13/16" 17 3/16" 25 1/8" 1178mm
1012mm 437mm 639mm
6" 30 3/8"
152mm 771mm
FRONT VIEW RIGHT SIDE VIEW TOP VIEW
59 5/8"
High Country 8000
™
1514mm
Shown on pages 12 & 13
R6 1/16"
154mm
80 13/16"
2053mm
31 1/2"
800mm
26 9/16"
675mm 34 1/4"
39 13/16" 870mm 46 3/8"
1012mm 1178mm
6" 30 3/8"
152mm 771mm
Model Firebox Size Area Heated Emissions Log Size Chimney Outside Air for EPA Qualified Mobile Home Central Heating Viewing Area Viewing Area Weight Weight
(cu. ft.) (sq. ft.) (Grams Per (Max) Diameter Combustion Approved and/or Blower (sq.inch) of Bricks without Bricks
Hour) Width Height
NZ7000* 9.65 1000 3.1 32" 10" Yes N/A No No 46 3/8" 21 1/8" 980 300 lbs 1050 lbs
NZ8000** 9.65 1000 2.2 32" 10" Yes Yes No No 46 3/8" 34 1/4" 1589 300 lbs 1150 lbs
*Tested and listed by Intertek Testing Services Ltd. as per North American standards: CAN/ULC S610, UL 127 for factory built fireplaces.
**Tested and listed by Intertek Testing Services Ltd. as per North American standards: ULC S610, UL 127 for factory built fireplaces. Certified to EPA low mass wood burning fireplace phase 2 Voluntary program emission levels.
Figures may vary with individual conditions such as floor plan layout, insulation value of the home and the firewood used.Rated BTU/h with softwood test fuel (for emissions only) - no refueling.
Wolf Steel Ltd. own test results showing realistic BTU’s using hardwood logs with regular refueling. Heat output will differ on chimney draft as well as type, moisture content and size of wood. 19NAPOLEON - CELEBRATING OVER 40 YEARS
OF HOME COMFORT PRODUCTS
Authorized Dealer
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8
103 Miller Drive, Crittenden, Kentucky, USA 41030
7200 Trans Canada Highway, Montreal, Quebec, Canada H4T 1A3
Tel: 1-866-820-8686
napoleonfireplaces.com
Consult your owner’s manual for complete installation instructions and proper clearances to combustible materials. Check all local and national building codes and regulations. All specifications are subject
to change without prior notice due to on-going product improvements. Products may not be exactly as shown. Heat output will vary based on fuel type, quality and moisture content. Napoleon is a registered
trademark of Wolf Steel Ltd. © Wolf Steel Ltd. Printed in Canada
ADBR840 09/2017You can also read
