1989 Citation V
Serial Number: 560-0020
Registration: N7867T
LINK TO 3D TOUR IN ABOVE PHOTO
www.jetsenseaviation.com
847.550.4660 / brett@jetsenseaviation.com
1989 Citation V
S/N: 560-0020 N7867T
HIGHLIGHTS:
● ADS-B Out Installed for 2020 Compliance
● 3 US Owners Since New
● Always US Based
● Recent Hot Sections: 187.5 hrs SHSI
● Both Engines Are Time Since New (Respectively 1582 hrs / 1843 hrs)
● Freon Air Conditioning with Flood Cooling
● BACON Low Utilization Program
● Lead Acid Battery
● Increased Gross Takeoff Weight Mod (16,300 lbs)
● Radome Quick Release Mod
● Full and Complete Records and Logs
AIRFRAME:
Total Time Since New 8047.0 Hours
Total Landings Since New 7871 Cycles
Maintenance Tracking Enrolled on CAMP
ENGINES:
LEFT ENGINE RIGHT ENGINE
Description JT15D-5A JT15D-5A
Serial Numbers JD0548 JD0547
Total Hours Since New (3500 TBO) 1582.2 Hours 1843.3 Hours
Time Since Hot Section 187.5 Hours (by Vector Aerospace) 187.5 Hours (by Vector Aerospace)
Time Remaining Until Hot Section 1512.5 Hours 1512.5 Hours
Time Remaining Until Overhaul 1917.8 Hours 1656.7 Hours
INSPECTIONS:
The aircraft is on the BACON Low Utilization Program, which is an FAA approved maintenance schedule that in-
creases the time between events, resulting in lowered costs of maintenance and operation.
CURRENTLY UNDERGOING THE FOLLOWING INSPECTIONS:
PHASE 1A, PHASE 2A, PHASE 4A, PHASE B, PHASE 11, PHASE 18, PHASE 30, PHASE 56, and PHASE MC, plus hy-
dro inspections on the N2 & O2 bottles.
OTHER INSPECTIONS COMPLETED DUE
Phase 1B March 2019 March 2022 OR 8329.6 Hours
Phase 2B March 2019 March 2022 OR 8329.6 Hours
Phase 3B March 2019 March 2022 OR 8329.6 Hours
Phase 4B March 2019 March 2022 OR 8329.6 Hours
Phase 5A August 2017 July 2020 OR 9105.4 Hours
Phase 5B July 2014 July 2020 OR 8801.3 Hours
Phase 5C February 2015 February 2021 OR 8863.9 Hours
Specifications Are Preliminary Only and Do Not Constitute Representations or Warranties of Jet Sense Aviation, LLC, its Affiliates or
Clients, Rather the Specifications are Subject to Verification Upon Inspection of Aircraft and Records by Purchaser. Further, the
Aircraft Described Herein is Offered Subject to Prior Sale or Withdrawal from the Marketplace.
www.jetsenseaviation.com
847.550.4660 / brett@jetsenseaviation.com
1989 Citation V
S/N: 560-0020 N7867T

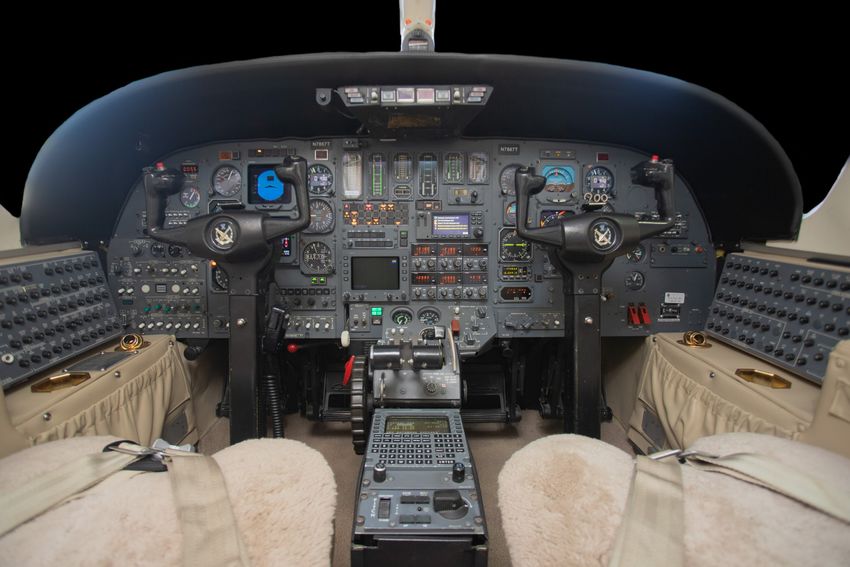

AVIONICS
TYPE OF UNIT UNIT DESCRIPTION
EFIS (Electronic Flight Instrument System) 2-Tube Honeywell ED-600 ADI & HSI
FMS (Flight Management System) Universal UNS-1F
TCAS (Traffic Collision Avoidance System) Ryan TCAD
FDS (Flight Director System) Sperry SPZ-500
VHF NAV (Navigation Radio) Dual Collins VIR-32
VHF COM (Very High Frequency Communication) Dual Collins VHF-22A
RADAR Honeywell Primus WU-650
RADIO ALTIMETER Collins ALT-55B
CVR (Cockpit Voice Recorder) Fairchild GA-100 CVR
DME (Distance Measuring Equipment) Dual Collins DME-42
ADF (Automatic Direction Finder) Collins ADF-462
EGPWS (Enhanced Ground Proximity Warning Honeywell MK VIII
System)
TRANSPONDERS Dual Collins TDR-90
GPS (Global Positioning System) Garmin GNS-400W IFR WAAS Navigator with moving map
HF Radio Bendix/King KHF-950
RVSM Garrett Reduced Vertical Separation Minimum Installation
ELT Artex 406 MHz ELT
ADS-B Out Garmin GTX-3(X)5 ADS-B Solution
WEIGHT AND BALANCE
The aircraft has a Gross Takeoff Weight Modification, which allows for the aircraft to carry 400 lbs more than the
standard Citation V.
Gross Takeoff Weight 16,300 lbs
Empty Weight 9508.8 lbs (measured 4/10/2015)
Useful Payload 6791.2 lbs
Remaining Payload with Full Fuel 1004 lbs
Specifications Are Preliminary Only and Do Not Constitute Representations or Warranties of Jet Sense Aviation, LLC, its Affiliates or
Clients, Rather the Specifications are Subject to Verification Upon Inspection of Aircraft and Records by Purchaser. Further, the
Aircraft Described Herein is Offered Subject to Prior Sale or Withdrawal from the Marketplace.
www.jetsenseaviation.com
847.550.4660 / brett@jetsenseaviation.com
1989 Citation V
S/N: 560-0020 N7867T

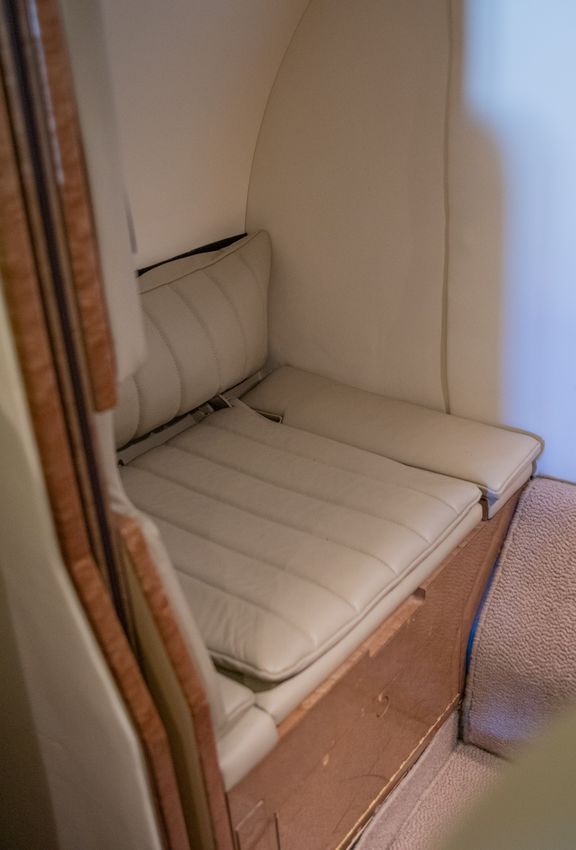

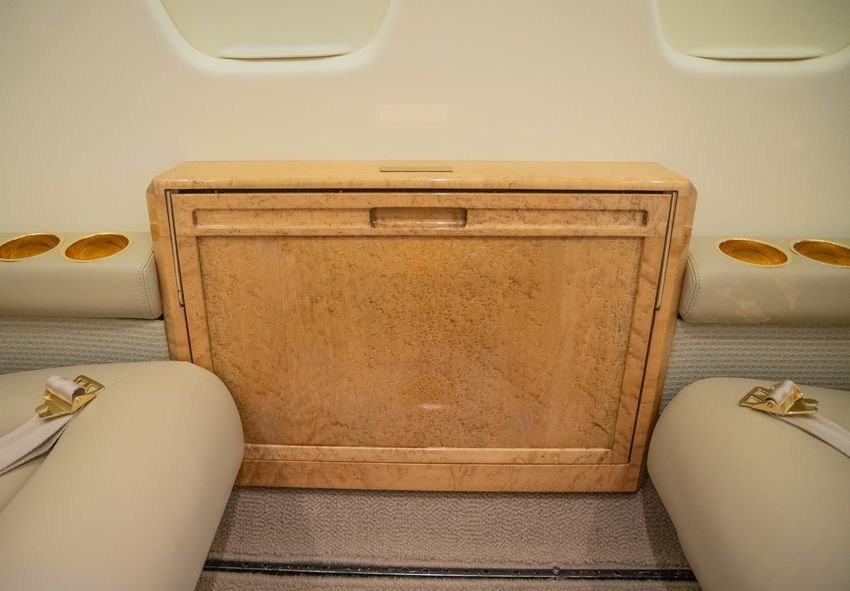

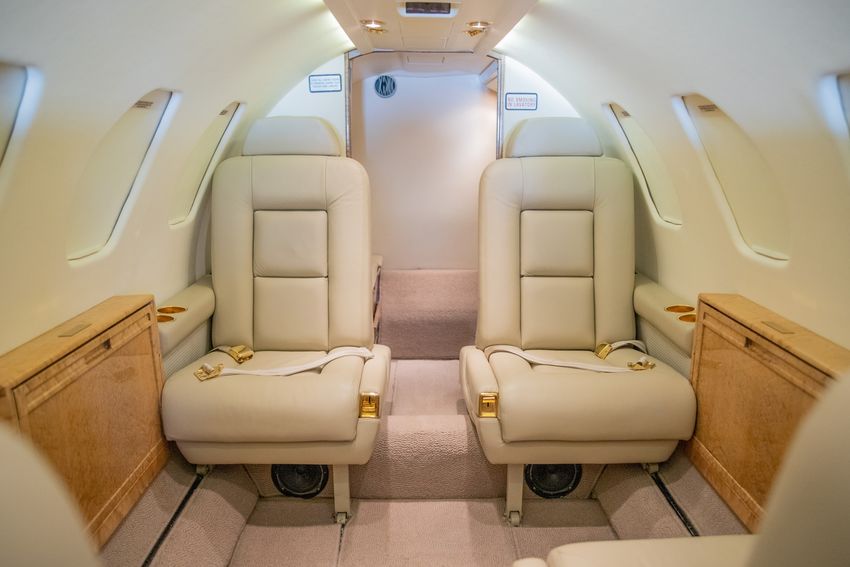

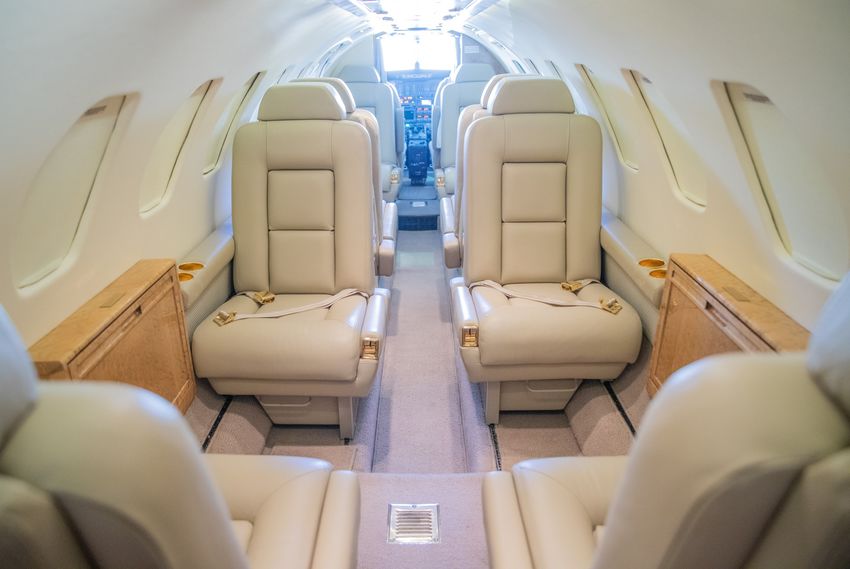

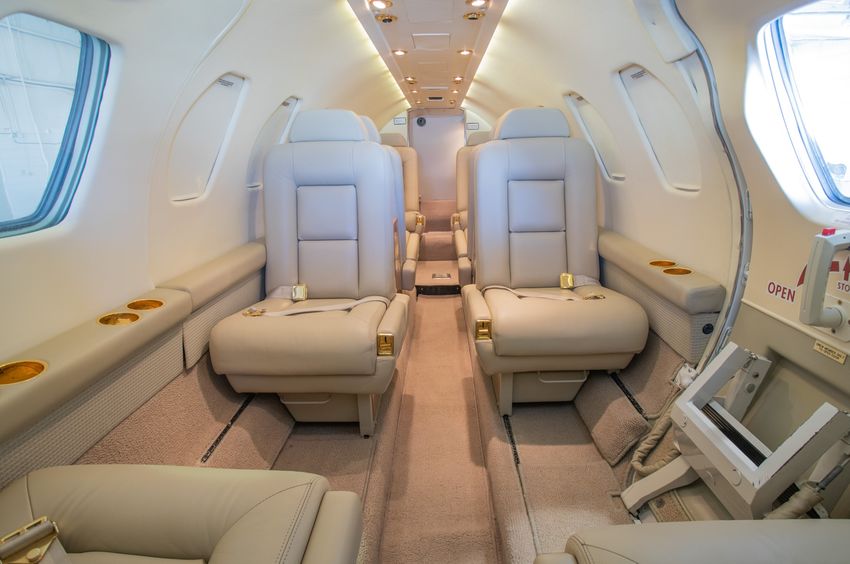

INTERIOR:
Number of Passengers Nine (9): Two 4-Place Clubs plus Belted Lav
Lavatory Location Aft (Belted)
Interior Refurbishment Airport Interiors (Smyrna, TN) in 2011: New headliner,
leather seat coverings, seat belts and side panels.
Carpet replaced in 2014.
LINK TO 3D TOUR IN ABOVE PHOTO

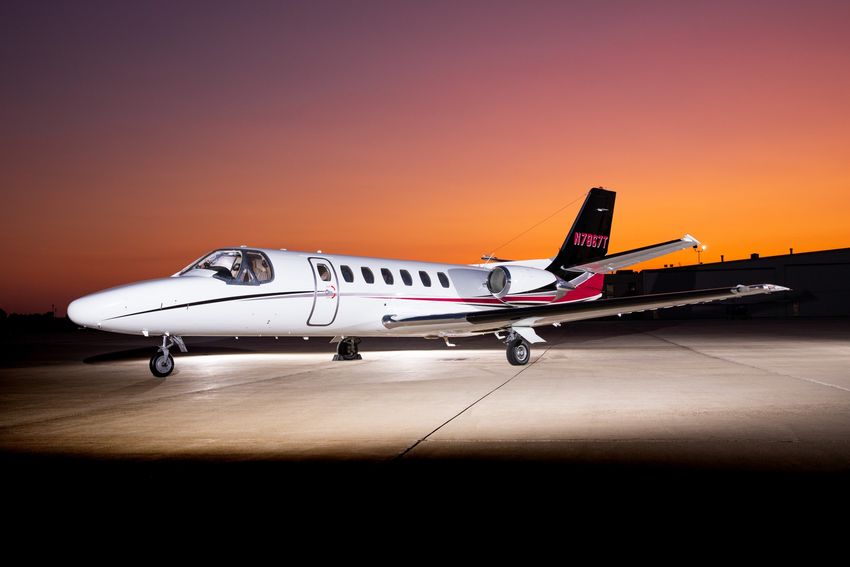

EXTERIOR:
Completed at Jim Miller Aircraft Painting in 2015
Base Paint Color Matterhorn White
Accent Colors Black, Red and Grey
