2018 SECURITY CAMERAS
Vicon’s new lines of high-performance megapixel IP surveillance cameras offer professional quality, advanced performance and specialized features.
www.vicon-security.com
Complete Security Solutions
that deliver
Advanced Simplicity
Camera Solutions for Every Purpose, in Any Environment
Vicon offers a broad range of surveillance cameras for any mission-critical application, lighting condition and even the
most challenging environments. Our portfolio of affordable indoor and environmental cameras maximize video security
options and protect people, property and assets.
Our new lines of high-performance megapixel IP surveillance cameras offer professional quality, advanced performance
and specialized features. While specifications vary by camera, all offer exceptional image clarity due to features that
include wide dynamic range, digital noise reduction and IR illumination for visibility in low lighting conditions. The
cameras are ONVIF compliant and offer full frame-rate recording and multi-streaming.
1.800.645.9116 | www.vicon-security.com 2
NEW Thermal Camera Series Key Features Product Details
Thermal cameras create images based on heat that radiates • Temperature Detection/Display up to 8 areas Models:
from a person or object, making it ideal for locations and • Supports 17 color modes V1100B-THM-15MM
environments with problematic lighting conditions. • 400 x 300 resolution V1100B-THM-25MM
• Four lens choices: 15mm, 25mm, 35mm, 50mm V1100B-THM-35MM
• 50 mK sensitivity V1100B-THM-50MM
• 8 to 14 µm spectral range
• Uncooled IRFPA VOx Microbolometer detector
• H.265/H.264 and M-JPEG compression
• 2 alarm inputs, 2 alarm outputs
• Two-way audio; 1 audio input, 1 audio output
• Video Content Analysis (VCA) including perimeter,
virtual fences and object left/object removed
• Smart encoding lowers bit rate and storage requirements
• SD card slot
• Powered by PoE; 12 VDC
• IP66
NEW 4K Resolution Camera Series Key Features Product Details
The 4K dome and bullet cameras deliver sharper images while • 4K resolution (8 MP) Models:
providing a broad range of coverage and improved visibility. • H.264/H.265 and M-JPEG compression V988D-W311MIR Dome Camera
• True WDR V988B-W311MIR Bullet Camera
• 28 IR LEDs (Dome)/34 IR LEDs (Bullet)
(90 ft/30 m range)
• Motorized varifocal lens
• Quad streaming
• Video Content Analysis (VCA): Defog,
tampering, intrusion, motion detection
• Audio and alarm input/output
• Powered by PoE; 12 VDC
• Video composite out
• SD card slot for on-camera storage
• Surface mounting on wall or ceiling
V988D Dome V988B Bullet • IP66; IK10
3

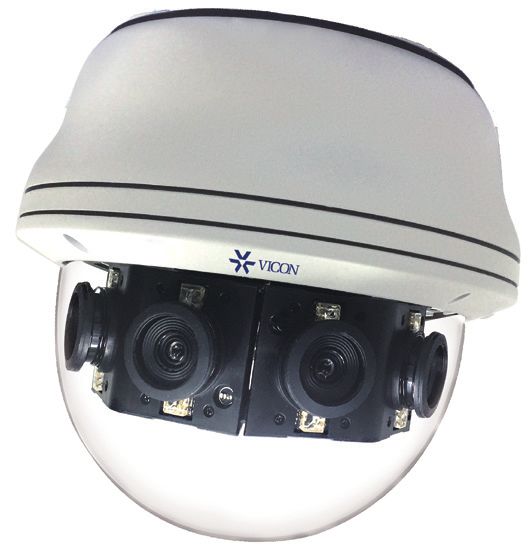

NEW Multi-Sensor Camera Series Key Features Product Details
The multi-sensor camera has four sensors that work together • 8 megapixel and 20 megapixel versions Models:
to provide a detailed 180° panoramic view. • Includes four separate camera modules (2 MP or 5 MP) V1008-WIR-180
that combine for one IP address output V1020-WIR-180
• H.265/H.264 compression
• Smart Encoding
• Built-in IR illumination LEDs; effective distance 90 ft (30 m)
• High-resolution 180° panoramic coverage
• Triple streaming
• Exposure settings for each module configured independently
• Video Content Analysis - VMD and tampering
• 1 alarm input, 1 alarm output
• Two-way audio; 1 audio input, 1 audio output
• True WDR
• SD card slot
• Powered by PoE+; 12 VDC; 24 VAC
• Indoor/outdoor; vandal-resistance rated IK10; weatherproof,
IP66 rated
NEW Cruiser
Key Features Product Details
The PTZ dome camera provides surveillence over a wide area range.
• 1080P (1920x1080P) day/night camera Model:
• H.265, H.264 and M-JPEG compression formats SN693V
• 23X optical zoom
• Minimum illumination: Color 0.35 lux, B/W: 0.013 lux
• True WDR
• Video Content Analysis (VCA): Tampering, defog,
and object detection
• IR illumination up to 196 ft (60 m)
• Supports local recording to Micro-SD card
• Powered by 12 VDC and PoE+
• Outdoor; IP66 and IK10 rated
1.800.645.9116 | www.vicon-security.com 4
NEW Rugged PTZ
This rugged PTZ dome camera is designed for performance Key Features Product Details
in the most demanding installations.
• 3 MP resolution Model:
• True WDR; day/night camera with a built-in varifocal SN683D-WIR
36x optical zoom autoiris lens
• Synchronized IR illuminators with 1312 ft (400 m) range
• 12 VDC and UPoE (PoE injector included)
• Quad streaming video
• Video Content Analysis - Tampering, defog, intrusion detection
• Two-way audio
• IP66 and IK10 rated
• 16 programmable privacy masks
• Surface mounting on wall or ceiling
• Supports local recording to Micro-SD card
Vandal Dome and Bullet Cameras
These rugged outdoor cameras are ideal for settings Key Features Product Details
with challenging environments. • 2MP, 4MP and 5MP models Models:
• H.264/H.265 DOME
• Museum Search V942D-W312MIR
• HTTPS encryption V942D-W310MIR-XW
• Smart Encoding V942D-W310MIR-XS
• True WDR V944D-W312MIR
• IPV6 V945D-W310MIR
• Video Content Analysis (VCA)
• Interior/Exterior, IP66/ (IP67-B) BULLET
• Vandal rating IK10 V942B-W312MIR
• Smart IR Illumination V942B-W310MIR-XW
• MFZ lenses V942B-W310MIR-XS
• High Dynamic Range -XW version V944B-W312MIR
• Extreme Low Light -XS version V945B-W310MIR
V940B V940D
5

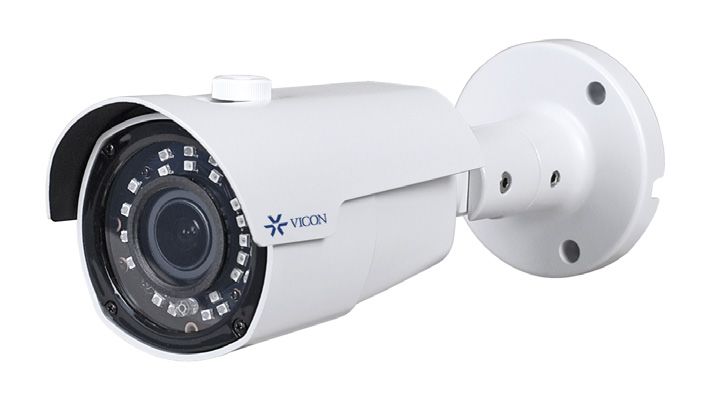

Indoor/Outdoor Bullets
These cameras combine excellent quality video in a
cost-effective housing. Key Features Product Details
• 2MP and 4MP models Models:
• H.264/H.265 BULLET
• Museum Search V812B-IR
• HTTPS encryption V812B-312MIR
• Smart Encoding V814B-IR
• Digital WDR (Bullet)/True WDR (Dome) V814B-312MIR
• IPV6
V812B-312MIR
• Standard IR Illumination DOME
• Fixed and MFZ lens models V802D-IR
• Small form factor V802D-312MIR
V802D-IR V804D-IR
V804D-312MIR
V812B-IR
Indoor/Outdoor Turrets
The turret cameras are designed to work in installations Key Features Product Details
that have an unusual or difficult angle of view. • 2MP and 4MP models; EZ: 3 MP Models:
• H.264/H.265 V932D-IR-1
• Museum Search V9520D-312MIR
• HTTPS encryption V934D-IR
• Smart Encoding V9540D-312MIR
• Digital WDR V933EZ-312MIR
• IPV6
• Standard IR Illumination
• Fixed and MFZ lens models
• Easy to install and adjust lens
• Avoids potential fogging
• Eliminates IR reflection
V932D-IR-1 V9520D-312MIR V933EZ • EZ model provides remote
motorized pan and tilt
camera controls
1.800.645.9116 | www.vicon-security.com 6
Indoor/Outdoor Hemispheric Series
This camera provides a high-resolution, hemispherical
view of your world that eliminates blind spots and
provides server-based and edge-based dewarpring.
Key Features Product Details
• 6 MP and 12 MP models Models:
• Indoor and outdoor models V9360-6
• 360° panorama at full HD V9360W-6
• Fisheye lens V9360-12
• WDR V9360W-12
• Smart Event function
• Multiple dewarp display modes
• IK10; outdoor model IP66
V9360 Series

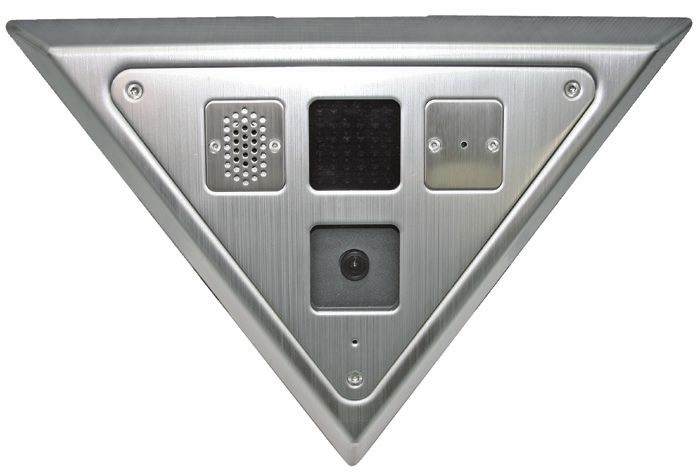

Roughneck V-CELL-HD-B High-Security Camera
This heavy-duty, stainless steel security camera is designed
Key Features Product Details
specifically for custodial suites and prison cells.
• 3 MP Models:
• WDR V-CELL-HD-B
• H.264/MPEG-4/M-JPEG
• Integrated IR LEDS
• Integrated microphone and speaker
• Water-resistent enclosure
• IK10 rating
V-CELL-HD-B
7
Vicon’s integrated product strategy means having innovative products at every layer of the security
solutions stack—and within each layer—engineering them to work together seamlessly. With Vicon’s high-performance security
products that stand alone or work together, you can get the best fit for an organization.
Vicon’s trusted products and solutions are installed around the globe in over 40,000 companies in a variety of vertical markets.
For more information about Vicon, which is publicly traded on the New York Stock Exchange under the symbol “VII,” visit our website:
www.vicon-security.com
Corporate Headquarters European Headquarters
Vicon Industries Vicon Industries Limited
Tel: 631.952.2288 Tel: +44 1489 566300
Toll-Free Sales: +1 (800) 645 9116 Sales: +44 1489 566310
Email: sales@vicon-security.com E-mail: uksales@vicon-security.com
www.vicon-security.com
Vicon, Roughneck and their logos are registered trademarks of Vicon Industries Inc. Product specifications are subject to change without notice. Copyright ©2018 Vicon Industries Inc. All rights reserved.
Vicon part number 8015-5906-11-00. All other trademarks used in this publication are the property of their owners.
