CREATING SMILES FOR LIFE
PINDULGENCE
URE
2019
ELEGANCE
CONTENTS
DIFFERENCE ELEGANCE FEATURES
10 reasons to buy a Explore the Elegance range Impressive style, comfort
Swift Caravan inside and out and technology
02 13 21
TV
TV
FABRIC OPTIONS SPECIFICATION PARTNERS
Choose the option that Choose from 8 models, Working together to bring
matches your style from 2 to 4 berths you the best
25 26 29
01
10
Reasons to buy a
Swift Caravan
Whether you are seeking exhilarating adventure
or peace and tranquility, our aim at Swift is to
make your holiday as comfortable
and enjoyable as possible
Find out what sets Swift apart
02
1
Reliable Build Quality

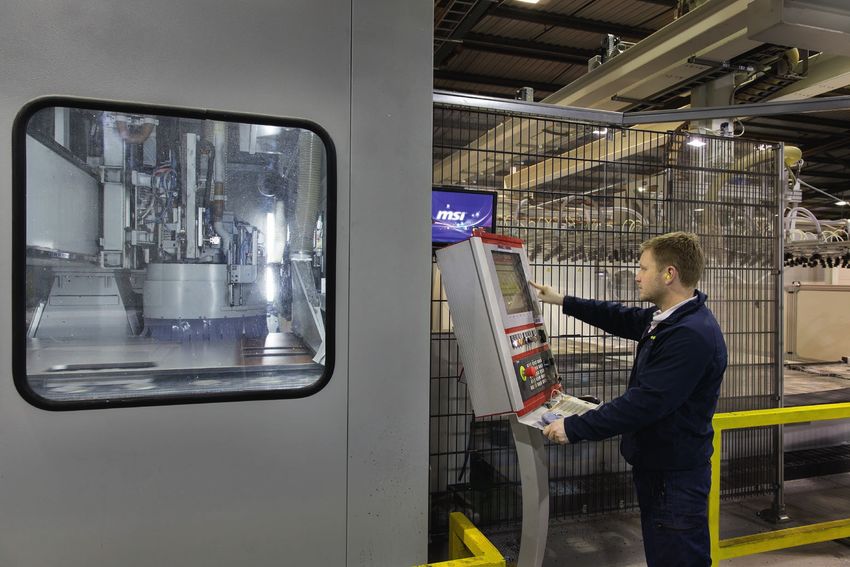

Exclusive to Swift, SMART Construction is the
UK’s most popular modern construction system.
Years of research and rigorous testing went
into its development.
No wonder we’ve given
it a 10-year manufacturer
bodyshell warranty
SUBJECT TO T&C's
03
2
Protecting good looks
GRP outer skin, hail resistant roof and GRP front
and rear gives a tougher exterior; more impact
resistant than aluminium and easier to repair than ABS.
Inside, cushioning tested to extreme, bleachable
carpets and optional SwiftShield fabric are
all designed to keep your home from home
looking its best.
Swift caravans are built to last
SMART
04
3

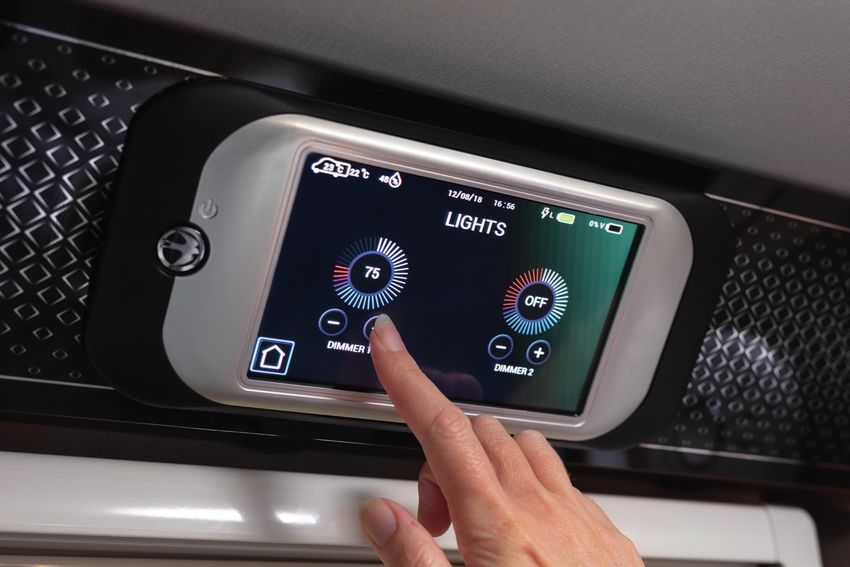

Touch Control
Swift Command with new touchscreen control panel,
user friendly design and easy to follow navigation
with compatible smartphone app to manage key
functions like heating.
Vehicle management at
your fingertips
05
4
Secure and Save
With a pre-installed Swift Command Thatcham
Category 6 approved pro-active tracker
(subject to annual subscription) and VIN CHIPTM
identification system concealed within construction
to deter theft and aid quick recovery, you can better
secure your vehicle and save with insurance discounts
(Discounts depend on insurance provider).
Enjoy extra peace of mind
06
5
Outstanding
Customer Service
Get issues resolved promptly with Connect Direct,
our dedicated online customer service account for
new owners. Report any problems directly to Swift,
and we’ll work with your dealer to resolve it
as quickly as possible.
With you every step of the way
CONNECT DIRECT
07
6
Approved Dealer
Network
With the largest dealer network, expert advice is on
hand right across the UK thanks to our Approved Dealer
Programme. Extensive training programmes
for dealer teams through the Swift Academy to
support and enhance your Swift experience.
Wherever you wander, you’re never
too far from a Swift Dealer
08
7
Relaxing Space
Stay warm and sleep tight every night with
Grade 3 heating and insulation along with a
Duvalay Duvalite lightweight memory fibre mattress,
exclusive to Swift, on all fixed beds.
Relax in comfort on the premium seating – with
supportive cushioning and sprung beech slats.
You’re assured of a
comfortable stay
098
Wide Choice
We have different caravans ranges to suit
most budgets and styles – each with multiple layout
options and weights suitable for a range of tow cars.
We have the UK's best-selling
caravan range
109
Pioneers
Innovation is at the heart of our ethos, we never
stand still. This philosophy spans everything
Swift builds. From aerodynaimc profiling through
to modern interior styling, we ensure our products
look sensational and work intuitively. We are proud
recipients of a Red Dot Award.
Think contemporary design
and clever storage solutions
1110
Europe's No.1 Brand
British owned, Swift started life as a family
business in 1964 and retains that ethos today.
We directly employ over 1,200 people, boosting
the local economy, developing local expertise
and reinforcing the power of British manufacturing.
Proud to be Yorkshire
Born and Bred
12PURE
INDULGENCE
Representing decades of experience and countless innovations, the Swift Elegance offers an
exquisitely refined touring experience that is second to none.
2019 is no exception; the Elegance comes with new SMART 3 construction – the third generation of
L
L II F
F E
ETT II M
M E
E
totally timberless SMART caravan construction featuring a new revolutionary floor construction and a
lifetime water ingress warranty (subject to T&C's*). MANUFACTURER
WATER INGRESS
A new sweeping, aerodynamic front panel, incorporates triple flush fitting opening windows and a new WARRANTY *
panoramic sunroof design. Stylish graphics, premium jockey wheel, bright LED road lighting and rear SUBJECT TO T&C's
view camera are just some of the finishing exterior touches.
The expanded eight model range including three twin axle layouts, are all lavishly appointed and
perfectly proportioned.
*Subject to terms and conditions - for details see swiftgroup.co.uk/owners/warranty
1314
15
The luxurious interior is immaculately designed and cleverly
detailed. You can create the perfect ambience thanks to the
positioning and versatility of the energy efficient LED’s, from front
pillar lights to dimmable spots and new illuminated pelmets above
side windows.
New ‘Darwin’ soft furnishings give a fresh look with contrasting
woven and soft velvety textures. There is also a sumptuous
leather option.
The new domestic style kitchen is fitted with an innovative scratch
resistant FENIX NTM® worktop, soft close drawers and doors,
illuminated kitchen splashback and Dometic appliances including a
high performance oven and a spacious tall fridge in most models.
Fixed beds are topped with the ultra-comfortable Duvalay Duvalite
mattress, exclusive as standard equipment to Swift.
1617
18
Engineered to excite, the Swift Elegance enjoys an enviable
reputation as one of the finest all season tourers around and a true,
no compromise, home from home.
Well placed power, USB, and audio interfaces cater for your
entertainment devices and a redesign of the front chest now
features a soft close drawer with concealed drawer inside. The list
goes on with luxury Alde central heating and clever new design
features in the well equipped washrooms, which all come with an
Alde radiator.
Boosting specification levels further is the enhanced Swift
Command control system with new larger 7”, easier to use,
LCD colour touchscreen control panel with improved functionality
and app interface, featuring new integrated DAB and FM radio
tuning and sound setting control. The option to subscribe to a
pre-installed Thatcham Category 6 approved pro-active tracker
provides added protection.
1920
ELEGANCE HIGHLIGHTS
01. NEW SMART 3 construction – the latest in totally
timberless caravan construction with completely
NEW composite floor featuring innovative materials
and lifetime water ingress warranty (Subject to T&C's)
02. NEW sweeping front robust GRP panel incorporating
NEW triple flush fitting front window design, 80W roof
mounted solar panel, wide access gas locker door with
single lever three point locking and LED front marker
lights SMART
03. 1.95m (6’5”) internal headroom and NEW panoramic
sunroof design with soft touch surround incorporating 01 02 03 04
recessed LED lighting and speakers
04. Rear view camera and robust rear GRP panel with
exclusive LED rear light clusters, LED high level marker
and brake light which provide better visibility in poor
weather
05. Stylish exterior graphics scheme and NEW premium
jockey wheel
06. NEW wide front chest featuring a soft close drawer with
concealed drawer inside, convenient slide-out extending
top and NEW front binnacle design incorporating chrome
effect sockets surround, two twin USB points and audio
jack plug link to speaker
07. NEW ‘Darwin’ soft furnishing scheme, high gloss ‘Aralie
Sen’ woodgrain with ‘Smoked Oak’ inlay and Hessian
effect upper locker doors for a striking interior look 05 06 07 08
08. Dedicated washroom incorporating illuminated shower
console and durable shower tray, NEW ‘Vellamo’ in mid
washrooms
09. Front beds with fixed bolster cushions that double as
headboard with cast foam seating for improved comfort
and durability
10. Exclusive Duvalay Duvalite Apollo Luxe mattress
containing Freshtec – a market leading high spec foam
offering maximum airflow for a cool, comfortable good
night’s sleep (model specific)
11. NEW domestic style kitchen with soft close drawers and
doors with positive catches for secure storage, NEW
FENIX NTM® kitchen worktops (resistant to scratches,
hygienic and easy to clean), underslung stainless steel 09 10 11 12
sink and illuminated splashback
12. Low energy LED lighting system throughout with over-
locker lights, A pillar feature lighting, dimmable task lights,
low level night lights and illuminated pelmets above side
windows
13. ALDE radiator central heating and water heating with daily
programming with LCD touch screen control and choice
of 1kW, 2kW or 3kW setting and washroom radiator in
all models
14. High performance full Dometic oven, hobs and separate
grill, and Dometic electronic ignition fridge with freezer
compartment
15. AL-KO ATC trailer stability control and AL-KO Secure
wheel lock as standard
16. 30 litre onboard fresh water tank with additional external 13 14 15 16
pump for filling or direct feed to taps in all models
21ELEGANCE FEATURES
Exterior ••Fully double-glazed opening windows (no ••Entrance step ••Front corner opening lockers for extra storage
single-glazed cold areas) ••Fixing bars for optional Thule rear mounted ••Chrome effect sockets and switches
••European Whole Vehicle Type Approval
ensures compliance with strict weight, ••Surface mounted impact resistant skirt cycle rack ••Thermoformed seat and backrest ventilation
dimension and safety regulations system boards with bevelled back for better cushion
Interior
••EN1645 Grade 3 classification for heating and ••Semi-recessed body colour awning rail both angle and heating performance
••1.95m (6’5”) headroom
thermal insulation sides ••Cast foam bedding for improved comfort and
••Panoramic front sunroof with NEW soft touch
••Overall body width 2.26m/7’5” ••External service doors (access under durability
surround incorporating recessed lights and
nearside front bed and fixed beds) ••Fixed bolsters either side of front chest with
••AL-KO galvanised steel chassis with Euro-axle speakers
••Heavy duty corner steadies integrated rear heating vents
••NEW SMART 3 construction – the third ••NEW ‘Darwin’ soft furnishing scheme
generation of totally timberless SMART ••Rear view camera for improved all round vision ••Sectioned removable carpets for flexibility
••NEW wide front chest featuring a soft close
caravan construction featuring a NEW ••‘Edge’ alloy wheels drawer with concealed drawer inside and •• ‘French Oak’ effect, high impact, scratch
revolutionary floor construction and comes convenient slide-out extending top resistant floor lino
with a lifetime water ingress warranty*; ••High tyre rating - a load margin is included in
- Strong, moisture proof ‘PURe’ Polyurethane the tyre specifications ••NEW front binnacle design incorporating ••Two large scatter cushions and two bolsters
timberless framed bodyshell with ••Spare wheel on underslung carrier chrome effect sockets surround and audio ••Beech slat seat and bed bases for extra
polystyrene insulation core (22mm in jack plug to speaker comfort and sprung hinged tops for easy
••NEW premium jockey wheel
sidewalls, 28mm in roof) ••Luxury curtains with full width fabric on all side access
- Robust GRP inner and outer balanced side ••13-pin ‘Jaeger’ 12V car connector
and centre front windows complemented by ••Bed make-up system with slats retained on
walls ••Shock absorbers for a smoother towing fabric covered wall pads track (Mid bed uses the table)
- NEW 45mm ‘sandwich’ floor construction experience
••Twin curtain track for improved hanging and ••Deep fully padded headboard to fixed bed
with GRP inner and outer skins, and ••AL-KO Euro overrun device with two-way ease of use
engineered structural foam core with LED lighting
assisted handbrake
- SRIM corner jointing system ••Curved upper locker doors in high gloss ••Exclusive Duvalay Duvalite Apollo Luxe
- Hail resistant exterior GRP roof, fully bonded ••AL-KO side-mounted jacking point and jack ‘Aralie Sen’ woodgrain with gloss Smoked Oak mattress containing Freshtec – a market
for extra strength and flatness ••AL-KO carabiner breakaway cable effect inlay leading high spec foam offering maximum
••NEW sweeping front panel in GRP with ••Step-on hitch cover for easy cleaning of front ••Decorative ‘Ocean Drive’ wall covering in airflow for a cool, comfortable good night’s
completely sleek, triple flush fitting opening windows specific models (480 & 530) sleep (fixed beds only)
window design and LED front marker lights ••Bulkhead mounted regulator suitable for use ••NEW Hessian effect upper locker doors to ••Fixed beds with aluminium bed frames to
••Full height GRP rear panel with exclusive LED with either propane or butane bottles kitchen area maximise strength and storage space (model
rear light clusters, LED high level marker and specific)
••LED awning light ••Injection moulded SRIM covers on rear
brake light which provide better visibility in corners ••Areas under beds and seats and washroom
poor weather ••Key fob control for LED awning light areas warmed by Alde perimeter radiators
••Positive overhead locker catches for secure
••NEW streamlined aerodynamic profile with ••Flush fitting one piece exterior door with ••Large dining table for full-size place settings
storage on the move with chrome handles
NEW panoramic sunroof design magnetic stay, interior moulded liner, window
with blind and bin ••Soft close drawers throughout for smooth ••Midi-Heki rooflight with flyscreen and
••Stylish graphics scheme operation adjustable concertina blind in lounge
••Aerial point in battery box for portable satellite
••LED side marker running lights dish connection ••Lightweight, strong composite furniture ••Mini-Heki rooflight with flyscreen and
••Chrome effect two part grab handles to front construction adjustable concertina blind in bedrooms
••Exterior access battery box with mains
and rear electric inlet (battery not included) ••Seat bases featuring spaceframe ••NEW domestic style kitchen with soft close
••Wide access gas locker door with single lever construction with full front access and space drawers and doors with positive catches for
••BBQ point secure storage
three point locking for larger items
••External 230V socket
••Overhead locker doors with injection moulded
••External cold water shower point spaceframe construction
*Subject to terms and conditions - for details see swiftgroup.co.uk/owners/warranty
22ELEGANCE FEATURES
••NEW FENIX NTM® kitchen worktop (resistant Equipment ••ALDE radiator central heating and water ••Isolation taps for gas appliances
to scratches, hygienic and easy to clean) and heating with daily programming with LCD ••Fully protected mains electric system
••Exclusive Swift Command control system with
underslung stainless steel sink touchscreen control and choice of 1kW, 2kW
NEW larger 7” LCD colour touch screen panel ••25 amp switchmode charger/transformer
••Removable drainer and food grade nylon or 3kW setting
with improved user interface and functionality
chopping board nestle together for easy featuring; ••Boiler mounted heating circulation pump ••TV station with 230V, 12V and aerial sockets
storage in dedicated location - NEW integrated DAB and FM radio tuning with manual override to assist with system air (two in selected models)
••Kitchen illuminated splashback and sound setting control bleeding ••TV bracket including a travel lock where
- NEW simplified controls for monitoring and ••ALDE washroom radiator in all models applicable
••Foldaway kitchen worktop extension managing:
••Digital programmable controller for heating ••Status 570 directional Digital / Analogue TV/
••Cutlery drawers on smooth-action steel • Power FM aerial and booster
runners (model specific) - Battery selection, battery level meter and and hot water
power usage ••Full high performance Dometic oven, separate ••80W roof mounted solar panel
••Two pull-out wire baskets in kitchen cupboard
- 2 30V AC load limiter (settable between 5 grill with 3 gas hobs, 1 electric hob and Glass ••Low energy LED lighting system throughout
••Chrome finish crockery rack amps & 16 amps) hob lid with safety cut-out feature with over-locker lights, dimmable task lights
••Chrome effect swivel spout kitchen and vanity - Solar panel charging levels (where fitted) ••Ventilated microwave oven with digital controls and low level night lights
taps for improved use • Heating control of Alde system built at an easily accessible level ••Feature lighting to front ‘A’ pillars
••32mm thick washroom doors with domestic • E nvironment monitoring with internal &
external temperature and internal humidity ••Under counter Dometic 110 litre electronic ••LED downlights set in plinth over kitchen
style locks and handles ignition fridge incorporating 12 litre removable locker
levels
••Decorative inlay to washroom door (model • Selected lighting control freezer compartment in 530 ••NEW illuminated pelmets above side windows
specific) • W ater system controls and tank levels ••190 litre Dometic electronic ignition double ••LED back-lit acrylic sink splashback
••Dedicated washroom incorporating • A ir-conditioning compatible with Dometic door fridge freezer with 35 litre freezer
‘illuminated’ shower console and durable and Truma (dealer fit option, model capacity in twin axles ••Adjustable under locker LED spotlights
shower tray dependent) ••Tall slimline Dometic 134 litre electronic ••Illuminated washroom mirrors
••Shower bi-fold door retained on track for - Swift Command App with NEW interface that ignition fridge incorporating 12 litre removable ••Premium quality speakers in washrooms
improved access (only 480, 530, 565, 580 & is easier to use and more intuitive, enabling freezer compartment in 480, 560, 565 & 580 (model specific)
645) you to manage and monitor key vehicle
functions from your mobile device including ••Omnivent three speed, two way roof fan ••Light above and inside wardrobe
••One piece ‘Vellamo’ shower cubicle with power, heating and selected lighting ••Ecocamel Orbit shower head with on/off ••A minimum of four 230V sockets throughout
curved sliding door (560, 635 & 650) • Incorporates a simpler connectivity button for a powerful shower that uses less (not including cooker and microwave) and two
••Folding washroom ceiling mounted garment selection water twin USB points for easy charging of portable
hanging rail (model specific) - Bluetooth connectivity when with the ••Thetford C260 toilet with electric flush and 18 devices
••NEW dedicated storage shelf in shower area vehicle litre wheeled waste tank ••25 metre mains hook-up cable
of rear washroom (model specific) - Wi-Fi / GSM connectivity when away from
the vehicle ••30 litre internal fresh water tank with additional
••NEW shaving mirror in washroom (model • Includes the useful ‘Places of Interest’ external pump for filling or direct feed to taps
specific) feature including ‘Campsites’ from the in all models
••Micro Heki rooflight in washroom with Camping & Caravanning Club and Swift ••Addition of water tank gauge and filling
flyscreen and concertina blind dealership locations function on Swift Command power supply unit
••Door flyscreen with easy concertina action ••High flow rate in-board pump with chrome
••Pleated blinds and flyscreens to all windows effect taps for reliable, high performance water
supply
••Retained embroidered entrance mat
••Inboard semi-rigid fresh water pipes
••Large bore underslung rigid waste pipes
23ELEGANCE FEATURES
Safety and Security Factory Fit Options
••Swift Command Tracker, a Thatcham ••Alternative fabric schemes including the
Category 6 approved pro-active tracker NEW SwiftShield stain-resistant, easy-clean
pre-installed as part of Swift Command fabric with soft suede like texture and Leather
system (subject to annual subscription) scheme
••Convenient one-key high security locks Dealer Fit Options
••AL-KO ATC trailer stability control fitted as ••Wrap-around front seating in addition to
standard drawer chest
••Passive infra-red alarm system with tilt ••Weight plate upgrade (model dependent)
sensor and key fob operation
••Roof mounted air conditioning unit (model
••AKS 3004 stabiliser dependent)
••AL-KO Secure wheel lock(s) ••Oyster satellite system (model dependent)
••Smoke alarm ••Thule rail mounted rear cycle rack
••Carbon monoxide detector
••CRiS identity number labels on windows and
caravan chassis
••VIN CHIPTM identification system concealed
within construction to deter theft and aid
quick recovery
Customer Service
••Exclusive Connect Direct online account with
direct access to Swift
24ELEGANCE FABRIC OPTIONS
Within the Swift range some fabric options are interchangeable, however this will affect seating and cushion make ups,
please ask your dealer for full details and clarification.
‘Darwin’ upholstery scheme ‘Saturn’ upholstery scheme ‘Glacier’ upholstery scheme SwiftShield upholstery scheme Leather upholstery scheme
Standard fabric Optional fabric Optional fabric Optional fabric Optional fabric
SEATING
CURTAIN
SCATTER
CUSHIONS
25ELEGANCE RANGE QUICK VIEW
ELEGANCE 480 ELEGANCE 530 ELEGANCE 560 ELEGANCE 565 ELEGANCE 580
NEW
Length Length Length Length Length
6.59m/21'7" 7.07m/23'2" TV 7.54m/24'9" 7.54m/24'9" TV
7.54m/24'9"
TV
TV
V
TV Width Width Width Width Width
2.28m/7'6" 2.28m/7'6" 2.28m/7'6" 2.28m/7'6" 2.28m/7'6"
TV
TV
TV
TV
Weight (MTPLM) Weight (MTPLM) Weight (MTPLM) Weight (MTPLM) Weight (MTPLM)
TV
1467kg 1625kg TV
1684kg 1681kg* 1681kg
Berths Berths Berths Berths Berths
2 4 4 4 4
ELEGANCE 635 ELEGANCE 645 ELEGANCE 650
NEW
Length Length Length
7.98m/26'2" 7.98m/26'2" 7.98m/26'2"
Width Width Width
2.28m/7'6" 2.28m/7'6" 2.28m/7'6"
TV
TV
TV
TV
Weight (MTPLM) Weight (MTPLM) Weight (MTPLM)
1830kg* 1793kg* TV
1830kg*
TV
Berths Berths Berths
4 4 4
Note: *Estimated
26ELEGANCE 480 530 560 565 580
SPECIFICATION
NEW
TV TV
TV
TV
V
TV
TV
TV
TV
TV
TV
TV
Berths 2 4 4 4 4
Number of Axles 1 1 1 1 1
Internal Length
4.98m / 16'4" 5.45m / 17'11" 5.93m / 19'5" 5.93m / 19'5" 5.93m / 19'5"
(at bed box height)
Overall Width# 2.28m / 7'6" 2.28m / 7'6" 2.28m / 7'6" 2.28m / 7'6" 2.28m / 7'6"
Overall Height (inc. TV Aerial)# 2.59m / 8'6" 2.59m / 8'6" 2.59m / 8'6" 2.59m / 8'6" 2.59m / 8'6"
Maximum Internal Headroom 1.95m / 6'5" 1.95m / 6'5" 1.95m / 6'5" 1.95m / 6'5" 1.95m / 6'5"
Overall Length# 6.59m / 21'7" 7.07m / 23'2" 7.54m / 24'9" 7.54m / 24'9" 7.54m / 24'9"
Awning A/A Dimension 9.04m / 29'8" 9.58m / 31'5" 10.05m / 33'0" 10.05m / 33'0" 10.05m / 33'0"
Mass in Running Order
1341kg / 26.4cwt 1474kg / 29.0cwt 1528kg / 30.1cwt 1525kg / 30.0cwt* 1525kg / 30.0cwt
(inc. tolerance)
Maximum Technical
1467kg / 28.9cwt 1625kg / 32.0cwt 1684kg / 33.1cwt 1681kg / 33.1cwt* 1681kg / 33.1cwt
Permissible Laden Mass
Total User Payload 126kg / 2.5cwt 151kg / 3.0cwt 156kg / 3.1cwt 156kg / 3.1cwt 156kg / 3.1cwt
Personal Effects Payload 126kg / 2.5cwt 151kg / 3.0cwt 156kg / 3.1cwt 156kg / 3.1cwt 156kg / 3.1cwt
Options 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt
Tyre Size 185 R14C 102Q 195/70 R15C 104R 195/70 R15C 104R 195/70 R15C 104R 195/70 R15C 104R
Thermal Insulation Grade Three Three Three Three Three
BED SIZES
Front Double 200cm x 178cm / 6'7" x 5'10" 200cm x 178cm / 6'7" x 5'10" 200cm x 153cm / 6'7" x 5'0" 200cm x 163cm / 6'7" x 5'4" 200cm x 163cm / 6'7" x 5'4"
Or Front Nearside Single 188cm x 67cm / 6'2" x 2'2" 178cm x 67cm / 5'10" x 2'2" 153cm x 67cm / 5'0" x 2'2" 163cm x 67cm / 5'4" x 2'2" 163cm x 67cm / 5'4" x 2'2"
And Front Offside Single 178cm x 67cm / 5'10" x 2'2" 188cm x 67cm / 6'2" x 2'2" 163cm x 67cm / 5'4" x 2'2" 163cm x 67cm / 5'4" x 2'2" 163cm x 67cm / 5'4" x 2'2"
Rear Double 190cm x 133cm / 6'3" x 4'4" 182cm x 133cm / 6'0" x 4'4"
Side/Rear Single Offside 180cm x 69cm / 5'11" x 2'3" 172cm x 75cm / 5'8" x 2'6"
Side/Rear Single Nearside 190cm x 75cm / 6'3" x 2'6"
Side Bunk Offside 179cm x 59cm / 5'9" x 1'11"
Side Drop Down
Side Fixed Lower Bunk
Side Fixed Upper Bunk
CONT....
27ELEGANCE 635 645 650 SPECIFICATION
SPECIFICATION NOTES
NEW
MASSES: The masses are calculated in
accordance to EU regulation 1230/2012 and
NCC code of practice 304.
The Mass in Running Order (MRO) comprises:
1. The mass of the empty caravan as supplied by
Swift including loose items such as the hook-
TV
TV
TV
up cable, kit bag, entrance step, manuals etc.
2. 10kg allowance for LPG
The MRO is calculated with the fresh water tank,
TV
toilet flush tank and water heater empty. If you
travel with water in the fresh water tank, toilet
TV
flush tank and the water heater the payload will
reduce accordingly.
The personal effects is based on the number
TV of berths and the length of the caravan and
includes an allowance of 20kg for a leisure
battery.
Berths 4 4 4
The Maximum Technical Laden Mass (MTPLM) is
Number of Axles 2 2 2
the maximum mass allowed when the caravan is
Internal Length fully laden.
6.36m / 20'10" 6.36m / 20'10" 6.36m / 20'10"
(at bed box height)
WARNING: Under no circumstances should the
Overall Width# 2.28m / 7'6" 2.28m / 7'6" 2.28m / 7'6"
MTPLM be exceeded.
Overall Height (inc. TV Aerial)# 2.59m / 8'6" 2.59m / 8'6" 2.59m / 8'6"
BED SIZES: Please note that the front double
Maximum Internal Headroom 1.95m / 6'5" 1.95m / 6'5" 1.95m / 6'5" bed sizes quoted are for seating configurations
Overall Length# 7.98m / 26'2" 7.98m / 26'2" 7.98m / 26'2" without chest of drawers. The front double bed
Awning A/A Dimension 10.49m / 34'5" 10.49m / 34'5" 10.49m / 34'5" width for a layout with a chest of drawers fitted
Mass in Running Order will be reduced by 0.4m(1’4”) from that stated.
1670kg / 32.9cwt* 1633kg / 32.1cwt* 1670kg / 32.9cwt*
(inc. tolerance) AWNING SIZES: Due to the varying awning
Maximum Technical designs and sizes the awning sizes given are
1830kg / 36.0cwt* 1793kg / 35.3cwt* 1830kg / 36.0cwt*
Permissible Laden Mass approximate only. Specific awning sizes must
Total User Payload 160kg / 3.1cwt 160kg / 3.1cwt 160kg / 3.1cwt be confirmed by your dealer or the awning
Personal Effects Payload 160kg / 3.1cwt 160kg / 3.1cwt 160kg / 3.1cwt manufacturer prior to purchase.
Options 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt
#
he dimensions given are approximate due to
T
slight variations in suspension
Tyre Size 185/70 R14 88T 185/70 R14 88T 185/70 R14 88T ride heights, loading conditions and tyre
Thermal Insulation Grade Three Three Three pressures
BED SIZES * Estimated weight or bed size
Front Double 200cm x 153cm / 6'7" x 5'0" 200cm x 163cm / 6'7" x 5'4" 200cm x 153cm / 6'7" x 5'0" Customers should verify the actual dimensions
Or Front Nearside Single 153cm x 67cm / 5'0" x 2'2" 163cm x 67cm / 5'4" x 2'2" 153cm x 67cm / 5'0" x 2'2" of their touring caravan before committing
to anything that could be impacted by these
And Front Offside Single 153cm x 67cm / 5'0" x 2'2" 163cm x 67cm / 5'4" x 2'2" 188cm x 67cm / 6'2" x 2'2"
dimensions.
Rear Double 182cm x 133cm / 6'0" x 4'4" 182cm x 133cm / 6'0" x 4'4" 190cm x 133cm / 6'3" x 4'4"
Please note: Any dealer fit options will reduce
Side/Rear Single Offside the overall payload available to the user of the
Side/Rear Single Nearside caravan. If you require additional payload it is
Side Bunk Offside possible to upgrade the MTPLM to the upper
limit. Please contact your caravan dealer for
Side Drop Down more information.
Side Fixed Lower Bunk LED ROAD LIGHTS: Certain vehicles may
Side Fixed Upper Bunk require a secondary fuse box when towing
models fitted with LED road lighting.
28VALUE ADDED PARTNERS
Swift is delighted to have secured Way back in 1994 Swift chose Alde Swift recommend Oyster satellite TV and Swift Group are proud to support a charity
exclusivity to fit the Duvalite mattress as heating systems to help make their broadband. Permanently mounted dishes local to them called the Daisy Appeal.
standard in all fixed bed models across all caravans feel more like home. Proudly fold away neatly when travelling then raise The Daisy appeal is giving loved ones
caravan ranges. This innovative lightweight made in Sweden since 1949, Alde delivers and locate the satellite signal automatically faster, more accurate, diagnosis of three
Memory Fibre Mattress is as comfortable seconds after activation. Made in Germany, of the region’s biggest killers – cancer,
the quietest, most comfortable caravan
as memory foam but has many other they come with a 3 year warranty and there heart disease, and dementia.
heating for the great explorers of the
benefits. Constantly innovating Duvalay is a dedicated UK service centre.
world, and keep on innovating to this day. The Charity’s aim is to provide a world-
ensure our customers have the premium
Swift caravans are tested down to minus class PET-CT scanning facility which will
night’s sleep they need and deserve.
15 degrees to ensure you stay cosy no provide a comprehensive clinical service
matter where your journey takes you. alongside an ambitious clinical research
® programme exploring new applications
of imaging techniques.
Currently in the UK, most PET-CT scanning
is carried out on cancer patients. However,
it has great potential in various heart,
neurological and other diseases. Many of
these will necessitate the use of short
half-life radioactive ‘markers’ which
will need to be manufactured on site.
Swift are partnering with Diamondbrite Hence the requirement of a purpose
Leisure - the ultimate in Paint & Upholstery built cyclotron, radiochemistry and
Protection for your caravan. The exterior radiopharmacy facility.
nano-ceramic treatment forms a high-gloss
For every caravan, motorhome and holiday
coating for easier cleaning and never needs
home sold, Swift Group make a donation
polishing, while the upholstery protection
to the Daisy Appeal, helping them to reach
resists staining. It is professionally applied
their goal of becoming the UK’s number
at your dealership and comes with a
one PET-CT service.
lifetime guarantee plus complimentary
aftercare pack. To find out more visit www.daisyappeal.org
29CREATING SMILES FOR LIFE
VISIT SWIFTGROUP.CO.UK TO...
Configure your model
Watch videos
Download brochures and handbooks
Find a dealer
Social
DISCLAIMER
This brochure does not constitute an offer by Swift Group Limited (Swift). Swift reserves the right to alter specifications
and prices at any time as materials and conditions demand. Distributors and dealers sell Swift products on their own
account and not as agents of Swift. Accordingly, they have no authority to bind Swift or to make any representation or
undertaking whatsoever on behalf of Swift. All props are for photographic purposes only and are not included in the
specification. Models shown may be fitted with optional extras. Issued September 2018.
00You can also read
