AdWords, AdSense, AdMob
&
DoubleClick
INTERNET MONETIZATION
}
Ali Kamran Maken
August, 2014
Contents 1 AdWords 3 2 AdSense 12 3 AdMob 20 4 DoubleClick 29
1 AdWords
Figure 1: Google AdWords Logo.
1.1 Description
The general structure of an account is described using the following picture:

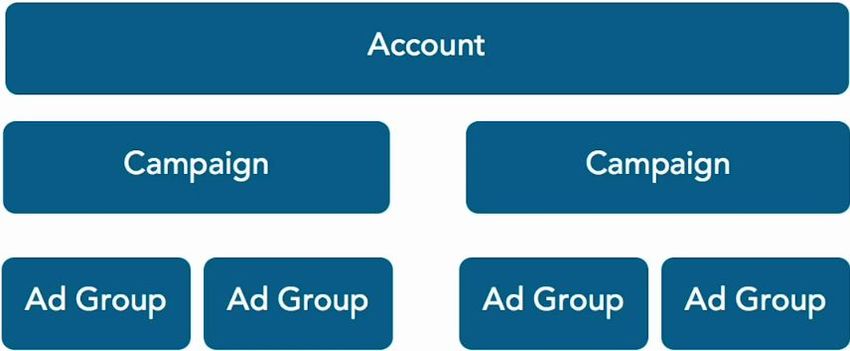

Figure 2: Google Adwords account structure.
The structure consists of an adwords account. For each website the advertiser owns, it is
recommended to create a separate account. Although it is possible to maintain multiple websites
in the same account, but there is no grouping on campaigns per website, so the advertiser has
to keep track of which campaigns belong to which site.
1.1.1 Account
The account is the highest level on Google Adwords interface. At this level the advertiser can
configure options that will be applicable to all the sub levels of this account. The configuration
options available to the advertiser are as follows:
1. Access
The account can be shared among multiple users. And the access level can be set to read-
only or full access etc. The “Account Access” section of the AdWords interface will allow
the advertiser to invite new users. Once an invitation has been accepted, the advertiser
have to grant access to the user by visiting again the “Account Access” section.
2. Billing Information
The overall due payments and transactions to and fro the account can be seen in this
section.
3. Notifications
Page 3 of 37
General notifications, messages and suggestions from Google AdWords team can be found
in this section.
4. General Preferences
This section contains the general preference settings that will be applied to the entire
account.
1.1.2 Campaigns
In an AdWords account the advertiser can create up to 10,000 campaigns. A campaign is
targeted at a specific scenario and situation of advertisement. For example to target the on going
sale in your store, you can create a specific campaign to cater this need.
A campaign contains many parameters that can be set per the need of the advertiser. Fol-
lowing are the di↵erent properties that can be set in a campaign:
• Networks
This section allows to chose the specific ad networks you want to this campaign to run on.
• Budgets
The advertiser can set daily budgets. So the ads will be served until the budget is available
and once the budget is over the ads will cease to display, to avoid over charging.
• Languages
This defines the targeted language for the ads. If you are selling something in Italy, the
language would be Italian in the case. An ad in English will not be able to capture large
population in this case.
• Locations
Many times the ads are displaying the on site o↵ers and store names. This information is
most useful in the vicinity of the physical location of the site and store. So the advertiser
can limit the ads to be displayed only if the user is coming from that area or location.
• Schedules
If the ad is showing some information which is only valid for a time period or a season.
Then the schedule can be setup so that the ad is only served in that schedule and after the
schedule gets over the ads cease to display.
1.1.3 Ad Groups
Each campaign can contain up to 20,000 ads in the form of ad groups. Ad groups are groups
of ads with similar properties, targets and features. The ads can be created of one of the following
types:
Page 4 of 37
• Textual
Ads made up of standard text. Consisting of up to 4 lines. These are suitable and the only
allowed option for ads displayed along search engine results.
• Graphical
The ads other than text ads can be divided in to following subcategories as follows:
– Image Ads
Ads made up of static images.
– Video Ads
Animating ads made up of videos or GIFs.
– Rich Media Ads
Ads with which the user can interact, by hovering the mouse and clicking on the ad
to get more information without leaving the current page, he is viewing. These ads
can extend out of the standard boundary of the ad units.
1.1.4 Keywords
In each Ad Group the advertiser can ad millions of keywords. These keywords will be matched
according to the preferences set by the advertiser and will decide whether a specific ad is targeted
to the current web page being displayed to the user.
1.1.5 Display Targets
Other than targeting unknown and new users, the advertisers can target users who fall in to
specific categories based on their actions in the past. For example if a user have registered on
the website and downloaded a brochure of a product but haven’t bought it. That user can be
specifically targeted for new promotions about that product.
1.1.6 Opportunities
A section dedicated to optimization guidelines and tips generated by AdWords team based
on the current setup of campaigns and ad groups. It is a good place to visit often to keep the
things optimized for maximum return of investment (ROI).
1.1.7 Conversions
Suppose a user clicks on an ad placed on the a web page and the click leads him to the website
of the advertiser. If the user performs an action which leads to achieve a goal of the advertiser,
then that is known as a conversion. For most websites the conversions could be:
• Online purchase
• Lead generation
Page 5 of 37
• Newsletter subscription
• Contact form or call
Other type of uncommon but useful conversions could be:
• Social follow ups
• File downloads
• Promotional video views
• Coupon downloads
• Getting driving directions
These conversions need to be tracked by the advertiser by managing success pages and actions
so that it would be automated to calculate the monetary impact of the marketing campaign.
1.2 Auctioning Functions
Google want to make sure that the ads that are displayed to the user must have a high ad
quality. This benefits the user and also ensure that the advertisers maintain a certain level of
quality in their ads and landing pages. So that is why the auction doesn’t solely depends on the
biding price, but a combination of the bid price with the ad quality.
1.2.1 Quality Score
The ad quality is measured as quality score. There are three components of quality score:
1. CTR
Google checks that which ads are best for the current query by the user.
2. Relevance
Google makes it sure that the user is only displayed with the relevant ad to the keywords
as well as the user query.
3. Landing Page
An ad is only useful if landing page allows them to find the information the user is looking
for. The page must be quick to load. Minimum pop-ups should be placed on this page.
This page must also clearly state the nature of the information collected from the user and
its use by the company in case.
Page 6 of 37

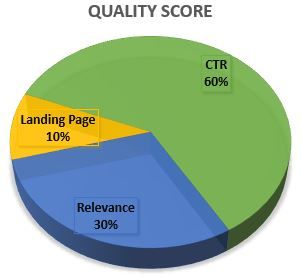

Figure 3: Ad Quality Score
1.2.2 Ad Rank
Ad Rank is the bid of the advertiser multiplied by the quality score that the ad gets.
max bid ⇥ quality score = ad rank
Below is an example of a bid for top 3 slots. The placement is calculated by arranging the
ad rank in descending order.
Advertiser Max Bid Quality Score Ad Rank Position
1 $ 4.00 1 4 -
2 $ 3.00 3 9 2
3 $ 2.00 6 12 1
4 $ 1.00 8 8 3
Table 1: Sample Ad Rank calculation
1.2.3 Determining Click Cost
Finally in order to calculate the amount payable by the advertiser if the user clicks on his ad
is determined by the following formula:
Let P1 be the amount payable by advertiser who won the auction.
Let Q1 be the quality score of the advertiser who won the auction.
Let B2 be the bid amount of advertiser who was second best.
Let Q2 be the quality score of advertiser who was second best.
P1 · Q1 =B2 · Q2 (1)
B2 · Q2
P1 = (2)
Q1
Page 7 of 37Using the second best bid price as the amount payable, makes the advertiser happy as well
as gives the incentive of getting high quality score that will provide users with quality advertise-
ments.
In this scenario and according to the equation described before. If an advertiser improves his
quality score, then he will have to pay even less than what he was paying before. This gives a
great incentive to advertiser to improve there quality score.
1.3 Parameters
1.3.1 Keyword match types
1. Broad
Default based on relevance to the user queries Increases reach, similar words, plural worlds,
synonyms Increase the ad traffic so must be done carefully
Broad match modifier : Using a “+” sign with a part of the keyword. example: “+Ath-
letic Shoes”. specifies a part of query to be present in the query or must be very close to
the one that the user has typed in. The order of the words in the keyword phrase doesn’t
matter.
2. Phrase
Restricts traffic even further as compared to the broad match. Order of the keyword phrase
must match the order by which the user query is done. The phrase match can be done by
part of the user query. So a phrase could be in the start, middle or at the end of the user
query. Exact phrase must exist somewhere in the user search terms. The keyword must be
specified by using (“ ”) sign at both ends. For example “athletic shoes”.
3. Exact
To be more specific. Our allowed ad will show only if the user query matches exactly with
the keyword we have specified. This can be specified by using ([]) square brackets around
the keywords. For example [athletic shoes]. Exact order must match and no other words
must be in the user’s query.
4. Negative
This match modifier helps to reduce the unwanted extra traffic in case the user was search-
ing for something else and some words of his query matches one of our keywords. For
example “paris hilton” query doesn’t meant to get to the business which is Hilton hotels
in Paris. By defining a negative match modifier you can avoid extra useless traffic to the
account. This helps in increasing the relevance of the traffic of our ads. The keyword must
be specified by a “-” sign with the keyword.
Negative keywords can be maintained on all levels including account level, campaign level
and eventually on ad groups level. This is because most often the negative keywords are
required to be reused in many campaigns.
Page 8 of 371.3.2 Evaluating Keywords
1. Frequency
How often the people are typing in to Google when searching. This is important because
we want to bid on the keywords that people actually search for. Similarly if you bid on the
keyword that is searched too often, then the traffic will be too generic and may get extra
and irrelevant ad traffic. This often happens when you use a single word keyword. The
keyword become too generic and it is hard to get any real relevant ad traffic.
2. Relevance
(a) Advertising Goals
(b) Ads
(c) Landing pages of ads
(d) Products or services that you o↵er The keywords should try to describe the exact
service you provide. Instead of using “roses” as a keyword, it is better to use “buy
roses online”.
3. Competition
You are competing in an auction for your keywords so the popular terms will have a higher
price as compared to the terms that nobody uses. So you have to create a balance between
bidding for popular terms and the unpopular terms.
1.3.3 Longtail keywords
Specify keywords that are extremely likely to end up on your site. This includes specifying
long phrases as keywords which exactly describes the products and services you provide. This
keyword may not be matched quite often but when matched will surely lead to your website. So
the point is to create many of such variants of keywords.
1.4 Analytics
1.4.1 Dashboard
After setting up and the account and filling up a few campaigns, ad groups and keywords, the
homepage of AdWords interface will start showing a lot of overview details about the account
and its performance. The interface is built in such a way that it can be customized in any way
desired. Elements can be added and removed from the interface quite easily. This gives a quick
overview of the entire account, once the advertiser logs in.
1.4.2 Overview plots
The homepage dashboard contains many overview plots to visualize the data in a nice and
quickly understandable way. Few of the overview elements that are displayed on the home page
dashboard are as follows
Page 9 of 37• Clicks
• Impressions
• CTR
• Avg. CPC
• Avg. CPM
• Cost
• Avg. Pos.
1.4.3 Detailed performance metrics
Once the data starts pooling up, the advertiser can see the detailed performance metrics in
the Campaigns section of the interface. This data can be drilled down to ad groups as well as
keywords level. So the advertiser can know what combinations of targeted user and keywords
are giving the most ROAS.
1.4.4 Google Analytics
Google has made it possible to share the performance data among its multiple platforms. So
the advertiser can see the detailed data and perform further analysis by connecting his Google
Analytics account with Google AdWords account.
1.5 Tools provided
1.5.1 Data Exporting
The data can be exported in many formats to support further and o✏ine analysis. The
formats that are available are as follows:
• CSV
• XML
• PDF etc.
1.5.2 Filters
The metrics displayed in the interface are intuitively formated and visualized to give the
advertiser a complete picture of whats going on under the hood. Many filters are provided to
customize the data as per the requirements and needs of the advertiser. Following are few of the
filters that can be applied while analyzing the data:
• User Segment
Page 10 of 37• Date Wise
• Network Wise
• Click type
• User Device
1.5.3 Conversion Tracker
This section allows the advertiser to generate a Java-script code snippet for every type of
conversion that is successfully happened on the website and the code will automatically update
the AdWords information base about the specific campaign, ad group or even a keyword that
lead to the successful conversion. This will help in measuring the Return of Ad Spending (ROAS)
and can be displayed in reports to analyze later on. This will also let the advertiser know which
keywords, ad groups and campaigns are more profitable as compared to others.
1.5.4 Keyword Planner
• Search for new keywords and ad group ideas: This place gives you ideas of keywords that
you may want to target. Suggestions for more tightly themed ad groups. You can also
specify the landing URL and Google will get suggestions from the page itself.
• Get search volume (frequency of search over time) for a list of keywords or group them into
ad groups: In case you already know the keywords and just want to group them together
in to a ad group.
• Get traffic estimates for a list of keywords: Let’s you play with hypothetical bids and to
see what predicted impacts you will get.
• Multiply keyword lists to get new keyword ideas: Let’s you quickly combine existing key-
words to get new keywords.
Page 11 of 372 AdSense
Figure 4: Google AdSense Logo.
2.1 Description
AdSense is a wonderful tool if we want to monetize from the display advertising on our
websites.
“Display Advertising: Certain areas of a website or blog are reserved and sold to advertisers
to promote a particular product or service.”
Determining value is an important aspect in display advertising. Web add spots can be sold
in the following schemes:
1. Flat rate (monthly, quarterly, annually)
Depends on the preference of the website’s owner.
2. Cost per action (CPA)
Action an add receives from the user. e.g. Clicking on the add and then submitting email
address. This technique generally helps the advertiser more than the website’s owner.
3. Cost per click (CPC)
The advertiser pays the publisher a certain amount of money every time a user clicks on
their add on the publisher’s website.
4. Cost per thousand impressions (CPM)
An impression is simply when a user navigates to a website and sees an advertisement. If
a webpage has 3 add spot on one page. When a user navigates to this page it actually
creates 3 impressions for the website owner.
Figure 5: Impressions vs. Page views.
Page 12 of 37This method of selling display adds tends to benefit the website’s owner then any other
display add selling techniques.
2.2 Auctioning Functions
Google AdSense automatically choses the highest paying advertisements to be displayed on
a particular website to maximize the revenue that a website owner can make.
The advertisements are placed by the Internet Ad Networks on the add spots that the website
owner creates.
“Internet Ad Network: Network of publishers earning revenue from ads displayed on their
website and advertisers paying for the displayed ads.”
2.2.1 Bidding Process
Advertisers will chose the ”keywords”, ”categories” and ”topics” of websites on which their
adds are to be displayed on and on the same time they also specify the maximum bid price they
are willing to pay for their add.
Google AdSense will compare the bids for a specific ad spot on the web page. Among all the
advertisers that are bidding on the ad position. The one that has the highest bid price will win
the bidding contest and their adds will be displayed in that specific ad spot.
Google AdSense will make sure that the publisher earns the maximum amount of money
possible, by intelligently selecting the highest bidding ads. This process is done for every ad spot
on the webpage.
Figure 6: Bidding Process.
2.2.2 Ad Network’s share
Every ad network takes a cut out of the earnings of the publisher. But generally speaking
the amount that it takes is less than the expenses the publisher would incur if he goes out and
get ads manually.
Page 13 of 372.3 Parameters
2.3.1 Ad Units
There are many parameters that can be fine tuned in order to generate maximum revenue.
Described below are few of the items:
Google’s recommended Ad Units (Ad block sizes)
1. Large Rectangle (336 x 280)
2. Medium Rectangle (300 x 250)
3. Leader board (728 x 90) Works great on the top or the bottom of a page. Users are more
likely to see the ads which are at the top as compared to the ads which are on the bottom.
4. Wide Skyscraper (160 x 600) Wider then the standard skyscraper. Although taller ad units
are discouraged in favor of wider ad units. But this one is more wider and may be useful
on the free space on the margins of the webpage.
These recommendations are also known by the advertisers. So they might as well bid higher
on these ad units as compared to any other unusual sized ad spots on the page.
2.3.2 Custom Channels
Publishers can create custom channels comprising multiple ad units from their webpages.
This allows them to track the combined performance of group of ad units. Individual ad units
can also be tracked, but sometimes it is more useful to track a group of ads altogether to see any
impact on the overall revenue of sub domains or specific topics of your website.
A custom channel can be created by going to the “My ads ) Custom Channels” section of
the Google AdSense interface and clicking ”New ad unit” button.
2.3.3 URL Channels
Similar to custom channels which deals with ad units and their groups. The URL channels
allows the publisher to track group of up to 500 URLs of their websites.This helps in finding out
what content is attracting most users and generating more revenue as compared to the other
content of the same website. This will also give us an idea what kind of content and topics gives
the user more interest and can attract more ads that are relevant to the users, or which can
attract ads with higher bid rates.
The URL channels can be created by going to the “My ads ! URL Channels” section of the
Google AdSense interface and clicking ”New URL channel” button.
Page 14 of 372.3.4 Experiments
This sections allows the publisher to create alternate color schemes of text based ads. Later
on the publisher can set to distribute the traffic among the schemes and analyze which color
schemes attract more users. This is why it is called experiments.
Color schemes can be used from the default ones or can be created and customized and saved
to be used later on.
The Experiments can be created by going to the “My ads ! Experiments” section of the
Google AdSense interface and filling out appropriate details.
Figure 7: Default and High contrast color schemes.
2.3.5 Custom Search Engine
Google allows the publishers to create a custom search engine. This allows the publisher to
have more ads similar to the ones that can be seen in Google’s search results. The search engine
page can be customized to a great detail.
The analysis of the search page can be done separately and thus it can be tracked that how
much revenue is being generated from the custom search engine. This is done by creating a
custom channel from the same page of custom search engine creation.
2.3.6 Allowing & Blocking Ads
Although there is no pinpoint control available to set a specific add to be displayed or not
to be displayed. But publishers can control this at a certain level. This can be achieved by
navigating to “Allow & block ads” section of the Google AdSense home page. Following are the
few possibilities on controlling ads:
1. Ads can be blocked based on the advertiser’s URL
2. General categories can be turned o↵. By default all categories are allowed.
3. Sensitive categories can be turned o↵. This includes categories like Politics and Religion.
By default all categories are allowed.
4. Certain Ad Networks can be turned o↵. By default all ad networks are allowed. By default
the new ad networks that will join Google’s AdSense platform are also allowed. There are
Page 15 of 37more than 1300 ad networks in this section. It is recommended to keep them turned on
unless there is a specific reason to do so. This ensures generating the maximum revenue.
5. Ads can be blocked based on their types. This includes text based ads, animated ads etc.
6. Ads can be blocked by selecting individual ads from the “Ad Review Center” section. This
applies only to the ads that are being displayed at the given moment. The default behavior,
i.e. allow all ads without approval, can be changed to approval within 24 hours. This way
the publisher can disallow any add in advance. But if no action is taken before timeout,
the ad will automatically be allowed.
2.4 Analytics
2.4.1 Terms used in Reports
• Pageviews in Google AdSense are when an advertisement in an ad unit is viewed by a
user on a website.
• Clicks are when an advertisement in a Google AdSense ad unit is clicked on by a user on
a website.
• Clickthrough rate (CTR) is the ratio of clicks a particular ad on a website receives in
comparison to the number of total page views it has received.
• Cost per click (CPC) is the amount of money paid by an advertiser for each click an
ad in a Google AdSense ad unit receives.
• Revenue per thousand impressions (RPM) is the average amount of revenue earned
by a publisher for 1,000 impressions on a particular ad unit or website.
• Ad requests refer to the total number of times an ad unit on a particular website requests
Google AdSense to serve a relevant advertisement.
• Coverage is the percentage of ad requests in which a relevant advertisement is found and
displayed within the ad unit.
2.4.2 Reports
1. Dashboard
After the publisher starts earning, the homepage of the AdSense becomes a dashboard
which gives an overview of the entire account and its performance.
Earnings for current day. Earnings of yesterday. Earnings of last month. Comparison
between this month and last month.
Scorecard section which allows the publisher to see how well the site is optimized. There are
three subsections. First one tells how well the site is optimized for mobile devices (tablets,
smart-phones). Second one tells about revenue optimization, like how well we have done
Page 16 of 37for optimizing our website for AdSense display ads. Last section is site health which tells
how fast our website is loading. Faster loading pages can attract and handle more users.
At the end of the homepage we can find detailed information about todays performance.
This information includes:
• Pageviews
• RPM
• Top channels
• Top countries from where the visiting users belong
• Top sites in case of multiple sites configured with same AdSense account
• Top platforms from where the site is accessed (mobile, web etc)
2. Performance Reports
The reporting interface allows the publisher to filter down the data based on a large variety
filter. Some of the prominent and more useful filter are:
• Custom Channels
• URL Channels
• Ad Units
• Ad Networks
• Ad Types
3. Data Visualization
Many di↵erent type of visualization options are available for the AdSense users. The main
components can be described as follows:
• Date filters for selecting flexible range of data
• Bar Graphs for comparison among categorized items
• Line Graphs for time continuous data of:
– Earnings
– Pageviews
– Clicks
– CTR
– CPC and
– RPM
4. Custom Reports
The AdSense’s reporting interface allows the publisher to create custom reports. The
process is simple and intuitive. All that is needed to be done is filter down the required
data and select ”Save Report” and the filters and settings will be saved.
Page 17 of 37This saved report can be accessed any time later and also an option can be selected to
generate and send the report by email to the publisher by the chosen frequency. For
example a report can be set to be generated daily, weekly or monthly.
Multiple recipients can be added by just entering their email addresses and they will start
receiving the report whenever that report is generated.
5. Exporting Reports
There is also an option to export a report generated in Google AdSense reporting interface
to multiple formats and destinations. Following are the formats to which a report can be
exported to:
• Excel CSV
• Google Drive spreadsheet
• Google APIs Explorer
• BigQuery code
2.5 Tools provided
2.5.1 Optimization Notifications
Over the time of the Google AdSense account usage, the Google AdSense team may send
you tips and messages on how to optimize your settings in order to generate maximum revenue.
These messages come up as a notification icon at the top right corner of the interface ( ). It
is represented by a bell shape and an indicator of the number of messages waiting for you.
2.5.2 Transaction history
Complete detailed history of transactions between Google AdSense account to the account
you have provide while registering for Google AdSense. The details can be filtered according to
the date range you specify.
2.5.3 Holding payments
The default behavior is to payout at the end of every month if your balance is more than
100$. But this can be customized according to one’s own choice. For example the settings can
be changed in order to receive payments in a big chunk every 3 months instead of every month.
2.5.4 Policy Violation Status
This interface will display any violations of the policy contract, if been done, on your account.
The details of the violations and their consequences are displayed as a list. The information
displayed for each violation is:
• Violation detail
Page 18 of 37• Occurrence date of violation
• Status of site after violation
• Consequence of that violation
• Site on which the violation is done
2.5.5 Google AdSense Help
Customized help and Search for optimization articles and definition of terms used is available
on demand. This can be accessed by using the search tool available in the top right corner of
the interface.
Page 19 of 373 AdMob
Figure 8: AdMob Logo.
3.1 Description
AdMob is a mobile advertising service and it is designed to help mobile app developers monetize
and promote their apps. Since 2012 it is a subsidiary of Google. Google acquired AdMob to
widen its ad market to iOS and Windows Phone devices.
Publishers across the world are connected using Google’s ad networks. They get paid when
a user clicks on their add. Google will make sure that the ad is relevant to the user to make it
more likely that the user clicks on it.
3.1.1 House Ads
This feature let’s the developer of an application, create a normal campaign but the ads will
be specified before hand. This will allow the developer to display ads about other applications
developed by him. This allows him to let the users notice other applications developed by the
same developer.
3.1.2 Terminology
• Cost per click (CPC)
The advertiser pays the publisher a certain amount of money every time a user clicks on
their add on the publisher’s website.
• Clickthrough rate (CTR)
CTR is the ratio of clicks a particular ad on a website receives in comparison to the number
of total page views it has received.
• Impressions
An impression is simply when a user sees an ad on a mobile platform.
• Fill Rate
It is the rate by which the ads are served vs. the total ads requested. Usually it is targeted
to 100% to maximize the user’s revenue. FillRate depends on the ad network selected. You
can also select to allow Google to maximize fillrate.
Page 20 of 37• Revenue per thousand impressions (RPM)
RPM is the average amount of revenue earned by a publisher for 1,000 impressions on a
particular ad unit or website.
3.1.3 Ad Formats
• Click to call
A convenient option to allow the user to directly call a helpline to get more information
about an advertisement.
Figure 9: AdMob click-to-call Ad format.
• Website link
This is the default behavior of any mobile ad. Usually the person is taken to a home page.
• Expandable map
The user can click on the ad which then expands to show a map so that the location of the
advertiser’s store or restaurant can be identified.
Figure 10: AdMob map-directions Ad format.
• Product ad
To promote a specific product, this type of ad can display a small picture of the actual
product to capture attention of the user.
Page 21 of 37Figure 11: AdMob product Ad format.
• App promotion
To promote an application the user is presented with an ad which takes him to the appro-
priate application store from where the application can be downloaded. This format is also
used in case of house ads.
Figure 12: AdMob app-promotion Ad format.
• Adjustable width banner
This format automatically adjusts its width according to the size of the device’s screen. It
looks better then the ads that appear in the center with the borders all left out.
Figure 13: AdMob adjustable-width Ad format.
3.1.4 Tablet specific ad formats
• Leader Board: 728x90
Figure 14: AdMob Tablet leader-board Ad format.
• Rectangle: 300 x 250
Page 22 of 37Figure 15: AdMob Tablet rectangle Ad format.
• Banner: 468x60
Figure 16: AdMob Tablet banner Ad format.
3.2 Auctioning Functions
Starting from February 2012, AdMob has been shifted to the same auctioning mechanism as of
Google’s AdSense. This is done to streamline both platforms and to make it possible for the
future to merge the two platforms together at some point in time.
After 31st August, users of AdMob will no longer be able to access legacy AdMob but will
have to transfer their data and settings to new AdMob version which is entirely based on Google’s
AdSense and AdWords platforms.
3.3 Parameters
3.3.1 Campaign
A new campaign must be created by entering the following details:
1. Campaign Name
A descriptive name of the current campaign being created.
2. Start Date and Time
A starting point in time for the current campaign.
Page 23 of 373. End Date and Time
This is optional. Useful for the campaigns having temporal nature.
4. Daily Budget
Amount in $ to be used as a daily limit. The minimum is at least 10$.
3.3.2 Ad Group
A campaign contains many ad groups. Ad group must be uniquely named in a campaign. An
ad group can target a specific platform. The available platforms are:
• iPhone OS Universal (iPhone + iPad)
• iPhone
• iPad
• Android
3.3.3 Targeting
The ads in a specific ad group can be targeted with respect to the following categories:
1. Platform/Device
This filter allows to chose specific version of the mobile operating system (e.g. Android OS
2.0) and/or specific targeted devices (e.g. Samsung Galaxy S5).
2. Geography/Operators
An ad group can specifically target people from a region/continent/country. Also people
using a specific mobile carrier can be targeted.
3. Demographics
People can be targeted based on their age and gender. An age range can be specified.
3.3.4 Ad Filtering
The ads can be filtered in many ways. They are described as follows:
• Advertiser URL
You can prevent ads from specific advertiser URLs from showing up on your app. The
limit is 500 URLs per account.
• Category
Page 24 of 37– General Category
Although the list contains hundreds of categories, but you can only block up to 50
categories. Beware that ads can belong to more than one categories at the same time.
(e.g. Business, Finance, Travel etc)
– Sensitive Category
This list includes categories more sensitive as compared to the general category list.
(e.g. Politics, Religion etc)
• Language
Regardless of the language of the application, ads from other languages can be blocked.
• Search
You can search using the ad review center for a specific ad in the entire network to block
it.
3.3.5 Ad style
1. Look & feel
• Banner
Banners can be used to display text and image ads.
• Interstitial
This type allows to receive text, image and video ads. You can choose one or all of
the types. But it is recommended to check all types to get maximum revenue.
• Interstitial timeout
As interstitial ads are heavy and may require some time to download on slow net-
works. So there is a time out setting to let the download attempt cancel if nothing is
downloaded in the time specified. You can select from 3 to 10 seconds and it must be
a whole number.
• Text Ad
Select a text ad style that complements your app. You can use the standard style or
customize your own style.
2. Refresh rate
Determine how often a new ad impression is generated. You can choose not to refresh or
to refresh ads every 30 to 120 seconds. We recommend setting a refresh rate between 45
and 60 seconds.
3. Layout & Placement
• Header
This ad will show up at the top of the application content space.
Page 25 of 37• Footer
This ad will show up at the bottom of the application content space.
• Fullscreen
This ad will cover the entire screen of the user’s device. The user have to click on the
close icon (X) to return to the previous screen. This mode is suitable for video ads.
3.4 Analytics
3.4.1 Built-in analysis
1. Homepage dashboard
A dashboard layout is available on home page which shows most relevant metrics directly
once logged in. The dashboard shows the following analytics:
(a) Estimated earnings (Today, yesterday, this month, last month)
(b) Estimated conversions (In case you are using AdMob for app promotion)
(c) An overview graph of earnings given by:
• Estimated earnings
• Impressions
• Request RPM
• FillRate
(d) Tabular details of each app, which makes you able to identify the application(s) which
is making more revenue than the others.
2. Monetize section
An overview graph of earnings given by all the previous metrics on homepage and including
new metrics like:
• Requests
• Clicks
• Impression CTR
• Impressions RPM
Filtering is available to better understand the contribution of di↵erent aspects. The filters
can be applied based on:
• Date
• Apps
• Ad Units
Geo-Map report can also be viewed for quick visualization of the source of add traffic
requests on a map
Page 26 of 373. Promote section
An overview graph of showing the progress of events over a time period is displayed. The
graph can be seen for the following categories:
• Impressions
• Clicks
• Conversions
• Costs
On the same page you can also find tabular details of the same metrics broken down with
respect to all the applications you have added to the account. This can give quite a good
idea on the applications which are making more business than the others.
3.4.2 Google Analytics Integration
After Google’s acquiring of AdMob in 2012, they have provided the option of integration of
Google Analytics with AdMob account. After the integrations is enabled users can find new
reporting options in their AdMob account. Some of the additions are discussed below.
1. Updated Home Page
• Sessions
The total number of sessions for all of your linked apps. A session is the period of
time a user interacts with an app. All usage data (Screen Views, Events, E-commerce,
etc.) is associated with a session. Avg. session duration: The average duration of
sessions for all of your linked apps.
• Users
The sum of all active users of each of your linked apps during the requested time
period.
2. Analyze Tab
• Real-Time
See user traffic as it happens on your app. Monitor users, top active screens, top
locations, and more. You can use Real-Time as an end to end debugging tool for your
Google Analytics SDK implementation.
• Audience
Get to know the people using your appwhere they are, how often and long they use
an app, and what devices are popular with your visitors.
• Acquisition
Find out how often your app is downloaded and installed, and how successful certain
marketing campaigns are in attracting visitors.
Page 27 of 37• Behavior
Track in detail the ways users interact with your app. Find out which screens are
viewed in a typical visit, or set up Event Tracking to analyze custom actions, like
button clicks and video plays. Technical exceptions and crashes are also included in
this set of reports.
• Conversions
Know the real value of your app. Set up Goals and E-commerce to track targeted
objectives, like completed sign-ups and product sales.
3.5 Tools provided
1. Conversion Tracking
This type of tracking will let you know how much of clicks on your ads showing up in your
applications is being converted in to actual purchases of the application.
For Android application, there is no need of anything else, but for iOS Applications, you
need to add a small code snippet in the application source code. For each application
you can set a conversion value, which is usually slightly lower then the actual cost of the
application. This cost is also known as Cost per Acquisition (CPA).
2. Conversion Optimizer
This option will let you chose to have more priority to the adds which belong to the
applications which are giving you more conversion over the previous tracked time period.
For this option to work and predict correctly you must enable the conversion tracking first
and let it run for at least 30 days or 15 conversions (whichever comes first).
3. Ad Filters
Similar to Google’s other advertisement platforms, users have an option of blocking ads
based on the following categories:
• Advertiser URLs
You can block ads from specific advertiser URLs. For example, you might not want
to show your competitions’ ads on your apps.
• General categories
You can block ads from general categories such as Apparel, Internet, Real Estate, and
Vehicles.
• Sensitive ad categories
You can block ads from categories related to sensitive topics such as Religion, Politics,
and References to Sex and Sexuality. Sensitive category blocking is available for ads
in a limited set of languages, regardless of the language of the app.
Page 28 of 374 DoubleClick
Figure 17: Google DoubleClick Logo.
4.1 Introduction
Google acquired DoubleClick in 2008 to extend its operations in to Ad Exchanges. Dou-
bleClick can act as an Ad exchange connecting di↵erent ad networks together as well as an Ad
Server providing publishers with ads from other Google services such as Google’s AdSense. It
can also provide ads from privately owned ad servers. It is also capable of handling pass-back
requests from ad servers when the ad servers are not able to provide any suitable ads at the
moment, to display ads from its own sources.

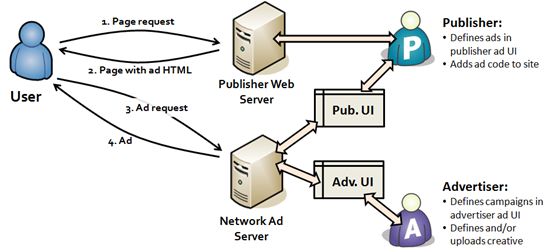

Figure 18: How DoubleClick works for Advertisers (A) and Publishers (P).
4.2 Auctioning Functions
DoubleClick Ad Exchange uses a Second Price (SP) Auction model. Where possible and
if the ad network supports DoubleClick also uses Optional Second Price (OSP) Auction. SP
Auction is described below:
1. In the open auction, Ad Exchange matches buyers’ targeting with sellers’ inventory and
seeks the highest bid.
Page 29 of 372. The buyer with the highest net bid wins.
3. If two or more buyers bid the same amount for an impression, the winner is selected
randomly.
4. The Ad Exchange auction closing price is determined as the second-highest bid price in
the Ad Exchange auction or the ad unit’s minimum CPM, whichever is greater. Sellers are
paid the Ad Exchange closing price, net of Google’s Ad Exchange revenue share.
5. If Preferred Deals or Private Auctions are in play for an ad unit, they are taken into
consideration before the impression goes to the open auction. The Preferred Deals and
Private Auctions are described below:
• Preferred Deals
This feature provides the ability for publishers to o↵er inventory to one or more
buyers on a fixed price basis. Deals are pre-auction, meaning that fixed price deals
will transact if the buyer accepts the inventory, even if the price is below that of the
auction. Publishers can o↵er a Preferred Deal to more than one buyer.
• Private Auctions
Private Auctions provide Ad Exchange publishers more control over how they sell
their inventory, while providing preferred buyers an advantage in auction buys.
Google has subdivided the service in to two distinct modes. These modes are discussed in
the following sections.
4.3 DoubleClick for Advertisers (dfa)
4.3.1 Description
DFA is an ad-serving solution that helps media agencies and advertisers manage the entire
scope of their digital advertising program. DFA streamlines campaign work-flow and enables
agencies to traffic, target, and serve creatives. DFA users can also pull reports to view and
optimize campaign performance. Google is continuously improving the platform and is in state
of entire transition from DFA to DoubleClick Campaign Manager (dcm) which is a component
of DoubleClick Digital Marketing (ddm) umbrella of platforms.
When a publisher webpage is visited by a user. The page will call the DFA for an ad request.
This is done by placing a specific code in place of the ad. The DFA will then select an ad among
the list of all ads based on user location and other parameters, and will serve the ad to the
publisher web page. This process usually takes a fraction of a second to complete.
4.3.2 Parameters
1. Advertisers
Page 30 of 37As the DFA platform is designed to be used for both individual advertisers as well as for
marketing companies who are running campaigns on behalf of other advertisers, so you can
add advertisers in the account. These advertisers could be your own branch of business as
well. This will help in better management of campaigns.
2. Campaigns
For each campaign, an advertiser is required. In case of a marketing company, the adver-
tisers would be the clients of the company. In case of individual advertiser, the advertiser
would represent the business itself or one of the branches of the business.
A name and duration of the campaign is required. The duration could be timed which is
suitable for campaigns targeted at limited time o↵ers and seasonal sales. In other case the
ending dates are omitted to set the campaign to run for unlimited time period.
Each campaign must be assigned one or more landing pages. These will be used as a default
landing page for all the creatives and ads.
3. Placement
A placement is a location specified by publishers on their website for advertisements. You
can search for a website by its name. The results will display the website URL, the type
of creatives it supports, such as pop-ups or in-stream video etc. The final cost for that the
advertiser wishes to pay for this placement is also defined.
4. Creatives
Creatives are the actual graphical resources, which represent an advertisement. For exam-
ple a banner or a flash animation. Each creative must be associated with a dimesion so
that it could be referred where a suitable placement is available.
5. Types of creatives
Figure 19: Ad Types for DFA.
• Image
Upload an image in *.JPEG or *.GIF file formats.
Page 31 of 37• Flash in-page
A flash file in *.SWF format and a backup image file in *.JPEG or *.GIF format for
users who can’t view flash in their browsers.
• Rich Media
Rich media ads are interactive ads including videos and expandable ads.
• In-Stream Video
Video ads that are displayed before playing videos.
• Batch Upload
Batch upload helps in speeding up the process of individual file uploads by allowing
the user to upload all the *.SWF, *.JPEG and *.GIF resources as a single zip file.
• Advertiser-level
If you want to reuse a creative from a previously created campaign, you can select
one from the list of all creatives.
6. Ads
Ad is a logical binding between a creative and its placement on a pageone or more creatives
can be associate with one ad. It is required to select the appropriate dimensions. Smaller
creatives can be displayed in larger ad dimensions, but not vice versa.
A duration is required to describe the e↵ective active period of the ad. You have to provide
appropriate landing pages for each ad. By default they will be set to the campaign’s default
landing page.
If you choose more than one creative for an ad, then you can chose an ad rotation method
to specify how the ads will be changed among each other and over time. The rotation
methods are:
• Sequential
• Random (Unlike the name, the traffic will be evenly distributed among all the cre-
atives)
• Weighted (Weights have to be provided for each ad in this case)
• Best performing (Based on the CTR of creatives)
• Optimized
For each ad, you have to chose a placement as well. You can practically assign ads to all
the available placements for maximum coverage.
7. Tags for Publishers
In order to advertise manually on websites not managed by DFP, tags can be created for
placements and can be sent to publishers so that they can place the tags in their webpages
and on clicking the DFA account can serve ads on those websites.
Page 32 of 374.3.3 Analytics
• Report Builder
Report Builder is a tool completely built on Google Analytics technology and specialized
for reporting for DFA. The graphs and tables can be totally customizable. Comparisons
can be made between di↵erent metrics. Fields and columns can be added where and when
required.
Reports can be downloaded in standard MS Excel and CSV formats for local o✏ine analysis
purposes. Reports can be scheduled to be generated automatically and sent to the recipients
based on their email addresses. The schedule can be set for daily, weekly (day or days of
week) or monthly (day or days of month) reports.
Figure 20: DFA Report Builder Interface.
• DFA Reporting API
To make the reporting process streamlined and available on multiple platforms as native
applications, Google has provided the developers with the DFA Reporting API. This is a
Rest based API using standard HTTP and JSON, but also pre-built client libraries are
available in many languages including the most common languages such as .Net, Java and
Objective-C. This allows developers to use the reporting API in their native applications
for Windows Phone, iOS and Android application with ease.
4.3.4 Tools provided
• DoubleClick Studio
A free end-to-end work-flow management system that allows creative teams to easily build
and preview Rich Media creatives.
• Google Web Designer
Page 33 of 37With this tool you can create engaging, interactive HTML5-based designs and motion
graphics that can run on any device. This tool can create resources for the web as well
as have specialized user interface to create interactive ads. There is also built-in support
for publishing directly to DoubleClick Studio which will help streamlining the advertiser’s
work-flow.
4.4 DoubleClick for Publishers (dfp)
4.4.1 Description
DFP is an ad-serving solution that helps publishers manage the entire scope of their digital
advertising program. DFP streamlines the campaign work-flow for publishers and allows them
to traffic, target, and serve creatives. DFP users can also pull reports and optimize ads serving
on their ad inventory.
4.4.2 Parameters
1. Ad Units
Ad Unit is the basic unit referring to a section or space on your website which will be used
to display advertisements. The unit is defined by means of a name and its size in pixels
referring to width and height. An ad unit can be fixed size or can be considered as “Smart
Banner”. As per the name suggests the fixed size ads do not change the size which the
smart banners can change their size based on the user’s interaction (e.g. mouse over).
It can also be specified whether the target of the ad will be the same window or a new
window when the user will click on the add. This can be specified by selecting one of the
options from “ top” which means the same page or “ blank” which means a new page.
2. Ad Placement
As the Ad Unit is considered to be a reusable entity, so to use the same ad unit at more
then one locations on a website, the placements can be defined per ad unit.
3. Ad Inventory
It is the collection of ad units defined in the account. The ad units them self are not
attached to any ad requests directly. For ad request establishment, specific orders have to
be created on selected ad units.
4. Orders
Order defines the source of advertisement. It is a container that can hold one or more
Order Line Items (defined below).
5. Line Items
A line item takes an ad unit or ad placement and attaches it to one of the orders. This
setting will enable an ad to be displayed in an ad unit. Next step would be to generate
Page 34 of 37specific code for an ad unit and place it in the source code of your website to start displaying
ads.
6. Goal oriented line item
A line item can be goal oriented. Which means that a specific goal will be associated to a
line item, and the focus would be to complete the goal. The goals could be one of these:
• Percentage goal in terms of portion of traffic
• Absolute goal for number of impressions or clicks
• Unlimited which would be stochastic in nature
7. Line item priority
When creating a line item for an order, a priority level can be set for each line item. The
priority level ranges from 1 (lowest) to 16 (highest). This priority will later help in deciding
the decision of dynamic allocation of ads to slots.
4.4.3 Ad Selection Mechanism

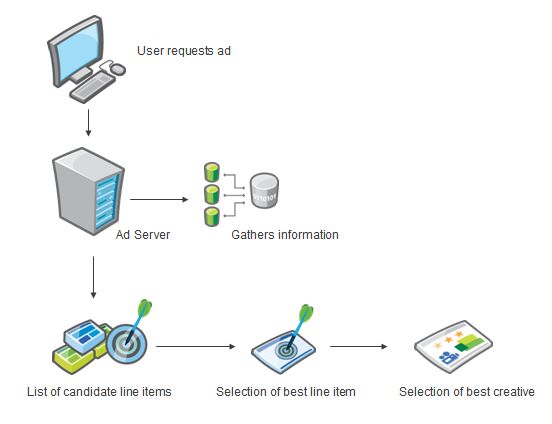

Figure 21: DFP Ad Selection Mechanism.
Page 35 of 371. A user’s browser reads a web page that contains DFP ad tags and sends an ad request to
a DFP ad server.
2. The DFP ad server receives the ad request and gathers information to help select the best
ad.
3. The ad server creates a list of all line items matching the targeting criteria. The criteria
could be for an example, geographic location or operating system of the user.
4. The ad server filters out line items not eligible to serve. These will leave out the line items
which have reached their daily frequency caps. The frequency caps are maintained on client
side using ”DoubleClick cookies”.
5. The ad server scans the list of eligible matching line items, starting with highest priority
and working down until a line item is chosen to serve. The matching for each priority then
looks at the goals in this specified order:
• Line items with percentage goals
• Line items with absolute goals
• Line items that are unlimited
6. Once the best line item is selected, the DFP ad server chooses the best ad in the following
way:
(a) Only consider ads that match the size of the ad request, with an allowance for slightly
smaller ads.
(b) Only consider creatives of a valid creative type for that slot based on format (image,
Flash, and so on).
(c) If there is only one matching creative in the line item, serve it.
(d) If there is more than one matching creative in the line item, follow a creative rotation
rule:
• Random (Choose a creative at random.)
• Weighted (Choose a creative at random, but according to the relative weights
specified for each, such as 70/30.)
• Optimized (Choose the creative with the highest historical average click-through
rate.)
7. The creative from the selected line item is served to the user.
4.4.4 Analytics
• Multiple reporting options
As in all other Google products, reporting feature is quite detailed and robust. So in a
single interface, a user can create reports based on delivered order, inventory performance
and overall sales.
Page 36 of 37• Customizable reports
The interface is highly flexible by letting the user ad filters and columns as and when
required. This helps drilling down to the exact information you are looking for.
• Reports Scheduler
Reports can be saved and also can be scheduled to be automatically generated and sent to
appropriate recipients.
4.4.5 Tools provided
• Inventory Forecasting
– Granular forecasts
Forecast how many ad impressions are available for specific dates, inventory, and
targeting criteria.
– Availability reports
View how your delivering campaigns impact your other ads with availability reports.
Ensure your most valuable ads have priority and are going to deliver on schedule.
Page 37 of 37Ad Exchange Models
Bonacina Luca
795845
Sound Design And Music Engineering
bonacina.l@gmail.com1
INTRODUCTION
Almost 3 billion people have an internet access making the web the
biggest communication channel in the world. No surprise that today
there is a prosper market for displaying commercials and ads on the
web: to choose this channel indeed would potentially mean to reach
40% of the population world wide, possibility more than appealing for
any commercial activity. The amount of different specialized entities
that throughout the years tried to create a connection between adverti-
sers and publishers proves what stated above.
The interaction between the different parties are of different nature and could be complex so to have a bet-
ter insight of the mechanism governing the market let’s understand what are the fundamental roles:
• Users: people who navigate to various webpages
• Publishers: who control the webpages and their content, therefore they owe the “free space” ( called Ad-
slot or Display Ad ) to host an Ad or a commercial.
• Advertisers: who is willing to post commercials on the ad-slot of a webpage so to get the attention of
the users.
These are the main roles and we can understand that due to the size of the channel (the Internet) direct
negotiation between advertisers and publishers could work only for big companies, that’s why in the overall
mechanism there are also intermediaries.
Intermediaries can be of different kind but in general their role is to aggregate several parties: Ad Networks
for instance pool many Advertisers to bridge their negotiations to big publishers, the Publishers Networks
instead are the AdNetwork counterpart on the Publishers side. An advertiser could also choose to delegate
the design and the marketing of an ad campaign to an Ad Agency. Even if at a first glance the situation could
look clear enough, in practice the interactions among the parties are much more complicated: often the
roles overlap or Publishers/Advertisers try to bypass some steps making the ad-path complex and difficult
to analyze.
A recent way of selling and buying ads on the Internet is via an exchange that brings sellers (publishers)
and buyers (advertisers) together to a common marketplace. This model exists since a long time ago in the
context of financial securities, currency, physical goods, virtual credits, and much more and it serves many
purposes from improving the efficiency, to eliciting prices and aggregating information and parties. Some
AdExchange examples currently leading the online ad market are RightMedia, AdECN and Doubleclick.
In this work the main features of such a configuration will be analyzed together with some equilibrium
properties and some insight on the overall mechanism governing an AdExchange Market.
Figure 1:
AdPath in an exchange marketplace2
To better understand how the presence of an Exchange and in general many intermediaries influences the
on-line Ad marketplace Figure 1 pictures the AdPath in such a configuration.
This general settings comprises one center that sells a unique, indivisible good and n intermediaries that
bid in an auction run by the center, it’s important to notice that nor the center nor the intermediaries have
a value for the good itself. Each intermediary i has a set of buyers and each buyer j has it’s own value vj for
the good. Any further assumption on the actual value vj or its probability distribution varies from model to
model. As in many other known settings to decide to whom sell the good the intermediaries run an auction;
in this particular situation the timing is as follows: first each intermediaries runs in parallel a contingent
auction that will determine a contingent price and buyer for that specific intermediary. Please notice that
the contingent buyer will get the good only if its intermediary will get the good and this can happen only
if such an intermediary turns out to be the winner of another auction ran by the center. The center runs an
auction in turn and the intermediaries bid based on the their contingent price; once a winning intermediary
is selected it transfers the good as determined by its own auction.
This situation recalls the standard economic concern of double marginalization. An upstream monopoly
manufacturer (the center here) sells to customers via a monopolist downstream retailer (a single interme-
diary). In contrast to the case where the manufacturer sells directly to the customer, the consumer will be
charged a higher price and therefore demand a lower quantity, since both the manufacturer and the retailer
must extract margins from this transaction.
To not include such a natural market effect in the online setting would be myopic and would lead to wrong
equilibrium considerations. Do not forget that the trade is made online and the good (AdSlot) is sold on a
single impression rather than a “per click” basis; this means not only that the volume of transaction is huge
but also that the Ad-Slot is auctioned in real time. The average 10-100 ms loading time of a webpage calls
out loud for real time algorithm and fast networks.
Let’s now analyze each part of the system to understand the equilibrium and the mechanism of such a
setting.
THE PUBLISHER by the result of an auction (the price could be low),
therefore it could be better for the publisher to sell
Even if the exchange model repre- that specific AdSlot to the guaranteed customer in-
sents a common marketplace the pu- stead (contributing to fulfill it’s legal duties). A good
blisher often decide to commit also move for the publisher would be to assign a own
for guaranteed contracts, especially because that is value to the impression, probe the spot market pla-
the traditional way of selling advertisement on the ce to understand the perceived value of the Ad Slot
internet. The publisher then has both to fulfill the and decide the trade channel accordingly. Clearly if
legal requirements imposed by the guaranteed con- the buyers’ evaluation of the impression is higher
tract ( i.e. to guarantee to the advertiser a certain than the publisher one the latter will sell the Ad-Slot
number of impressions of a certain quality ) and to through the exchange marketplace otherwise it will
sell impressions in the exchange market. It is easy to sell it to the guaranteed customer.
understand that a spot marketplace ( the Exchange ) The question is: how can a publisher understand
is still appealing to the publisher because it represen- the buyers’ evaluation? This is not trivial at all, a
ts an immediate, short term source of revenue, the good hint is the price resulting from the auction in
value of the impression to sell thought is determined the spot market. Indeed on the long run and withYou can also read
