ARC and PO
Systems
Spotlight - Via Sardegna 3 - 20098 - S. Giuliano Milanese - Milan - Italy
Architectural
www.spotlight.it sales@spotlight.it
Series
Light is also movement. For this reason we
offer a wide range of custom solutions for DMX
motorisations and pole-operated systems.
Hyperion
Series

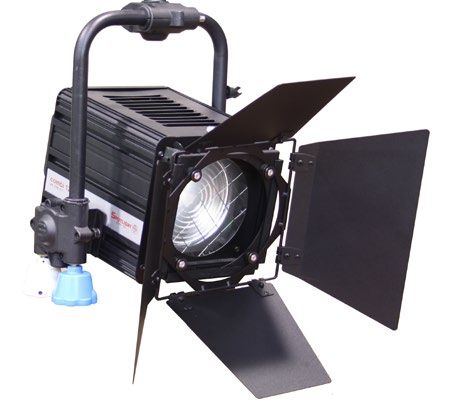

Pole operated yoke Pantograph
(PO system)
This is the source of our wide range of customer-oriented
motorized yokes with DMX control and pole operated yokes. But
it’s more than that.
The experience gained over the years together with an extensive
knowledge of products being marketed and the specific needs
of the entertainment industry has made us able to get any
Series
450
product moving: our fixtures and competitor’s as well, from
smoke machines up to video projectors. Motorized yoke
(ARC system)
Pole Operated System Automated Remote Control Systems
Vedette
Series
• Soluzione utile per il preciso puntamento di qualunque faro Tastiera a 4 pulsanti con display per l’impostazione delle
• Studi televisivi funzioni fondamentali del sistema ARC:
• utilizzo in teatri amatorialii e scuole, dove per ragioni di sicuezza
gli studenti non devono toccare direttamente gli apparecchi • selezione del primo canale DMX di controllo
• selezione della velocità (slow e fast)
• selezione della risoluzione (8 o 16 bit)
• impostazione dei limiti corsa delle varie funzioni
Cyclorama
• selezione della funzione self test
Series
Controllo
• connettore a 5 poli XLR maschio per segnale DMX
IN di comando
• connettore a 5 poli XLR femmina per segnale DMX
OUT Downlight
Series
ARC and PO
Systems
Architectural
www.spotlight.it sales@spotlight.it
Series
Don’t think only to mothball the old standard fixture! Let’s wait a while before spending
tons of money for motorized lighting fixtures! why not to set up a motorized yokes with
DMX control or a pole operated yokes on your lighting fixtures.
Hyperion
Series
Our motorised systems are able to move any theatrical and
television lighting fixtures of our production and of the other main
brands, but also smoke machines up to video projectors.

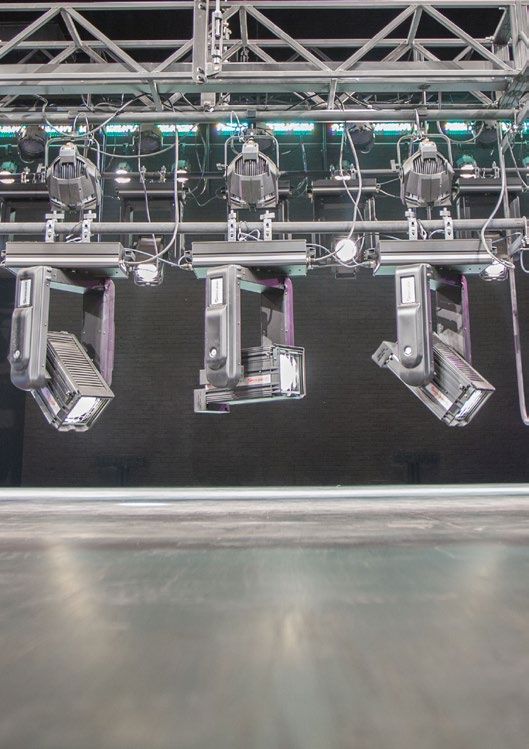

The ARC SYSTEM yokes are designed for all those who want to
maintain the superior lighting performance of classical products,
highly increasing the flexibility of use with a great saving of time
Series
in focusing and repositioning.
450
The system, available with 2 or 3 parameters, allows the high
precision focusing of pan and tilt, as well as of the focus or the
iris through a 16 bit DMX signal.
The system consists of a power supply and a DMX reader that If desired, the motorization can be switched off and the luminaires
controls 2 or 3 DC motors as well as supplying power and DMX keep their position (to avoid unwanted starts for false maneuvers)
signal for other possible accessories such as color changers, and, thanks to the clutch, can be manually focused in case of
Vedette
Series
gobo rotators, etc. lack of the console operator.
The focusing is particularly accurate thanks to the use in the pan
and tilt of a double control both with encoder, for better speed
control, and with potentiometer, for the constant memorisation
of the position. This way you have absolutely soft movements
even at low speeds as well as in acceleration / deceleration. In
addition, the fixture keeps its position either in case of power
Cyclorama
failure (no reset) or forced displacement from its position (to
Series
change the lamp).
The motors are oversized and totally silent, with a mechanical
safety clutch to prevent any possible crash/collision against
obstacles and automatic shut off until the DMX command signal
is reversed.
The horizontal rotation is more than 360° to avoid dark corners
Downlight
in the scene and 270° for the vertical one. The setting of the
Series
tilt, pan and focus limits menu allows to avoid the collisions with
the scenographies, the positioning beyond the limit prescribed
by the lamps or the zoom stroke according to the length of the
luminaires.
In addition to theatrical and television use, the yokes are
also used for positioning video projectors, smoke machines,
ARC and PO
loudspeakers, etc. with a maximum load limit of 30 kg.
Systems

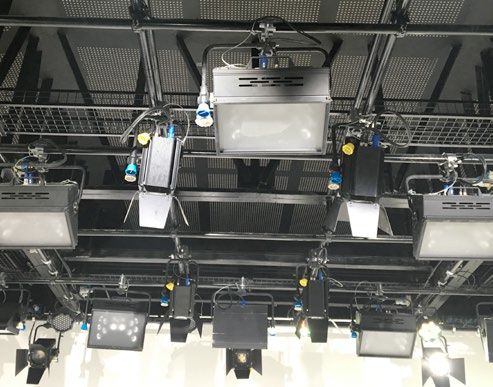

The yokes can work either hanging from structures with fast-fit
hooks already supplied, or removing the hooks, positioning them
on the stage with a suitable stabilizing base.
