CEILING SYSTEMS
Between us ideas become reality ®
1

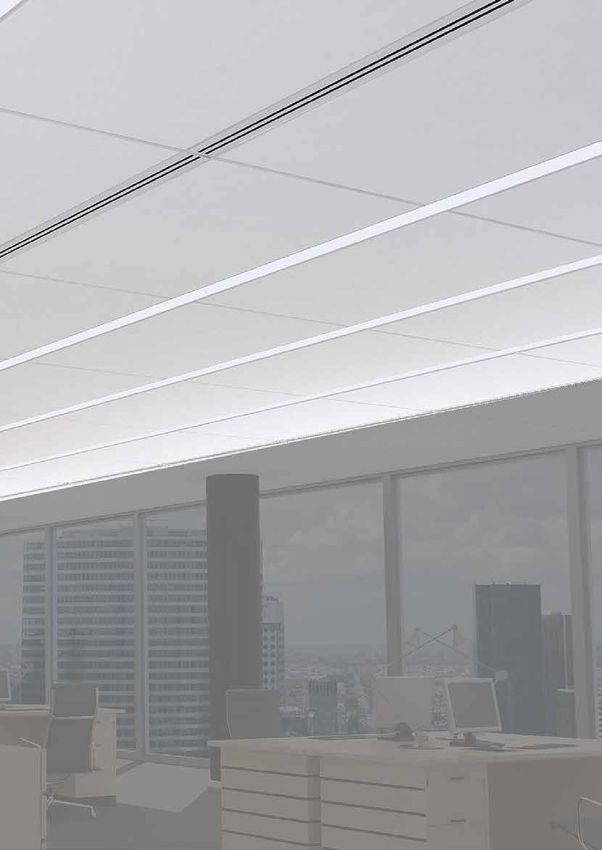

Uncluttered
TechZone Ceiling Systems provide
a monolithic, uncluttered ceiling
visual by organizing technical
services into 150mm wide zones.
So, you can configure all your
services – linear recessed lighting
fixtures, recessed downlights and
Serene
With TechZone Ceiling Systems,
pendants, air diffusers, air returns
you can provide much-appreciated
and sprinkler systems – into the
quiet in otherwise noisy and
channel. Result - a clean, custom
disruptive workspaces. Glass wool
look.
ceiling panels deliver excellent
sound absorption, making
TechZone the perfect choice for
open plan environments.
Unique
Simply let your imagination go
wild. Any which way you go, you
can create a unique custom look
using standard ceiling and grid
components. And it’s all prequalified
for fit and finish. So it’s all up to you.
TechZone gives you the tools to
design ceilings that make a visual
statement - clean and organized or
bold and unexpected.
2

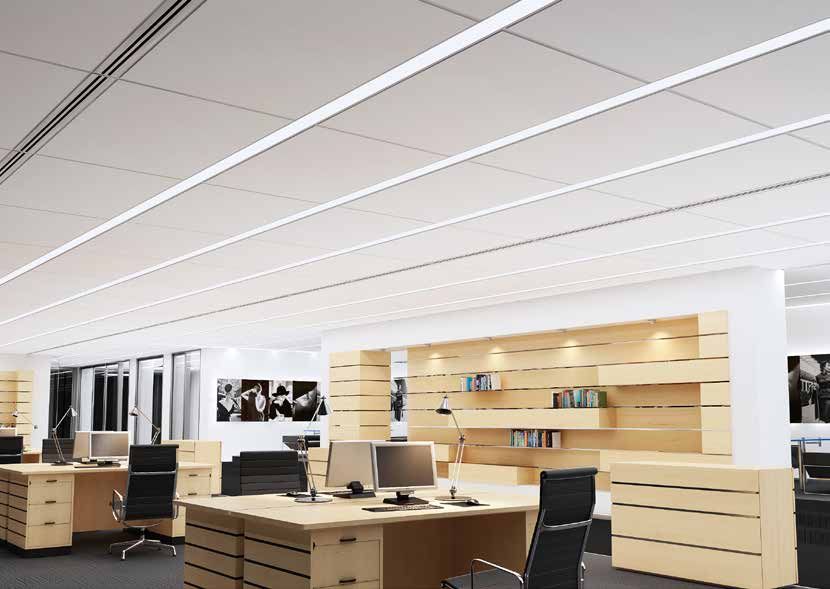

Smooth
The look is clean and uninterrupted.
All of the visual clutter from ceiling
services disappears into narrow
linear channels. The TechZone
Ceiling System makes a welcomed
aesthetic contribution to any envi-
ronment – from conference rooms
to open areas to private offices,
using standard components to
organize the look of the space.

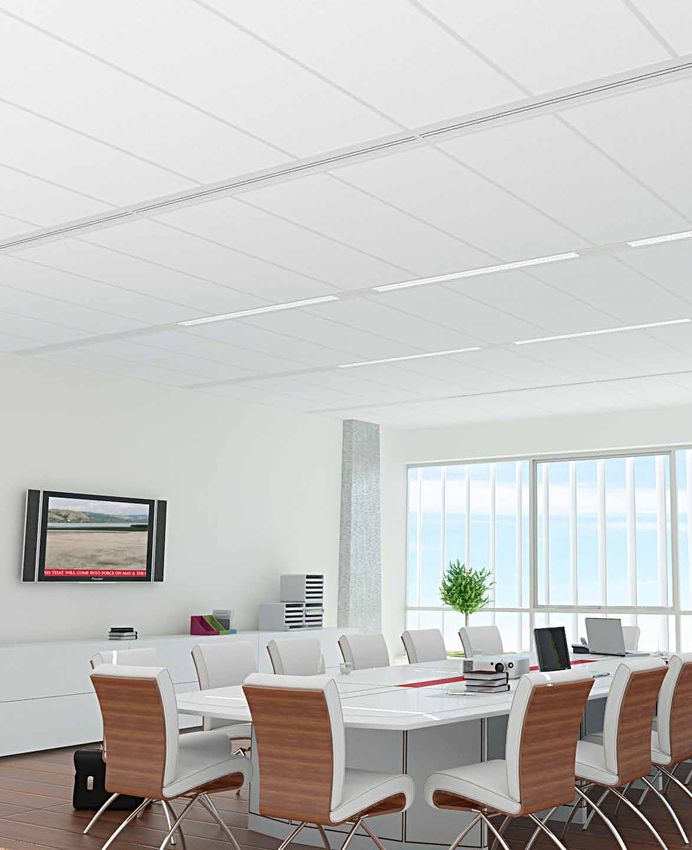

Fresh
TechZone Ceiling Systems
enable you to create crisp, clean
and flexible environments. Align
TechZone with furniture partitions,
juxtapose pendant lighting or
define work areas. The design
possibilities are endless – whether
you’re dealing with big areas, private
spaces or open plans.
3
Concept
With the introduction of TECH ZONE, ceiling solutions using standard ceiling • TECH ZONE design flexibility allows
Armstrong has raised the bar, inspiring and technical elements the possibility to integrate continuous
& influencing architectural trends! • Create a customised, homogeneous technical fixtures, for a clean visual.
ceiling to design, organise and • TECH ZONE can also be integrated
Armstrong TECH ZONE offers integrate different service elements. into an Axiom Canopy, offering design
you a unique solution to design • Minimal grid visibility provides a clean solutions for Thermal Mass.
contemporary, technical zones with and sophisticated ceiling finish. • Flexibility to re-configure room layouts
the guaranteed integration of market • A large variety of ceiling tile materials and service element positions without
leading service elements. and modules are available to meet the moving ceiling panels.
design and acoustic demands of any
TECH ZONE provides customised space.
Developed by Armstrong, TECH ZONE individual integrated luminaires, With TECH ZONE, edge detailing
is a partnership with industry leaders continuous linear fittings and pendant & colour matching is ensured. All
in lighting fixtures, air diffusers, chilled lights. technical elements supplied via this
beams* and sprinkler systems. • Air conditioning for traditional and unique partnership are fully compatible
innovative solutions: air diffusers and with Armstrong tile and grid systems.
TECH ZONE guarantees the chilled beams.
compatibility and integration of the • Flexible sprinklers* for easy *to be introduced.
following technical elements: adaptation to any ceiling lay-out and
• Light fixtures for multiple applications: fast installation, saving time and labour.
Suspension system
4I n s ta l l at i o n
TECH ZONE combines:
- Suspension Systems,
- Field Panels (FP, installed Field Panel (FP)
between technical zones),
- Technical Panels (TP, installed in
technical zones),
- Technical Elements (TE:
Luminaires, air diffusers… Technical Element (TE)
installed in technical zones).
Technical Panel (TP)
Suspension system
How to install Armstrong Option 1: Main Runners perpendicular to the technical zone
TECH ZONE ceiling system
Main Runner
in 3 steps:
1 Simple and fast assembly of
Armstrong TECH ZONE
Main Runner
suspension systems to
crea te 150 or 300mm* wide
technical zones, for
Main Runner
luminaires, air diffusers, Cross Tee
sprinklers, chilled beams
and loudspeakers.
Option 2: Main Runners parallel to the technical zone
Air Diffuser
2 Perfect integra tion of
made-to-measure
Main
Runner
Technical Elements.
3 Installa tion of made-to-
measure ceiling tiles, Cross Tee
Recessed Lighting Fixture
including 150 or 300mm* 1200mm
wide Technical Panels.
* to be introduced.
In case it is required to integrate continuous luminaires or Technical Elements of different lengths,the Main Runners need to be installed parallel to the technical zone and small Cross Tees
need to be added wherever necessary.
5F i e l d T e c h n ic a l P a n e l s and e d g e d e ta i l s
Ma tching ed ge details of the Field Panel, Technical Panel or Technical Element.
Technical Panels width: Section Drawing Suspension Field Panel Technical Panel or
150 or 300*mm. Systems Edge Details Technical Elements
Technical Panels lengths: Edge Details
1200, 1500*mm.
* to be introduced. Prelude 24 Board SL2/K2C2 Board
Prelude 24 Tegular 8 mm Tegular 8 mm
Suprafine 15 MicroLook 8 mm MicroLook 8 mm
Examples of edge details are sho wn belo w
Tegular Field Panel and MicroLook Field Panel and Board Field Panel and Board
Tegular Technical Panel on MicroLook Technical Panel Technical Panel on Prelude 24.
Prelude 24. on Suprafine 15
F i e l d /t e c h n ic a l P a n e l s
Tiles Performances Steel Angle
Edge Detail Absorption Attenuation Light Humidity Recycled
Reflectance Resistance Content*
Suprafine 15
Prelude 24
SL2/ K2C2
Optra Board, Tegular, Semi-concealed, 0.90 N/A 85% 95% 66(GW)/74(RW)% • •
Microlook •
Ultima Board, Tegular, 0.70 35 89% 95% 70-80% •
only Field Panel
Microlook •
Dune Max Tegular, Semi-concealed, 0.70 30 88% 99% 81-84% • •
Microlook •
Dune Tegular, Semi-concealed, 0.50 34 83% 99% 38-41% • •
Microlook •
Metal Plain Board, Tegular 0.1 30-40 76% 95% upto 25% •
only Technical Panel
Microlook •
E d g e D e ta i l
Board Tegular Microlook SL2 K2C2
6Design Options
Armstrong TECH ZONE is easy to specify and install. To specify and design a system, you just have to follow the
following steps:
Armstrong TECH ZONE is compatible with the more popu- 1 Select the ceiling module.
lar building module - 1200mm. The technical zone can be 2 Determine the on-centre spacing of the linear technical zone.
installed parallel or perpendicular to the façade. The combina- 3 Choose the TZ orientation, field panel type and dimensions.
tions of suspension systems, tiles and technical elements are 4 Select the edge detail and the grid that’s compatible with
almost unlimited. Armstrong TECH ZONE.
The following illustrations give you a flavour of what you can 5 Select the material of the Technical Panel.
achieve.
(A more detailed ‘Technical Guide’ is also available. You can Choose the Technical Elements to be integrated. Although
find details on all the suggested lay-outs including technical building modules can vary country to country, Armstrong can
details on grid, tile and technical components. provide a solution to meet your individual needs.
1350mm 1350mm 1500mm
1200mm
1200mm
1200mm
1200mm
600mm
1200mm 600mm
1200mm
Open Space Call Centre Reception Area
1500mm 1500mm 1350mm
1200mm
600mm 1200mm
1200mm
1350mm
Partitioned Offices and
Meeting Rooms with open 1350mm 1200mm
spaces
Sho wroom Shops
1350mm
1200mm
600mm
1200mm
Conference Room
Techzone Partners
Industry-leading suppliers have engineered and designed lighting, air diffusers/returns and fire protection products for use in
TechZone Ceiling Systems. All Armstrong compatible products are prequalified for fit and finish. Look for the Armstrong TechZone
Compatible sign of assurance on partner specification sheets.
