Studying Black Holes on the
Internet with Hubble

   Ethan Katz-Bassett, Harsha V. Madhyastha,
   John P. John, Arvind Krishnamurthy,
   David Wetherall, Thomas Anderson
   University of Washington
   RIPE, May 2008

   This work partially supported by      1
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Global Reachability
   When an address is reachable from every
    other address
   Most basic goal of Internet, especially BGP
       “There is only one failure, and it is complete
        partition” Clarke, Design Philosophy of the
        DARPA Internet Protocols
   Physical path  BGP path  traffic reaches
   Black hole: BGP path, but traffic persistently
    does not reach

                                                         2
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Does Internet give global reachability?
   From use, seems to usually work
   Can we assume the protocols just make it work?

   “Please try to reach my network 194.9.82.0/24 from
    your networks…. Kindly anyone assist.”
    Operator on NANOG mailing list, March 2008.

                                                         3
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Does Internet give global reachability?

                                          4
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Hubble System Goal

In real-time on a global scale, automatically
  monitor long-lasting reachability problems
  and classify causes

                                                5
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Problem Seen by Hubble on Oct. 8, 2007
            Fr:X                                Fr:D
            To:D                                To:X
            Ping?                               Ping!
5:09 a.m.

                                       Fr:Z
                                       To:D
                                       Ping?
                                                 5:11 a.m.

1. Target Identification – distributed ping monitors detect when
   the destination becomes unreachable

                                                                   6
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Problem Seen by Hubble on Oct. 8, 2007

                                                  5:13 a.m.

1. Target Identification – distributed ping monitors
2. Reachability analysis – distributed traceroutes determine the
   extent of unreachability

                                                                   7
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Problem Seen by Hubble on Oct. 8, 2007

1. Target Identification – distributed ping monitors
2. Reachability analysis – distributed traceroutes
3. Problem Classification
  a) group failed traceroutes

                                                       8
Studying Black Holes on the Internet with Hubble - Ethan Katz-Bassett, Harsha V. Madhyastha, John P. John, Arvind Krishnamurthy, David Wetherall ...
Problem Seen by Hubble on Oct.Fr:Y
                               8, 2007
                Fr:Y
                To:D                                   To:D
                Ping?                                  Ping?
                                              Fr:D
                                              To:Y
                                              Ping!

                         Fr:D
                        Fr:X
D to Y works!            To:Y                             D to Z works!
                        To:D
                         Ping!
Y to D fails!           Ping?                             Z to D fails!

1. Target Identification – distributed ping monitors
2. Reachability analysis – distributed traceroutes
3. Problem Classification
  a) group failed traceroutes
  b) spoofed probes to isolate direction of failure
                                                                      9
Architecture: Detect Problem

   Ping prefix to check if still reachable
       Every 2 minutes from PlanetLab
       Report target after series of failed pings
   Maintain BGP tables from RouteViews feeds
       Allows IP ⇒ AS mapping
       Identify prefixes undergoing BGP changes as targets
                                                              10
Architecture: Assess Extent of Problem

   Traceroutes to gather topological data
       Keep probing while problem persists
       Every 15 minutes from 35 PlanetLab sites
   Analyze which traceroutes reach
       BGP table to map addresses to ASes
       Alias information to map interfaces to routers
                                                         11
Architecture: Classify Problem

To aid operators in diagnosis and repair:
  Which ISP contains problem?
  Which routers?
  Which destinations?

                                            12
Architecture: Classify Problem

   Real-time, automated classification
   Find common entity that explains substantial
    number of failed traceroutes to a prefix
   Does not have to explain all failed traceroutes
   Not necessarily pinpointing exact failure

                                                      13
Classifying with Current Topology
 Group failed/successful traceroutes by last
  AS, router
Example: Router problem
 No probes reach P through router R

 Some reach through R’s AS

 28% of classified problems

                                                14
Classifying with Historical Topology
 Daily probes from PlanetLab to all prefixes
 Gives baseline view of paths before problems

Example: “Next hop” problem
 Paths previously converged on router R

 Now terminate just before R

   14% of
    classified
    problems
                                             15
Classifying with Direction Isolation
   Traceroutes only return routers on forward path
       Might assume last hop is problem
       Even so, require working reverse path
       Hard to determine reverse path
   Internet paths can be asymmetric
   Isolate forward from reverse to test individually
   Without node behind problem, use spoofed probes
       Spoof from S to check forward path from S
       Spoof as S to check reverse path back to S

                                                        16
Classifying with Direction Isolation
   Hubble deployment on RON employs spoofed probes
       6 of 13 RON permit source spoofing
       PlanetLab does not support source spoofing
Example: Multi-homed provider problem
 Probes through Provider B fail

 Some reach through Provider A

 Like Cox/USC

   6% of classified problems

                                                     17
Architecture: Summary of Approach

   Synthesis of multiple information sources
       Passive monitoring of route advertisements
       Active monitoring from distributed vantage points
   Historical monitoring data to enable troubleshooting
   Topological classification and spoofing point at
    problem

                                                            18
Evaluation
Target Identification
 How much of the Internet does Hubble monitor?

Reachability Analysis
 What percentage of the various paths to a prefix

  does Hubble analyze?
Problem Classification
 How often can Hubble identify a common entity that

  explains the failed paths to a prefix?

For further evaluation, please see NSDI 2008 paper.

                                                      19
How much does Hubble monitor?
Every 2 minutes:
 89% of Internet’s edge address space

 92% of edge ASes

                                         20
What % of paths does Hubble monitor?
Compare with
                         AT&T                    Sprint                        Tier 1
BGP paths of
447 RIPE peers
(downhill ASes)
                                                                               Transit
         Gigapop                    Cenic                      Abilene

        UW         WSU          Intel       UT            UM             MIT   Stub

   PlanetLab’s restricted size and homogeneity limit uphill
   90% of our failed traceroutes terminate within 2 AS hops
    of prefix’s origin
                                                                                      21
What % of paths does Hubble monitor?
Compare with
                        AT&T                    Sprint                        Tier 1
BGP paths of
447 RIPE peers
(downhill ASes)
                                                                              Transit
        Gigapop                    Cenic                      Abilene

                               Inte
      UW          WSU          Intel
                                 l
                                           UT            UM             MIT   Stub

BGP ASes:          { AT&T, Sprint, Gigapop, Cenic, Intel }
Also on Traceroutes:       { Sprint, Gigapop, Cenic, Intel }
Coverage for Intel prefix:     4 of 5 downhill ASes = 80%
                                                                                     22
What % of paths does Hubble monitor?
Compare with
                        AT&T                    Sprint                        Tier 1
BGP paths of
447 RIPE peers
(downhill ASes)
                                                                              Transit
       Gigapop                     Cenic                      Abilene

                               Inte
      UW          WSU          Intel
                                 l
                                           UT            UM             MIT   Stub

Overall for prefixes monitored by Hubble
 For >60% of prefixes, traverse ALL downhill RIPE ASes

 For 90% of prefixes, traverse more than half the ASes

                                                                                     23
How often can Hubble classify?
   9 classes currently
     Based on topology
     Point to an AS and/or router

   Results from first week of February 2008
   Automatically classified 375,775/457,960
    (82%) of problems as they occurred

                                               24

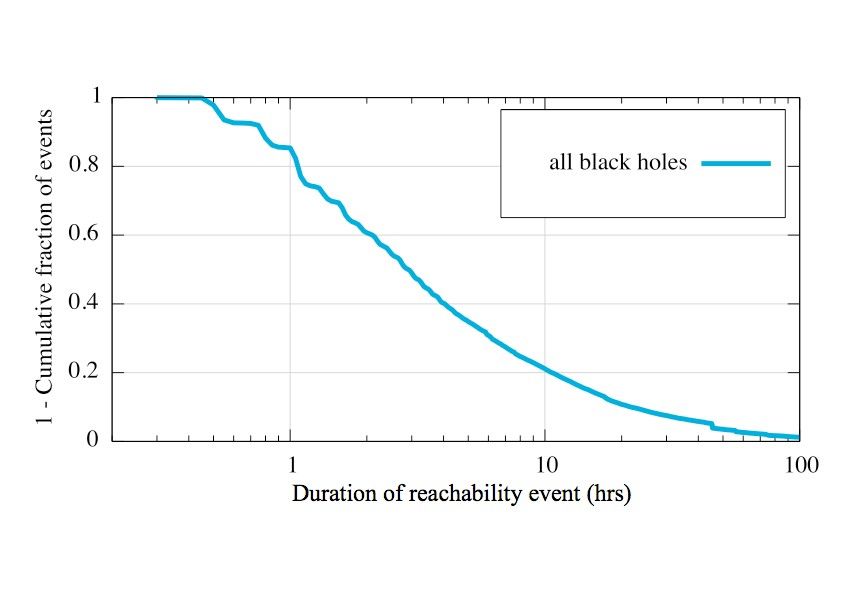

How long do black holes last?

   3 week study starting September 17, 2007
   31,000 black holes involving 10,000 prefixes
   20% lasted at least 10 hours!
   68% were cases of partial reachability

                                                   25

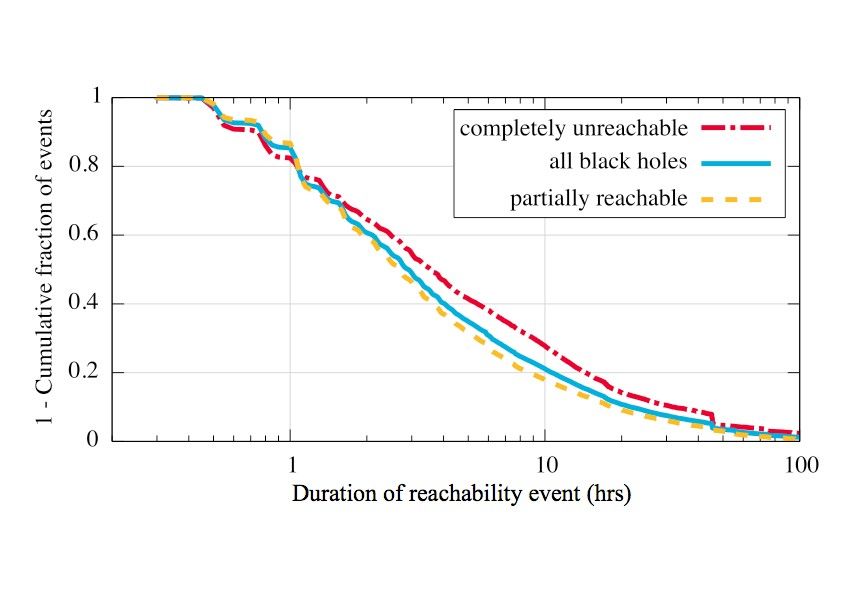

How long do black holes last?
                                        Partial reachability:
                                         Can’t be just
                                          hardware
                                          failure
                                         Configuration/
                                          policy

   3 week study starting September 17, 2007
   31,000 black holes involving 10,000 prefixes
   20% lasted at least 10 hours!
   68% were cases of partial reachability

                                                           26
Other Measurement Results
   Can’t find problems using only BGP updates
       Only 38% of problems correlate with RouteViews updates
   Multi-homing may not give resilience against failure
       100s of multi-homed prefixes had provider problems like
        COX/USC, and ALL occurred on path TO prefix
   Inconsistencies across an AS
       For an AS responsible for partial reachability, usually some
        paths work and some do not
   Path changes accompany failures
       3/4 router problems are with routers NOT on baseline path

                                                                    27
Summary and Future Work
   Hubble: working real-time system
   Lots of reachability problems, some long lasting
   Baseline/ fine-grained data enable classification

Future:
 More classification/analysis, including cross-

  prefix
 Expand number/diversity of vantage points

 Make this a useful tool

                                                   28
How Hubble Can Help Operators
   Access to queriable real-time and historical
    traceroutes and reachability analysis?
   Notification of problems?
   Other problems or causes to look for?
   Please email ethan@cs.washington.edu

                                                   29
How Operators Can Help Hubble
   Validation/explanation of specific problems to
    help refine our techniques
   Traceroute servers/ host Hubble nodes
   Please email ethan@cs.washington.edu

http://hubble.cs.washington.edu
Uses iPlane, MaxMind, Google Maps

                                                     30
