MODERN EXPLORATION OF HISTORIC YUKON GOLD FIELDS
Technical
Toronto
Presentation
KG | TSX Venture Exchange
KDKGF | US OTC
August 2019 LBDP | Frankfurt Stock Exchange
FORWARD LOOKING STATEMENTS
Statements contained in these following slides and accompanying oral presentation contain certain forward-looking statements within the meaning of the United States Private Securities Litigation
Reform Act of 1995 and forward looking information within the meaning of the Securities Act (Ontario) and similar legislation in other jurisdictions. Forward-looking statements can be identified by
the use of words such as “plans”, “expects” or “does not expect”, “is expected”, “budget”, “scheduled”, “estimates”, “forecasts”, “intends”, “anticipates” or “does not anticipate”, or “believes”, or variation
of such words and phrases or state that certain actions, events or results “may”, “could”, “should”, “would”, “might” or “will” be taken, occur or be achieved. Forward-looking statements involve known
and unknown risks, uncertainties and other factors which may cause the actual results, performance or achievements of Klondike Gold Corp. (“Klondike Gold”) to be materially different from any
future results, performance or achievements expressed or implied by the forward-looking statements. These forward-looking statements include estimates, forecasts, and statements as to
management’s expectations with respect to, among other things, business and financial prospects, growth potential, the size, quality and timing Klondike Gold’s exploration and possible development
projects, mineral reserves and mineral resources, future trends, plans, strategies, objectives and expectations.
These forward-looking statements involve numerous assumptions, risks and uncertainties and actual results may vary materially. These statements are based on a number of assumptions, including,
but not limited to, assumptions regarding general business and economic conditions, interest rates, the supply and demand for, inventories of, and the level and volatility of prices of gold, silver, zinc,
lead, or copper, the availability of financing for Klondike Gold’s programs on reasonable terms, the accuracy of Klondike Gold’s resource estimates (including, with respect to size, grade and
recoverability) and the geological, operational and price assumptions on which economic resource models are based, the resolution of environmental permitting and other proceedings, the capacity
to obtain qualified personnel, consultants, and contractors and the future operational financial performance of the company generally. The foregoing list of assumptions is not exhaustive.
Events or circumstances could cause actual results to differ materially. Such events include, among others, unanticipated developments in business and economic conditions in the principal markets
for commodities and/or financial instruments, changes in the supply, demand, and prices for metals and other commodities, the actual results of exploration activities, conclusions of economic
evaluations, uncertainty in the estimation of ore reserves and mineral resources, changes in project parameters as plans continue to be refined, changes in economic and political stability in
jurisdictions where Klondike Gold has business interests, environmental risks and hazards, legal disputes, increased infrastructure and/or operating costs, labour and employment matters, and
government regulation as well as those factors discussed in the section entitled “Risk Factors” in Klondike Gold’s Annual and Quarterly Reports and associated financial statements, Management
Information Circulars and other disclosure documents filed with Canadian securities regulators. Although Klondike Gold has attempted to identify important factors that could cause actual results to
differ materially, there may be other factors that cause results not to be as anticipated, estimated or intended. There can be no assurance that such statements will prove to be accurate as actual
results and future events could differ materially from those anticipated in such statements. Klondike Gold disclaims any intention or obligation to update or revise any forward-looking statements,
whether as a results of new information, future events or otherwise. Accordingly readers/listeners should not place undue reliance on forward-looking statements.
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 2
THE THREE SISTERS – TINTINA GOLD BELT
Klondike Au
District
White Gold Au Brewery Creek
District Au
Coffee Au
District
Allan et al., 2013 KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 3
KLONDIKE METALLOGENY AND STRUCTURE
Carmacks Group Folds D1/D2
Lamprophyres
NE Faults D4 Klondike
Orogenic Au Schist
Coffee 4M oz Au
Golden Saddle 2M oz Au
Klondike 20M oz placer
Jurassic thrusts D3
Slide Mtn thrusts D3
Eocene
Dykes/Faults
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 4
MODERN EXPLORATION OF KLONDIKE DISTRICT
GSC Airborne 2002 Klondike Gold Year 5:
First Klondike District Survey
2015-2019 District Exploration
❑ Geology
❑ Structure
❑ Soils
Klondike ❑ Magnetics
Gold Rush ❑ Radiometrics
1896 ❑ LIDAR
Climbing the ❑ Prospecting
Chilkoot Pass
(1898) ❑ Whole Rock Lithochem
❑ XRF Lithochem
KG Claims: 560 sq km; 60 km length ❑ Thin Sections
❑ Drilling
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 5
KLONDIKE DISTRICT AIRBORNE MAGNETICS
• 1st Order district scale
‘magnetic break’ fault is
apparent control for gold
Detail
Map • District-scale Au-soil
area anomalism on hillsides
above gold-bearing placer
creeks
• Multi-kilometer Au soil
anomaly at Gold Run with
drill hole of 1.2 g/t Au over
13.5m.
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 6
KLONIDE DISTRICT GOLD IN SOIL ANOMALIES
• Extensive Au > 30 ppb
(2SD) soil anomalies
• Coincident with 1st and 2nd
Order structures
Detail
Map
area • District-scale anomalism
on hillsides above gold-
bearing placer creeks
• Multi-km Au soil anomaly
at Gold Run with drill hole
of 1.2 g/t Au over 13.5m.
• 3 of 24 gold-bearing
placer creeks have
bedrock Au sources
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 7
BONANZA-ELDORADO GEOLOGY
Orogenic Gold Sulphur Creek
unit hosts gold
Gold-bearing fluids Snowcap ore at Coffee.
introduced from Bonanza Ck
mantle by deep Graphite Ultramafic slivers
“Sch-i”
seated structure(s). present in gold
zones at Nugget,
Faults/back thrusts 1,009 g/t Au over 1.0m
1.0 g/t Au over 91.0m
Lone Star and
cut Klondike Schist Coffee.
Felsic
Lithology (brittle vs Sulphur 76.0 g/t Au over 2.8m
Nugget quartz
ductile) determines Creek Quartz-eye vein is 2.2 km
porphyry
gold style (vein vs granite long; locally high
disseminated. Cretaceous grade; similarity
5 km Mafic
intrusive to Pogo.
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 8

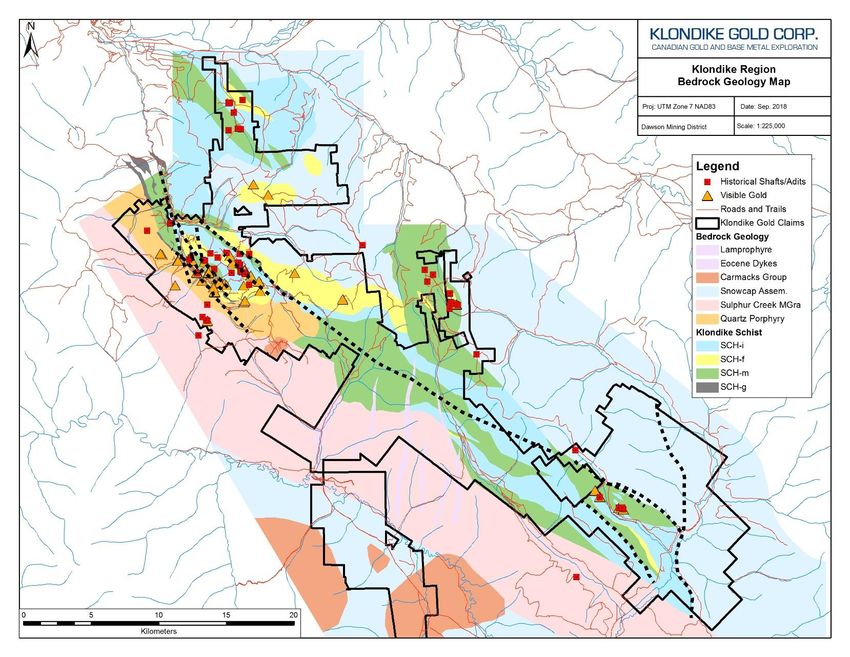

KLONDIKE DISTRICT GEOLOGY / SHAFTS / SOILS
• ~50+ shafts on Dawson
YDA airport >10 Sq Km Gold
Klondike-era Soil Targets
bedrock gold Quartz-eye
occurrences porphyry
Detail
• ~100+ new Map
bedrock visible area
• No glaciation; gold
gold occurrences Snowcap soil anomalies
directly reflect
• Gold Sulphur bedrock sources.
mineralization Creek 1.2 g/t Au over 13.5m
throughout the granite • Gold soil targets are
greater in size cf
District.
Cretaceous Lone Star Zone
Carmacks Gp
Volcanics
20 km
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 9

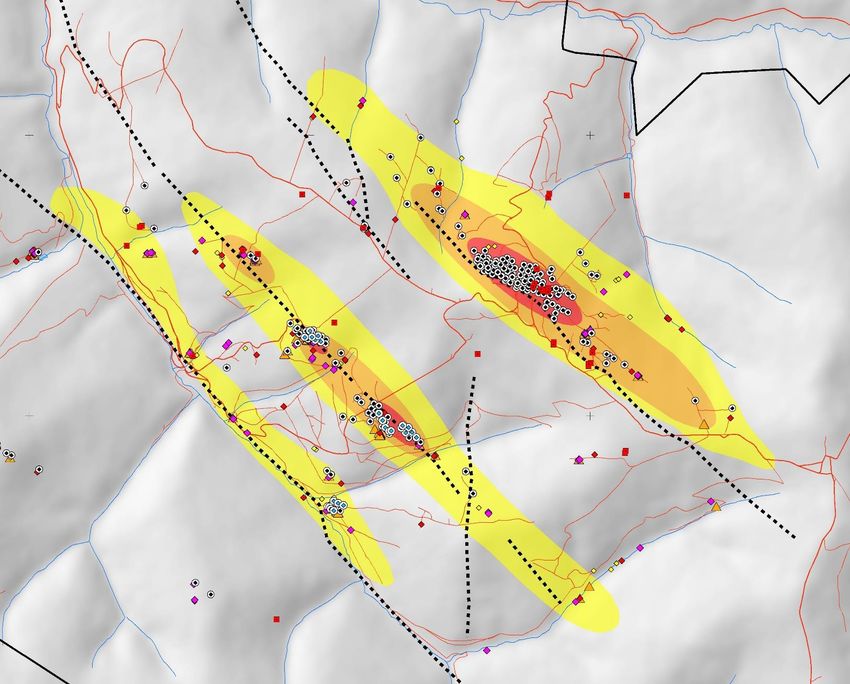

MINERALIZED CORRIDORS
Lone Star Zone: Bonanza Creek N Au Corridors:
• 5 km Au in outcrop • Three parallel
• 3,500 m length of NJ Gulch fault corridors
Au in drilling O’Neill
• Each 5-6+ km
long, mineralized
• 1,000 m length of 96 g/t Au
• 1 to 2 km apart
Glacier Gulch
Au in detail drilling 39 g/t Au 2.4 g/t Au over 41.2m
60 g/t Au
44 g/t Au Nugget 1766 g/t Au
(potential resource) 1,009 g/t Au over 1.0m
9.5 g/t Au over 9.0m
1.0 g/t Au over 91.0m • Defined by
magnetics,
55 g/t Au 8.9 g/t Au over 10.0m Pioneer
30 g/t Au
1.6 g/t Au over 45.2m
Nugget Zone: 1.0 g/t Au over 58.1m
37 g/t Au
geology,
• 2 km Au in outcrop 28 g/t Au Nugget East
2.2 g/t Au over 24.9m
Lone Star Zone structure, gold,
• 1,300 m length of 60 g/t Au
74 g/t Au old workings
Au in drilling 75.6 g/t Au over 2.8m
• Potentially 60km
Nugget Zone
Exploration Target Area Gay Gulch 58 g/t Au
• 200 m length of Au Resource Target Area 12 g/t Au through the
in detail drilling Potential Resource Area
24 g/t Au
Klondike District
• 1,009 g/t Au / 1.0m 0 km 2 km
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 10LONE STAR ZONE GOLD SHELL
• RED cloud represents Highlights:
gold mineralized area 2.4g Au/37.0m • 2.4 g Au/41.0m (2016)
1.4g Au/65.0m • 1.4 g/t Au/65.05m incl
• 1000 x 200 meter 6.07 g/t Au/8.45m
area drilled at 50 2.4g Au /41.2m (2018).
meter centres: 108
ddh 1766 g/t Au, 400 g/t Ag ▪ Deepest holes hit
Boulder Lode vein gold mineralization
• 2017-2018 drilling to 150 meters below
determine geometry surface
and extent of a
portion of the Lone ▪ 3.5 km of
Star Au Zone mineralization, has
1.02g Au/91.0m
disseminated gold
• 2019-2020 DRILLING Section
FOR RESOURCE 11800E ▪ >90% of gold is +150
ESTIMATE. mesh screen size
1 km (coarse gold).
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 11LONE STAR SECTION 11800E
Mineralized zone
1000m ~150m wide, to 100m
RL vertical depth starting
from surface.
Bonanza fault flattens
on this section.
Late (brittle gouge) 5m
to 150m offset faults
are north-trending,
950m
Eocene age(?), related
RL
to recent movement
on Tintina Fault.
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 12NUGGET ZONE – 2019 RESOURCE TARGET
1,009 g/t Au /1.0m ▪ 1.3 km length of gold mineralization in
5.1 g/t Au /14.5m drilling
1.6 g/t Au /45.2m
▪ Visible free gold is common, 0.1-2.0 cm size
▪ 2019 Drilling at Nugget Zone focused on
9.5 g/t Au /9.0m perspective areas of high-grade gold and to
improve structural understanding
1.03 g/t Au over 58.10m
▪ NEW DISCOVERY ZONE:
1,009 g/t Au and 1,035 g/t Ag over 1.0 m
2.2 g/t Au over 24.9m
Photo of electrum in
drill core EC19-267
31.9 g/t Au over 1.5m
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 13NUGGET SECTION 585500E
EC19-276: ▪ Mineralized zone 1 to 50 meters
1,009 g/t Au with wide.
1,039 g/t Ag ▪ Mineralization starts at surface.
over 1.0m ▪ Drilled to 75m vertical depth.
800m RL ▪ Multiple stacked gold-bearing vein
Epithermal high level
arrays.
electrum veining.
750m RL
Photo of Electrum Late (brittle gouge) 5m to 150m offset
EC19-276 @104.6m faults present.
North-trending, Eocene age(?), related
to recent movement on Tintina Fault.
700m RL
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 14NUGGET ZONE – RESULTS AUGUST 2019
▪ EC19-267 intersected 1,009 g/t Au with
1,035 g/t Ag over 1.0 meter. This is a new
EC19-267 discovery beneath the known Nugget
collar Zone mineralization
▪ EC19-256 intersected 8.9 g/t Au over 10.0
meters
EC19-256 collar ▪ EC19-266 intersected 1.8 g/t Au over 49.6
meters
▪ Results prove to investors the potential of
the Nugget Zone
EC19-267 pierce point:
1,009 g/t Au and 1,035 g Ag over 1.0m
from 104.0m
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 15KLONDIKE SCHIST LITHOLOGIES: SCH-i
Intermediate Schist Suite
SCH-i-ptm (grading
SCH-i-lam towards “tec”)
SCH-i-lam, (spotted Chlorite
variant) SCH-i-yel
SCH-i-lam (kink folded, 5.12g/t Au)
SCH-i (feldspar porphyroblasts)
MacWilliam, 2018 KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 16LISTWANITE AND ULTRAMAFICS
LIST
Talc schist ultramafic at Coffee
Ultramafic schist at Lone Star
MacWilliam, 2018 KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 17LAMPROPHYRE
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 18RECENT MINING INVESTMENT IN YUKON
4 out of 5
$1 billion 90%
world top
invested invested
gold
in Yukon in gold
producers
KLONDIKE GOLD CORP. TSXV: KG Frankfurt: LGBF 19CONTACT US
2833 – 595 Burrard St.
Vancouver BC, V7X 1J1
www.klondikegoldcorp.com
info@klondikegoldcorp.com
(604) 559 4440
