Netflix Open Connect
2 Terabits from 6 racks
1
Who am I?
Ryan Woolley
Network Architect for Netflix
rwoolley@netflix.com
2
What is Netflix?
§ Unlimited, flat-fee streaming to hundreds of devices
§ Movies, television and original programming
3
Netflix no Brasil
§ Launched in September 2011
§ Present at PTT São Paulo
§ ATM (MLPA) participant
§ Open peering policy
§ Planning to build into PTT Rio in February 2014
§ Evaluating expansion into other locations
4
Netflix Share of US ISP Traffic
Other
24%
Ne#lix
29%
Facebook
2%
Flash
Video
2%
iTunes
2%
Hulu
2%
MPEG
YouTube
2%
SSL
15%
2%
HTTP
BitTorrent
11%
9%
Source: Sandvine Global Internet Phenomena 1H 2013
5
Netflix-Developed Adaptive Client
§ All content delivered via HTTP
§ Clients actively measure network performance to select
bitrate and CDN (primary and backup cache clusters)
§ Stream start
§ During playback
§ Very large library of catalog titles
§ Wide distribution of viewing across the entire library
driven by highly personalized recommendation engine
6
Netflix CDN delivery mechanisms
§ We deliver our content to our customers via one of three
methods:
§ Open Connect Appliances embedded within providers
§ Peering at carrier-neutral data center sites
§ Transit from carrier-neutral data center sites
7
Some Background on Open Connect
§ We began the Open Connect project approximately two
years ago
§ 100% of our traffic served from the Open Connect
platform in 40 countries
§ We have >16 Terabits of network and server capacity
located around the world
8

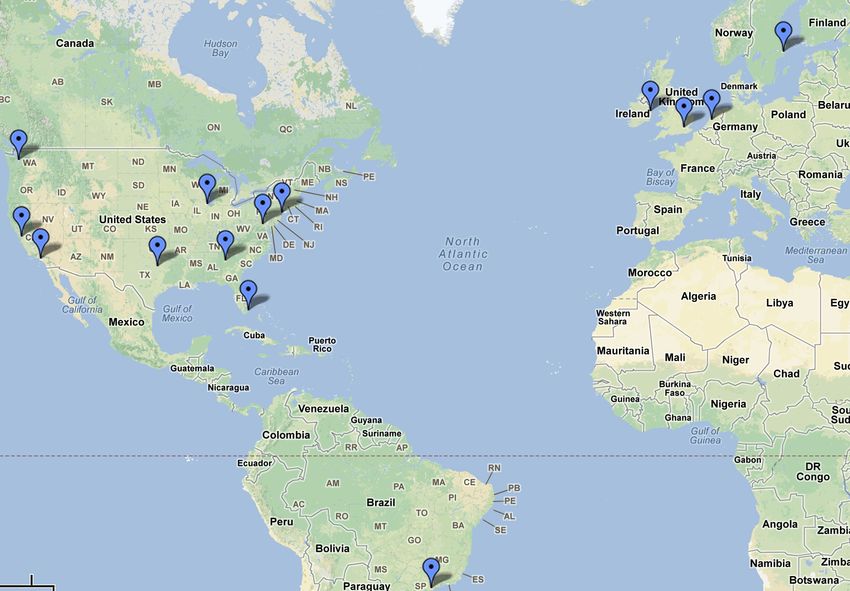

9
Not a typical network hardware deployment
§ No aggregation layer
§ We have no east-west traffic
§ Load-balancing and content-routing intelligence is in the
application
§ I need high-density 10GE, but also full BGP tables
§ I know what will be popular, so I can place content
appropriately, to level load
10Transit Peering
~4000 ports
Big Expensive
deployed
Router
Server Server
Server
11But there’s a lot of logic in the back-end
Netflix Control Servers
Broadband ISP
• User routing is done by
Netflix control servers,
Netflix OCA not dependent on client
DNS configuration
3. Client connects to local OCA • Request is routed to the
nearest available OCA
4. Local OCA delivers video streamMulti-Tier Architecture
Cache hardware is identical in each tier – variations in content sharding create
different roles
Headend Small Large Aggregation Location
Network Aggregation
Location
Each Sharded
Sharded
cache content
content
has 100% of
≈ 95+%
identical active
offload
content catalog
≈ 80%
offload
13The Netflix Open Connect Appliance (OCA)
§ Developed in response to ISP requests to help scale
Netflix traffic efficiently
§ Reduces ISP cost by serving Netflix traffic from the local
ISP datacenter, CO or headend, rather than upstream
network interconnects
§ Speeds up internet access for consumers to all third-
party internet sites, because Netflix traffic is no longer a
source of middle-mile or backbone congestion
§ Netflix bears the capital and maintenance costs, not ISP
§ ISP provides space, power and a network port
§ An OCA is a component of the Netflix CDN (vs a cache)
14The OCA Hardware
• Space optimized: 4U
high-density storage
• Power optimized for low
power/cooling
requirements (≅500W)
• 10GE optical interfaces
• Redundant power
supplies (AC or DC)
• 216 TB in one unit
15Disk-based OCAs
• 8.6 PB in four racks
• Contains full catalog
• Deployed in two stacks of
20
• ~15 Gbps each
• 600 Gbps total
16900Gbit/sec in another rack
17SSD-based Open Connect Appliances
In sites with 1+ Tbps of Netflix traffic at peak:
§ 14 TB per 1U system
§ Commodity SSD (< US$0.60/GB, Micron m500)
§ 1 TB in 2.5" form factor
§ 3x 10 Gbps SFP+ NIC
§ 4th left unused due to bus limitations
§ Except on Juniper installations to manage oversubscription
§ Total system power 125W per 1U
§ Software stack (same as spinning disk systems, which
these complement)
§ FreeBSD / nginx / bird / Netflix application code
182 Terabits in a day
§ We keep configurations templated and homogenous
§ Cabling are custom made pre-wire bundles (MTP to LC
breakout) – the only options we select are length
§ Every colo looks basically the same – 5-7 racks
§ We decide how much infrastructure to deploy based on
geographic sizing
§ Colo vendors never touch our routers
§ Cross connects are run to MTP panels which are pre-wired to
routers
All of this means that we can deploy 2T of infrastructure in ~1 day
19MTP Connector Overview
• Multiple fiber push-on
• 12 fibers (available as 24)
• 6 duplex pairs
• Critical for cable
management at this scale
20MTP Cabling
§ Aggregates 20 10GE ports (one rack of 4U
appliances) into 4 MTP connectors
21MTP Cabling (SSD)
§ Each host uses a MTP to LC whip that allows for rapid
deployment of cabling to each rack
§ A rack of 30 Flash Hosts (120 10G ports) takes
approximately 45 minutes to wire

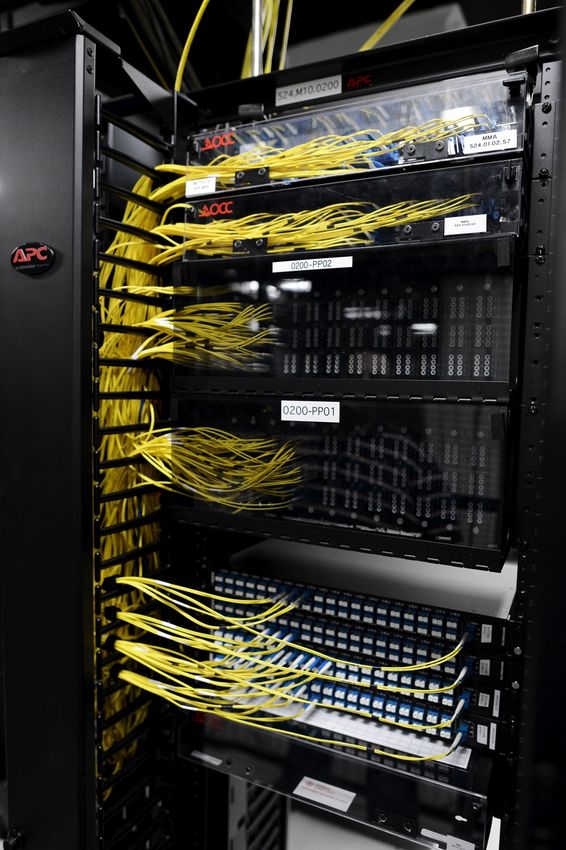

22MTP Cabling (Router)
Custom-built MTP to LC cables connect racks to routers

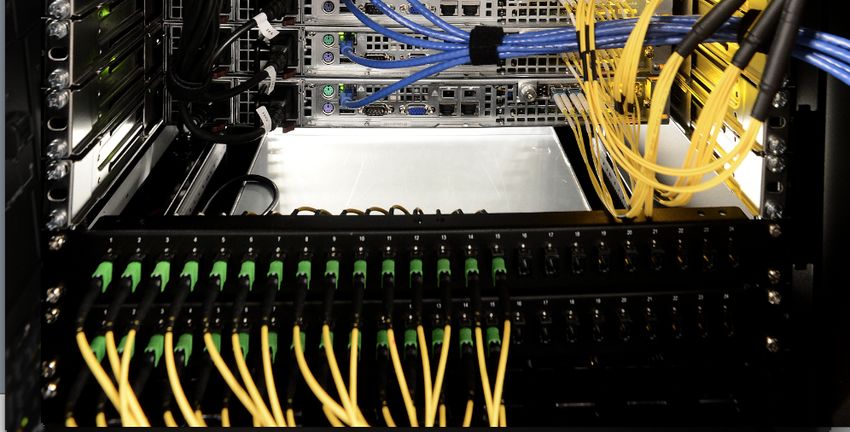

23MTP Cabling (Demarc)
We do the same for demarcation
of transit and peering
24MTP enables growth
In addition to a quick build, we
use this to enable low-impact
upgrades
25MTP enables growth
26Netflix BGP Outage Events
• Blue dots are
advertisements
• Yellow-red dots are
withdrawals
• Nearly 400 IPv4 peers
represented here, one
Renesys peer per line
• Percentage peers with valid
route plotted at top
© 2013 Renesys Corporation 27LAX2: Friday 8 March 2013 (1h35m)
43m12s 1m53s 0m55s
© 2013 Renesys Corporation 28ATL1: Friday 22 March 2013 (22m7s)
12:58:19 – 13:20:26
© 2013 Renesys Corporation 29LAX1: Monday 1 April 2013 (31 seconds)
20:20:51 – 21:21:22
© 2013 Renesys Corporation 30ORD1: Tuesday 16 April 2013 (7m42s)
19:22:29 – 19:30:11
© 2013 Renesys Corporation 31ATL2: Tuesday 23 April 2013 (1m28s)
12:48:45 – 12:50:13
© 2013 Renesys Corporation 32What next?
• Double-size cluster
• 200 OCAs per site
• Cisco ASR 9922
• 1440 10GE ports (2x 9922)
• Or some combination of 10GE
and 100GE
33Questions?
