NSP DEALER GUIDE 2018 V e r s i o n 4.0 W W W.NSPSURF BOARDS.COM
Rider: Titouan Puyo
38
NSP DEALER GUIDE 2018 TECHNOLOGY RACE

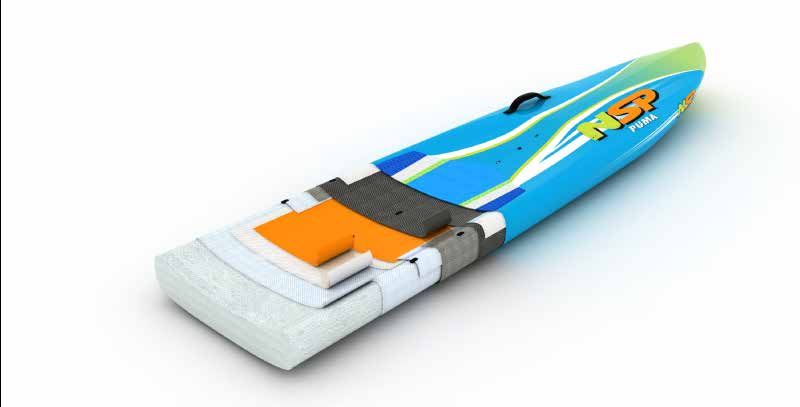

NSP PRO CARBON
Elite pro carbon technology construction when winning is all that matters!
- Cutting edge aerospace carbon fibers and ultra-light core materials are combined within our unique vacuum construction, making
Pro Carbon the lightest, stiffest and fastest racing construction technology available.
- Featuring a PVC reinforced deck for integrity plus carbon rails for stiffness reducing flex and making the board ultra responsive.
- Carbon Innegra reinforcement adds impact protection in nose and the tail for close quarter battles at race starts and from the
chasing racers in a draft train.
- Pro Carbon is an elite construction technology that is standard in our production race boards allowing you to own exactly the same
boards that NSP pros Travis Grant and Titouan Puyo win on.
100% carbon innegra nose & tail
reinforcement
PVC reinforced
standing area.
Goretex valve
Thermoform EVA pad (3mm.)
100 % biaxial carbon deck and bottom
100 % carbon rails
Fiberglass
SecureCell E.P.S core
+ Carbon reinforced fin box

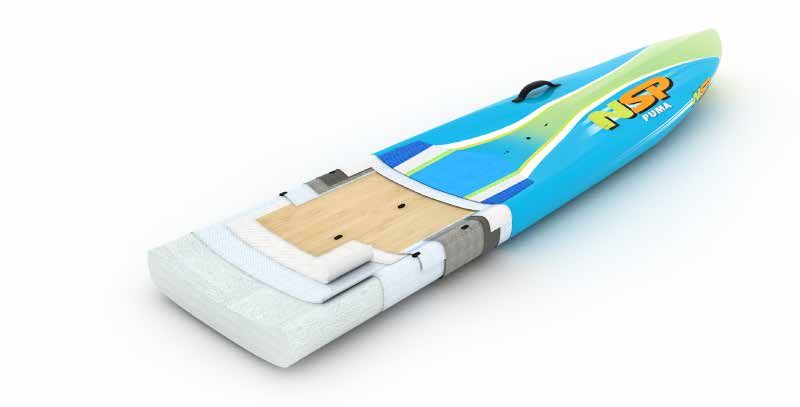

NSP CARBON
Carbon technology offers race winning performance with a fantastic blend of weight and value.
- NSP’s Carbon boards feature double wrapped carbon rails for stiffness and bamboo reinforcement is added in the standing area
for increased durability.
- Vacuum molded to ensure these boards are a true replication of our race winning designs time and time again.
- Carbon Innegra reinforcement in the nose and tail protects from paddle impacts during the close quarter battles of race starts and from
the chasing racers in a draft train.
Light weight race handle 100% carbon innegra nose & tail
reinforcement
Bamboo reinforced
standing area
Goretex valve
Thermoform EVA pad (3mm.)
100 % double wrapped carbon rails
Fiberglass
SecureCell E.P.S core
+ Carbon reinforced fin box
Specifications subject to change without notice
V e r s i o n 4 .0 W W W.NSPSURF BOARDS.COM 39
NSP DEALER GUIDE 2018
RACE NINJA
Ninjas are the fastest pure flat water racing boards on the market
featuring new shapes and graphics for 2018:
- All Ninja models feature the dugout deck concept that lowers
the riders center of gravity and allows us to reduce the width
without compromising stability.
- All Ninja’s have enough nose volume to be able to paddle in
a pack and wash ride comfortably and keep tracking straight.
- The Accelerator Vacuum System (AVS) quickly removes any
wash that enters the deck.
- Ninja’s are all about low drag efficiency so that you can race
fast and save as much energy as possible for a “kick” to pull
away from the pack or for longer runs.
- Features a stable tail design for easy kick turns when rounding
the buoy. e fin inclu
rac d
- The 14’/22 and 12’6/23.5 are for elite paddlers to win races and P
ed
NS
fight in packs, but can be enjoyed by experts if they paddle
them on pure flat water.
- The 14/25 is a super stable version and fast enough to allow
advanced paddlers to fight for their position in a race group
and for long distance flat water training sessions.
- Compared to the Sonic and the Puma, the Ninja is the specific
flatwater race machine for lakes, canals, rivers and flat ocean EVA trim guide
conditions.
Famous for our rolled hulls, NSP has evolved our signature design
to include a stabilizer surface to deliver greater speed and control
Inverted
Bullbous nose
Accelerator
Vacuum System (AVS)
Insert
for GPS/GoPro
Length Handles Fin Standing area profile
12’6” x 23.5” 1 short + 1 long NSP Race Recessed
Pro Carbon 22
14’0” x 22” 1 short + 1 long NSP Race Recessed
Pro Carbon 22
14’0” x 25” NSP Race Recessed
1 long 24
Pro Carbon
Specifications subject to change without notice
V e r s i o n 4 .0 W W W.NSPSURF BOARDS.COM 40
NSP DEALER GUIDE 2018
RACE SONIC
Sonics are proven race winning boards. No performance
compromises are made with these dedicated downwind
and course racing designs:
- New shapes and graphics for 2018, all Sonics are now
pintails to release water from the tail reducing wake.
- Dugout deck designs lower the riders center of gravity,
allowing us to reduce width and drag without compromising
stability.
- The Accelerator Vacuum System (AVS) quickly removes
any wash that enters the dugout.
- They are very strong performers in upwind and downwind
conditions as the bulbous nose pops over chop to carry
speed upwind and catch bumps downwind.
- The 14/23 is extremely competitive and designed for elite
racers or lighter experts to win races in smoother open water
conditions and flat water.
e fin includ
- The 14/24 can handle choppier conditions, having a different P rac e
d
NS
rocker line than the 14/23, it is extremely competitive for elite
and experts as soon as there is water texture to pull away from
the pack.
- The 14/25.5 is the same concept as the 14/24 but more stable
and comfortable for advanced and expert racers in open ocean
conditions, harbor chop and for downwinders. If you are not in
front of the pack in an elite field and you are battling in crowded
racing conditions, you will be faster on the 14/25.5 than the 14/24.
- The 12’6/24.5 covers all the demands of the 12’6 race class in
EVA trim guide
open ocean, harbors, flat water and downwinders. Ideal for Bullbous nose
intermediate to expert paddlers in most conditions and for experts
only in bigger ocean swells.
- Compared to the Ninja and Puma, the Sonic is the dedicated
raceboard for choppier water, harbors, open ocean conditions
and downwinders

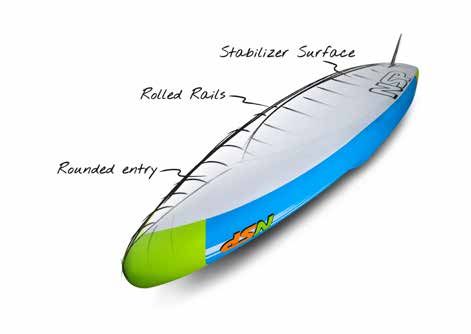

Famous for our rolled hulls, NSP has evolved our signature design
to include a stabilizer surface to deliver greater speed and control
Insert Accelerator
for GPS/GoPro Vacuum System (AVS)
Update: For the 2nd year in a row Titouan Puyo (1st) and
Travis Grant (2nd) won the elite Carolina Cup on their NSP Sonic
production boards that are available for anyone to buy while
many others paddled one-off prototypes.
Length Handles Fin Standing area profile
12’6” x 24.5” 1 short + 1 long NSP Race Recessed
Pro Carbon 22
14’0” x 23” 1 short + 1 long NSP Race Recessed
Pro Carbon 22
14'0” x 24” 1 short + 1 long NSP Race Recessed
Pro Carbon 22
14'0” x 25.5” 1 long NSP Race Recessed
Pro Carbon 24
Specifications subject to change without notice
V e r s i o n 4 .0 W W W.NSPSURF BOARDS.COM 41
NSP DEALER GUIDE 2018
RACE PUMA
Pumas are the most versatile race board for everyone in all conditions:
- For 2018 the design brief of the Puma range was totally changed
from a focus on beach racing to a design that is as equally at home
in the surf, flatwater and with excellent downwind performance
covering all water states and race formats.
- If you are not comfortable with the feel of a recessed deck, if you
want to kick turn, if you want to surf race, downwind, race on the flat
or just enjoy paddling faster and further, the Puma can do it all.
- If you want to own only one race board with no significant disadvantage
compared to a specialized board but want to enjoy diverse conditions
the Puma is the go to board.
- The Puma offers the largest race board range with a model to suit all
abilities and conditions. This board will never let you down whatever
the conditions throw at you.
- The 14/28 and 14/26 models are ideal for all intermediate to advanced f race fin
sur in
P
paddlers.
clu
NS
ded
- The 14/23.5 is ideal for lighter intermediate to expert paddlers.
- The 12’6/24 is ideal for lighter or expert paddlers wanting an allround
race board.
- The 12’6/28 and 12’6/26 models are ideal for racing in the 12’6
class for intermediate to advanced paddlers.
- Compared to the Ninja and Sonic, the Puma is the versatile all round
flat deck raceboard for all water states, different race formats and
great downwinding.
Famous for our rolled hulls, NSP has evolved our signature design
to include a stabilizer surface to deliver greater speed and control Bullbous nose
EVA trim guide
Insert
for GPS/GoPro
Length Volume Handles Fin Standing area profile
12'6”x24” 244.8 L 2 short + 1 long Surf Race Flat
Pro Carbon 20
12'6”x26” 250.2 L 1 short + 1 long Surf Race Flat
Pro Carbon 20
12'6”x28” 267.1 L 1 short + 1 long Surf Race Flat
Carbon 20
14'0”x23.5” 264.3 L 2 short + 1 long Surf Race Flat
Pro Carbon 20
14'0”x26” 293.4 L 1 short + 1 long Surf Race
Pro Carbon 20 Flat
14'0”x28” 311.9 L 1 short + 1 long Surf Race Flat
Carbon 20
Specifications subject to change without notice
V e r s i o n 4 .0 W W W.NSPSURF BOARDS.COM 42
NSP DEALER GUIDE 2018
RACE MOLOKAI
The ultimate range of unlimited downwind boards are an evolution of
the NSP production board that Travis Grant used to win the prestigious
Molokai 2 Ohau (M2O) race.
These boards are developed exclusively for long distance open water
racing and downwinding. The balanced rocker is designed to save your
energy by gliding fast on flat water and maintaining momentum between
the bumps.
Equipped with a steering system, these boards will keep the perfect
direction regardless of wind or swell, ensuring you are always in control
and in tune with the conditions. Available in two lengths, this is an evolution
of the first ever production board to have won the coveted Molokai 2 Oahu
Ocean Race.
Left or right foot operated,
carbon and spectra steering
system
Enclosed T-Bar
Control System box
Insert
for GPS/GoPro
Length Handles Fin Standing area profile
17'2 x 23” 2x short Rudder Recessed
Pro Carbon
17'2 x 26” 2x short Rudder Flat
Pro Carbon
17'10 x 24.5” 2x short Rudder Flat
Pro Carbon
Specifications subject to change without notice
V e r s i o n 4 .0 W W W.NSPSURF BOARDS.COM 43
NSP DEALER GUIDE 2018 V e r s i o n 4 .0 W W W.NSPSURF BOARDS.COM
