Pipe insulation Product Overview
PI PE INSU L ATION
Save money and protect the climate: if you want to do
something for the environment and your wallet at home,
you should look for energy thieves.
If you only consider the roof, façade, walls, floors and
lamps, you will overlook a lot of potential for optimization
– something that happens often in the heating and sanitary
industry, in fact. As a rule, a great deal of heat is lost
unused through these. If the hot water pipes are insulated,
however, they reduce energy loss in a house by up to
80 %.
Do-it-yourselfers will find the right solutions for all pipes and
systems at NMC. They can install our insulation materials
in no time with zip fasteners or in self-adhesive variants.
2
VERSATILE CLIMATUBE® pipe insulation at a glance Page 4 ADVANTAGEOUS All advantages at a glance Page 11 SUSTAINABLE Sustainability at NMC Page 12 SALES BOOSTING The CLIMATUBE® POS concept Page 14
Made of
HEAT COST CUTTING SOLUTION WITH ZIP
Heat cost cutting solution with a convenient zip does away
with unnecessary heat losses.
PE pipe insulation made of renewable and recycled
Insulation
resources Pipe Ø Unit
thickness
Scope of application: heating and hot water pipes 15 mm 15 mm 1m
Excellent insulating properties: thermal conductivity
15 mm 18 mm 1m
of 0.04 W/mK at 40 °C mean temperature
Heating energy losses reduced by up to 74 % 15 mm 22 mm 1m
Fire class: E (normal flammability) 15 mm 28 mm 1m
Simple processing by zipping 15 mm 35 mm 1m
Prevents stress cracking – corrosion 15 mm 42 mm 1m
Usable for pipe temperatures from 0 °C to +100 °C 15 mm 48 mm 1m
15 mm 60 mm 1m
1 3
2
Accessories
1 PE elbow with zip (for CLIMATUBE® zip 15 mm / Ø 15–42 mm)
2 PVC adhesive tape (30 mm x 33 m) for taping the joints
3 PE wrapping tape (50 mm x 10 m) for insulating difficult-to-reach areas
4
Made of
SUSTAINABLE INSU L ATION CON CEPT
Insulation
Pipe Ø Unit
thickness
13 mm 15 mm 1m
13 mm 18 mm 1m
13 mm 22 mm 1m
13 mm 28 mm 1m
13 mm 35 mm 1m
13 mm 42 mm 1m
Insulation
Pipe Ø Unit
thickness
25 mm 15 mm 1m
25 mm 18 mm 1m
25 mm 22 mm 1m
25 mm 28 mm 1m
Time-saving pipe insulation solution
with self-adhesive closure system.
PE pipe insulation made of renewable and recycled 1
resources
Scope of application: heating and hot water pipes
Excellent insulating properties: thermal conductivity of
0.04 W/mK at 40 °C mean temperature
Heating energy losses reduced by up to 74 % 2
Fire class: E (normal flammability)
Simple processing by zipping
Prevents stress cracking – corrosion
Usable for pipe temperatures from 0 °C to +100 °C
3
4
Accessories
1 Self-adhesive PE elbows (for CLIMATUBE® easy 13 mm + 25 mm)
2 Self-adhesive PE T-pieces (for CLIMATUBE® easy 13 mm)
3 PVC adhesive tape (30 mm x 33 m) for taping the joints
4 PE wrapping tape (50 mm x 10 m) for insulating difficult-to-reach areas
5
LOW- COST ALTERNATIVE
FOR COLD WATER PIPES
Insulation
Pipe Ø Unit
thickness
9 mm 15 mm 1m
9 mm 18 mm 1m
9 mm 22 mm 1m
9 mm 28 mm 1m
9 mm 35 mm 1m
9 mm 42 mm 1m
Insulation
Pipe Ø Unit
thickness
13 mm 15 mm 1m
13 mm 18 mm 1m
13 mm 22 mm 1m
13 mm 28 mm 1m
13 mm 35 mm 1m
13 mm 42 mm 1m
CLIMATUBE® basic is the alternative
insulation at a truly affordable
price. The ideal product for the
cost-conscious consumer. 1
PE pipe insulation
Scope of application: cold water pipes
2
Insulating properties: thermal conductivity of
0.049 W/mK at 40 °C mean temperature
Protection against corrosion 3
Fire class: E (normal flammability)
Usable for pipe temperatures from 0 °C to +100 °C
Accessories
1 PVC adhesive tape (30 mm x 33 m) for taping the joints
2 Clips as assembling aid
3 PE wrapping tape (50 mm x 10 m) for insulating difficult-to-access areas
6
FLEXIBLE INSULATION MADE OF RUBBER
Flexible insulation with self-adhesive Insulation
Pipe Ø Unit
thickness
closure system. 9 mm 12 mm 1m
9 mm 15 mm 1m
Rubber pipe insulation 9 mm 18 mm 1m
Flexible and easy to bend 9 mm 22 mm 1m
Scope of application: Heating and hot water pipes 9 mm 28 mm 1m
Excellent insulating properties: thermal conductivity of 9 mm 35 mm 1m
0.038 W/mK at 40 °C mean temperature
Heating energy losses reduced by up to ca. 76 %
Fire class: BLs3do (flame resistant) Insulation
Pipe Ø Unit
thickness
Usable for pipe temperatures from -30 °C to +85 °C
13 mm 12 mm 1m
13 mm 15 mm 1m
1 13 mm 18 mm 1m
13 mm 22 mm 1m
13 mm 28 mm 1m
Accessories
13 mm 35 mm 1m
1 PVC adhesive tape (30 mm x 33 m) for taping the joints
7
NON - COM BUSTIBLE PIPE INSU L ATION
M ADE O F M IN ER AL WOO L
Fireproof pipe insulation with
self-adhesive sealing flap.
Insulation
Pipe Ø Unit
thickness
Scope of application: heat conduction and service ca. 20 mm 15 mm 1m
water systems, pipe, air conditioning and ventilation
ca. 20 mm 18 mm 1m
lines
ca. 20 mm 22 mm 1m
Excellent insulating properties: thermal conductivity
of 0.037 W/mK (at nominal thickness ≤ 40 mm) at ca. 20 mm 28 mm 1m
40 °C mean temperature ca. 20 mm 35 mm 1m
Heat energy losses reduced by up to 81 % ca. 20 mm 42 mm 1m
Fire class: A2L s1 d0 (non-combustible) ca. 20 mm 48 mm 1m
Usable for pipe temperatures from 0 °C to +250 °C ca. 20 mm 60 mm 1m
Melting temperature >1000 °C
1
Accessories
1 Aluminium strip (50 mm x 50 m)
8
BO DYGUARD
FO R CO LD WATER PIPES
Prevents corrosion of cold water pipes Insulation
Pipe Ø Unit
thickness
and protects the pipe system from 4 mm 12-15 mm 10 m
condensation water. 4 mm 18-22 mm 10 m
PE pipe insulation
Protection from condensation water, rust and
mechanical impact
Scope of application: cold water pipes
Insulates against pipe noise (crackling noise)
With practical mounting aid attachment 2
Robust outer skin protects against mechanical stress
Fire class E: (normal flammability)
Usable for pipe temperatures from 0 °C to +100 °C
1
Accessories
1 PVC adhesive tape (30 mm x 33 m) for taping the joints
2 PE wrapping tape (50 mm x 10 m) for insulating difficult-to-reach areas
9
STRU CTU RE- BO RN E SOUN D INSU L ATION
IN THE SANITARY AREAS
Sound insulating hose made of Insulation
Pipe Ø Unit
thickness
closed-cell foam 4 mm 50 mm 2,5 m
4 mm 70 mm 2,5 m
PE protective hose 4 mm 100 mm 2,5 m
1
Protection against corrosion and damage
Scope of application: heating and sanitary facilities,
ventilation ducts
Sound insulation for plastic and metal pipes
Easy covering due to inner sliding film
Fire class: E (normal flammability)
Usable for temperatures from 0 °C to +95 °C
Accessories
Sound pressure level: up to 20 dB(A)
1 Wrapping strip, self-adhesive
(70 mm x 2 mm x 3,60 m) for wrapping
the joints
10ALL ADVANTAGES
AT A GLANCE
Pipe insulation Savings Easy processing Sustainability
CLIMATUBE® zip
CLIMATUBE® easy 13 mm
CLIMATUBE® easy 25 mm
CLIMATUBE® basic
CLIMATUBE® flex
CLIMATUBE® wool
CLIMATUBE® silence —
CLIMATUBE® protect —
Savings
Reduces energy losses by up to 80 %
Reduces energy losses by up to 70 %
Reduces energy losses by up to 60 %
Easy processing
Products are self-adhesive and there are possibilities
to insulate elbows quickly and efficiently.
Products are self-adhesive. Elbows must normally be cut.
Products are not self-adhesive. Longitudinal cuts must
be glued and elbows must be cut.
Sustainability
Products have excellent insulation values and the best ecological balance in the manufacturing
process. Products are made of NMC Naturefoam.
Products have excellent insulation values and relatively low resource requirements in the
manufacturing process.
Products have either only lower insulation values or a relatively high consumption of resources
or energy in the manufacturing process.SUSTAINABILIT Y
AT NMC
One of NMC’s declared goals is social, sustainable and NMC’s climate
environmentally responsible action. In the interest of future
generations, socially responsible action is inextricably
protection commitment
linked to environmental protection and sustainability. The
topic of sustainability is part of our long-term strategy and Energy from our own
is permanently implemented in the plants through concrete photovoltaic system and
measures. 100 % green energy
We converted our production already back in 1988 first Nearly 100 % recycling of
to CFC-free and then to HCFC-free processes, thereby production waste
assuming a pioneering role in our industry.
Closed water circuits minimize
consumption
ISO 14001 certification –
the international standard for
environmental management
systems
NMC Naturefoam® used in
the CLIMATUBE® easy and zip
products
Participation in Operation
CleanSweep®
12REFEREN CE IN CLIM ATE
PROTECTION
With NMC Naturefoam®, the mix of renewable and
recycled raw materials, we are improving the already
very good climate and energy balance of our insulation
products and are sending a signal against global warming.
Double is better
By using NMC Naturefoam® to make our CLIMATUBE®
zip and CLIMATUBE® easy PE pipe insulation, we
reduce CO2 emissions drastically throughout the entire
manufacturing process, from start to the factory gate.
By insulating your pipe system with our products, you
make an important contribution to environmental protection
by saving fuel.
In this way, you too can reduce CO2 emissions, save
money and at the same do your bit in the fight against
global warming!
Best
climate balance
excellent
insulation
double contribution
= climate
to
protection
13THE POS CONCEP T
Flyer
Shelf stoppers
Shelf stoppers are
custom made and
adapted to the market.
ISOLATION POUR TUYAUTERIE
Fermeture à glissière
Réductions des pertes d’énergies
de chauffage jusqu’à 74 %
Classement feu: E
Isolation bien pensée,
Température d’utilisation:
0 °C bis +100 °C
économies assurées
Fermeture auto-adhésive
Réductions des pertes d’énergies
de chauffage jusqu’à 74 %
Schnelle Verarbeitung
Classement feu: E
Température d’utilisation:
0 °C bis +100 °C
Fermeture auto-adhésive
Réductions des pertes d’énergies de
chauffage jusqu’à 81 %
Classement feu: A2L s1 d0
(non combustible)
Température d‘utilisation: de
0 °C à +250 °C
Produit idéal pour consommateur
économe
Protège contre la corrosion
Avec la bonne
Classement feu: E
Rohrdurchmesser Température d’utilisation:
0 °C bis +100 °C
Ermittler
iso lation, il est
Domaine d’application:
conduites d’eau froide
Membrane extérieure robuste
qui protège le tuyau contre tout
endommagement
facile …
Protège contre la corrosion
… de faire
Classement feu: E
Température d’utilisation:
0 °C bis +100 °C

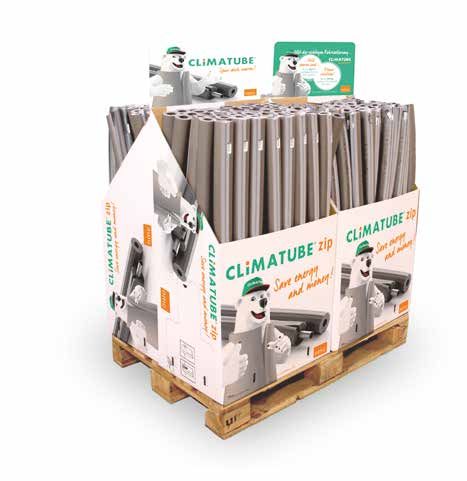

des économies … Self-standing display
Réduction des … et de
r de d‘énergie
rtipertes
Fabriqué à pa ièr es 74 % .*
jusqu‘à protéger le The CLIMATUBE® self-
matières premrecyclées!
renouvelables
et *Exemple de calcul avec les valeurs moyen-
nes d‘un ménage utilisant une isolation de
tuyauterie avec une conductivité thermique
clima! standing display with flyer
dispenser is bound to attract
nts en 0,040se
demous w/mk.
fabricatio
n de nos
Tubes isola
ATUBE® zip
et CLIMATUB
E® Jusqu‘à 24 kg de
Lors de la ène CLIM
de polyéthyl easy, nous misons
sur
production de CO2
ir plus, voir:
en moins par an.* attention in any market.
Pour en savo refoam.com
Nos Conseils
natu
www.nmc-
Verwenden Sie 100 % Dämmung (EnEV 100 %), wenn der Platz zwischen
den Leitungen bzw. zur Wand ausreicht: Mehrkosten werden über die
Lebensdauer mehrfach eingespart.
Rohrisolierungen schützen effektiv vor Korrosion und Rohrschäden, indem sie
die Bildung von Schwitzwasser minimieren. Zusätzlich reduzieren Sie Knack-
und Fließgeräusche.
Wobbler
Ø 150 mm
14Poster
sée,e,
sée,
pensé
Isolationn bien pen
pens
Shelf panels mie as
économies assurées
Économisez de
l‘argent et … … protégez
Réduction des pertes le climat!
d‘énergie jusqu‘à
74 %.* Jusqu‘à 24 kg
d‘émissions de CO2
Isolation bien pensée, en moins par an.*
économies assurées
Accessoires
*Exemple de calcul avec les valeurs moyennes d‘un ménage
utilisant une isolation de tuyauterie avec une conductivité
thermique de 0,040 w/mk.
Isolation bien pensée,
Avec la bonneéconomie
isolation, il est facile …
s assurées
… de faire
des économies …
Réduction des … et de protéger
pertes d‘énergie
jusqu‘à 74 % .* le clima!
Jusqu‘à 24 kg de
production de CO2
en moins par an.*
Isolation bien pensée,
*Exemple de calcul avec les valeurs moyennes
d‘un ménage utilisant une isolation de tuyauterie
avec une conductivité thermique de 0,040 w/mk.
économies assurées www.nmc-insulation.com
Floor stickers
Pallet action
The floor stickers lead the
customer directly to the
CLIMATUBE® shelf.
153043182 • 03/2020 © NMC sa, 2020 – Resp. Publisher.: NMC sa – Gert - Noël - Str. – B - 4731 Eynatten
NMC sa
Gert-Noël-Strasse · B - 4731 Eynatten
+32 87 85 85 00 · +32 87 85 85 11
info@nmc.eu
www.nmc-insulation.comYou can also read
