Product training BESSEY clamping technology BESSEY Tool GmbH & Co. KG Product training BESSEY – 04 / 2019 Chart N°: 1
The history of clamps
At the beginning it was a simple C-clamp …
then … the material and function have been gradually developed …
and finally perfected by BESSEY.
before End of BESSEY
earlier
1850 1800 1936
Product training BESSEY – 04 / 2019 Chart N°: 2
What are the parts called?
opening
Fixed jaw Pressure pads
depth
Spindle (with
Sliding jaw
acme threat)
2K, wood handle
Profile rail
or tommy bar
Product training BESSEY – 04 / 2019 Chart N°: 3
What makes a good clamp?
... shortly: made by BESSEY!
Burr free and Flat, parallel
straight parts pressure pad
Accurate cast or Stable spindel
forged parts accord. DIN5117
Straight and well Well riveted
serrated rail handle
High clamping
Heat-treatment
force and lifetime
Product training BESSEY – 04 / 2019 Chart N°: 4
Technical information, usage of cast and steel
Tensile Elasticity
strength module
Resistance of a material Resistance against a
against a pulling force. bending force.
Heat-treated steel: Steel and heat-treated steel:
bis 1,200 N/mm² 216,000 N/mm²
Steel has the best combined value of tensile strength and flexibility.
Product training BESSEY – 04 / 2019 Chart N°: 5
Orientation in BESSEY catalogue
Opening,
Main Price group Maximum
Depth,
usage Clamping
Rail,
area Gross price force
Weight, PU
Product training BESSEY – 04 / 2019 Chart N°: 6
Overview: Malleable-cast-iron clamps
Product range Specs / Application
TG Very robust, tempered
TGK
cast iron parts
TPN High and rigid clamping
TKPN force
Application mainly in
TGRC
TGKR wood working sections
TGNT
Catalogue page 12-21
Product training BESSEY – 04 / 2019 Chart N°: 7
Overview: Malleable-cast-iron clamps
TG-2K TG TPN TGRC
TPN-2K
TGK-2K TGK TKPN TGKR
Price level 100 + 5 % 100 % 75 + 5 % 75 % 73 %
6,000 N 6,000 N 5,500 N 5,500 N
Force 5,500 N
7,000 N 7,000 N 6,500 N 6,500 N
Force ■■■ ■■■ ■■ ■■ ■■
Range ■■■ ■■■ ■ ■■ ■■
2K handle ■ ■ ■
Changeable
■ ■ ■
plate
Reinforce-
■ ■
cast
Slip stop ■ ■
Rail profile profile profile profile flat
Product training BESSEY – 04 / 2019 Chart N°: 8
Malleable-cast-iron clamps
TG-2K / TGK-2K / TG / TGK
< 7,000 N
Set screw: Profile rail:
Non-slip mechanism Robust straight rail with
prevents loss of clamping six faced serration to
force and slippage of the prevent slipping
lower part
Reinforced
cast parts:
Rigid, high pressure force
Reinforced wave profile of Spindle:
the cast parts especially
against torsion forces Coating and production
permit a long life time
and a smooth action
Product training BESSEY – 04 / 2019 Chart N°: 9
Overview: All-steel clamps
Product range Specs / Application
GZ/GS Fixed jaw produced
GMZ
from one piece
GH Fixed and sliding jaw
GHS
heat-treated
SLM Elastic clamping force
SGM
Application mainly in
GSL
GSM
metal working
GRA
U
SLV
GSV
Catalogue page 22-51
Product training BESSEY – 04 / 2019 Chart N°: 10Malleable cast iron screw clamps GZ
< 6,000 N
Fixed arm: Sliding arm:
Fixed arm: High strength, as forged
20% more clamping in U-profile and tempered
force per turn
of the spindle
= 10% higher absolute
clamping force!
Tempered for long
service life
Changeable Thread:
pressure plate:
Surface coating and
Can be very quickly manufacturing provide a
and easily changed – durable and easy-turning
no tools required spindle

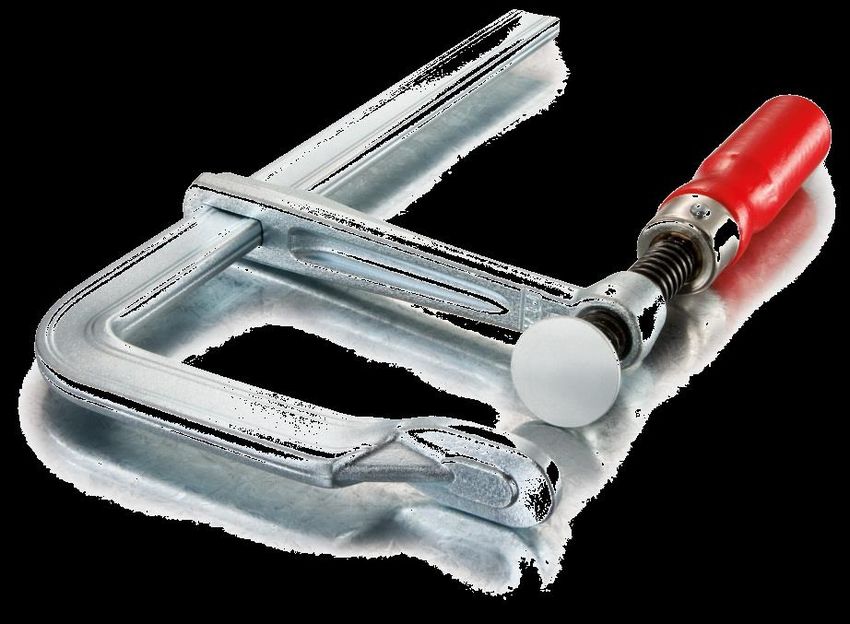

Product training BESSEY – 04 / 2019 Chart N°: 11OMEGA all steel clamp GMZ
< 5,000 N
Patented Omega bow: Best-Comfort-
System:
More saftey due
to more elastic 2K handle and
clamping force changeable
pressure plate
Gentler tightening
and releasing
of clamp
More resistance
against vibrations
Weight:
Approx. 15% less
weight than same
sized malleable cast
clamps
Product training BESSEY – 04 / 2019 Chart N°: 12Lever clamp GH
< 8,500 N
Fixed arm: Sliding arm:
Greater reserves of Serrated and made
power, thanks to from tempered, drop-forged steel,
optimised rail profile, for for an extremely long service life
even clamping force build-
up, especially under
maximum utilisation of the
clamping range
Tempered for long
service life
Ratchet mechanism:
Ensures rapid,
controlled, vibration-free Ergonomic clamping and release
clamping. lever:
A hardened cam at the Clamping lever is powder-coated and
end of the lever ensures the plastic-coated non-slip release
a long service life. lever provides a secure hold
Product training BESSEY – 04 / 2019 Chart N°: 13High-performance clamps SLM and SGM
< 12,500 N
Fixed arm: Sliding arm:
20 % more clamping High strength, as forged
force per turn of the in U-profile and tempered
spindle!
= 10 % more force!
Tempered for long
service life
Thread:
Surface coating
and manufacturing
provide a durable
and easy-turning
spindle
High-performance pressure plate:
Temperature resistant, swivels up to
35°, long service life due to oil-dipped
sintered steel insert
Product training BESSEY – 04 / 2019 Chart N°: 14Variable high-performance clamps SLV and GSV
Versatile < 9,000 N
In addition to classic clamping work, the clamp can
also be used for spreading. It can be fed through an
opening in the workpiece / component and add
additional sliding arms easily:
due to end fastenings on both sides which can be
loosened without tools
Durable
due to the heat-resistant pressure
plate, which can be tilted up to 35° Secure
– GSV has a hardened and oil-
soaked sintered steel insert for due to high clamping forces
outstanding sliding and emergency up to 6.500 N at SLV resp. 9.000 N at GSV
running properties due tipping is prevented through central
due to a tempered spindle positioning on the workpiece
Product training BESSEY – 04 / 2019 Chart N°: 15BESSEY high-performance pressure plate
The benefits:
Temperature resistant
Swivels up to 35°
Long service life due to oil-dipped sintered steel insert
Clamping force comparison test
BESSEY BESSEY Competitor Competitor
1. Line classiX „E“ „S“
Illustration
Clamping force at
the start of the ca. 12,000 N ca. 12,000 N ca. 12,000 N ca. 12,000 N
test [N] *
-20% -33% -96%
Clamping force
after 50 clamping
ca. 12,000 N ca. 9,500 N ca. 8,100 N ca. 400 N **
processes [N]
* For example a SGM clamp (rails 30x15 mm) with 150 mm clamping width, tightening torque 40 Nm
** Already dropped to 6,000 N after just 35 clamping processes
Test carried out by the development department of BESSEY Tool GmbH & Co. KG
Product training BESSEY – 04 / 2019 Chart N°: 16BESSEY high-performance pressure plate
Pressure drop against the number of clamping processes
Comparison BESSEY, BESSEY classiX, Competitor “E“ and “S“
Product training BESSEY – 04 / 2019 Chart N°: 17All-steel clamps: Variances
U-shaped clamps Claw clamps GRA C-clamps
Allows clamping Handle behind rail Light and handy
without additional Allows clamping inside Elastic
bases inside difficult-to-get-to work Breakresistant
T- and I-bars areas
Safes time + costs Spreading-function
More saftey without additional tools
More precise
< 22,000 N < 7,500 N < 22,000 N
Product training BESSEY – 04 / 2019 Chart N°: 18Overview: Special tools metal working
Product range Specs / Application
GRZ
Different tools for lots of
applications, e.g.
LP/TP
Gripping
TGP/CP
Grounding
Clamping of angles and
WSM
mitres
SM10
Catalogue pages 54-59
Product training BESSEY – 04 / 2019 Chart N°: 19Grip pliers for welding purpose: Variances
Parallel grip C-grip GRZC Variogrip Pipe grip
GRZ GRZV GRZRO
Step less adjustment Step less adjustment Step less adjustment Step less adjustment
of opening of opening of opening of opening
Parallel clamping Clamping over- Step less adjustment For round work
jaws stepped without any of depth pieces up to 110 mm
V groove, round parts additional bases diameter

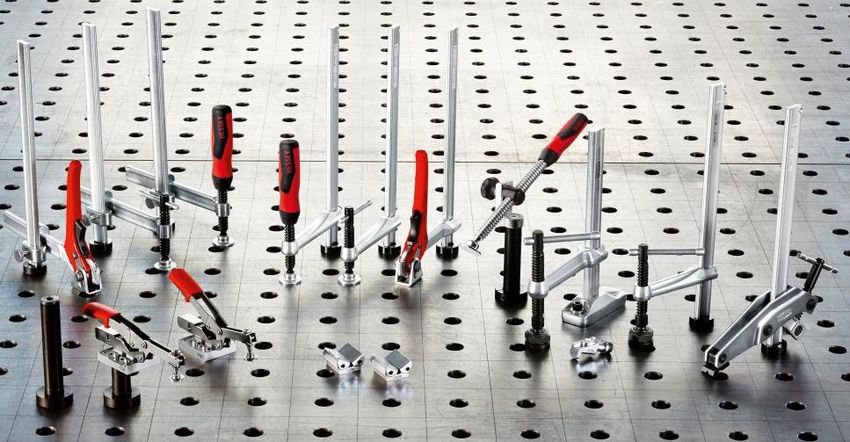

Product training BESSEY – 04 / 2019 Chart N°: 20Overview: Clamping elements for welding tables
Product range Specs / Application
TWV Various clamps for welding
tables with 28 mm and 16 mm
fastening holes, e.g. for
TW
Assemble
Drilling
TWM
Welding
Grinding
TW28
GRS Bending
Acces-
sories
Catalogue page 60-67
Product training BESSEY – 04 / 2019 Chart N°: 21Clamping elements for welding tables TW
Flexible throat depth: Heavy-duty, custom design:
TWV: infinitely adjustable TWM: heat-resistant special
throat depth pressure plate
TW: 120 or 140 mm TW28GRS: on the outside
Available in 3 handle variants located spindle
Perfect for railings: Wide range of accessories:
Vario table clamping Allows the use of BESSEY toggle
attachments are ideally clamps and existing BESSEY
suited for round, oval or machine table clamps, as well
square workpieces. iagonal und horizontal clamping.
Product training BESSEY – 04 / 2019 Chart N°: 22Clamping elements for welding tables: Variances
Clamping elements Clamping elements Clamping element
TWV28+TWV16 TW28+TW16 TWM28
Precise, individual Precise, individual Precise, individual clamping
clamping clamping Tempered profile and sliding
Tempered profile and Tempered profile and arm for sprung and elastic
sliding arm for sprung sliding arm for sprung clamping
and elastic clamping and elastic clamping Tempered spindle –
Infinitely adjustable Various design versions particularly sturdy and wear-
throat depth resistant – for noticeably
Various design versions improved service life
Long life due to heat-
resistant pressure plate with
sintered steel insert, which
can be tilted up to 35°
Product training BESSEY – 04 / 2019 Chart N°: 23Clamping elements for welding tables: Variances
Clamping element Vario table clamping Toggle clamp adapter
TW28GRS attachment TWVAD TWA
The spindle is located on Specifically adapted to Accessory for BESSEY
the outside for free access round, oval and square STC toggle clamp with
to the work area and to work pieces horizontal base plate
protect against welding Angle infinitely adjustable With bolt – for use
spatter from 60° internal to 60° directly on the welding
Special, sturdy V-grooved external table
pressure plate Various design versions Without bolt – for
Pivotable and infinitely screwing to the
adjustable in terms of extension TW28X
height
Particularly suited to
clamping with the tightest
of space constraints
Product training BESSEY – 04 / 2019 Chart N°: 24Accessories: Clamping elements for welding tables
Extension Tilting adapter Attachment
TWX TW28AV TW28HO
Accessory for BESSEY Accessory for BESSEY Accessory for BESSEY
toggle clamp adapter extensionTW28X work table clamp
TW28A-STC Pivoting spindles with It can be used on
Lowering of round stepless adjustment from welding tables by
work pieces is infinitely -52° to +52° simply screwing it to
adjustable using the Lockable trapezoidal nut the work table clamp
adjusting ring in the for secure fastening of the
table workpiece
High quality, 2-component
plastic grip with long
spindle
Product training BESSEY – 04 / 2019 Chart N°: 25Overview: Machine table clamps
Product range Specs / Application
BAS Different tools for clamping
on machine tables for lots
of applications, e.g. for
BS Mounting
Drilling
GRS Welding
Bevelling
BSG Bending
Catalogue pages 68-73
Product training BESSEY – 04 / 2019 Chart N°: 26Machine speed table clamps: Variances
Hold down clamp Hold down clamp Claw machine clamp Hold down clamp
BAS BS-N GRS BSG
Free entrance to Versatile opening Swivelling, vertically Versatile opening
work piece High clamping infinitely adjustable High clamping
Compact design force clamp force
(30% smaller than Resistant against Externally-positioned High-performance
tools from vibrations because spindle to allow pressure plate
competitors) of ratched unobstructed access adjusts to different
High clamping mechanism to the work area and angles
force Quick adjust and clamping in confined Long life-time duet
Stack with base release spaces to hardened fixed
BASO Long life-time duet For drilling and light and sliding jaw
Stainless steel to hardened fixed milling work
and sliding
jaw
< 16,000 N < 10,000 N < 7,500 N < 12,000 N
Product training BESSEY – 04 / 2019 Chart N°: 27Overview: Toggle clamps STC
Product range Specs / Application
STC- Various variable toggle clamps
VH for work pieces of different
heights e.g. for clamping on
STC- tables and devices, for
HH
Assemble
STC-
Drilling
IHH
Welding
Acces-
Grinding
sories
Bending
Catalogue page 74-79 (+66)
Product training BESSEY – 04 / 2019 Chart N°: 28Self-adjusting toggle clamps STC
Ready to go – the first time and for < 2,500 N
quick set-up during workpiece changes
Uncompromisingly versatile
BESSEY STC toggle clamps adapt to
workpieces of varying thickness – without One size of the BESSEY
manual setting of the spindle and, with toggle clamp replaces
practically the same clamping force: multiple competitor sizes
due to an automatic clamping width range simultaneously:
due to an extremely large
clamping range, thanks to
the patented mechanism
Powerful and gentle
Even sensitive workpieces,
e. g. with veneered or varnished
surfaces, can be gently clamped:
due to moving pressure plate
with removable protective cap
due to clamping force regulation
via adjustment screw in the joint
Product training BESSEY – 04 / 2019 Chart N°: 29Self-adjusting toggle clamps STC
< 2,500 N
Automatic and infinitely variable
adjustment of the clamping
height / distance adjustment :
STC-VH20: up to 20 mm
STC-VH50: up to 35 mm
STC-HH20: up to 20 mm
STC-HH50/70: up to 35 mm
STC-IHH15: up to 8 mm
STC-IHH25: up to 13 mm
Product training BESSEY – 04 / 2019 Chart N°: 30Self-adjusting toggle clamps STC
< 2,500 N
Adjustment of the clamping force:
Comparable products reach
approx. 2,500 N
This must be changed by time
consuming setting of the pressure
screw; not with our products!
Product training BESSEY – 04 / 2019 Chart N°: 31Self-adjusting toggle clamps STC
< 2,500 N
Clamping force area:
Min. opening
Clamping force in [N]
2.500
2.000
1.500
1.000
Max. opening
500
0
1 2 3 4 5 6
Turn of screw
Product training BESSEY – 04 / 2019 Chart N°: 32Self-adjusting toggle clamps STC
Accessories for use Accessories for use
on welding tables on multifunction tables
with 16 mm hole diameters: with 20 mm hole diameter and
Toggle clamp adapter TW16A-STC 19 to 25 mm plate thickness
Extension TW16X (e.g. Festool MFT or Sortimo WorkMo):
Toggle clamp adapter STC-SET-T20
with 28 mm hole diameters:
Toggle clamp adapter TW28A-STC Suitable for toggle clamps
Extension TW28X with horizontal base plate:
Horizontal toggle clamp STC-HH50/-HH70
Suitable for toggle clamps Push/pull clamp STC-IHH25
with horizontal base plate: Vertical toggle clamp STC-VH50
Horizontal toggle clamp STC-HH20/-HH50/-HH70
Push/pull clamp STC-IHH15/-IHH25
Vertical toggle clamp STC-VH20/-VH50
Product training BESSEY – 04 / 2019 Chart N°: 33Overview: Parallel clamps
Product range Specs / Application
KREV Flat and parallel
clamping surfaces
KRE Distribution of
clamping force on
hole surface
UK
No clamping force
per point
FK
For round, oval and
edge work pieces
KS
Catalogue pages 80-85
Product training BESSEY – 04 / 2019 Chart N°: 34Parallel clamp K Body REVO KRE / KREV
Precise and gentle < 8,000 N
Workpieces with sensitive
surfaces can be clamped and
spread exactly parallel to each
other:
due to extremely large clamping
surfaces that are attached
perpendicular to the rail
due to three removable pressure
caps that are repellent to glue,
and also resistant to paint and
grease solvents
due to workpiece supports Powerful and safe
that prevent the workpiece They securely clamp with
from coming into contact a clamping force of
with the rail up to 8.000 N:
due to the metal-reinforced
plastic housing
due to the optimised sliding
arm with double slide
protection
Versatile and well thought out
The clamps provide an enormous number of possible applications:
due to ingenious accessories
the ergonomically formed 2-component symmetrical plastic handle with
hexagon socket means the clamping force can be comfortably applied
(max. torque 17 Nm)
the continuously adjustable head for the KREV Vario version enables the
clamp to be positioned in the middle of the workpiece for optimum weight
distribution
Product training BESSEY – 04 / 2019 Chart N°: 35Parallel clamp K Body REVO KRE / KREV
Accessories to expand
the application possibilities
Clamping Clamping Increase Avoid moving
sloping surfaces Frames Opening of the clamps
K Body clamp adapter Framing set K Body extender Table
KR-AS KP KBX clamps
TK6 / RB269
LM10/5R8
Tilt range Variable framing set A simple connector Securely attaches
of -15° to +15° with four 90° KP made of sturdy the clamp to the
Easily slides onto blocks from 30 cm to aluminum work surface
the clamping jaws 250 cm / 12"-98“ Increases the Attachment is via
Clamping force is opening the workpiece
individually adjustable supports and / or
for each corner the end stop
Product training BESSEY – 04 / 2019 Chart N°: 36Overview:
Gearclamp, one-handed clamps + light-duty clamps
Product range Specs / Application
GK Light till medium duty
clamping force
EHZ Items with low weight,
handy
DUO
Application mainly in
EZS / EZ
light-duty professional
and semi-professional
KLI
applications for pre-
mounted work pieces
LMU
LM / HKL
XC
XV
Catalogue pages 86-91, 94-99, 102/103
Product training BESSEY – 04 / 2019 Chart N°: 37GearKlamp GK
Unique compact design < 2,000 N
The GearKlamp is extremely flexible and can even
be used in the tightest of spatial conditions:
due to the patented mechanism that separates the
handle
due to the crossed v-grooves on the upper section
for securely holding round, pointed and angular
components
Ergonomic use
The GearKlamp guarantees
the user extra comfort:
due to the high-quality two-component
plastic handle for safe handling
due to the quick-release shift button
for quickly adjusting the sliding bar
due to the swivelling pressure plate
for exact alignment of the workpiece
Robust technology
The GearKlamp is also a winning choice in terms of durability:
due to the use of high-quality materials, such as fibreglass-
reinforced polyamide for the top and bottom, as well as
hardened, tempered and burnished steel for the profiled rails
due to the sliding bar’s plastic housing, the driving mechanism
is protected from dust and splintering
Product training BESSEY – 04 / 2019 Chart N°: 38One-handed clamps: Variances
One-handed clamp EHZ DuoKlamp DUO One-handed clamp EZ/EZS
Hardened fixed and Quick one-handed operation Handle behind rail, so called
sliding jaw Changing between spreading pistole-handle
Handy lever “in” the and clamping with the knob Changeable upper part for
shape of the clamp Parallel jaws for working with clamping and spreading with
One-handed clamping K bodies for parallel work release button without screw,
with maximum 5,000 N pieces, also round and oval that could be lost
Handy lever “in” the shape of
the clamp
< 3,500 N < 1,200 N < 700 N (EZ)
< 2,000 N (EZS)
Product training BESSEY – 04 / 2019 Chart N°: 39High-tech lever clamp KliKlamp KLI
< 1,200 N
Magnesium jaws: Cross prisma:
Low weight, handy and Claming of round,
robust oval and angular
work pieces
Ideal for mounting purpose
Ratchet mechanism:
Quick clamping Shaped clamping arm
Time savings Ergonomically shaped
Vibration-resistant Breakproof and fits very
snugly in the hand
Product training BESSEY – 04 / 2019 Chart N°: 40Light-duty clamps: Variances
U-style LMU Die-cast zinc screw clamp LM Wood Klemmy HKL
Step-over clamping Clamping arms manufactured Upper and lower arms and
Comes with two in toughened die cast zinc black lever made from high-
protective caps powder coated to prevent quality hardwood
Small and easy to chemical corrosion Cork pads for gentle
handle Comes with protective cap clamping
Light weight Small and easy to handle
Light weight
< 1,500 N < 2,000 N
Product training BESSEY – 04 / 2019 Chart N°: 41Spring clamps: Variances VarioClippix XV VarioClippix XV Clippix XC Clippix XCL Adjustable opening Double versatile Product range from Product range from Less clamps needed, clamping 20 mm till 70 mm 60 mm till 115 mm safes costs Versatile clamping opening depth Versatile clamping force Gentle 2K-handle Gentle 2K-handle force Gentle 2K-handle Till 170 mm opening Till 75 mm opening Gentle 2K-handle Till 170 mm opening Till 100 mm opening Product training BESSEY – 04 / 2019 Chart N°: 42
Overview:
Special tools for wood and other materials
Product range Specs / Application
Different tools for lots of
SPZ
applications, e.g. for
clamping of
S10
rafter
GTR sloping workpieces
guide rails
BAN
round workpieces
WS
GS
mitres
EKT edges
KT
Catalogue pages 92/93, 100/101, 104-110
Product training BESSEY – 04 / 2019 Chart N°: 43Rafter clamp SPZ
< 12,000 N
Hammer-in tip: Broad impact
surface:
Quickly and powerful
clamping. Makes it easier to
drive in the clamp.
Special tilting
pressure plate:
Ensures problem-free
clamping even when
working with sloping
parts. It can be tilted
by up to 35°.
Sturdy hexagonal bolt:
Allows powerful yet
controlled tightening, with
the help of a torque wrench.

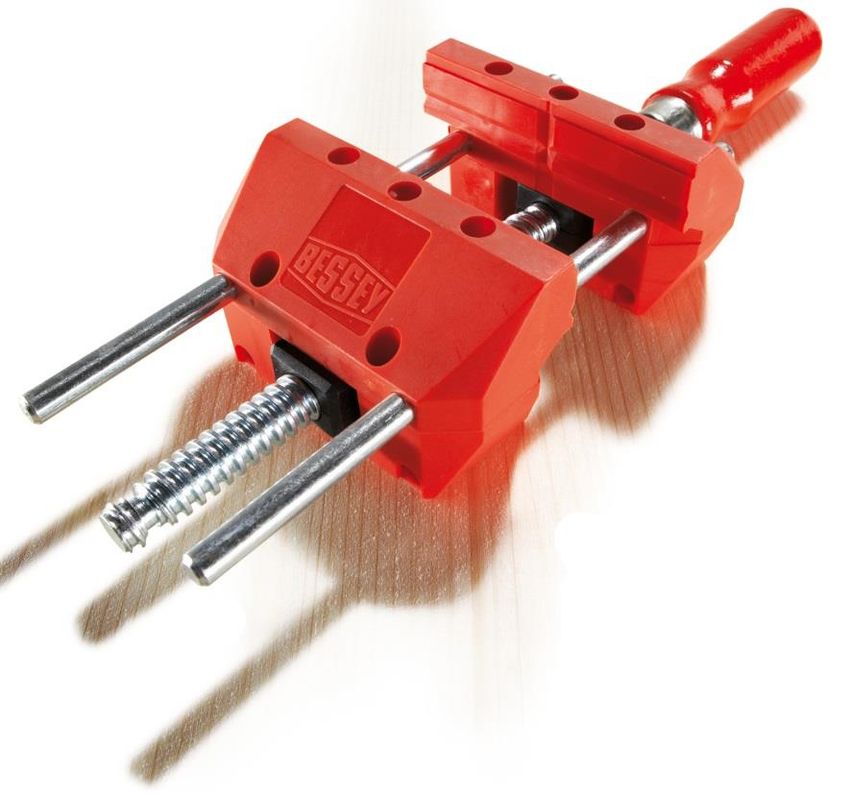

Product training BESSEY – 04 / 2019 Chart N°: 44Table vice S10
Parallel clamping: Clamping at an angle:
With guide rods, the mini vice When used without guide
S10 is ideal for parallel rods, the screw clamp S10
clamping. is ideal for clamping at an
angle.
Easily mounted:
Two clips for quick and simple
attachment to a table edge.
Product training BESSEY – 04 / 2019 Chart N°: 45All-steel table clamps
All-steel table clamp GTR All-steel table clamp GTRH
with wooden handle with lever handle
Specially forged fixed arm for 12 x 8 mm grooves
For secure fastening of guide rails from Festool, Protool, Metabo, Makita, Hitachi,
etc. and for clamping in profiles as well as work tables
Rapid – up to 5 times faster than
conventional clamps
Secure – unaffected by vibrations
< 1,800 N < 2,400 N

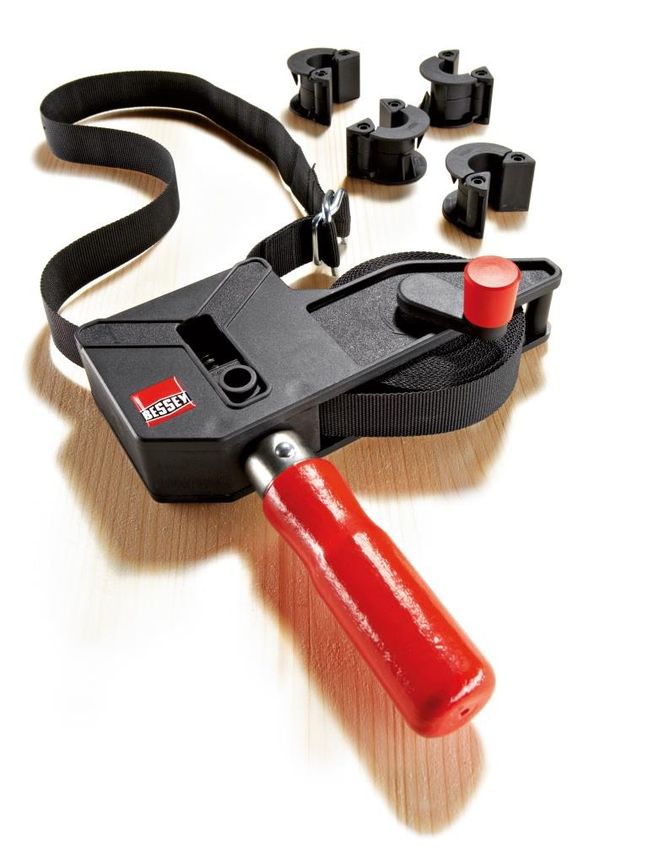

Product training BESSEY – 04 / 2019 Chart N°: 46Band clamp BAN700
Tightens band from both Coil-up mechanism:
sides: No messy-straps
Regular, distortion-free
clamping
Continuous pressure
on all miters
Vario edges:
Adjusts to angles
from 60° till 180°
Product training BESSEY – 04 / 2019 Chart N°: 47Edge clamps: Variances
One-handed edge Edge clamp Edge clamp KT C-frame edge
clamp EKT55 Kantenfix KF clamp KT
For rapid one- For quick one- Practical accessory Three-spindle
handed operation handed operation for clamping edges C-frame clamp
Low weight Widths up to 80 mm and difficult to Extra strong, with
Opening up to reach areas forged frame
55 mm Suitable for Universally
conventional screw applicable within
clamps with a max. the fields of wood
rail thickness of and metal
13 mm processing
Product training BESSEY – 04 / 2019 Chart N°: 48Overview: Clamping elements for workbenches
and toggle clamps for multifunction tables
Product range Specs / Application
TW Different tools for fixing
16AW
workpieces to
TW16
workbenches with a hole
system, such as the
Sjöbergs workbench models
TWV16 multifunction tables such as
Festool MFT and Sortimo
STC- WorkMo
SET-
T20 MFT-Systainer
STC-S-
MFT
Catalogue pages 111-115
Product training BESSEY – 04 / 2019 Chart N°: 49Clamping elements TW for workbenches
Easily and quickly to use
BESSEY clamping elements of the TWV16 and
TW16 series can be used with just a few turns
on all standard workbenches:
due to the connection of the TW16AW Precise and safe
workbench adapter – available in 5 sizes BESSEY always offers the right clamping
suitable for 19 mm (3/4“), 20 mm (13/16“), element for different requirements:
22 mm (7/8“), 25,4 mm (1“) und 30 mm (1 3/16“) due to 2 throat depth variants:
hole diameter. either with infinitely adjustable (TWV)
due to replaceable bolts on the adapter for the or fixed throat depth (TW).
use of further hole systems. due to 3 handle variations:
the 2-component plastic handle and tommy
bar – each with smooth running trapezoidal
threaded spindle and tool-free pressure plate
replacement – and lever handle with an
indexing mechanism for controlled, fast and
vibration-free clamping.
Robust and highly hard-wearing
The tried-and-tested BESSEY all-steel clamp solutions were the
inspiration for the development of the clamping elements and
guarantee a form-stable and torsion-free tool:
due to the unique BESSEY steel quality, which is available in the
optimized profile shape as well as the easy-going spindle.
due to the particularly hard-wearing steel cams at the lever handle.
Product training BESSEY – 04 / 2019 Chart N°: 50Toggle clamps STC for multifunction tables
Adapter for STC-Sets for Toggle Clamp Systainer
multifunction table multifunction table STC-S-MFT
STC-SET-T20 (Toggle clamp +
adapter in a set)
For using the BESSEY toggle clamps on multifunction Multi-functional Systainer
tables such as Festool MFT and Sortimo WorkMo with hole for installation technicians
diameter of 20 mm and plate thickness of min. 19 mm to With wood insert including
max. 25 mm 20 holes
3 different clamping options
Adapter consists of: STC-Sets are available:
1 x Cylindrical screw with horizontal toggle clamp Content:
DIN 912 M 8 x 35 STC-HH50 and STC-HH70 4 x STC-HH50
1 x Lock pin D 20 x 17 with push/pull clamp 2 x STC-IHH25
1 x Knurled nut M 8 STC-HH25 6 x Adapter STC-SET-T20
with vertical toggle clamp 2 x GTR12
STC-VH50
Product training BESSEY – 04 / 2019 Chart N°: 51Overview:
Special tools for interior construction
Product range Specs / Application
Different tools for special
PS applications, e.g. for
fixing
TU cabinets with front frame
TMS
door frames
AV2 construction materials
on the roof
ST and for laying:
floorings
Sheets
with a smooth surface
Catalogue pages 116-117
Product training BESSEY – 04 / 2019 Chart N°: 52Seaming tool PS130, big and strong
< 1,200 N
Vacuum pumps with Quick adjusting screw:
control function:
For rapide adjustment
Required vacuum is of the distance between
generated with only a few the two suction cups
movements of the pump (5 to 130 mm)
and can be checked
via a marking ring on
the pump tappet
Release button:
By simply pressing the release Clamping force:
button, the vacuum disappears
PS55: approx. 300 N
and the seaming tool can be
PS130: approx. 1,200 N
removed quickly
Product training BESSEY – 04 / 2019 Chart N°: 53Door frame clamp TU
Safe and easy installation
Door frame clamps can be securely and
easily inserted without scratching:
due to large clamping surfaces
and removable brackets.
due to simple change of the
cross-shaped pressure plates
for frame depths of 6 to 13 cm
or 13 to 30 cm.
due to felt protection
on the pressure plates.
Flexible, precision work
due to telescopic square anodised
aluminium tubing with mm scale and
adjusting screw.
due to extensive accessories, like:
Door frame brace extension
TUX, to increase the opening
width of the door frame clamp
TU for the installation of extra-
wide doors.
Door frame straightening
clamp TFM-2K, to push the
door frame gentle, without
damage to the adornment
frame groove or previously
decorated walls.
Angle door frame
straightening clamp WTR, so
that the door frame can be hold
and aligned exactly at a 90°
angle horizontally and vertically.
Product training BESSEY – 04 / 2019 Chart N°: 54Spacer AV2
Clever dail: Wide contact and
support surface:
Set up is fast and simple:
Distance to the wall can be For avoiding pressure
set simply by turning the red points on the wall and
dail. The spacer is easy the flooring.
to remove just,
rotate the dail
to release
the pressure.
Exact millimetre scale: Robust in the size
of a business card:
Wall surface irregularities of 5
to 20 mm can be compensated Manufactured from impact
for easily. The exact distance and break resistant, glass
required for spacing can be fibre reinforced polyamide,
readily seen on the millimetre the spacer ist light and
scale. tough.
Product training BESSEY – 04 / 2019 Chart N°: 55Telescopic drywall support ST
Flexible in application
It enables the positioning and holding of plaster
carton, wooden planks, panels, battens, metal
bars, foils and lamp bodies, for example. The
support can even be used on sloping roofs:
due to stable steel pipe construction in three sizes –
telescoping up to 2.90 m
due to 8.5 x 6.5 cm base plates with a swivel range
of -45° to +45°
Easy to handle
The support can be used quickly:
due to the fixing in just two steps: Secure hold
1. The rough pre-setting is carried Resilient and anti-slip, the support
out using the telescoping and guarantees secure holding, even on
quickly locking inner pipe sensitive surfaces:
2. the final clamping is carried out by due to special steel pipes for a
turning the support at the foam grip maximum load bearing capacity
of up to 60 kg
due to additional locking of the
release button
due to rubber contact surfaces top
and bottom
Product training BESSEY – 04 / 2019 Chart N°: 56Trade fair and POS material
Magnetwall
Trade show table
Roll-Ups
Posters
Peg hook packaging
suggestions
Peg hook lables
POS packaging
etc...
Product training BESSEY – 04 / 2019 Chart N°: 57BESSEY. Simply better.
BESSEY Tool GmbH & Co. KG
74321 Bietigheim-Bissingen, Germany
www.bessey.de
Product training BESSEY – 04 / 2019 Chart N°: 58You can also read
