Remote Operation Update
ALICE shift plan 2021
Taku Gunji (Center for Nuclear Study, the University of Tokyo)
Federico Ronchetti (INFN-LNF, CERN)
CB meeting 26/3/2021
Remote Operation Update
A Large Ion Collider Experiment
ALICE Remote Operation
Mixture of onsite and remote shifts during global commissioning
Run coordination • 2 onsite shifts : DCS + SL/ECS
• MM/AA/NN (same as Run2) Remote operation task force (ROTF)
• 2 remote shifts: QC + EPN/PDP (RC,Vasco, Roberto, Peter, Pierre, Daniele)
(Run Manager) • M/A/Nx6 (same as Run1)
ARC
360deg motorized camera
Shift Leader Onsite (ARC)
Webcam and Jabra for SL installed
(SL) Zoom Logitech
C310
sessions
DCS ECS EPN/PDP QC Remote Operation
Site (ROS)
Detector DAQ Monitoring Monitoring
Control CTP (online data (detector
System processing) data) Each institute can be the ROS or each country can build a few hubs
(depending on COVID travel restriction inside country)
2021/3/26 Remote 3
A Large Ion Collider Experiment
Pilot ROS in Tokyo
• DELL Precision 3640 Tower (core i7/16G MEM) with NVIDIA P1000 (~1500 CHF)
• 2x34’’ displays (~700 CHF x2), webcam + speaker (~200 CHF)
Webcam/mic(logicool BRIO C1000ER)
List of displays
acer 34’’ display • LHC OP vistar
oncalls
MM • LHC_IF
OP Vistar DCS ECS
QC • DCS
(EPN/PDP)
• Event Display
• ECS
LHC_IF ED infoLogger • infoLogger
ZOOM • logbook
• QC

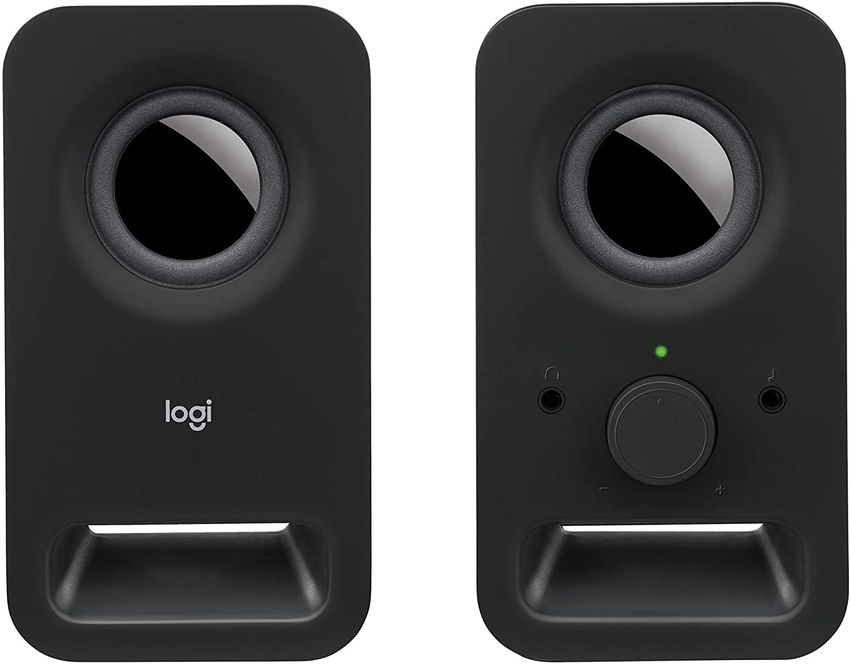

speaker(logicool Z150) • EPN/PDP
• Oncall list
• MM (web version)
Webcam/mic/speaker(logicool BCC950)
Pilot ROS was verified during MW3 and
• All information is (will be) accessible from web-browser. dedicated test sessions
• Only the web-browser, zoom, and MM will be needed. • communication, zoom operation (click, edit,
enter text on shared display), zoom control
• Windows 10 is certified.
2021/3/26 4
A Large Ion Collider Experiment
Minimum requirements
• HW
DELL Precision 3640 Tower
• Multi-displays (4x24”, 2x32”, 2x34”)
Tower HP 800 G6 Tower
• Core i5, 8 GB Memory (16 GB preferred), 256 GB SSD
• Ex) Desktop Tower HP 800 G6 Tower (CERN store), DELL Precision
3640 Tower
• Video card to support multi-displays
• Ex) Quadro P1000
NVIDIA Quadro
• Webcam, mic, speaker Logitech Z150
Logitech C310 P1000
• Ex) Logicool C310N as webcam and mic, logicool Z150BK as speaker
• SW
• Windows 10 is certificated [our recommendation].
• Linux has not been tested and will be tried. We may use CS8
in the ARC setup.
2021/3/26 5
A Large Ion Collider Experiment
Next Step for ROS

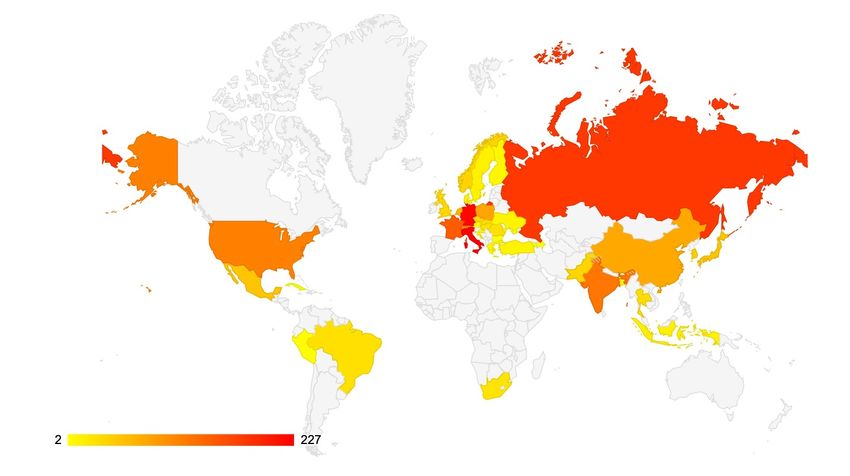

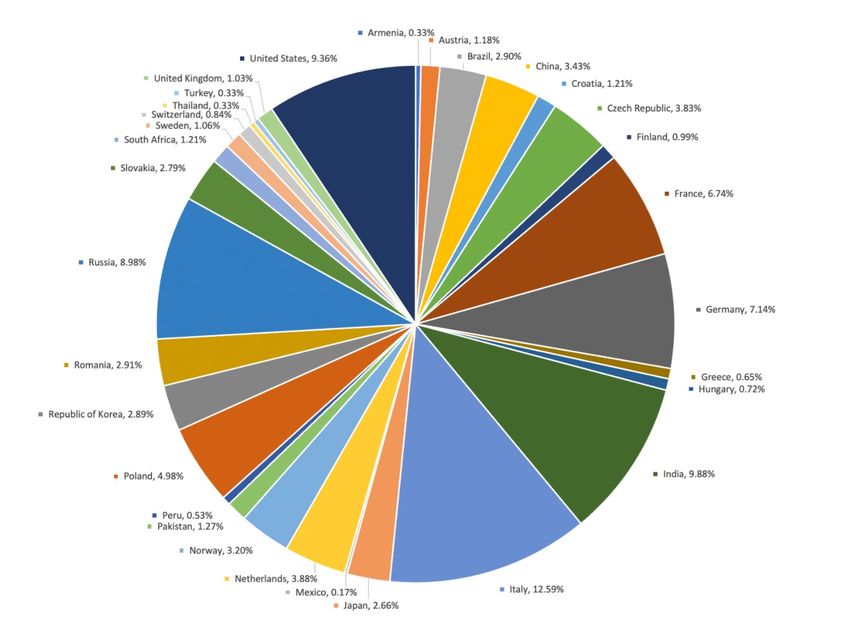

• RC will talk to each country and understand each country’s plans for the shifts
(onsite shifts – possibilities and difficulties, oncalls, remote shifts and plans for ROS)
• ROS spread sheet
• https://docs.google.com/spreadsheets/d/1gKpotHLW-V9_MRa7l0NXLm0i7LqJAWSYYcXUG-DNpFA/edit?usp=sharing
• Next Step
• Ask each ROS to start ordering the needed materials and to setup the ROS → April
• Remote training and hands-on sessions, tests and validation of functionality using other pilot
ROS (volunteers needed!) → April – May
2021/3/26 6
ALICE shift plan 2021
A Large Ion Collider Experiment
ALICE Plan 2021
• ALICE global commissioning 2021 from 12/7 to 17/12
• Pilot beam tests in W39-W40.
• O(105) collisions with pilot beams
• O(107) collisions with nominal beams + B fields
2021/3/26 8
A Large Ion Collider Experiment
Shift Plan shown Monday
Month Activity Central Oncalls or Experts on Credits Shift information
shifts detector shifts site at P2 or
zoom
Jan - June Expert work No On demand No No Shift reservation
open (~June 1st)
1/7 – 11/7 Pre-global YES YES No YES
commissioning (M:A) (M:A) (training, course,
tests under
12/7 – Global YES* YES* Preferred YES
discussion in ROTF)
W38 commissioning*
W39 – Test beam YES YES Required YES
W40
W41 – Global YES YES No YES l ~ 6.2
W50 commissioning
RC further optimized this shift plan based on the very
2021/3/26
recent discussion with experts 9
A Large Ion Collider Experiment
Further optimization
• Minimum 16 weeks global commissioning is needed https://indico.cern.ch/event/849396/
https://indico.cern.ch/event/849400/
• [Before] 12 weeks data taking (24/7) devoted to cosmic data taking (00/++/--) for
pre-alignment studies considered
• 20 Hz for TPC/TOF/TRD → 145M tracks, 0.03 Hz with ITS → 0.22 M tracks
• [Update] O(107) collisions with nominals during pilot beam tests will help a lot.
• no strong needs to devote 12 weeks for cosmics
• more important systematic tests (dry-runs, calibrations, full system tests using MC, cosmics)
• All systems and software will be continuously developed during global
commissioning.
• Coexistence of those developments and operation supports for shifters
• [Update] Enough time for developments and enough support for operation must
be considered and secured, which will be hardly achieved during 24/7 operation
2021/3/26 10A Large Ion Collider Experiment
New central shift schedule
• 1.7 – 11.7 : Pre-global commissioning
• M&A and no night shifts
changed
• 12.7 – 5.9 : Global commissioning
• M&A and no night shifts → Better balance between developments and operation supports
• 6.9 – 26.9 : Global commissioning for pilot beam test preparation
• M&A&N
• 27.9 – 10.10: Pilot beam tests
• M&A&N
changed
• 11.10 – 21.12 : Global commissioning
• M&A or M&A&N will be decided based on the maturity of the system in July/August
2021/3/26 11A Large Ion Collider Experiment
Shift Plan 2021
Month Activity Central shifts Oncalls or Experts on Credits
detector site at P2 or
shifts zoom
Jan - June Expert work No On demand No No
1.7 – 11.7 Pre-global YES YES No YES
commissioning (M:A)
12.7 – 5.9 Global YES YES Preferred YES
commissioning (M:A)
6.9 – 26.9 Global YES YES Preferred YES
commissioning (M:A:N)
27.9 – 10.10 Test beam YES YES Required YES
(M:A:N)
11.10 – 21.12 Global YES YES No YES
commissioning (M:A or M:A:N)
2021/3/26 12A Large Ion Collider Experiment
Credits
• Credits
• Central system: 1 credit/shift
• Oncall shifts: 0.5 credit/day
• For the case of M&A from 11.10 to 21.12
• Statistics : https://alice-glance.cern.ch/alice/sams/run/manage?view=statistics
• Institute: https://alice-glance.cern.ch/alice/sams/institute/overview?id=9
Carryover from 2018 for under-booking institutes (A Large Ion Collider Experiment
Plan for Shift booking
• Shift booking will be progressively opened.
• Avoid all shifts being taken with hours
• Allow different time zones to get equal number of shifts
• Limit is set by RC for fraction of due credits allowed to book
• Once the booking has exceeded limit – no more booking allowed
• Requires coordination from team leaders to organize institutes’ booking
• Requirements for booking
• SLIMOS permission is required for booking any central shift
• https://alice-collaboration.web.cern.ch/run_coordination/shifts/howtobook.html
• (attendance of shift class is not needed – see later)
• Booking actions
• Email about booking will be sent as soon as the procedures are approved
• Booking will open ~ May 12 (~2 month before the Global commissioning)
2021/3/26 14A Large Ion Collider Experiment
SAMS Update
Development of SAMS completed
• DCS + SL/ECS : MM/AA/NN
• QC + EPN/PDP: M/A/N x 6
• Local time displayed
Already integrated into production
site.
https://alice-glance.cern.ch/alice/sams/

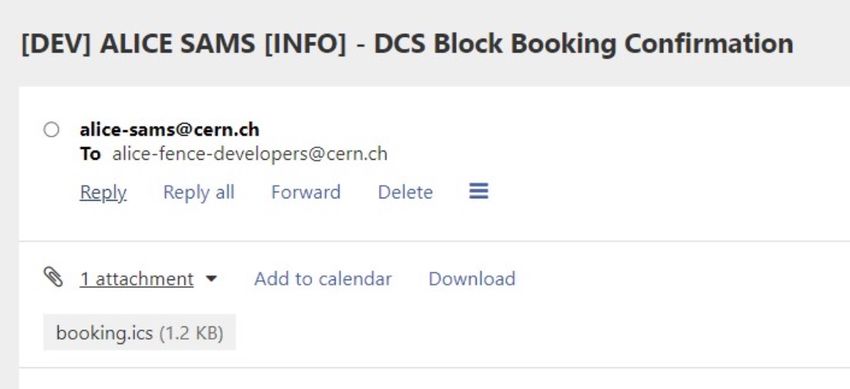

SAMS exports iCal file, which can
be imported to your calendar.
Mario Gunter Simao
2021/3/26 15A Large Ion Collider Experiment
Shift class and training strategy
RUN2 Procedure
• To book training and real shifts, attendance to formal class published in SAMS was required.
• Release of shift block could be done until 15 days from start of shift block
• Shift procedures were well defined (mostly shaped on RUN1 structure)
RUN3
• Shift procedures not yet fully shaped as central systems are still evolving
• Formal classes and training not yet defined
• Attendance to the formal class and training is not required in booking the shifts (SLIMOS needed!)
• SAMS classes can be opened just as a “tutorial” and training can be heuristic
• Ex) Actual training would be organized in a first few days of the shifts with the experts
• Ex) Class or training could be organized in the zoom for the shifts (breakout-rooms)
• Shifters will be initially fished mostly among local experts at CERN
• Release of shift block could be done until 10 (?) days from start of shift block
2021/3/26 16
RC, Roberto, Daniele, David, Vasco, MarioA Large Ion Collider Experiment
Summary
• Pilot ROS built and remote operation using pilot ROS was tested satisfactory
• communication, zoom operation (click, edit, enter text on shared display), Zoom control
• RC will check each country’s plans for shifts (onsite, oncall, remote and ROS).
• RC will push for ROS to buy the needed materials and to build the ROS. → April/May
• New shift schedule
• First 2 month of the Global commissioning will have M&A shifts to balance developments for
integration and operation supports for shifters.
• l = 5.21 – 5.67
• RC will assess each institute’s shift plans and try to see if the numbers of onsite and remote shifts
are balanced (50:50, enough onsite shifters), and if remote shifts can be fairly distributed.
• SAMS is developed and ready to be in use.
• Aim at opening shift reservation about May 12th.
