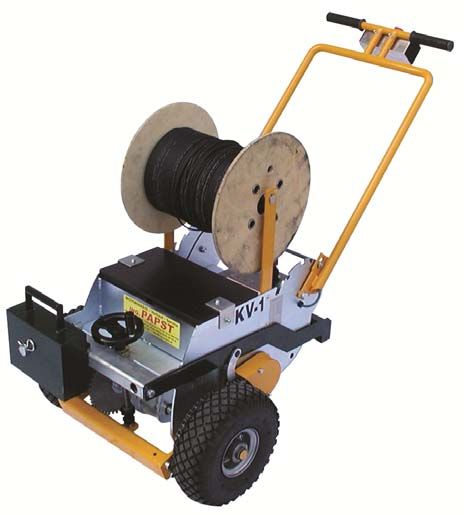

Robotic lawn mowers quickly installed with the new battery-powered cable-laying machine

Robotic lawn mowers quickly installed
with the new battery-powered
cable-laying machine

                         24 V / 25 Ah: maintenance-free, solid in cycles, leak-proof,
2 lead-acid-batteries:
                         with state of charge display
                         2 Ah / 24V electronic; automatic shutdown; battery overloading is not
Charger:
                         possible!
                         Up to 1,500m cable-laying with 1 battery charge;
Work performance:
                         All-day working possible!
Charging time:           Max. 8 hours
Engine:                  24 V / 750 Watt
                         Soft start via rocker control forward & backward
Control:                 Desired speed continuously adjustable via potentiometer
                         Max. ca. 60 m / min. = ca. 4 km/h
Dead load:               92 kg (without additional load)
Additional load:         20 kg
Tyres:                   4.00-4 4PR block type tread
Laying depth:            Up to max. 50 mm adjustable
Safety:                  Emergency Stop
                         Length x Width x Heigth 1250x630x950mm
Dimensions:
                         (grip heigth, adjustable in both directions)
Dimensions transport:    Length x Width x Heigth 840x630x810mm (turned down grip)
                         Main unit incl. battery, charger, operating manual
Delivery contents:
                         and additional load 20 kg

History of cable-laying machine KV-1!

Since the introduction of our cable-laying machine KV-1 in 2011 we sold over 100 pieces all over Eu-
rope and got only very positive feedback from the users.

With this writing we want to explain the advantages of the KV-1.

Many of the cable-laying machines on the market did not fulfill our expectations and requirements in
laying cable for robotic lawn mowers. So we decided in June 2010 to develop an own machine. At
that time we sold and installed already more than 100 robotic lawn mowers per year.

Based on our experiences we created a demand profile as follows:
   • Draft-free cable laying, stepless variable up to 5cm depth
   • Stepless variable laying speed with an end speed as fast as possible
   • Soft start at driving forward and backward in working mode
   • Easy laying also on stony ground
   • Cable laying in tightest radii
   • Low volume at working to make use of the whole day length (and to work on Sundays and hol-
       idays without noise annoyance)
   • Full-time working with one battery charge per day
   • Simple and fast changing of cutting tools
   • Quick and easy transport loading forward and backward
   • Possibility to build-up a big cable spool
   • Laying of all cables of various robotic lawn mower producers (up to 4,4mm Ø)
   • Compact and robust design, high lifetime

Our partner, company „Stollberger drive engineering”, produces machines with battery drive since 20
years. So it was obvious to create a machine with battery drive. A gas-operated machine dropped out
immediately because of the high noise exposure. After many experiments and technical discussions
with our skilled workers and other dealers we were able to deliver the first KV-1 after 8 months of de-
velopment.

The first presentation of the machine was in Eisenach (Germany) in 2011 and the interest was enor-
mous. A partner from Switzerland presented the machine at the fair “öga” in Oeschberg (Switzerland)
in 2012 and got an innovation price.
At the fair “demopark + demogolf” in Eisenach 2013 our machine has been medalled from the expert
panel with the silver medal for technical innovation 2013.

Advantages of the variable weight of our KV‐1
                      (92kg own weight + 20kg additional load)

There are 3 characteristics a good cable‐laying machine needs to lay the cable draft‐free:
   • a delayed start‐up
   • a stepless variable laying speed
   • a variable weight

Advantages of the variable weight:

   • you can lay the cable also in compressed undergrounds (dry and clay‐containing soil,
     stony underground, old sessile grounds)

   • extremely robust frame construction means a high lifetime

   • directional stability for working with less fatigue

   • quiet and vibration‐free run

   • very high laying speed

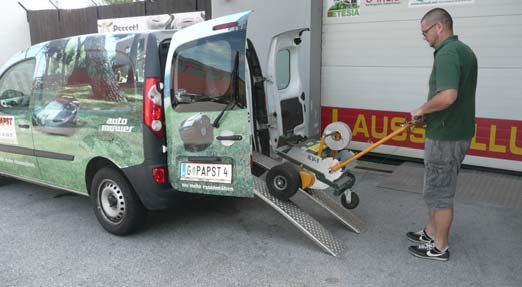

Please note: There are ramps available
for an easy transport

Graz, am 24.07.2014                                                              Seite 1 von 2

KV‐1 examples of use
                           with and without additional load
                          because of different soil conditions

Case 1:
You are laying at an old sessile lawn with different kinds of gras (f.e. dondelion, shamrock).
The ground is compressed and possibly even hard, when it’s dry.
In this case the KV‐1 with additional load is employed.

Case 2:
In new gardens the soil material is mixed because of excavations and refurbishments, so the
underground is loamy and sandy. Grit and stones are building the fundament of the above
applied humus.

In this case the subsidence of the laid cable is different and could amount 2‐5cm in the first 2
years alone. When the cable is being pulled too much, there can be cable fissures already in
this period. This causes unpleasant extra work.
In this case the additional load has to be removed to make the machine lighter (to leave no
marks).

Case 3:
If there is a turf laid, the cable is usually being fixed on the finished grade with hooks and
after that the turf is being laid.
If the cable should be laid deeper in the ground for a certain reason, it could be worked with
the KV‐1 incl. additional load on the compressed ground.

Case 4:
The turf is still laid and is not yet strongly rooted with the underground.
In this case the cable will be laid without additional load to cause no damages and to leave
no marks at the new lawn.

Because of the delayed start‐up, the stepless variable laying speed and the possible weight
modification you will leave almost no marks from the use of the KV‐1!

Graz, am 24.07.2014                                                               Seite 2 von 2
