SOLO panels,
creations to inspire
Patented system:
alabaster
As a passionate sculptor with a love for alabaster,
ten years ago I began with a rough block of stone integrated lighting element
to invent and develop with my team numerous
architectural alabaster creations renowned to this
metal frame
day throughout the world. 30 mm
In order to further expand the possibilities of
this fabulous translucent stone, I offer the Solo
concept. The alabaster, along with its lighting
element is presented as one unit with a slim
profile, an optimized cost, and easier installation.
It is now possible to integrate alabaster in
numerous new applications. .
Alain Ellouz
4 SOLO CONCEPT creations to inspire Atelier Alain Ellouz 5
the SOLO applications
The Solo is an all-inclusive panel combining the
translucent alabaster plate, the LED light, and
its frame; all in one thin element. Standard or
custom size- it is easy to install and incorporate
into all types of architectural and decorative
motifs.

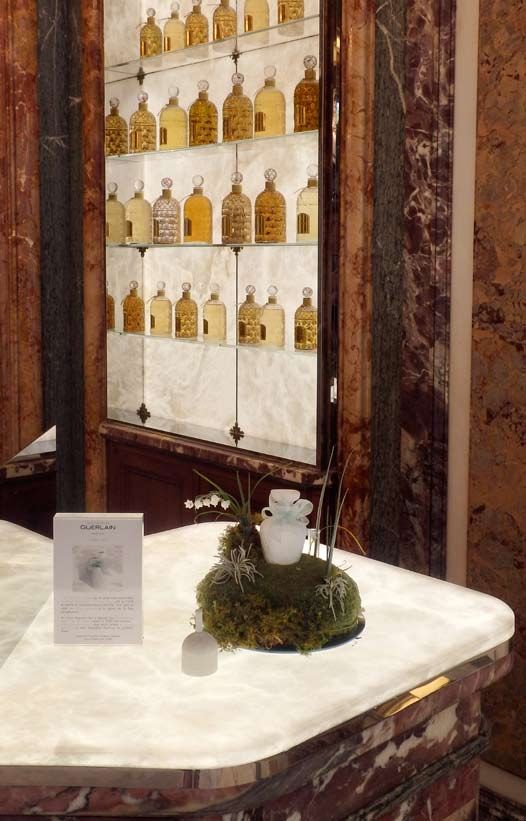

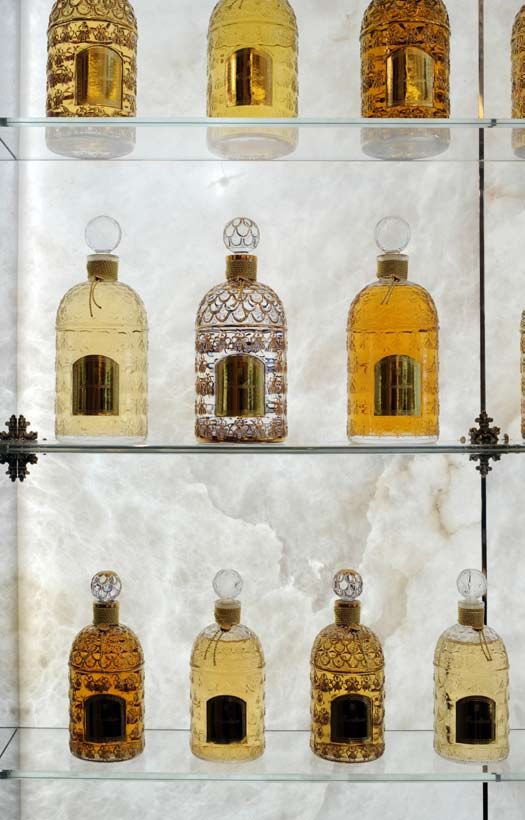

SOLO Art: SOLO Wall : SOLO Ceiling : SOLO Floor : SOLO
Furnishings:

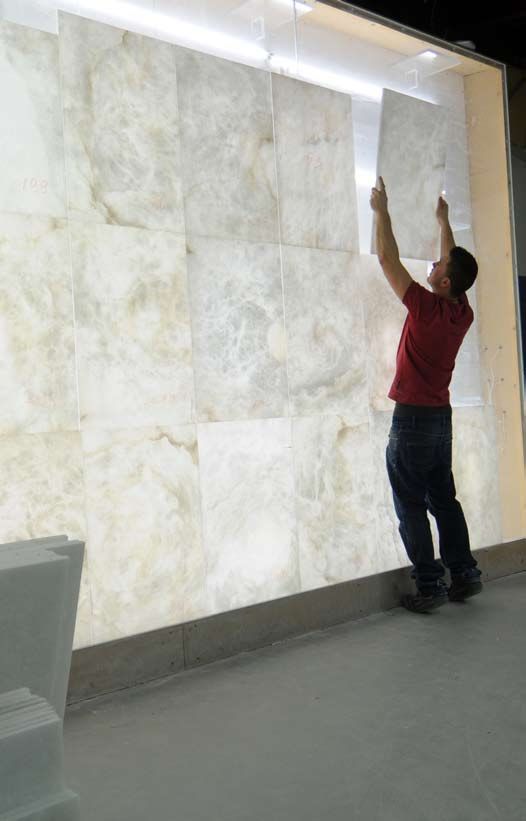

A single piece of A combination of A combination of Solo Inserts of back-lit
outstanding figured multiple panels to and steel structures alabaster panels within Complete your tables,

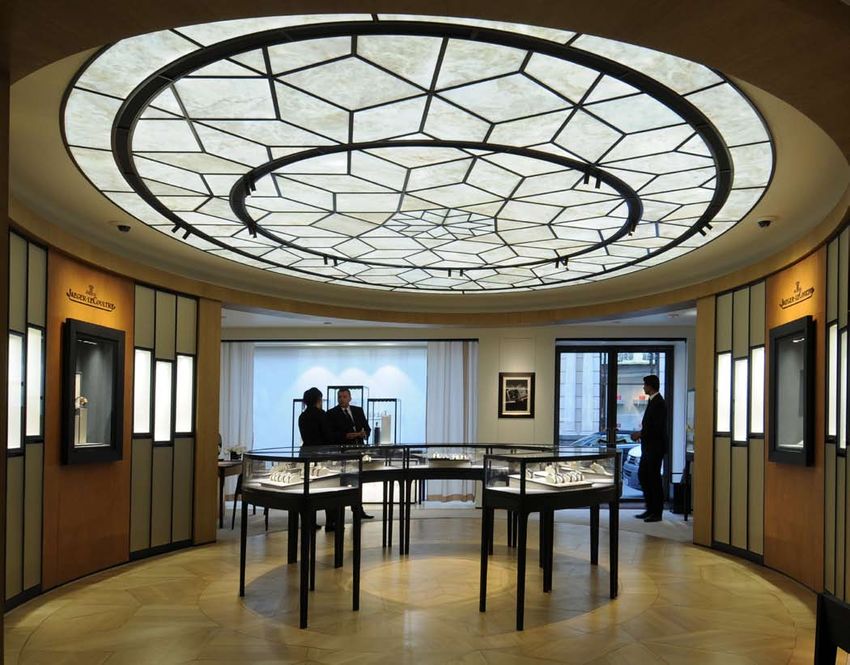

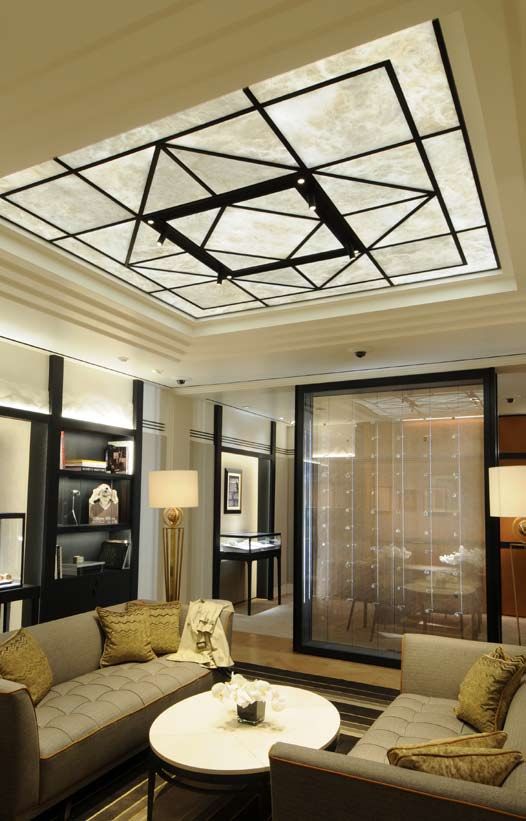

alabaster, brought to life create full or partial gives a glass ceiling your flooring. headboards, and
through illumination- walls. impression. bookshelves with
both art and light. a SOLO element.
6 SOLO CONCEPT /applications Atelier Alain Ellouz 7
For the past 10 years, Atelier Alain Ellouz
has been the specialist in alabaster work, and
chooses its stones directly from the quarries.
It requires a large quantity of material to be
extracted in order to select the best materials
with the right size, hardness, transparency, and
figure for your project. Atelier Alain Ellouz
stocks more then 3,000 plates of alabaster,
which are constantly being renewed. .
8 SOLO CONCEPT quarr y Atelier Alain Ellouz 9
SOLO Art
The SOLO Art, made out of a single piece of
alabaster, is hung upon your wall much like a
painting would be.

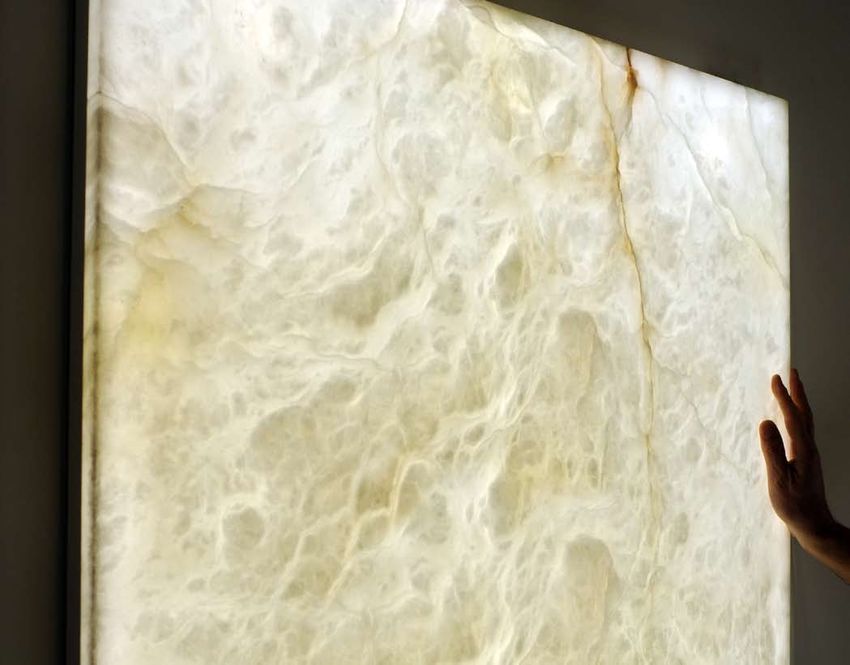

The translucent stone is uniformly back-lit to
reveal the richness of its figures. A softness
is created with this subtle light, creating an
openness for contemplation.
10 SOLO CONCEPT SOLO ar t Atelier Alain Ellouz 11
84cm x 92cm
80cm x 80cm
The most unique alabaster plates by size and
pattern are reserved for SOLO Art. Choose
yours amongst a catalogue of unique pieces.
A few are presented on this page.
66cm x 90cm
12 SOLO CONCEPT SOLO ar t Atelier Alain Ellouz 13
The SOLO Art can be hung directly as we
supply it, so that the thickness of the alabaster
is visible. It is ready to install with our system
(only 5mm), which looks as if the panel is
virtually touching the wall.
As with any light fixture, one needs to consider
the electrical supply. The low-voltage power
supply can be concealed within a small alcove
behind each SOLO panel, or placed anywhere
else within 10m of the panel.
The SOLO Art can be hung individually, or
composed in any number. The type of stone is
then selected in accordance with each client.

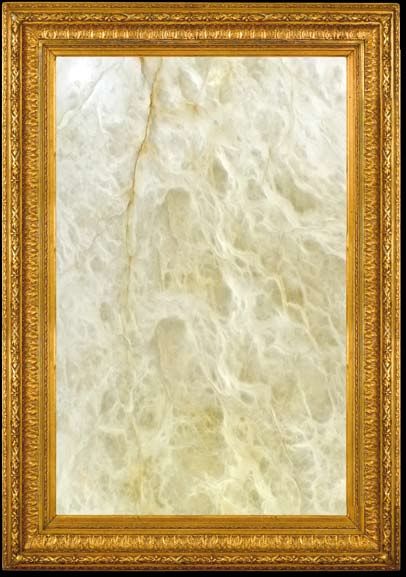

Like all pieces of art, the SOLO Art can be
set within a frame.
14 SOLO CONCEPT SOLO ar t Atelier Alain Ellouz 15
The free-form SOLO Art is like a two- All free-forms can be cut and mounted
dimensional sculpture- a tribute to its natural on a SOLO light panel.
shape.
16 SOLO CONCEPT SOLO ar t Atelier Alain Ellouz 17
Technical Data 18 SOLO CONCEPT Technical Data Atelier Alain Ellouz 19
Characteristics
of the Solo:

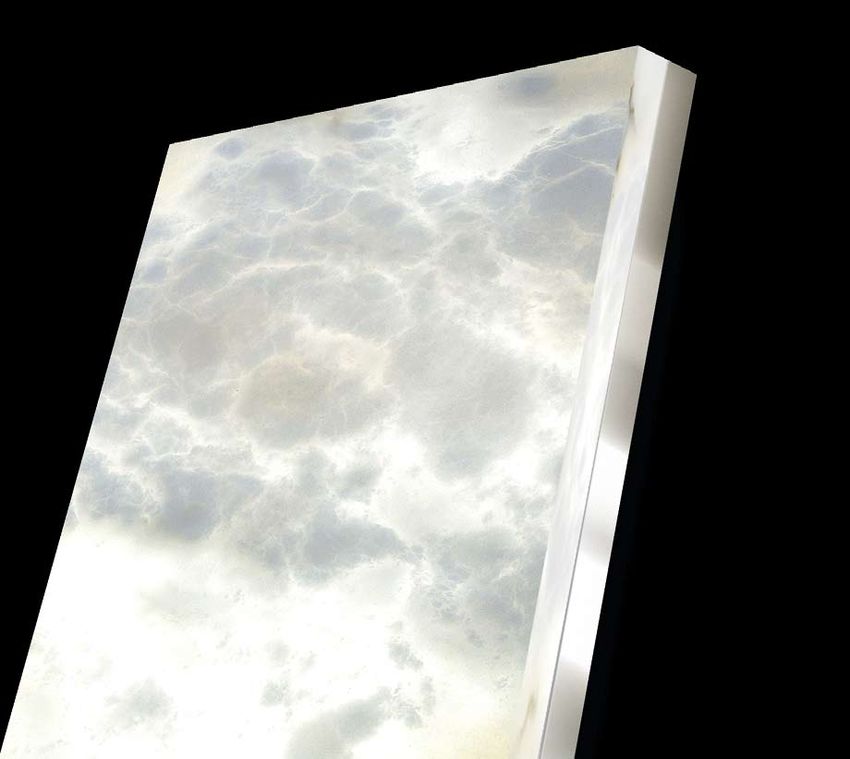

• Thickness: 30mm*
Standard dimensions SOLO
30 x 30 cm 40 x 60 cm
40 x 40 cm 60 x 80 cm
50 x 50 cm 100 x 100 cm
30 x 90 cm disque / Disk Ø 50 cm
All other dimensions are custom.
30mm
• Maximum size of a SOLO element
SOLO 1m2
• Weight : ± 55 kg/m2
Note: * According to the type
of alabaster, and selected surface
treatment dependant upon use, the
thickness will vary between 28 and 2700 K°
40mm. The light
The final thickness will be defined upon
creation of the plans.
The lighting element developed by Atelier Alain
3200 K° Ellouz is a patented retrodiffusing complex,
with LED lights.
A mix from two sources- warm and cool
whites, enables you to choose from a wide
range of tones to magnify the stones and
reveal their inner paterns.
4000 K°
It is possible to control intensity and
temperature of the color.
The size of the Solo element Technical data:
determines the number of plates.
• Power supply 24 volts
5000 K° • Required power: 40-60 watts per square
meter
Note: Power supply is included for one or
more plates according to configuration.
Option: Dimmer (many models available,
Harmonious compositions of 6000 K°
autonomous or connected to domotic
alabaster can be accomplished systems.)
with numerous plates.
20 SOLO CONCEPT Technical Data Atelier Alain Ellouz 21Surface treatment
for alabaster
Although the aesthetic qualities of alabaster are rich, its
natural technical characteristics can pose a challenge. In order
to protect the material over time, and still reveal its natural
beauty, Atelier Alain Ellouz has developed specific techniques
called Stonelight.
Stonelight solutions
The constraints of alabaster
Strengthening treatment
This technique encloses the alabaster within an invisible
structure, thus adding resistance to flex.
The richness of patterns within the alabaster is
due to variation in density and crystallization.
Amongst those are fragile veins where the
alabaster plate may weaken. The gypsum
alabaster that we use has a hardness between
1.5 and 2, which is low (marble is 4-5, quartz
is 7, and diamond 10), and prone to scratching.
Shock and scratch protection
This treatment encapsulates the alabaster within one or
more layers according to usage: a Solo Art will recieve a
Alabaster is sensitive to heat and shock. At 70 lighter treatment than a Solo Furnishing integrated into a
degrees c. its inner structure is altered, and bar top.
the stone looses its transparency. Any impact
on untreated alabaster leaves a dull white mark
on the surface of the stone.
Untreated alabaster is porous, and penetrating Sealing the surface
liquids may stain. This treatment seals every pore of the surface, and
permits resistance against different degrees of aggresivity.
Alabaster’s specific crystallization which gives it Anti UV treatment
its transparency is unstable under the sun. This treatment is applied to those pieces which will be
It will naturally darken and yellow under UV exposed to daylight. The transparent qualities are then
rays and exterior aggressions. preserved.
22 SOLO CONCEPT Technical Data Atelier Alain Ellouz 23Stonelight Transparency and feel of alabaster
Protection levels according
to the use of the Solo
Indice Stonelight des SOLO les plus courants
Use of the Solo Living Space Kitchen/Bathroom
Wall ST 2 2 1 ST 1 2 2
Art/Light fixtures/
ST 2 1 1 ST 2 1 2
Ceiling
Lights off Lights on
Bar top / table ST 2 4 4 ST 2 4 4
The translucence of alabaster
Facade of a bar ST 2 3 4 ST 2 3 4
Alabaster has magnificent translucent properties which are optimal
Floor ST 3 5 4 / with a thickness of 15-20mm of material, and careful surface
treatments.
At every stage of realization we attempt to eliminate the surface
defects of the raw alabaster by polishing, which gives the alabaster
humidity and liquids
Protection against
Shock resistance
Stonelight, specific protection of alabaster a structural cohesion, seals the pores, and reveals depth of the
UVS protection
material.
Strengthening
The Stonelight level indicators is composed of three numbers,
corresponding to three levels of alabaster protection for
strengthening, shock resistance, and waterproofing. It is followed by
ST 1 2 3 UV the UV sign when the object will be exposed to UV light. .
Stonlight Stonlight Protection against
Strengthening Shock resistance Stonlight humidity and
indicator indicator indicator liquids
0 0
0
Natural alabaster Natural alabaster
Natural porous
alabaster
1 Alabaster facade 1 Scratch resistance
1
Air exposure with Raw Polished
varying humidity in a
2
Strengthening for Small impact
2
living space A satin finish
plates laid on a solid resistance
surface
2
Air exposure in a
We recommend a satin finish, its polishing allowing for the
3
Vertical impact kitchen or bathroom
3
Specific resistance (shoes,
strengthening for stools) brilliance of the stone to shine, without a reflection from other
3
flooring Exposure to water
Bartop resistance,
projections (no
standing water) light sources. Atelier Alain Ellouz can offer matte or gloss finishes
4
bartop impact
on demand.
4
Maximum resistance (plates,
4 strengthening for
suspended alabaster
serving trays,
bottles)
Exposure to drinks
(partition walls) Exposure to
5
Maximum resistance
to impact (heels,
5 aggressive products
(perfumes, others). The feel
furniture) Tests conducted.
Our craftsmen work to preserve the soft and agreeable feel
of each stone through the finishing process. Alabaster has a
warm feel to the touch- like wood, which reinforces its aspects
of softness and comfort.
24 SOLO CONCEPT Technical Data Atelier Alain Ellouz 25SOLO hanging systems system A5
With only 5mm thickness, this hanging
system is essentially used with Solo Art.
The Solo is delivered as ready to install elements. It can
be equipped with a system designed specifically for the
use of each Solo. These three systems are adapted for
5mm
most uses..
SYSTEM A14
This system is suitable for combinations
system A10 of Solo elements. It has a quick and
easy installation, and allows for the
For use by clipping within an opening.
spreading of weight of each element.
Note: This clipping system is good
This system is composed of horizontal
for holding the alabaster in place,
rails which mount to the wall, and
rather than supporting it entirely.
vertical rails attached behind the Solo
The A10 clipping must be used
14mm
panels. It measures 14mm in thickness.
alongside a base.
5mm
The free-standing Solo INTEGRATION
The Solo can be designed to be laid The finishing on the edges of the
or inserted into a piece of furniture Solo allows for different integration
without any support system. Likewise, techniques. Once the elements are
it can be held along its periphery attached to the wall (with A5 or A14),
within a metal structure for a wall or the wall can be finished so that the
a ceiling. Solo will appear to be hung, partially
included, flush, or inset within the wall.
.
Hung Partially inset Flush Recessed
26 SOLO CONCEPT hangings and intégration Atelier Alain Ellouz 27Combining Solos
Solo elements separated
by a groove decoration
For a surface greater than 1m sq., it is possible to use
multiple alabaster Solos. baguette
strip
The layout of the Solo elements and the different Solo Solo
alabaster plates are composed in conjunction with the
interior architect according to aesthetic and technical
choices. The Solo plates are separated by a decorative
strip of which the width and finish are decided
upon based on the desired result. This layout adds
a depth perspective to the project, since it partially
reveals the thickness of the alabaster. .
Butted
without decoration
Solo Solo
The Solo elements are laid side by side using the
A14 system with a common rail, which ensures
that the two elements are flush.
Solo elements within a frame
Butted with decoration This configuration of Solo elements both allows
for a structural and decorative freedom, and
décorations
makes corners very easy to realize.
decoration
Solo Solo
structure
The Solo elements are laid side by side and Solo Solo
decorative elements can be applied on the surface,
on the seams, or in a pattern of your choosing.
Those decorative elements can also be inlaid into Solo
the alabaster for a flush feel. structue
Solo
28 SOLO CONCEPT association Atelier Alain Ellouz 29SOLO wall
From inception
to realization,
the stages of a
project.
From inception to realization, the stages
of a project.
Renovating a living room, the architect
opted to create a new ambiance and
fit the wall surrounding the fireplace
with back-lit Solo panels, embellished by
decorative strips to add rhythm to the
surface.
This wall becomes a light fixture, shining
its soft light throughout the room. The
dimming option will set the right tone
for the ambiance of the room.
30 SOLO CONCEPT /mur /wall Atelier Alain Ellouz 312cm action to lock the panels about 1m sq. per Solo
in place
Sizes adapted to the project Electrical component location Finished seam
1 the plans
In conjunction with the architect and the crew of
installers, the design team creates plans for the project
with Solo plates.
• Layout and size of Solo elements
• Different types of alabaster
Electrical requirements: required wattage, location of
electrical devices, dimmer type and location, wiring
diagram.
According to the given dimensions, our team will
compose the alabaster wall, and create a layout which
will then be submitted to the client for validation.
32 SOLO CONCEPT wall Atelier Alain Ellouz 333
Preparation for shipping
The Solo elements are protected and placed into crates with
the greatest care. (Note: Atelier Alain Ellouz has ten years of
experience of shipping alabaster).
The crates also include mounting rails and electrical devices-
transformer, dimmer, cables.
2
Workshop
production
When the plans have been approved,
the Solos are manufactored within 3-4
weeks.
Each element is labeled for a
comprehensive installation per the layout
and wiring diagram.
34 SOLO CONCEPT wall Atelier Alain Ellouz 354
Installing mounting
rails
Your carpenters will be installing the mounting rails.
The exact position and spacing of the horizontal rails
will be specified on the plans. They will mount the
rails according to the structure of the wall, taking great
care to stay on the same plane. They will set the
transformers and other electrical devices in place, until Installing motion
the next stage.
Electrical connection
supports
brackets
5 Hanging system
Hanging the Solos
The Solos are equipped with mounting brackets on their back side. They are
labeled according to the set of plans. The layout must be respected in keeping
with the harmony of the composition.
Technical support and
installing assistance
cablage électrique Our design team and technical staff are available if any questions arise during the
installing process. A technician of Atelier Alain Ellouz can be made available on-
site, per day, to assist the installing team as an option.
36 SOLO CONCEPT Wa l l Atelier Alain Ellouz 376
Installing the filler and
decoration
In order to finish the 2cm action room between the solo panels and the ceiling, we
can install a filler. It can be applied flush with the wall, or recessed to create a groove.
All that will remain is to set the decorations in place..
filler
The benefits
of the Solo
This project can be realized with a limited workforce,
no sanding, and no surface treatments on-site. It can
be put together by a local team of craftsmen in two
days. The Solo option costs 40% less than a “solid”
alabaster wall option.
décor
38 SOLO CONCEPT wall Atelier Alain Ellouz 39SOLO
furnishings
The Solo furnishing panels are a great way for furniture makers and
designers to create new furniture or revisit an existing design.
Some of the openings of this chrome and ebony
bookcase have been fitted with Solo elements.
The objects laid within them will be magnified by
the soft light diffused by the Solos.
Integration of Solos in the
bookcase (viewed from
rear)i
Electrical connection between the
Solos
40 SOLO CONCEPT fur nishing Atelier Alain Ellouz 41Revisited headboards with alabaster Solo
compositions.
The Solo elements have been integrated into the
wooden headboard with harmony, bringing a soft
ambiance- warm and cosy.
42 SOLO CONCEPT fur nishing Atelier Alain Ellouz 43à fleur
The Solo floor combines specific techniques
for ease of installation. A strong Stonelight
treatment has been developed to withstand
high traffic..
semi-encastré (tranche visible)
encastré
44 SOLO CONCEPT fur nishing Atelier Alain Ellouz 45SOLO realizations 46 SOLO CONCEPT wor ks Atelier Alain Ellouz 47
Guerlain, Champs Elysées
The historic Guerlain shop on the
Champs Elysees has recently brought in
new light with Solo furnishing elements.
The Solo was the answer to the challenge
the interior architects of Guerlain faced
to give this flagship store a new, fresh feel.
48 SOLO CONCEPT /Guer lain Atelier Alain Ellouz 49The Solo panels, fitted at the back of four openings,
replace mirrors. The four countertops have also
been fitted with alabaster plates- all of them
removable. The new stone fits perfectly amongst
the composed marbles and reveals them with its
fresh new light.
For this project, the Solo elements have been
delivered in plates ready to be installed in the
openings and onto the counters. The carpenters
have installed the Solos themselves in a few hours
with no dust.
This enabled installation to be done overnight so
that the store could stay open during its regular
business hours.
Like any other light fixtures, the Solos are
removable at any time since nothing has been
glued into place..
50 SOLO CONCEPT Guer lain Atelier Alain Ellouz 5152 SOLO CONCEPT Guer lain Atelier Alain Ellouz 53
Jaeger LeCoultre, London Alabaster and metal are major themes in the
line of new Jaeger LeCoultre stores throughout
the world, created by interior architect Marika
Chaumet.
In the heart of London, 13 Bond Street, this new
space benefitted from the best the Solo has to
offer. .
54 SOLO CONCEPT /Jaeger Le Coultre Atelier Alain Ellouz 55Phase 1: technical drawing
Phase 2: simulation from real alabaster photoss
170 Solo elements, each custom, compose this 24 m
sq. oblong ceiling ensemble. Each plate was carefully
selected for a harmonious composition. A simulation
made with real alabaster photos had been presented to
the client for approval prior to production.
Each and every element was identified and labeled
according to its shape and position. We adapted the
light according to the area of each plate for a grand
uniform result.
.
56 SOLO CONCEPT /Jaeger Le Coultre Atelier Alain Ellouz 57The Solo strength: :
Compact and
removable
The Jaeger LeCoultre store posed a challenge, as it
had a limited ceiling height. Moreover, for security
reasons, access into the ceiling had to be made
available at any time. The Solo was the answer
to this great challenge, being an ensemble of
independant panels, removable with ease
On site installation
by a local team
The installation of the Solos into the steel
structure, and the wiring between the Solos
has been done easily by the team of carpenters
working on-site for the client.
58 SOLO CONCEPT /Jaeger Le Coultre Atelier Alain Ellouz 59For the past 10 years, Atelier Alain Ellouz has
been offering its solid experience in creating
stone work in prestigious projects. The Atelier has Didier Gomez
developed state-of-the-art techniques of cutting,
assembling, and protecting alabaster and rock
crystal in sumptuous, creative, and sometimes
demanding interiors.
The collections of furniture, sinks, and light fixtures Marika Chaumet
reflect the avant-garde creativity and skill set of
our design team and dedicated craftsmen. This
potential has inspired the greatest architects and
designers throughout the world to create original
pieces- each one a unique work of art.
Ephémère - Guillaume Roger
Antoine Pinto Galerie Olivier Chetail Louis Vuitton
www.atelier-alain-ellouz.com
60 SOLO CONCEPT 10 years of experience Atelier Alain Ellouz 61Son Altesse Royale l’Emir du Qatar
Mille et Une maisons
Marie Allard - Dominique Pacott
Le Méridien
MCM Design Louis Vuitton
SM Design So-An
Jean Marc Mouchet
Honka Pro-design group Boucheron
Tanit
Philippe Starck Jean-Baptiste Barian Guerlain
Galerie Olivier Chetail
ADG Architecture
Gilles Delfino La Famille Royale d’Arabie Saoudite
French House Design
Peter Marino Agence Garcia Chanel
Radu Dragan A Propos De Lieu
La Famille Royale du Maroc Anna Moussinet
FCML Projects Sofitel Luxury Hotels
Prospect design
Sankon
Akmerkez
Carte Blanche Dior
Casa Bella Karim Tabet
Agence Labruyère Agence Leghima
Finchatton
Cheval Blanc
Jaeger-leCoultre Maison Dupin
THG
VLD Christopher Guy RM Design Alberto Pinto
Guillaume Dujon
Antoine Pinto Jean Louis Deniot Veranda
Giustini Design Philippe Hurel
Atelier Philippe Coudray Geneva House Luigi Zanini
Alto Interiors
Artis Ephémère
COGEMAD My Tailor Home AC matières - Caroline Perrin
Stéphanie Coutas
Ash Design Archidiz
Bassam International Agence Pascal Desprez Maxime d’Angeac
Wall and Spoon
Chaos and Order Les Héritiers
Agence Jean-Michel Rousseau Alain Dominique Gallizia
Oger International
Ephémère - Guillaume Roger
62 SOLO CONCEPT Atelier Alain Ellouz 63Saint-Pétersbourg
Kaliningrad Tioumen
Moscou
Londres Amster-
Bruxelles
Paris Francfort
Courchevel Suisse Kiev
Milan
Cannes
Monaco
Rome
Madrid Istambul New York
Calvi
Beijing
Tokyo
Lisbonne Athenes
San Francisco
Séoul
Rabat Beyrouth
Tripoli
Casablanca
Shangai
Kuwait Los Angeles
Le Caire
Palm Beach
Bahrain
Doha Miami
Dubaï
Jeddah Hong Kong
Oman Mumbai Macau
Ryiad
Libreville
Singapour
e l’ A t e li e r A la in Ellouz
d
les réalisations s le monde
dan
1 project
2 / 5 projects
5 projects and more
n E ll o uz in the world
of Ate li e r A la i
workscreations and works with alabaster and rock crystal, natural stones
Workshop - Show-room - near Paris : 121, rue Tabuteau - 78530 Buc - France
+ 33 (0)9 81 46 94 66 - fax + 33 (0)1 30 21 94 66
contact@atelier-alain-ellouz.com
www.atelier-alain-ellouz.com
Atelier Alain Ellouz 1You can also read
