Sanitary Program 2020
Sanitary blocks
Shower floor systems
ent
Pre-fabricated showers Developm
uction
and prod
Pre-fabricated bathrooms mad in
e
Germany
Alle Preise sind unverbindliche Preisempfehlungen ohne MwSt., gültig ab 1. Januar 2020
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar
Telefon 00 49 (0) 64 41 97 72-0 · Telefax 00 49 (0) 64 41 97 72-20 · www.grumbach.net · grumbach@grumbach.net
¢ Innovation, competence
and experience
¢ Contents Sanitary program ¢ In the Hessian town of Wetzlar, the fa-
mily business Grumbach has for many
years successfully developed solutions
3–38 Sanitary blocks made of PUR
for the challenges presented to it in
5–16 Corner WC-Blocks practice.
17–23 WC-Blocks
¢ Sanitary blocks
24–25 Grumbach Blocks are not classical pre-wall elements. They are produced from high
26–27 Grumbach combinations and accessories quality, CFC free polyurethane integral hard foam (PUR). Due to
28 Installation examples Sanitary blocks this they have the following qualities: They are sound- and heat-
proof, insulated against condensation and can be tiled directly.
29–34 SLIM-Blocks
The Grumbach sanitary blocks simplify the pre-wall installation
35 WC-Installations in comparison
greatly. A large range of products guarantees that the vast majo-
36–37 Program overview rity of bathroom applications can be fulfilled. Grumbach Corner
blocks (triangular, compact pre-wall elements for WCs, Urinals,
39–54 Shower floor systems Bidets and HWB), Grumbach blocks: (Four sided, compact
41–48 Shower floor elements made of PUR elements for WCs, WT, Urinals, Bidets, taps and empty spaces.)
and the Grumbach SLIM-BLOCK. These are the narrowest WC-
49 Supporting frames for shower floor elements
blocks on the market and allow pre-wall installations even in the
50 Height equalisation panels made of EPS and
most difficult room configurations.
accessories
51–54 Form for special configurations ¢ Grumbach shower floor systems
Walk-in showers are becoming increasingly popular. Grumbach
has developed an easy way to mount shower floor system:
55–64 Pre-fabricated showers
various shower floor elements made of PUR, which can be
57 Product descriptions installed on a robust base unit (adjusting frame or adjus-
58–59 Pre-fabricated showers STANDARD, STAN- ting plate) – with perfect fitting and without levelling fill or
DARD PLUS, SOUVERÄN levelling screed.
60 Pre-fabricated shower SENIOR
¢ Grumbach pre-fabricated showers
61 Technical data STANDARD, Simply position it, install it and shower-all of the GRUMBACH
STANDARD PLUS, SOUVERÄN, SENIOR
prefabricated showers function this way. The current Program
62–64 Model variations and prices consists of a wide spectrum of models starting from the
inexpensive standard shower to the accommodating senior
65–82 Pre-fabricated bathrooms shower all the way to the extra stable pre-fabricated
shower SOUVERÄN.They are equally suitable for private
Subject to technical modification and errors and omissions excepted. Valid 11/2019
67–68 UNIVERSAL
households, hotels, guesthouses, care homes or sanitary
69–70 BASIS
areas in commercial and industrial properties.
71 SPARTA

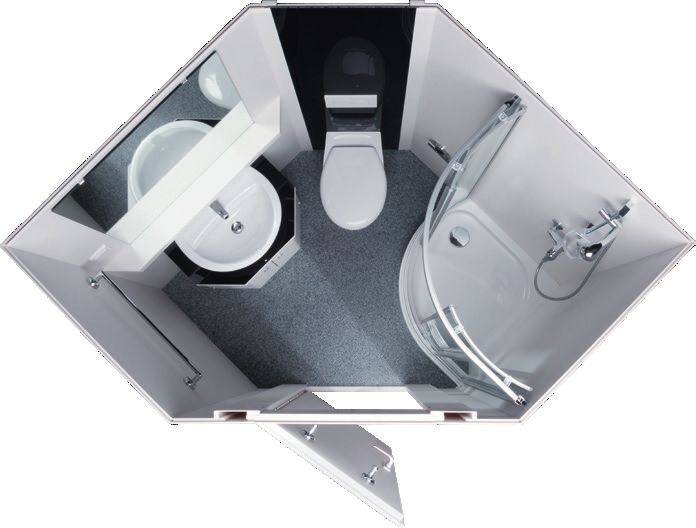

Grumbach pre-fabricated bathrooms
72 WC-cubicle and FRANKFURT
73–75 INDIVIDUAL Grumbach pre-fabricated bathrooms are ideal for the renova-
76–80 Model variations and prices tion and modernisation of old buildings such as hotels, guest-
houses, apartments and commercial buildings, etc.They can
81–82 Accessories pre-fabricated bathrooms, fitting
be transported and assembled effortlessly, they save time,
instructions
space and money during planning and installation, fully equip-
ped, robust, durable and easy to maintain.
83 Grumbach area sales representatives
We wish you a lot of success with the GRUMBACH-Sanitary
products!
2 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net
ent
Developm
uction
and prod
m a d e in
Germany
Sanitary blocks
made of PUR
Corner WC-blocks, WC-blocks
Slim-blocks and more
to technical
prices
Subject recommended
modification and
are non-binding excepted.
prices,
errors and omissions VAT, valid January 2020.
Valid 11/2019
excluding
3
All
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net
¢ Grumbach Sanitary blocks
¢ Contents ¢ Grumbach sanitary blocks
are not usual pre-wall elements. They are produced from high
5–12 Corner WC block quality, CFC free polyurethane integral hard foam (PUR). Due
13 Corner WC block special models to this they have the following qualities: They are sound- and
heatproof, insulated against condensation and can be tiled
14 Corner WC block accessories
directly.
15 Corner urinal block
16 Corner washhandbasin
The Grumbach sanitary blocks simplify the pre-wall
Corner bidet block
installation greatly. A large range of products guarantees
17 WC block slanted that the vast majority of bathroom applications
18–22 WC block can be fulfilled with the 3 series:
23 WC block accessories
1. Grumbach-corner block: triangular, compact pre-wall
24–25 Grumbach blocks elements for WCs, urinals, bidets and HWB
26–27 Grumbach combinations and accessories
2. Grumbach-block: Four sided, compact elements for
28 Installation examples Sanitary blocks
WCs, WT, urinals, bidets, taps and empty spaces.
Sanitary blocks
29–34 SLIM-Blocks
3. Grumbach SLIM-BLOCK These are the narrowest WC-
35 WC-Installations in comparison
blocks on the market and allow pre-wall installations even in
36–37 Program overview the most difficult room configurations. – real inovation from
Grumbach!
¢ Flatter, lower, narrower
It was a really exciting task, working on minimizing the di-
mensions (depth, width, height) while developing the new WC
pre-wall elements made of PUR. This work led to a range of
innovative »niche products«, which can now be used to solve
problems in difficult construction situations.
In this context, the company is able to present the following
Subject to technical modification and errors and omissions excepted. Valid 11/2019
WC models:

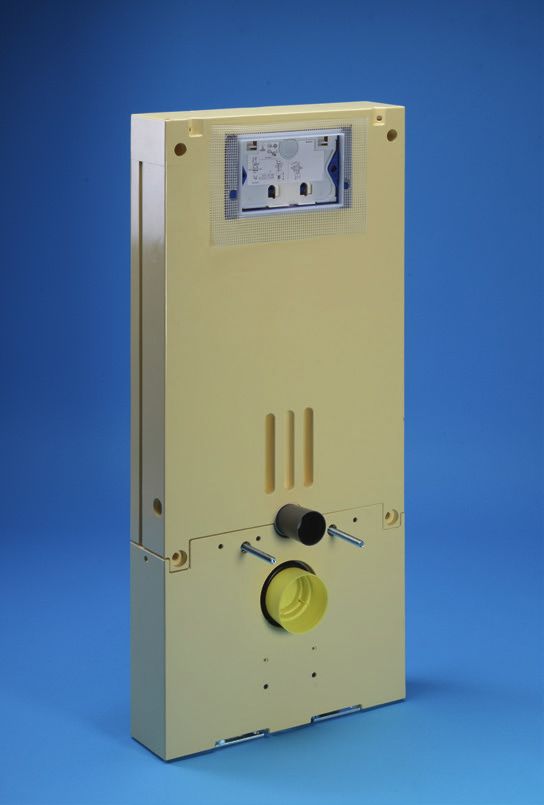

¡ WC-block 8 cm flat (the ultra flat),
Height 110 cm, Width 50 cm, Art.-No. 1400
¡ WC-block 78 cm high,
Width 50 cm, Depth 15 cm, Art.-No. 1478.N
¡ WC-block 20 cm narrow (SLIM-BLOCK),
Height 110 cm, Depth 20 cm, Art.-No. 1701/1701.P
4 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net
made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly
ics
The class

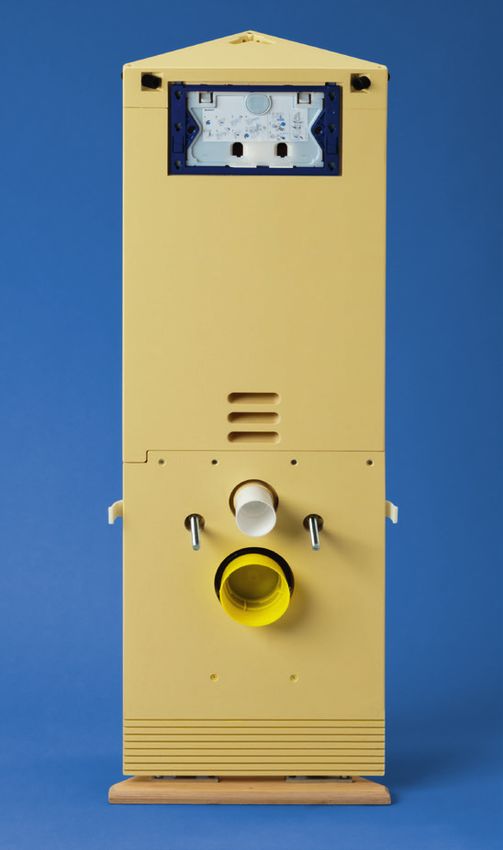

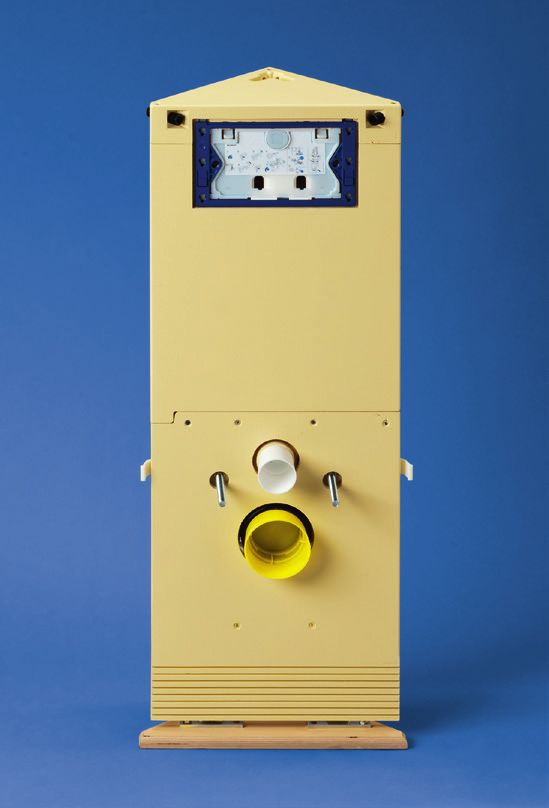

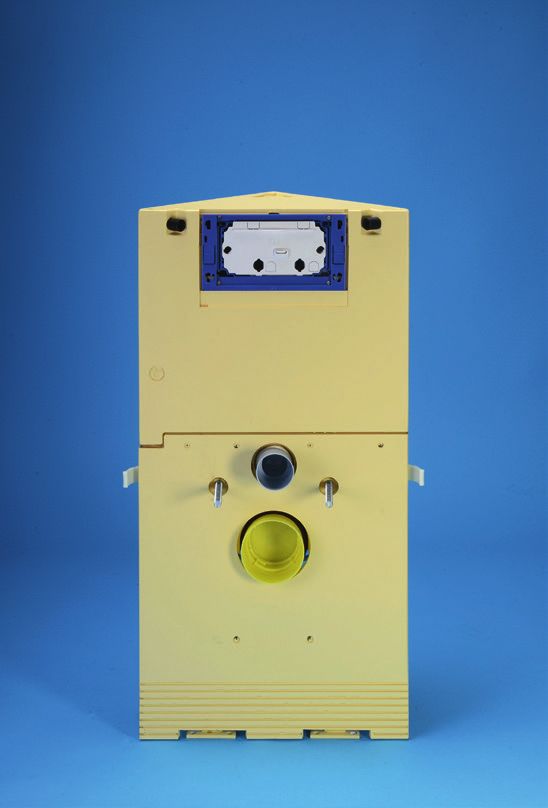

¢ Corner WC-block 108 cm high for flush
Construction height 108 cm panels»Sigma 01/10/20/21/30/50« (Geberit®)
Art.-No. 1301.III 495.– €
Height 108 cm, Depth 22 cm, Diagonal 40 cm
5 With dual volume flushing technology or Start/Stop flush
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ site protection caps
¡ with fastening material (for ¡ with metre indication line
corner/for single–sided wall ¡ with WC connection pipes
fastening) (90°- bend made of PE Ø 90/90
¡ with sound proof set mm and PE adaptor Ø 90/110
¡ with sound proofing certification mm)
¡ with height-adjustable feet ¡ with WC connection pipes Ø 90
(up to 15 cm) mm
¡ with assembly room cover below ¡ with WC fastening set
¡ with moulded cistern (internal ¡ actuation from the front
3 part from Geberit®) incl. cistern
protection
¡ without flush panel
Sanitary blocks
Eck-WC-Stein 108 cm mit Justierkeilen
1
4 2
Verstellkeile
- mit 4 Verstellkeilen
zur optimalen Ausrichtung
an unebenen Wänden
- neue, noch stabilere Wandbefestigung
- die nach der Justierung
vorne überstehenden Justierkeile werden
nach dem Festschrauben des Bausteins
bündig gekürzt.
Rückansicht
The five major improvements to our „classics“: Cross section 1: Cross section 2:
Adjusted sting wedge in original position, The wedge is expanded, up to 2 cm
1 Tapped drill holes/fastening points:
Subject to technical modification and errors and omissions excepted. Valid 11/2019
the block is touching the wall. if equalisation possible.
Now all drill holes apart from the water container! (even with one-
sided wall attachments)!
2 Integrated, continuous, stageless wall interval regulation
with simultaneous incorporation of the anchoring screw.
3 Integrated anti-twist protection for the assembly space cover.
4 Extended assembly space
cover with cutting edge/perforation for an all-over cover for
tiling right down to the floor!
5 Prepared for the installation of a GEBERIT® feed channel Schnittansicht Schnittansicht
Justierkeil oben Justierkeil unten
dissolve the cleaning cube in the cistern.
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 5
made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly
The classics
¢ Flush panels for Grumbach corner WC block
Sigma 01 Sigma 10 Sigma 20/21
Sigma 30 Sigma 30 Sigma 50
Start-Stop-Flush
Unless otherwise stated, flush panels are not
included in the scope of delivery of Grumbach-

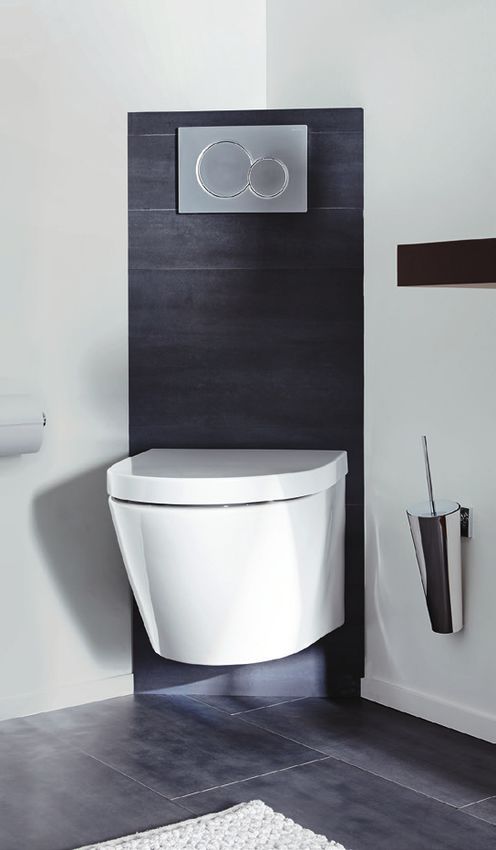

Example of use: Corner WC-block 108 cm high,
clad with Grumbach decorative panels in mint, Corner WC blocks or WC-blocks enthalten.
see also page 14.
Mambo
Installation example Technical data: Corner WC block
Adjustment range height: 0–150 mm
Sanitary blocks
Standard application:
Adjustment range wall: 0–20 mm
Corner WC block 108 or 98 cm
for the 90°-corner of a room Dual volume flushing technology
(can be adjusted):
Factory setting: 4/8.5 l
Water connection below at the front
Small flush volume: 3–4 l
on the the left-hand side at the front
Large flush volume: 6–8.5 l
120
Water connection: 1/2 " female thread
Drain: 90°- bend made of PE Ø 90/90 mm
and PE adaptor Ø 90/110 mm
800
31 0
29
0
220
Corner WC block as a solution and fitting element for problem
cases with for example »hose bathrooms«.
400
310 310
Combination of corner WC-block 440
and corner bidet block,
Subject to technical modification and errors and omissions excepted. Valid 11/2019
Height 108 or 98 cm.
The corner elemes are con-
nected in the factory. Please
mention when ordering.
565*
440 180
Square pillars, consisting of 1085
1055
e.g. corner WC-block and
corner bidet-block with self- ∅ 45
35
supporting lower frame, corner-
urinal block and corner-HWB- ∅90
320 350
block , height 108 or 122 cm.
220
The corner elements are con-
nected in the factory. Please
R1/2“ DN90
mention when ordering.
125
* up to the bottom edge of the button
6 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net
made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly

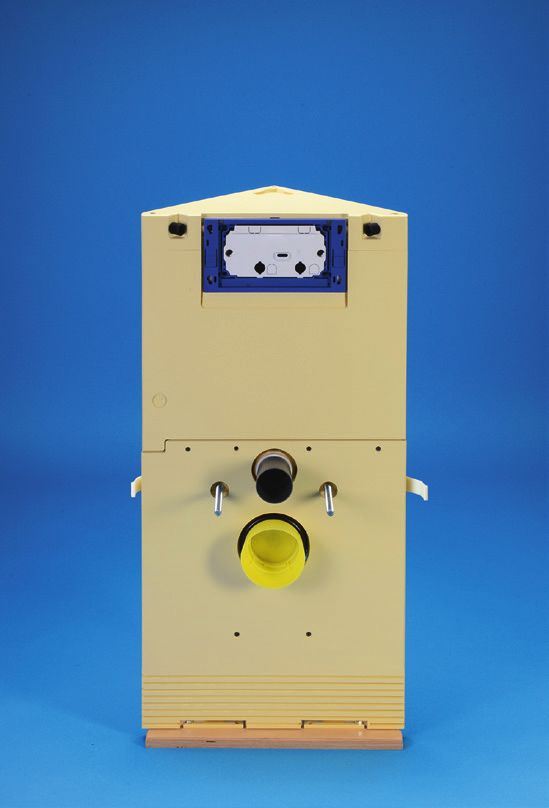

¢ Corner WC-block 98 cm high for flush
Construction height 98 cm panels»Sigma 01/10/20/21/30/50« (Geberit®)
Art.-No. 1302.N 455.– €
Height 98 cm, Depth 22 cm, Diagonal 40 cm
With dual volume flush technology and
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ site protection caps
¡ with fastening material (for ¡ with metre indication line at
corner/for single–sided wall 0.5 m
fastening) ¡ with WC connection pipes (90°-
¡ with sound proof set bend made of PE Ø 90/90 mm
¡ with height-adjustable feet and PE adaptor Ø 90/110 mm)
(up to 15 cm) ¡ with WC connection pipes
¡ with assembly room cover below Ø 90 mm
¡ with moulded cistern (Internal ¡ with WC fastening set
mechanism from Geberit®) incl. ¡ actuation from the front
construction protection caps ¡ without flush panel
Sanitary blocks
31 0
29
0
220
400
440
Installation example: Corner WC-block 98 cm
high clad in black decor panels, flush panel
Subject to technical modification and errors and omissions excepted. Valid 11/2019
»Sigma 50« (Geberit®)
Technical data Corner WC block
180
Adjustment range height: 0–150 mm
465*
985 Adjustment range wall: 0–20 mm
955
Dual volume flushing technology
35 ∅45
(can be adjusted):
∅90 Factory setting: 4/8,5 l
320 350 small flush volume: 3–4 l
220
Large flush volume: 6–8,5 l
DN90 Water connection: 1/2 " female thread
R1/2“
125
* up to the bottom edge of the button Drain: 90°- bend made of PE Ø 90/90 mm
and PE adaptor Ø 90/110 mm
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 7
made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly

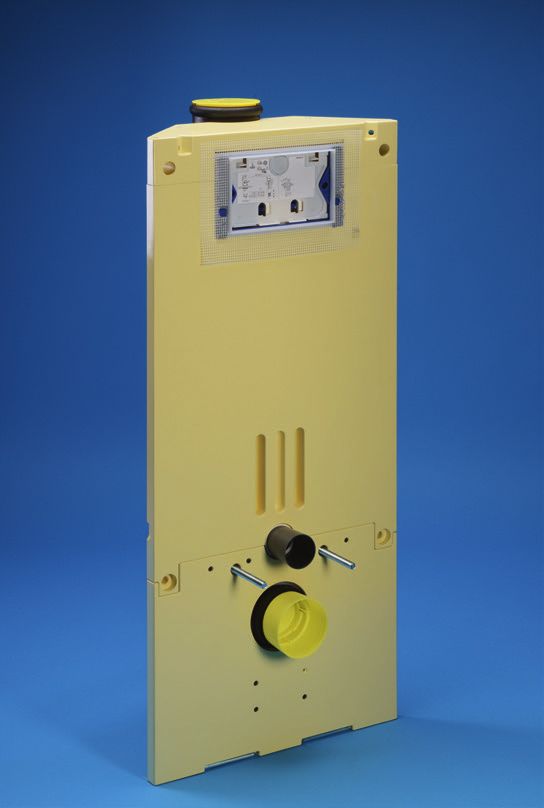

¢ Corner WC-block 88 cm high for flush
Construction height 88 cm panels»Sigma 01/10/20/21/30/50« (Geberit®)
Art.-No. 1303.III 510.– €
Height 88 cm, Depth 24 cm, Diagonal 44 cm
With dual volume flush technology and
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ site protection caps
¡ with fastening material (for ¡ with metre indication line at
corner/for single–sided wall 0.5 m
fastening) ¡ with WC connection pipes (90°-
¡ with sound proof set bend made of PE Ø 90/90 mm
¡ with height-adjustable feet and PE adaptor Ø 90/110 mm)
(up to 15 cm) ¡ with WC connection pipes Ø 90
¡ with assembly room cover below mm
¡ with moulded cistern (internal ¡ with WC fastening set
part from Geberit®) incl. Cistern ¡ actuation from the front
protection ¡ without flush panel
Sanitary blocks
34 10
3
0
240
340
440 240
485
Subject to technical modification and errors and omissions excepted. Valid 11/2019
485
water connection at the front bottom left
Technical data Corner WC block
180
365* Adjustment range height: 0–150 mm
875
Adjustment range wall: 0–20 mm
855
35 ∅ 45 Dual volume flushing technology (can be adjusted)
∅ 90 Factory setting: 4/6 l
320 350
220 large flush volume: 3–4 l
small flush volume: 6l
DN90
R1/2“ Water connection: 1/2 " female thread
125
* up to the bottom edge of the button
Drain: 90°- bend made of
PE Ø 90/90 mm and PE adaptor Ø
90/110 mm
8 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net
made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly
¢ Corner WC-block 83 cm high
Construction height 83 cm for flush panels »Omega« von Geberit®
Art.-No. 1304.IV 545.– €
Height 83 cm, Depth 24 cm, Diagonal 44 cm
With dual volume flushing technology and
completely fitted for wall-hanging WC
¡ adjustable in 4-stages ¡ with assembly room cover below
¡ with fastening material (for ¡ with moulded cistern (internal
corner/for single–sided wall parts from Geberit®) incl. cistern
fastening) protection
¡ with sound proof set ¡ site protection caps
¡ with height-adjustable feet ¡ with metre indication line at
(up to 15 cm) 0.5 m
¡ with WC connection pipes (90°-
bend made of PE Ø 90/90 mm
and PE adaptor Ø 90/110 mm)
¡ with WC connection pipes Ø 90
mm
¡ with WC fastening set
¡ actuation from the front
Sanitary blocks
¡ for flush panels »Omega«
(Geberit®)
Omega 20 ¡ without flush panel
Omega 30
¡ Note: When using the »Omega
60« flush panel, the cladding on
the block must be at least 24
34
mm thick!
0
31
240
0
340
440
240
485
Subject to technical modification and errors and omissions excepted. Valid 11/2019
485
Water connection at the front bottom left
Technical data Corner WC block
340*
180
Adjustment range height: 0–150 mm
830 Adjustment range wall: 0–20 mm
805 ∅ 45
35
Dual volume flushing technology (can be adjusted)
∅ 90
320 350 Factory setting: 4/6 l
220
small flush volume: 3–4 l
OK FFB
DN90 large flush volume: 6l
R1/2"
120 Water connection: 1/2 " female thread
* up to the bottom edge of the button
Drain: 90°- bend made of PE Ø 90/90 mm
and PE adaptor Ø 90/110 mm
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 9
made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC blocks
can be tiled directly
NEW ! ¢ Corner WC-block 78 cm high
only 78 cm high! for flush panels »Omega« von Geberit®
Art.-No. 1378.N 525.– €
extremely low
Height 78 cm, Depth 24 cm, Diagonal 44 cm
With dual volume flush technology and completely fitted for wall-
hanging WC:
¡ adjustable in 4-stages ¡ site protection caps
¡ with fastening material (for ¡ with metre indication line at 0.5 m
corner/for single–sided wall ¡ with WC connection pipes (90°-
fastening) bend made of PE Ø 90/90 mm
¡ with sound proof set and PE adaptor Ø 90/110 mm)
¡ Schallschutz-Prüfzeugnis ¡ with WC connection pipes Ø 90
¡ with height-adjustable feet mm
(up to 15 cm) ¡ with WC fastening set
¡ with assembly room cover below ¡ actuation from the front
¡ with moulded cistern (internal ¡ for flush panels »Omega«
part from Geberit®) incl. Cistern (Geberit®)
protection ¡ without flush panel
Sanitary blocks
Omega 20 Omega 30
¡ Note: When using the »Omega
60« flush panel, the cladding on
the block must be at least 24
34
0
mm thick!
31
0
240
340
440 240
485
Subject to technical modification and errors and omissions excepted. Valid 11/2019
485
Water connection at the front bottom left
Technical data Corner WC block
180 Adjustment range height: 0–150 mm
320*
Adjustment range wall: 0–20 mm
780
750
∅ 45
Dual volume flushing technology (can be adjusted)
∅ 90
Factory setting: 4/6 l
350
320
220
small flush volume: 3–4 l
OK FFB
large flush volume: 6l
DN90 Water connection: 1/2 " female thread
* up to the bottom edge of the button 120
Drain: 90°- bend made of
PE Ø 90/90 mm and PE adaptor Ø
90/110 mm
10 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC blocks
can be tiled directly
¢ Corner WC blocks 83 cm high for flush button Clas-
Construction height 83 cm sic 150 von Grumbach, flushing from above
Art.-No. 1307.N 655.– €
Height 83 cm, Depth 24 cm, Diagonal 44 cm
With dual volume flushing technology and
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ with WC connection pipes
¡ with fastening material (for Ø 90 mm
corner/for single–sided wall ¡ with WC fastening set
fastening) ¡ with WC connection pipes (90°-
¡ with sound proof set bend made of PE Ø 90/90 mm
¡ with height-adjustable feet and PE adaptor Ø 90/110 mm)
(up to 15 cm) ¡ actuation from above
¡ with assembly room cover below ¡ with flush button
¡ with moulded cistern (internal Classic 150 »Chrom«,
parts from Geberit®) incl. cistern flush button in matt chrome,
protection Rosette in shiny chrome
¡ site protection caps (Material: Aluminium)
¡ with metre indication line at 0.5 m
Sanitary blocks
80
80
34
0
240 340
240
Example of use: Corner WC-block 83 cm high,
clad with Grumbach decor panels in Pergamon,
440 485 see also page 14.
485 Water connection at the front bottom left
Subject to technical modification and errors and omissions excepted. Valid 11/2019
180
Technical data Corner WC block
Adjustment range height: 0–150 mm
830 Adjustment range wall: 0–20 mm
35 805 ∅ 45
Dual volume flushing technology (can be adjusted)
∅ 90 Factory setting: 4/6 l
320 350
220 small flush volume: 3–4 l
large flush volume: 6l
R1/2“ DN90 Water connection: 1/2 " female thread
125
Drain: 90°- bend made of PE Ø 90/90 mm
and PE adaptor Ø 90/110 mm
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 11 made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly

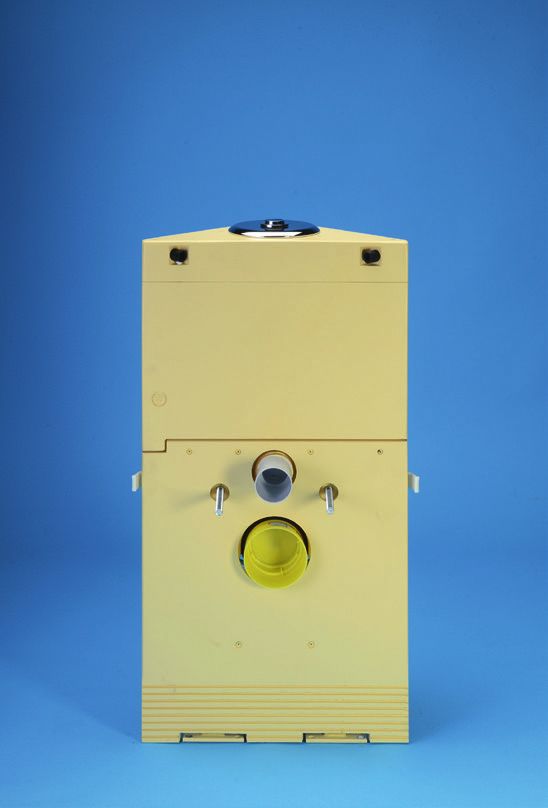

NEW ! ¢ Corner WC-block 74 cm high for flush button
only 74 cm high! Classic 150 von Grumbach, flushing from above
Art.-No. 1374 595.– €
extremely low
Height 74 cm, Depth 24 cm, Diagonal 44 cm
With dual volume flushing technology and
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ with metre indication line at 0.5 m
¡ with fastening material (for ¡ with WC connection pipes Ø 90
corner/for single–sided wall mm
fastening) ¡ with WC fastening set
¡ with sound proof set ¡ with WC connection pipes (90°-
¡ sound proofing certification bend made of PE Ø 90/90 mm
¡ with height-adjustable feet and PE adaptor Ø 90/110 mm)
(up to 15 cm) ¡ actuation from above
¡ with assembly room cover below ¡ with flush button
¡ with moulded cistern (internal Classic 150 »Chrome«,
part from Geberit®) incl. Cistern flush button in matt chrome,
protection Rosette in shiny chrome
¡ site protection caps (Material: Aluminium)
Sanitary blocks
32 0
5
31
240
340
Example of use WC-block 74 cm high, clad
240
with Grumbach decor panels in grey, see also
page 14.
440 485
485 water connection at the front bottom left.
Subject to technical modification and errors and omissions excepted. Valid 11/2019
Technical data Corner WC block
180 Adjustment range height: 0–150 mm
740
715
Adjustment range wall: 0–20 mm
35
Dual volume flushing technology (can be adjusted:
320
350
Factory setting: 4/6 l
220
small flush volume: 3–4 l
OK FFB large flush volume: 6l
DN90 Water connection: 1/2 " female thread
125 Drain: 90°- bend made of
PE Ø 90/90 mm and PE adaptor Ø
90/110 mm
12 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly special models
Special models for shower WCs
¢ Corner WC block 108 cm mit AquaClean-Set
Art.-No. 1306 630.– €
¡ Grumbach WC block 108 cm high (see page 5)
¡ Assembly room cover made of PUR with built-in electro-hollow space
socket and water connection bracket
¡ Geberit® ready-to-fit set (249.801.00.1 und 240.839.00.1)
¡ Fully equipped for use with the shower WC AquaClean 8000 Plus
(Geberit®)
¢ Corner WC block 108 cm* for shower WCs
Art.-No. 1306.I 740.– €
¡ Grumbach WC block 108 cm high (see page 5)
¡ Fully equipped for use with the following shower WCs:
¡ AquaClean Sela (Geberit®) ¡ 5001 Enjoy (Sanibel)
¡ Washlet™ SG (Toto) ¡ Axent.one (Axent)
Sanitary blocks
¢ Corner WC block 108 cm* for shower WC
SensoWash®
Art.-No. 1306.II 740.– €
¡ Grumbach WC block 108 cm high (see page 5)
¡ Fully equipped for use with the shower WC SensoWash® (Duravit)
¢ Corner WC block 108 cm* for shower WCs
Art.-No. 1306.III 740.– €
¡ Grumbach WC block 108 cm high (see page 5)
¡ Fully equipped for use with the following shower WCs
¡ AquaClean Mera Comfort ¡ AquaClean Tuma
(Geberit®) (Geberit®)
¢ *Mechanism for shower-WCs with all other ¡ Washlet™ GL 2.0 (Toto) ¡ Sensia Arena (Grohe)
Corner WC blocks and WC-blocks possible ¡ Washlet™ EK 2.0 (Toto) ¡ 3001 Family (Sanibel)
¡ Washlet™ RX (Toto) ¡ Diana (Sanitär Union)
Please mention the model when ordering. extra charge: 250.– €
¡ Washlet™ SX (Toto) ¡ Cleanet Riva (Laufen)
¡ V-Care Comfort (Vitra) ¡ Cleanet Navia (Laufen)
Subject to technical modification and errors and omissions excepted. Valid 11/2019
Special model for »Sigma 60«:
¢ Corner WC-block or. WC-block,
Model suitable for the flush panel
»Sigma 60« from Geberit®
Art.-No. 1391.S60, Extra charge 55.– €
¡ Mechanism for the flush panel »Sigma 60« from Geberit ®
¡ possible for all corner WC blocks und WC-blocks
¡ Please mention the model when ordering!
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 13 made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Corner WC block
can be tiled directly accessories
¢ High quality decorative panels for cladding of the
corner WC blocks from the front and above
Art.-No. 1902.N 470.– €
¡ Decor panels can save time- Please mention the colour when
consuming tiling. ordering and to which
¡ 11 mm thick corner WC block it should fit.
There are five colours to choose from.
Sanitary blocks
Black Grey White
Pergamon Mint
¢ Extra charge
for free-standing
lower frame
Art.-No. 1903 145.– €
¡ suitable for all Grumbach
Corner WC blocks
¡ for the positioning of a Corner
Subject to technical modification and errors and omissions excepted. Valid 11/2019
WC block free standing, without
wall fastening.
¡ drainage directed downwards
through the floor
¢ Extra charge for ¢ Extra charge for ¡ absolutely stable floor connection
special height 122 cm special lower frame required!
¡ Installed in the factory, please
Art.-No. 1392 110.– € Art.-No. 1905 35.– €
mention the model when ordering!
for the corner-WC-block With only one foot and fastening to
wall from the side, when space for a
drain from the side (right or left) is
required. Suitable for the Corner WC
blocks.
¡ Installed in the factory, please
mention the model when ordering!
14 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net The pre-wall mounting system for the 90°-corner in a ¢ Corner urinal blocks
room or for diagonal room designon straight walls.
Grumbach corner stones are available for WC, bidet,
urinal and washbasin in space-saving triangular format
¢ Electronic flush panels for ¢ Manual (pneumatic) fl ush panels
corner-urinal-block for corner-urinal-block
Typ 01 Typ 10 Typ 01 Typ 10
Typ 30 Typ 50 Typ 30 Typ 50
Mambo Mambo
Sanitary blocks
¢ Corner-urinal-block 122 cm ¢ Corner-urinal-block 108 cm high
Art.-No. 1330.N 405.– € Art.-No. 1331.N 405.– €
Height 122 cm, Diagonal 40 cm, Depth 22 cm Height 108 cm, Diagonal 40 cm, Depth 22 cm
¡ with fastening material (only for connecting in ¡ with actuation from above ,
a corner) otherwise like Art.-No. 1330.N.
¡ Compatible with the new urinal flush panels from
Geberit®, but without flush panel
¡ with built-in universal skeleton construction kit
from Geberit® 116.003.00.1 incl. flush pipe
¡ with equipment for the urinal
(Please mention model when ordering)
¡ 87° HT elbow DN 50 with pipe clamp (for
drainage)
¡ fastening material for the Urinal
¡ with height-adjustable feet cm (up to 15 cm)
31
* The dimensions for the water connection and
0
31
220 drain height , as well as the fastening boreho-
220
0
les for the urinal, will be prepared in the
factory for the urinal model mentioned in the
Subject to technical modification and errors and omissions excepted. Valid 11/2019
order.
400 400
* according to
* according to instructions
instructions
1220 1080
* according to instructions
* according to instructions
* according to instructions
* according to instructions
DN 50
* according to instructions
DN 50
* according to instructions
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 15¢ Corner washbasin block
¢ Corner-Bidet-block
Sanitary blocks
¢ Corner-HWB-block 122 cm high ¢ Corner-Bidet-block 108 cm high
Art.-No. 1320 300.– € Art.-No. 1341 290.– €
¢ Corner-HWB-block 108 cm high ¢ Corner-Bidet-block 98 cm high
Art.-No. 1321 295.– € Art.-No. 1342 295.– €
¢ Corner-HWB-block 98 cm high ¢ Corner-Bidet-block 83 cm high
Art.-No. 1322 305.– € Art.-No. 1344 285.– €
¢ Corner-HWB-block 83 cm high Diagonal 40 cm, Depth 22 cm
Art.-No. 1324 290.– €
¡ completely equipped out for wall hanging bidet
Diagonal 40 cm,Depth 22 cm ¡ with fastening material (for attachement in a
corner or on a side wall)
¡ with fastening material ¡ with connection set (2 connecting angles 1/2«
(for connecting in a corner) x 1/2« and elbows 50/50)
¡ with washstand accessory set ¡ with equipment for the bidet
¡ with height-adjustable feet cm (up to 15 cm) (Please mention the model when ordering)
¡ with assembly space cover below ¡ assembly space cover below
¡ Note: use of the bidet is only possible with
the back to the wall!
Subject to technical modification and errors and omissions excepted. Valid 11/2019
Dimensions Corner-Bidet-block
S
Art.Nr. H D T S
T
1341 1085 400 220 310
D 1342 985 400 220 310
The
suitable for all dimensions 1344 830 440 240 340
washhandbasins for the water
with a maximum
width of 40 cm
connection
and drain will
adjusted in
*83, 98, 108 the factory
or 122 cm to suit the
H bidet
mentioned in
the order.
180
320
16 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ WC-blocks slanted
can be tiled directly
¢ WC-block 110 cm high, slanted for flush p
anels
Construction height 110 cm
»Sigma 01/10/20/21/30/50« (Geberit ) ®
¢ with moulded ¢ without moulded
connection piece connection piece
made of PE pipe
Art.-No. 1601.N.A 610.– € Art.-No. 1601.N 500.– €
Height 110 cm, Width 50 cm, Height 110 cm, Width 50 cm,
Depth 15 cm Depth 15 cm
¡ with moulded connection piece ¡ designed for the corner, with
made of PE-pipe for the connec- room for downpipes behind the
tion of WC-block and downpipe element
DN 100, therefore can be con- ¡ without moulded connection
nected directly to downpipe piece
With dual volume flush technology and
completely fitted for wall-hanging WC:
¡ Fastening material ¡ Corner valve 1/2"
¡ with sound proof set ¡ with WC connection pipes 90°-
¡ with height-adjustable feet cm bend made of PE Ø 90/90 mm
(up to 15 cm) and PE adaptor Ø 90/110 mm
Sanitary blocks
¡ assembly space cover below ¡ with WC fastening set (threaded
¡ moulded cistern (internal parts bolts, nuts and caps)
from Geberit®) ¡ with WC connection set Ø 90 mm
incl. cistern protection ¡ with actuation from the front
¡ site protection caps without flush panel
¡ metre indication line
38
5
180
150
500
550
Subject to technical modification and errors and omissions excepted. Valid 11/2019
560*
180
1100
1080
375
342
340
240
* up to the bottom edge of the button Installation example: WC-block
110 cm, slanted; fastening in a
corner with downpipe
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 17 made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ WC-blocks
can be tiled directly
¢ WC-block 110 cm high for flush panels
only 12.5 or 15 cm deep !
»Sigma 01/10/20/21/30/50« (Geberit®)
Construction height 110 cm Art.-No. 1401.N 350.– € Art. 1401.N.125 355.– €
Height 110 cm, Width 50 cm, Height 110 cm, Width 50 cm,
Depth 15 cm Depth 12,5 cm
Art.-No. 1401.N.V 390.– € Art. 1401.N.V.125 395.– €
Height 110 cm, Width 55 cm, Height 110 cm, Width 55 cm,
Depth 15 cm Depth 12,5 cm
¡ as Art.-No. 1401.N, however as ¡ as Art.-No. 1401.N.125, howe-
reinforced version for installati- ver as reinforced version for
on in partitions installation in partitions
With dual volume flush technology and
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ with WC fastening set
¡ For screwing in front of the wall ¡ with WC connection pipes (90°-
or to be walled in (lateral mortar bend mad of PE Ø 90/90 mm
grooves) ¡ and PE adaptor Ø 90/110 mm
¡ with fastening material ¡ site protection caps
¡ with sound proof set ¡ actuation from the front
¡ metre indication line ¡ without flush panel
Sanitary blocks
¡ with height-adjustable feet ¡ with equipment for the installation
(up to 15 cm) of a GEBERIT® feeder duct for
¡ Corner valve 1/2" cleaning tablets
¡ U-shaped with assembly room ¡ equipment for shower WCs on re-
cover below quest and at extra cost possible
¡ moulded cistern
¡ with WC connection pipes Ø 90 mm
¢ Flush panels for Grumbach WC-blocks
Sigma 01 Sigma 10 Sigma 20/21 Sigma 30
500
150/125
440 Sigma 30 Sigma 50 Mambo
Start-Stop-flush
¢ Set connection supports (∅ 90 mm)
Subject to technical modification and errors and omissions excepted. Valid 11/2019
Art.-No. 1419.3 30.– € Art.-No. 1419.7 69.– €
for wall-hanging WC, 3 cm split- for wall-hanging WC, 7 cm split-
levelled, made of PP levelled, made of PP
560*
180 The staggered fittings, which lead to
1100
1050
Art.-No. 1419.5 24.– € the back of the connection supports
for wall-hanging WC, 5cm are optimal for drain connections in
split-levelled, made of PP renovations, if drains are already in
the walls.
375
340
240
* up to the bottom edge of the button
Art.-No. 1419.3 Art.-No. 1419.5 Art.-No. 1419.7
18 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ WC-blocks
can be tiled directly
¢ WC-block 100 cm high for flush panels
only 12.5 or 15 cm deep !
»Sigma 01/10/20/21/30/50« (Geberit®)
Construction height 100 cm ¢ WC-block 100 cm ¢ WC-block 100 cm
Art.-No. 1402.N 340.– € Art. 1402.N.125 345.– €
Height 100 cm, Width 50 cm, Height 100 cm, Width 50 cm,
Depth 15 cm Depth 12,5 cm
Art.-No. 1402.N.V 380.– € Art. 1402.N.V.125 385.– €
Height 100 cm, Width 55 cm, Height 100 cm, Width 55 cm,
Dept 15 cm Depth 12,5 cm
¡ as reinforced version for ¡ as reinforced version for
installation in partitions installation in partitions
With dual volume flush technology and
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ with WC connection pipes Ø 90 mm
¡ For screwing in front of the wall ¡ with WC fastening set
or to be walled in (lateral mortar ¡ with WC connection pipes (90°-
grooves) bend made of PE Ø 90/90 mm
¡ with fastening material and PE adaptor Ø 90/110 mm
¡ with sound proof set ¡ site protection caps
¡ metre indication line bei 0,5 m ¡ actuation from the front
Sanitary blocks
¡ with height-adjustable feet ¡ without flush panel
(up to 15 cm) ¡ with equipment for the installation
¡ Corner valve 1/2" of a GEBERIT® feeder duct for
¡ U-shaped with assembly room cleaning tablets
cover below ¡ equipment for shower WCs on re-
¡ moulded cistern quest and at extra cost possible
¢ Betätigungsplatten für Grumbach WC-Steine
Sigma 01 Sigma 10 Sigma 20/21 Sigma 30
500 Sigma 30 Sigma 50 Mambo
150/125
440 Start- Stop-Flush
Subject to technical modification and errors and omissions excepted. Valid 11/2019
460*
180
1000
950
375
340
240
* up to the bottom edge of the button
Grumbach WC blocks: assembly- Example: WC block 100cm high,
ready for installation and connec- clad with white decorative panels,
tion. flush panel »Sigma01«
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 19 made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ WC-blocks
can be tiled directly
flat
The ultra
¢ WC-block 8 cm flach –
Ultra flat – only 8 cm deep ! The new Grumbach half-wall installation cistern for
flush panels
Construction height 110 cm
»Sigma 01/10/20/21/30/50« (Geberit®)
Art.-No. 1400 325.– €
Height 110 cm, Width 50 cm, Depth 8/12,5 cm
With dual volume flush technology and
completely fitted for wall-hanging WC:
¡ with fastening material ¡ Corner valve 1/2«
¡ with sound proof set ¡ with WC fastening set (threaded
¡ with height-adjustable feet cm bolts, nuts, caps)
(up to 15 cm) ¡ with WC connection set Ø 90 mm
¡ U-shaped assembly space cover ¡ For screwing in front of the wall
below or to be walled in
¡ moulded cistern ¡ actuation from the front
¡ site protection caps ¡ with equipment for the installation
¡ with metre indication line of a GEBERIT® feeder duct for
¡ with WC connection pipes (90°- cleaning tablets
bend made of PE Ø 90/90 mm
Sanitary blocks
and PE adaptor Ø 90/110 mm)
¢ Flush panels for Grumbach WC-blocks
Sigma 01 Sigma 10 Sigma 20/21 Sigma 30
Sigma 30 Sigma 50 Mambo
Start-stop-flush
145 175 180
¢ Example of use »The Ultra flat«:
125
80
water connection 80
¡ When using the new Grumbach-
WC-block 8 cm flat (»The Ultra
Subject to technical modification and errors and omissions excepted. Valid 11/2019
flat«) it is possible to produce
very flat pre-wall installations and
still be able to flush from the front
using the familiar flush buttons
560
from Geberit®.
¡ No matter whether it is on a solid
1100
1015
wall or a partition, it is possible to
create a design-oriented »unique
object assembly« with a minimal
cut-out.
¡ Installation elements for WT,
375
340
240
bidet and urinal are also available
for the new Grumbach-WC-block
8 cm flat.
20 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ WC-blocks
can be tiled directly
NEW ! ¢ WC-block 83 cm high
Construction height 83 cm for flush panels »Omega« from Geberit®,
actuation from the front or from above
Art.-No. 1404.III 435.– €
Height 83 cm, Width 50 cm, Depth 15 cm
With dual volume flush technology and
completely fitted for wall-hanging WC:
¡ adjustable in 4-stages ¡ with WC fastening set
¡ For screwing in front of the wall or ¡ with WC connection pipes
to be walled in (seitl. Mörtelnuten) (90°- bend made of PE Ø 90/90 mm
¡ with fastening material and PE adaptor Ø 90/110 mm))
¡ with sound proof set ¡ site protection caps
¡ with metre indication line bei 0,5 ¡ actuation from the front or from
m above
¡ with height-adjustable feet ¡ without flush panel
(up to 15 cm) ¡ equipment for shower WCs on
¡ U-shaped with assembly room request and at extra cost possible
cover below ¡ for flush panels »Omega« from
¡ moulded cistern Geberit®
¡ Flush volume max. 6 litres
Sanitary blocks
¡ Corner valve 1/2"
¡ with WC connection pipes Ø 90 mm
Omega 20 Omega 30
¡ Note: When using the »Omega 60« flush panel, the cladding on the block
must be at least 24 mm thick! and at least 28 mm when actuation from above.
500
440 150
Subject to technical modification and errors and omissions excepted. Valid 11/2019
340*
180
830
790
375
340
240
OK FFB
* up to the bottom edge
of the button
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 21 made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ WC-blocks
can be tiled directly
NEW ! ¢ WC block 78 cm high
only 78 cm high! for flush panels »Omega« from Geberit®,
actuation from the front or from above
Art.-No. 1478.N 415.– €
Height 78 cm, Width 50 cm, Depth 15 cm
Ideally suited for particularly low construction height requirements
such as e.g. roof slopes, window sills or integration under washing
area coverings!
With dual amount flushing technology and fully equipped for wall-
hanging WC:
¡ adjustable in 4-stages ¡ with WC connection pipes
¡ For screwing in front of the wall Ø 90 mm
or to be walled in (lateral mortar ¡ with WC fastening set
grooves) ¡ with WC connection pipes
¡ with fastening material (90°- bend made of PE Ø 90/90
¡ with sound proof set mm and PE adaptor Ø 90/110
¡ with metre indication line bei mm))
Sanitary blocks
0.5 m ¡ site protection caps
¡ with height-adjustable feet ¡ actuation from the front or from
(up to 15 cm) above
¡ U-shaped with assembly room ¡ without flush panel
cover below ¡ Mechanism for shower WCs
¡ moulded cistern on request and at extra cost
¡ Flush volume max. 6 litres possible
¡ Corner valve 1/2"
500
440 150
Omega 20 Omega 30
Subject to technical modification and errors and omissions excepted. Valid 11/2019
300*
180 ¡ Note: When using the »Omega 60« flush panel, the cladding on the block
must be at least 24 mm thick! and at least 28 mm when actuation from above.
780
740
375
340
240
OK FFB
* up to the bottom
edge of the button
22 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net¢ Accessories for WC-blocks
¢ Extra cost for free ¢ Extra cost for
standing lower frame special height 122 cm
for WC blocks Art.-No. 1492 85.– €
Sanitary blocks
Art.-No. 1904 235.– € ¡ for the WC-block
¡ suitable for all Grumbach WC-
blocks
¡ for the positioning of a WC block
free standing, without fastening
to a wall.
¡ Drainage directed downwards
through the floor
¡ absolutely stable floor connec-
tion required!
¡ installed in the factory, please
¢ High-quality decor full cladding for WC blocks mention the WC-block model
Art.-No. 1902.U 615.– € when ordering!
¡ Suitable for the WC blocks ¡ Please mention WC-block and
165
¡ Available in five colours colour when ordering
There are five colours to choose from.
Subject to technical modification and errors and omissions excepted. Valid 11/2019
1100
910
Black Grey White
400
210
375
Pergamon Mint
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 23 made of PUR, heat-insulated and CFC-free
condensation proof and low noise
¢ Grumbach blocks
can be tiled directly
¢ Washstand block ¢ Urinal block ¢ Bidet-block
Width 43.5 cm, Depth 15 cm, Width 43.5 cm, Depth 15 cm,
can be reduced to 12.5 cm can be reduced to 12.5 cm
¢ Washstand block 122 cm high ¢ Urinal block 122 cm high ¢ Bidet-block 122 cm high
Art.-No. 1420 185.– € Art.-No. 1430.G 320.– € Art.-No. 1440 205.– €
Sanitary blocks
¢ Washstand block 110 cm high ¡ with actuation from the front Width 43.5 cm, ¢ Bidet-block 110 cm high
Art.-No. 1421 180.– € Depth 15 cm, Art.-No. 1441 200.– €
can be reduced to 12.5 cm
¢ Washstand block 100 cm high ¢ Bidet-block 100 cm high
Art.-No. 1422 175.– € ¢ Urinal block 110 cm high Art.-No. 1442 195.– €
Art.-No. 1431.G 300.– €
¢ Washstand block 83 cm high ¢ Bidet-block 83 cm high
Art.-No. 1424 170.– € ¡ with actuation from above Art.-No. 1444 190.– €
Width 43.5 cm, Depth 15 cm
¡ For screwing in front of the wall or to be ¡ For screwing in front of the wall or to be ¡ For screwing in front of the wall or to be
walled in walled in or for installation in supporting walls walled in
¡ fastening material (screws and plugs) ¡ fastening material (screws + plugs) ¡ fastening material (screws + plugs)
¡ with WT-fastening set ¡ fastening material (two grubscrews with nuts) ¡ fastening material (threaded bolt, nuts, caps)
¡ with siphon-connection bend ¡ with equipment for the urinal (please supply ¡ with equipment for the bidet
¡ rear side hollow for simple plumbing model name) (please supply model name)
¡ with height-adjustable feet (up to 15 cm) ¡ with built-in universal skeleton set from Gebe- ¡ connecting equipment (Bend DN 50)
¡ assembly space cover below rit®, suitable for the flush panels ¡ rear side hollow for simple pipe installation
¡ adjusting mechanism ¡ without flush panel ¡ with height-adjustable feet (up to 15 cm)
¡ Also available as a reinforced version for instal- ¡ with height-adjustable feet (up to 15 cm) ¡ assembly space cover below
Subject to technical modification and errors and omissions excepted. Valid 11/2019
lation in supporting walls at extra cost. ¡ assembly space cover below ¡ adjusting mechanism
¡ adjusting mechanism ¡ also available at an extra charge as a rein-
forced version for installation on partitions
can be can be shortened can be shortened
to 125 mm to 125 mm
shortened * The dimensions
to 125 mm
* The dimensions for the water
for the water connection and
connection and drain will adjusted
in the factory to
drain will adjusted
suit the bidet
(variable height)
in the factory to mentioned in
suit the bidet the order.
mentioned in
the order.
* 83, 100, 110 or 122 cm high ** 83,100, 110 or 122 cm
24 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net One System – four installation possibilities: For pre-wall or
concealed installation, each in solid or light construction.
¢ Grumbach blocks
Grumbach blocks are available for WC, bidet, urinal, wash-
stand and battery in the space-saving quadratic format.
Adjusting mechanism
¢ Battery block ¢ Empty block
¡ can be used as bathtub or shower block ¡ For filling the gaps or for combinations
¡ for screwing into the wall, to be walled-in (see page 26)
or suitable for installation in supporting walls ¡ fastening material (2 screws+2 plugs)
¡ fastening material (screws + plugs) ¡ with adjustable foot
¡ rear side hollow for simple pipe installation ¡ assembly space cover below
Sanitary blocks
¡ when using a concealed bath battery, ¡ adjusting mechanism
please mention which type
¡ with height-adjustable feet cm)(up to 15 cm)) ¢ Empty block 122 cm high
¡ assembly space cover below Art.-No. 1460 81.– €
¡ adjusting mechanism
¡ When using pre-wall bath battery please Width 43.5 cm
supply the requested construction height
of the FFB. ¢ Empty block 110 cm high
Art.-No. 1461 79.– € Grumbach empty blocks are available in four heights
¢ Mixer block 122 cm high 122 cm
Art.-No. 1450 185.– € Width 43.5 cm
110 cm
¢ Mixer block 110 cm high ¢ Empty block 100 cm high 100 cm
Art.-No. 1451 180.– € Art.-No. 1462 77.– €
83 cm
¢ Mixer block 100 cm high Width 43.5 cm
Art.-No. 1452 175.– €
¢ Empty block 83 cm high
¢ Mixer block 83 cm high Art.-No. 1464 75.– €
Art.-No. 1454 170.– €
Width 43,5 cm
Subject to technical modification and errors and omissions excepted. Valid 11/2019
Width 43.5 cm, Depth 15 cm, Width 43.5 cm,
can be reduced to 12.5 cm (special width on request possible),
Depth 15 cm, can be reduced to 12.5 cm
Double and single feet for fastening
of the mounting room cover.
can be shortened
to 125 mm
* 83, 100, 110 or 122 cm
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 25¢ Grumbach Combinations and
accessories
»Together we are strong«- The Grumbach
combinations.
All Grumbach Corner blocks and blocks can be combined with one another. This
allows complete, very stable, tile ready pre-wall installations to be constructed.
19 cm 43,5 cm 19 cm 50 cm 18,5 cm
Sanitary blocks
¢ Extra costs per con-
¢ Example for a block combination nection
block-combination 844.– € Art.-No. 1900 39.– €
Height 110 cm, Width 150 cm, Depth 15 cm Connection of 2 elements with PUR
adhesive.
Subject to technical modification and errors and omissions excepted. Valid 11/2019
¡ complete and bound together in the factory with dual component adhesive Only for combinations.
¡ with surface ready to tile
¡ without plumbing
¡ In the order empty block/washstand block/empty block/WC blocks/empty block
Single piece Art.-No. Amount E-Price G-Price
1x Washstand block 110 cm high 1421 1 180,– 180,–
2x Empty block 110 cm high, 43.5 cm 1461 2 79,– 158,–
Width*
1x WC-block 110 cm high 1401.N 1 350,– 350,–
4x joining parts (dual component adhesive) 1900 4 39,– 156,–
Total without VAT. in Euro 844,–
* split into three pieces: 19-19-18.5 cm
Conclusion: Extra costs only occur through gluing (connection points), see
example above.
26 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net¢ Grumbach Combinations and
accessories
¢ Example-combinations
435 190 435 190 500 190
2 1 3 1 4 1 150
Example 1: Block combination
consisting of:
Washstand block (2), bidet block (3), WC block (4) and empty block (1)
Height 122, 110, 100 or 83 cm.
Sanitary blocks
The elements are connected into one unit in the factory.
280 190 435 150 500 160
150
¢ WC-complete element made of PUR
118 cm high, barrier-free
Example 2: Corner block/ block combination
on request
Subject to technical modification and errors and omissions excepted. Valid 11/2019
consisting of:
Corner urinal block, Washstand block, WC block and three empty blocks Height 118 cm, Depth 15 cm, Width: insert required dimension
Height 110 cm.
The elements are connected into one unit in the factory. ¡ The new Grumbach WC complete element for barrier-free use is a comple-
te support element made of PUR for the simple installation of a barrier-free
WC unit.
¡ The element has foldable support handles and is designed for the higher
WC seat.
There are also special pre-wall elements which are ready to tile, e.g. ¡ The WC flush can be equipped with the usual remote activators (foot activa-
“barrier-free” with extra-strengthened rails and similar equipment tion, hand activation in the support handle etc.)
available (see right, for example). ¡ A system for the washstand is also available.
Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.net 27¢ Examples for Grumbach corner elements
Grumbach Sanitary blocks as single elements
Example 1: C orner WC-block
108/98/83 cm
Corner WC block for the 90°corner in a
room
Height 108 oder 98 cm.
Water connection below from
the left
Example 2: C orner WC-block
340 88/83/78 cm
240 Corner WC-block for the 90°corner in a
room
485 Height 88, 83 oder 78 cm.
Water connection below from
the left
Example 5: Corner block for urinal, WC and HWB
Corner block for urinal, WC and HWB for space
saving bathroom solutions (for example as guest-WC)
Example 3: C orner WC-block
Sanitary blocks
(for all models)
Corner WC-block for the 90°corner in a
room with downpipe DN 100
550
Fastening only possible one Example 6: W C-block 110 cm
side and the floor.
slanted
WC-block 110 cm, slanted with
fastener in a corner with downpipe
120 DN 100.
800
440
Example 7: Quadratic pillar,
Example 4: Corner WC-block (for all models) free-standing
Corner WC block, shown here withonly one-sided fas- Corner WC-block (with free-standing
tening, as a solution and fitting element for problem support frame), corner urinal block,
cases with for example hose bathrooms corner bidet block (with free-standing
Subject to technical modification and errors and omissions excepted. Valid 11/2019
support frame), corner HWB- block,
Height 108 cm or 122 cm,
The corner blocks are attached to a
pillar in the factory. Please mention
when ordering.
310 310
Example 8: C ombination of Cor-
ner WC-block and
Corner-bidet-block
Height 108 or 98 cm.
The elements are connected in
the factory. Please mention when
ordering.
28 Karl Grumbach GmbH & Co. KG · Breitteilsweg 3 · 35581 Wetzlar · Telephone +49 (0) 64 41 97 72-0 · Telefax +49 (0) 64 41 97 72-20 · www.grumbach.netYou can also read
