Developing Social Mobile Learning
Application
on Android Platform
Seno Adi Putra
Amelia Kurniawati
Adityas Widjajarto
Kartiko Edhi Widodo
Telkom University
Information System Study Program
Industrial Engineering Study Program
Evolution of
Smartphone
The evolution of smart phone and social
media encourages mobile learning
application transformation towards mobile
social learning
Evolution of
Smartphone
Mobile technology user has increased three
times in 2008 and it is projected to reach 89
million in 2008, and 100 million in 2012. In
2015, China, India, and Indonesia will have
the most mobile learning user after USA.
Today, smartphone has various platforms,
such as Java Android, Symbian, Bada, iOS,
and Windows Phone.
Evolution of
Smartphone
Android becomes the leader of smartphone
in the world today. In Indonesia Android has
52% market share in second quarter.
Learning
Paradigm
Learning concept which is currently teacher
centric has been shifted to the new
paradigm in which learners can participate
in developing learning process and content.
Learning Content Generations
Learners Communication
Social Mobile
Learning
Social Mobile Learning = e-Learning 2.0
The Key Feature
Collaboration Information
Content
Integration
Sharing
Social Mobile
Learning
• In many years, learning model which is
used is face to face in class, with one way
conversation from the teacher to
student.
• Most e-Learning today just automates
that process.
• The difference is only that in e-Learning,
the teacher and student do not need to
stay in the same place at the same time.Social Mobile
Learning
Cross (2003) stated that learning process
often happen in informal situation, such as
observation on someone else, asking to
peer, calling help desk, trial and error, or
cooperate with someone else in
understanding the material.Social Software
Approach
Social software approach gives several
advantages for online learning in compared
with traditional approach.
Besides, this approach represents the shift
Natural Characteristic of Learning
of learning management system model to be
more social, personal, open, and dynamic.
Social Personal
Distirbuted Flexible
Dynamic ComplexSocial Network
Collaboration
Social network collaboration creates online
communities and mobility to be favorable
delivery channel, not only to improve return
on investment, but also to expand the global
coverage and improve operational efficiency
of workers in company or institutionE-Learning 2.0
Social software implementation inspires
development of new e-Learning generation,
called e-Learning 2.0, featuring:
Learning is about
generating course
Social or collaborative Aggregating (RSS) and
contents and Knowledge sharing
learning Environment tagging
communicating with
people.
Collective intelligence Network usage with
Personalization
(wisdom of the crowd) various technology.Research
Objective
The research objective is defined as learning
management system enhancement
featuring mobile social learning based on
Android technology and Java Technology.Research
Methodology
This research uses ADDIE instructional
design model. As mentioned from its name,
ADDIE defines five steps, those are analysis,
design, development, implementation, and
evaluation.Research Methodology
M-Learning 2.0 • Mobile learning design refers to National E-Learning eXchange Technology (NEXT) • The concept is about a mechanism to learn from various sources, not just focused on reference given by teachers. This mechanism is called multisourcing concept. • The NEXT is in line with e-University concept
Usecase
E-university University
Administrator Administrator Diagram
Learning management system
Study application has four actors such
Program Lecturers as e-university administrator,
Administrator university administrator, study
program administrator,
lecturers, and students.
Students On the other hand, mobile
learning application has
students and lecturers as the
only actor.Usecase
l earni ng m anagem ent system
Diagram
m anagem ent user
adm i n e-uni versi ty E-University administrator is
approval request anggota group uni versi tas
the highest role in system
adm i n perguruan ti nggi
which is designed to manage
approval request anggota group prodi
user list in the system such as
changing role users, making a
adm i n program studi
upl oad konten
new user, and determining
upl oad l ati han soal university administrator.
dosen
eval uasi hasi l uj i an
eval uasi buti r soalUsecase
Diagram
To initiate learning process, the
Mobi l e Learni ng
bergabung kedal am group perguruan ti nggi
students should join in
mel i hat konten
university group then join in
study program. The students
berdi skusi dal am konten
bergabung kedal am group program studi
mel i hat hasi l uj i an
could view the multimedia
mahasi swa
content, discuss in the
mengerj akan uj i an
mel i hat hi stori hasi l uj i an multimedia contents uploaded
by themselves, other students,
pembahasan soal uj i an
mel i hat top score
or lecturers. Students also can
do on-line quiz and exam.System
Architecture
Architecture of mobile learning
Server
komputer PC Presentation Tier
system implements multitier
Business Tier
architecture by separating
Glassfish 3.0
File Server
Glassfish 3.0
system into four main tiers that
are service tier, presentation
Apache Web Server
tier, business logic tier, and
data tier.
Service Tier
Android Smartphone SQL Server 2008 Enterprise Edition
Glassfish 3.0
Mobile LerningSequence
Diagram
User
University
- username : String
- password : String * - universityName : String 1 Departement
- name : String - address : String
1 * - departementName : int
- photo : String - description : String
- registrationDate : Date - cateogry : String
- identityNumber : String - linkPhoto : String 1
- email : String - city : String
- telpNumber : String
- address : String *
AdminUniversity - Attribute_10 : String Courses
+ join () : boolean
1 Konten - courseName : String
+ uploadContent () : boolean *
+ approveMemberUniversity () : boolean
+ uploadQuestion () : boolean * - title : String
1 - description : String 1
- type : String
1
Lecturer
AdminEUniversity AdminDepartement
+ uploadContent () : boolean
+ uploadQuestion () : boolean + approveMemberDepartement () : boolean
*
* Question
- question : String
- answer : StringSystem Class
Sequence Di agram Iterasi Keti ga
Interaction
Cl i ent - Androi d Smartphone Servi ce-ti er Busi ness-ti er
:DepartementLi stActi vi ty Network:Androi dServi ce :control l er :i nterfaceServi ce :Servi ceHel per :i nterfaceBean :i mpl ementServi ce :DatabaseAkses :database
mahasi swa5
onCreate()
uses permi ssi on
servi ce excepti on HT T P GET j oi nProdi
getServi ce()
context.l ookup("name")
@remote
j oi n group program studi
executeUpdateQuery(sql )query j oi n group
JSON resul t regi strati on veri fi cati on
JSONParsi ng
wai ti ng for approval
uses permi ssi on
HT T P Get Leave Group
servi ce excepti on
getServi ce()
context.l ookup("name")
@remote
l eave group prodi
executeUpdateQuery(sql )
query l eave group
message l eave group
JSONResul t
JSONParsi ng
l eave prodiSystem
Deployment
Specification For Server : Specification For Mobile Learning
• Processor Intel Xeon CPU E3-1230 Application :
V2 3.30 GHz (*CPUs) ~3.3GHz • Android 4.0 Ice Cream Sandwich
• Harddisk Drive 1TB • 1GHz Processor (ARM Cotex-A8)
• OS : Windows Server 2008 • 1GB RAM
Enterprise R1 x64 Edition • 7 inch TFT LED (1024 × 600)
• RAM 16 GB Capacitive Multitouch Screen
• Internal Storage 4GB Nand Flash
• Wifi 802.11b/g/n
• Bluetooth 2.1

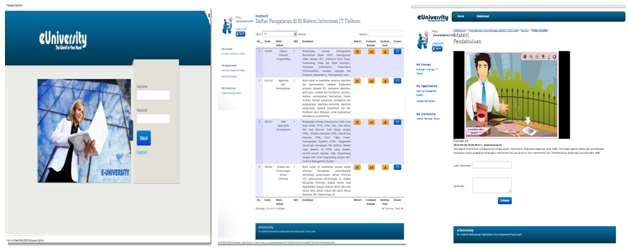

• Adobe Flash Player ver 10.3System Deployment
System Deployment
System Testing
System Testing
The implementation of both multitier User access is defined on local
and single-tier services is designed on user. Local user accesses
campus intranet. application service on LAN media
For this time, campus intranet is built on without proxy server. Local user
both copper cable and fiber optic. accessed both single-tier and
On an intranet segment, measurement of multitier application model. The
experiment resulted average of intranet number of user is modeled 1000
speed is 25 ms, in peak time. It uses 25 users (most number). It
ms as average network time. simultaneously accessed
application services.Conclusion There are two applications that are built Further research should be conducted in this research, learning management to develop more powerful system such system and mobile learning. as code refactoring, architecture Java Enterprise Edition technology is enhancement, and additional features implemented on Learning management development such as personal space system, whereas Java Android on mobile (RSS Feed, e-Portfolio, and personal device. blog), and collaboration or A social learning is implemented by communication space (course blog, featuring university grouping, study course wiki, bookmarking, messaging, program grouping, and discussion or content sharing, podcasting, social collaboration among users in developing network, mobile conference, and learning contents. mashup).
